DAIKIN ROOM AIR CONDITIONER
Operation Manual
Türkçe
MODELS FTXS20D(A)VMW(L) FTKS20D(A)VMW(L)
FTXS25D(A)VMW(L) FTKS25D(A)VMW(L)
FTXS35D(A)VMW(L) FTKS35D(A)VMW(L)
FTXS20D2(3)VMW(L) FTKS20D2(3)VMW(L)
FTXS25D2(3)VMW(L) FTKS25D2(3)VMW(L)
FTXS35D2(3)VMW(L) FTKS35D2(3)VMW(L)
CTXS50D(2)VMW(L) CTKS50D(2)VMW(L)
FTXS50D2V1W(L) FTKS50D2V1W(L)
FTXS20DVMW7
FTXS25DVMW7
FTXS35DVMW7
FTXS50DV1W7
00_CV_3P212420-2.fm Page 1 Wednesday, August 8, 2007 1:50 PM

1
CONTENTS
READ BEFORE OPERATION
Safety precautions ......................................... 2
Names of parts............................................... 4
Preparation Before Operation ........................ 7
OPERATION
AUTO · DRY · COOL · HEAT · FAN
Operation ..................................................... 10
Adjusting the Airflow Direction ..................... 12
POWERFUL Operation ................................ 14
OUTDOOR UNIT QUIET Operation............. 15
ECONO Operation ....................................... 16
INTELLIGENT EYE Operation ..................... 17
TIMER Operation ......................................... 19
Note for Multi System................................... 21
CARE
Care and Cleaning ....................................... 23
TROUBLE SHOOTING
Trouble Shooting.......................................... 26
01_EN_3P212420-2.fm Page 1 Monday, July 30, 2007 1:59 PM

2
READ BEFORE OPERATION
Safety precautions
•
Keep this manual where the operator can easily find them.
•
Read this manual attentively before starting up the unit.
•
For safety reason the operator must read the following cautions carefully.
•
This manual classifies precautions into WARNING and CAUTION. Be sure to follow all precautions below: they are all
important for ensuring safety.
WARNING
•
In order to avoid fire, explosion or injury, do not operate the unit when harmful, among which flammable or
corrosive gases, are detected near the unit.
•
It is not good for health to expose your body to the air flow for a long time.
•
Do not put a finger, a rod or other objects into the air outlet or inlet. As the fan is rotating at a high speed, it will
cause injury.
•
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric
shocks, fire etc.
For repairs and reinstallation, consult your Daikin dealer for advice and information.
•
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for
some reason any refrigerant happens to leak into the room, make sure it does not come in
contact with any flame as of gas heaters, kerosene heaters or gas range.
•
If the air conditioner is not cooling (heating) properly, the refrigerant may be leaking, so call your dealer.
When carrying out repairs accompanying adding refrigerant, check the content of the repairs with our service staff.
•
Do not attempt to install the air conditioner by your self. Incorrect work will result in water leakage, electric shocks or
fire. For installation, consult the dealer or a qualified technician.
•
In order to avoid electric shock, fire or injury, if you detect any abnormally such as smell of fire, stop the operation and
turn off the breaker. And call your dealer for instructions.
•
Depending on the environment, an earth leakage breaker must be installed. Lack of an earth leakage breaker may
result in electric shocks or fire.
•
The air conditioner must be earthed. Incomplete earthing may result in electric shocks. Do not connect the
earth line to a gas pipe, water pipe, lightning rod, or a telephone earth line.
CAUTION
•
In order to avoid any quality deterioration, do not use the unit for cooling precision instruments, food, plants,
animals or works of art.
•
Never expose little children, plants or animals directly to the air flow.
•
Do not place appliances which produce open fire in places exposed to the air flow from the unit or under the
indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat.
WARNING
If you do not follow these instructions exactly, the unit may
cause property damage, personal injury or loss of life.
CAUTION
If you do not follow these instructions exactly, the unit may
cause minor or moderate property damage or personal injury.
Never do. Be sure to follow the instructions.
Be sure to earth the air conditioner. Never cause the air conditioner (including the remote
controller) to get wet.
Never touch the air conditioner (including the remote
controller) with a wet hand.
01_EN_3P212420-2.fm Page 2 Monday, July 30, 2007 1:59 PM

3
•
Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble.
•
Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard.
•
Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions,
moisture in the air may condense and drip.
•
After a long use, check the unit stand and fittings for damage.
•
Do not touch the air inlet and aluminum fins of outdoor unit. It may cause injury.
•
The appliance is not intended for use by young children or infirm persons without supervision.
•
Young children should be supervised to ensure that they do not play with the appliance.
•
To avoid oxygen deficiency, ventilate the room sufficiently if equipment with burner is used together with the
air conditioner.
•
Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord.
•
Do not connect the air conditioner to a power supply different from the one as specified. It may cause trou-
ble or fire.
•
Arrange the drain hose to ensure smooth drainage. Incomplete draining may cause wetting of the building, furniture
etc.
•
Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around
the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals can cause malfunc-
tions, smoke or fire when making contact with electrical parts.
•
Do not operate the air conditioner with wet hands.
•
Do not wash the indoor unit with excessive water, only use a slightly wet cloth.
•
Do not place things such as vessels containing water or anything else on top of the unit. Water may pene-
trate into the unit and degrade electrical insulations, resulting in an electric shock.
■
To install the air conditioner in the following types of environments, consult the dealer.
•
Places with an oily ambient or where steam or soot occurs.
•
Salty environment such as coastal areas.
•
Places where sulfide gas occurs such as hot springs.
•
Places where snow may block the outdoor unit.
The drain from the outdoor unit must be discharged to a place of good drainage.
■For installation, choose a place as described below.
•
A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.
• A place from where the air discharged from the outdoor unit or the operation noise will not annoy
your neighbours
.
•
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
•
Relocating the air conditioner requires specialized knowledge and skills. Please consult the dealer if reloca-
tion is necessary for moving or remodeling.
Installation site.
Consider nuisance to your neighbours from noises.
Electrical work.
System relocation.
01_EN_3P212420-2.fm Page 3 Monday, July 30, 2007 1:59 PM

4

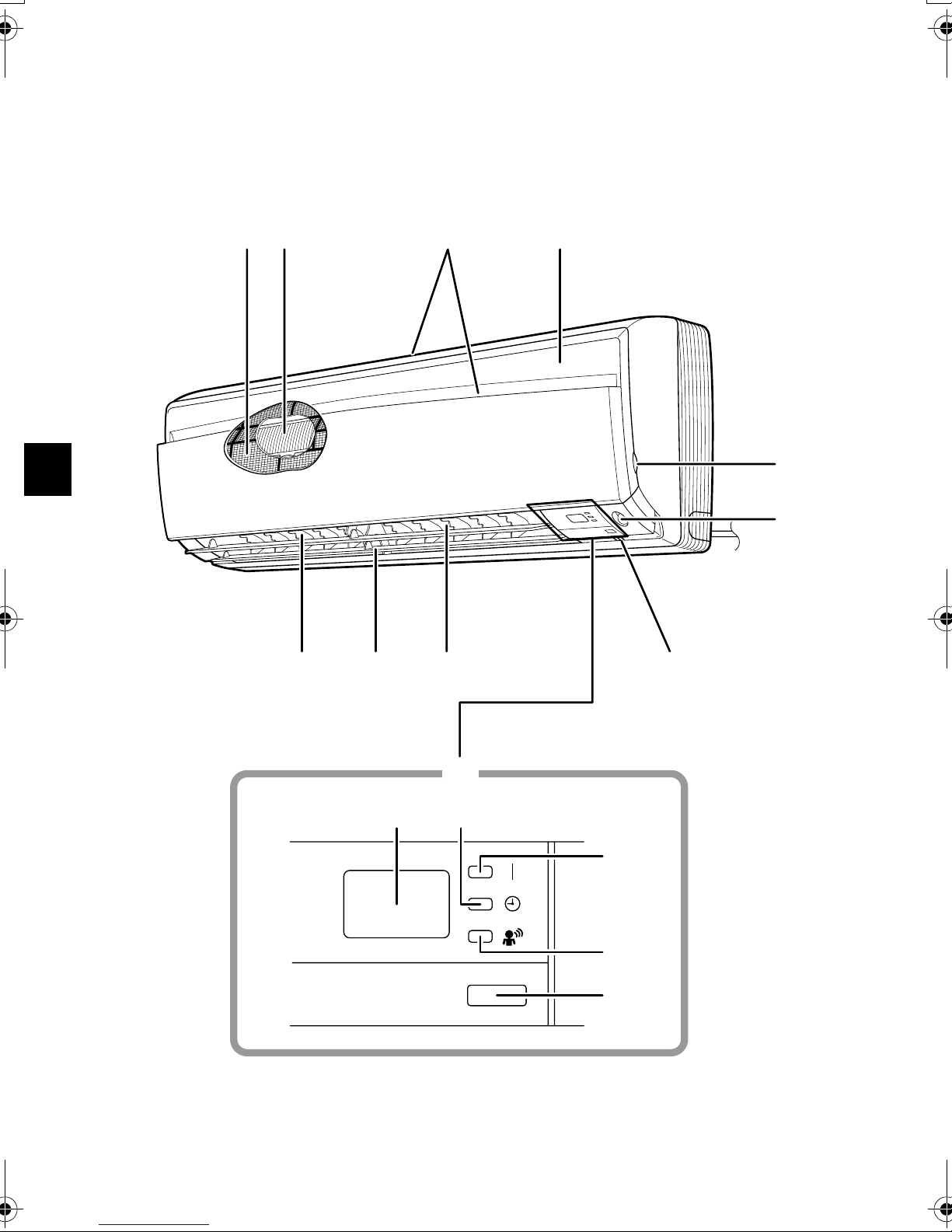

Names of parts
■Indoor Unit
ON/OFF
16 14
13
15
12
134
5
7
91011
8
6
2
01_EN_3P212420-2.fm Page 4 Monday, July 30, 2007 1:59 PM

5
■Outdoor Unit
■
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
•
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. INTELLIGENT EYE sensor:
•
It detects the movements of people and auto-
matically switches between normal operation
and energy saving operation. (page 17.)
8. Display
9. Air outlet
10. Horizontal blades (flaps): (page 12.)
11. Vertical blades (louvers):
• The louvers are inside of the air outlet.
(page 12.)
12. Indoor Unit ON/OFF switch: (page 10.)
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refers to the following
table.
•
This switch is useful when the remote controller
is missing.
13. Operation lamp (green)
14. TIMER lamp (yellow): (page 19.)
15. INTELLIGENT EYE lamp (green): (page 17.)
16. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep
■
Outdoor Unit
17. Air inlet: (Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
19
20
21
18
17
Mode Temperature
setting
Airflow
rate
F(C)TKS COOL 22°CAUTO
F(C)TXS AUTO 25°CAUTO
01_EN_3P212420-2.fm Page 5 Monday, July 30, 2007 1:59 PM

6

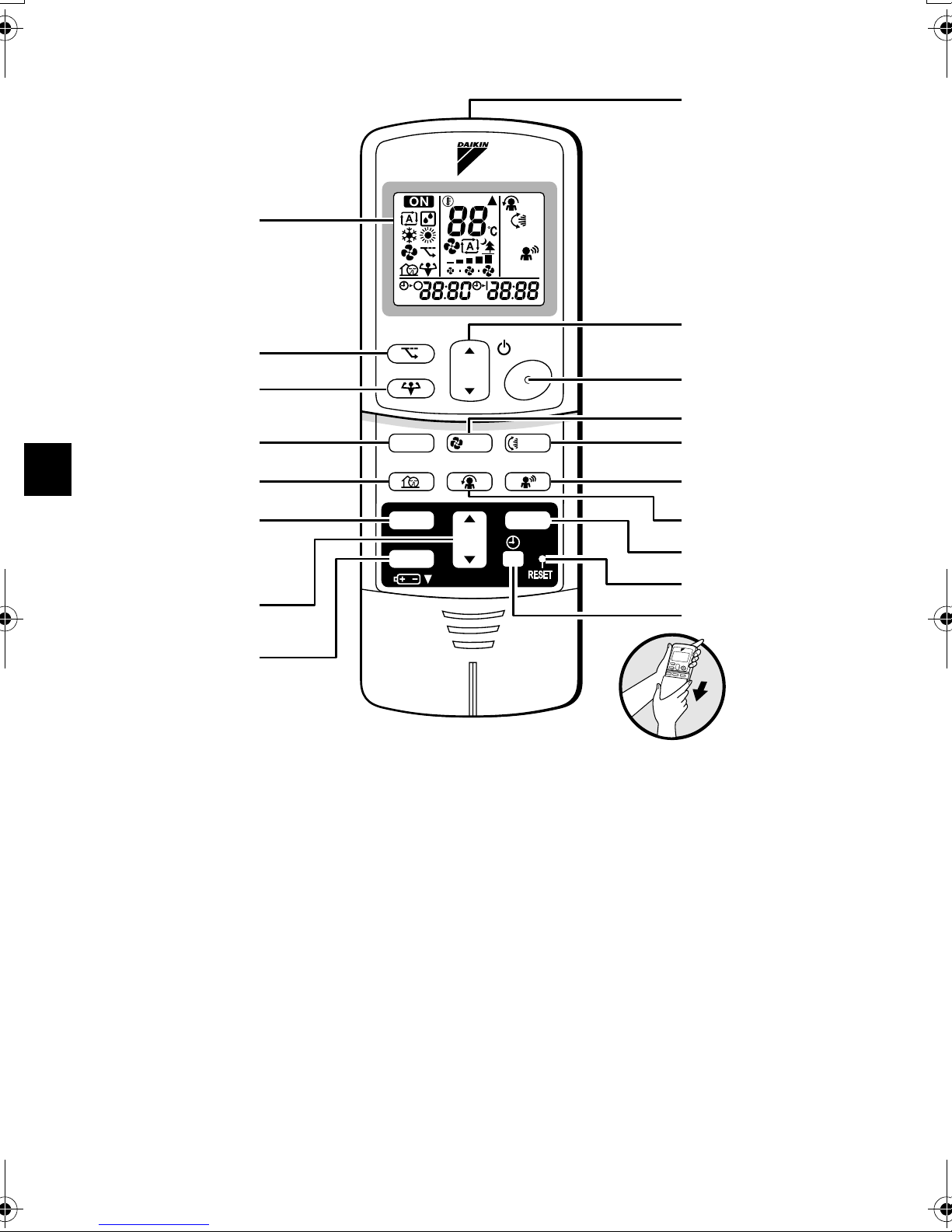

■Remote Controller
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. ECONO button:
ECONO operation (page 16.)
4. POWERFUL button:
POWERFUL operation (page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. QUIET button: OUTDOOR UNIT QUIET
operation (page 15.)
9. FAN setting button:
• It selects the airflow rate setting.
10. SWING button:
• Ajusting the Airflow Direction. (page 12.)
11. COMFORT AIRFLOW button: COMFORT
AIRFLOW operation (page 13.)
12.
SENSOR button: INTELLIGENT EYE operation (page 17.)
13. ON TIMER button: (page 20.)
14. OFF TIMER button: (page 19.)
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.

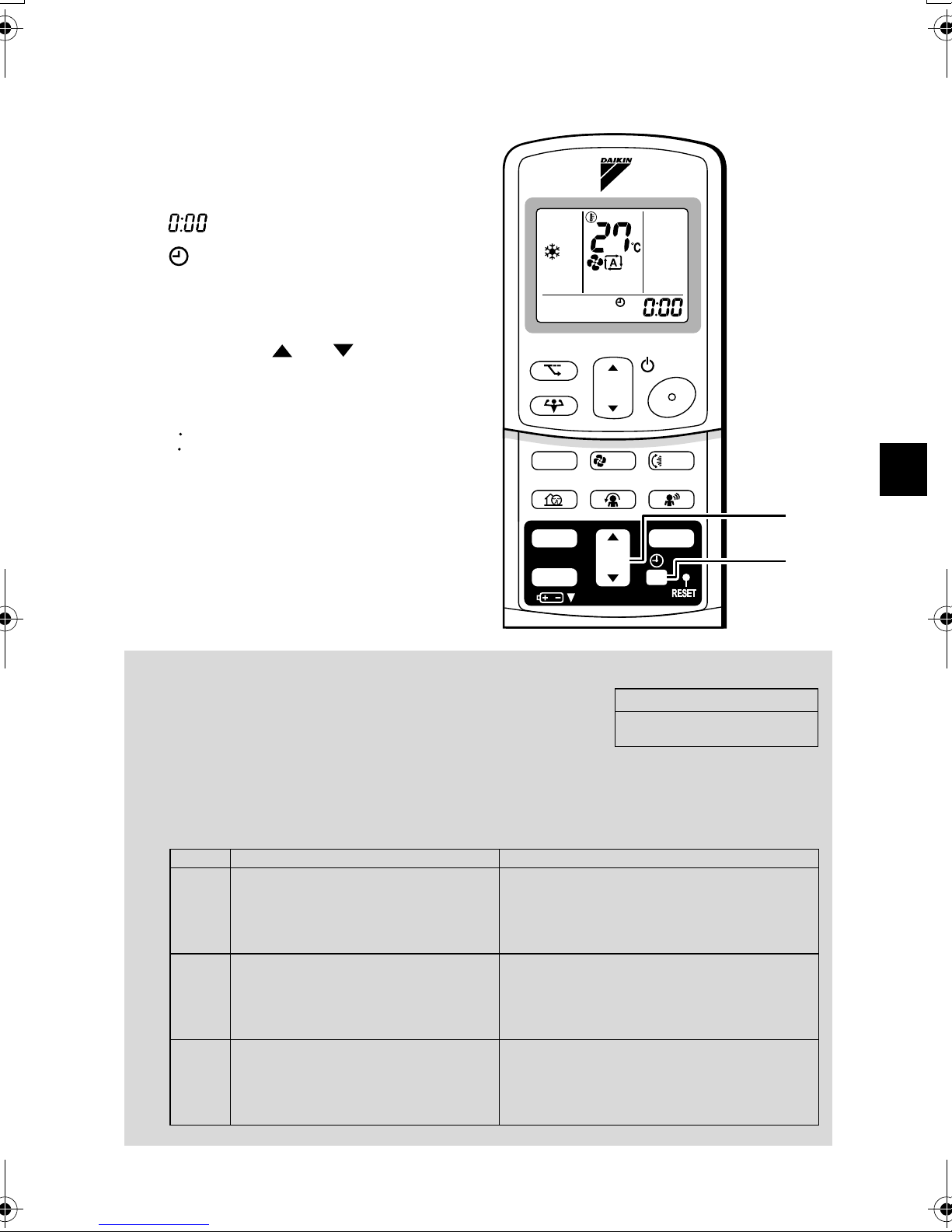

17. CLOCK button: (page 9.)
18. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
1
2
5
6
9
10
12
11
16
18
17
13
15
14
< ARC433B50, B43 >
3
4
7
8
01_EN_3P212420-2.fm Page 6 Monday, July 30, 2007 1:59 PM

7
Preparation Before Operation
■To set the batteries
1. Slide the front cover to take it off.
2. Set two dry batteries (LR03·AAA).
3. Set the front cover as before.
ATTENTION
■
About batteries
•
When replacing the batteries, use batteries of the same type, and replace the two old batteries
together.
•
When the system is not used for a long time, take the batteries out.
•
The batteries will last for approximately one year. If the remote controller display begins to fade and
the degradation of reception performance occurs within a year, however, replace both two batteries
with new size AAA alkaline batteries.
•
The attached batteries are provided for the initial use of the system.
The usable period of the batteries may be short depending on the manufactured date of the air
conditioner.
+–
–+
2
3
1
Position + and
– correctly!
01_EN_3P212420-2.fm Page 7 Monday, July 30, 2007 1:59 PM

8
Preparation Before Operation
■To operate the remote
controller
• To use the remote controller, aim the transmitter
at the indoor unit. If there is anything to block
signals between the unit and the remote control-
ler, such as a curtain, the unit will not operate.
•
Do not drop the remote controller. Do not get it wet.
• The maximum distance for communication is
about 7m.
■To fix the remote controller
holder on the wall
1. Choose a place from where the sig-
nals reach the unit.
2. Fix the holder to a wall, a pillar, or
similar location with the screws
procured locally.
3. Place the remote controller in the
remote controller holder.
ATTENTION
■
About remote controller
•
Never expose the remote controller to direct sunlight.
•
Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
•
Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as
inverter-type lamps) is in the room. Consult the shop if that is the case.
•
If the remote controller signals happen to operate another appliance, move that appliance to some-
where else, or consult the shop.
Receiver
Remote controller
holder
Set.
●
To remove, pull it upwards.
01_EN_3P212420-2.fm Page 8 Monday, July 30, 2007 1:59 PM

9
■To set the clock
1. Press “CLOCK button”.
is displayed.
blinks.
2. Press “TIMER setting button” to
set the clock to the present time.
Holding down “ ” or “ ” button rapidly
increases or decreases the time display.
3. Press “CLOCK button”.
blinks.
■Turn the breaker ON
•
Turning ON the breaker opens the flap, then
closes it again. (This is a normal procedure.)
NOTE
■
Tips for saving energy
• Be careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps save energy.
• Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
• Clogged air filters cause inefficient operation and waste energy. Clean them
once in about every two weeks.
■
Please note
• The air conditioner always consumes 15-35 watts of electricity even while it is not operating.
• If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker OFF.
• Use the air conditioner in the following conditions.
• Operation outside this humidity or temperature range may cause a safety device to disable the system.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF 1, 3
2
Recommended temperature setting
For cooling:26 ° C – 28 ° C
For heating:20 ° C – 24 ° C
Mode Operating conditions If operation is continued out of this range
COOL Outdoor temperature: 〈 2MK(X)S40/50 〉 10 to 46°C
〈2MXS52〉 –10 to 46°C
〈 3/4/5MK(X)S 〉 –10 to 46°C
〈RK(X)S〉 –10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
(In multi system, it may work to stop the operation of the out-
door unit only.)
• Condensation may occur on the indoor unit and drip.
HEAT Outdoor temperature: 〈 2MXS40/50 〉 –10 to 15.5°C
〈2MXS52〉 –15 to 15.5°C
〈 3/4/5MXS 〉 –15 to 15.5°C
〈 RXS20/25/35 〉 –15 to 20°C
〈RXS50〉 –15 to 18°C
Indoor temperature: 10 to 30°C
• A safety device may work to stop the operation.
DRY Outdoor temperature: 〈 2MK(X)S40/50 〉 10 to 46°C
〈2MXS52〉 –10 to 46°C
〈 3/4/5MK(X)S 〉 –10 to 46°C
〈RK(X)S〉 –10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
01_EN_3P212420-2.fm Page 9 Monday, July 30, 2007 1:59 PM

10
OPERATION
AUTO · DRY · COOL · HEAT · FAN Operation
The air conditioner operates with the operation mode of your
choice.
From the next time on, the air conditioner will operate with the
same operation mode.
■To start operation
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances the
mode setting in sequence.
:AUTO
:DRY
: COOL
:HEAT
:FAN
2. Press “ON/OFF button” .
• The OPERATION lamp lights up.
■To stop operation
3. Press “ON/OFF button” again.
•
Then OPERATION lamp goes off.
■To change the temperature setting
4. Press “TEMPERATURE adjustment button”.
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
Set to the temperature you like.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
2, 3
1
4
5
<F(C)TKS>
<F(C)TXS>
C
01_EN_3P212420-2.fm Page 10 Monday, July 30, 2007 1:59 PM

11

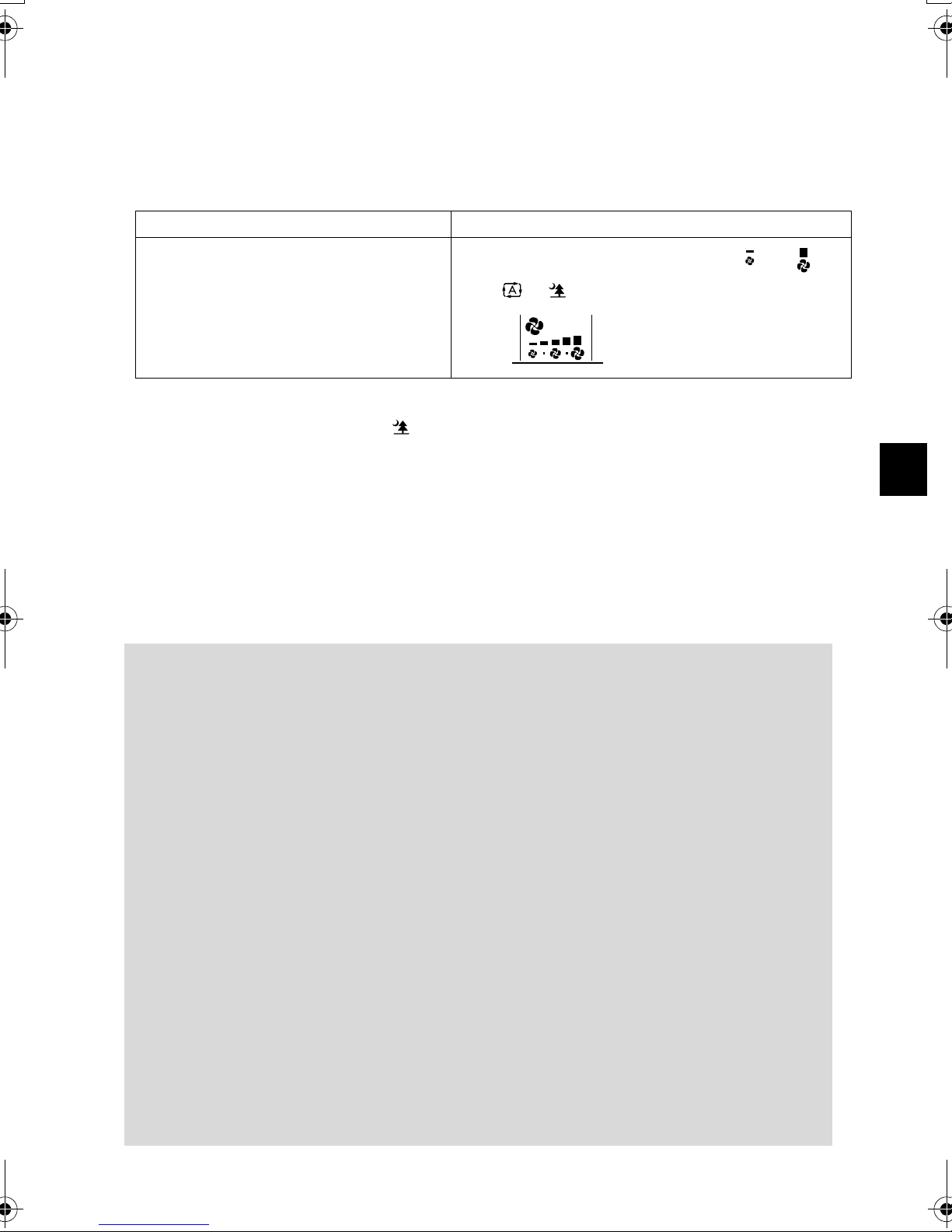

■To change the airflow rate setting
5. Press “FAN setting button”.
• Indoor unit quiet operation
When the airflow is set to “ ”, the noise from the indoor unit will become quieter.
Use this when making the noise quieter.
NOTE
DRY mode AUTO or COOL or HEAT or FAN mode
The airflow rate setting is not variable.
Five levels of airflow rate setting from “ ” to “ ”
plus “ ” “ ” are available.
■
Note on HEAT operation
•
Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating
capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is rec-
ommended to use another heating appliance in combination with the air conditioner.
•
The heat pump system heats the room by circulating hot air around all parts of the room. After the
start of heating operation, it takes some time before the room gets warmer.
•
In heating operation, frost may occur on the outdoor unit and lower the heating capacity. In that case,
the system switches into defrosting operation to take away the frost.
•
During defrosting operation, hot air does not flow out of indoor unit.
■
Note on COOL operation
• This air conditioner cools the room by blowing the hot air in the room outside, so if the
outside temperature is high, the performance of the air conditioner drops.
■
Note on DRY operation
• The computer chip works to rid the room of humidity while maintaining the temperature as
much as possible. It automatically controls temperature and airflow rate, so manual adjust-
ment of these functions is unavailable.
■
Note on AUTO operation
•
In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on
the room temperature at the start of the operation.
•
The system automatically reselects setting at a regular interval to bring the room temperature to user-
setting level.
•
If you do not like AUTO operation, manually change the set temperature.
■
Note on airflow rate setting
•
At smaller airflow rates, the cooling (heating) effect is also smaller.
01_EN_3P212420-2.fm Page 11 Monday, July 30, 2007 1:59 PM

12

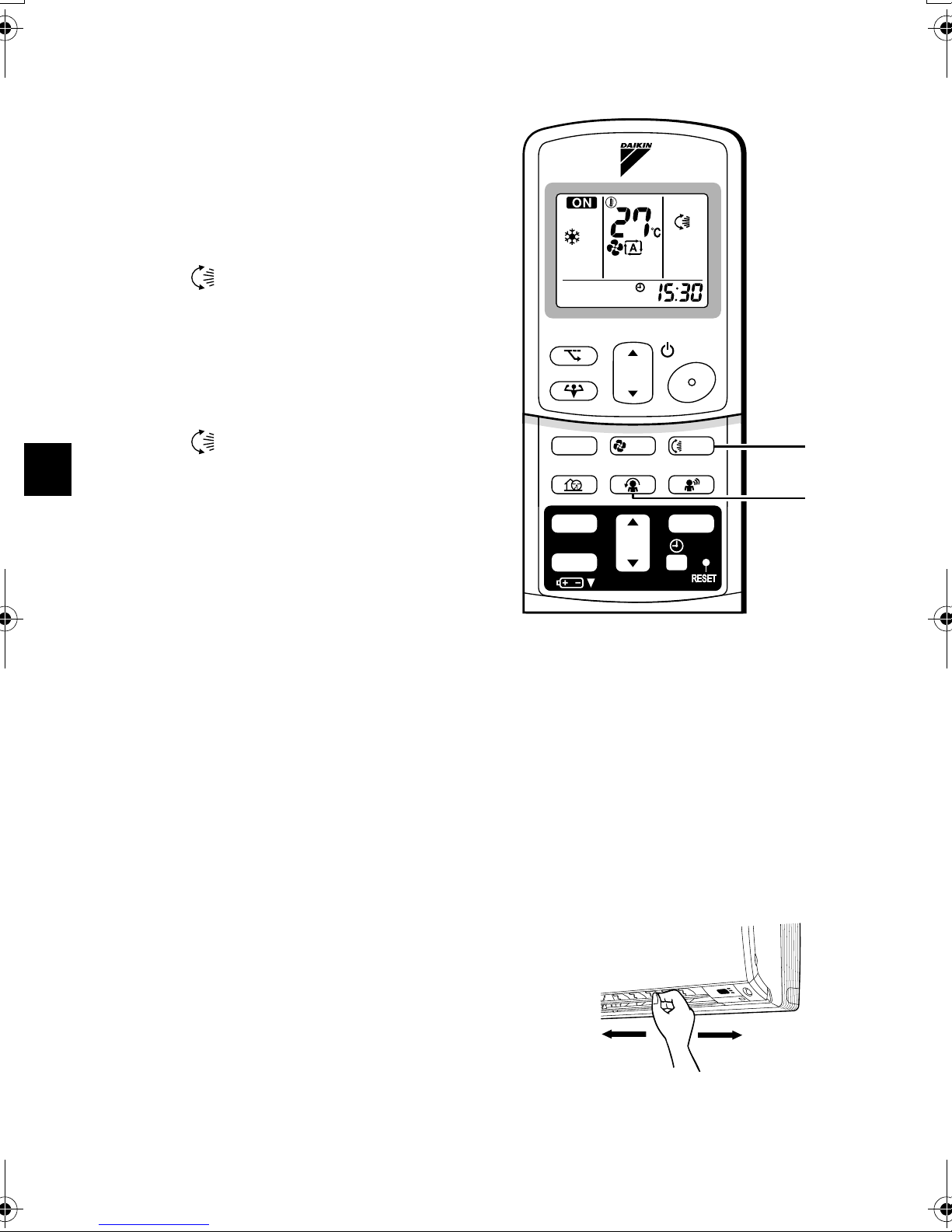

Adjusting the Airflow Direction
You can adjust the airflow direction to increase your comfort.
■To adjust the horizontal
blades (flaps)
1. Press “SWING button”.
• “ ” is displayed on the LCD and the flaps
will begin to swing.
2. When the flaps have reached the
desired position, press “SWING
button” once more.
• The flap will stop moving.
• “ ” disappears from the LCD.
■To adjust the vertical blades
(louvers)
Hold the knob and move the louvers.
(You will find a knob on the left-side and the right-side blades.)
• When the unit is installed in the corner of a room,
the direction of the louvers should be facing away
from the wall.
If they face the wall, the wall will block off the wind,
causing the cooling (or heating) efficiency to drop.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
1, 2
3, 4
01_EN_3P212420-2.fm Page 12 Monday, July 30, 2007 1:59 PM

13
■To start COMFORT AIRFLOW operation
3. Press “COMFORT AIRFLOW button”.
•
The flap position will change, preventing air from blowing directly on the occupants of the room.
• “ ” is displayed on the LCD.
〈COOL/DRY〉The flap will go up.
〈HEAT〉The flap will go down.
■To cancel COMFORT AIRFLOW operation
4. Press “COMFORT AIRFLOW button” again.
• The flaps will return to the memory position from before COMFORT AIRFLOW mode.
• “ ” disappears from the LCD.
Notes on COMFORT AIRFLOW operation
Notes on flaps and louvers angles
•
POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.
Priority is given to POWERFUL operation.
•
When “ SWING button ” is selected, the flaps
swinging range depends on the operation mode.
(See the figure.
)
■
ATTENTION
•
Always use a remote controller to adjust the flaps
angle. If you attempt to move it forcibly with hand
when it is swinging, the mechanism may be broken.
•
Be careful when adjusting the louvers. Inside the
air outlet, a fan is rotating at a high speed.
5˚
In DRY mode or COOL mode
In HEAT mode
When stop operation
Upper limit
Lower limit
10˚
50˚
30˚
65˚
When stop operation
Upper limit
Lower limit
In FAN mode
70˚
When stop operation
Upper limit
Lower limit
01_EN_3P212420-2.fm Page 13 Monday, July 30, 2007 1:59 PM

14

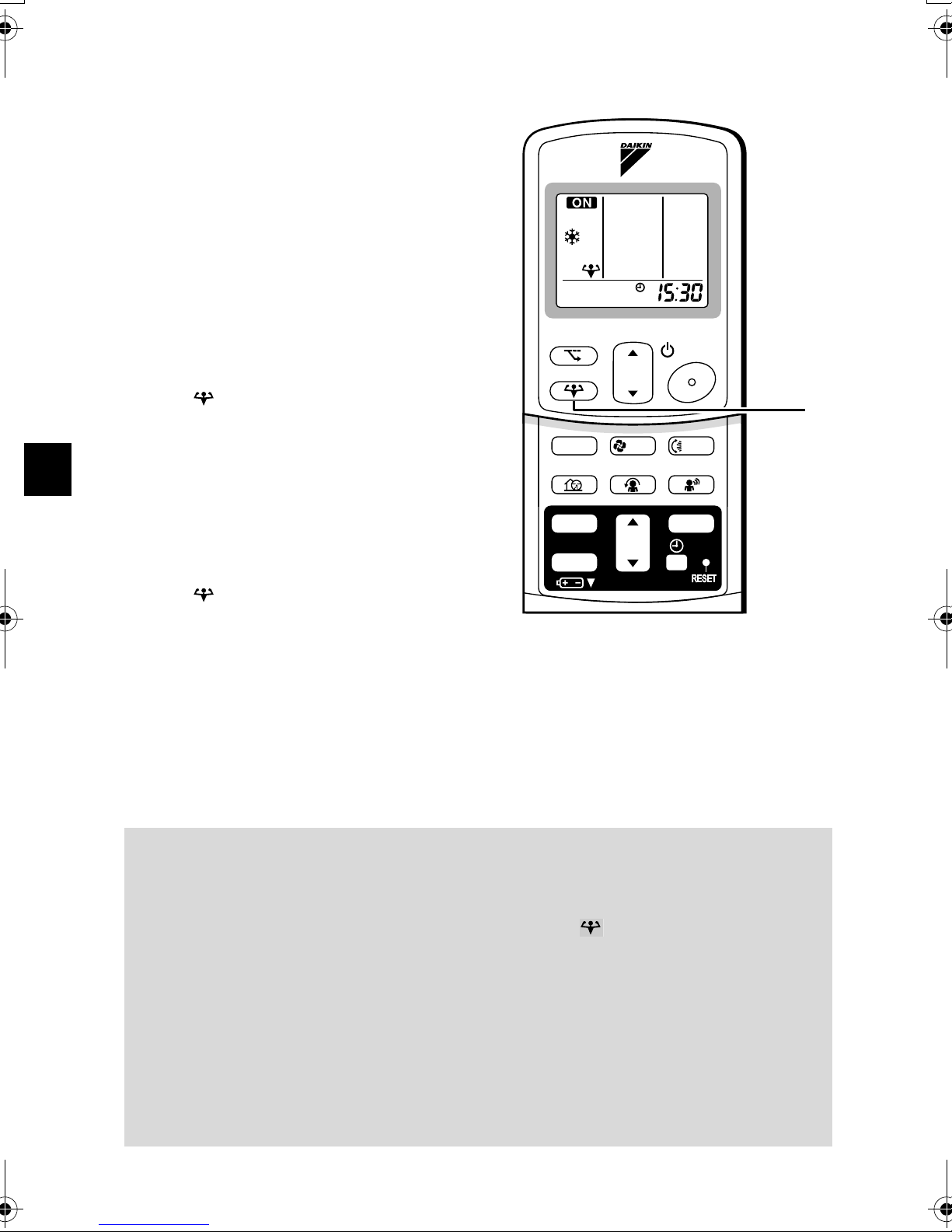

POWERFUL Operation
POWERFUL operation quickly maximizes the cooling
(heating) effect in any operation mode. You can get the
maximum capacity .
■To start POWERFUL
operation
1. Press “POWERFUL button”.
• POWERFUL operation ends in 20minutes.
Then the system automatically operates
again with the previous settings which were
used before POWERFUL operation.
• “ ” is displayed on the LCD.
• When using POWERFUL operation, there
are some functions which are not available.
■To cancel POWERFUL
operation
2. Press “POWERFUL button” again.
• “ ” disappears from the LCD.
NOTE
■
Notes on POWERFUL operation
• POWERFUL Operation cannot be used together with ECONO, QUIET, or COMFORT
Operation. Priority is given to the function of whichever button is pressed last.
• POWERFUL Operation can only be set when the unit is running. Pressing the operation
stop button causes the settings to be canceled, and the “ ” disappears from the LCD.
•
In COOL and HEAT mode
To maximize the cooling (heating) effect, the capacity of outdoor unit must be increased
and the airflow rate be fixed to the maximum setting.
The temperature and airflow settings are not variable.
•
In DRY mode
The temperature setting is lowered by 2.5°C and the airflow rate is slightly increased.
•
In FAN mode
The airflow rate is fixed to the maximum setting.
•When using priority-room setting
See “Note for Multi System” (page 21.)
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
1, 2
01_EN_3P212420-2.fm Page 14 Monday, July 30, 2007 1:59 PM

15
OUTDOOR UNIT QUIET Operation
OUTDOOR UNIT QUIET operation lowers the noise
level of the outdoor unit by changing the frequency and
fan speed on the outdoor unit. This function is conve-
nient during night.
■To start OUTDOOR UNIT
QUIET operation
1. Press “QUIET button”.
•
“ ” is displayed on the LCD.
■To cancel OUTDOOR UNIT
QUIET operation
2. Press “QUIET button” again.
•
“”
disappears from the LCD.
NOTE
■
Note on OUTDOOR UNIT QUIET operation
• If using a multi system, this function will work only when the OUTDOOR UNIT QUIET oper-
ation is set on all operated indoor units.
However, if using priority-room setting, see “Note for Multi System” (page 21.)
•
This function is available in COOL, HEAT, and AUTO modes.
(This is not available in FAN and DRY mode.)
• POWERFUL operation and OUTDOOR UNIT QUIET operation cannot be used at the
same time.
Priority is given to the function of whichever button is pressed last.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
1, 2
01_EN_3P212420-2.fm Page 15 Monday, July 30, 2007 1:59 PM

16

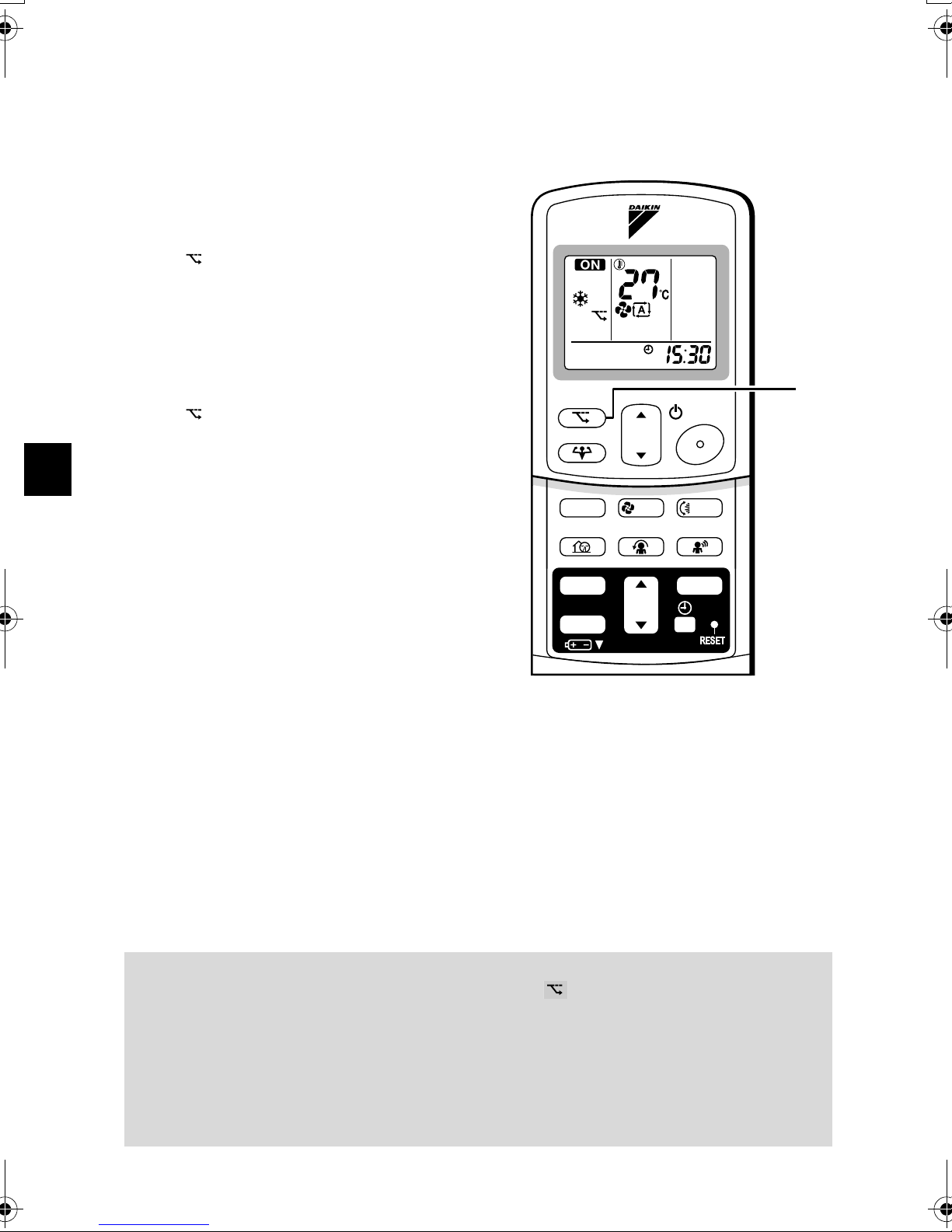

ECONO Operation
ECONO operation is a function which enables efficient operation by lowering the maximum power con-
sumption value.
■To start ECONO operation
1. Press “ECONO button” .
• “ ” is displayed on the LCD.
■To cancel ECONO opera-
tion
2. Press “ECONO button” again.
• “ ” disappears from the LCD.
NOTE
• ECONO Operation can only be set when the unit is running. Pressing the operation stop
button causes the settings to be canceled, and the “ ” disappears from the LCD.
• ECONO operation is a function which enables efficient operation by limiting the power
consumption of the outdoor unit (operating frequency).
• ECONO operation functions in AUTO, COOL, DRY, and HEAT modes.
• POWERFUL operation and ECONO operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
• Power consumption may not drop even if ECONO operation is used, when the level of
power consumption is already low.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
1, 2
01_EN_3P212420-2.fm Page 16 Monday, July 30, 2007 1:59 PM

17
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
■To start INTELLIGENT EYE
operation
1. Press “SENSOR button”.
• “ ” is displayed on the LCD.
■To cancel the
INTELLIGENT EYE
operation
2. Press “SENSOR button” again.
•“ ”
disappears from the LCD.
[EX.]
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
1, 2
When somebody in the room
•Normal operation.
When nobody in the room
•
20 min. after, start
energy saving
operation
.
Somebody back in the room
•
Back to normal operation.
01_EN_3P212420-2.fm Page 17 Monday, July 30, 2007 1:59 PM

18
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is useful for Energy Saving
Notes on “INTELLIGENT EYE”
CAUTION
■
Energy saving operation
•
Change the temperature –2
°
C in heating / +2
°
C in cooling / +2
°
C in dry mode from set temperature.
•
Decrease the airflow rate slightly in fan operation. (In FAN mode only)
• Application range is as follows.
• Sensor may not detect moving objects further than 7m away. (Check the application range)
• Sensor detection sensitivity changes according to indoor unit location, the speed of pass-
ersby, temperature range, etc.
• The sensor also mistakenly detects pets, sunlight, fluttering curtains and light reflected off of
mirrors as passersby.
• INTELLIGENT EYE operatipon will not go on during powerful operation.
• Night set mode (page 19.) will not go on during you use INTELLIGENT EYE operation.
• Do not place large objects near the sensor.
Also keep heating units or humidifiers outside the sensor’s detection area. This sensor can
detect objects it shouldn’t as well as not detect objects it should.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and
malfunction.
90˚
55˚
7m
55˚
7m
Vertical angle 90˚
(Side View)
Horizontal angle 110˚
(Top View)
01_EN_3P212420-2.fm Page 18 Monday, July 30, 2007 1:59 PM

19
TIMER Operation
Timer functions are useful for automatically switching the air
conditioner on or off at night or in the morning. You can also
use OFF TIMER and ON TIMER in combination.
■To use OFF TIMER
operation
• Check that the clock is correct.
If not, set the clock to the present time.
(page 9.)
1. Press “OFF TIMER button”.
is displayed.
blinks.
2. Press “TIMER Setting button”
until the time setting reaches the
point you like.
• Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the set-
ting rapidly.
3. Press “OFF TIMER button” again.
• The TIMER lamp lights up.
■To cancel the OFF TIMER operation
4. Press “CANCEL button”.
•
The TIMER lamp goes off.
NOTE
•
When TIMER is set, the present time is not displayed.
•
Once you set ON, OFF TIMER, the time setting is kept in the memory. (The memory is canceled when
remote controller batteries are replaced.)
•
When operating the unit via the ON/OFF Timer, the actual length of operation may vary from the time
entered by the user.
■
NIGHT SET MODE
When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C
up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) for your pleasant sleep.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
QUIET SENSOR
ECONO
COMFORT
TIMER
ON CANCEL
OFF
4
2
1, 3
01_EN_3P212420-2.fm Page 19 Monday, July 30, 2007 1:59 PM
