Daikin FVQ71BV1B Instruction manual

technical data
Split
Sky Air
air conditioning systems
FVQ-B
EEDEN08-100

Split - Sky Air
EEDEN08-100 - 02/2008 Printed in Belgium by Goekint Graphics Copyright ©Daikin
Naamloze Vennootschap
Zandvoordestraat 300
B-8400 Ostend, Belgium
www.daikin.eu
BTW: BE 0412 120 336
RPR Oostende
Het ISO14001 assures an effective
environmental management system in order to
help protect human health and the
environment from potential impact of our
activities, products and services and to assist in
maintaining and improving the quality of the
environment.
Daikin Europe N.V. is approved by LRQA for its
Quality Management System in accordance
with the ISO9001 standard. ISO9001 pertains
to quality assurance regarding design,
development, manufacturing as well as to
services related to the product.
Daikin units comply with the European
regulations that guarantee the safety of the
product.
Daikin Europe N.V. participates in the Eurovent
Certification Programme for Air Conditioners
(AC), Liquid Chilling Packages (LCP) and Fan Coil
Units (FC); the certified data of certified models
are listed in the Eurovent Directory.
Daikin’s unique position as a man-
ufacturer of air conditioning equip-
ment, compressors and refrige-
rants has led to its close involve-
ment in environmental issues. For
several years Daikin has had the in-
tention to become a leader in the
provision of products that have
limited impact on the environ-
ment. This challenge demands the
eco design and development of a
wide range of products and an en-
ergy management system, result-
ing in energy conservation and a
reduction of waste.
“ The present publication is drawn up by way of information only
and does not constitute an offer binding upon Daikin Europe N.V..
Daikin Europe N.V. has compiled the content of this publication to
the best of its knowledge. No express or implied warranty is given
for the completeness, accuracy, reliability or fitness for particular pur-
pose of its content and the products and services presented therein.
Specifications are subject to change without prior notice. Daikin Eu-
rope N.V. explicitly rejects any liability for any direct or indirect dam-
age, In the broadest sense, arising from or related to the use and/or
interpretation of this publication. All content is copyrighted by Daikin
Europe N.V..”
EEDEN08- 100

technical data
Split
Sky Air
air conditioning systems
FVQ-B
EEDEN08-100

• Split Sky Air • Indoor Units 4
• Indoor Units • R410A • FVQ-B
TABLE OF CONTENTS
FVQ-B
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
For indoor units only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 10
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
External connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

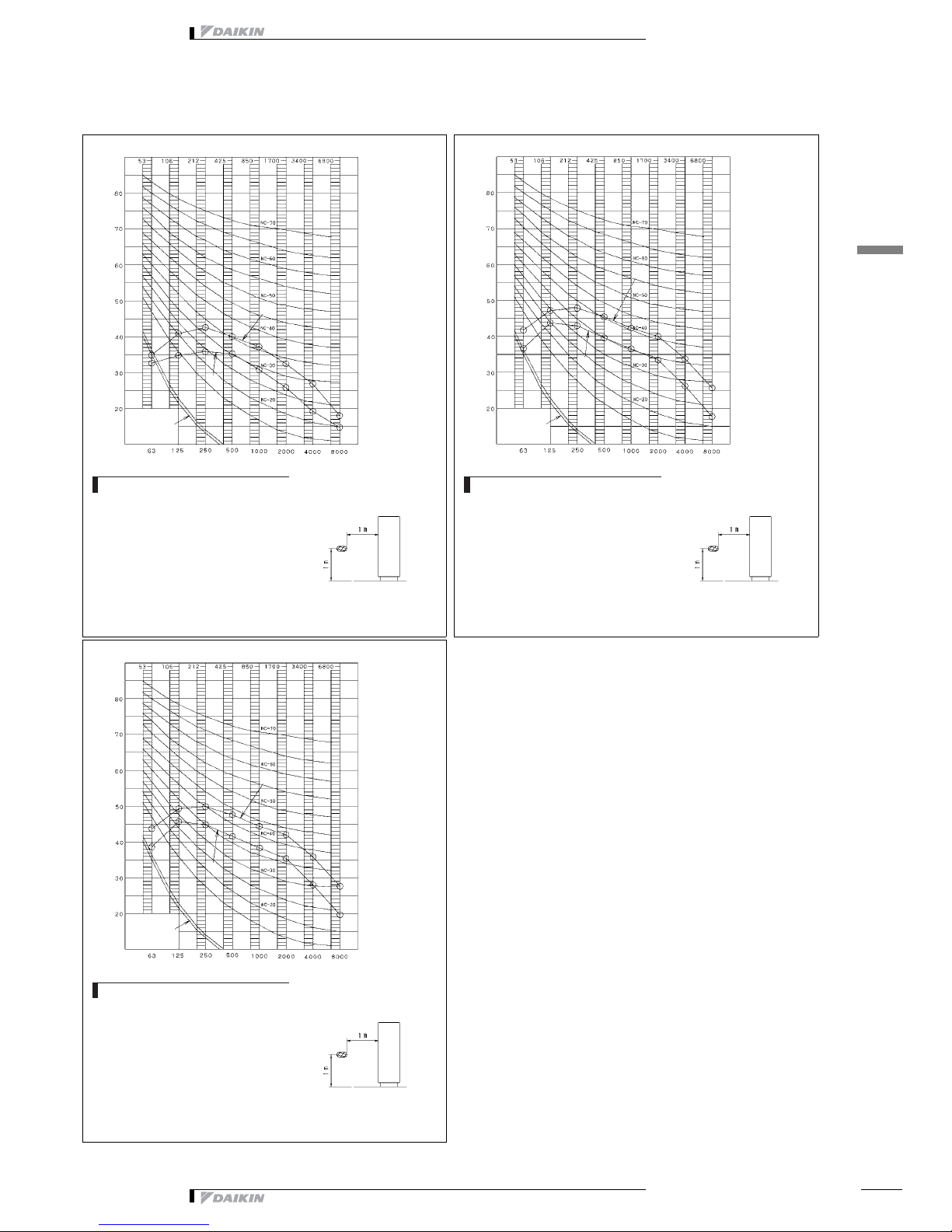

8 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Indoor Units • R410A • FVQ-B
1
1
• Split Sky Air • Indoor Units
5
1 Features
IndoorUnit SplitSky FVQ-BR410A • Ideal solution for shops, restaurants or offices without false ceilings
• Very efficient for use in rooms with high ceilings
• Quiet operation: down to 35 dBA sound pressure level (71 class)
• Auto-swing function ensures efficient air and temperature
distribution.
optional

3
1
2
• Split Sky Air • Indoor Units 6
• Indoor Units • R410A • FVQ-B
2 Specifications
2-1 FOR INDOOR UNITS ONLY FVQ71BV1B FVQ100BV1B FVQ125BV1B
Nominal input
(Indoor only) Cooling kW 0.175 0.320 0.365
Heating kW 0.175 0.320 0.365
2-2 TECHNICAL SPECIFICATIONS FVQ71BV1B FVQ100BV1B FVQ125BV1B
Casing Colour White
Dimensions Packing Height mm 1,996
Width mm 732 732 732
Depth mm 509 589 589
Unit Height mm 1,850
Width mm 600 600 600
Depth mm 270 350 350
Weight Unit kg 39 46 47
Packed Unit kg 77 84 87
Heat
Exchanger Dimensions Length mm 476 476 476
Nr of Rows 2 2 2x3
Fin Pitch mm 1.75 1.75 2x1.75
Nr of Passes 9 11 11
Face Area m² 0.40 0.44 0.44 (0.22x2)
Nr of Stages 40 44 2x22
EmptyTubeplateHole 4
Fin Type Cross fin coil (Multi louver fins and Hi-XSS tubes)
Fan Type Sirocco fan
Quantity 1 1 1
Air Flow Rate Cooling High m³/min 18 28 32
Low m³/min 14 22 25
Heating High m³/min 18 28 32
Low m³/min 14 22 25
Fan Motor Quantity 1 1 1
Model QS37A1AM QS37A2AM QS37A2AM
Number of steps 4 4 4
Output
(high) W39 46 47
Cooling Sound Power High dBA 54 60 62
Low dBA 48 54 56
Sound
Pressure High dBA 42 48 50
Low dBA 36 42 44
Heating Sound Power High dBA 54 60 62
Low dBA 48 54 56
Sound
Pressure High dBA 42 48 50
Low dBA 36 42 44
Refrigerant Type R-410A
Piping
connections Liquid (OD) Type Flare connection
Diameter
(OD) mm 9.52 9.52 9.52
Gas Type Flare connection
Diameter
(OD) mm 15.9 15.9 15.9
Drain Diameter
(OD) mm I.D. 20/O.D. 26
Heat Insulation Foamed polystyrene/foamed polyethylene
Air Filter Resin net with mold resistance

• Indoor Units • R410A • FVQ-B
1
2
• Split Sky Air • Indoor Units
7
2 Specifications
Standard
Accessories Item Operation manual
Installation manual
Bracket for installation
Through hole protecting rubber
Bush
Insulation for fitting
Control panel patch plate
Remote control lid
Clamps
Screws
Installation pattern
2-2 TECHNICAL SPECIFICATIONS FVQ71BV1B FVQ100BV1B FVQ125BV1B

3
1
3
• Split Sky Air • Indoor Units 8
• Indoor Units • R410A • FVQ-B
3 Safety device settings
4D013856F
Safety devices 71 100 125
FVQ∼V1B Fan motor thermal protector °C Off: 130±5 Off: 130±5 Off: 130±5

• Indoor Units • R410A • FVQ-B
1
4
• Split Sky Air • Indoor Units
9
4 Options
Name of option \ Model name FVQ71∼100∼125BV1B
Replacement long-life filter KAFJ95L160
Set back time clock BRC15A51
Central remote control z1 DCS302CA51
Unified ON/OFF control z1 DCS301BA51
Schedule timer z1 DST301BA51
Intelligent touch controller z1 DCS601C51
Remote controller for 2 remote control system BRC1C61
Adapter for wiring z2 KRP1BA57
Group control adaptor z2 KRP4AA52
Interface adapter for Sky Air series DTA112BA51
Installation box for adapter PCB KRP4A95
4D060354
z1 Interface adapter for sky air series (DTA112BA51) is necessary.
z2 Installation box for adaptor PCB (KRP4A95) is necessary.

3
1
5
• Split Sky Air • Indoor Units 10
• Indoor Units • R410A • FVQ-B

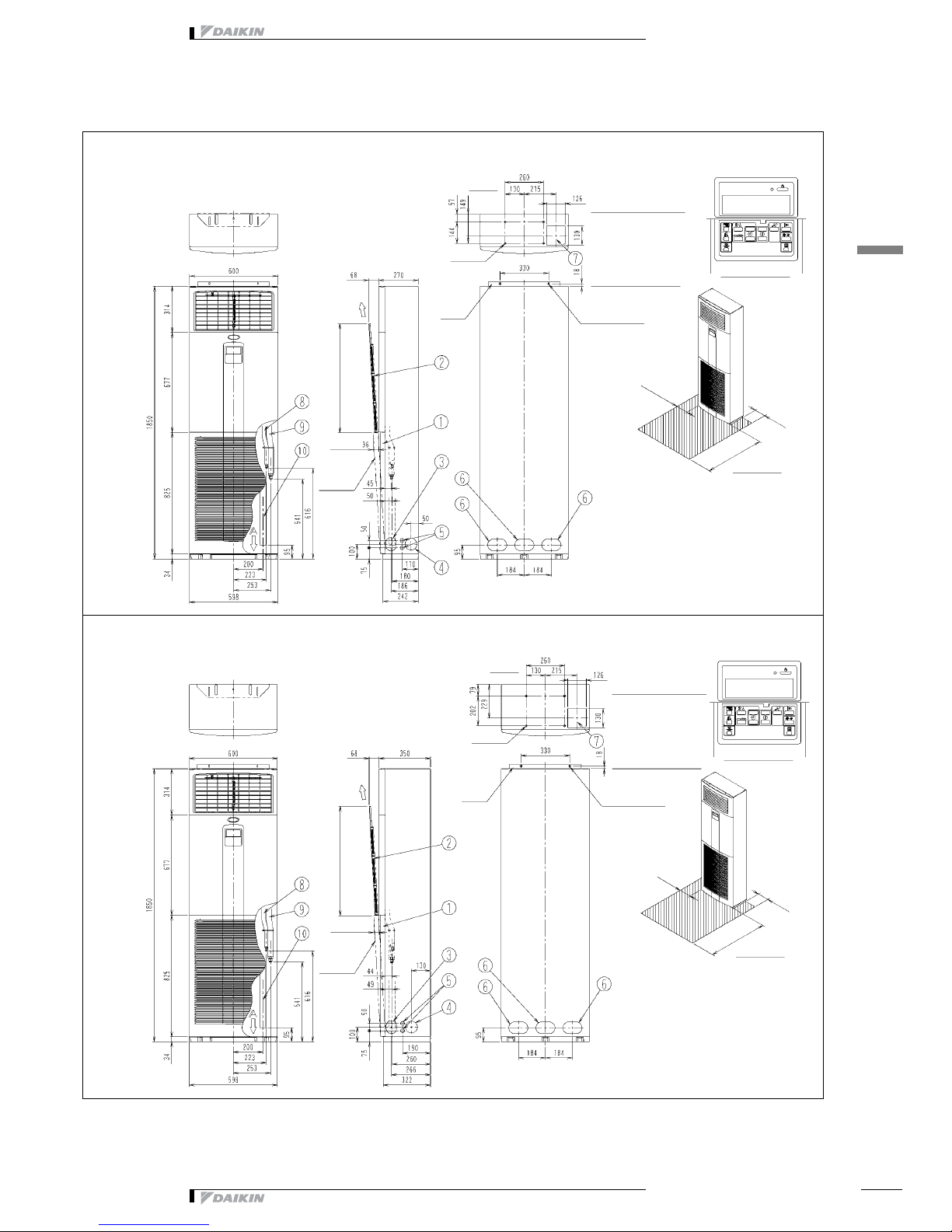

5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
3D031617A
unit (mm)
FVQ71B
View A
This model to be fixed with
fixture as shown below.
In case of fixing it at the bottom
(In case vibration resistance is
required, fix it at both the bottom
and the rear.)
Detail of control panel
In case of fixing it at the rear
(Normal installation)
2-7x15 Oblong hole
(For wood screw)
Fixture
(Accessory)
(For bolt)
4-J14Hole
Pull out direction of
air-filter
740 or more
(Pull out dimension of air-filter)
Approx.
Full open
position of
suction grille
Notes)1. Sticking location for manufacture’ S
label : On the surface of cover of switch box inside
the suction grille.
1 Suction grille
2 Air filter
3 Through hole for side piping 70x90 Oblong slit hole
4 Through hole for side piping J80 slit hole
5 Through hole for side wiring J27 slit hole
6 Through hole for rear piping/wiring 80x130 Oblong slit hole
7 Through hole for bottom piping/wiring 126x130 Square hole
8 Liquid pipe connection J9.5 (Flare connection)
9 Gas pipe connection J15.9 (Flare connection)
10 Drain pipe connection VP20
50 or more
50 or more
1500 or more
Required space
3D058899
unit (mm)
FVQ100-125B
View A
This model to be fixed with
fixture as shown below.
In case of fixing it at the bottom
(In case vibration resistance is
required, fix it at both the bottom
and the rear.)
Detail of control panel
In case of fixing it at the rear
(Normal installation)
2-7x15 Oblong hole
(For wood screw)
Fixture
(Accessory)
(For bolt)
4-J14Hole
Pull out direction of
air-filter
740 or more
(Pull out dimension of air-filter)
Approx. 36
Full open
position of
suction grille
Notes)1. Sticking location for manufacture’ S
label : On the surface of cover of switch box
inside the suction grille.
1 Suction grille
2 Air filter
3 Through hole for side piping 70x90 Oblong slit hole
4 Through hole for side piping J80 slit hole
5 Through hole for side wiring J27 slit hole
6 Through hole for rear piping/wiring 80x130 Oblong slit hole
7 Through hole for bottom piping/wiring 126x130 Square hole
8 Liquid pipe connection J9.5 (Flare connection)
9 Gas pipe connection J15.9 (Flare connection)
10 Drain pipe connection VP20
50 or more
50 or more
1500 or more
Required space

• Indoor Units • R410A • FVQ-B
1
6
• Split Sky Air • Indoor Units
11

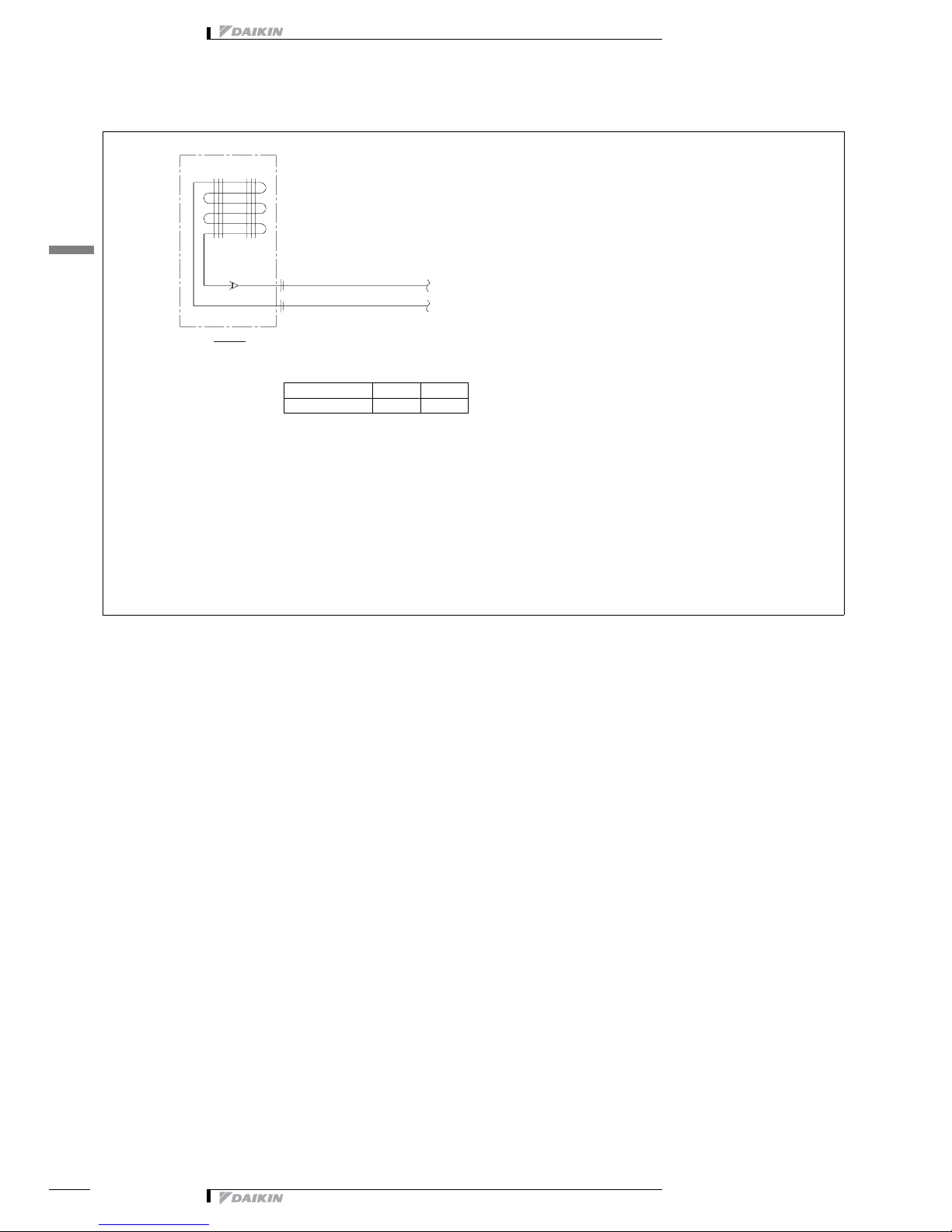

6 Piping diagram
4D037995H
Indoor unit
Field piping JA C1220T-0
Field piping JB C1220T-0
Indoor heat exchanger
Model A B
FVQ71,100,125BV1B 9.5 15.9
To outdoor unit

3
1
7
• Split Sky Air • Indoor Units 12
• Indoor Units • R410A • FVQ-B
7 Wiring diagram
7 - 1 Wiring diagram
S1Q Limit switch (swing flap)
SS1 Selector switch (emergency)
T1R Transformer (220-240V/22V)
X1M Terminal strip
( Remote controller )
?Signal receiver
.Signal transmission circuit
Control panel
SS1 Selector switch (main/sub)
To outdoor
unit
Indoor unit
Control panel
Notes
1: Terminal
: Connector
: Short circuit connector : Field
wiring
2 In case using central remote controller, connect it
to this unit in accordance with installation manual
attached to it.
3 X33A, X35A, X60A, X61A are connected when the
optional accessories are being used.
4 Remote control model varies according to the
combination system, confirm technical materials
and catalogs, etc. before connecting.
5 Colours :
RED: Red / BLK: Black / WHT: White
ORG: Orange / BRN: Brown / BLU: Blue
6 Shows only in case of protected pipes, use
HO7RN-F in case of no protection.
Connector for optional parts
X33A Connector (adapter for wiring)
X35A Connector (Power supply for adapter)
X60 Connector
X61A (Interface adapter for Sky Air series)
Switch box
Note 7
NORM.EMG.
Indoor unit
A1P Printed circuit board
C1 Capacitor (M1F)
HAP Light emitting diode (service monitor green)
K1R∼K4R Magnetic relay (M1F)
KAR Magnetic relay (M1S)
M1A Motor (swing flap)
M1F Motor (indoor fan)
Q1M Temperature switch (M1F embedded, 130°C)
R1T Thermistor (air)
R2T Thermistor (coil)
3D058900

• Indoor Units • R410A • FVQ-B
1
7
• Split Sky Air • Indoor Units
13
7 Wiring diagram
7 - 2 External connection diagram
3D013853A
Main switch
Fuse
Fuse
NOTES
1 Line voltage wiring
Control circuit wiring
2 All wiring, components and materials to be produced on the site must comply with the applicable local and national codes.
3 Use copper conductors only.
4 As for details, see wiring diagrams.
5 Install fuse and mainswitch for safety.
6 All field wiring and components must be provided by a licensed electrician.
7 The unit shall be grounded in compliance with the applicable local and national codes.
8 Wiring shown are general points-of-connection guides only and are not intended for or to include all details for a specific installation.
9 Never share a common power supply with other equipment.
VAL, Model
Power supply
Main switch
FVQ-B
Y1, Model
Power supply
V1, Model
Power supply
Fuse
Main switch
TAL, Model
Power supply
Main switch Main switch
Fuse Fuse
TAL, Model
Power supply
1∼50Hz
220V-240V
3N∼50Hz
380V-415V
1∼60Hz
220V
3∼60Hz
220V
3N∼60Hz
380V

3
1
8
• Split Sky Air • Indoor Units 14
• Indoor Units • R410A • FVQ-B
8 Sound data
8 - 1 Sound pressure spectrum
4D058901
Octave band sound pressure level
dB (0dB = 0.0002 μbar)
Octave band center frequency (Hz)
FVQ71B
approximate threshold
hearing for continuous
noise
NOTES
1 Operation noise differs with operation and
ambient conditions.
Operating conditions:
Power source 230V 50Hz
Measuring place: anechoic room
Cooling:
Return air temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24°C WB
Heating:
Return air temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB
MIC
Location of microphone
High
Low
4D058902
Octave band sound pressure level
dB (0dB = 0.0002 μbar)
Octave band center frequency (Hz)
FVQ100B
approximate threshold
hearing for continuous
noise
NOTES
1 Operation noise differs with operation and
ambient conditions.
Operating conditions:
Power source 230V 50Hz
Measuring place: anechoic room
Cooling:
Return air temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24°C WB
Heating:
Return air temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB
MIC
Location of microphone
High
Low
4D058903
Octave band sound pressure level
dB (0dB = 0.0002 μbar)
Octave band center frequency (Hz)
FVQ125B
approximate threshold
hearing for continuous
noise
NOTES
1 Operation noise differs with operation and
ambient conditions.
Operating conditions:
Power source 230V 50Hz
Measuring place: anechoic room
Cooling:
Return air temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24°C WB
Heating:
Return air temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB
MIC
Location of microphone
High
Low
