Daikin REQ71B7V3B Instruction manual

REQ-B7
Pair Application
technical data
Split
Sky Air
air conditioning systems

Split - Sky Air
EEDE05-1/3 • 05/2005 Prepared in elgium by Goekint Graphics
Zandvoordestraat 300
- 8400 Ostend elgium
Specifications are subject to change without prior notice.
ISO14001 assures an effective environmental
management system in order to hel rotect
human health and the environment from the otential
im act of our activities, roducts and services and to
assist in maintaining and im roving the quality of
the environment
Daikin Euro e N.V. is a roved by LRQA for its Quality
Management System in accordance with the ISO9001
standard. ISO9001 ertains to quality assurance regarding
design, develo ment, manufacturing as well as to services
related to the roduct.
Daikin units com ly with the Euro ean
regulations that guarantee the safety of
the roduct.
Daikin Euro e N.V. artici ates in the Eurovent Certification
Programme for Air Conditioners (AC), Liquid Chilling Packages
(LCP) and Fan Coil Units (FC); the certified data of certified
models are listed in the Eurovent Directory.
www.daikineurope.com

• Split Sky Air • Outdoor Units 1
• Outdoor Units • R-410A • REQ-B7
TABLE OF CONTENTS
REQ-B7
1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

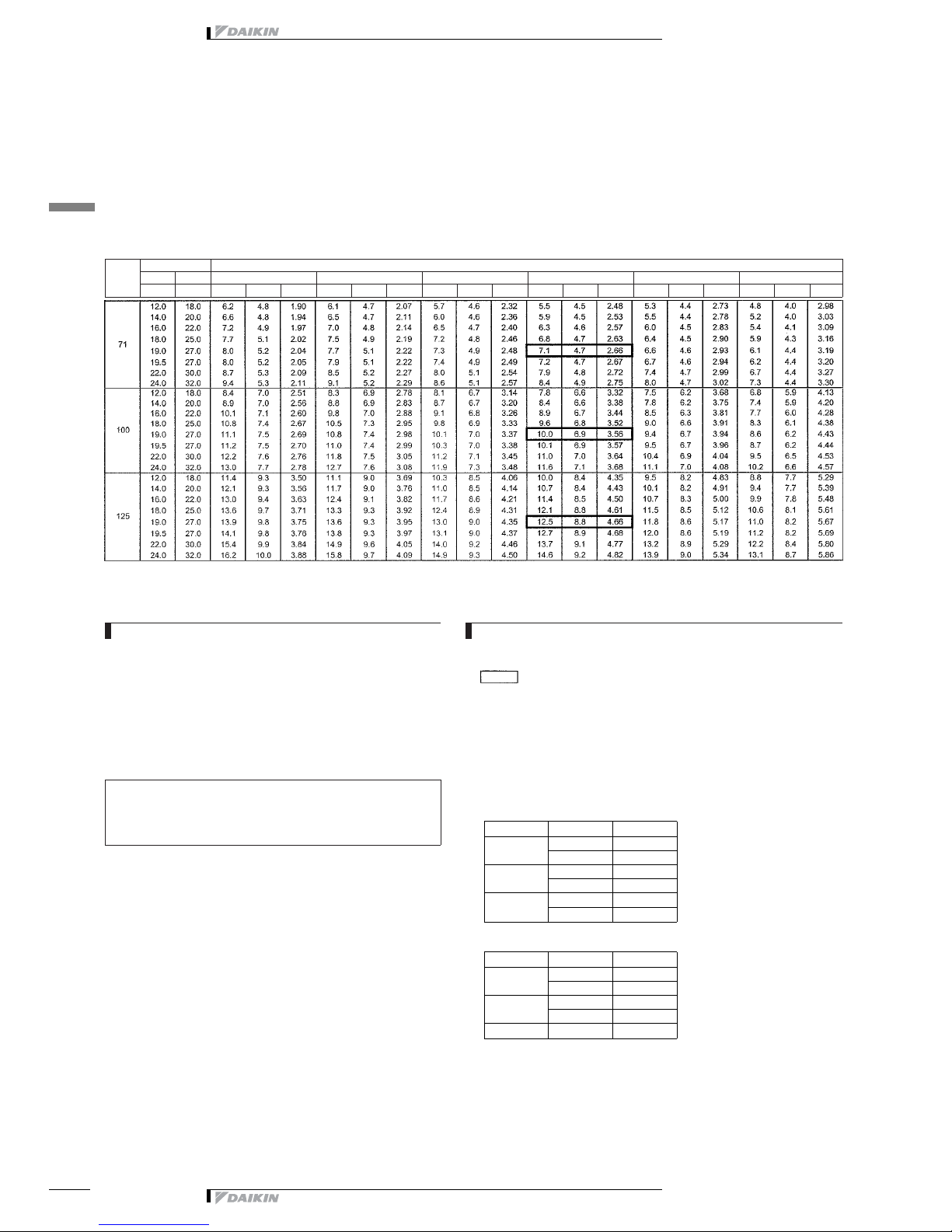

Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

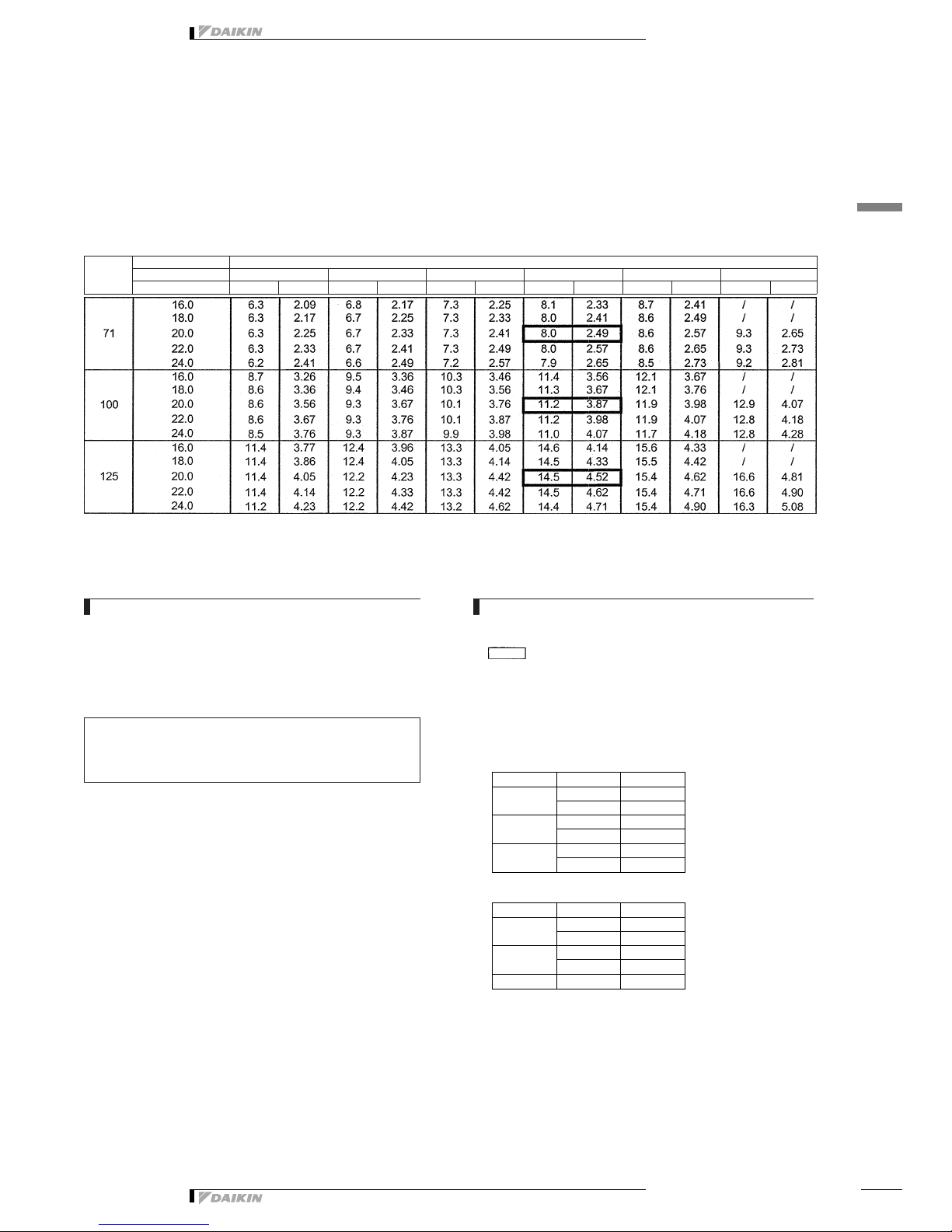

Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Piping diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
External connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Sound power spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
10 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
2
37
1

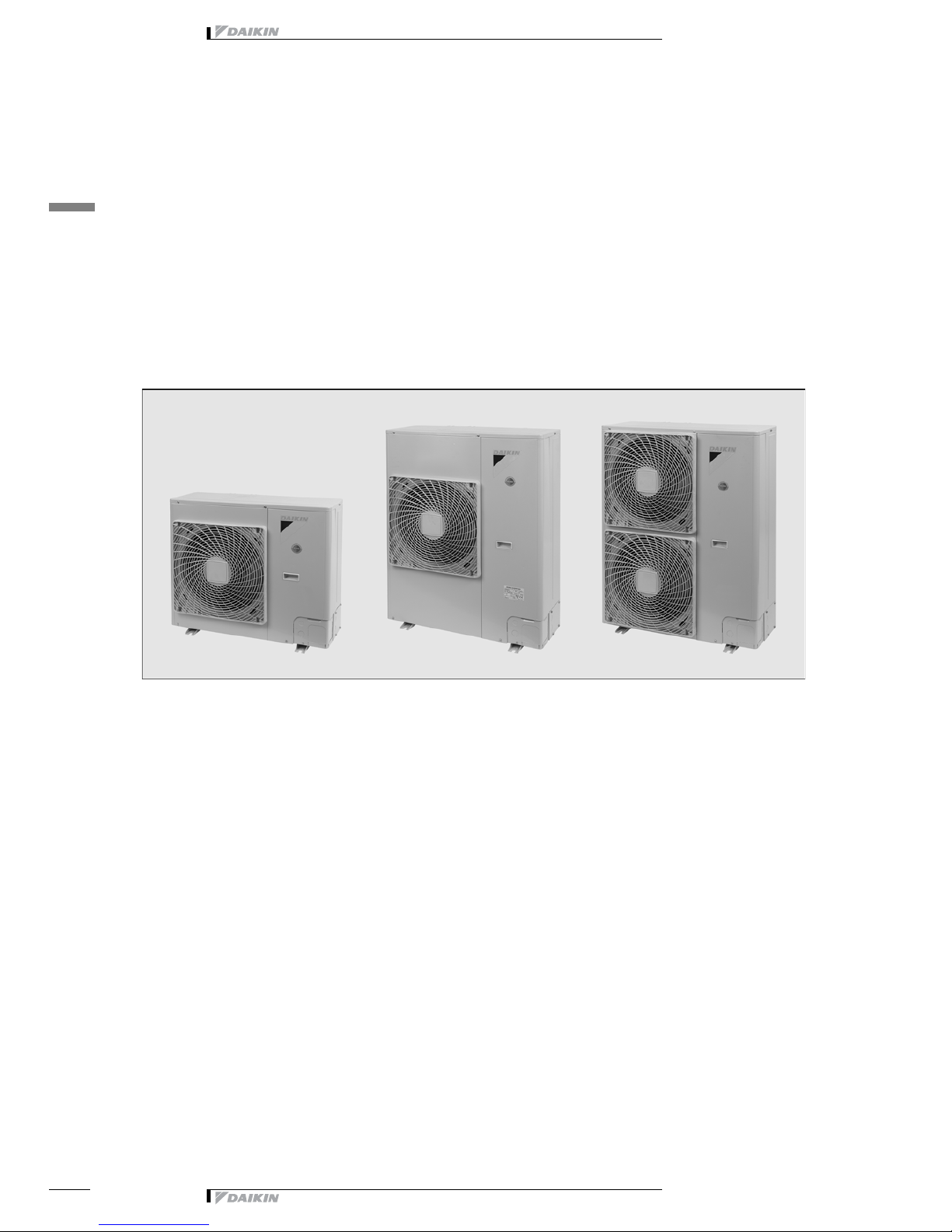

OutdooSplitREQ-B7R-410a 1Features
• Outdoor units for pair application
• Daikin outdoor units are neat and sturdy and can be mounted easily on
a roof or terrace or simply placed against an outside wall.
• Outdoor units are fitted with a scroll compressor, renowned for low
noise and high energy efficiency.
• The piping connections can be accessed from underneath, front, side or
rear.
• The sevice valves are hidden inside the casing.
• A special acryl precoated fin for anti-corrosion treatment on the heat
exchanger ensures greater resistance against severe weather conditions

37
2
• Split Sky Air • Outdoor Units 3
• Outdoor Units • R-410A • REQ-B7
2 Specifications
2-1 TECHNICAL SPECIFICATIONS REQ71B7V3B REQ71B7W1B REQ100B7V3B REQ100B7W1B REQ125B7W1B
Casing Colour Daikin White
Material Painted galvanized steel plate
Dimensions Packing Height mm 900 900 1300 1300 1300
Width mm 980 980 980 980 980
Depth mm 420 420 420 420 420
Unit Height mm 770 770 1170 1170 1170
Width mm 900 900 900 900 900
Depth mm 320 320 320 320 320
Weight Machine Weight kg 83 83 102 100 108
Gross Weight kg 87 87 107 105 113
Heat Exchanger Dimensions Length mm 857 857 857 857 857
NrofRows22222
Fin Pitch mm 2.00 2.00 2.00 2.00 2.00
Nr of Passes 6 6 10 10 10
Face Area m² 0.641 0.641 0.980 0.980 0.980
Nr of Stages 34 34 52 52 52
Tube type Hi-XSS cooling tube
Fin Type Non-symmetric waffle louvre
Treatment Anti-corrosion treatment (PE)
Fan Type Direct Drive Propeller
Discharge direction Horizontal
Quantity 11112
Air Flow Rate
(nominal)
Cooling m³/min 48.0 48.0 55.0 55.0 89.0
Heating m³/min 43.0 43.0 50.0 50.0 80.0
MotorQuantity 11111
Model P47L11S
Position Lower
Motor Speed (nominal
at 230V)
Steps 3 3 3 3 3
Fan Motor Output W 65 65 90 90 85
Drive direct drive
Position Upper
Motor Speed (nominal
at 230V)
Steps 3
Fan Motor Output W 65
Drive direct drive
Compressor Quantity 1 1 1 1 1
Motor Model JT90G-V1N JT90G-YE JT125G-V1N JT125G-YE JT160G-YE
Type Hermetically sealed scroll compressor
Motor
Output
W 2200 2200 3000 3000 3750
Starting Method Direct
Crankcase
Heater
W3333333333
Operation Range Cooling Min
° CDB 10.0 10.0 10.0 10.0 10.0
Max
° CDB 46.0 46.0 46.0 46.0 46.0
Heating Min
° CWB -10.0 -10.0 -10.0 -10.0 -10.0
Max
° CWB 15.0 15.0 15.0 15.0 15.0
Sound Level
(nominal)
Cooling Sound
Power
dBA 65.0 65.0 70.0 70.0 70.0
Sound
Pressure
dBA 53.0 53.0 57.0 57.0 57.0
Refrigerant Type R-410A
Charge kg 2.50 2.50 3.60 3.60 3.60
Control Expansion valve (electronic type)
NrofCircuits 11111
Refrigerant Oil Type Daphne FVC68D
Charged Volume l 1.5 1.5 1.5 1.5 1.5

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
4
37
2
Piping
connections
Liquid(OD)Quantity 11111
Type Flare connection
Diameter
(OD)
mm 9.52 9.52 9.52 9.52 9.52
GasQuantity 11111
Type Flare connection
Diameter
(OD)
mm 15.9 15.9 15.9 15.9 15.9
DrainQuantity 33333
Type Hole
Diameter
(OD)
mm 26 26 26 26 26
Piping Length Minimum m 5 5 5 5 5
Maximum m 50 50 50 50 50
Equivalent m 70 70 70 70 70
Chargeless m 7.5 7.5 7.5 7.5 7.5
Installation height
difference
Maximum m 30.0 30.0 30.0 30.0 30.0
Max. internunit level difference m 0.5 0.5 0.5 0.5 0.5
Heat Insulation Both liquid and gas pipes
Defrost Method Reversed cycle
Defrost Control Sensor for outdoor heat exchanger temperature
Capacity Control Method None
Safety Devices Reverse phase protector
PC board fuse
Overcurrent relay (compressor)
Low pressure switch
High pressure switch
Fan motor thermal protector
Standard
Accessories
Item Declaration of conformity
Quantity 11111
Item Installation manual
Quantity 11111
2-1 TECHNICAL SPECIFICATIONS REQ71B7V3B REQ71B7W1B REQ100B7V3B REQ100B7W1B REQ125B7W1B

37
2
• Split Sky Air • Outdoor Units 5
• Outdoor Units • R-410A • REQ-B7
2 Specifications
2-2 ELECTRICAL SPECIFICATIONS REQ71B7V3B REQ71B7W1B REQ100B7V3B REQ100B7W1B REQ125B7W1B
Power Supply Name V3 W1 V3 W1 W1
Phase 1 3N 1 3N 3N
FrequencyHz5050505050
Voltage V 230 400 230 400 400
Current Recomended fuses A 32 16 40 16 20
Voltage range Minimum V 207 360 207 360 360
Maximum V 253 440 253 440 440
Wiring
connections
For Power Supply Quantity 1 1 1 1 1
Remark 3 wires (earth wire
included)
5 wires (earth wire
included)
3 wires (earth wire
included)
5 wires (earth wire
included)
5 wires (earth wire
included)
For connection
with indoor
Quantity 11111
Remark 4 wires (earth wire included)
Power Supply Intake Outdoor unit only
NOTES
1 Sound pressure level is a relative value, depending on the distance and acoustic environment. For more details, please refer to sound level drawings of
this chapter.
2 The sound power level is an absolute value indicating the power which a sound source generates.
3 Sound values are measured in a semi-anechoic room.
4 In case of drain piping for outdoor unit, drain piping kit (option) is needed.
5 Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor temperature : 35°CDB, equivalent refrigerant piping : 7.5m,
level difference : 0m.
6 Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB, 6°CWB, equivalent refrigerant piping : 7.5m,
level difference : 0m

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
6
37
2
2 Specifications
2 - 3 Electrical data
REQ71B7
Unit combination Power supply Compressor OFM IFM
Indoor unit Outdoor unit Hz-Volts
Voltage range MCA TOCA MFA LRA RLA kW FLA kW FLA
FCQ71 REQ71B7V3B 50-230
Max. 50Hz-253V
Min. 50Hz-207V
16.6 23.3 32 75.5 12.2 0.065 0.6 0.045 0.7
FHQ71 REQ71B7V3B 50-230 16.8 23.2 32 75.5 12.5 0.065 0.6 0.062 0.6
FBQ71 REQ71B7V3B 50-230 17.4 23.5 32 75.5 12.7 0.065 0.6 0.125 0.9
FDEQ71 REQ71B7V3B 50-230 15.4 23.5 32 75.5 11.1 0.065 0.6 0.125 0.9
FCQ71 REQ71B7W1B 50-400/230
Max. 50Hz-440/253V
Min. 50Hz-360/207V
7.3 11.3 16 41.1 4.8 0.065 0.6 0.045 0.7
FHQ71 REQ71B7W1B 50-400/230 7.5 11.2 16 41.1 5.0 0.065 0.6 0.062 0.6
FBQ71 REQ71B7W1B 50-400/230 8.1 11.5 16 41.1 5.3 0.065 0.6 0.125 0.9
FDEQ71 REQ71B7W1B 50-400/230 6.8 11.5 16 41.1 4.2 0.065 0.6 0.125 0.9
3TW26599-9
SYMBOLS
MCA : Min. Circuit Amps
TOCA : Total Over Current Amps
MFA : Max. Fuse Amps (see note 7)
LRA : Locked Rotor Amps
RLA : Rated Load Amps
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps
kW : Rated motor output
NOTES
1. RLA is based on the following conditions:
Indoor temp.: 27°CDB/19.5°CWB
Outdoor temp. : 35°CDB
2. TOCA means the total value of each OC set
3. Voltage range
Units are suitable for use on electrical systems where voltage
supplied to unit terminals is not below or above listed
operation range limits
4. Maximum allowable voltage unbalance between phases is 2%.
5. MCA/MFA
MCA = 1.25 x RLA + all FLA, MFA = < 2.25 x RLA + all FLA
(next lower standard fuse rating Min. 16A)
6. Select wire size based on the larger value of MCA or TOCA
7. Instead of fuse, use circuit breaker
8. For more details concerning conditional connections, see
http://www.daikineurope.com/extranet, select ’’Daikin
Documentation’’ and select ’’conditional connection’’, ’’the
requested product type’’ and ’’English’’ from the drop down
lists, click the search button.
Finally, click on the document title of your choice.

37
2
• Split Sky Air • Outdoor Units 7
• Outdoor Units • R-410A • REQ-B7
2 Specifications
2 - 3 Electrical data
REQ100B7
Unit combination Power supply Compressor OFM IFM
Indoor unit Outdoor unit Hz-Volts
Voltage range MCA TOCA MFA LRA RLA kW FLA kW FLA
FCQ100 REQ100B7V3B 50-230
Max. 50Hz-253V
Min. 50Hz-207V
23.8 34.8 40 98.5 17.6 0.090 0.8 0.090 1.0
FHQ100 REQ100B7V3B 50-230 25.3 34.5 40 98.5 19.0 0.090 0.8 0.130 0.7
FBQ100 REQ100B7V3B 50-230 23.2 34.8 40 98.5 17.1 0.090 0.8 0.135 1.0
FDEQ100 REQ100B7V3B 50-230 24.2 34.8 40 98.5 17.9 0.090 0.8 0.135 1.0
FCQ100 REQ100B7W1B 50-400/230
Max. 50Hz-440/253V
Min. 50Hz-360/207V
9.2 11.8 16 48.2 5.9 0.090 0.8 0.090 1.0
FHQ100 REQ100B7W1B 50-400/230 9.4 11.5 16 48.2 6.3 0.090 0.8 0.130 0.7
FBQ100 REQ100B7W1B 50-400/230 8.9 11.8 16 48.2 5.7 0.090 0.8 0.135 1.0
FDEQ100 REQ100B7W1B 50-400/230 9.6 11.8 16 48.2 6.2 0.090 0.8 0.135 1.0
3TW26619-9
SYMBOLS
MCA : Min. Circuit Amps
TOCA : Total Over Current Amps
MFA : Max. Fuse Amps (see note 7)
LRA : Locked Rotor Amps
RLA : Rated Load Amps
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps
kW : Rated motor output
NOTES
1. RLA is based on the following conditions:
Indoor temp.: 27°CDB/19.5°CWB
Outdoor temp. : 35°CDB
2. TOCA means the total value of each OC set
3. Voltage range
Units are suitable for use on electrical systems where voltage
supplied to unit terminals is not below or above listed
operation range limits
4. Maximum allowable voltage unbalance between phases is 2%.
5. MCA/MFA
MCA = 1.25 x RLA + all FLA, MFA = < 2.25 x RLA + all FLA
(next lower standard fuse rating Min. 16A)
6. Select wire size based on the larger value of MCA or TOCA
7. Instead of fuse, use circuit breaker
8. For more details concerning conditional connections, see
http://www.daikineurope.com/extranet, select ’’Daikin
Documentation’’ and select ’’conditional connection’’, ’’the
requested product type’’ and ’’English’’ from the drop down
lists, click the search button.
Finally, click on the document title of your choice.

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
8
37
2
2 Specifications
2 - 3 Electrical data
REQ125B7
Unit combination Power supply Compressor OFM IFM
Indoor unit Outdoor unit Hz-Volts
Voltage range MCA TOCA MFA LRA RLA kW FLA kW FLA
FCQ125 REQ125B7W1B 50-400/230
Max. 50Hz-440/253V
Min. 50Hz-360/207V
12.4 15.3 20 63 8.1
0.065
+
0.085
0.6
+
0.7
0.09 1.0
FHQ125 REQ125B7W1B 50-400/230 12.3 15.0 20 63 8.2
0.065
+
0.085
0.6
+
0.7
0.13 0.7
FBQ125 REQ125B7W1B 50-400/230 12.2 15.7 20 63 7.6
0.065
+
0.085
0.6
+
0.7
0.225 1.4
FDEQ125 REQ125B7W1B 50-400/230 12.6 15.7 20 63 7.9
0.065
+
0.085
0.6
+
0.7
0.225 1.4
3TW26639-9
SYMBOLS
MCA : Min. Circuit Amps
TOCA : Total Over Current Amps
MFA : Max. Fuse Amps (see note 7)
LRA : Locked Rotor Amps
RLA : Rated Load Amps
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps
kW : Rated motor output
NOTES
1. RLA is based on the following conditions:
Indoor temp.: 27°CDB/19.5°CWB
Outdoor temp. : 35°CDB
2. TOCA means the total value of each OC set
3. Voltage range
Units are suitable for use on electrical systems where voltage
supplied to unit terminals is not below or above listed
operation range limits
4. Maximum allowable voltage unbalance between phases is 2%.
5. MCA/MFA
MCA = 1.25 x RLA + all FLA, MFA = < 2.25 x RLA + all FLA
(next lower standard fuse rating Min. 16A)
6. Select wire size based on the larger value of MCA or TOCA
7. Instead of fuse, use circuit breaker
8. For more details concerning conditional connections, see
http://www.daikineurope.com/extranet, select ’’Daikin
Documentation’’ and select ’’conditional connection’’, ’’the
requested product type’’ and ’’English’’ from the drop down
lists, click the search button.
Finally, click on the document title of your choice.

37
2
• Split Sky Air • Outdoor Units 9
• Outdoor Units • R-410A • REQ-B7
2 Specifications
2 - 4 Safety device settings
REQ71∼125B7
Model
Safety device
REQ71B7V3B REQ100B7V3B REQ125B7W1B
REQ71B7W1B REQ100B7W1B
Fan motor thermal protector Off 135 ±5°C
On 95 ±15°C
HPS Off 4,15 Mpa
On 3.2 Mpa
LPS Off -0.03 Mpa
On 0.05 Mpa
Max discharge temperature By thermistor and software control
Overcurrent relay By overcurrent sensor and software control
4TW26321-2B
+0
-0,10
+0,15
-0,15
+0,02
-0,02
+0,03
-0,03

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
10
37
3
3 Options
REQ71∼125B7
Name of option Kit name
REQ71B7 REQ100B7 REQ125B7
Central drain plug KKPJ5F180
4TW26599-1

37
4
• Split Sky Air • Outdoor Units 11
• Outdoor Units • R-410A • REQ-B7
4 Capacity tables
4 - 1 Cooling capacity tables
FBQ71-125B7V3B + REQ71-100B7V3B
REQ71-125B7W1B
Cooling capacity table
Outdoor
Indoor Outdoor temp. (°CDB)
EWB EDB 20 25 32 35 40 46
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3TW26592-2
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
DB*: Dry bulb temp. (°CDB)
TC: Total cooling/heating capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC and SHC are shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.29 x 60 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)/860
Add SHC* to SHC if SHC > TC, then TC equal SHC
4. Direct interpolation is permissible.
Do not extrapolate.
5. Capacities are based on following conditions:
Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
6. Air flow rate and BF are tabulated below.
Model FBQ
71 AFR 19
BF 0.11
100 AFR 27
BF 0.2
125 AFR 35
BF 0.14
7. Add the following corrections to power input of each model.
Model Supply FBQ
71 V3 0.11
W1 0
100 V3 0.19
W1 0
125 W1 0

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
12
37
4
4 Capacity tables
4 - 1 Cooling capacity tables
FCQ71-125B7V3B + REQ71-100B7V3B
REQ71-125B7W1B
Cooling capacity table
Outdoor
Indoor Outdoor temp. (°CDB)
EWB EDB 20 25 32 35 40 46
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3TW26592-1
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
DB*: Dry bulb temp. (°CDB)
TC: Total cooling/heating capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC and SHC are shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.29 x 60 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)/860
Add SHC* to SHC if SHC > TC, then TC equal SHC
4. Direct interpolation is permissible.
Do not extrapolate.
5. Capacities are based on following conditions:
Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
6. Air flow rate and BF are tabulated below.
Model FCQ
71 AFR 18
BF 0.1
100 AFR 28
BF 0.16
125 AFR 31
BF 0.07
7. Add the following corrections to power input of each model.
Model Supply FCQ
71 V3 0.06
W1 0
100 V3 0.27
W1 0
125 W1 0

37
4
• Split Sky Air • Outdoor Units 13
• Outdoor Units • R-410A • REQ-B7
4 Capacity tables
4 - 1 Cooling capacity tables
FDEQ71-125B7V3B + REQ71-100B7V3B
REQ71-125B7W1B
Cooling capacity table
Outdoor
Indoor Outdoor temp. (°CDB)
EWB EDB 20 25 32 35 40 46
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3TW26592-4
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
DB*: Dry bulb temp. (°CDB)
TC: Total cooling/heating capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC and SHC are shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.29 x 60 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)/860
Add SHC* to SHC if SHC > TC, then TC equal SHC
4. Direct interpolation is permissible.
Do not extrapolate.
5. Capacities are based on following conditions:
Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
6. Air flow rate and BF are tabulated below.
Model FDEQ
71 AFR 19
BF 0.11
100 AFR 27
BF 0.2
125 AFR 35
BF 0.14
7. Add the following corrections to power input of each model.
Model Supply FDEQ
71 V3 0.11
W1 0
100 V3 0.04
W1 0
125 W1 0

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
14
37
4
4 Capacity tables
4 - 1 Cooling capacity tables
FHQ71-125BUV1B + REQ71-100B7V3B
REQ71-125B7W1B
Cooling capacity table
Outdoor
Indoor Outdoor temp. (°CDB)
EWB EDB 20 25 32 35 40 46
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3TW26592-3
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
DB*: Dry bulb temp. (°CDB)
TC: Total cooling/heating capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC and SHC are shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.29 x 60 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)/860
Add SHC* to SHC if SHC > TC, then TC equal SHC
4. Direct interpolation is permissible.
Do not extrapolate.
5. Capacities are based on following conditions:
Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
6. Air flow rate and BF are tabulated below.
Model FHQ
71 AFR 17
BF 0.1
100 AFR 24
BF 0.14
125 AFR 30
BF 0.13
7. Add the following corrections to power input of each model.
Model Supply FHQ
71 V3 0.05
W1 0
100 V3 0.07
W1 0
125 W1 0

37
4
• Split Sky Air • Outdoor Units 15
• Outdoor Units • R-410A • REQ-B7
4 Capacity tables
4 - 2 Heating capacity tables
FBQ71-125B7V3B + REQ71-100B7V3B
REQ71-125B7W1B
Heating capacity table
Outdoor
Indoor outdoor temperature (°CWB)
EDB -10 -5 0 6 10 15
(°C) TC PI TC PI TC PI TC PI TC PI TC PI
3TW26592-6
SYMBOLS
AFR: Air flow rate (m
3
/min)
EDB: Entering dry bulb temp. (°CDB)
WB: Wet bulb temperature (°CWB)
TC: Total cooling/heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC is shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. Capacities are based on following conditions:
* outdoor air : 85 % RH. however, the condition on nominal capacity
is 7° CDB/6° CWB
* Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
4. Direct interpolation is permissible.
Do not extrapolate.
5. Air flow rate and BF are tabulated below.
Model FBQ
71 AFR 19
BF 0.11
100 AFR 27
BF 0.2
125 AFR 35
BF 0.14
6. Add the following corrections to power input of each model.
Model Supply FBQ
71 V3 0
W1 0
100 V3 0.04
W1 0
125 W1 0

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
16
37
4
4 Capacity tables
4 - 2 Heating capacity tables
FCQ71-125B7V3B + REQ71-100B7V3B
REQ71-125B7W1B
Heating capacity table
Outdoor
Indoor outdoor temperature (°CWB)
EDB -10 -5 0 6 10 15
(°C) TC PI TC PI TC PI TC PI TC PI TC PI
3TW26592-5
SYMBOLS
AFR: Air flow rate (m
3
/min)
EDB: Entering dry bulb temp. (°CDB)
WB: Wet bulb temperature (°CWB)
TC: Total cooling/heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC is shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. Capacities are based on following conditions:
* outdoor air : 85 % RH. however, the condition on nominal capacity
is 7° CDB/6° CWB
* Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
4. Direct interpolation is permissible.
Do not extrapolate.
5. Air flow rate and BF are tabulated below.
Model FCQ
71 AFR 18
BF 0.1
100 AFR 28
BF 0.16
125 AFR 31
BF 0.07
6. Add the following corrections to power input of each model.
Model Supply FCQ
71 V3 0.06
W1 0
100 V3 0.09
W1 0
125 W1 0

37
4
• Split Sky Air • Outdoor Units 17
• Outdoor Units • R-410A • REQ-B7
4 Capacity tables
4 - 2 Heating capacity tables
FDEQ71-125B7V3B + REQ71-100B7V3B
REQ71-125B7W1B
Heating capacity table
Outdoor
Indoor outdoor temperature (°CWB)
EDB -10 -5 0 6 10 15
(°C) TC PI TC PI TC PI TC PI TC PI TC PI
3TW26592-8
SYMBOLS
AFR: Air flow rate (m
3
/min)
EDB: Entering dry bulb temp. (°CDB)
WB: Wet bulb temperature (°CWB)
TC: Total cooling/heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC is shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. Capacities are based on following conditions:
* outdoor air : 85 % RH. however, the condition on nominal capacity
is 7° CDB/6° CWB
* Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
4. Direct interpolation is permissible.
Do not extrapolate.
5. Air flow rate and BF are tabulated below.
Model FDEQ
71 AFR 19
BF 0.11
100 AFR 27
BF 0.2
125 AFR 35
BF 0.14
6. Add the following corrections to power input of each model.
Model Supply FDEQ
71 V3 0
W1 0
100 V3 0.04
W1 0
125 W1 0

• Outdoor Units • R-410A • REQ-B7
• Split Sky Air • Outdoor Units
18
37
4
4 Capacity tables
4 - 2 Heating capacity tables
FHQ71-125BUV1B + REQ71-100B7V3B
REQ71-125B7W1B
Heating capacity table
Outdoor
Indoor outdoor temperature (°CWB)
EDB -10 -5 0 6 10 15
(°C) TC PI TC PI TC PI TC PI TC PI TC PI
3TW26592-7
SYMBOLS
AFR: Air flow rate (m
3
/min)
EDB: Entering dry bulb temp. (°CDB)
WB: Wet bulb temperature (°CWB)
TC: Total cooling/heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
Caution:
TC is shown by kW
V3: 230 V [50 Hz]
W1: 400 V [50 Hz]
NOTES
1. Ratings shown are net capacities.
Influence of fan motor heat is included.
2. Shows nominal capacities
3. Capacities are based on following conditions:
* outdoor air : 85 % RH. however, the condition on nominal capacity
is 7° CDB/6° CWB
* Corresponding refrigerant piping length : 7.5 m
Level difference : 0 m
4. Direct interpolation is permissible.
Do not extrapolate.
5. Air flow rate and BF are tabulated below.
Model FHQ
71 AFR 17
BF 0.1
100 AFR 24
BF 0.14
125 AFR 30
BF 0.13
6. Add the following corrections to power input of each model.
Model Supply FHQ
71 V3 0.05
W1 0
100 V3 0.12
W1 0
125 W1 0
