Daikin SkyAir GQI-Eco FHQG71CVEB Instruction manual

FHQG-C
Ceiling Suspended Cassette
www.daikin.eu
Air Conditioners
Technical Data

FHQG-C
Ceiling Suspended Cassette
www.daikin.eu
Air Conditioners
Technical Data

• Split - Sky Air®• Indoor Unit 1
• Indoor Unit • Ceiling suspended unit • FHQG-C
TABLE OF CONTENTS
FHQG-C
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

• Indoor Unit • Ceiling suspended unit • FHQG-C
• Split - Sky Air®• Indoor Unit
2
1 Features
IndoorUnit FHQG-CCeilingsus Split-Sk • Seasonal efficiency, optimized for all seasons.
• Can be installed in both new and existing buildings
• Ideal solution for shops, restaurants or offices without false ceilings
• The unit can easily be mounted in corners and narrow spaces, as it
only needs 30mm lateral service space
2 steps

• Split - Sky Air®• Indoor Unit 3
• Indoor Unit • Ceiling suspended unit • FHQG-C
2 Specifications
2-1 Technical Specifications FHQG71CVEB FHQG100CVEB FHQG125CVEB FHQG140CVEB
Casing Colour Fresh white (6.5Y 9.5/0.5)
Dimensions Unit Height mm 235
Width mm 1,270 1,590
Depth mm 690
Weight Unit kg 32 38
Heat exchanger Rows Quantity 3
Fin pitch mm 1.5
Face area m² 0.303 0.398
Stages Quantity 14
Fin Type Cross fin coil (multi louver fins and N-hix tubes)
Fan Type Sirocco fan
Air flow rate Cooling High m³/
min
20.5 28 31 34
Low m³/
min
14 20 23 24
Heating High m³/
min
20.5 28 31 34
Low m³/
min
14 20 23 24
Fan motor Model 3D15L1AA1 4D15L1AC1
Sound power level Cooling Nom. dBA 55 60 62 64
Sound pressure level Cooling Nom. dBA 38 42 44 46
Heating Nom. dBA 34 37 38
Piping connections Liquid Type Flare connection
OD mm 9.52
Gas Type Flare connection
OD mm 15.9
Drain VP20 (I.D. 20/O.D. 26)
Air filter Resin net with mold resistance
2-2 Electrical Specifications FHQG71CVEB FHQG100CVEB FHQG125CVEB FHQG140CVEB
Power supply Phase 1
Frequency Hz 50
Voltage V 220-240
Current - 50Hz Nominal running current A -
Current - 60Hz Nominal running current A -

• Indoor Unit • Ceiling suspended unit • FHQG-C
• Split - Sky Air®• Indoor Unit
4
3 Safety device settings
3 - 1 Safety Device Settings
FHQG-CVEB
3D069638
SAFETY DEVICE LIST
Safety devices 71 100 125 140
FHQG-CVEB
Fuse 250V 3,15A 250V 3,15A 250V 3,15A 250V 3,15A
Fan motor thermal fuse °C – – – –
Fan motor thermal protector °C – – – –

• Split - Sky Air®• Indoor Unit 5
• Indoor Unit • Ceiling suspended unit • FHQG-C
4 Options
4 - 1 Options
FHQG-CVEB
3D069658
OPTIONS
ITEM REMARK FHQG-CVEB
71 100 125 140
Long-life filter KAFP501A80
(AS3604386) KAFP501A160 (AS3604386)
Fresh air intake kit #1 KDDQ50A140 (AS3604655)
L-type piping kit (for upward direction) KHFP5N160 (AS2304387)
CONTROL SYSTEMS
ITEM REMARK FHQG-CVEB
71 100 125 140
Remote control Wired BRC1E51A7/BRC1D528
Wireless Heat pump BRC7G63
Wiring adapter for electrical appendices #2 KRP1BA54
Wiring adapter for electrical appendices #2 KRP4AA52
Installation box for adapter PCB KRP1D93A
Remote sensor KRCS01-4B
Central remote control DCS302CA51
Unified on/off controller DCS301BA51
Schedule timer DST301BA51
Electrical box with earth terminal (2 blocks) KJB212AA
Electrical box with earth terminal (3 blocks) KJB311AA
Remote on/off EKROR02
#1 Fresh air intake volume is 10% or less of air flow rate.
#2 Installation box for adapter PCB (KRP1H98) is necessary.

• Indoor Unit • Ceiling suspended unit • FHQG-C
• Split - Sky Air®• Indoor Unit
6
5 Dimensional drawings
5 - 1 Dimensional Drawings
FHQG71
3D069632
NOTES
1 Location of unit’s of name plate: bottom of fan housing inside the
suction grille.
2 In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control in detail.
3 Please do not place the thing been damp and troubled under an
indoor unit. When the case where humidity is 80% or more, the drain
outlet are choked up and the air filter are dirty, dew may fall.
Nr Name Description
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection Ø15.9 flare
5 Liquid pipe connection Ø9.5 flare
6 Drain pipe connection VP20
7 Earth terminal (inside electric components box) M4
8 Hanger bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connection opening lid
11 Right side pipe connection slit hole
12 Left back drain pipe connection slit hole
13 Left side drain pipe connection slit hole
14 Right side drain pipe connection slit hole
15 Hole of wall for taking out in piping back Ø100
16 Upward drain pipe connection Ø60
17 Upward gas pipe connection Ø36
18 Upward liquid pipe connection Ø26
19 Power source wiring and a unit wiring back connection Ø29
20 Power source wiring and a unit wiring upper connection Ø29
(suspension position)
Position slit hole for taking out in piping back
(view from the front)
Position: hole of wall for taking out in piping back
(view from the front)
(suspension
position)
(required space)
(required space)
(required space)
For height installation from the
floor side 2500 or more
Drain pipe
connection VP20
suspension bolt
brand nameplate
note 2
floor side
obstacle
30 or more
(service space)
30 or more
(service space)
Connection position of fresh air intake kit
Ø100 (knock-out hole)
THE FRONT
(for left piping)
300 or more
FHQG100-140
3D069633
NOTES
1 Location of unit’s name plate: bottom of fan housing inside the suction grille.
2 In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control in detail.
3 Don’t put anything under indoor unit because dew may fall by reason
of following:
1. The humidity is 80% or more.
2. The drain outlet is stopped up.
3. The air filter is dirty.
Nr Name Description
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection Ø15.9 flare
5 Liquid pipe connection Ø9.5 flare
6 Drain pipe connection VP20
7 Earth terminal (inside electric components box) M4
8 Hanger bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connection opening lid
11 Right side pipe connection slit hole
12 Left back drain pipe connection slit hole
13 Left side drain pipe connection slit hole
14 Right side drain pipe connection slit hole
15 Hole of wall for taking out in piping back Ø100
16 Upward drain pipe connection Ø60
17 Upward gas pipe connection Ø36
18 Upward liquid pipe connection Ø26
19 Power source wiring and a unit wiring back connection Ø29
20 Power source wiring and a unit wiring upper connection Ø29
(suspension position)
Position slit hole for taking out in piping back
(view from the front)
Position: hole of wall for taking out in piping back
(view from the front)
(suspension
position)
(required space)
(required space)
(required space)
For height installation from the
floor side 2500 or more
Drain pipe connection VP20
suspension bolt
brand nameplate
note 2
brand nameplate
floor side
obstacle
30 or more
(service space)
30 or more
(service space)
Connection position of fresh air intake kit
Ø100 (knock-out hole)
FRONT

• Split - Sky Air®• Indoor Unit 7
• Indoor Unit • Ceiling suspended unit • FHQG-C
5 Dimensional drawings
5 - 1 Dimensional Drawings
FHQG-CVEB
3D069661
• Remote controller dimensions
Transmitting part
• Receiver installation procedure
• Remote controller holder installation procedure
<Installation to wall surface>
• Receiver detail
Receiver
Liquid crystal
remote controller
(infrared)
Remote controller
holder

• Indoor Unit • Ceiling suspended unit • FHQG-C
• Split - Sky Air®• Indoor Unit
8
6 Piping diagrams
6 - 1 Piping Diagrams
FHQG-CVEB
4D037995J
Field piping
To outdoor unit
Field piping
Indoor heat exchanger
INDOOR UNIT
MODEL
⺑⺒
FHQG71, 100, 125, 140CVEB 9.5 15.9

• Split - Sky Air®• Indoor Unit 9
• Indoor Unit • Ceiling suspended unit • FHQG-C

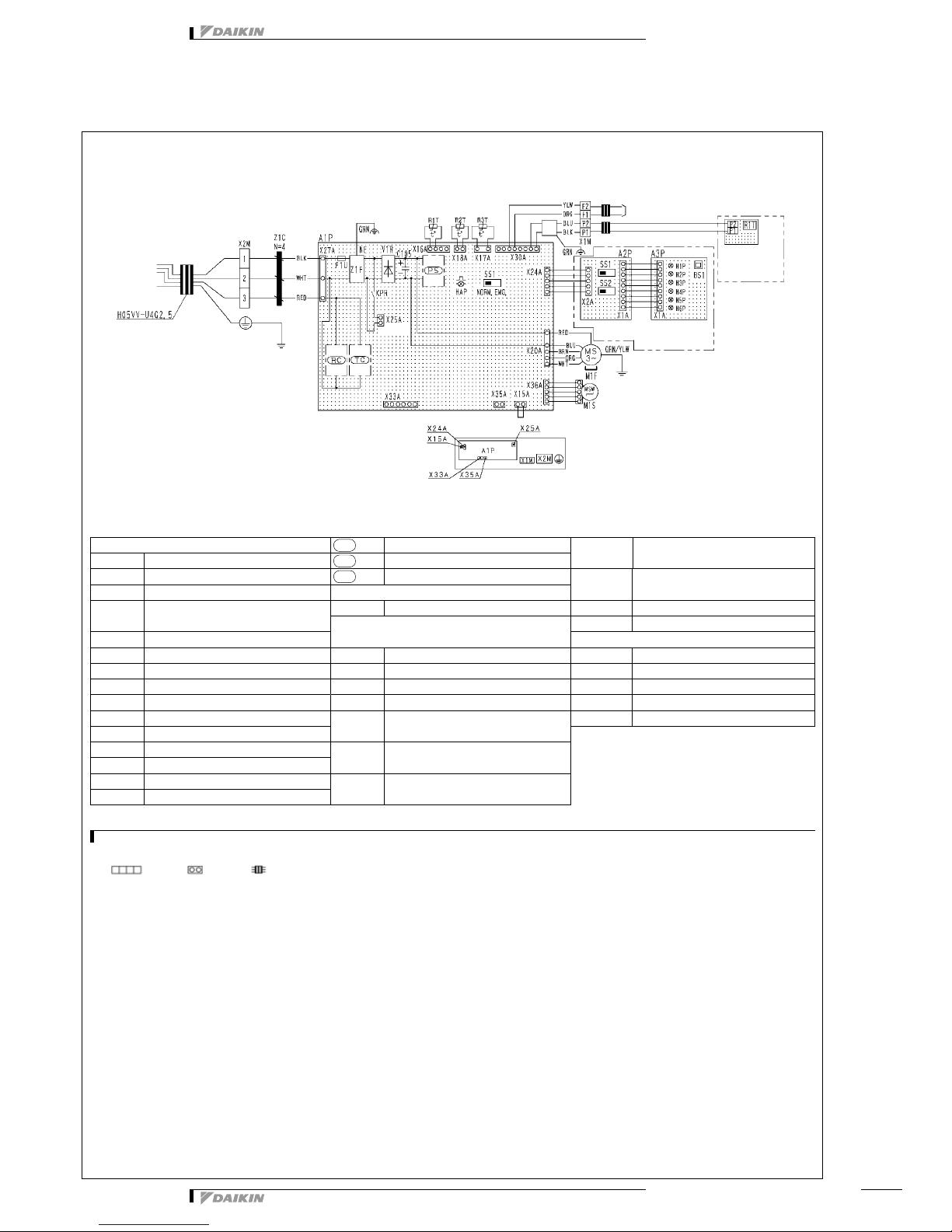

7 Wiring diagrams
7 - 1 Wiring Diagrams - Single Phase
FHQG71-100-125-140CVEB
Indoor unit PS Power supply circuit H5P Light emitting diode
A1P Printed circuit board RC Signal receiver circuit (element washing - red)
C105 Capacitor (M1F) TC Signal transmission circuit H6P Light emitting diode
F1U Fuse (T, 3, 15A, 250V) Wired remote control (ventilation clean - green)
HAP Light emitting diode R1T Thermistor (air) SS1 Selector switch (main/sub)
(service monitor green) Infrared remote control SS2 Selector switch (wireless adress set)
KPR Magnetic relay (M1P) (Receiver/Display unit) Connector for optional parts
M1F Motor (indoor fan) A2P Printed circuit board X15A Connector (float switch)
M1S Motor (swing flap) A3P Printed circuit board X24A Connector (Infrared remote control)
R1T Thermistor (air) BS1 Push button (ON/OFF) X25A Connector (drain pump)
R2T-R3T Thermistor (coil) H1P Light emitting diode (ON - red) X33A Connector (adapter for wiring)
SS1 Selector switch (emergency) H2P Light emitting diode X35A Connector (group control adapter)
V1R Diode bridge (timer - green) RED: red PNK: pink BLK: black ORG: orange
X1M Terminal block H3P Light emitting diode WHT: white GRN: green YLW: yellow BLU: blue
X2M Terminal block (filter sign - red) GRY: grey BRN: brown
Z1F Noise filter H4P Light emitting diode
Z1C Ferrite core (noise filter) (defrost - orange)
NOTES
1. : Terminal : connector : Field wiring
2. Model outdoor unit shown in this diagram shows the outline of product. For the detail, see wiring diagram attached to outdoor unit.
3. In case using central remote control, connect it to the unit in accordance with the attached installation manual.
4. X15A, X25A are connected when the drain up kit is being used, in accordance with the attached installation manual.
5. In case of main/sub changeover. See the installation manual attached to remote control.
6. Shows only in case of protected pipes. Use HD7RN-F in case of no protection.
3D069266-1A
Transmission wiring
central remote control (note3)
Wired remote control
(optional accessory)
(note 5)
Infrared remote control
(receiver/display unit)
(optional accessory)
(only FHQG100~104CVEB)
(only FHQG100~104CVEB)
(note 6) (note 4)
To outdoor unit
(note 2)
Indoor unit
Control box

• Indoor Unit • Ceiling suspended unit • FHQG-C
• Split - Sky Air®• Indoor Unit
10
8 Sound data
8 - 1 Sound Pressure Spectrum
)+4*&9(%
'
127(6
 2YHU$OOG%%*1LVDOUHDG\UHFWL¿HG
 2SHUDWLQJFRQGLWLRQV
 3RZHUVRXUFHa9+]9+]
 &RROLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 +HDWLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 0HDVXULQJSODFH$QHFKRLFFKDPEHU
 2SHUDWLRQQRLVHGLIIHUVZLWKRSHUDWLRQDQGDPELHQWFRQGLWLRQV
 /RFDWLRQRIPLFURSKRQH
2FWDYHEDQGVRXQGSUHVVXUHOHYHOG%G% EDU
2FWDYHEDQGFHQWHUIUHTXHQF\+]
+L
/RZ
$SSUR[LPDWH
WKUHVKROGKHDULQJ
IRUFRQWLQXRXV
QRLVH
0LFSRVLWLRQ
6FDOH +L /RZ
$
&
)+4*&9(%
'
127(6
 2YHU$OOG%%*1LVDOUHDG\UHFWL¿HG
 2SHUDWLQJFRQGLWLRQV
 3RZHUVRXUFHa9+]9+]
 &RROLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 +HDWLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 0HDVXULQJSODFH$QHFKRLFFKDPEHU
 2SHUDWLRQQRLVHGLIIHUVZLWKRSHUDWLRQDQGDPELHQWFRQGLWLRQV
 /RFDWLRQRIPLFURSKRQH
2FWDYHEDQGVRXQGSUHVVXUHOHYHOG%G% EDU
2FWDYHEDQGFHQWHUIUHTXHQF\+]
+L
/RZ
$SSUR[LPDWH
WKUHVKROGKHDULQJ
IRUFRQWLQXRXV
QRLVH
0LFSRVLWLRQ
6FDOH +L /RZ
$
&
)+4*&9(%
'
127(6
 2YHU$OOG%%*1LVDOUHDG\UHFWL¿HG
 2SHUDWLQJFRQGLWLRQV
 3RZHUVRXUFHa9+]9+]
 &RROLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 +HDWLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 0HDVXULQJSODFH$QHFKRLFFKDPEHU
 2SHUDWLRQQRLVHGLIIHUVZLWKRSHUDWLRQDQGDPELHQWFRQGLWLRQV
 /RFDWLRQRIPLFURSKRQH
2FWDYHEDQGVRXQGSUHVVXUHOHYHOG%G% EDU
2FWDYHEDQGFHQWHUIUHTXHQF\+]
+L
/RZ
$SSUR[LPDWH
WKUHVKROGKHDULQJ
IRUFRQWLQXRXV
QRLVH
0LFSRVLWLRQ
6FDOH +L /RZ
$
&
)+4*&9(%
'
127(6
 2YHU$OOG%%*1LVDOUHDG\UHFWL¿HG
 2SHUDWLQJFRQGLWLRQV
 3RZHUVRXUFHa9+]9+]
 &RROLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 +HDWLQJ5HWXUQDLUWHPSHUDWXUH&'%&:%
  2XWGRRUWHPSHUDWXUH&'%&:%
 0HDVXULQJSODFH$QHFKRLFFKDPEHU
 2SHUDWLRQQRLVHGLIIHUVZLWKRSHUDWLRQDQGDPELHQWFRQGLWLRQV
 /RFDWLRQRIPLFURSKRQH
2FWDYHEDQGVRXQGSUHVVXUHOHYHOG%G% EDU
2FWDYHEDQGFHQWHUIUHTXHQF\+]
+L
/RZ
$SSUR[LPDWH
WKUHVKROGKHDULQJ
IRUFRQWLQXRXV
QRLVH
0LFSRVLWLRQ
6FDOH +L /RZ
$
&

Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende EEDEN11-100 • 04/10 • Copyright Daikin The present publication supersedes EEDEN10-100 Prepared in Belgium by Lannoo (www.lannooprint.be), a company whose concern for the environment is set in the EMAS and ISO 14001 systems. Responsible Editor: Daikin Europe N.V., Zandvoordestraat 300, B-8400 Oostende
Daikin products are distributed by:
Daikin’s unique position as a manufacturer of air
conditioning equipment, compressors and refrigerants
has led to its close involvement in environmental issues.
For several years Daikin has had the intention to become
a leader in the provision of products that have limited
impact on the environment. This challenge demands the
eco design and development of a wide range of products
and an energy management system, resulting in energy
conservation and a reduction of waste.
Daikin Europe N.V. is participating in the EUROVENT
Certification Programme. Products are as listed in the
EUROVENT Directory of Certified Products. Multi units are
Eurovent certified for combinations up to 2 indoor units
The present publication is drawn up by way of information only and does not constitute an offer binding
upon Daikin Europe N.V.. Daikin Europe N.V. has compiled the content of this publication to the best of its
knowledge. No express or implied warranty is given for the completeness, accuracy, reliability or fitness for
particular purpose of its content and the products and services presented therein. Specifications are subject
to change without prior notice. Daikin Europe N.V. explicitly rejects any liability for any direct or indirect
damage, in the broadest sense, arising from or related to the use and/or interpretation of this publication. All
content is copyrighted by Daikin Europe N.V..
