dallmeier CasinoCam DDF3000AV Operating and maintenance instructions

Installation and Configuration
Rev. 3.0.3 / 080707
English

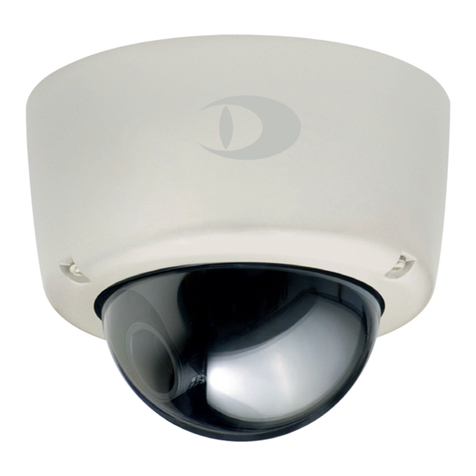

Colour minidome (Day/Night)
DDF3000AV(-DN)
DDF3000AV(-DN) CasinoCam®

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
2Dallmeier electronic
Informations about copyright, trademarks, design patents
© 2008 Dallmeier electronic
All rights reserved. This document may not be copied, photocopied, reproduced, translated,
transferred to an electronic medium or converted to a machine-readable form either whole or in
part without first receiving written permission from Dallmeier electronic GmbH & Co.KG.
We reserve the right to make technical modifications.
The manufacturer accepts no liability for damage to property or pecuniary damages arising due
to minor defects of the product or documentation, e.g. print or spelling errors, and for those not
caused by intention or gross negligence of the manufacturer.
Dallmeier electronic GmbH & Co.KG
Cranachweg 1
D 93051 Regensburg, Germany
www.dallmeier-electronic.com
[email protected]
All trademarks identified by ®are registered trademarks of Dallmeier electronic.
All trademarks identified by *)are trademarks or registered trademarks of the following owners:
Digital Pixel System of Pixim, Inc. headquartered in Mountain View, California, USA
Third-party trademarks are named for information purposes only.
Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-
partytrademarksandindication oftherespective holderofrights. Incasethat protectedrightsare notindicatedseparately,thiscircumstance
is no reason to assume that the respective trademark is unprotected.

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
3Dallmeier electronic
Table of contents
1 This document ............................................................................................ 4
1.1 Validity .......................................................................................................... 4
1.2 Documents.................................................................................................... 4
1.3 Convention ................................................................................................... 4
2 Safety instructions ..................................................................................... 6
3 General notes.............................................................................................. 8
3.1 Scope of delivery.......................................................................................... 8
3.2 Transportation and packaging....................................................................... 8
3.3 Appropriate use............................................................................................. 8
3.4 Performance features ................................................................................... 8
3.5 Warranty ....................................................................................................... 9
3.6 Certifications................................................................................................. 9
4 Notes on operating the camera ............................................................... 10
5 Views and connection assignment......................................................... 11
5.1 Views .......................................................................................................... 11
5.2 Connection assignment .............................................................................. 11
6 Installation................................................................................................. 12
6.1 Requirements at the installation site........................................................... 12
6.2 Installation without casing floor................................................................... 12
6.3 Installation with casing floor........................................................................ 14
6.4 Setting up and adjustment .......................................................................... 17
6.5 Closing the housing .................................................................................... 18
7 Preparing to configure ............................................................................. 19
7.1 UTC Remote Box ....................................................................................... 19
7.2 DMS recorder ............................................................................................. 20
7.3 PView.......................................................................................................... 20
8 Configuration ............................................................................................ 21
8.1 Presets........................................................................................................ 21
8.2 Basic functions............................................................................................ 24
8.2.1 Camera ID .................................................................................................. 24
8.2.2 CCTV System ............................................................................................. 24
8.2.3 Horizontal Flip............................................................................................. 25
8.2.4 Lens Select ................................................................................................. 25
8.2.5 Color ........................................................................................................... 25
8.2.6 Day / Night Setup........................................................................................ 26
8.3 Image Functions ......................................................................................... 27
8.3.1 Progressive Scan........................................................................................ 27
8.3.2 Backlight ..................................................................................................... 27
8.3.3 Digital Zoom ............................................................................................... 28
8.3.4 White Balance ............................................................................................ 28
8.4 Exit Menu.................................................................................................... 29
9 Appendix ................................................................................................... 30
9.1 Menu structure ............................................................................................ 30
9.2 Technical data............................................................................................. 31
9.3 Technical drawings...................................................................................... 32

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
4Dallmeier electronic
1 This document
1.1 Validity
This document applies to the colour minidome DDF3000AV(-DN) / DDF3000AV(-DN)
CasinoCam®. It has been produced on the basis of version 2.1 (software).
The descriptions in this document apply to all above-mentioned camera versions. For
simplification reasons, the term “DDF3000AV(-DN)” is thus used.
Iftextpassages require distinctions to be made between the cameras, thecompletecamera
name will be mentioned.
1.2 Documents
Commissioning
The quick guide headed “Commissioning“ lists the most important steps for the connection
and commissioning of the device.
Installation and Configuration (this document)
The document entitled “Installation and Configuration“ contains detailed descriptions of the
installation, connection, commissioning and configuration of the device. Safety instructions,
general notes and technical data are additionally provided.
Thetargetaudience isexclusivelyspeciallytrainedand authorizedprofessionals(“installers“).
1.3 Conventions
This document contains various warning words and symbols that indicate potential sources
of danger. Various symbols and formats are used to maintain the clarity of the document.
DANGER
The warning word DANGER denotes an immediate danger
that may cause death or serious injury if it is not averted.
WARNING
The warning word WARNING denotes a possible danger that
may cause death or serious injury if it is not averted.
CAUTION
The warning word CAUTION denotes a possible danger that
may cause minor injury if it is not averted.

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
5Dallmeier electronic
IMPORTANT
The word IMPORTANT denotes information for preventing
damage, incorrect configurations or incorrect actions.
NOTE
A NOTE offers information on principles, special features and
efficient procedure as well as general recommendations.
Expression Expressions in bold and italics generally indicate a control
elementonthedevice(switchesorlabels)oronitsuserinterface
(buttons, menu entries).

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
6Dallmeier electronic
2 Safety instructions
Only use this unit if it is technically in proper working order, to the intended purpose and
whilekeepingsafetyandpotentialdangersinmind.Havemalfunctionsordamages eliminated
immediately!
Appoint a professional
Installation, mounting, connection, start-up and configuration of the unit may only be carried
out by trained and authorized professionals (installers).
Unless otherwise expressly specified, this also applies to the maintenance, testing and
repair. In doing so the regulations of the DIN VDE 0701 series of standards (repair,
modification and inspection of electrical appliances) must be followed in addition.
Read and pay attention to the documents
Carefully and completely read the documents included in delivery. Always pay attention to
the provided instructions, notes and warnings.
Regulations surveillance systems
The use of video and audio surveillance systems is strictly regulated in most countries.
Therefore,inform yourself on laws and regulations that governindividualapplicationsbefore
using the unit. Ensure compliance with these laws and regulations and also observe
regulations regarding data, working and environmental protection.
Do not make modifications
Do not make any modifications to the unit (neither to the software nor the hardware) without
consultingDallmeier electronic. Impropermodificationscan cause malfunctionsordamages.
Dallmeierelectronic accepts noliabilityfor damages resulting from unauthorizedorimproper
modifications to the unit.
Protection against condensation water
If the unit is brought from a cold to a warm environment, condensation water can form
inside the unit. Short-circuits may then lead to damage to the system. Wait up to 8 hours for
the unit to reach room temperature before starting it up.
Observe the rated voltage
The unit can be damaged or destroyed by the application of an incorrect voltage.
The mains voltage must always match the rated voltage of the unit. The rated voltage is
specified on the rating plate of the unit.
Observe ratings
Unsuitableambient conditionsandimproper installation(mainlytoo highambient temperature
and insufficient ventilation) may reduce the unit’s life cycle. Ensure compliance with the
stated operating conditions (see technical data), requirements at the installation site and, if
applicable, maintenance regulations.
Expansion components/peripheral devices
Useonly expansioncomponentsconformingwith the technical dataof the unit. Inappropriate
peripheral devices may result in the violation of local laws and regulations and damages to
the unit. In case of doubt, contact the sales partner responsible for your area.

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
7Dallmeier electronic
Do not open the unit
Do not open the housing of the unit. There are no components inside the unit that require
maintenance by the user. The inspection, maintenance and repair with an open housing
must only be carried out by trained and authorized professionals (installer).
Penetration of foreign bodies and liquids
No objects or liquids may be allowed to get into the device. In this case, immediately
disconnect the unit from the power supply (pull out the power plug). Please contact the
sales partner responsible for your area.
Measures to be taken in the event of damage and burnt smell
If you notice burnt smell or formation of smoke from a unit, immediately disconnect it from
the power supply (pull out the power plug). Please contact the sales partner responsible for
your area.
Disposal
Disconnect the unit from the power supply. Remove all connected units and system
components. Return the unit to your respective sales partner.

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
8Dallmeier electronic
3 General notes
3.1 Scope of delivery
Included in the standard scope of delivery is:
1 x DDF3000AV(-DN)
1 x Adapter ring
4 x Screw and plug
1 x Terminal strip
1 x Belt with hook
1 x Torx wrench
1 x Cable (voltage supply, video)
1 x Documentation “Installation and Configuration“ (CD)
1 x Documentation “Commissioning“ (in print)
1 x Drilling template
The scope of delivery may differ depending on the ordered equipment or device variant.
The device’s range of functions depends on the ordered equipment or device variant and
may therefore not correspond with this document’s content. Certain functions and features
may require an activation that is subject to costs.
3.2 Transportation and packaging
Store the original packaging for transportation at a later date. Dallmeier electronic is not
responsible for damage resulting from unprofessional/improper transportation. The goods
should only be shipped in their original packaging.
If the original packaging is no longer available, ensure that the packaging used sufficiently
protects the unit against damage, moisture, heat and cold.
3.3 Appropriate use
TheDDF3000AV(-DN) is a vandal-resistantHiRes UWDR Cam_inPIX®colour domecamera
3.4 Performance features
The DDF3000AV(-DN) is especially characterised by the following functions and properties:
zDigital Pixel System*)(DPS) chipset
z1/3” DPS sensor with Cam_inPIX®technology
z17-bit Digital Signal Processing
zHigh sensitivity for low-light images at F0.95, 50IRE: 0.5 lux and (-DN): 0.2 lux
zProgressive Scan image capture
zProgressive With Segmented Frames (PsF) image data transmission
zICR function for Day/Night switching

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
9Dallmeier electronic
zAdvanced noise reduction
zEnhanced image quality by means of numerous control functions like AWB, AGC, BLC
and extended slow shutter
zHiRes vari focal lens with F0.95 and f=2.8-8mm
zConfiguration via UTC commands
zTri-axial gimbal adjustment
zCompact vandal resistant housing with IP67
NOTE
For detailled information please see the chapter Technical
data.
3.5 Warranty
The terms and conditions valid at the signing of the contract apply.
3.6 Certifications
The following certifications were in effect at the time this document was produced:
zCE
zFCC
zUL
zACA
zUVV-Kassen
zCB
zIP67

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
10Dallmeier electronic
4 Notes on operating the camera
zThe camera is operated at 12V DC.
zIf the camera or the cables connected to the camera are located near sources of strong
radiation, the video picture may be distorted.
zThe camera is equipped with automatic gain control (AGC). In low light the picture may
be altered (e.g. noise). This is not a camera malfunction.
zThe quality of the video picture depends on the used lens, the lighting and the monitor
used to display the video picture.
zAutomatic white balance depends on the lighting used and can cause color distortions in
artificial light.
zPoor lighting can lead to faulty white balance.

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
11Dallmeier electronic
5 Views and connection assignment
5.1 Views
5.2 Connection assignment
Fig.5-1
Adapter ringDome Cardan mounting
Camera module Camera support
Housing base plate
Fig.5-2
Video
Ground (black)
+ 12V (red)

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
12Dallmeier electronic
6 Installation
6.1 Requirements at the installation site
The DDF3000AV(-DN) is designed for indoor and outdoor use. Unfavorable local conditions
may shorten the life of the product or lead to malfunctions.
Do not install/operate the DDF3000AV(-DN) in places:
zwith large scale dust and dirt
zwith steam or oil vapors (e.g. kitchen)
zwith direct sunlight
zwith improper ambient temperatures (see technical data)
znear sources of strong radiation (i.e. X-rays, radio transmitters or magnetic fields)
zwith corrosive surroundings (e.g. gases or salt water)
6.2 Installation without casing floor
Use the template included for mounting the camera:
1. Make an incision in the center of
the film.
2. Guide the cables suspended
from the wall/ceiling through the
film.
3. Position the film with respect to
thesubsequent camera position.
4. Adherethe film using a minimum
of pressure.
5. Mark the drill holes for the
securing screws.
6. Carefully peel off the film.
7. Cutout therecessfor thecamera
holder.
NOTE
The diameter of the recess may be a maximum of 5 mm larger
than the recess for the adapter ring.
Fig.6-1

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
13Dallmeier electronic
Fig.6-2
Fig.6-4
8. Drill the holes for the securing screws.
9. Secure the adapter ring to the wall or ceiling.
10. First connect the video cable, then the power
cable.
WARNING
Danger of death from electric shock caused by lightning. Do
not connect the power supply/video cable during a
thunderstorm.
11. Place the camera holder on the adapter
ring.
NOTE
Ensure that the camera holder sealing rings are correctly
positioned on the screws.
Fig.6-3
Video
Ground (black)
+ 12V (red)

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
14Dallmeier electronic
12. Screw the camera holder securely to the
adapter ring.
IMPORTANT
Possible camera damage caused by the ingress of water (IP67
compliance).
Tighten the screws as much as possible without using force
(max. torque 1.8 Nm).
6.3 Installation with casing floor
Use the template included for mounting the camera:
1. Cut the foil at the appropriate place.
2. Guidethecablessuspendedfromthe
wall/ceiling through the film.
3. Position the film with respect to the
subsequent camera position.
4. Adhere the film using a minimum of
pressure.
5. Mark the holes for the securing
screws.
6. Carefully peel off the film.
7. Drill the holes for the securing
screws.
Fig.6-5
Fig.6-6

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
15Dallmeier electronic
8. Thread the cables through the large
opening into the interior of the casing
floor.
9. Secure the casing floor to the ceiling
or wall using 3 screws.
10. Securethe belt usingthe fourth screwforthe casing
floor.
11. Screw the hook into the camera holder.
12. Secure the camera holder to the casing floor by attaching the belt.
13. First connect the video cable, then the power cable (see fig. 6-3).
WARNING
Danger of death from electric shock caused by lightning!
Do not connect the power supply/video cable during a
thunderstorm.
Fig.6-7
Fig.6-8
Fig.6-9

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
16Dallmeier electronic
14. Place the camera holder into the housing
base plate.
NOTE
Ensure that the camera holder sealing rings are correctly
positioned on the screws.
15. Screw the camera holder to the casing floor.
IMPORTANT
Possible camera damage caused by the ingress of water (IP67
compliance).
Tighten the screws as much as possible without using force
(max. torque 1.8 Nm).
Fig.6-10
Fig.6-11

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
17Dallmeier electronic
6.4 Setting up and adjustment
1. Connect the camera to a monitor for
alignmentpurposes usingthe VideoPreview
output.
IMPORTANT
Possible damage or malfunction caused by pulled plugs or
jammed/kinked cables.
Proceed with caution when aligning and adjusting the camera.
Do not use any force
2. Align the camera horizontally.
3. Align the camera vertically.
4. Set the focal distance (A) and focus (B).
Securerings (A)and(B)using screws(C)after
adjustment.
Fig.6-12
Fig.6-15
Fig.6-13
Horizontal
Fig.6-14
Vertical

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
18Dallmeier electronic
6.5 Closing the housing
1. Place the coupling on the casing.
Ensure that the sealing ring is correctly
positioned on the camera holder.
IMPORTANT
Possible damage to the lens and the dome with extreme
alignment of the camera (vertical, horizontal).
When mounting, ensure that the dome does not jam the lens.
Do not use any force.
2. Turn the coupling carefully. The coupling is
correctly position if it fits into the guide and
cannot be turned.
3. Close the coupling with the 3 casing screws.
IMPORTANT
Possible camera damage caused by the ingress of water (IP67
compliance).
Tighten the screws as much as possible without using force
(max. torque 1.8 Nm).
CAUTION
Danger of injury from the camera falling down.
Before initial startup, make sure that the dome and the housing
base plate are securely mounted.
Fig.6-16
Fig.6-17

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
19Dallmeier electronic
7 Preparing to configure
The camera is supplied with factory settings which enable it to be used for most scenarios
without further configuration. However, if required certain camera properties can be
configured using the camera menu.
The camera can be configured by means of the UTC Remote Box, the recorder or PView.
NOTE
There must be no video distributor or signal amplifier between
the camera and the UTC Remote Box (or recorder or PView).
NOTE
Refer to the separate operator’s manuals for the devices or
software used.
7.1 UTC Remote Box
Direct
Camera UTC Remote Box CVBS monitor
Via recorder
Camera UTC Recorder Monitor
Remote Box
Fig.7-1
Fig.7-2

DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam®
20Dallmeier electronic
7.2 DMS recorder
Camera Recorder Monitor
NOTE
This method requires a recorder with software version 5.3.1 or
higher and a built-in FG-11 frame grabber card.
7.3 PView
Camera Recorder PView Station Monitor
NOTE
This method requires a recorder with software version 5.3.1 or
higher and a built-in FG-11 frame grabber card, using PView
version 5.6.0 or higher.
Fig.7-3
Fig.7-4
