Datalogic MC-GM45 User manual

MULTI-SLOT BATTERY CHARGER
TECHNICAL FEATURES
POWER SUPPLY
Datalogic 12V, 5A wall adapter is recommended (90ACC0350) and a standard Power Cord cable
is needed to connect the power supply to the socket, e.g. the following Datalogic P/Ns:
• P/N: 6003-0924 Power Cord, 220V, Italy/Chile
• P/N: 6003-0941 US Power Cord, 110V, US, Standard
• P/N: 6003-0940 Power Cord, AC, IEC/EU
CONNECTIONS
Plug the power supply cable into the connector positioned on the MC-GM45 base. Plug the
Power Cord into the Power Supply connector and then plug the Power Cord into a socket.
MULTI-SLOT BATTERY CHARGER
TECHNICAL FEATURES
POWER SUPPLY
Datalogic 12V, 5A wall adapter is recommended (90ACC0350) and a standard Power Cord cable
is needed to connect the power supply to the socket, e.g. the following Datalogic P/Ns:
• P/N: 6003-0924 Power Cord, 220V, Italy/Chile
• P/N: 6003-0941 US Power Cord, 110V, US, Standard
• P/N: 6003-0940 Power Cord, AC, IEC/EU
CONNECTIONS
Plug the power supply cable into the connector positioned on the MC-GM45 base. Plug the
Power Cord into the Power Supply connector and then plug the Power Cord into a socket.
The MC-GM45 is a Multi-Slot Bat-
tery Charger with 4 slots. It allows
you to charge the Gryphon™
GBT4500/GM4500 battery packs.
ELECTRICAL PHYSICAL
Power supply 12 VDC Dimensions 212.2 x 70.5 (or 72 with bumpons) x 63.8 mm
(8.35 x 2.78 - or 2.83 with bumpons -x 4.1 in)
Max consumption max 1,8 A L x H x D
Charge time 3250 mAh Li-Ion bat-
tery: 3.5h at 25 °C (77 °F) Weight 280 g (9.88 oz)
ENVIRONMENTAL
LEDs Green: Power-On)
Red/Yellow/Green: Charging state
Working temperature 0° to +40 °C
+32° to +104 °F
Storage temperature -20° to +70 °C
-4° to +158 °F
Humidity 90% non-condensing
CAUTION
The Multi-Slot Battery Charger MC-GM45 should be operated at an ambient temperature between 0 and
35 °C (32 to 95 °F) to achieve the maximum charging rate. Never charge the battery packs in a closed
space where excessive heat can build up. As a safety precaution, the battery charging may stop or slow
down to avoid overheating.
MC-GM45
Power Supply Cable
USB or RS-232 optional
Cable for Service or retriev-
ing Battery Packs' informa-
tion
The MC-GM45 is a Multi-Slot Bat-
tery Charger with 4 slots. It allows
you to charge the Gryphon™
GBT4500/GM4500 battery packs.
ELECTRICAL PHYSICAL
Power supply 12 VDC Dimensions 212.2 x 70.5 (or 72 with bumpons) x 63.8 mm
(8.35 x 2.78 - or 2.83 with bumpons -x 4.1 in)
Max consumption max 1,8 A L x H x D
Charge time 3250 mAh Li-Ion bat-
tery: 3.5h at 25 °C (77 °F) Weight 280 g (9.88 oz)
ENVIRONMENTAL
LEDs Green: Power-On)
Red/Yellow/Green: Charging state
Working temperature 0° to +40 °C
+32° to +104 °F
Storage temperature -20° to +70 °C
-4° to +158 °F
Humidity 90% non-condensing
CAUTION
The Multi-Slot Battery Charger MC-GM45 should be operated at an ambient temperature between 0
and 35 °C (32 to 95 °F) to achieve the maximum charging rate. Never charge the battery packs in a
closed space where excessive heat can build up. As a safety precaution, the battery charging may stop
or slow down to avoid overheating.
MC-GM45
Power Supply Cable
USB or RS-232 optional
Cable for Service or retriev-
ing Battery Packs' informa-
tion
Battery Charging LED
Power-On LED
Power-On LED
Battery Charging LED

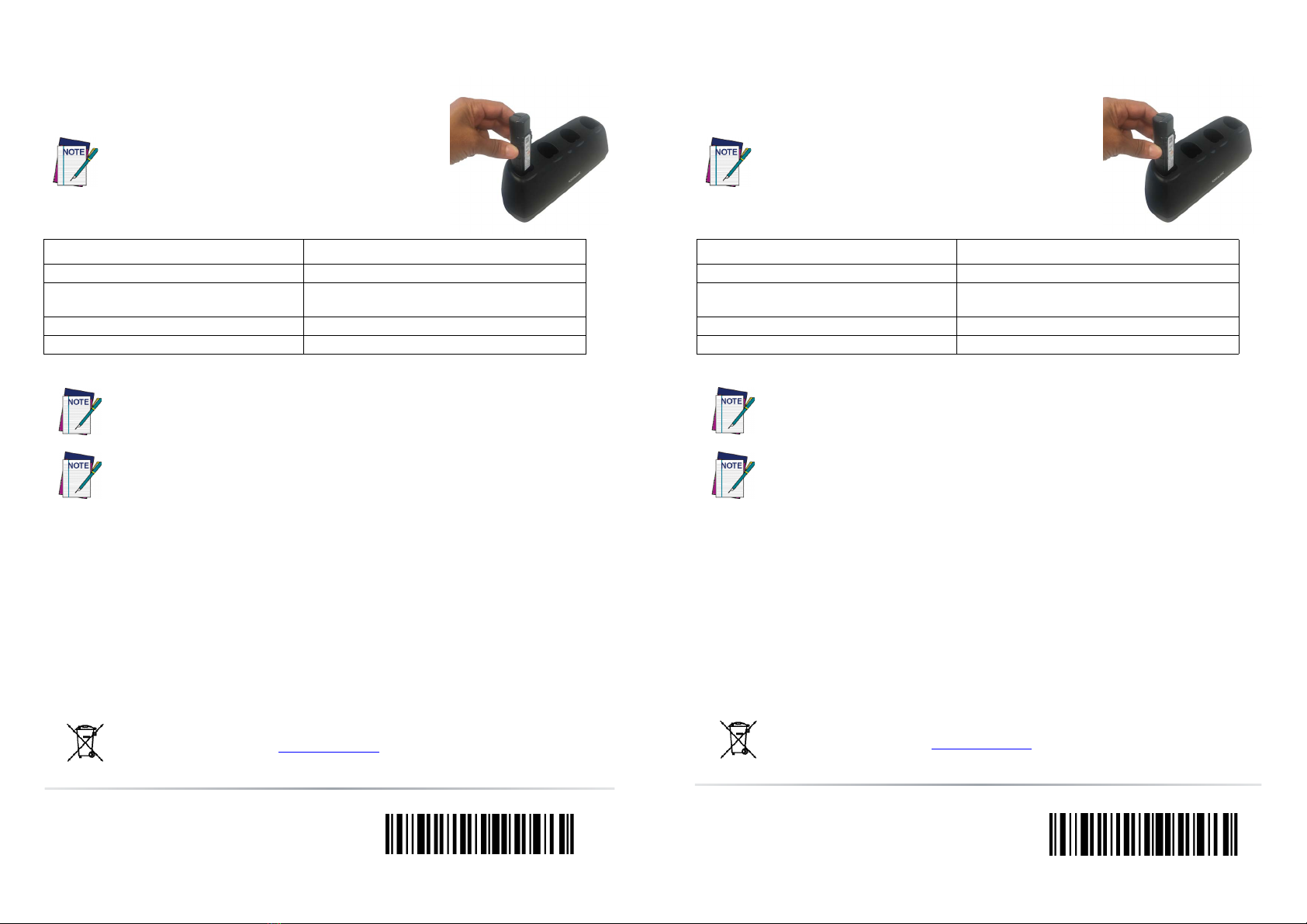

USING MC-GM45
CHARGE FUNCTION
Correctly insert the battery pack into one of the free slots: charging starts
automatically.
Battery Charging State LED Description
The charge takes place slowly if the battery is extremely low.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority
to use this equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
which may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
POWER SUPPLY
This device is intended to be supplied by a UL Listed/CSA Certified Power Unit marked "Class 2" or LPS power source rated
12 VDC, minimum 20 W, which supplies power directly to the device.
WEEE COMPLIANCE
USING MC-GM45
CHARGE FUNCTION
Correctly insert the battery pack into one of the free slots: charging starts
automatically.
Battery Charging State LED Description
The charge takes place slowly if the battery is extremely low.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority
to use this equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
which may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
POWER SUPPLY
This device is intended to be supplied by a UL Listed/CSA Certified Power Unit marked "Class 2" or LPS power source rated
12 VDC, minimum 20 W, which supplies power directly to the device.
WEEE COMPLIANCE
It is recommended to use ONLY certified Datalogic P/N RBP-GM45
Removable Battery Pack (also known as Model BT-47) for charging.
Do not attempt to open and/or disassemble the battery charger.
For best performance, it is suggested to install the Multi-Slot Bat-
tery Charger in a clean and fresh environment.
LED State Charging State
Off Empty slot
Blinking Orange
(charge <50%) or Green (charge >50%) Charging
Solid Green End of charge
Solid Red Battery failure - replace battery
Not all types of battery failures can be signaled by the battery charger.
The Multi-Slot Battery Charger MC-GM45 is intended per desk use but it’s also possible a wall
mounting
For information about the disposal of Waste Electrical and Electronic Equipment (WEEE),
please refer to the website at www.datalogic.com
It is recommended to use ONLY certified Datalogic P/N RBP-GM45
Removable Battery Pack (also known as Model BT-47) for charging.
Do not attempt to open and/or disassemble the battery charger.
For best performance, it is suggested to install the Multi-Slot Bat-
tery Charger in a clean and fresh environment.
LED State Charging State
Off Empty slot
Blinking Orange
(charge <50%) or Green (charge >50%) Charging
Solid Green End of charge
Solid Red Battery failure - replace battery
Not all types of battery failures can be signaled by the battery charger.
The Multi-Slot Battery Charger MC-GM45 is intended per desk use but it’s also possible a wall
mounting
For information about the disposal of Waste Electrical and Electronic Equipment (WEEE),
please refer to the website at www.datalogic.com
