Dell S510 User manual

Dell Interactive Projector
S510/S510n
User’s Guide

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make
better use of your projector
CAUTION: A CAUTION indicates potential damage to hardware or
loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2015 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP
and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and
Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model: Dell Interactive Projector S510/S510n
February 2015 Rev. A01

Contents | 3
Contents
1 About Your Dell Projector . . . . . . . . . . . . . . . . . 5
Projector Box Contents . . . . . . . . . . . . . . . . . . . . 5
Projector Top and Bottom View . . . . . . . . . . . . . . . 7
2 Setting Up Your Projector . . . . . . . . . . . . . . . . . 9
Cleaning Projector's Mirror . . . . . . . . . . . . . . . . . . 9
Adjusting Projector Focus . . . . . . . . . . . . . . . . . . . 9
Adjusting Image Size . . . . . . . . . . . . . . . . . . . . . 10
Adjusting Image Shape . . . . . . . . . . . . . . . . . . . . 11
Using Remote Control . . . . . . . . . . . . . . . . . . . . 12
Projector Connections . . . . . . . . . . . . . . . . . . . . 17
3 Using Your Projector . . . . . . . . . . . . . . . . . . . . 31
Turning Projector On . . . . . . . . . . . . . . . . . . . . . 31
Turning Projector Off . . . . . . . . . . . . . . . . . . . . . 31
Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using Interactive Pen (Only for S510) . . . . . . . . . . 51
Using Intel®WiDi. . . . . . . . . . . . . . . . . . . . . . . . 59
Using Miracast. . . . . . . . . . . . . . . . . . . . . . . . . . 68
Using Wireless/LAN Display (DoWiFi/DoLAN) . . . . . 74
Using USB Display (DoUSB) . . . . . . . . . . . . . . . . . 91
Using PC-Free Presentation. . . . . . . . . . . . . . . . . 94
Using Audio Projection . . . . . . . . . . . . . . . . . . . 102
Managing Projector with Web Browser . . . . . . . . . 111
4 Troubleshooting Your Projector . . . . . . . . . . 130
Guiding Signals . . . . . . . . . . . . . . . . . . . . . . . . 135
Changing the Lamp . . . . . . . . . . . . . . . . . . . . . 136
FAQS: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Firewall Configuration and FAQ . . . . . . . . . . . . . 140
5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 142
RS232 Pin Assignment . . . . . . . . . . . . . . . . . . . 146

4| Contents
6 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . 148
Contacting Crestron . . . . . . . . . . . . . . . . . . . . 149
7 Appendix: Glossary . . . . . . . . . . . . . . . . . . . . 150

About Your Dell Projector 5

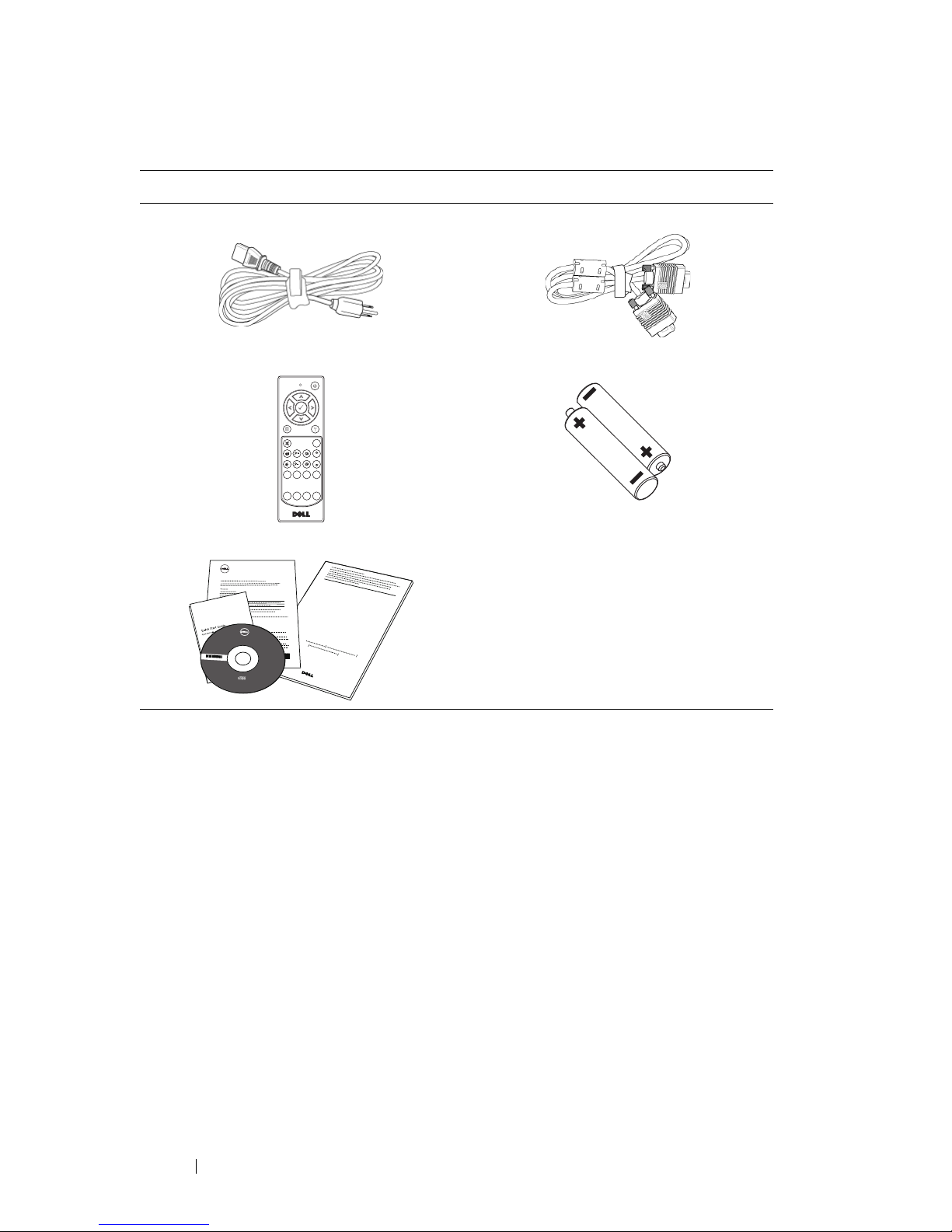

Your projector comes with all the items shown below. Ensure that you have
all the items, and contact Dell if anything is missing.
Projector Box Contents
1About Your Dell Projector
S510 Package Contents
Power cable VGA cable (VGA to VGA)
Remote control AAA Batteries (6)
CD User’s Guide and Documentation Mini USB cable (USB-A to Mini
USB-B)
IR Pen (2 pcs)/Pen tip cap (4 pcs) Wrist strap (2 pcs)
Freeze
Source Auto
Adjust
Blank
Screen
Blank
Screen
Video
Mode
VGA Video
PageDown
HDMI
PageUp
Aspect
Ratio
AAA
AAA
Dell
TM
Projector s
oduct Information Guide
Informacion Importante
Dell™ Interactive Projector
S510/S510n
Contents:
•User's Guide
Documentation
P/N 8K5P4
Rev. A01
P/N 36.73901G001
January 2015
Madein China
©
2
0
1
5
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell
™
Projector S510/S510n
08K5P4A01

6About Your Dell Projector
S510n Package Contents
Power cable VGA cable (VGA to VGA)
Remote control AAA Batteries (6)
CD User’s Guide and Documentation
Freeze
Source Auto
Adjust
Blank
Screen
Blank
Screen
Video
Mode
VGA Video
PageDown
HDMI
PageUp
Aspect
Ratio
AAA
AAA
Dell
TM
Projector s
oduct Information Guide
Informacion Importante
Dell™ Interactive Projector
S510/S510n
Contents:
•User's Guide
Documentation
P/N 8K5P4
Rev. A01
P/N 36.73901G001
January 2015
Madein China
©
2
0
1
5
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell
™
Projector S510/S510n
08K5P4A01

About Your Dell Projector 7
Projector Top and Bottom View
1 Power button
2TempLED
3 Lamp LED
4IRreceivers
5 Lamp cover
6 Camera (only for S510)
710Wspeaker
8 Lens
9Focusring
10 Mounting holes for wall mount: Screw hole M4 x 8 mm depth.
Recommended torque <10 kgf-cm
163.00
112.5038.80
151.30
10 7
4
5
936
7
821
Top View Bottom View

8About Your Dell Projector
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of
dust. The dust may cause the system to fail and the projector will
automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5 °C to
35 °C).
6 Do not try to touch the ventilation outlet as it can become very hot after
the projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to
your eyes.
8 Do not place any objects near or in front of the projector or cover its lens
while the projector is on as the heat may cause the object to melt or burn.
9 Do not use the wireless projector near cardiac pacemakers.
10 Do not use the wireless projector near medical equipment.
11 Do not use the wireless projector near microwave ovens.
NOTE:
• Do not attempt to wall mount the projector by yourself. It should be
installed by a qualified technician.
• Recommended Projector Wall Mount Kit (P/N: 7XY53). For more
information, see the Dell Support website at dell.com/support .
• For more information, see the Safety Information that shipped with
your projector.
• The S510/S510n projector can only be used indoors.

Setting Up Your Projector 9
Cleaning Projector's Mirror
1 Turn off the projector power and disconnect the power cord.
2 Let the projector cool for at least 30 minutes.
3 Use air blower bulb to blow off dust on the mirror or gently wipe the mirror
by using a microfiber cleaning cloth. Do not scrub the surface of the
mirror. It may scratch the mirror.
CAUTION: Do not spray cleaners or solvents directly on the
projector.
WARNING: Cleaning a wall-mounted projector can result in a fall
or injury. You can remove the projector from the wall-mounting
bracket to clean the projector's mirror.
Adjusting Projector Focus
1 Rotate the focus ring until the image is clear. The projector focuses at
distances ranging between 1.7 ft to 2.49 ft (0.517 m to 0.759 m ± 0.01 m).
2Setting Up Your Projector
1Focusring
1

10 Setting Up Your Projector

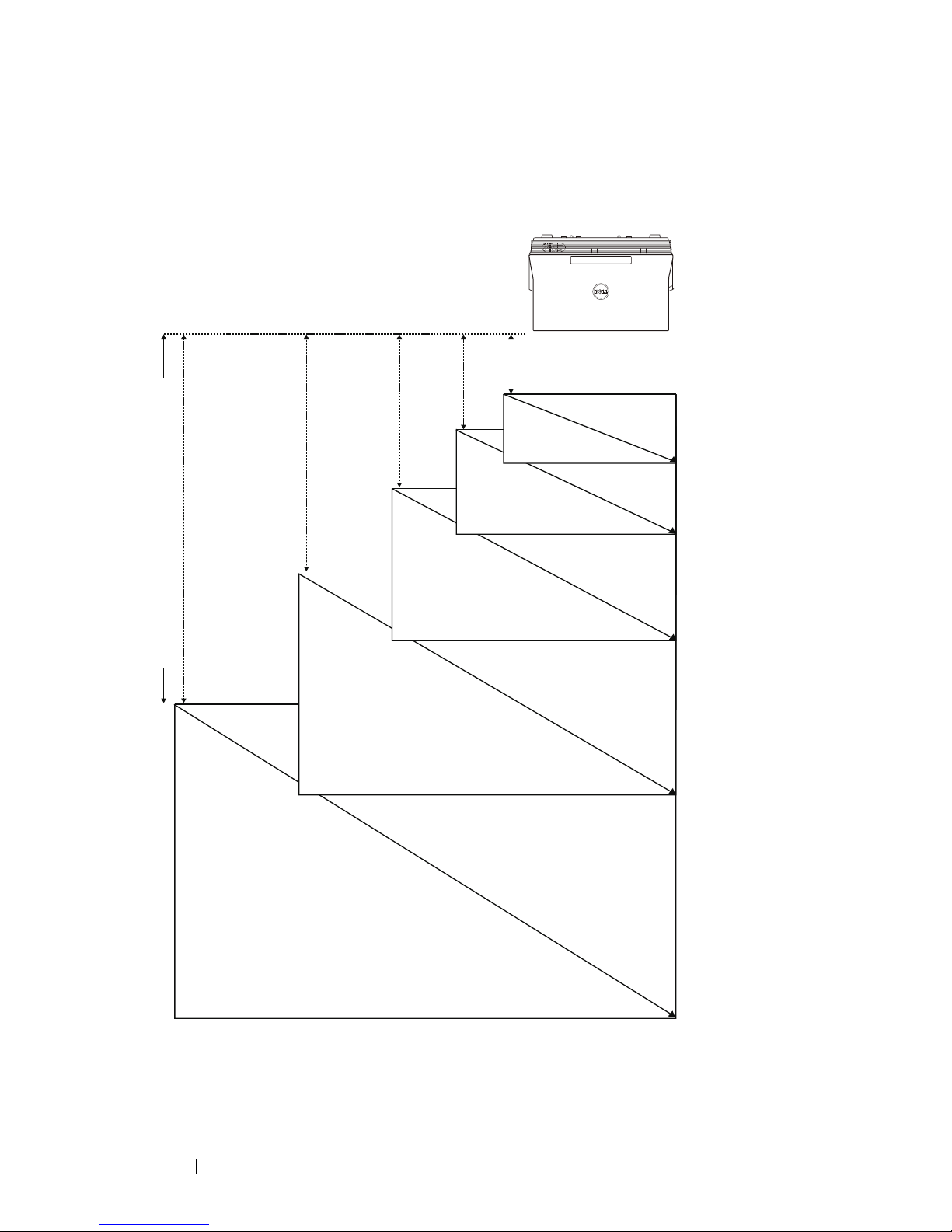

Adjusting Image Size
70" (177.8 cm)
0.597’ (18.2 cm)
0.872’ (26.6 cm)
1.05’ (32 cm)
1.122’ (34.2 cm) 1.391’ (42.4 cm)
80" (203.2 cm)
87.2" (221.49 cm)
90" (228.6 cm)
100" (254 cm)
Projector to screen distance (d)
