Dell PowerEdge 4220 User manual

Dell™ 4220/4320 Projector
User’s Guide
Downloaded From projector-manual.com DELL Manuals

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you
make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware
or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of
Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS
INCORPORATED; Microsoft and Windows are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
Model 4220/4320
March 2011 Rev. A00
Downloaded From projector-manual.com DELL Manuals

Contents 3
Contents
1 Your Dell Projector . . . . . . . . . . . . . . . . . . 7
About Your Projector . . . . . . . . . . . . . . . . . 8
2 Connecting Your Projector . . . . . . . . . . . . 10
Installing the Optional Wireless Dongle . . . . . . 11
Connecting to a Computer . . . . . . . . . . . . . . . . 12
Connecting a Computer Using a VGA Cable . . . . 12
Monitor Loop-Through Connection
Using VGA Cables . . . . . . . . . . . . . . . . . . 13
Connecting a Computer Using a RS232 Cable . . . 14
Connecting a Computer by USB Cable . . . . . . . 15
Connecting a Computer Using Wireless . . . . . . 16
Connecting a DVD Player . . . . . . . . . . . . . . . . 17
Connecting a DVD Player Using an S-Video Cable . 17
Connecting a DVD Player Using a
Composite Video Cable . . . . . . . . . . . . . . . 18
Connecting a DVD Player Using a
Component Video Cable . . . . . . . . . . . . . . 19
Connecting a DVD Player Using an HDMI Cable . . 20
Connecting to Local Area Network . . . . . . . . . . . 21
To project an image and control the projector that is
connected to a network through a RJ45 cable. . . 21
Professional Installation Options: Installation for
Driving Automatic Screen . . . . . . . . . . . . . 22
Connection With Commercial RS232 Control Box . 23
Downloaded From projector-manual.com DELL Manuals

4Contents
3 Using Your Projector . . . . . . . . . . . . . . . . 24
Turning Your Projector On . . . . . . . . . . . . . . . . 24
Turning Your Projector Off . . . . . . . . . . . . . . . . 24
Adjusting the Projected Image . . . . . . . . . . . . . 25
Raising the Projector Height . . . . . . . . . . . . 25
Lowering the Projector Height . . . . . . . . . . . 25
Adjusting the Projector Zoom and Focus . . . . . . . . 26
Adjusting Projection Image Size . . . . . . . . . . . . 27
Using the Control Panel . . . . . . . . . . . . . . . . . 31
Using the Remote Control . . . . . . . . . . . . . . . . 33
Installing the Remote Control Batteries . . . . . . . . 36
Operating Range With Remote Control . . . . . . . . . 37
Using the On-Screen Display . . . . . . . . . . . . . . 38
INPUT SOURCE . . . . . . . . . . . . . . . . . . . 38
AUTO ADJUST . . . . . . . . . . . . . . . . . . . 39
BRIGHTNESS/CONTRAST . . . . . . . . . . . . . 40
VIDEO MODE . . . . . . . . . . . . . . . . . . . . 40
VOLUME . . . . . . . . . . . . . . . . . . . . . . 41
AUDIO INPUT . . . . . . . . . . . . . . . . . . . . 41
ADVANCED SETTINGS . . . . . . . . . . . . . . . 41
LANGUAGE . . . . . . . . . . . . . . . . . . . . . 56
HELP . . . . . . . . . . . . . . . . . . . . . . . . 56
Wireless Networking Installation . . . . . . . . . . . 57
Enable Wireless on the Projector . . . . . . . . . 58
Install the Wireless Application software on
Your Computer . . . . . . . . . . . . . . . . . . . 60
Downloaded From projector-manual.com DELL Manuals

Contents 5
Launch the Wireless Application . . . . . . . . . . 63
Presentation to Go (PtG) Installation . . . . . . . . . . 67
PtG Viewer . . . . . . . . . . . . . . . . . . . . . 68
Photo Viewer . . . . . . . . . . . . . . . . . . . . 68
PtG/Photo Function Introduction . . . . . . . . . . 69
PtG Overview . . . . . . . . . . . . . . . . . . . . 69
Photo Overview . . . . . . . . . . . . . . . . . . . 70
Buttons-Introduction . . . . . . . . . . . . . . . . 70
Set up PtG Converter - Lite . . . . . . . . . . . . . 71
PtG Converter - Lite Application Software . . . . . 72
Audio Projection Installation . . . . . . . . . . . . . . 73
Enable Wireless or LAN on the Projector . . . . . 74
Install the Dell Wireless Application Software
on Your Computer . . . . . . . . . . . . . . . . . . 75
Launch the Wireless Application . . . . . . . . . . 77
Login . . . . . . . . . . . . . . . . . . . . . . . . 77
Video Stream Installation . . . . . . . . . . . . . . . . 79
Video Stream Support Format . . . . . . . . . . . 79
Enable Wireless or LAN on the Projector . . . . . 80
Install the Dell Wireless Application Software
on Your Computer . . . . . . . . . . . . . . . . . . 80
Launch the Wireless Application . . . . . . . . . . 80
Login . . . . . . . . . . . . . . . . . . . . . . . . 80
Managing the Projector From Web Management . . . . 81
Configuring the Network Setting . . . . . . . . . . 81
Accessing Web Management . . . . . . . . . . . 81
Make Application Token . . . . . . . . . . . . . . . . 100
Downloaded From projector-manual.com DELL Manuals

6Contents
4 Troubleshooting Your Projector . . . . . . 101
Guiding Signals . . . . . . . . . . . . . . . . . . . . . 105
Changing the Lamp . . . . . . . . . . . . . . . . . . . 106
5 Specifications . . . . . . . . . . . . . . . . . . . . 108
6 Contacting Dell . . . . . . . . . . . . . . . . . . . 115
7 Appendix: Glossary . . . . . . . . . . . . . . . 116
Downloaded From projector-manual.com DELL Manuals

Your Dell Projector 7
1
Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all the
items, and contact Dell™ if anything is missing.
Package Contents
Power cable 1.8 m VGA cable (VGA to VGA)
Carrying case Remote control
CD User’s Guide and Documentation AAA Batteries (2)
USB cable
Downloaded From projector-manual.com DELL Manuals

8Your Dell Projector
About Your Projector
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The
dust may cause the system to fail and the projector will automatically shut down.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
1Control panel
2Zoom tab
3Focus ring
4Lens
5Elevator button for height adjustments
6IR receivers
7Lens cap
8Mounting holes for wall mount: Screw hole M3 x 6.5 mm depth.
Recommended torque <8 kgf-cm
9Mounting hole for tripod: Insert nut 1/4"*20 UNC
10 Lamp cover
11 Tilt adjustment wheel
12 Elevator foot
1
2
3
4
6
5
7
Top View Bottom View
Downloaded From projector-manual.com DELL Manuals

Your Dell Projector 9
5 Ensure the projector operates between ambient temperatures (5 ºC to 35 ºC).
6 Do not try to touch the ventilation outlet as it can become very hot after the
projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to your
eyes.
8 Do not place any objects near or in front of the projector or cover its lens while the
projector is on as the heat may cause the object to melt or burn.
9 Do not use the wireless projector near cardiac pacemakers.
10 Do not use the wireless projector near medical equipment.
11 Do not use the wireless projector near microwave ovens.
NOTE:
• Do not attempt to wall mount the projector yourself. It should be installed
by a qualified technician.
• Recommended Projector Ceiling Mount Kit (P/N: C3505). For more
information, see the Dell Support website at
support.dell.com .
• For more information, see the
Safety Information that shipped with your
projector.
• The 4220/4320 projector can only be used indoors.
Downloaded From projector-manual.com DELL Manuals

10 Connecting Your Projector
2
Connecting Your Projector

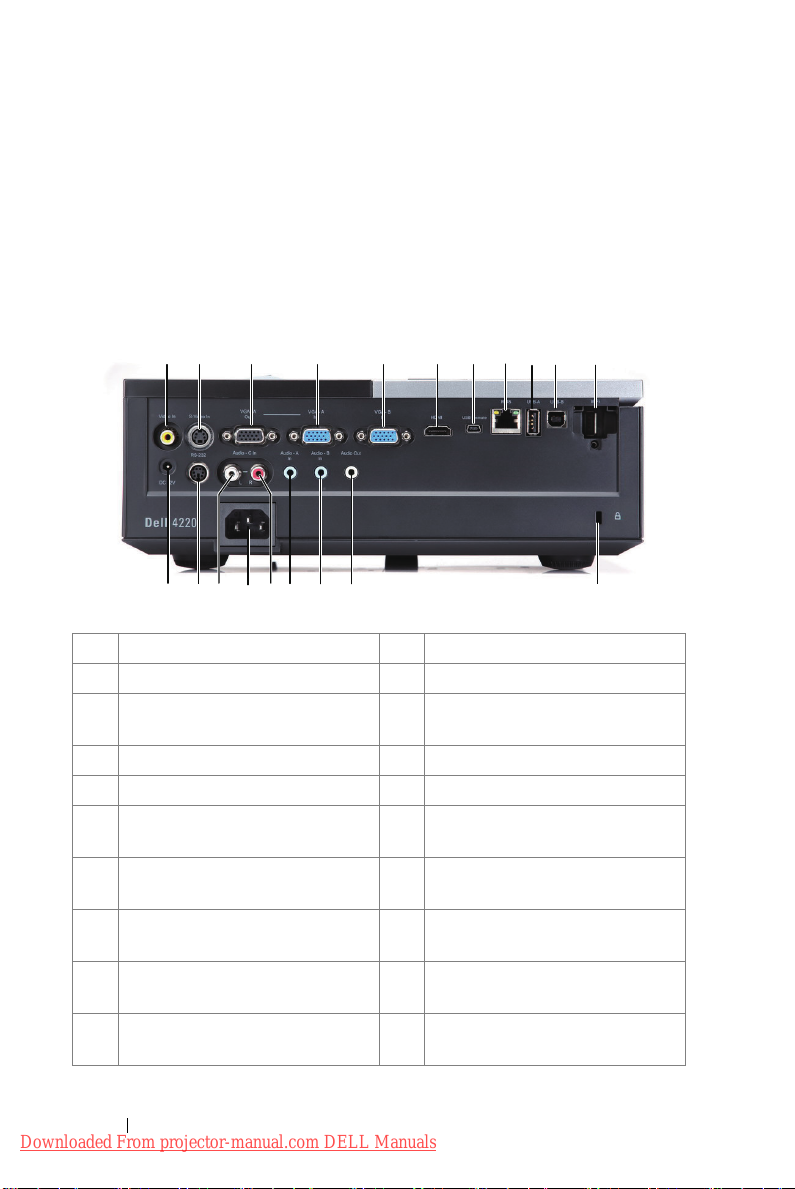

1Composite Video connector 11 WiFi USB (Type A) connector
2S-Video connector 12 Security cable slot
3VGA-A output (monitor loop-
through)
13 Audio output connector
4VGA-A input (D-sub) connector 14 Audio-B input connector
5VGA-B input (D-sub) connector 15 Audio-A input connector
6HDMI connector 16 Audio-C right channel input
connector
7Mini USB (Mini Type B)
connector for remote control
17 Power cord connector
8RJ45 connector 18 Audio-C left-channel input
connector
9USB Type A connector for USB
Viewer
19 RS232 connector
10 USB Type B connector for USB
Display
20 +12 V DC out connector
3 4 5 6 7 8
14 12
12
13
910
1920 15161718
11
Downloaded From projector-manual.com DELL Manuals

Connecting Your Projector 11
NOTE: Connectors are the same for 4220 and 4320 projectors.
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 8.
Installing the Optional Wireless Dongle
Your projector must be installed with a wireless dongle if you want to use the
wireless networking option. Refer to "Wireless Networking Installation" on
page 57. The wireless dongle is not shipped with your 4220/4320 projector.
You can purchase it on the Dell website at
www.dell.com .
1 Unscrew and take off the wireless cover.
2 Plug in the wireless dongle.
3 Assemble the wireless cover.
Downloaded From projector-manual.com DELL Manuals

12 Connecting Your Projector
Connecting to a Computer
Connecting a Computer Using a VGA Cable
NOTE: The Mini USB cable is not shipped with your projector.
NOTE: The Mini USB cable must be connected if you want to use the Page Up
and Page Down features on the remote control.
1Power cord
2VGA to VGA cable
3USB-A to Mini USB-B cable
Downloaded From projector-manual.com DELL Manuals

Connecting Your Projector 13
Monitor Loop-Through Connection Using VGA Cables
NOTE: Only one VGA cable is shipped with your projector. An additional VGA
cable can be purchased on the Dell website at www.dell.com.
1Power cord
2VGA to VGA cable
Downloaded From projector-manual.com DELL Manuals

14 Connecting Your Projector
Connecting a Computer Using a RS232 Cable
NOTE: The RS232 cable is not shipped with your projector. Consult a
professional installer for the cable and RS232 remote control software.
1Powercord
2 RS232 cable
Downloaded From projector-manual.com DELL Manuals

Connecting Your Projector 15
Connecting a Computer by USB Cable
NOTE: Plug and Play. Only one USB cable is shipped with your projector. An
additional USB cable can be purchased on the Dell website at www.dell.com.
1Powercord
2 USB-A to USB-B cable
Downloaded From projector-manual.com DELL Manuals

16 Connecting Your Projector
Connecting a Computer Using Wireless
NOTE: Your computer should be equipped with a wireless connector and
properly configured to detect another wireless connection. Refer to your
computer’s documentation on how to configure a wireless connection.
NOTE: Your projector must be installed with a wireless dongle if you want to
use the wireless networking. Refer to "Wireless Networking Installation" on
page 57.
Downloaded From projector-manual.com DELL Manuals

Connecting Your Projector 17
Connecting a DVD Player
Connecting a DVD Player Using an S-Video Cable
NOTE: The S-Video cable is not shipped with your projector. You can purchase
the S-Video extension (50 ft/100 ft) cable on the Dell website at www.dell.com.
1Power cord
2S-Video cable
Downloaded From projector-manual.com DELL Manuals

18 Connecting Your Projector
Connecting a DVD Player Using a Composite Video Cable
NOTE: The Composite Video cable is not shipped with your projector. You can
purchase the Composite Video Extension (50 ft/100 ft) cable on the Dell website
at www.dell.com.
1Power cord
2Composite Video cable
Downloaded From projector-manual.com DELL Manuals

Connecting Your Projector 19
Connecting a DVD Player Using a Component Video Cable
NOTE: The VGA to Component Video cable is not shipped with your projector.
You can purchase the VGA to Component Video Extension (50 ft/100 ft) cable on
the Dell website at www.dell.com.
1Power cord
2VGA to Component Video cable
Downloaded From projector-manual.com DELL Manuals

20 Connecting Your Projector
Connecting a DVD Player Using an HDMI Cable
NOTE: The HDMI cable is not shipped with your projector. You can purchase
the HDMI cable on the Dell website at www.dell.com.
1Power cord
2HDMI cable
Downloaded From projector-manual.com DELL Manuals
