Dell M110 User manual

Dell™ M110 Projector
User’s Guide

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you
make better use of your projector.
CAUTION: A CAUTION indicates potential damage to hardware
or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of
Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS
INCORPORATED; Microsoft and Windows are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
Model M110
May 2012 Rev. A01

Contents 3
Contents
1 Your Dell Projector . . . . . . . . . . . . . . . . . . 6
About Your Projector . . . . . . . . . . . . . . . . . 8
2 Connecting Your Projector . . . . . . . . . . . . 10
Connecting to a Computer . . . . . . . . . . . . . . . . 11
Connecting a Computer Using a VGA Cable . . . . 11
Connecting a Computer by USB Cable . . . . . . . 12
Connecting a Computer Using Wireless
Dongle (Optional) . . . . . . . . . . . . . . . . . . 13
Connecting a DVD Player . . . . . . . . . . . . . . . . 14
Connecting a DVD Player Using a A/V to RCA Cable 14
Connecting a DVD Player Using a HDMI Cable . . 15
Connecting to Multi-Media . . . . . . . . . . . . . . . 16
Connecting Multi-Media Using a USB Flash Disk . 16
Connecting Multi-Media Using a MicroSD Card . . 17
3 Using Your Projector . . . . . . . . . . . . . . . . 18
Turning Your Projector On . . . . . . . . . . . . . . . . 18
Turning Your Projector Off . . . . . . . . . . . . . . . . 18
Adjusting the Projected Image . . . . . . . . . . . . . 19
Raising the Projector Height . . . . . . . . . . . . 19
Lowering the Projector Height . . . . . . . . . . . 19

4Contents
Adjusting the Projector Focus . . . . . . . . . . . . . . 20
Adjusting Projection Image Size . . . . . . . . . . . . 21
Using the Control Panel . . . . . . . . . . . . . . . . . 23
Installing the Remote Control Battery (Optional) . . . . 27
Operating Range with Remote Control . . . . . . . . . 28
Using the On-Screen Display . . . . . . . . . . . . . . 29
INPUT SOURCE . . . . . . . . . . . . . . . . . . . 29
AUTO ADJUST . . . . . . . . . . . . . . . . . . . 30
VIDEO MODE . . . . . . . . . . . . . . . . . . . . 31
VOLUME . . . . . . . . . . . . . . . . . . . . . . 31
AUDIO INPUT . . . . . . . . . . . . . . . . . . . . 31
ADVANCED SETTINGS . . . . . . . . . . . . . . . 32
LANGUAGE . . . . . . . . . . . . . . . . . . . . . 42
Multi-Media Introduction . . . . . . . . . . . . . . . . 43
How to set-up File Type for Multi-Media with USB 44
How to set-up File Type for Multi-Media with
MicroSD . . . . . . . . . . . . . . . . . . . . . . 46
How to set-up File Type for Multi-Media with
Internal Memory . . . . . . . . . . . . . . . . . . 48
Office Viewer for the USB, Micro SD, and
Internal Memory . . . . . . . . . . . . . . . . . . 50
Multi-Media SETUP for USB, Micro SD, and
Internal Memory . . . . . . . . . . . . . . . . . . 51
PHOTO SETUP . . . . . . . . . . . . . . . . . . . 51
VIDEO SETUP . . . . . . . . . . . . . . . . . . . . 52
MUSIC SETUP . . . . . . . . . . . . . . . . . . . 52
FIRMWARE UPDATE . . . . . . . . . . . . . . . . 53

Contents 5
4 Troubleshooting Your Projector . . . . . . . . 54
Guiding Signals . . . . . . . . . . . . . . . . . . . . . 57
5 Specifications . . . . . . . . . . . . . . . . . . . . . 58
6 Contacting Dell . . . . . . . . . . . . . . . . . . . . 62
7 Appendix: Glossary . . . . . . . . . . . . . . . . . 63

6Your Dell Projector
1
Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all the
items, and contact Dell™ if anything is missing.
Package Contents
Power cable Universal 24-pin to VGA cable
CD User’s Guide and Documentation Carrying case
AC adapter
DOCOMENTATION
Dell
TM
M110/M110HD Projector
Dell
TM
M110/M110HD Projector
Quick Setup Guide
Informacion Importante
Dell
TM
Projectors
oduct Information Guide

Your Dell Projector 7
Optional Contents
Remote control 3.5 mm jack A/V to RCA cable
1.2 m HDMI cable 3.5 mm jack A/V cable.
1.2 m USB cable (USB-A to USB-A) Universal 24-pin to VGA and Audio
out cable
Mini tripod Wireless dongle
FCC ID:
SUZ-WU5205C

8Your Dell Projector
About Your Projector
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The
dust may cause the system to fail and the projector will automatically shut down.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5 ºC to 35 ºC).
6 Do not try to touch the ventilation outlet as it can become very hot after the
projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to your
eyes.
8 Do not place any objects near or in front of the projector or cover its lens while the
projector is on as the heat may cause the object to melt or burn.
9 Do not use alcohol to wipe the lens.
10 Do not use the wireless projector near cardiac pacemakers.

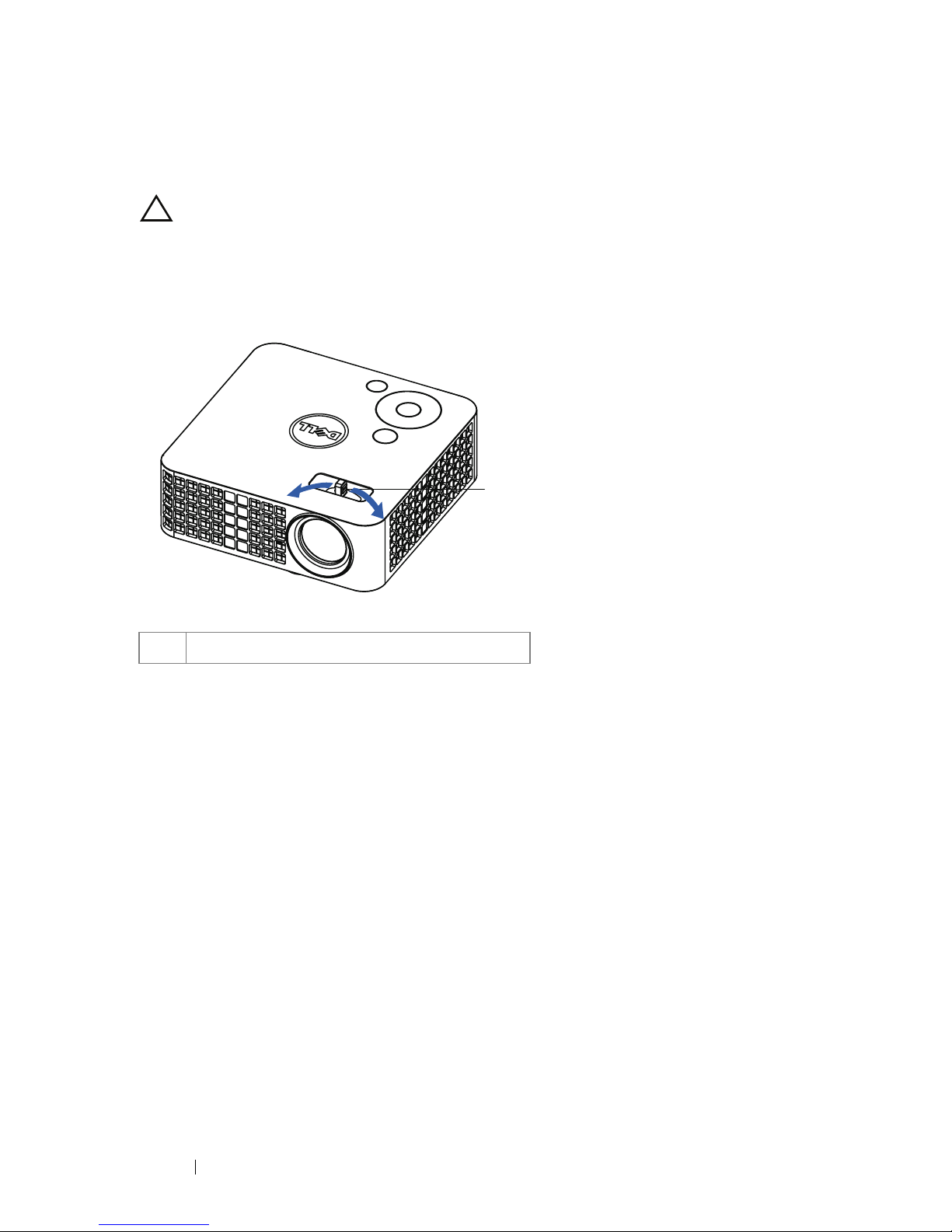

1Control panel
2Focus ring
3Lens
4Tilt adjusting wheel
5Mounting hole for tripod: Insert nut 1/4"*20 UNC
1
2
3
4
5
Top View Bottom View

Your Dell Projector 9
11 Do not use the wireless projector near medical equipment.
12 Do not use the wireless projector near microwave ovens.
NOTE:
• Recommended Projector Tripod Kit (VXJN3). For more information, see
the Dell Support website at support.dell.com.
• For more information, see the Safety Information that shipped with your
projector.

10 Connecting Your Projector
2
Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 8.

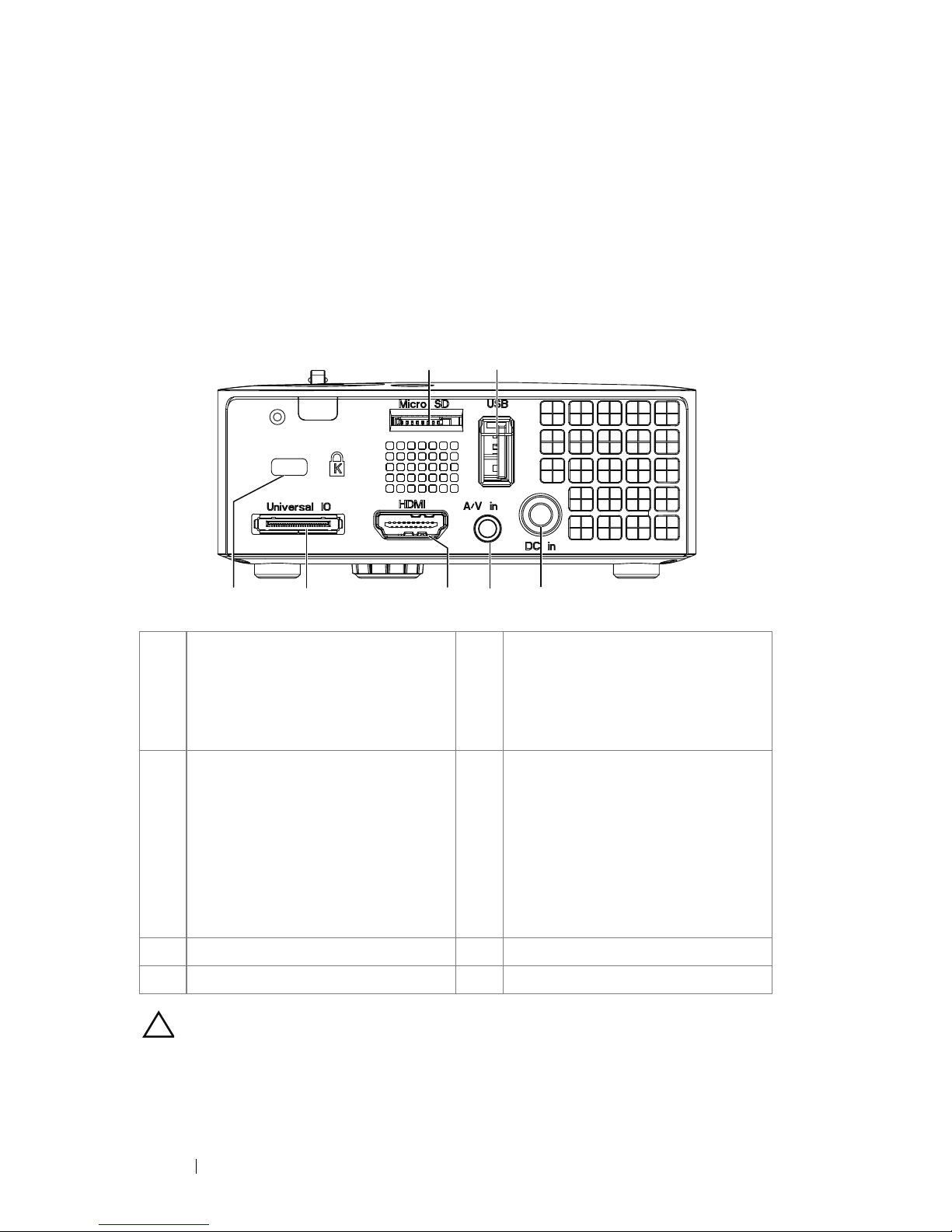

1MicroSD card slot for multi-
media playback
(Video/Audio/Photo) and
supporting media and image
processor firmware upgrade
5HDMI connector
2USB Type A connector for USB
display, multi-media playback
(Video/Audio/Photo), USB
memory storage access (USB flash
drive/internal memory), projector
firmware upgrade, and supporting
optional wireless dongle and
mobishow
6Universal I/O connector for VGA
input and Audio output
3DC input connector 7Security cable slot
4Audio/Video input connector
34567
12

Connecting Your Projector 11
Connecting to a Computer
Connecting a Computer Using a VGA Cable
NOTE: Only one universal 24-pin to VGA cable is shipped with your projector.
An additional universal 24-pin to VGA cable or 24-pin to VGA and Audio out
cable can be purchased on the Dell website at www.dell.com.

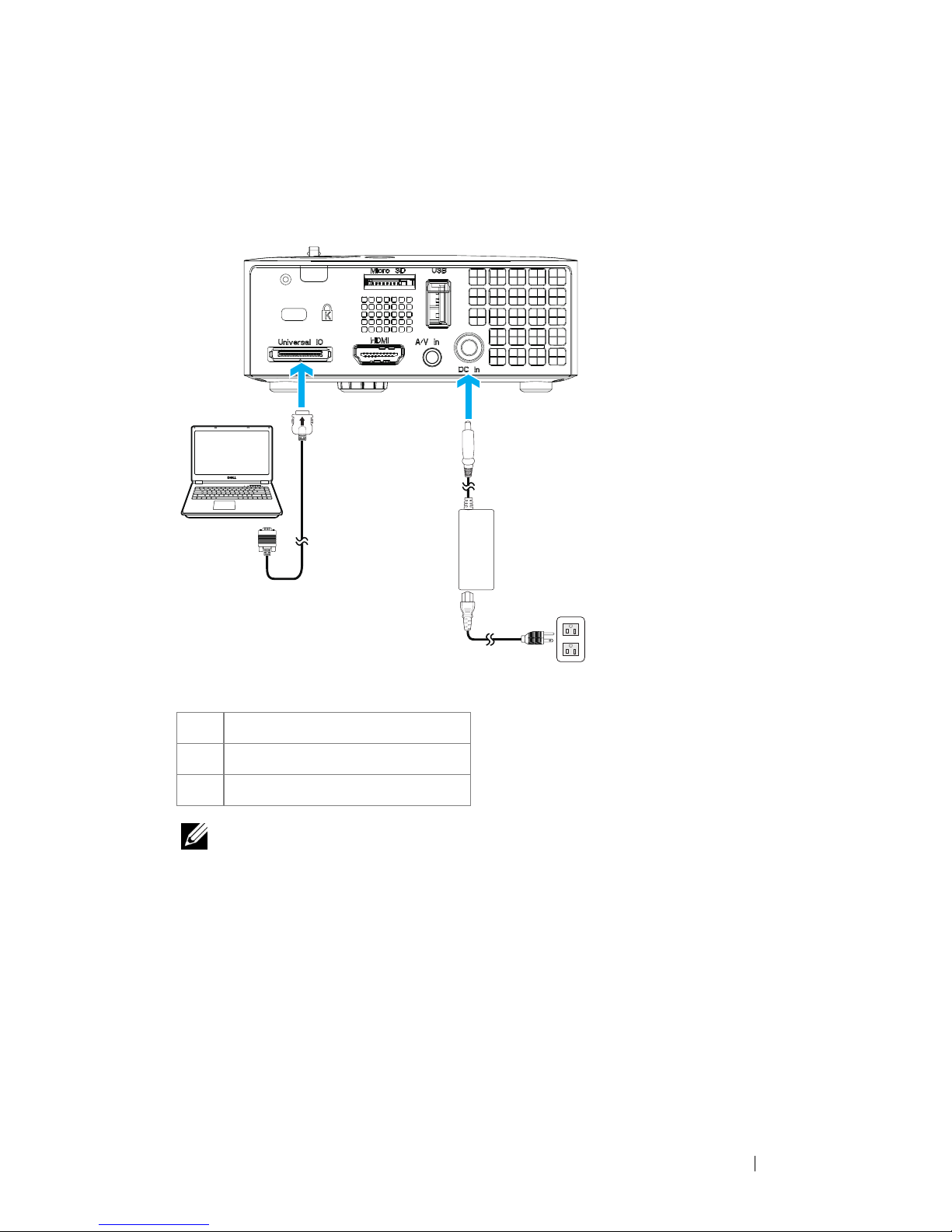

1Power cord
2AC adapter
3Universal 24-pin to VGA cable
2
1
3

12 Connecting Your Projector
Connecting a Computer by USB Cable
NOTE: Plug and Play. The USB (USB A to A) cable is not shipped with your
projector. You can purchase the USB (USB A to A) cable on the Dell website at
www.dell.com.
1Powercord
2 AC adapter
3 USB-A to USB-A cable
2
1
3
MOLEX
MOLEX

Connecting Your Projector 13
Connecting a Computer Using Wireless Dongle (Optional)
NOTE: Your computer should be equipped with a wireless connector and
properly configured to detect another wireless connection. Refer to your
computer’s documentation on how to configure a wireless connection.
NOTE: Your projector must be installed with a wireless dongle if you want to
use the wireless display. The wireless dongle is not shipped with your projector.
You can purchase it on the Dell website at www.dell.com.
FCC ID:
SUZ-WU5205C

14 Connecting Your Projector
Connecting a DVD Player
Connecting a DVD Player Using a A/V to RCA Cable
NOTE: The 3.5 mm jack A/V to RCA cable is not shipped with your projector. You
can purchase the 3.5 mm jack A/V to RCA cable on the Dell website at
www.dell.com.
1Power cord
2AC adapter
33.5 mm jack A/V to RCA cable
2
1
3
PQFO0DMPTF
IENJ
IPNF
NFOV SFUVSO
FOUFS
UPQ!NFOV NFOV
VTCEWE0VTC
TUBOECZ0PO

Connecting Your Projector 15
Connecting a DVD Player Using a HDMI Cable
NOTE: The HDMI cable is not shipped with your projector. You can purchase
the HDMI cable on the Dell website at www.dell.com.
1Power cord
2AC adapter
3HDMI cable
2
1
3
PQFO0DMPTF
IENJ
IPNF
NFOV SFUVSO
FOUFS
UPQ!NFOV NFOV
VTCEWE0VTC
TUBOECZ0PO

16 Connecting Your Projector
Connecting to Multi-Media
Connecting Multi-Media Using a USB Flash Disk
NOTE: The USB flash disk is not shipped with your projector.
1Power cord
2AC adapter
3USB flash disk
2
1
3

Connecting Your Projector 17
Connecting Multi-Media Using a MicroSD Card
NOTE: The microSD card is not shipped with your projector.
1Power cord
2AC adapter
3MicroSD card
2
1
3

18 Using Your Projector
3
Using Your Projector
Turning Your Projector On
NOTE: Turn on the projector before you turn on the source (computer, DVD
player, etc.). The Power button light blinks blue until pressed.
1 Connect the power cord with AC adapter and appropriate signal cables to the
projector. For information about connecting the projector, see "Connecting Your
Projector" on page 10.
2 Press the Power button (see "Using the Control Panel" on page 23 to locate the
Power button).
3 Turn on your source (computer, DVD player, etc).
4 Connect your source to the projector using the appropriate cable. See
"Connecting Your Projector" on page 10 for instructions to connect your source to
the projector.
5 By default, the input source of the projector is set to VGA. Change the input
source of the projector if necessary.
6 If you have multiple sources connected to the projector, press the Source button
on the remote control or control panel to select the desired source. See "Using the
Control Panel" on page 23 and "Using the Remote Control (Optional)" on page 25
to locate the
Source button.
Turning Your Projector Off
CAUTION: Unplug the projector after properly shutting down as explained in
the following procedure.
1 Press the Power button. Follow the instruction displayed on screen to properly
turn off the projector.
NOTE: The "Press Power Button to Turn off Projector" message will
appear on the screen. The message disappears after 5 seconds or you can
press the Menu button to clear it.
2 Press the Power button again. The cooling fans continue to operate for 120
seconds.

Using Your Projector 19
3 To power off the projector quickly, press the Power button and hold for 1 second
while the projector’s cooling fans are still running.
NOTE: Before you turn on the projector again, wait for 60 seconds to allow the
internal temperature to stabilize.
4 Disconnect the power cord and AC adapter from the electrical outlet and the
projector.
Adjusting the Projected Image
Raising the Projector Height
1 Raise the projector to the desired display angle, and use the front tilt adjustment
wheel to fine-tune the display angle.
Lowering the Projector Height
1 Lower the projector, and use the front tilt adjustment wheel to fine-tune the
display angle.
1Front tilt adjustment wheel
(Angle of tilt: 0 to 6 degrees)
11

20 Using Your Projector
Adjusting the Projector Focus
CAUTION: To avoid damaging the projector, ensure that the adjustment
wheels are fully retracted before moving the projector or placing the projector
in its carrying case.
1 Rotate the focus tab until the image is clear. The projector focuses at distances
ranging between 3.18 ft to 8.48 ft (97 cm to 258 cm).
1Focus tab
1
