4About Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have
all the items, and contact Dell if anything is missing.
Projector Box Contents
1About Your Dell Projector

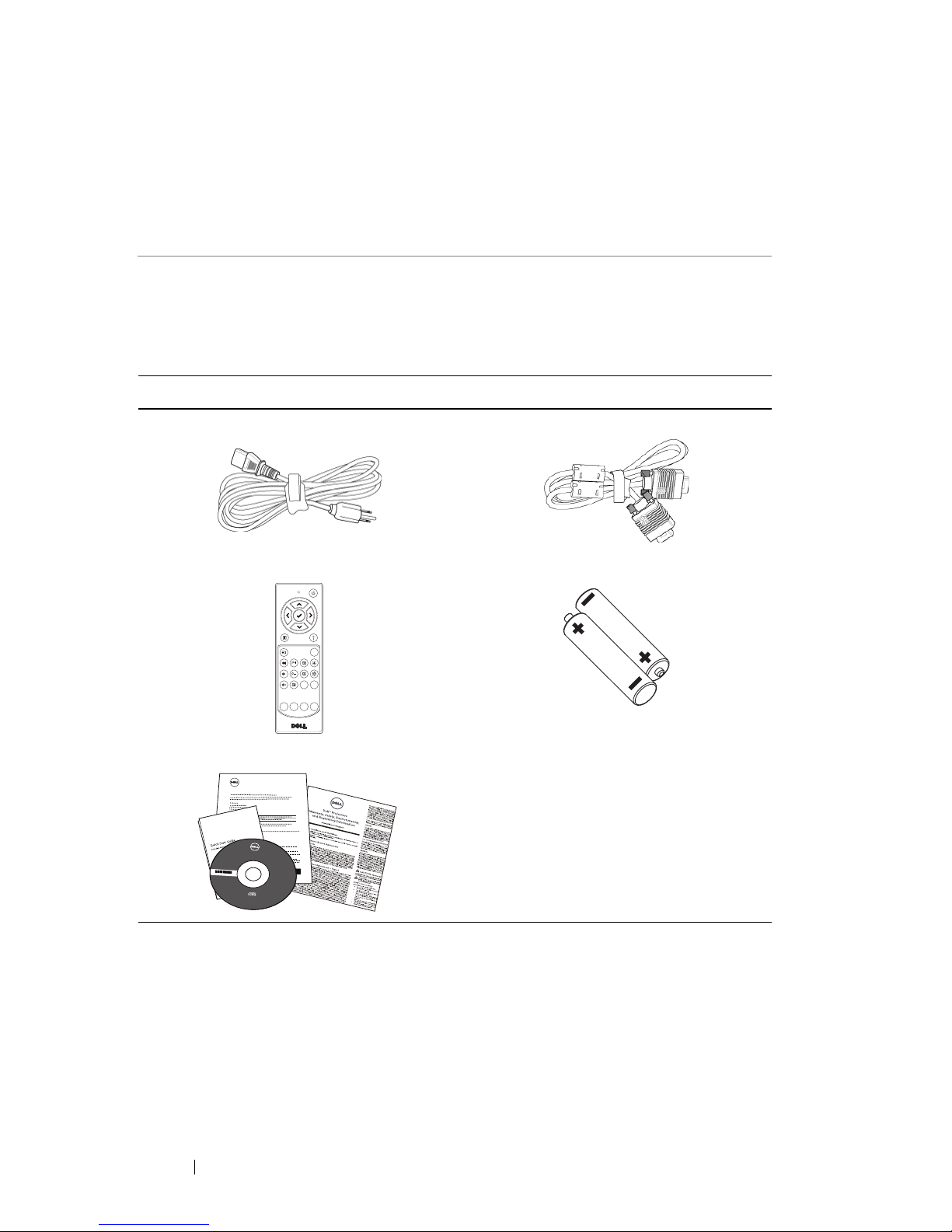

Package Contents
Power cable VGA cable (VGA to VGA)
Remote control AAA Batteries (2)
CD, User’s Guide, and Documentation
Wireless VGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI
AAA
AAA
Informacion Importante
Dell™ Projector
4350
Contents:
•User's Guide
Documentation
P/N476P1
Rev. A00
P/N36.71N04G001
November 2015
Madein China
©
2
0
1
5
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell
™
Projector 4350
0476P1A00

About Your Dell Projector 5
Projector Top and Bottom View
NOTE: Ceiling mount screw hole M3 x 6.5 mm depth.
Recommended torque < 15 kgf-cm.
1IRreceivers
2 Power button
3 Status indicators
4 Zoom tab
5Focusring
6 Lens
7 Elevator button for height adjustments
8 Top cover for wireless display adapter and lamp module access
910Wspeaker
10 Mounting holes for ceiling mount
11 Elevator foot
6
1
5
4
3
2
9
8
7
10 11
82.30
110.00
55.00
Top View Bottom View

6About Your Dell Projector
Projector Connections
CAUTION: Before you begin any of the procedures in this section,
follow the Safety Instructions as described on page 7.
1 Mini USB (mini type B)
connector for firmware upgrade
7 + 5V/1A DC out connector
2 RJ-45 connector 8 Audio output connector
3 VGA input connector 9 Audio input connector
4 VGA output (monitor loop
through) connector
10 Composite Video connector
5 HDMI connector 11 RS232 connector
6 Security cable slot 12 Power cord connector
1 2 3 4 5
6
789101112

About Your Dell Projector 7
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of
dust. The dust may cause the system to fail and the projector will
automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5 °C to 40
°C).
6 Do not try to touch the ventilation outlet as it can become very hot after
the projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to
your eyes.
8 Do not place any objects near or in front of the projector or cover its lens
while the projector is on as the heat may cause the object to melt or burn.
9 Do not use alcohol to wipe the lens.
NOTE:
• Do not attempt to ceiling mount the projector by yourself. It should be
installed by a qualified technician.
• Recommended Projector Ceiling Mount Kit (P/N: C3505). For more
information, see the Dell Support website at
dell.com/support .
• For more information, see the Safety Information that shipped with
your projector.
• The 4350 projector can only be used indoors.

8About Your Dell Projector
Remote Control

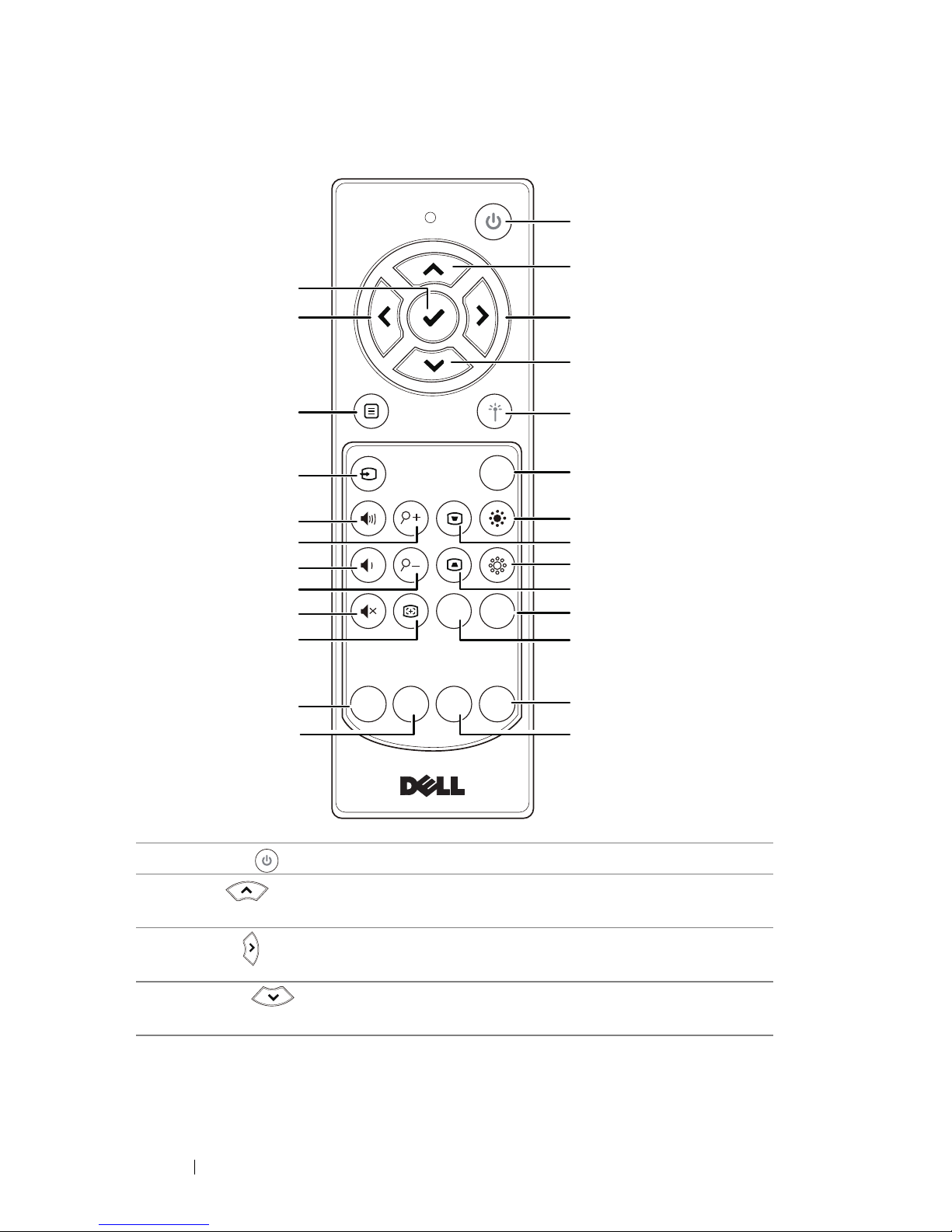

1 Power Turns the projector on or off.
2 Up Press to navigate through the On-Screen
Display (OSD) Menu items.
3 Right Press to navigate through the On-Screen
Display (OSD) Menu items.
4 Down Press to navigate through the On-Screen
Display (OSD) Menu items.
Wireless VGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI
1
2
316
20
22
24
26
15
17
18
19
21
23
25
4
5
6
7
9
8
11
10
12
13
14

About Your Dell Projector 9
5 Laser Point the remote control at the screen, press
and hold the laser button to activate the laser
light.
CAUTION: Do not look at the laser
point when it is active. Avoid directing
the laser light on your eyes.
6 Freeze Press to pause the screen image, then press
"Freeze" again to unfreeze the image.
7 Brightness + Press to increase the brightness.
8 Keystone adjustment
+
Press to adjust image distortion caused by
tilting the projector (+/-40 degrees).
9 Brightness - Press to decrease the brightness.
10 Keystone adjustment
-
Press to adjust image distortion caused by
tilting the projector (+/-40 degrees).
11 Blank screen Press to hide/unhide the image.
12 Info Press to display the projector information.
13 Video mode The projector has preset configurations that
are optimized for displaying data
(presentation slides) or video (movies, games,
etc.).
Press the Video Mode button to toggle
between Presentation mode, Bright mode,
Movie mode, sRGB, or Custom mode.
Pressing the Video Mode button once will
show the current display mode. Pressing the
Video Mode button again will switch
between modes.
14 HDMI Press to choose HDMI source.
15 Enter Press to confirm the selection.
16 Left Press to navigate through the On-Screen
Display (OSD) Menu items.
17 Menu Press to activate the OSD.
18 Source Press to switch between VGA, Composite,
HDMI-1, and HDMI-2 source.
19 Volume up Press to increase the volume.

10 About Your Dell Projector
20 Zoom + Press to increase the image.
21 Volume down Press to decrease the volume.
22 Zoom - Press to decrease the image.
23 Mute Press to mute or un-mute the projector
speaker.
24 Auto Adjust Press to auto adjust the displayed image.
25 Wireless Press to choose Wireless Display Adapter
source.
26 VGA Press to choose VGA source.

About Your Dell Projector 11
Remote Control Operating Range
NOTE: Actual operating range may slightly differ from the diagram.
Weak batteries will also prevent the remote control from properly
operating the projector.
Operating range
Angle ±30°
Distance 7 m/22.97 feet
Angle
Distance
Angle
Distance
Wireless VGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI
Wireless VGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI

12 Adjusting Projector Image
Adjusting Projected Zoom
Raising the Projector Height
1 Raise the projector to the desired display angle, and use the front tilt
adjustment wheel to fine-tune the display angle.
2 Use the tilt adjustment wheels to fine-tune the display angle.
Lowering the Projector Height
1 Lower the projector, and use the front tilt adjustment wheel to fine-tune
the display angle.
2Adjusting Projector Image
1 Front tilt adjustment wheel
(Angle of tilt: 0 to 8.5 degrees)
2 Fixed rubber foot
1
2
1
2

Adjusting Projector Image 13
Adjusting Projector Focus
1 Rotate the focus ring until the image is clear. The projector focuses at
distances ranging between 4.27 ft to 23.29 ft (1.3 m to 7.1 m).

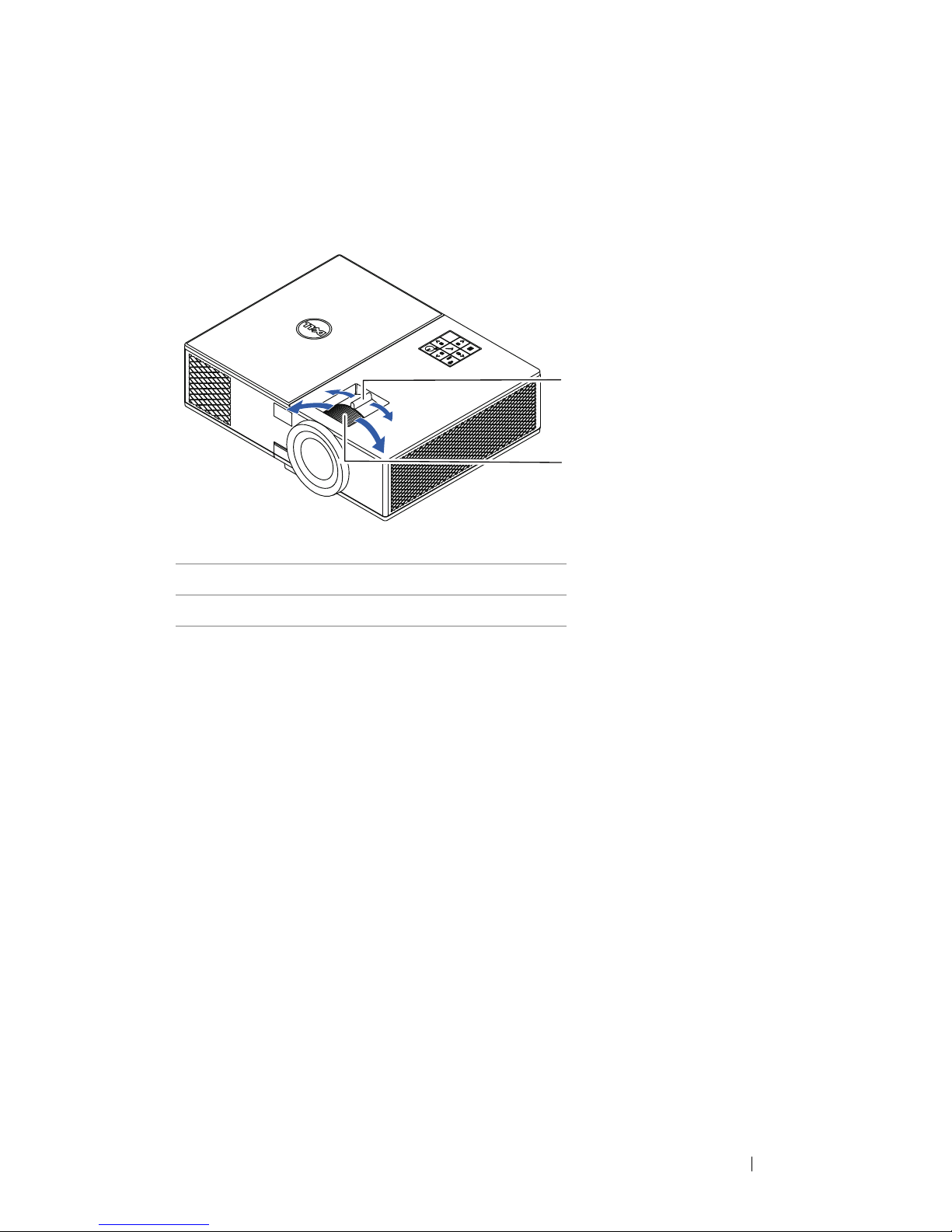

1 Zoom tab
2Focusring
2
1

14 Adjusting Projector Image
Adjusting Image Size

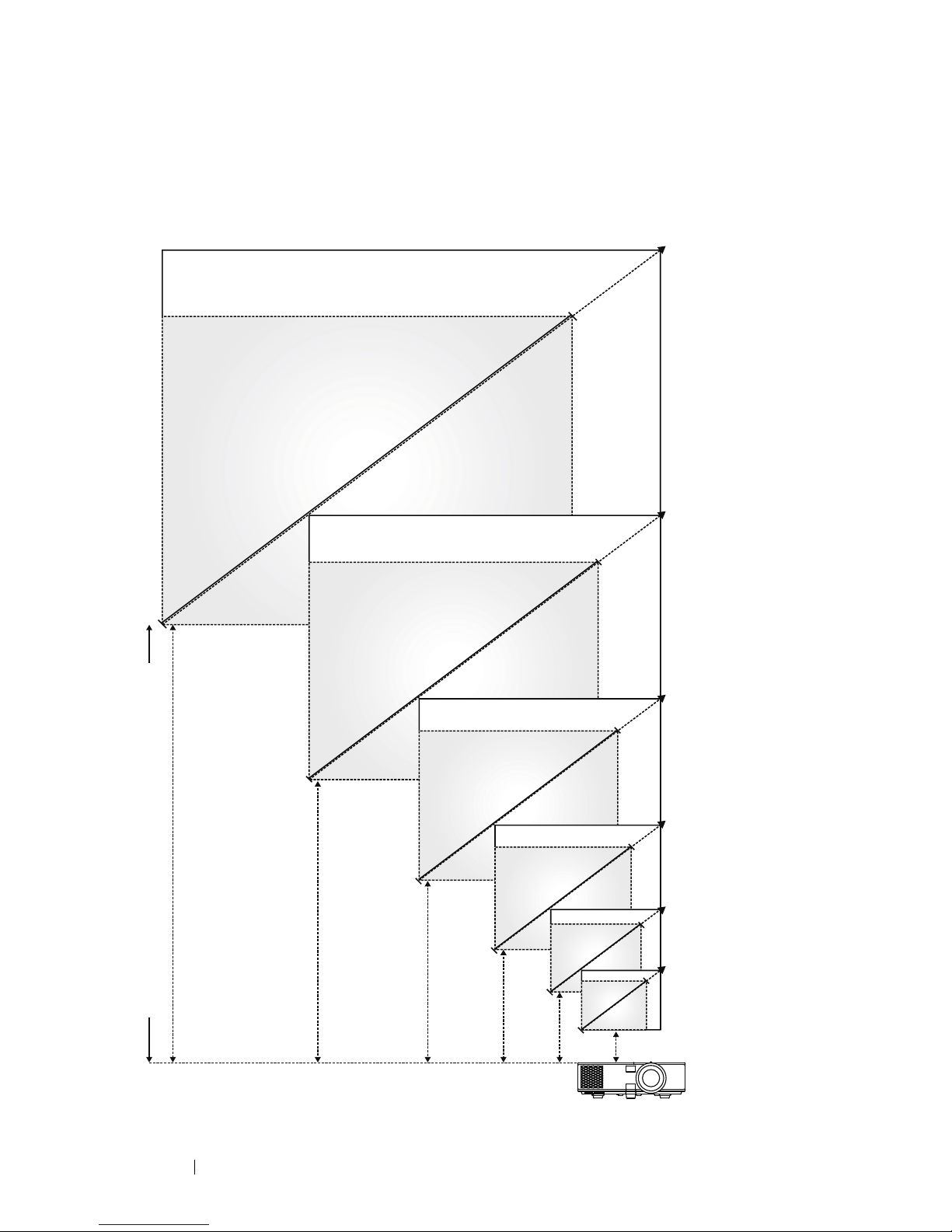

221"
(561.34 cm)
177"
(449.58 cm)
133"
(337.82 cm)
88"
(223.52 cm)
44"
(111.76 cm)
40.47"
(102.79 cm)
300.3"(762.76 cm)
240"(609.6 cm)
180"(457.2 cm)
120"(304.8 cm)
60"(152.4 cm)
55"(139.7 cm)
23.29' (7.1 m) 18.64' (5.68 m) 13.98' (4.26 m) 9.32' (2.84 m) 4.66' (1.42 m)
4.27' (1.3 m)
Projector to screen distance

Adjusting Projector Image 15
Adjusting Image Shape
Projection
Distance
(m)
[A]
Min Zoom
Image size Projector base to
top of image (cm)
[C]
Projector base to
bottom of image
(cm)
[D]
Diagonal
(inch/cm)
[B]
Width (cm)
[W]
Height (cm)
[H]
1.3 40.47"/102.79 cm 90 50 58 8
1.42 44"/111.76 cm 98 55 64 9
2.84 88"/223.52 cm 196 110 128 18
4.26 133"/337.82 cm 294 165 192 27
5.68 177"/449.58 cm 391 220 255 35
7.1 221"/561.34 cm 489 275 319 44
Projection
Distance
(m)
[A]
Max Zoom
Image size Projector base to
top of image (cm)
[C]
Projector base to
bottom of image
(cm)
[D]
Diagonal (inch/cm)
[B]
Width (cm)
[W]
Height (cm)
[H]
1.3 55"/139.7 cm 122 68 79 11
1.42 60"/152.4 cm 133 75 87 12
2.84 120"/304.8 cm 266 150 174 24
4.26 180"/457.2 cm 399 224 260 36
5.68 240"/609.6 cm 532 299 347 48
7.1 300.3"/762.76 cm 665 374 434 60
* This graph is for user reference only.
* Offset Ratio: 116±5%

16 Adjusting Projector Image

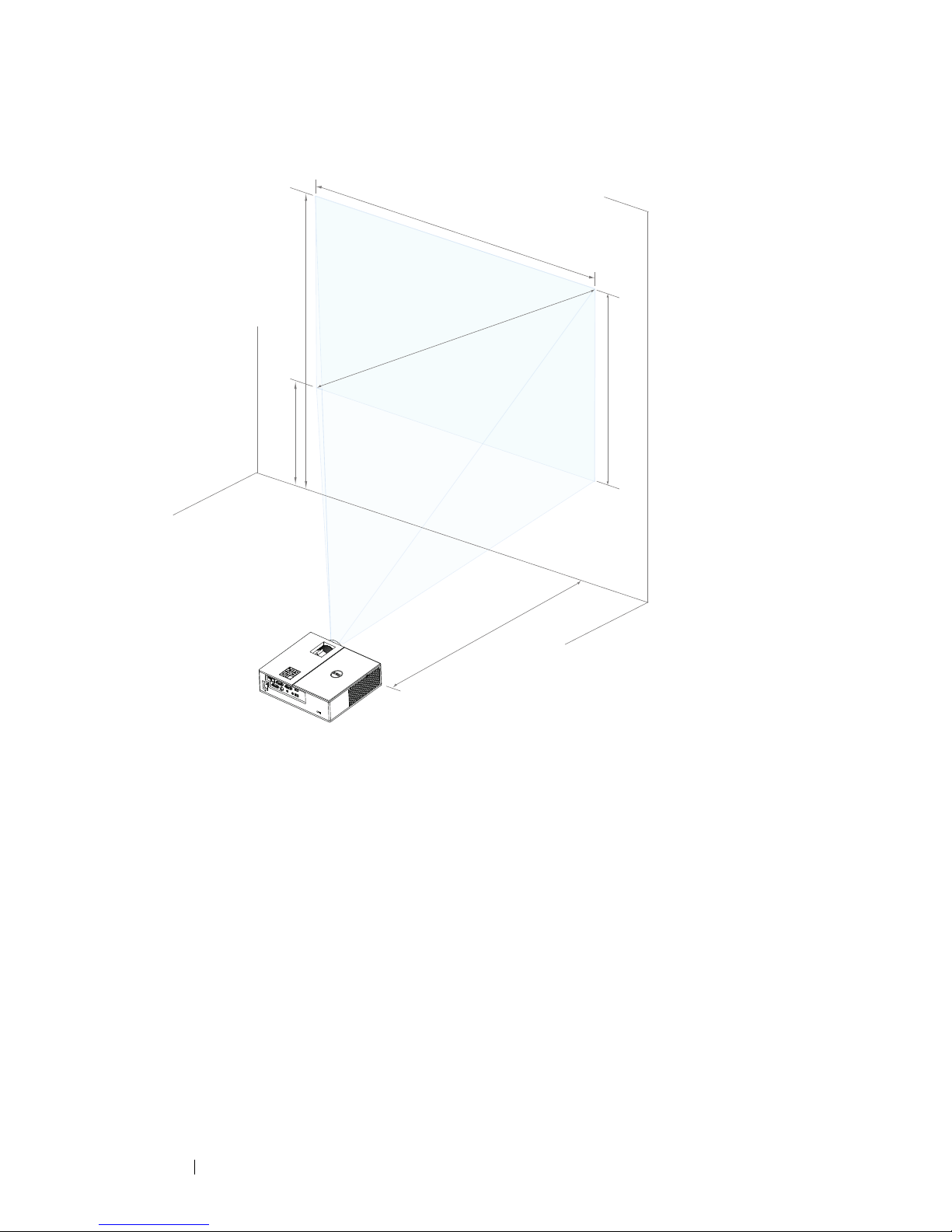

Height [C]
ImageDiagonal[B]
ProjectorDistance[A]
[D]
Image Height [H]
ImageWidth[W]

Connecting Wireless Display Adapter 17
Installing Wireless Display Adapter
Your projector comes with a secured internal compartment for wireless
display adapter. The wireless display adapter is not shipped with your 4350
projector. The internal compartment has a HDMI and USB power port and its
dimension is 4.21 x 1.57 x 2.67 inches (107 x 40 x 67.9 mm).

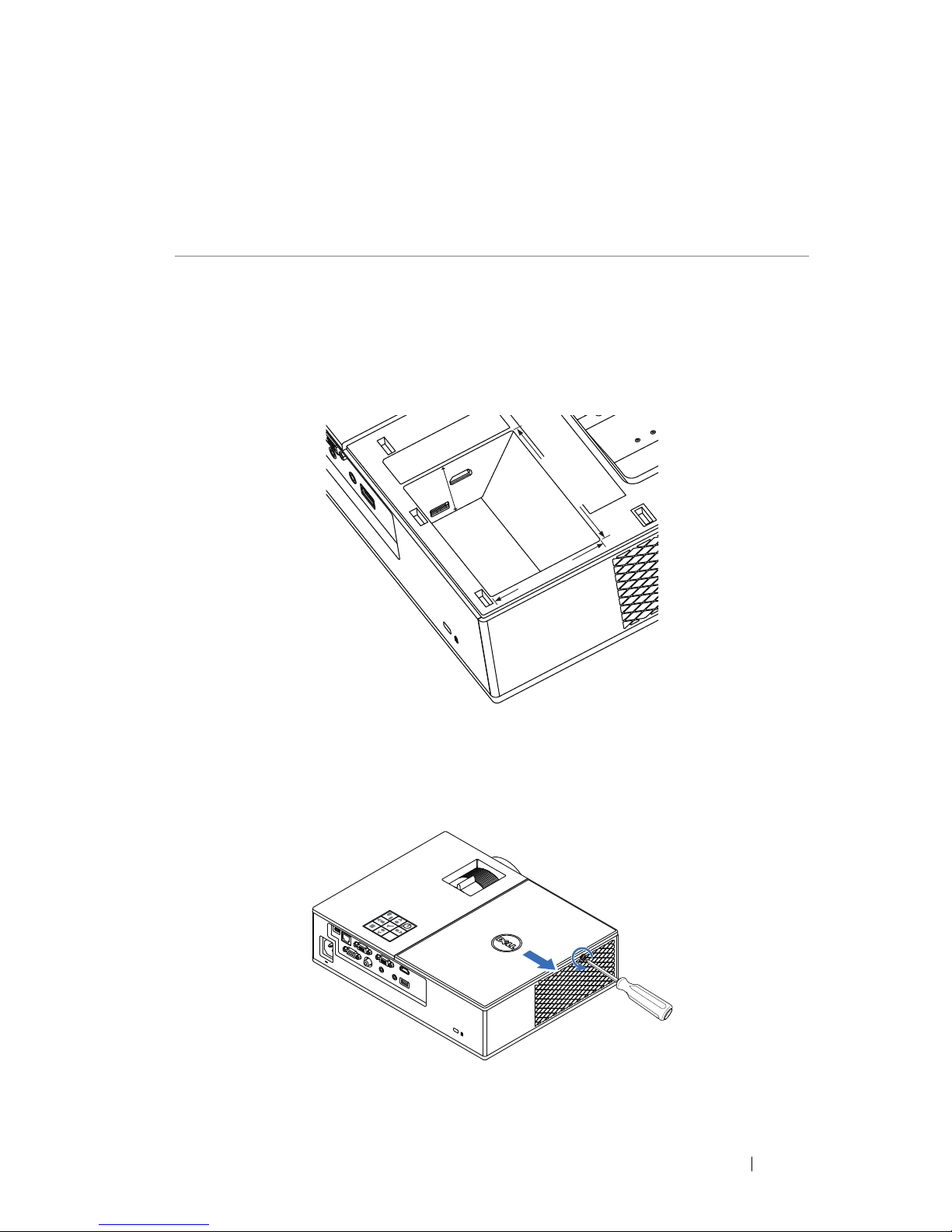

The installation steps are as below:
1 Open the top cover, making sure projector is already powered off.
3Connecting Wireless Display
Adapter
1.57"
(40 mm)
4.21"(107 mm)
2.67"(67.9 mm)

18 Connecting Wireless Display Adapter
2 Attach the power USB cable to the wireless display adapter.
3 Attach the wireless display adapter.

Connecting Wireless Display Adapter 19
4 Replace the top cover and tighten the screw.

20 Connecting Wireless Display Adapter
Setting up the Wireless Display Adapter
1 Power on the pojector.
2 Switch to " Wireless Display " source.
3 Follow the on-screen instructions to proceed with wireless projection.
123
