Dell™ M409WX Projector
User’s Guide
http://www.pureglare.com.au

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you
make better use of your projector.
NOTICE: A NOTICE indicates either potential damage to
hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell
Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell
Inc.; DLP and DLP®logo are trademarks of Texas Instruments; Microsoft and
Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
Model M409WX
May 2008 Rev. A01
http://www.pureglare.com.au

Contents 3
Contents
1 About Your Projector . . . . . . . . . . . . . . . . 5
About Your Projector . . . . . . . . . . . . . . . . . 6
2 Connecting Your Projector . . . . . . . . . . . . 7
Connecting a Computer . . . . . . . . . . . . . . . . . . 8
Connecting a DVD Player . . . . . . . . . . . . . . . . . 9
Connecting a DVD Player using an S-video Cable . . 9
Connecting a DVD Player using a
Composite Cable . . . . . . . . . . . . . . . . . . 10
Connecting a DVD Player using a
Component Cable . . . . . . . . . . . . . . . . . . 11
Connecting a DVD Player using an HDMI Cable . . 12
3 Using Your Projector . . . . . . . . . . . . . . . . 13
Turning Your Projector On . . . . . . . . . . . . . . . . 13
Turning Your Projector Off . . . . . . . . . . . . . . . . 13

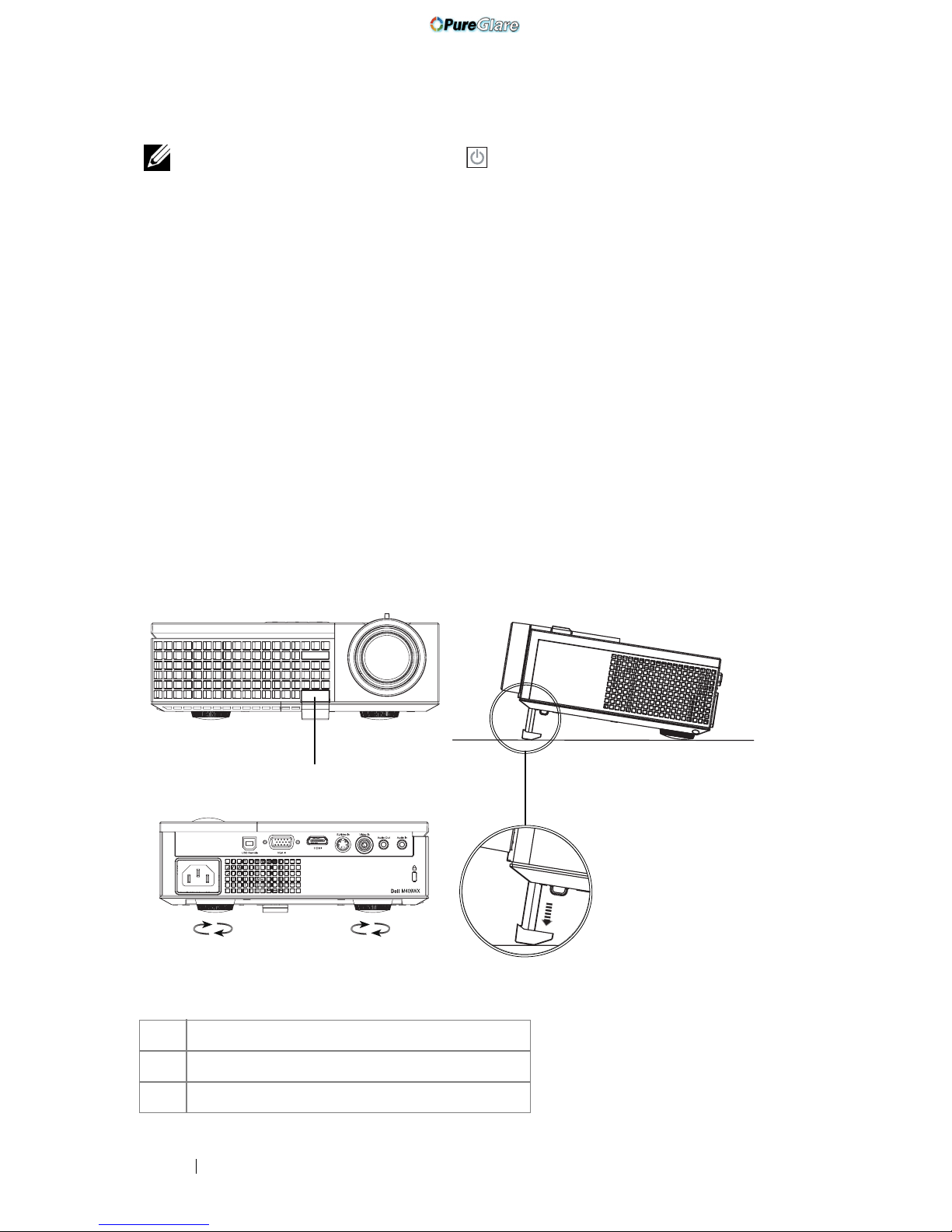

Adjusting the Projected Image . . . . . . . . . . . . . 14
Raising the Projector Height . . . . . . . . . . . . 14
Lowering the Projector Height . . . . . . . . . . . 14

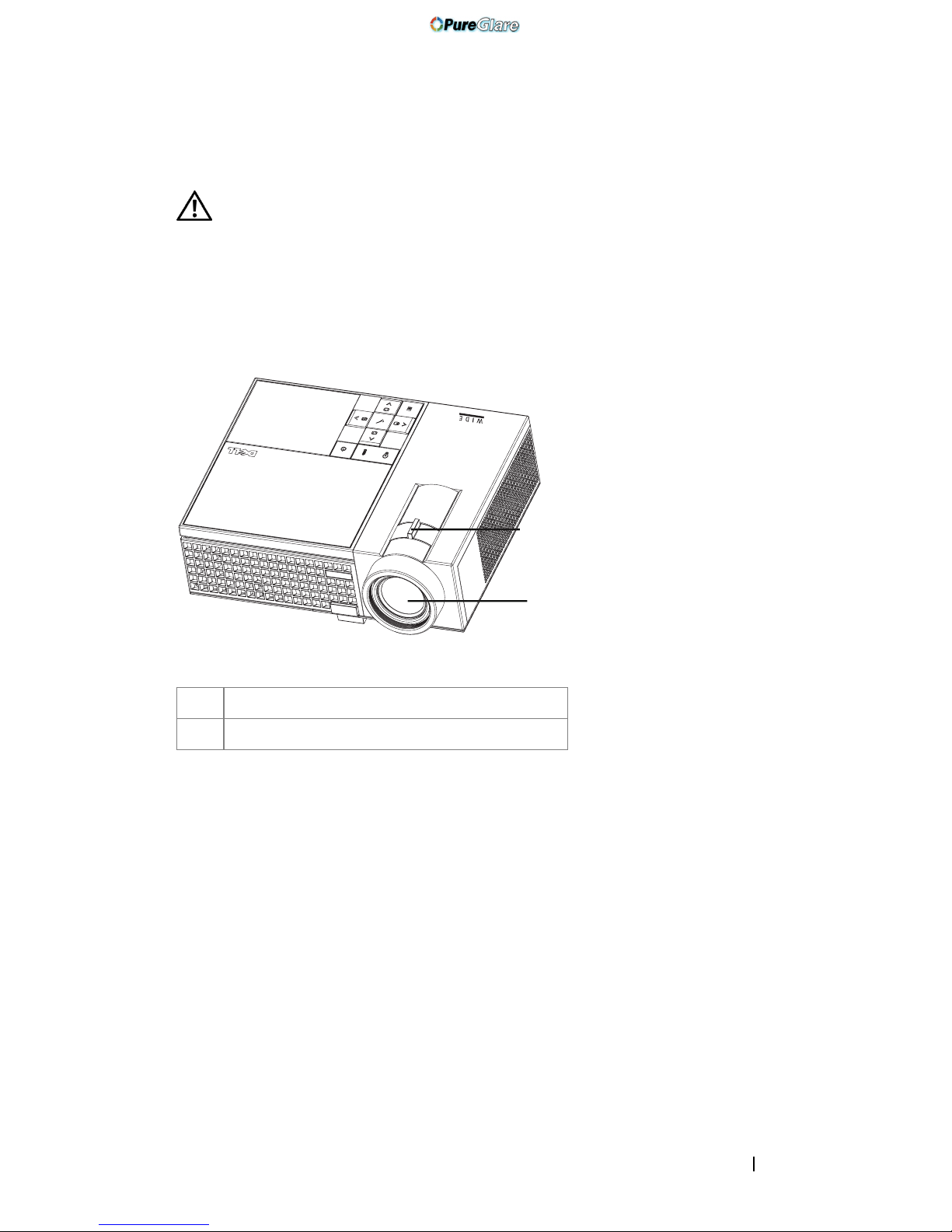

Adjusting the Projector Zoom and Focus . . . . . . . . 15
Adjusting Projection Image Size . . . . . . . . . . . . 16
http://www.pureglare.com.au

4Contents
Using the Control Panel . . . . . . . . . . . . . . . . . 17
Using the Remote Control . . . . . . . . . . . . . . . . 19
Using the On-Screen Display . . . . . . . . . . . . . . 21
Main Menu . . . . . . . . . . . . . . . . . . . . . 21
Input Select . . . . . . . . . . . . . . . . . . . . . 21
Auto-Adjust . . . . . . . . . . . . . . . . . . . . . 22
Set Up . . . . . . . . . . . . . . . . . . . . . . . . 22
PICTURE (in PC Mode) . . . . . . . . . . . . . . . 23
PICTURE (in Video Mode) . . . . . . . . . . . . . 23
DISPLAY (in PC Mode) . . . . . . . . . . . . . . . 24
DISPLAY (in Video Mode) . . . . . . . . . . . . . 25
LAMP . . . . . . . . . . . . . . . . . . . . . . . . 26
OTHERS . . . . . . . . . . . . . . . . . . . . . . . 27
4 Troubleshooting Your Projector . . . . . . . 31
Guiding Signals . . . . . . . . . . . . . . . . . . . . . 34
Changing the Lamp . . . . . . . . . . . . . . . . . . . 35
5 Specifications . . . . . . . . . . . . . . . . . . . . . 37
Contacting Dell . . . . . . . . . . . . . . . . . . . . . 40
6 Appendix: Glossary . . . . . . . . . . . . . . . . . 41
http://www.pureglare.com.au

About Your Projector 5
1
About Your Projector
Before connecting your projector ensure that all the necessary components are
available. Your projector ships with the components shown below. Contact Dell
(see
Contacting Dell on page 40 ) if any of the components are missing.
Your Dell™ M409WX projector ships with the following components:
Package Contents
Power cable 1.8m VGA cable (VGA to VGA)
AAA Batteries (2) Remote control
CD User’s Guide& Documentation Carrying case
http://www.pureglare.com.au

6About Your Projector
About Your Projector
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The
dust may cause the system to fail and projector will automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5ºC to 35ºC).
NOTE: For more information, see the safety information that shipped with your
projector.
1Control panel
2Zoom tab
3Focus ring
4Lens
5Elevator button
6IR receiver
1
2
4
5
6
6
3
http://www.pureglare.com.au

Connecting Your Projector 7
2
Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 6.
1USB remote connector
2VGA input connector
3HDMI input connector
4S-video input connector
5Video input connector
6Audio output connector
7Audio input connector
8Security cable slot
9Power cable connector
8
9
1234567
M409WX
http://www.pureglare.com.au

8Connecting Your Projector
Connecting a Computer
NOTE: The USB cable is not provided by Dell.
1Power cable
2VGA to VGA cable
3USB to USB cable
1
2
3
MOLEX
http://www.pureglare.com.au

Connecting Your Projector 9
Connecting a DVD Player

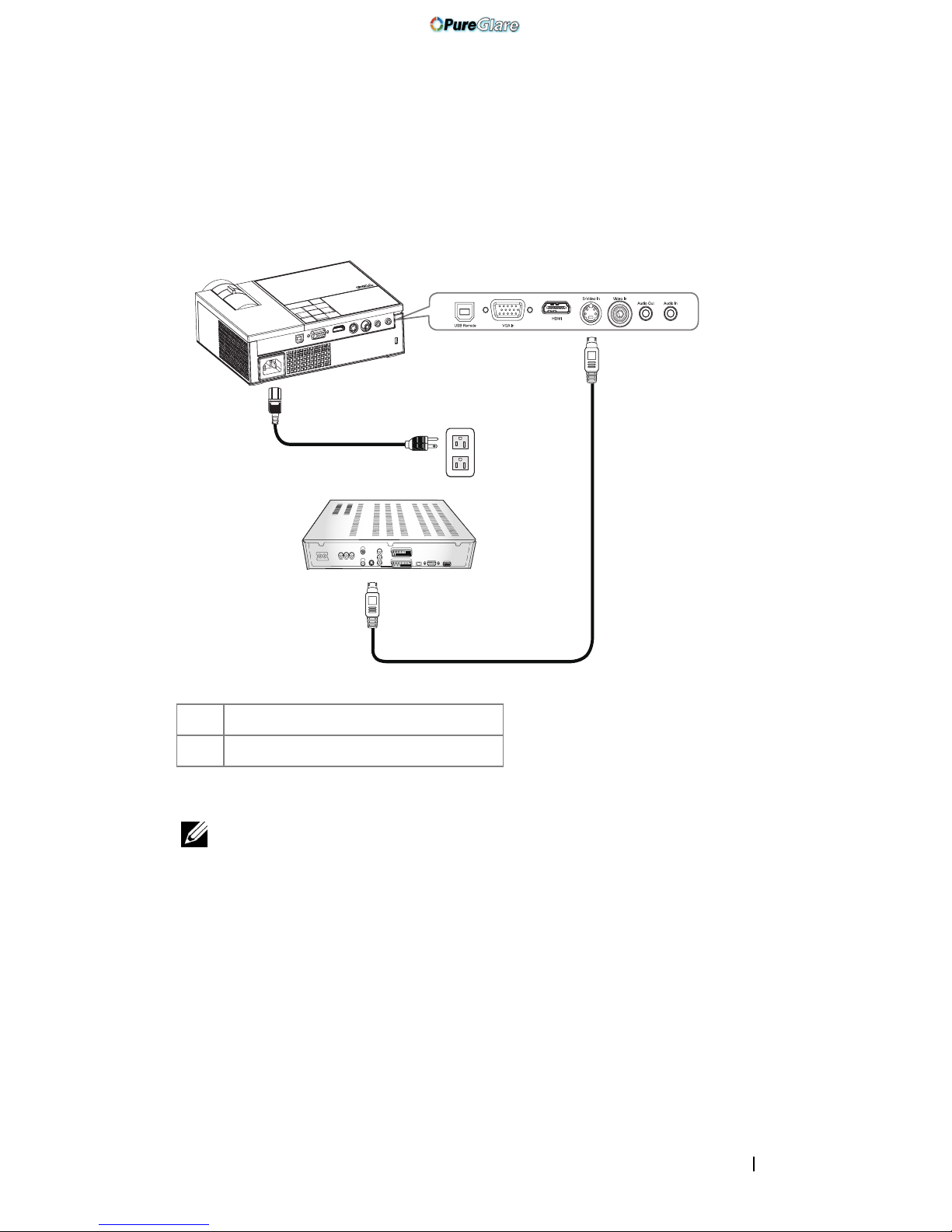

Connecting a DVD Player using an S-video Cable
NOTE: The S-Video cable is not provided by Dell.
1Power cable
2S-video cable
2
1
http://www.pureglare.com.au

10 Connecting Your Projector

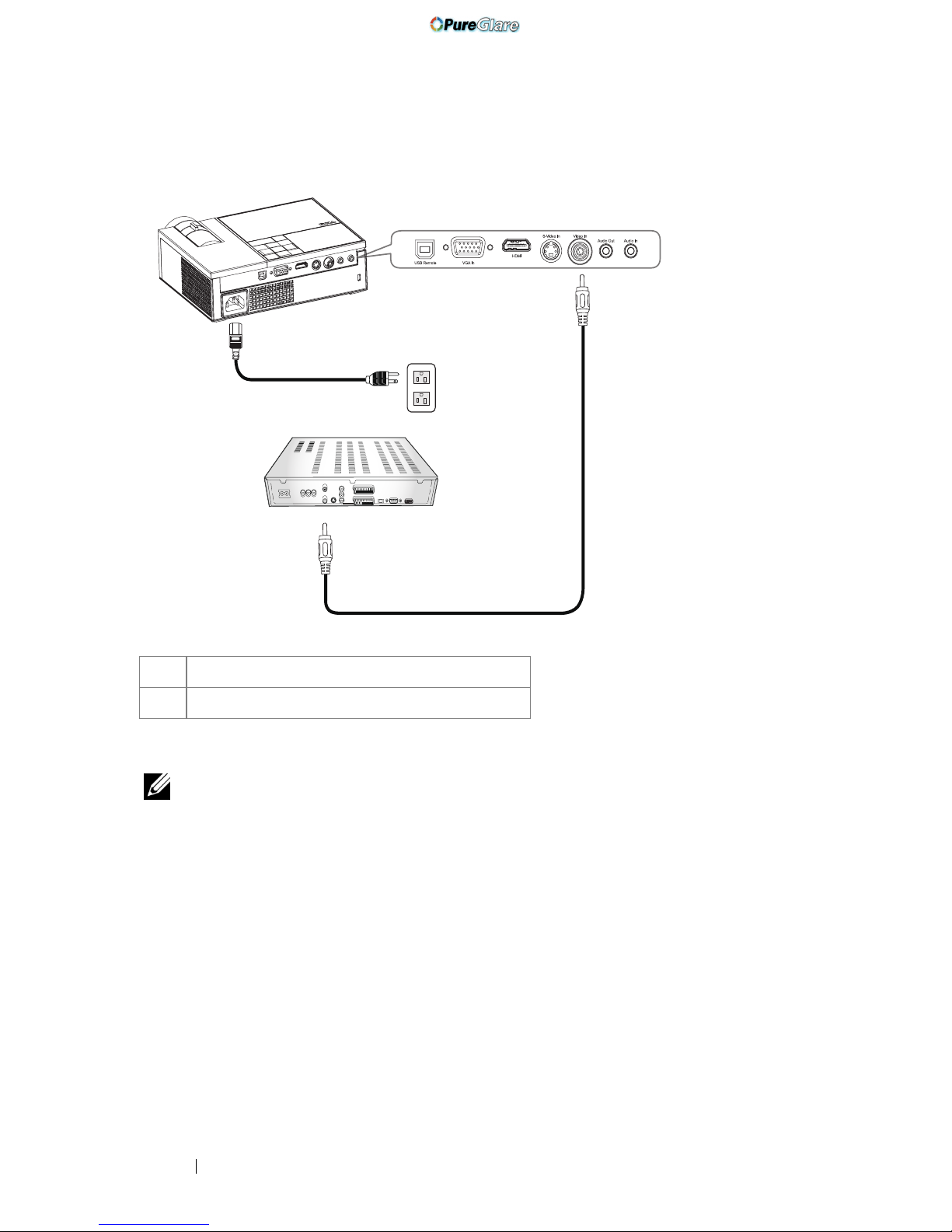

Connecting a DVD Player using a Composite Cable
NOTE: The Composite video cable is not provided by Dell.
1Power cable
2Composite video cable
2
2
1
