DeLonghi PAC 46 User manual

16
Important safeguards
•Use this appliance only as described in this instruction manual.
As with any electrical appliance, whilst the instructions aim to cover as
many eventualities as possible caution and common sense should be
applied when operating and installing this air conditioner.
•This appliance has been manufactured to cool and de-humidify
domestic environments and should not be used for other purposes.
•It is dangerous to alter or modify the unit's characteristics in any way.
•The appliance must be installed in line with the relevant national legi-
slation.
•Should repairs be necessary, contact the nearest authorised Repair
Service Centre. Unauthorised servicing can be dangerous.
•This appliance is to be used by adults only; keep away from children.
•In the case that the power cable becomes damaged, this must be sub-
stituted only by specialised personnel authorised by the manufacturer.
•Always ensure the appliance is earthed. If you have any doubts check
with a qualified electrician.
•Avoid using extension leads with the unit.
•Before cleaning or maintenance operations, always unplug the unit
from the socket.
•Do not pull on or place strain on the power cable when moving the
appliance.
•The appliance should not be installed where the atmosphere may
contain combustible gases, oil or sulphur, or near heat sources.
•Do not rest hot or heavy objects onto the appliance.
•Remember to perform the descaling procedure at the end of each
season (see page 25). In areas where the water is particularly hard
(rich in minerals), the use of a commercial anti-lime product added to
the water is recommended. This can be requested from De’Longhi
LTD.
•Clean the filters at least once a week.
•Avoid using heaters near the unit.
•The unit should be transported in a vertical position. If this is not
possible secure the unit at an angle, do not lie horizontally.
•Before transporting the unit drain the condensation collecting-tray
and tank. After transportation, wait at least 1 hour before switching on
the unit.
•The packaging materials can be recycled. You are therefore recom-
mended to place them in the special containers for differentiated
waste collection.
•R407 refrigerant respects the EEC ecological norms anyway we
recommend you do not perforate the refrigerant circuit of the
appliance.
GB-5751010700 15-01-2004 16:32 Pagina 16

17
During the summer, optimum comfort is achieved with a temperature of around 24 °C and 50%
relative humidity.
An air conditioner removes moisture and heat from the room where it is located. One advantage
of portable air conditioning units over fitted models is that they can be moved from one room to
another in the home or even transferred between different buildings.
The hot air in your room is passed through
a coil cooled by refrigerant gas,
removing excess heat and moistu-
re before being discharged
again into the room.
In single unit models, a small
amount of this air is used to
cool the refrigerant gas,
then the hot and moist air is
discharged outside.
How does your Pinguino work
ITALIANO
ENGLISH
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANOITALIANO
GB-5751010700 15-01-2004 16:33 Pagina 17

18

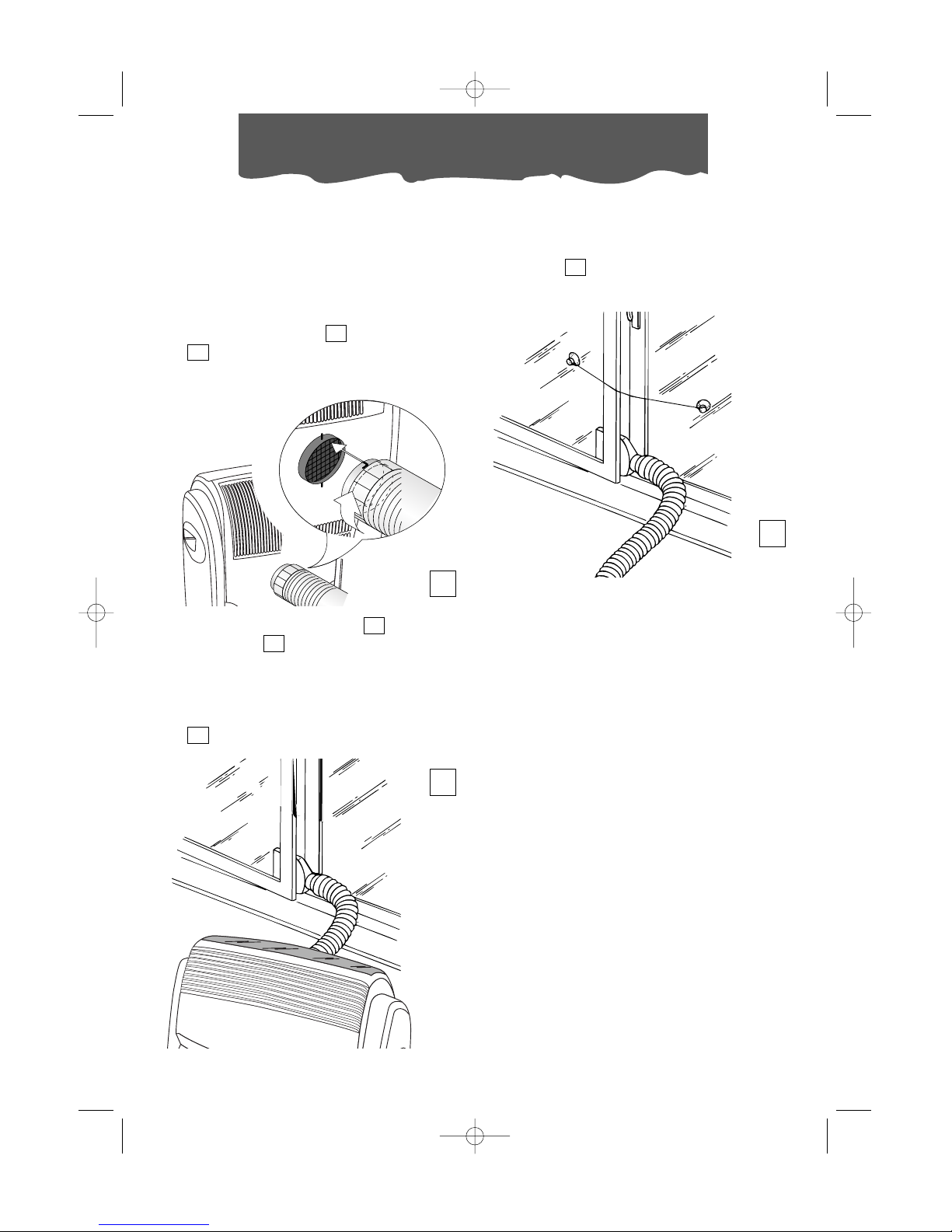

The following instructions will help you set up your air conditioning unit as efficiently as possible.
AIR CONDITIONING WITHOUT INSTALLATION
FOR INSTANT TEMPORARY USAGE
With just a few simple operations, Pinguino will
restore comfortable conditions in your room:
•Fix the exhaust hose to the coupling
on the back of the unit as shown in figu-
re A.
7
20
•With a double casement window, use the
suckers provided to hold the two hal-
ves of the window together (fig. C).
22
•Fix the window attachment to the end
of the hose .
•Place the unit near a window French win-
dow or door.
•Open the window, French window or door
slightly and place the window attachment
as shown in figure B.
21
21
20
Setting up
B
C
1
2
A
GB-5751010700 15-01-2004 16:33 Pagina 18

19
ITALIANO
ENGLISH
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANOITALIANO
Setting up
AIR CONDITIONING WITH INSTALLATION
For more efficient use Pinguino can also be
semi-permanently installed
•Fit the flange supplied to the hole.
•Fix the hose to the coupling on the
back of the unit (figure A).
•Attach the end of the hose to the flan-
ge as shown in the figure E.
19
20
20
19
To install, proceed as follows:
•Make a hole in a outside wall or through
the glass of a window. Check the height
and dimensions given in figure D
30 cm
30 cm
98
MAX 120 cm
MIN 30 cm
When the hose is not attached, close the
hole with the bung on the flange .
NOTE:
When the unit is installed semi-permanently,
we recommend leaving a door slightly open
(1 cm is enough) to ensure an adequate
exchange of air.
19
20
in a window
pane
in the wall: for
optimum results,
insulate the sec-
tion of the wall
with suitable
insu-lating
material.
in the
wood sill of
a window
D
E
GB-5751010700 15-01-2004 16:33 Pagina 19

20
Preparation for use
HOW TO USE THE AIRCONDITIONER WITH WATER
These air conditioners can use both air and water to cool the condenser (the hot part) of the air
conditioner.
To utilise the full potential of your air conditioner, the tank needs to be filled with water. The water
is used. To increase the cooling power and reduce the noise level and energy consumption of the air
conditioner. The water that is used in then expelled from the machine as water vapour through the
exhaust hose (it does not go into room).
Always use clean top water (which doesn’t contain salts). As a rule the water will usually last about 8
hours however this depends on the conditions within the room, such as temperature, humidity, insula-
tion and aspect and number of people. In turbo mode the water will also be used more quickly.
You may also use the airconditioner on air cooling only (without filling the water tank ). If you only requi-
re the lower cooling power.
20
5
A) To open the front panel
grip either side of the
panel and gently pull
the panel towards you and
upwards. Remove the tank
Lifting it forward.
5
2
3
B) Turn the tank upside down
and remove the plug,
remove the extendible
tube and fill the tank, lea-
ving it on the ground.
C) After completing the fil-
ling procedure, replace
the extendible hose,
replace the cap and
screw it in tightly. Return
the tank to its place, with
the writing FRONT clearly
visible. Carefully hold the
panel in the centre and
lower to its closed posi-
tion.
During the "water functioning" operation and in particularly silent locations (eg the bedroom) a
slight gurgling sound may be heard. This is completely normal.
IN HIGH HUMIDITY CONDITIONS
Water is extracted from the air in the room, this water is also used to cool the condenser. When
the humidity is particulary high an excess of water may buid up in the internal tank. This can be
drained by removing the bung from the drain hose and draining into a suitable receptacle.
10
IMPORTANT: if the room temperature is 32°C or over the airconditioner must be operated with with
water in the tank.
2
GB-5751010700 15-01-2004 16:33 Pagina 20

21
ITALIANO
ENGLISH
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANOITALIANO
Setting the timer
SETTING THE TIMER (if supplied)
The programmer/timer , like all clocks,
must be set to the exact time. If for example
it is 4.00 pm. (16.00), turn the dial in a clockwi-
se direction (following the direction of the
arrow) until the number 16 is lined up with the
triangular pointer (the arrows indicates 4:00
P.M. approximately ).
14
21
20
19
16
pointer
N.B.: Never turn the dial in an anti-clockwise
direction!
The timer is in effect, an electric clock and
works only if the plug is connected to the
power supply. Whenever the plug is discon-
nected or there is a power failure, the pro-
grammer stops (the clock is then “slow”) and
must be re-set.
PROGRAMMED MODE
1) Set the operating times by pushing out the
notches on the dial corresponding to the
period required (each notch represents 15
mins.)
2) Press the TIMER key , the signal light
will come ON.
3) Make sure that the timer indicates the cor-
rect time (see instructions on setting).
15
13
21
20
19
16
Funzionamento
4) Select the desired function as shown in the
chart overleaf.
N.B.: To override the programmed operating
times, simply press the ON/OFF key (the
timer signal lamp ON will go out)
13
operating time
ELECTRICAL CONNECTION
Before plugging in check that:
•the mains supply corresponds to the
power supply shown on the rating plate;
•the socket and the mains lead correspond
to the power requirements of the applian-
ce;
•the socket is suited to the plug, otherwise
have the socket replaced;
•the socket is properly grounded.
The manufactures cannot be held responsi-
ble for any damages due to failure in fol-
lowing normal safety procedures.
Replacement of the power cable must be
carried out by qualified personnel.
GB-5751010700 15-01-2004 16:33 Pagina 21

22
Turning on and Selecting functions
AIR CONDITIONING FUNCTIONS
To turn the unit on in air conditioning mode,
proceed as follows:
1. Press the button (the signal light “I”
will come on).
2. Rotate the function selector dial anti-
clockwise:
•Place the large star symbol in line with
the reference mark to operate the unit in
air conditioning mode at maximum fan
speed.
•Place the small star symbol in line with
the reference mark to operate the unit in
air conditioning mode at minimum fan
speed.
3. Now set the required temperature by rota-
ting the room thermostat dial .
Note
The temperature is not expressed in degrees.
We recommend that you turn the thermostat
dial to the maximum position. The signal light
will come on. When the desired room
temperature has been reached, slowly turn
the thermostat in a clockwise direction
until it arrives at the position where a click can
be heard. The signal light will turn off.
The temperature selected in this way will
automatically be regulated and maintained,
and save energy. When regulating the ther-
mostat, the air conditioning function is tem-
porarily interrupted and the unit continues to
operate in fan only mode. In this way, the
appliance keeps the air temperature within
the room even.
18
17
18
17
16
11
12
Delay on Start Up
1. A special safety device will delay the start
of air conditionig by approximately 3 to 5
minutes when switching between func-
tions or on initial start up.
2. You may also experience a slight delay
between changing from one function to
another.
VENTILATION/FILTRATION
Rotate the function selector clockwise.
•Press the button (the signal light
“I”will come on).
•Place the large symbol in line with the
reference mark to operate the unit at maxi-
mum fan speed.
•Place the small symbol in line with the
reference mark to operate the unit at mini-
mum fan speed.
11
12
16
TURN THE APPLIANCE OFF
TO TURN THE UNIT OFF COMPLETELY, PRESS
THE BUTTON (THE SIGNAL LIGHT
WILL TURN OFF).
1112
GB-5751010700 15-01-2004 16:33 Pagina 22

23
ITALIANO
ENGLISH
ITA-
LIANO
ITALIANO
ITALIANO
ITALIA-
NO
ITALIANO
ITALIANOITALIANO

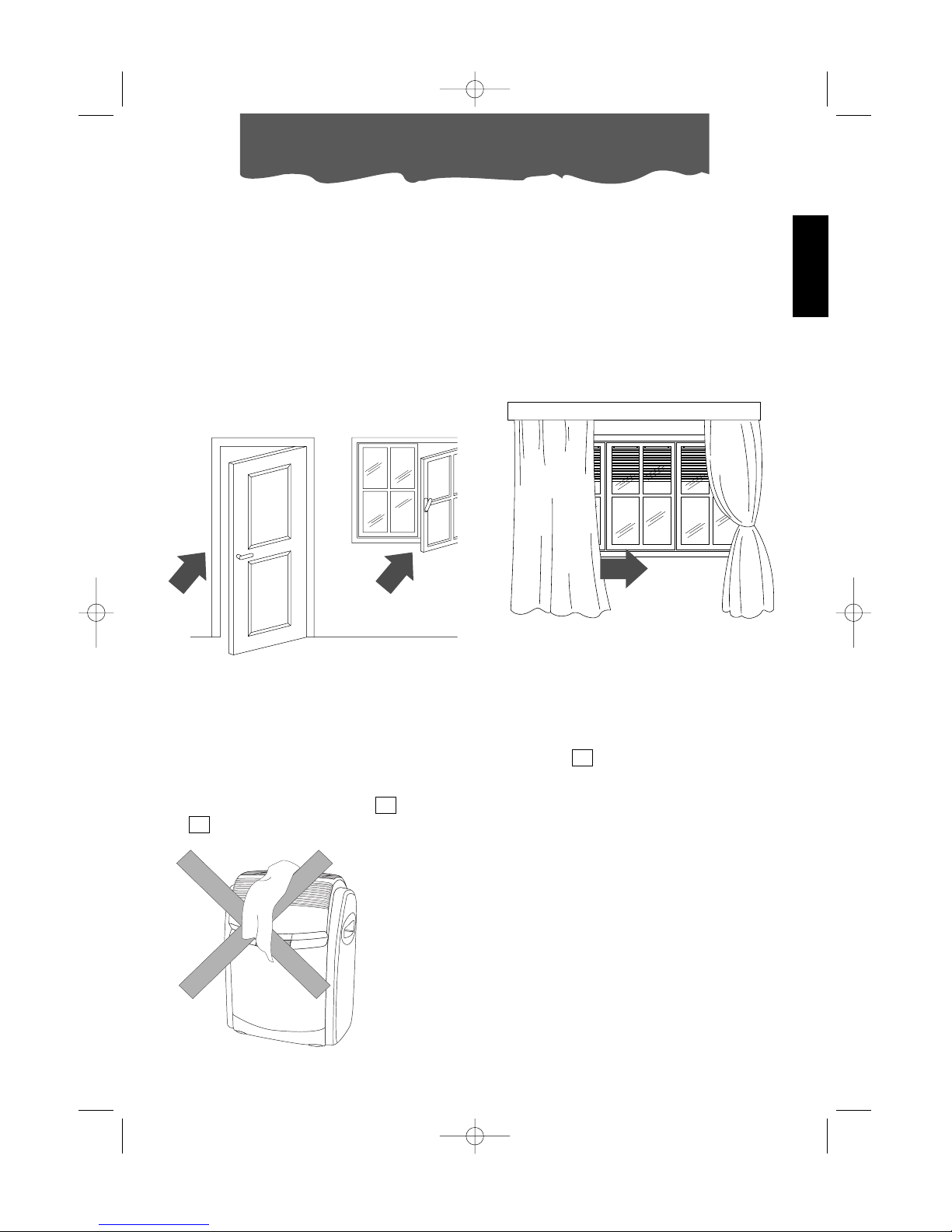

RECOMMENDATIONS
Follow these recommendations to achieve
maximum efficiency from your air conditio-
ning unit:
•Close the doors and windows in the room
where the unit is functioning. The only
exception is in the case of installation throu-
gh a hole in the wall or window. In this case,
you are recommended to allow a small
amount of air to enter through a door or
window to guarantee an adequate
exchange of air.
•Protect the room from direct exposure to
the sun’s rays by drawing the curtains
and/or partially lowering the blinds so as
to maximise energy savings.
•Do not rest objects on the air conditioning
unit.
•Do not obstruct the air intake or outlet
.
1
6
Recommendations
close doors and windows
lower the blinds or draw the curtains
do not cover
•Make sure the unit is located on a level
floor. If necessary, place the two blocking
devices under the front wheels .
23
•Make sure there are no heat sources in the
room.
•Do not use outdoors.
•Keep the appliance a safe distance from
combustible surfaces
GB-5751010700 15-01-2004 16:33 Pagina 23

24
Before cleaning or maintaining the unit, always
turn the unit off by releasing the button
and unplug from the mains .
CLEANING THE APPLIANCE
We recommend cleaning the appliance with
a slightly damp cloth then drying with a dry
cloth. For safety reasons, do not wash the air
conditioner with water.
Precautions
Never clean with benzene, alcohol or sol-
vents. Never spray liquid insecticide or similar.
CLEANING THE FILTERS
Dust filter
All of the models are equipped with a dust fil-
ter able to capture the dust particles suspen-
ded in the air.
In order to maintain the effectiveness of your
air conditioner unaltered over time, remem-
ber to clean the dust filter every two weeks.
1. Remove the aspiration grill , (see fig. F);
2. Remove the filter holder housing by deta-
ching it from the external grill. To detach it,
press on the two wings found on the side of
the filter holder (see fig. G)
Use a vacuum cleaner to remove the dust
deposits on the filter. If the filter is very dirty,
6
12
1
2
CLEANING THE RESORVOIR
It is recommended that you clean this at least
once a month using the following method:
•turn off the appliance and remove the
plug from the electrical outlet.
•open the front panel and remove the
tank .
•Open the little gate which can be
found at the back of the air conditioner,
remove the bung from the drainage
hose and empty out the water to a
container.
•after draining off the water, replace the
drainage hose plug.
•remove the dirt by scrubbing gently with a
cloth where the tank is positioned.
START OF SEASON CHECKS
Check that the power cable and socket are
undamaged and that the earth installation is
efficient. Carefully observe the installation
instructions.
RECOMMENDED OPERATIONS TO
PERFORM AT THE END OF THE SEASON
1) Proceed with scaling procedures (see
page 25).
2) Remove the water from the collection
reservoir .
3) Operate the appliance in the ventilation
only mode for about half an hour in order
to thoroughly dry the inside of the air con-
ditioner.
4) Turn off the appliance and remove the
plug from the outlet.
5) Remove the drainage hose .
6) Clean the filter and dry it thoroughly befo-
re replacing it in the appliance.
7) Cover the appliance so that dust does
not build up.
20
4
10
9
8
5
3
4
fig. F
Maintenance
immerse it in warm water, rinsing it thoroughly.
The temperature of the water should be kept
under 40°C.
After washing it, let the filter dry before re-
inserting it into the holder.
fig. G
GB-5751010700 15-01-2004 16:33 Pagina 24

25
ITALIANO
ENGLISH
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANOITALIANO
Descaling
When the scale deposits become excessive
(on average, after about 400 hours of opera-
tion) or in any case, at least once each sea-
son, it is very important to proceed with the
decalcification of the appliance as described
below.
To remove the scale from the appliance, you
need:
•20 % of descaling liquid
•80 % of clean water
Proceed as follows:
1) Remove the tank from the appliance
and drain the water remaining in the col-
lection reservoir by using the drainage
hose (fig. H).
2) Close the drainage hose . Pour 500 ml
of decalcifying liquid and
2 litres of clean water into the collection
reservoir which is found under the tank
(fig. I), on the bottom of the appliance.
3) Operate the air conditioner for about half
an hour.
4) After this, drain out all of the liquid remai-
ning in the collection reservoir and rinse
thoroughly. During the rinsing process, the
drainage hose must be open and the
appliance functioning.
5) Unplug the appliance from the mains and
clean the collection reservoir thoroughly
with a clean cloth.
6) After cleaning the collection reservoir, the
air conditioner can be used normally.
10
10
4
5
24
fig. H
fig. I
IF TRACES OF SUDS CAN BE SEEN IN THE WATER WHEN THE MACHINE IS USED AGAIN AFTER IT HAS
BEEN CLEANED AS DESCRIBED ABOVE, THIS IS NORMAL HOWEVER, IF THERE ARE A LOT OF SUDS
RINSE THE APPLIANCE AGAIN THOROUGHLY TO REMOVE ALL TRACES OF CLEANING PRODUCT.
REQUEST ADDITIONAL QUANTITIES OF DECALCIFYING LIQUID FROM DE' LONGHI LTD.
ATTENTION:
The use of products other than De' Longhi could cause damage to the internal components of the
appliance and invalidate the terms of the warranty.
GB-5751010700 15-01-2004 16:33 Pagina 25

26
If the unit is not working properly, this may be due to small problems that you can easily resolve yourself.
Follow these instructions carefully before contacting your local Authorised Technical Service Centre.
Troubleshooting
PROBLEM REMEDY
The air conditioner is
completely turned
off
•it is not plugged in
•there is no electricity
•plug in
•wait
CAUSE
The unit works but
does not cool the
room
•three minutes have not passed since it was
turned on
•windows open
•aheat source is operating in the room (burner,
light, etc.) or there are a lot of people
•the air outlet hose has come detached from
the coupling
•thermostat adjusted too high
•air filters clogged
•the output of the unit is insufficient for the con-
ditions or size of the room
•wait three minutes (safety devi-
ce) before the appliance start
cooling.
• close the windows
• eliminate heat sources
• fit the hose in the coupling
• lower the thermostat
• clean/replace filters
The unit works for
only a short time
•there is a kink in the exsaust hose
•the exsaust hose is blocked
•there are too many curves in the outlet tube
•the fan is blocked
•position the exaust hose correctly
•check there are no blockages
preventing the discharge of air
to the outside
•rearrange the hose correctly
•contact the Service Centre
GB-5751010700 15-01-2004 16:33 Pagina 26

27
ITALIANO
ENGLISH
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANO
ITALIANOITALIANO
RECOMMENDED OPERATING CONDITIONS
WHEN CONDITIONING
Room temperature 21 ÷ 32°C
TECHNICAL SPECIFICATION
Power supply see rating plate
Max. absorbed power
in air conditioning “
Refrigerating capacity “
Refrigerant “
Max. absorbed power
when heating “
Number of fan speeds 2
Max. air flow . 370 m3/h
Dimensions:
•width 580 mm
•height 785 mm
•depth 435 mm
Technical specification
ELECTRICAL CONNECTION (U.K. ONLY)
A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should
be cut off from the mains lead, and on appropriate plug fitted, as below. warning: Very carefully dispose of the cut off
plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.
With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-
on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the
event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nea-
rest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please follow the instructins provided below:
WARNING - THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance with
the following code:
Green and yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead may not corre-
spond with the coloured markings identifying the terminals
in your plug, proceed as follows:
The green and yellow wire must be connected to the termi-
nal in the plug marked with the letter E or the earth symbol
or coloured green or green and yellow.
The blue wire must be connected to the terminal marked with
the letter N or coloured black.
The brown wire must be connected to the terminal marked
with the letter L or coloured red.
GB-5751010700 15-01-2004 16:33 Pagina 27
