DeLonghi PAC N120 User manual

PAC N120
PAC N120
User manual

5
8
7
9
6
10
DESCRIPTION
ACCESSORIES
1
4
3
2
11 12
20
14
15 16 17
21
13
19
18

4
Important safeguards
• Use this appliance only as described in this instruction manual.
As with all electrical equipment, whilst the instructions aim to cover as many eventualities as
possible, caution and common sense should be applied when operating and installing this
appliance.
• This appliance is designed for home air conditioning and must not be used for other purposes.
• It is dangerous to modify or alter the characteristics of the appliance in any way.
• The appliance must be installed in conformity with national legislation regulating electrical
equipment and installations.
• If the appliance requires repair, contact a Service Centre authorised by the manufacturer only.
Repairs carried out by unauthorised personnel may be dangerous.
• This appliance must be used exclusively by adults.
• Never allow the appliance to be used by people (including children) with psychological, phy-
sical or sensory impairments or with insufficient experience and knowledge, unless closely
supervised and instructed by someone responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
• The appliance must be connected to an efficient earth system.
Have your electrical circuit checked by a qualified electrician.
• Do not use extension cables.
• Before cleaning or maintenance, always unplug the appliance from the mains socket.
• Never unplug the appliance by pulling on the power cable.
• Do not install the appliance in rooms containing gas, oil or sulphur. Do not install near sources
of heat.
• Keep the appliance at least 50 cm away from flammable substances (alcohol etc) or pressu
rised containers (eg aerosol cans).
• Do not rest heavy or hot objects on top of the appliance.
• Clean the air filter at least once a week.
• Avoid using heating appliances near the air conditioner.
• Always transport the appliance upright or resting on one side.
Before moving the appliance, empty the internal circuit completely of water.
After moving the appliance, wait at least 1 hour before starting it
• When putting the appliance away, do not cover with plastic bags.
• The materials used for packaging can be recycled.
You are therefore recommended to dispose of them in special differentiated waste collection
containers.
• At the end of its working life, consign the appliance to a specialist collection centre.
• If the power cable is damaged, it must be replaced by the manufacturer or an authorised
technical service centre in order to avoid all risk.
SPECIFIC WARNINGS FOR APPLIANCES WITH R410A* REFRIGERANT GAS
R410A refrigerant gas conforms to EC regulations on the environment.
Avoid perforating the refrigerant circuit of the appliance.
ENVIRONMENTAL INFORMATION: This unit contains fluorinated greenhouse gases covered by the
Kyoto Protocol. Maintenance and disposal must be carried out by qualified personnel only
(R410A, GWP=1975).
* Verify the type of refrigerant gas used in your appliance on the rating plate.

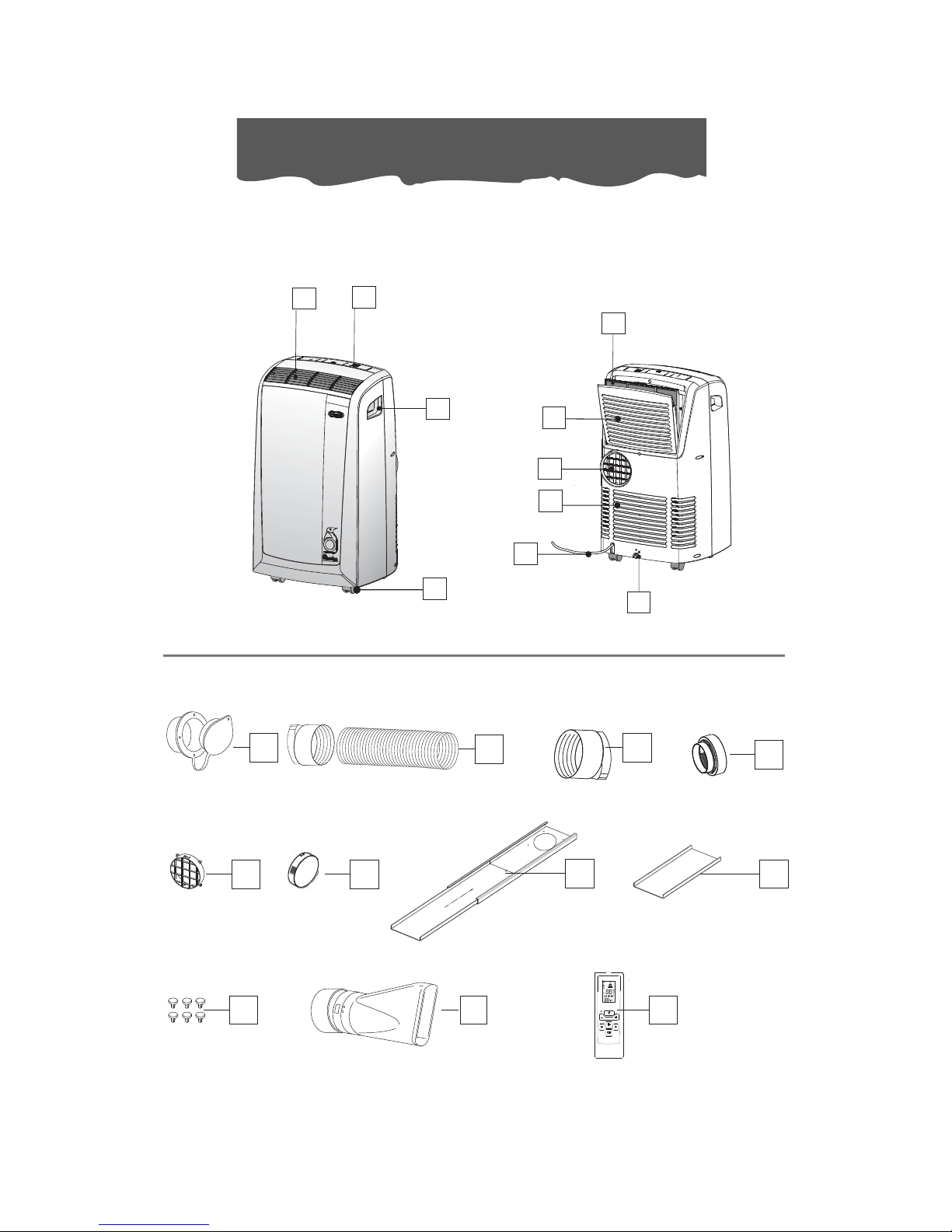

DESCRIPTION
1air outlet grille
2control panel
3castors
4 handles
5filter
6 evaporator air intake grille
7air exhaust hose housing
8condenser air intake grille
9 power cable
10 drainage hose
11 wall flange
12 air exhaust hose
13 hose adaptor (2 pieces)
14 accessory for wall mounting
15 window bracket grille
16 window bracket cap
17 window bracket
18 additional window bracket
19 6 screws
20 window outlet
21 remote control

5
AIR-CONDITIONING WITHOUT INSTALLATION
Just a few simple steps and your comfort is
ensured with your air conditioner:
• Screw one hose adaptor to the hose’s
end .
• Fit the other hose adaptor in the air
exhaust hose housing at the back of
the appliance (see fig. A).
• Screw the other end of the hose to the
adaptor, that was already fitted to the appli-
ance (see fig. A).
12
7
13
13
A

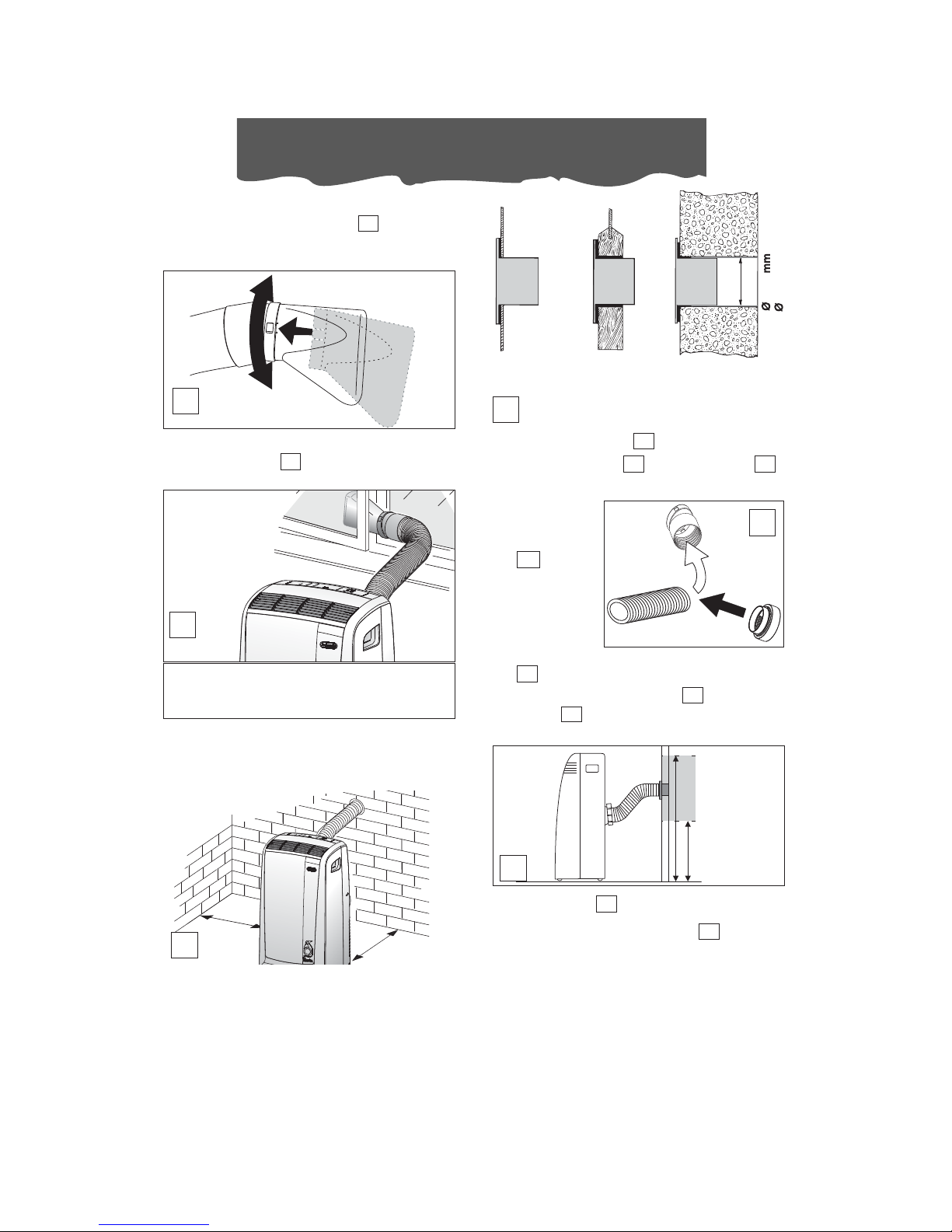

Preparing for use
If you have a sash window
• Attach the window bracket grille to
the window bracket with the four
screws provided
(fig. B).
19
17
15
B
• Open the window.
• Place the window bracket in the win-
dow, extending it to fit the width of the
window (fig. C).
17
CD
• Once the bracket is extended, it can be
locked into his width by tightening the last
two screws provided.
• Close the window (fig. D).
• Place the air conditioner near the win-
dow. Insert the assembled exhaust hose
into the window bracket grille (fig.
E). Make sure the air exhaust hose is unob-
structed.
• When not used, the window bracket can
be closed off with the cap provided.
16
17
12
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
E
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
• The outlet’s power supply corresponds to the value indicated on the rating label on the back
of the appliance;
• The outlet and electrical circuit are adequate for the appliance;
• The outlet is a 3-hole grounded outlet . If this is not the case, you must choose another outlet.
Failure to follow these important safety instructions absolves the manufacturer of all liability.
The instructions below will enable you to prepare your air conditioner for operation as efficiently
as possible. Before use, make sure the air intake and outlet grilles are unobstructed.
The power cable must be replaced by a qualified professional only.
If you have a very large window
• in order to cover your window aperture,
use the additional window bracket with-
out holes extending it to the desired
dimension, then fix the bracket by using
the pins provided. When extracting the
window bracket and joining the two
pieces pay attention you do not cover the
hole or holes (depending on the model).

6
Preparing for use
134
5,27 in.
When the hose is not fitted, the hole can
be closed with the flange cap .
NOTE: When installing the air conditioner
semi-permanently, you should leave a door
slightly open (as little as 1 cm) to guarantee
correct ventilation.
11
12
in the window
pane
in the wall: you are
recommended to
insulate the section
of wall using suit-
able insulation.
in the wooden
kickboard of a
French window
I
French window
• Attach the window outlet to the air
exhaust hose as shown in fig. F.
20
G
• Open the French window slightly and posi-
tion the outlet as shown in figure G
20
21
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
F
SEMI-PERMANENT INSTALLATION
If required, your appliance can also be
installed semi-permanently (Fig. H).
30 cm
30 cm
Proceed as follows:
• Drill a hole (ø134mm / 5,27 in.) in an out-
side wall or through a window pane.
Respect the height and dimensions of the
hole given in figures M and I.
H
• Fit the wall flange into the hole.
• Screw the hose to the adaptor ,
that was already fitted to the appliance (fig.
A).
• Remove the
plastic end
of the hose
by
unscrewing it
and in its
place screw
the wall
mounting
accessory
(fig. L).
• Fit the end of the hose to the wall
flange as shown in fig. M.
14
12
1312
11
11
12
1
2
L
M
MAX100 cm
MAX 39,37 inches
MIN 35 cm
MAX 13,77 inches

7
H
CD
THE CONTROL PANEL
IL
M
Q
G
Control panel

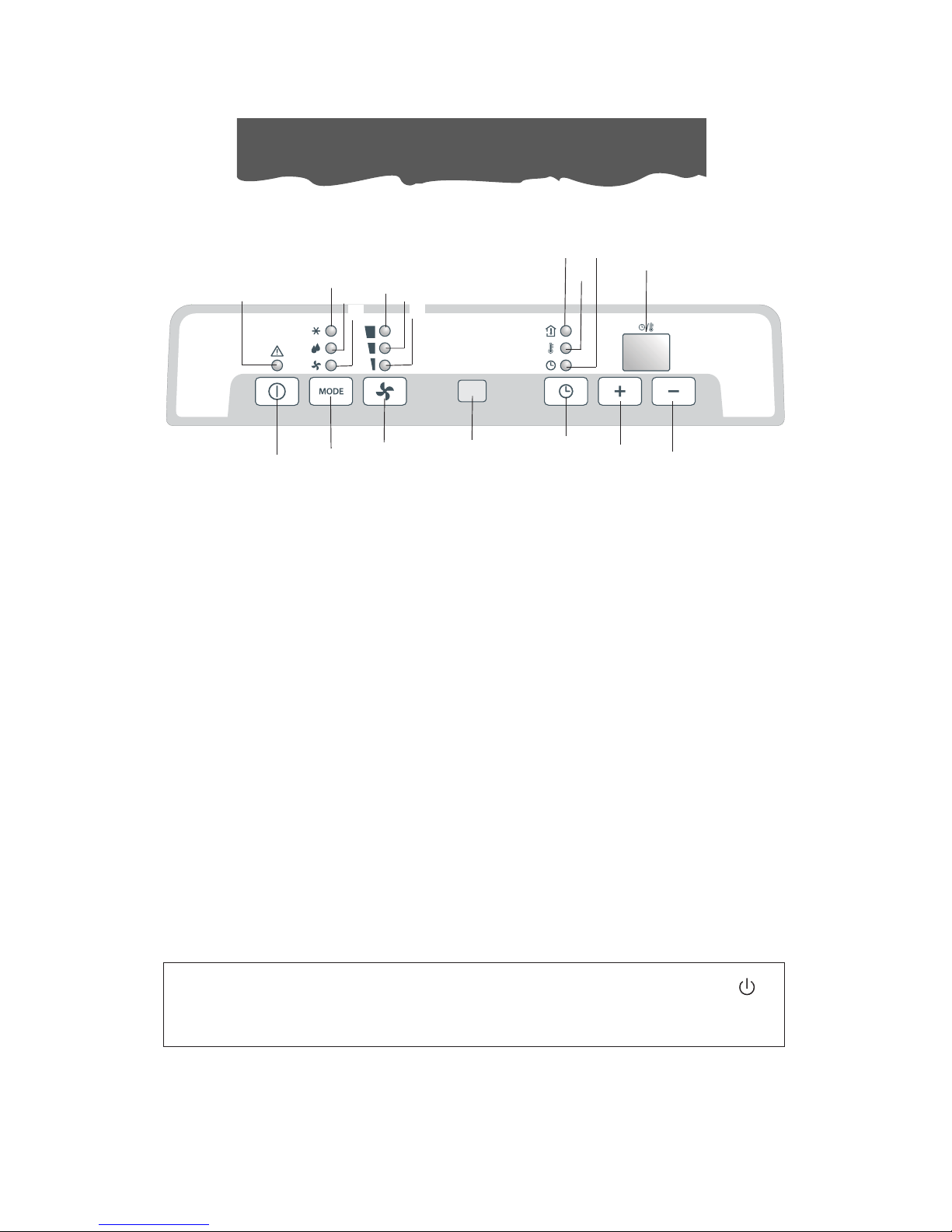

DESCRIPTION OF THE CONTROL PANEL
A ON/OFF button
B MODE selection button
Air conditioning, dehumidifying, fan.
C Fan speed selection button (MAX/MED/MIN)
D Timer button
E Programmed operation increase temperature/time button
F Programmed operation decrease temperature/time button
G Display Displays the temperature values set and the programmed operating time
H Timer in operation indicator light
I/L/M Fan speed lights
N Fan mode light
O Air-conditioning mode light
P Dehumidifying mode light
Q Alarm light
RRemote control receiver
S Light: the inner temperature is shown on the display
T Light: the outdoor temperature is shown on the display
B
AEF
T
S
O
P
N
R
Never turn the air conditioner off by unplugging from the outlet. Always press the
button, then wait for a few minutes before unplugging. This allows the appliance to per-
form a cycle of checks to verify operation.


8
Operation
TURNING THE APPLIANCE ON
Plug into an outlet.
Two lines appear on the display indicating that the appliance is
in stand-by.
Press the ON/STAND-BY button (A). When turned on, the air con-
ditioner starts operating in the same mode as when it was turned
off.
Press the MODE button (B) until the light corresponding to the
desired mode lights up:
Light (O): air-conditioning mode
Light (P): dehumidifying mode
Light (N): fan mode
AIR CONDITIONING MODE
Ideal for hot muggy weather when you need to cool and dehu-
midify the room.
The display shows the inner temperature: the light (S) turns on.
To modify the set temperature, push the (E) or (F) button to reach
the desired temperature. The (T) light turns on and the (S) light
turns off. (To change from °F to °C or viceversa, press for few sec-
onds both button Eand F).
After 15 seconds, the inner temperature is shown on the display.
The (S) light turns on.
You can adjust the temperature only in air conditioning mode.
Then select the fan speed by pressing the FAN button (C) until the
light corresponding to the required fan speed lights up:
MAX: the air conditioner operates at maximum to achieve the
target temperature as rapidly as possible
MED: reduces noise levels while maintaining a comfortable
temperature
MIN: for silent operation
The most suitable temperature for the room during the summer
varies from 75°F to 81°F (24 to 27°C). You are recommended,
however, not to set a temperature much below the outdoor
temperature

9
Operation
FAN MODE
Adjust fan speed by pressing the FAN button (C) as described for the air-conditioning mode.
Remember that the higher the speed, the more air is filtered. If you select "MIN" speed, less air is
filtered but the appliance is also less noisy.
DEHUMIDIFYING MODE
Ideal for reducing the humidity in a room without lowering or raising the temperature (spring or
autumn, damp rooms, rainy spells, etc).
When the dehumidifying mode is selected, the light (P) comes on.
At the same time, the "MIN" fan speed light (M) comes on. In this mode, other speeds cannot be
selected.
PROGRAMMING THE TIMER
The timer can be used to delay appliance start up or shut down. This avoids wasting electricity by
optimising operating periods.
How to programme delayed start up
• Plug the appliance into a mains socket and press the ON/OFF button (A), then select the
required operating mode and other settings (temperature, fan speed, etc).
• Press the ON/OFF button (A) again to place the appliance in standby mode.
• Press the timer button (D). The timer light "H" flashes.
• Use the + (E) or - (F) buttons to set the number of hours delay before the appliance comes on.
The time increases or decreases in steps of one hour.
The indicator light (H) flashes until the appliance starts up.
You can set the appliance to come on with a delay of up to 12 hours.
To cancel the timer programme, press the timer button (D) again.
Light (H) stops flashing.
How to programme delayed shut down
• Delayed shut down can be programmed in any operating mode (air conditioning / fan/ dehu-
midifying).
• Press the timer button (D). The timer light "H" flashes.
• Use the + (E) or - (F) buttons to set the number of hours delay before the appliance goes off.
The time increases or decreases in steps of one hour.
The light (H) flashes until the appliance turns off as programmed.
At the set time, the air conditioner shuts down and remains in standby.
To cancel the timer programme, press the timer button (D) again.
Light (H) stops flashing.

10
Using the remote control unit
(some models only)
MODELS WITH REMOTE CONTROL
• Point the remote control at the receiver on
the air conditioner. The remote control
must be no more than 16,4 ft (5 metres)
away from the appliance (without obsta-
cles between the remote control and the
receiver).
• The remote control must be handled with
extreme care. Do not drop it or expose it
to direct sunlight or sources of heat.

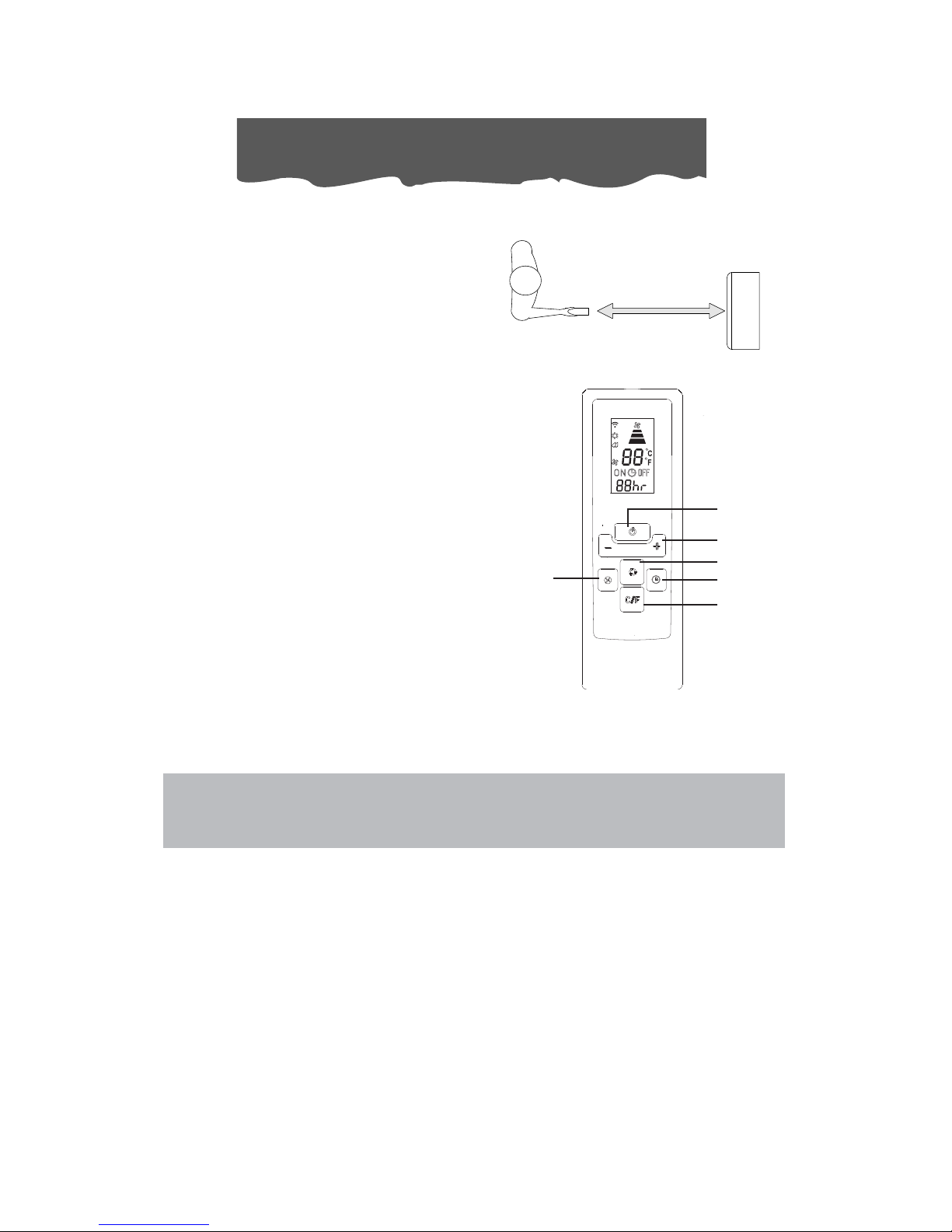

DESCRIPTION OF THE REMOTE CONTROL
22) "ON/OFF" button
23) Increase /Decrease button for temper-
ature/programmed use
24) "MODE" button
25) "TIMER" button
26) Fan speed selection button
(MAX/MED/MIN).
27) °F/°C scale button
Inserting or replacing the batteries
• Remove the cover on the rear of the
remote control;
• Remove the old batteries, if present.
• Correctly insert two new L03 “AAA” 1,5V
batteries (see the instructions inside the
battery compartment);
• Replace the cover.
TURNING THE APPLIANCE ON
Plug the appliance into the mains.
Press the ON/OFF button (22) (when turned on, the air conditioner starts operating in the same
mode as when it was turned off).
Press the MODE button (24) to select the required mode
COOLING
DEHUMIDIFYING
FAN ONLY
On the control panel, the light corresponding to the selected mode comes on.
For air conditioning/dehumidifying/fan only settings and programming the timer, see page 8-9.
MAX 16,4 ft
MAX 5 metres
If the remote control unit is replaced or discarded, the batteries must be removed and dis-
posed of in accordance with current legislation as they are harmful to the environment. Do not
mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nick-
el-cadmium) batteries. Do not dispose of batteries in fire. Batteries may explode or leak.
22
23
25
27
26
24

11
To get the best from your air conditioner, fol-
low these recommendations:
• close the windows and doors in the room to
be air conditioned.
The only exception is when the appliance is
installed through a hole in the wall.
In this case, you are recommended to
leave a slight draught through a door or
window to guarantee correct ventilation.
• Protect the room from direct exposure to
the sun by partially closing curtains and/or
blinds to make the appliance much more
economical to run;
• Never rest objects of any kind on the air
conditioner;
• Never obstruct the air intake or outlet
grilles;
• Make sure there are no heat sources in the
room.
1
6
• Never use the appliance in very damp
rooms (laundries for example).
• Never use the appliance outdoors.
Tips
close doors and windows
close blinds or curtains
do not cover
the appliance
• Make sure the air conditioner is on a level
floor.

12
Before cleaning or maintenance, turn the
appliance off by pressing the ON/OFF button
(A) or in models with remote control unit, by
pressing the ON/OFF button , then always
unplug the appliance from the mains socket.
CLEANING THE CABINET
You should clean the appliance with a slight-
ly damp cloth then dry with a dry cloth.
For safety reasons, never wash the air condi-
tioner with water.
Precautions
Never use petrol, alcohol or solvents to clean
the appliance. Never spray insecticide liquids
or similar.
CLEANING THE AIR FILTERS
To keep your air conditioner working efficient-
ly, you should clean the dust filter every week
of operation.
The filter is housed in the intake grille.
To clean the filters, remove the filter as shown
in figure N.
22
Use a vacuum cleaner to remove the dust
collected on the filter.
If it is very dirty, immerse in warm water and
rinse a number of times.
The water should never be hotter than 40°C.
After washing, leave the filter to dry.
Put the filter back in its housing.
START OF SEASON CHECKS
Make sure the power cable and plug are
undamaged and the earth system is efficient.
Follow the installation instructions precisely.
END OF SEASON OPERATIONS
To drain all water from the circuit, remove the
cap from the drain hose on the back of the
appliance and allow the water to drain out
into a basin (figure O). When the appliance is
empty, replace the cap.
Clean the filter and dry thoroughly before
putting back.
N
Cleaning
O

13
Troubleshooting
PROBLEM CAUSE REMEDY
The air
conditioning unit
does not start.
• No electricity.
• It is not plugged into the outlet.
• The safety device of the plug has
tripped.
• Wait.
• Plug into the outlet.
• Contact your service center.
The air
conditioning unit
works for a short
time only.
• The air exhaust hose has a constriction.
• The air exhaust hose is blocked.
• There are tight bends in the air exhaust hose.
• Position the exhaust hose cor-
rectly.
• Check there are no
obstacles. Obstructing air dis-
charge.
• Eliminate the tight bends.
The air
conditioner works,
but does not cool
the room.
• Window open.
• There are heat sources in the room (lamps,
etc.).
• The exhaust hose is detached.
• Air filters clogged.
• the air conditioner is not powerful enough for
the conditions or size of the room
• close the window
• eliminate the heat source
• connect the exhaust hose
• clean or replace the filter
• clean or replace the filters
Particular odour in
the room
• air purifying filters clogged
The air conditioner
does not operate
for about 3 minutes
after turning it on
• the safety device has tripped • wait for three minutes
The alarm light Q
comes on
• the tank inside the appliance is full. • empty the tank (see "End of
season operations) on page
12).
NOTE:
NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE. IF THIS OCCURS,
WAIT 6 HOURS BEFORE TURNING THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. (After the
unit has been on its side, oil needs to return to the compressor to ensure proper function. With-
out allowing the unit this time (6-24 hours) The unit may function for only a short time, and then
the compressor will break down from lack of oil.)
TROUBLESHOOTINGn
SELF-DIAGNOSIS
The appliance has a self diagnosis system to identify a number of malfunctions.
Error messages are displayed on the appliance display.
IF…IS DISPLAYED,
…MEANS:
room temperature is too low
IF…IS DISPLAYED,
…MEANS:
room temperature is too high
IF…IS DISPLAYED,
…MEANS:
contact your local customer service
“Low Temperature” “High Temperature” “Probe Failure”
(sensor damaged)

14
Technical specifications
TECHNICAL SPECIFICATION
Power supply voltage see rating label
Max. absorbed power
during air conditioning “
Refrigerant “
Cooling capacity “
LIMIT CONDITIONS
Room temperature for
air conditioning 21 ÷ 35°C
Transport, filling, cleaning, recovery and disposal of refrigerant should be performed by a tech-
nical service centre appointed by the manufacturer only.
The appliance should be disposed of by a specialist centre appointed by the manufacturer only.
