RADIO TYBOX PAC
User guide
Wireless programmable thermostat for heat pumps
RADIO TYBOX
DELTA DORE - Bonnemain
35270 COMBOURG - FRANCE
E-mail : [e-mail]
Device compliant with the requirements of directives:
R&TTE 1999/5/CE
Because of changes in standards and equipment, the characteristics
given in the text and the illustrations in this document are not binding
unless confirmed by Delta Dore.
*2701906_rev1*

- 3 -
Contents
• Carefully read these instructions prior to use.
• Do not attempt to repair the unit yourself;
an after-sales service is available.
Warnings
Off mode
Absence mode
Timer mode
Automatic mode
Time setting
Programming
Selecting the HEAT/COOL
mode and set-point
temperature setting
Continuous mode
Modification
buttons
Selector
knob
position Selector
knob
RADIO TYBOX
Presentation
This thermostat lets you program your heating or
cooling system to Comfort or Economy mode.
Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Automatic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Timer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Continuous mode . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Absence mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Off mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
HEAT / COOL mode principle . . . . . . . . . . . . . . . . . . 9
Choosing the HEAT / COOL
mode and set-point temperature setting . . . . . . . . . 10
Time setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Information button . . . . . . . . . . . . . . . . . . . . . . . . 18
Home automation features . . . . . . . . . . . . . . . . . . . 20
Replacing batteries . . . . . . . . . . . . . . . . . . . . . . . . 26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 28
- 2 -

Override
- 5 -
In automatic mode, override is used to switch from
Comfort to Economy mode (or conversely) until the
next program change.
Press the
override
button.
6:00 8:00 00:0000:00 17:0015:30 23:00
Override
currently
active
At 17:00, the program will
return to its usual program
To cancel the current override,
press the button once more.
In automatic mode, override is used to switch from
Comfort to Economy mode (or conversely) until the next
program change.
Current day programming
- 4 -
Turn the knob to AUTO.
Your thermostat will function according to the program.
Automatic mode
Override
Information
button
Display in automatic mode
Time
Current day
Room
temperature
Current mode
Current day
programming
Request for
heat or cold
NOTE :
Depending on the configuration during installation,
your unit will continuously display the set-point
temperature or the room temperature.
To change these settings, refer to the “installation
guide”, or contact our customer service department or
your installer.

This mode is used to choose a set-point temperature
for a given amount of time.Turn the knob to .
To make changes to the current timer mode, press OK
once more.
To cancel the current timer mode, turn the knob.
- 7 -
Continuous mode
Choice of set-point
temperature (from 5 to 30°C)
Set-point
temperature
Confirm
Choice of the set-point
temperature
This mode is used to choose a set-point temperature
that remains constant.
Turn the knob to .
- 6 -
Timer mode
Set-point temperature
setting (from 5 to 30°C)
Confirm
Return to AUTO mode at
the end of the countdown
Confirm
Adjustment of the duration from
15 minutes to 72 hours
(in increments of 15 minutes)
To exit this mode, turn the knob.

- 9 -- 8 -
This mode shuts down your system.
Turn the knob to .
Off Mode
Room
temperature
Configuration
menu access
button
(press and hold
for 5 seconds)
This mode lets you place your home under Frost
Protection if you need to leave for several days.
Turn the knob to .
Return to
AUTO mode at the
end of the countdown
To make changes to the current
mode, press OK once more.
To cancel the current mode,
turn the knob.
Set-point temperature setting
(from 5 to 15°C)
Confirm and start
the calendar
countdown
Confirm
Adjustment of the number of days (1 to 365)
E.g. for a departure on 1 March and a return
on 16 March, program 15 days of absence.
Automatic operation will resume on
16 March at midnight.
Absence mode
In COOL mode, there is no Frost Protection set point.
The system will be shut down for the programmed
time.
HEAT / COOL mode principle
(can only be used with a reversible heat pump:
heat mode / cool mode).
In winter: set the system to HEAT mode.
In summer: set the system to COOL mode.
In mid-season (Spring / Autumn):
set the system to off mode..
Modes
Set-point
temperatures
HEAT mode
(in winter)
COOL mode
(in summer)
Comfort
(if you are at home)
Economy
(if you are absent)
E.g. 19°C
E.g. 16°C
E.g. 24°C
E.g. 27°C
- comfort: Periods during which the home is occupied:
- economy:Periods during which the home is unoccupied.

Depending on the system configuration (menu 1-08),“conf”
may be displayed for the set-point temperature.This set-
point temperature cannot be modified.If this is the case, the
Comfort set-point temperature can be adjusted on your heat
emitter (radiator with thermostatically controlled valve, etc.).
Choosing the HEAT / COOL
mode and set-point temperature setting
Comfort set-point temperature setting
(from 5 to 30°C in increments of 0.5°C)
Confirm
Go on to temperature setting
Economy
Economy set-point temperature setting
(from 5 to 30°C in increments of 0.5°C)
Confirm
Confirm
Go on to the comfort temperature setting
Selection of the operation mode
for the HEAT / COOL regulation
To exit this mode, turn the knob.
The comfort and economy set-point temperatures for
the HEAT mode are independent from the comfort and
economy set-point temperatures for the COOL mode.
Heat mode setting
Turn the knob to .
To set the heat mode, select the HEAT mode:
Comfort set-point temperature setting
(from 5 to 30°C in increments of 0.5°C)
Confirm
Go on to temperature setting
Economy
Economy set-point temperature setting
(from 5 to 30°C in increments of 0.5°C)
Confirm
Confirm
Go on to temperature setting
Comfort
Selection of the operation mode for
the HEAT / COOL regulation
Turn the knob to .
To set the cool mode, select the COOL mode:
To exit this mode, turn the knob. - 11 -- 10 -
Cool mode setting

Programming
1. Choosing the HEAT / COOL mode
Turn the knob to .
Select the mode using + or - Press OK to confirm.
2. Creating your program
Turn the knob to PROG.
The default program is:
- in HEAT mode: Comfort from 6:00 to 23:00
- in COOL mode: Comfort from 11:00 to 19:00
Programming starts on day 1 at midnight.
Press the or buttons to create different Economy
or Comfort periods.
Day
1st time
slot
Comfort period
adjustment
Economy period
adjustment
Turn the knob to .
The days flash.
Press + or - to change the day, then press OK
to confirm and continue on to the next setting.
Repeat the operations to set the hours and minutes.
To leave the “time setting” mode, turn the knob.
Minutes
Hours
Days
(1: Monday…
7 : Sunday)
Time setting
NOTE:
If the unit is configured for a daily program,
the days setting is not offered.
The HEAT mode and the COOL mode are
independent.
Create a Comfort program and an Economy program
for each mode.
- 13 -- 12 -

Press and hold until you
reach 06:00
Press and hold until you
reach 08:00
Press and hold until you
reach 17:00
Press and hold until you
reach 23:00
Press and hold until you
reach 00:00
Copy and confirm
or simply confirm
6:00 8:00 00:0000:00 17:00 23:00
E.g. Comfort from 6:00 to 8:00 and from 17:00 to 23:00
Programming
3. Confirming and copying the program
Press and hold the OK button for 3 seconds to confirm
the program you created and copy it to the next day.
4. Confirming the program
Press the OK button to confirm and continue on to the
next day to program it separately.
5. Checking your program
Press the button repeatedly to check the accuracy of
the Comfort and Economy periods you created.
Press OK to check the next day
OR
Program
profile Verification of the
different or
periods
Time slot
consulted
- 15 -- 14 -

Programming
6. To program the other mode (HEAT/COOL)
Turn the knob to .
Change the mode by pressing once on + or -
Press OK to confirm.
Turn the knob to PROG, then repeat steps 2 to 5.
7. Exiting the programming mode
Turn the knob to another mode.
COMMENTS: Depending on the configuration made
during installation, programming can be weekly or daily.
Likewise, this programming may be done in increments
of one hour, 30 minutes, or 15 minutes.To change these
settings, refer to the “installation guide”, or contact our
customer service department or your installer.
During the AUTO, or , modes, press the ibutton
repeatedly to find out:
•the room temperature or the set-point temperatu-
re (depending on the configuration during the
installation)
If your thermostat displays the temperature of the room
Information button
The display of all information related to home automa-
tion features (outside temperature, consumption indica-
tion, etc.) requires an “activation” phase from the
RADIO TYBOX (see the home automation features
section).
- 17 -- 16 -
Normal display
Set-point temperature
display
Mode display

- 19 -
• the electrical consumption in euros of the heating,
water heater (DHW) and other electrical appliances
(lights, household appliances, etc.).
If you have the RADIO TYWATT option on your installation
Information button
• outside temperature
- 18 -
Press
successively
Reset
Consumption
Press
successively
The display of all information related to home automation
features (outside temperature, consumption indication,
etc.) requires an “activation” phase from the RADIO
TYBOX (see the home automation features section).
If you have the
RADIO TYWATT
option on your
installation
To reset all meters, press and hold the init. button for
5 seconds.
• total consumption of your installation
With an
associated
outside sensor
Automatically returns to normal display after approxi-
mately 30 seconds without pressing any buttons.
Heating
consumption
display in HEAT mode
Consumption display
Hot Water
Consumption display
Other uses
Cooling
consumption
display in COOL mode

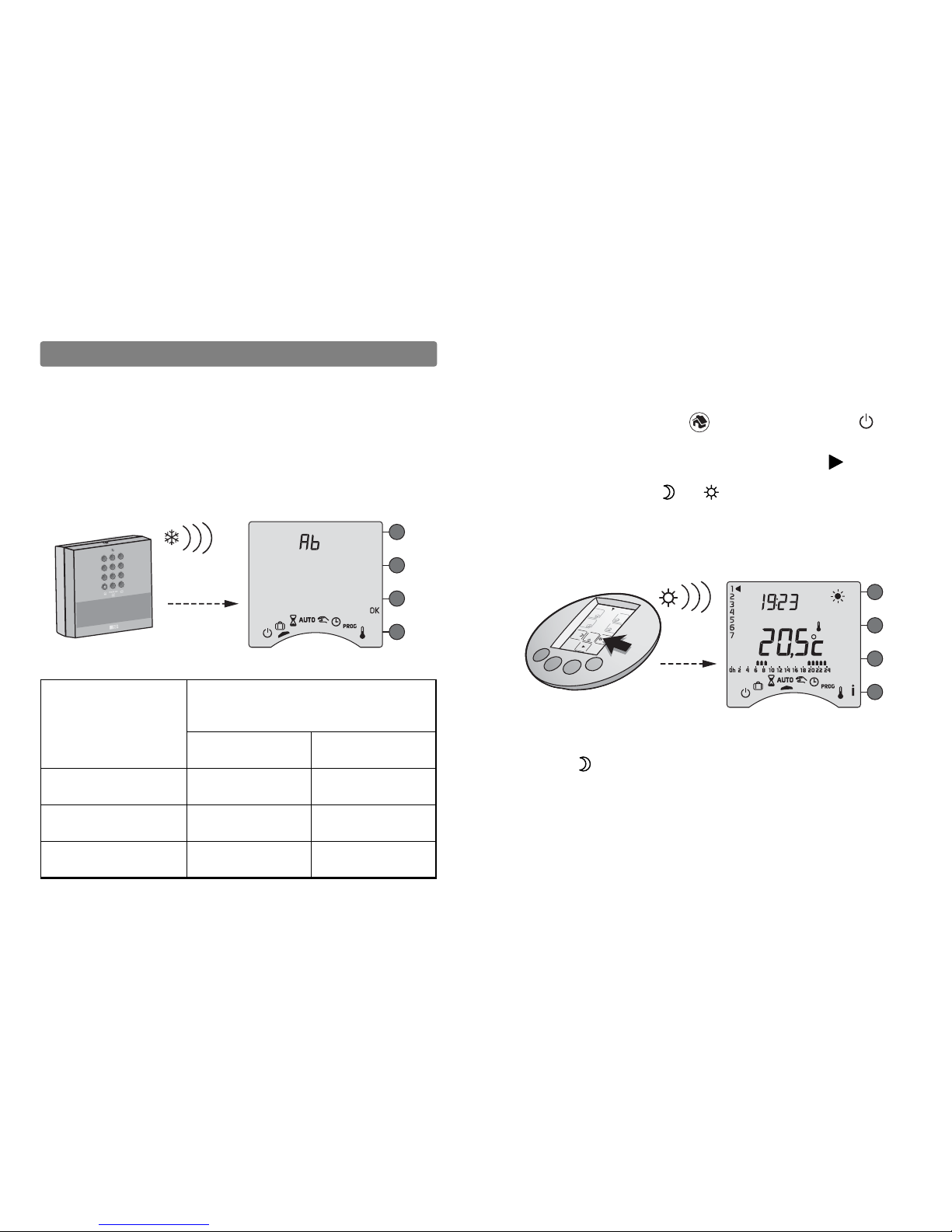

With a door/window magnetic contact
If a door/window magnetic contact is associated, the
opening of the door or window activates:
the heating in Frost Protection mode, when in heat
mode.
The air conditioning in off mode, when in cool mode
- 21 -
The RF 652 receiver allows you to associate up to 8
home automation products (door/window magnetic
contact, alarm control centre, remote controls, etc.) with
the RADIO TYBOX.
To associate the different products, refer to the RADIO
TYBOX installation guide.
Activating the RADIO TYBOX
The receiver instantaneously takes into account all infor-
mation coming from a home automation product (e.g. an
open window).
To display this information on the RADIO TYBOX, the
RADIO TYBOX must be “activated” by pressing a button.
The update can take a few seconds.
Home automation features
- 20 -
Window
Open
RADIO DRIVER
is on standby
RADIO TYBOX
is “activated” and
dis
p
la
y
s the status
Press a button
Activating the RADIO TYBOX
E.g. With an associated door/window magnetic contact
Frost Protection control
Boiler

With a TYXAL alarm control unit
If a TYXAL alarm control unit is associated.
When you activate the alarm, the heating will automati-
cally switch to Economy mode until the next program
change.
Conversely, when you disable the alarm, the heating
will automatically switch to Economy mode until the
next program change.
This override can be cancelled on the RADIO TYBOX,
by pressing the override button or by turning the
selector knob.
- 23 -
Home automation features
With a TYXAL transmitter
With an associated TYXAL transmitter:
- pressing the button once switches the heating
to Comfort mode until the next program change.
- pressing the button once switches the heating
to Economy mode until the next program change.
The command can be cancelled:
- on the TYXAL transmitter, by pressing the ,
- on the RADIO TYBOX, by pressing the override but-
ton or by turning the selector knob.
E.g. With an associated remote control
- 22 -

With a TYDOM 200 remote control
From the home domain , pressing the tactile
button switches off the heating.
This off command is cancelled by pressing .
Pressing the tactile or button once switches the
heating to Comfort or Economy mode, until the next
program change.
The command can be cancelled:
- on the TYDOM 200 remote control, by pressing the
tactile button,
- on the RADIO TYBOX, by pressing the override
button or by turning the selector knob.
- 25 -
With a TYDOM telephone transmitter
By calling the TYDOM telephone transmitter, let the
synthesized voice guide you to determine or modify the
status of the heating system (see the TYDOM transmit-
ter instructions).
Home automation features
123
456
789
0#
- 24 -
Choice of the
mode via the
transmitter
RADIO TYBOX 812 mode
in local mode
Heat mode Cool mode
Frost Protection Frost Protection Off
Comfort Heat comfort Cool comfort
Economy Economy warm Economy cool

- 27 -
Separate the thermostat
from its support
Position the thermostat
on its base
Lock the thermostat
Replace the batteries,
making sure they are the right way round
1
2
3 4
- 26 -
Replacing batteries
When the battery level symbol appears, you have
around one month to change the batteries.
2 LR03 or AAA type 1.5 V alkaline batteries.
The following precautions must be respected:
- Ensure that the +/- polarities are correctly placed
when the battery is fitted into the unit.
- Do not dispose of used batteries in unauthorized pla-
ces (you should respect the environment by taking
the batteries to a suitable collection site).
- Do not recharge the batteries.
-You have approximately 30 seconds to change the
batteries before the time is reset to zero (if this hap-
pens, reset the date and time).The other settings are
unchanged.
Battery level symbol

The temperature displayed does not match the tempera-
ture measured in the room (thermometer).
Refer to the installation guide (menu 2-02) or contact your
installer or our customer service department.
The programs cannot be modified and the set-point
temperature settings are limited
(Heat comfort: 16 to 22°C, Cool comfort: 21 to 27°C,
Economy warm: 13 to 19°C, Economy cool: 24 to 30°C).
Refer to the installation guide (menu 2-01) or contact your
installer or our customer service department.
Your heating system is in Frost-Protection mode.
The thermostat is in , , PROG or position .
The unit displays: dEF 6.
There is a communication fault between the RADIO TYBOX
and the RF 652 receiver.
Bring the transmitter nearer to the receiver.
The device only displays the time and the room tempera-
ture.
RADIO TYBOX is in screen saver display mode, but all the
heating features are running.
Press a button to "activate" the display.
The update can take a few seconds.
- 29 -
Nothing is displayed on the room unit screen.
There is no power supply.
Check the batteries .
The indication is displayed.
The batteries are low.
Change the batteries, making sure they are the right way round.
The unit is in time setting mode.
You took too must time in changing the batteries.
Set the time. All other settings have remained unchanged.
When setting the time, there is no option to set the day.
RADIO TYBOX is set to daily programming.
To switch to weekly programming, refer to the installation guide
(menu 1-01) or contact your installer or our customer service
department.
When creating a program, the
and symbols do not appear on the screen.
Program changes were not authorized during installation.
Refer to the installation guide (menu 2-01) or contact your
installer or our customer service department.
Troubleshooting
- 28 -
The purpose of this section is to help you quickly solve the
most common problems that you may encounter.
If you're unsure, or if the problem persists or isn't in this list,
contact our customer service department.

- 31 -
- 30 -
