Delta AS-BF Series User manual

Operating Manual for Communicating Area Sensor
Communicating Area Sensor
Operating Manual V2.0
Table of Contents
Chapter 1: Product Summary............................................................ 1-1
1.1 Product Information ........................................................................................... 1-1
1.2 Order Information .............................................................................................. 1-2
Chapter 2: Product Specifications .................................................. 2-1
2.1 Product Specification ......................................................................................... 2-1
2.2 Bracket Installation ............................................................................................ 2-3
2.3 Description of Optical Detection Capability........................................................ 2-5
Chapter 3: Installation and Operation............................................ 3-1
3.1 Wiring Instructions ............................................................................................. 3-1
3.2 Indicators........................................................................................................... 3-2
3.3 Installation ......................................................................................................... 3-3
3.4 Operation Mode................................................................................................. 3-6
3.5 Operation Mode of Communication mode (CX)................................................. 3-9
Chapter 4: Communication Protocol .............................................. 4-1
4.1 List of Communication Parameters ................................................................ 4-1
4.2 Description of Communication Function ............................................................ 4-10
Chapter 5: Troubleshooting and Others......................................... 5-1
Chapter 6: Safety Precautions.......................................................... 6-1
Chapter 7: Warranty ............................................................................. 7-1

Chapter 1 Product Summary
Operating Manual for Communicating Area Sensor
1-1
Chapter 1
Product Summary
1.1 Product Information
◎The guideline of product selection
Size of detection object: The detection object need to be bigger than Minimal Detection Object
Detection height: beam numbers * beam spacing
Output: Object absence detection RX model, switching output that has 2 output NPN and PNP
Object size detection CX model, switching output and communication output
Model AS-BF series AS-BH series AS-BA series
Minimal Detection Object 16.5mm 26.5mm 46.5mm
Beam Spacing 10mm 20mm 40mm
Beam Numbers 16~128 8~96 4~36
Detection height 160 ~ 1280mm 160 ~ 1920mm 160 ~ 1440mm
Detection distance 0.1 ~ 10m
◎Model description
Blue
AS-B-C Communication Type
AS-B□□□□-TX
Transmitter module
AS-B□□□□-CX
Receiver model
Gray
AS-B-WT□□□
AS-B-WC□□□
Black
AS-B Standard Type
AS-B□□□□-TX
Transmitter model
AS-B□□□□-RX
Receiver model
Gray
AS-B-WT□□□ AS-B-WR□□□

Chapter 1 Product Summary
Operating Manual for Communicating Area Sensor
1-2
1.2 Order Information
The Transmitter, Receiver, Wire and Bracket need to be ordered separately
◎Transmitter/receiver model
◎List of model
AS-BF Series AS-BH Series AS-BA Series
AS-BF016 AS-BH008 AS-BA004
AS-BF024 AS-BH012 AS-BA006
AS-BF032 AS-BH016 AS-BA008
AS-BF040 AS-BH020 AS-BA010
AS-BF048 AS-BH024 AS-BA012
AS-BF056 AS-BH028 AS-BA014
AS-BF064 AS-BH032 AS-BA016
AS-BF072 AS-BH036 AS-BA018
AS-BF080 AS-BH040 AS-BA020
AS-BF088 AS-BH044 AS-BA022
AS-BF096 AS-BH048 AS-BA024
AS-BF104 AS-BH052 AS-BA026
AS-BF112 AS-BH056 AS-BA028
AS-BF120 AS-BH060 AS-BA030
AS-BF128 AS-BH064 AS-BA032
AS-BH068 AS-BA034
AS-BH072 AS-BA036
AS-BH076
AS-BH080
AS-BH084
AS-BH088
AS-BH092
AS-BH096
Area sensor
B =
Basic type
AS - B
H
040
Beam spacing
F
= 10mm
H = 20mm
A = 40mm
-CX
Number of
beams
Model
-
TX = transmitter model
-
RX = Receiver model (Standard type)
-
CX = Receiver model (Communication type)

Chapter 1 Product Summary
Operating Manual for Communicating Area Sensor
1-3
◎Cable information
◎List of cables
Cable length (m) AS-B-WT (gray wire) AS-B-WR (black wire) AS-B-WC (blue wire)
2.5 AS-B-WT025 AS-B-WR025 AS-B-WC025
3.5 AS-B-WT035 AS-B-WR035 AS-B-WC035
5 AS-B-WT050 AS-B-WR050 AS-B-WC050
10 AS-B-WT100 AS-B-WR100 AS-B-WC100
◎Bracket information
AS-B-BK01 *
AS-B-BK02
AS-B-BK03
AS-B-BK04
A Bracket package include 2pcs
The bracket installation depend on the detection height, the number of bracket as the list.
Detection Height 160~320mm 400～1680mm 1760～1920mm
The number in the
transmitter model / receiver
model
1 2 3
Cable
for Area Sensor
AS - B - W
T
025
Module
T = Transmitter
model
R = Receiver
model (Standard type)
C = Receiver
model (Communication type)
Cable
length
025 =
2.5m
035 = 3.5m
050 = 5m
100 = 10m

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-1
Chapter 2
Product Specifications
2.1 Product Specification
◎AS-B Series specification
Model AS-BF AS-BH AS-BA
Beam spacing 10mm 20mm 40mm
Detection capability 16.5mm 26.5mm 46.5mm
Detecting distance 0.1 ~ 10m
Light source Infrared(850nm)
Effective aperture angle Max +/- 5°
Response time Please refer to Table 2-2
Power voltage 24VDC ± 10%
Current consumption Please refer to Table 2-3
Protection mechanisms Reverse voltage protection, output over-current protection, input surge
protection, output surge protection
Operating temperature -10°C—55°C (No freezing)
Storage temperature -25°C— 60°C (No freezing)
Operating relative
humidity 30 - 85% RH (No condensation)
Enclosure rating IP 67
Ambient light 20,000 Lux or less
Vibration resistance 10~55 Hz, 1.5mm, 3 axes for 2 hours
Shock resistance Max. 100 m/s², 3 axes, 6 directions and 3 times in each.
Insulation impedance 20 MΩ or more(500VDC)
Dielectric withstanding
voltage 1000 VAC 50/60 Hz 1min
Material Case: Aluminum alloy; Protection cover: PMMA, End Terminal: Zinc
alloy
Cable M12 waterproof connector, 200mm PVC cable
Certification CE

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-2
◎Product exterior and dimensions (Unit: mm)
◎Positions of beams and indicators (unit: mm)
Operation indicator
Final beam
First beam
Alignment indicator
Alignment indicator
Beam spacing
Detection height
Total
length
4.3
104.3
24.3
4.3
28.0

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-3
2.2 Bracket Installation
◎Bracket dimension and installation
AS-B-BK01 dimensions (unit: mm)
AS-B-BK02 AS-B-BK03

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-4
AS-B-BK04

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-5
2.3 Description of Optical Detection Capability
◎Description of optical detection capability
Transmitter: IR LED light emitting channel array.
Receiver: Photodiode light receiving channel array.
Beam spacing: Distance between two beams
Beam diameter: Diameter of lenses transmitting and receiving beams.
Detection height: The distance between the highest point and the lowest point within the limit of object
detection capability.
Detecting distance: The distance between transmitter and receiver.
Unit: mm AS-BF AS-BH AS-BA
Beam spacing 10 20 40
Beam diameter 6.5 6.5 6.5
Detection capability
Ø16.5 non-
transparent object
Ø26.5 non-
transparent object
Ø46.5 non-
transparent object
Receiver
Detecting distance
Detectable edge
Beam spacing
Beam diameter
Detection
capability
Detection
height
Transm
itter

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-6
◎Table 2-1 Detection Height and Total Length
Unit: mm
AS-BF Detection
Height
Total
Length
AS-BH Detection
Height
Total
Length
AS-BA Detection
Height
Total
Length
AS-BF016 150 168.6 AS-BH008 140 168.6 AS-BA004 120 168.6
AS-BF024 230 248.6 AS-BH012 220 248.6 AS-BA006 200 248.6
AS-BF032 310 328.6 AS-BH016 300 328.6 AS-BA008 280 328.6
AS-BF040 390 408.6 AS-BH020 380 408.6 AS-BA010 360 408.6
AS-BF048 470 488.6 AS-BH024 460 488.6 AS-BA012 440 488.6
AS-BF056 550 568.6 AS-BH028 540 568.6 AS-BA014 520 568.6
AS-BF064 630 648.6 AS-BH032 620 648.6 AS-BA016 600 648.6
AS-BF072 710 728.6 AS-BH036 700 728.6 AS-BA018 680 728.6
AS-BF080 790 808.6 AS-BH040 780 808.6 AS-BA020 760 808.6
AS-BF088 870 888.6 AS-BH044 860 888.6 AS-BA022 840 888.6
AS-BF096 950 968.6 AS-BH048 940 968.6 AS-BA024 920 968.6
AS-BF104 1030 1048.6 AS-BH052 1020 1048.6 AS-BA026 1000 1048.6
AS-BF112 1110 1128.6 AS-BH056 1100 1128.6 AS-BA028 1080 1128.6
AS-BF120 1190 1208.6 AS-BH060 1180 1208.6 AS-BA030 1160 1208.6
AS-BF128 1270 1288.6 AS-BH064 1260 1288.6 AS-BA032 1240 1288.6
AS-BH068 1340 1368.6 AS-BA034 1320 1368.6
AS-BH072 1420 1448.6 AS-BA036 1400 1448.6
AS-BH076 1500 1528.6
AS-BH080 1580 1608.6
AS-BH084 1660 1688.6
AS-BH088 1740 1768.6
AS-BH092 1820 1848.6
AS-BH096 1900 1928.6

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-7
◎Table 2-2 Response Times
Unit：ms
AS-BF
Series
Response
Time
ON ->
OFF
Response
Time
OFF ->
ON
AS-BH
Series
Response
Time
ON ->
OFF
Response
Time
OFF ->
ON
AS-BA
Series
Response
Time
ON ->
OFF
Response
Time
OFF ->
ON
AS-BF016 5.2 15.6 AS-BH008 3.4 10.2 AS-BA004 2.6 7.8
AS-BF024 7.0 21 AS-BH012 4.4 13.2 AS-BA006 3.0 9
AS-BF032 8.8 26.4 AS-BH016 5.2 15.6 AS-BA008 3.4 10.2
AS-BF040 10.8 32.4 AS-BH020 6.2 18.6 AS-BA010 3.8 11.4
AS-BF048 12.6 37.8 AS-BH024 7.0 21 AS-BA012 4.4 13.2
AS-BF056 14.0 42 AS-BH028 8.0 24 AS-BA014 4.8 14.4
AS-BF064 16.2 48.6 AS-BH032 8.8 26.4 AS-BA016 5.2 15.6
AS-BF072 18.0 54 AS-BH036 9.8 29.4 AS-BA018 5.8 17.4
AS-BF080 20.0 60 AS-BH040 10.8 32.4 AS-BA020 6.2 18.6
AS-BF088 21.8 65.4 AS-BH044 11.6 34.8 AS-BA022 6.6 19.8
AS-BF096 23.4 70.2 AS-BH048 12.6 37.8 AS-BA024 7.0 21
AS-BF104 25.2 75.6 AS-BH052 13.4 40.2 AS-BA026 7.6 22.8
AS-BF112 26.8 80.4 AS-BH056 14.0 42 AS-BA028 8.0 24
AS-BF120 28.8 86.4 AS-BH060 15.2 45.6 AS-BA030 8.4 25.2
AS-BF128 30.8 92.4 AS-BH064 16.2 48.6 AS-BA032 8.8 26.4
AS-BH068 17.2 51.6 AS-BA034 9.4 28.2
AS-BH072 18.0 54 AS-BA036 9.8 29.4
AS-BH076 19.0 57
AS-BH080 20.0 60
AS-BH084 20.8 62.4
AS-BH088 21.8 65.4
AS-BH092 22.6 67.8
AS-BH096 23.4 70.2

Chapter 2 Product Specifications
Operating Manual for Communicating Area Sensor
2-8
◎Table 2-3 Current consumption @24V
Unit: mA
AS-BF
series -TX -RX -CX AS-BH series -TX -RX -CX AS-BA series -TX -RX -CX
AS-BF016 30 45 45 AS-BH008 15 20 20 AS-BA004 20 20 20
AS-BF024 30 45 45 AS-BH012 20 25 25 AS-BA006 25 25 25
AS-BF032 35 50 50 AS-BH016 25 30 30 AS-BA008 30 30 30
AS-BF040 40 55 55 AS-BH020 30 35 35 AS-BA010 35 35 35
AS-BF048 45 60 60 AS-BH024 35 40 40 AS-BA012 35 35 35
AS-BF056 50 70 70 AS-BH028 40 45 45 AS-BA014 40 40 40
AS-BF064 55 70 70 AS-BH032 40 45 45 AS-BA016 45 45 45
AS-BF072 60 80 80 AS-BH036 45 50 50 AS-BA018 50 50 50
AS-BF080 65 85 85 AS-BH040 50 55 55 AS-BA020 50 50 50
AS-BF088 70 90 90 AS-BH044 50 60 60 AS-BA022 55 55 55
AS-BF096 75 95 95 AS-BH048 55 60 60 AS-BA024 60 60 60
AS-BF104 80 105 105 AS-BH052 60 65 65 AS-BA026 65 65 65
AS-BF112 85 110 110 AS-BH056 65 70 70 AS-BA028 65 70 70
AS-BF120 90 115 115 AS-BH060 70 75 75 AS-BA030 70 75 75
AS-BF128 95 120 120 AS-BH064 70 80 80 AS-BA032 75 75 75
AS-BH068 75 85 85 AS-BA034 80 80 80
AS-BH072 80 90 90 AS-BA036 80 85 85
AS-BH076 85 90 90
AS-BH080 90 95 95
AS-BH084 95 100 100
AS-BH088 95 105 105
AS-BH092 100 110 110
AS-BH096 105 110 110
*Not including controlled output current

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-1
Chapter 3
Installation and Operation
※Note: Before using this product, please read Chapter 6 Safety Precautions and then
perform the following operations.
3.1 Wiring Instructions
◎AS-B □□□□ (-C) Wiring instructions
(CX: communication model; RX: standard model)
◎Terminology
VCC: Supply voltage 24V
GND: 0V
SYNC+ / SYNC-: Synchronized signal to the transmitter
FB+ / FB-: Feedback signal from the transmitter
RX_NPN: NPN output
RX_PNP: PNP output
CX_RS485+/RS485-: MODBUS ASCII/RTU
CX_Output: Can be set to NPN, PNP or Push-Pull via communication setting
Shielding: Must be connected to a clean ground for guiding the external interference signal away and
shield from interference
◎Power-on sequence
1. Power on the transmitter
2. Power on the receiver
[8] CX: -RS485 (yellow); RX: PNP (white)
Host
[9] CX: Output (white)
[1] VCC (brown)
[2] GND (blue)
[3] SYNC+ (orange)
[4] SYNC- (orange/white)
[5] FB- (pink/white)
[6] FB+ (pink)
Transmitter
(TX)
Receiver
(CX | RX)
[7] CX: +RS485 (red); RX: NPN (black)
Shielding Shielding
24VDC ± 10%

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-2
3.2 Indicators
◎Description of positions of indicators
Alignment
indicator (blue)
Alignment
indicator (blue)
First beam
Operation indicator
(green/red/orange)
Alignment beam

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-3
3.3 Installation
◎Three steps for easy alignment
1. Align one beam first, so that the corresponding indicator (blue) lights up.
2. Then align the other beam so that the alignment indicators (blue) on both sides are lit at the same time.
3. Rotate area sensor to change the operation indicator from red to green.
◎Installation instructions not affected by the mirror
Safe installation distance
Detection distance X Minimum installation distance Y
< 3m 0.262 m
> 3m X * tan5˚
Step 1 Step 2 Step 3
Mirror
Transmitter
Receiver
Detection
distance X
Minimum installation
distance Y 5˚
Transmitter
Receiver
Detecting
distance X
Mirror
Minimum
installation
distance Y

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-4
◎Installation instructions for multiple adjacent sets
Set the shade to avoid interference from adjacent light sources.
Staggered left/right installation to avoid interference from adjacent light sources.
Staggered up/down installation to avoid interference from adjacent light sources.
Shade
Receiver 1
Transmitter 1
Receiver 2
Transmitter 2
Transmitter 2
Receiver 2
Receiver 1
Transmitter 1
Receiver 1
Transmitter 1
Transmitter 2
Receiver 2

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-5

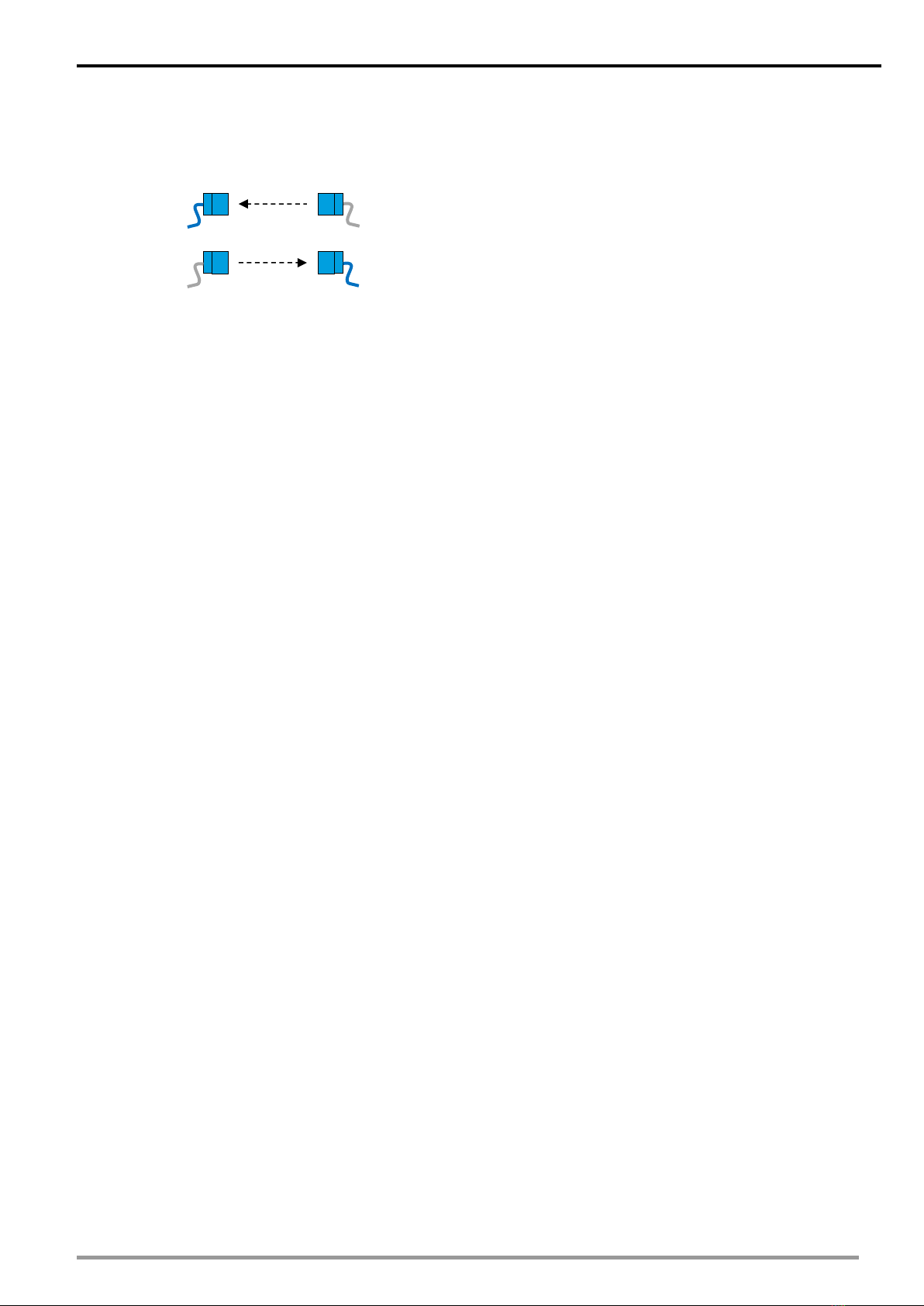

Staggered front/rear installation to avoid interference from adjacent light sources.
Transmitter 1
Receiver 1
Receiver 2
Transmitter 2

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-6
3.4 Operation Mode
◎Standard model (RX)
0 Stop Mode There will not be any scan, the orange light is displayed, and the output is fixed at
OFF state.
1 ON/OFF Mode
Check if there is any object shading in the detection area and excuse self-
diagnosis.
When the product is in normal use, the output is OFF(Red Light) after shading any
light beam, and the output is ON(Green Light) when it is non-shading. In the OFF
state, sensor do FB diagnosis, voltage diagnosis and light beam diagnosis
cyclically. Output to ON state when all the diagnosis pass. When FB, internal
voltage diagnosis be judged into fail, output would stand in OFF state and change
into Stop Mode(Orange Light)
◎Communication model (CX)
0 Stop Mode There will not be any scan, the orange light is displayed, and the output is fixed at
OFF state.
1 ON/OFF Mode
Check if there is any object shading in the detection area and excuse self-
diagnosis.
When the product is in normal use, the output is OFF(Red Light) after shading any
light beam, and the output is ON(Green Light) when it is non-shading. In the OFF
state, sensor do FB diagnosis, voltage diagnosis and light beam diagnosis
cyclically. Output to ON state when all the diagnosis pass. When FB, voltage
diagnosis be judged into fail, output would stand in OFF state and change into Stop
Mode(Orange Light).
In the mode, the fixed/floating blanking and interlock function can be used together.
2
Measurement
mode
(default)
When full beams are non-shading, output action ON (green light flashing once per
second), any beam is shading or abnormal happened, output OFF (red light
flashing once per second). Simultaneously detect Voltage, FB and light beam
diagnosis in the same of scan cycle.
3 FB diagnosis
mode
Detects whether or not each beams feedback signal is normal. When diagnosis is
normal, green light will flash three times every two seconds. When diagnosis is
abnormal, red light will flash three times every two seconds, and output will be fixed
as OFF.
4
Voltage
diagnosis
mode
Detects whether or not the internal/external voltage signal is normal. When
diagnosis is normal, green light will flash four times every two seconds. When
diagnosis is abnormal, red light will flash four times every two seconds, and output
will be fixed as O FF.

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-7
5
Scan /
diagnosis
mode
1. Sequentially FB diagnosis, Voltage diagnosis and light beam diagnosis. The
scan times is three times Measurement Mode. The output is diagnosis result,
not only the shading/non-shading
2. When FB diagnosis, Voltage diagnosis are pass, and non-shading state, the
output is ON and Green Light is on.
3. When FB diagnosis, Voltage diagnosis are pass, and shading state, the output
is ON and Red Light is flash per second.
4. When FB diagnosis or Voltage diagnosis is fail, Stop Mode will starts And
Output in off state. The failure issue should be removed then function
normally.
5. When output is over current, the output turn into off state. In non-shading,
Green LED and Red LED are on. In shading, Green LED and Red LED are
flash per second.
Precaution: When switching operation mode, please remove OUTPUT from the
host for preventing malfunction
◎Description of indicator display and output status
Operation
mode Status description Output status
Alignment
indicator Operation indicator *Indicates
Flashing
state
Blue light
Orange
light
Green
light *
Red
light *
0 Stop
Abnormality diagnosed or stop
OFF
V
Fixed
1 ON/OFF
(Default)
Full non-shading
ON
V
V
Fixed
Full non-shading (power
saving)
ON V
Full non-shading (over-
current)
OFF V V V
Shading
OFF
O
V
Abnormal number of beams
OFF
V
V
2
Measurement
Full non-shading
ON
V
V
Once per
second
Full non-shading (power
saving)
ON V
Full non-shading (over-
current)
OFF V V V
Shading
OFF
O
V
2
Measurement
(Active
upload)
Full non-shading
ON
V
V
Once every
two scans
Shading OFF O V
3
Feedback
diagnosis
Normal
OFF
V
Three
times every
two
seconds
Abnormal OFF V
4
Voltage
diagnosis
Normal
OFF
V
Four times
every two
seconds
Abnormal OFF V
5
Scan and
diagnosis
Full non-shading
ON
V
V
Fixed
Full non-shading (over-
current)
OFF V V V
Shading
ON
O
V
Once per

Chapter 3 Installation and Operation
Operating Manual for Communicating Area Sensor
3-8
O : Indicates lit or not; * : Indicates flashing state
※Note: In mode 3, 4, 5 , the output status only change by the result of diagnosis. NOT shading
or not. DON’T be as the basis for starting the machine.
◎Description of output mode
Shading (over-current)
OFF
O
V
V
second
Abnormal number of beams
OFF
V
V
Fixed
Feedback/Voltage abnormal
and switch to Stop mode
OFF V
Mode1. ON/OFF
Mode 2 measurement mode Full non-shading ON Shading OFF / Diagnosis of abnormality
NPN (Default) Ground Vcc
PNP Vcc Ground
Push-Pull Vcc Ground
Mode 5 Scan and diagnosis Normal operation (Shading
or non-shading)
Diagnosis of abnormality / Over
Current
NPN (Default) Ground Vcc
PNP Vcc Ground
Push-Pull Vcc Ground
