Malmbergs TP001-ZA User manual

Malmbergs Elektriska AB
PO Box 144, SE-692 23 Kumla, SWEDEN
EN
INSTRUCTION MANUAL
PIR Infrared Sensor
Art.No.: 99 190 44
2 3
www.malmbergs.com
TECHNICAL SPECIFICATIONS
Product type PIR Infrared sensor
Operating
voltage 2.4V - 3.3V
Wireless
connection ZigBee
Operating temp. Ta: -10ºC - +45ºC
Detection
distance 7 m
Detection angle 170º
Dims (WxDxH) 33x33x83 mm
Battery type CR2450 cell battery 3V
Anywhere
APP
APP
App Router
APP
PIR motion sensor
99 190 44 99 190 45
Door & window
sensor
99 190 46
Temperature & humidity
sensor
Zigbee Gateway
99 190 43
EMC Standard (RED)
ETSI EN 301 489-1 V2.2.0 (2017-03),
ETSI EN 301 489-17 V3.2.0 (2017-03)
Safety Standard (RED)
EN 62368-1:2014+A11:2017
RoHS Standard (RoHS)
IEC 62321
Radio Equipment (RED)
ETSI EN 300 328 V2.1.1 (2016-11)
Health Standard (RED)
EN 62311:2008
REACH Standard (RED)
(EC) No 1907/2006
Control your Smart Home wherever you are
Model No.: TP001-ZA
54
Product size Ø 33 mm
Ø 31 mm
78 mm
INSTALLATION
Warnings:
• This device does not support standalone
application and it must work together
with the ZigBee gateway (9919043 op-
tional accessories) under the same WIFI
network configuration.
• Indoor use only.
• Keep the device out of reach of children.
• Keep the device away from water, damp
or hot environment.
• Do NOT exceed the recommended
electrical ratings.
• Install the device away from strong signal
sources such as microwave ovens, which
may lead to signal interruption resulting
in abnormal operation of the device.
• Obstruction by concrete wall or metallic
materials may reduce the range of the
device and should be avoided.
• Do NOT attempt to disassemble, repair or
modify the device.
Wiring Instructions and Diagrams
The device must only be installed indoors.
The correct installation should meet the
following conditions:
1. The device should be 1.6-1.8 m above
the ground.
2. The device should be kept away from
air conditioning, refrigerators, stoves
and other places that are sensitive to
changes in air temperature.
3. Must not be blocked by furniture or
partitions within the detection range of
the device.
4. The installation environment of the de-
vice should be free from strong airflow
activity, and excessive movement which
may cause false alarm.
Smart phone
WIFI wireless
router LAN port
9919043
Zigbee gateway
USB cable
LAN
cable
Adapter
AF/BC-JA/YL-191203
Malmbergs Elektriska AB (publ)
PO Box 144, SE-692 23
Kumla, SWEDEN
Phone: [phone]
[email protected]
www.malmbergs.com

9 10 11
DECLARATION OF CONFORMITY
We hereby certify that the device
satisfies the provisions for CE markings
in accordance with the EU directives
(EMC Directive 2014/53/EU, RE Directive
2014/53/EU, RoHS Directive 2011/65/
EU, (EU) 2015/863, REACH (EC) No
1907/2006) as described in this manual.
For and on behalf of:
Malmbergs Elektriska AB, Sweden.
Mr. Anders Folke / Product Manager
Date: December 3, 2019
on/off device 5 times until the indicator
light is flashing rapidly or a beep on the
module is sounding continuously.
Q6: Other technical problems?
Please contact our technical support by
e-mail: [email protected].
SYSTEM REQUIREMENTS
• WIFI Router
• 9919043 ZigBee gateway
• iPhone, iPad (iOS 7.0 or higher)
• Android 4.0 or higher
FAQ
Q1: What should I do if I can’t configure
the device?
a. Please check whether the device is
powered on.
b. Make sure your mobile and the device
are in the same 2.4GHz WIFI network.
c. Please check if the WIFI signal is strong
enough.
d. Make sure the password entered in the
App is correct.
e. Make sure the wiring is correct.
Q2: Which products can I control with the
device?
You can control all types of lights, and
electrical products in accordance with the
device specifications.
Q3: What happens if the WIFI goes off?
You can still control your unit with Blue-
tooth or with the ON/OFF switch that is
connected to the unit.
Q4: What should I do if I change the WIFI
network or change the password?
You can connect the module to the WIFI
network according to the App User Manual.
Q5: How do I reset the device?
Press and hold the reset button or power
Note: Contents, icons and symbols
shown in the mobile app may be subject
to change without prior notice due to con-
tinuous upgrading and improvement.
76 8

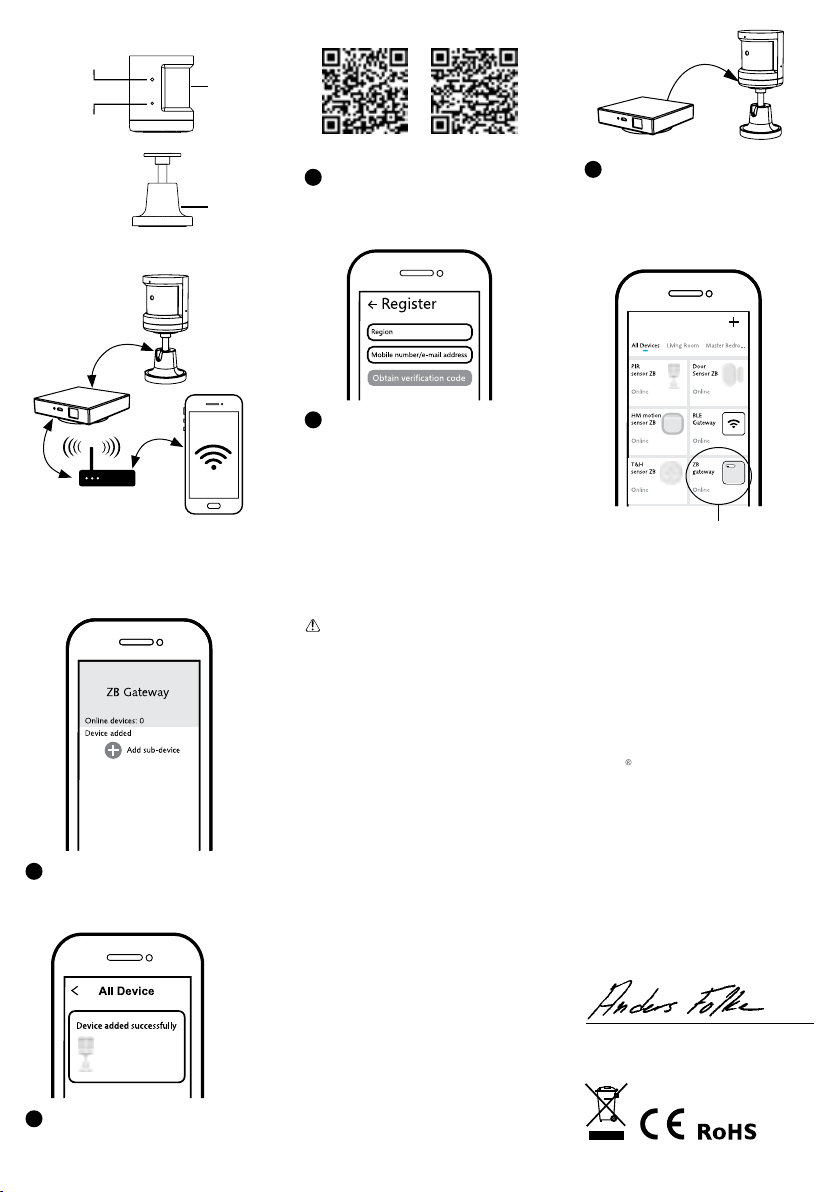

APP USER MANUAL
Scan the QR code to download the
MALMBERGS App. You can also search
the keyword “MALMBERGS”at App
Store or Google Play to download
the App.
Register your account with your mobile
number or e-mail address, wait a
few minutes for verification code (by
text message or e-mail) and enter it
where required to set a password, and
“Create Family”. If you already have
an account, please log in directly with
your mobile number or e-mail address
and password to open the App.
2
1
iOS APP/Android APP
Make sure the ZigBee gateway is
added and installed to the WIFI
network. Ensure that the product is
within the range of the ZigBee gateway
network.
3
9919043
Open the control panel of the ZigBee
gateway on the App.
4Click “+” (Add sub-device) to select
the suitable product category and
follow the on-screen instruction
for pairing.
When pairing is done, the device will
be shown in the App.
5
PIR Sensor
Lens
Base
Reset button
Network/ pairing
indicator
