Delta HEX110QA User manual

Specification and Manual
Customer:
Description: Heat Exchanger
Customer Part No.: Rev.:
Delta Model No.: HEX110QA Rev.: 00
Sample Date Code:
Sample Issue Date: June. 2.2020
DELTA ELECTRONICS, INC.
252, SHANG YING ROAD, KUEI SAN TEL: 886-(0)3-3591968
TAOYUAN CITY 333, TAIWAN FAX: 886-(0)3-3591991
Please send one copy of this specification back after
you signed approval for production pre-arrangement
Approved by:
Date:

Part no.:
Delta model no.: HEX110QA
Page 2
Table of content
Description .......................................................................................................................................... 3
Packing & Shipping ........................................................................................................................... 3
Safety Notes ....................................................................................................................................... 3
1.Product Instruction .................................................................................................................... 7
1-1. General Description .......................................................................................................... 7
1-2. Main Feature & Model Number ....................................................................................... 7
1-3. Dimension ........................................................................................................................... 9
1-4. Mounting Panel Cutout ................................................................................................... 10
1-5. Configuration & Maintenance ........................................................................................ 11
1-6. Thermal and Airflow ........................................................................................................ 12
2Electrical Specification ............................................................................................................ 13
2-1. Indicator & Connector ..................................................................................................... 13
2-2. Cooling capacity & temperature setting ....................................................................... 14
3.Environmental Condition ........................................................................................................ 14
4.Reliability Table ........................................................................................................................ 15
5.Safety Certification .................................................................................................................. 15
6.Accessory ................................................................................................................................. 15
7.Fault analysis and processing ............................................................................................... 16
8.Installation Notice .................................................................................................................... 16
9.Reclaim ..................................................................................................................................... 17

Part no.:
Delta model no.: HEX110QA
Page 3
Description
This document is an installation and the characteristics of Delta HEX series. Before
installing the unit, please read this manual thoroughly, and following the instructions
contained in it. The document is the exclusive property of Delta Electronics, Inc. it should
not be distributed, reproduced, or any other format without prior permission of Delta.
Specifications are subject to change without notice.
Packing & Shipping
The heat exchanger is a precision instrument; it should be handled and transported with
care. Do not place heavy objects on top of the box. Pay attention to the below icons on
the package. Please check product function by self-test process and make sure no alarm
signal and abnormal acoustic noise before firstly setup.
Safety Notes
Please read the safety notes carefully before installing the heat exchanger, and be sure
to install it correctly. After completing installation, check that the unit operates properly
during start-up operation.
Meaning of WARNING and CAUTION notices:
Warning:
Failure to follow these instructions properly may result in personal injury or loss of
life.
Caution:
Failure to observe these instructions properly may result in property damage or
personal injury, which may be serious depending on the circumstance.

Part no.:
Delta model no.: HEX110QA
Page 4
Warning:
1. Installation work and electrical wiring should be done only by qualified personnel in
accordance with all applicable codes, standards and national wiring regulations.
2. Use this unit only in the manner intended by the manufacturer. If you have questions,
please contact the manufacturer.
3. Install the heat exchanger in accordance with the instructions in this installation manual.
Improper installation may result in water leakage, electric shock or fire.
4. Make sure that all wiring is secured, that specified wires are used, and there is no strain
on the terminal connections or wires.
5. For siphon, if refrigerant gas leaks during installation, ventilate the area immediately. Do
not directly touch refrigerant that has leaked from refrigerant pipes or other areas, as
there is a danger of frostbite.
6. Before serving or cleaning unit, switch power off and disconnect power supply.
7. When cutting or drilling into wall or ceiling, do not damage electrical wiring or hidden
utilities.
8. Be sure to use only the specified accessories and parts to complete installation.
9. Protective grounding connection: The enclosure must be grounded at the protective
ground terminal. Use 2 mm2 (14 AWG) wire and use spring washer to avoid loosening.
10. The heat exchanger should not be accessible to the general public.
11. The installation must contain a device to disconnect all poles of the heat exchanger from
the power supply. The contact distance in all poles must be 3 mm minimum.
12. To reduce the risk of electrical shock: Means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
13. This appliance is intended for use only by qualified personnel.

Part no.:
Delta model no.: HEX110QA
Page 5
Caution :
1. Install the heat exchanger on a wall or door strong enough to withstand the weight of the
unit.
2. Do not allow a child to mount onto the outdoor unit. Avoid placing any object on it.
3. Do not block the air inlets or exits.
4. Do not install the heat exchanger at any place where there is a danger or flammable gas
leakage.
5. Arrange the drain to ensure complete drainage.
6. To avoid injury, do not touch the air inlet or aluminum fins of the unit.
7. Watch your step at the time of fin cleaning or heat exchanger inspection.
8. This appliance is not to be used by any persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given proper
supervision or instruction.
9. Children should be prevented from playing with the appliance.

Part no.:
Delta model no.: HEX110QA
Page 6
Specification for Approval
Customer :
Description : Heat Exchanger 110W/K
Customer P/N Rev. :
Delta model no. : HEX110QA Rev. : 00A
Sample revision. : Date Code :
Sample issue date : Quantity : 1 pcs
INTERNAL EXTERNAL

Part no.:
Delta model no.: HEX110QA
Page 7
1. Product Instruction
1-1. General Description
HEX110QA is a DC heat exchanger with -48VDC power input, it is designed for IP55
sealed outdoor telecom cabinet to provide stable and optimum internal conditions for
equipment and avoid hotspot inside the cabinet.
HEX X1 Q A - XXX
(1) (2) (3) (4) (5)
No Item Digit Specification
(1) Product Message HEX Heat exchanger
(2) Cooling Capacity X1 X1=110
(3) Operation Voltage Q DC 48 V with roof
(4) Product Version A N/A
(5) Customer ID XXX N/A
1-2. Main Feature & Model Number
Dimensions, Weight & Mounting method
Dimension (H x W x D) (without flange) mm (inch) 536 x 447 x 220 (21.1 x 17.6 x 8.7)
Application Outdoor
Weight Kg (lbs) 15.0 (33.1)
Mounting Method Roof
Color (optional) RAL7035
Environmental Protection & Performance
Operating Temperature Range °C (°F) -10 to +55 (-14 to +131)
Operating Humidity External: 0~100% RH
Internal: 0~90% RH
Storage Temperature °C (°F) -40 to +70 (-40 to +158)
Storage Relative Humidity RH 5~95%
Protection for Dust, Wind and Water
(External)
IEC 60529
/ GR487 IP55 / GR487
Noise (1.0m / 1.5m) dB-A 80 / 75
Operating Status N/A LED Indicator / Display Board
Cooling Capacity & Operational Data
Operating Cooling Capacity W/K 100±10%
Operating Cooling Current A 4.0
Operating Internal Airflow m3/h
(CMH) 500

Part no.:
Delta model no.: HEX110QA
Page 8
Operating External Airflow m3/h
(CMH) 400
Power & Range
Input Voltage VDC 48
Input Voltage Range VDC 40 - 60
Rated DC Current A 5.0
Alarm N/A Dry Contact Output
Key Components
Controller Built-in Smart Controller
Communication port RS485
Fans Delta High Efficiency Axial Fans

Part no.:
Delta model no.: HEX110QA
Page 9
1-3. Dimension
(1) Material : Aluminum sheet t=1.5mm
(2) Finish : Powder painting 75um(MIN.)
(3) Color : RAL 7035
(3) Dimension tolerance : X.X : ± 1.0 mm
mm

Part no.:
Delta model no.: HEX110QA
Page 10
1-4. Mounting Panel Cutout
M5 SCREW WITH
SKIDPROOF WASHER OR
NYLOK(20X)
SYSTEM PANEL
EXTERNAL SIDE INTERNAL SIDE
AND SYSTEM PANEL

Part no.:
Delta model no.: HEX110QA
Page 11
1-5. Configuration & Maintenance
Make sure the heat exchanger surface sealed with mounting flange to avoid water
penetrates into shelter through mounting interface. It is suggested to use gaskets sticking
on the mounting flange and seal the gap between flange and cabinet with silicone gel
during installation. There should be NO any gap surround gaskets to avoid water
penetrates into enclosure.
The HEX is composed of the key components as the following: Chassis, Heat Exchange
Core, Controller and Fan tray, user can slide out the fan tray easily for replacement of
the controller and fans.
1
3
2
4
7
8
5
6
In order to assure the heat exchanger running at optimal condition, the core should be
cleaned once annually at least; user can clean the core with water directly. The external
side fan blade can also be cleaned with normal pressure water if there is dust
accumulation. Please do not use strong water jet to impact the center of fan and the
surface of core. The bottom hole of the heat exchanger should be clear when the
maintenance. Please also notice that:
1. Check wires are connected correctly, and the insulation is not cracking or broken.
2. Use Self-test to check the unit running correctly or not. And the supplied air of internal
side should be as cooled air.
3. Do not wipe the product with organic solvent, volatile substances like toluene or gasoline,
it will destroy the powder-coated surface.
4. Turn off the power before maintaining.
5. Please turn off power and remove dry contact connector while non-operating for a long
time.
NO. Q'TY DESCRIPTION
1 1 Case Cover
2 1 Heat exchange (Core)
3 1 Case Body
4 2 External Fans
5 1 External Case Cover
6 1 Internal Case Cover
7 2 Internal Fans
8 1 Controller

Part no.:
Delta model no.: HEX110QA
Page 12
6. If any abnormal acoustic noise from heat exchanger happened, please turn off the
product and contact with customer services.
1-6. Thermal and Airflow
With the forced convection using the axial fan, the warm air generated by the equipment
will be blowing into the internal return opening and pass though the HEX, then flow out
from internal supply opening, the cold supply air will be used to cool down the system;
while on the opposite side, cooler air from the out environment will be drawn from the
external air inlet side and bring the heat of the HEX out from the external air exhaust
side. The thermal exchange path is shown in the figure below.

Part no.:
Delta model no.: HEX110QA
Page 13
2 Electrical Specification

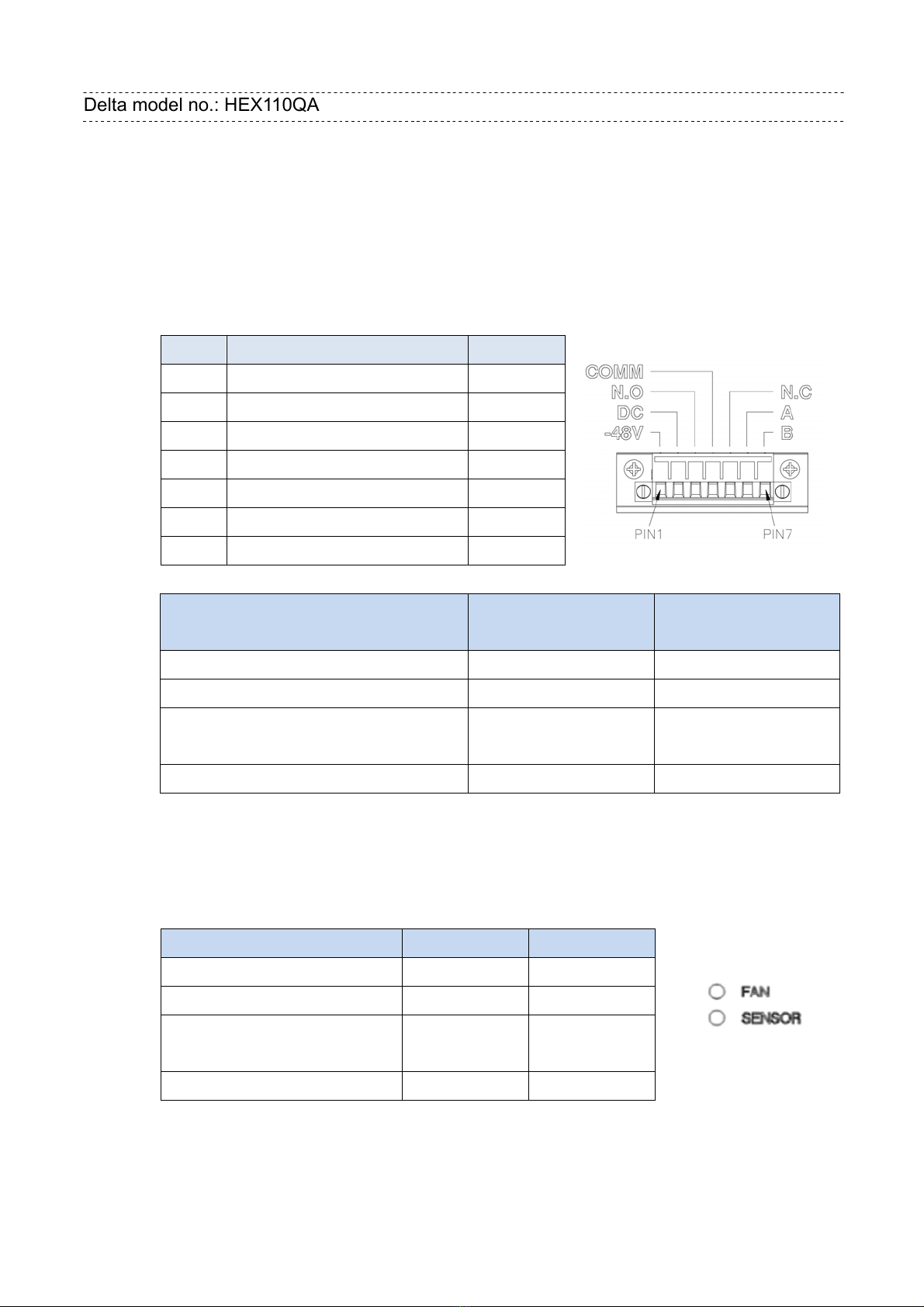

2-1. Indicator & Connector
Power Supply & Alarm Connector
(1) DC Power Connect:
Mate plate: DINKLE 2ESDVM-07P
Pin Description Note
1 DC -
2 DC +
3
Alarm N.O dry contact
4
Alarm dry contact comm
5
Alarm N.C dry contact
6 RS485 A Reserved
7 RS485 B Reserved
Alarm contact rating: max. ( ± 60VDC) 100mA
(2) LED Indicator:
Mate with: DINKLE 2ESDVM-07P
HEX status FAN SENSOR
Power off Dark Dark
HEX normal ( power on) Green Green
Temp sensor fail
(sensor open or short)
- Red
Fan fail
HEX status Alarm dry contact
N.O to COMM
Alarm dry contact
N.C to COMM
Power off Close Open
HEX normal ( power on) Open Close
Temp sensor fail (sensor open or
short) Close Open
Fan fail Close Open

Part no.:
Delta model no.: HEX110QA
Page 14
2-2. Cooling capacity & temperature setting
Hex detects Inner temperature to control cooling capacity.
3. Environmental Condition
Operating Temperature
-10 °C ~ +55 °C (-14 °F ~ +131 °F)
Storage Temperature
-40 °C ~ +70 °C (-40 °F ~ 158 °F)
Operation Humidity
External air loop: 0 ~ 100 % RH
Internal air loop: 0 ~ 90 % RH, non-condensing
Ingress Protection Rating
IP55 (IEC60529) on external side
GR487 on external side
MTBF
The L10 Fan life is expected to be at least 80,000 hours continuous operation at
40°C with 15 ~ 65%RH @ label rated voltage

Part no.:
Delta model no.: HEX110QA
Page 15
4. Reliability Table
Test item Condition
High temperature IEC 60068-2-2
Low temperature IEC 60068-2-1
High temp. / High humidity IEC 60068-2-3
Temperature cycle IEC 60068-2-14 test Nb
Vibration ETSI 300 019-1-4 CLASS 4.1
Ingress protection (external side) IEC 60529 IP55 / NEMA TYPE 4
Salt fog test (external side) IEC 60068-2-11 severity 4 , 6cycles
Package bump IEC 60068-2-29
5. Safety Certification
NA
6. Accessory
6-1 Power Cable
NA
6-2 Function Cable
NA

Part no.:
Delta model no.: HEX110QA
Page 16
7. Fault analysis and processing
Fault State Analysis of the Reasons Solutions
The HEX is running
but the cabinet
temperature is still
high, no obvious
cooling effect.
• The HEX capacity is not
match the load of the
system.
• The ambient
temperature is too high.
• Low efficiency of the
outside.
• Other system failure
• Check the heating load of the
system.
• Ensure the TEC is operating
in correct temperature range.
• Clean the sink.
• Please contact Delta or
authorized Delta service
agent.
8. Installation Notice
Check the surrounding obstacles to make sure the product get enough space for air
circulate.

Part no.:
Delta model no.: HEX110QA
Page 17
9. Reclaim
At the end of the unit working life, the produce must not be disposed of as urban waste.
It must be taken to a special local authority differentiated waste collection center or to a
dealer providing this service.

Part no.:
Delta model no.: HEX110QA
Page 18
10. Versions
REV. DESCRIPTION DRAWN CHECKED APPROVED ISSUE
DATE
ME EE CE
00 ISSUE SPEC KC Liao KC Liao Ted.Tu Mars.Wu 2020/6/02
Table of contents
Other Delta Industrial Equipment manuals

Delta
Delta ASRTU-EC16AP1TA User manual

Delta
Delta HEX020VA User manual

Delta
Delta DVP02LC-SL User manual

Delta
Delta WHITEWATER DF Series User manual

Delta
Delta HEX200PB User manual

Delta
Delta TP02G-AS1 User manual

Delta
Delta 32-325 User manual

Delta
Delta PMC-24V300W1B Series User manual

Delta
Delta DTM Series User manual

Delta
Delta DVP-ES3 Series User manual

Delta
Delta 46-461 User manual

Delta
Delta HEX180PB User manual

Delta
Delta HEX050PA User manual

Delta
Delta HEX100PC Series User manual

Delta
Delta DVP-ES2 User manual

Delta
Delta HEX070PB User manual

Delta
Delta LE-412523 User manual

Delta
Delta TP02G-AS1 User manual

Delta
Delta HEX080QA Series User manual

Delta
Delta Dometic CDF 11 User manual
