Delta Amplon RT Series User manual

www.deltapowersolutions.com
Delta UPS - Amplon Family
The power behind competitiveness
User Manual
RT Series, Single Phase
1/ 1.5/ 2/ 3 kVA
Maintenance Bypass Box

II
Amplon RT Series
Save This Manual
This manual contains important instructions and warnings that you should
follow during the installation, operation, storage and maintenance of this
product. Failure to heed these instructions and warnings will void the warranty.
Copyright © 2019 by Delta Electronics Inc. All Rights Reserved. All rights of this
User Manual (“Manual”), including but not limited to the contents, information,
and figures are solely owned and reserved by Delta Electronics Inc. (“Delta”).
The Manual can only be applied to the operation or the use of this product. Any
disposition, duplication, dissemination, reproduction, modification, translation,
extraction, or usage of this Manual in whole or in part is prohibited without the prior
written permission of Delta. Given that Delta will continuously improve and develop
the product, changes may be made to the information in this Manual at any time
without obligation to notify any person of such revision or changes. Delta will make
all possible efforts to secure the accuracy and the integrity of this Manual. Delta
disclaims any kinds or forms of warranty, guarantee, or undertaking, either expressly
or implicitly, including but not limited to the completeness, faultlessness, accuracy,
non-infringement, merchantability or tness for a particular purpose of the Manual.

Table of Contents
III
Table of Contents
Chapter 1 : Product Introduction --------------------------------------- 1
Chapter 2 : Important Safety Instructions --------------------------- 2
Chapter 3 : Package List -------------------------------------------------- 4
Chapter 4 : Standard Compliance-------------------------------------- 7
Chapter 5 : Rear View ------------------------------------------------------ 8
Chapter 6 : How to Install the Maintenance Bypass
Box on the UPS ---------------------------------------------10
Chapter 7 : How to Install the Maintenance Bypass
Box on the External Battery Pack --------------------13
Chapter 8 : How to Install the Maintenance
Bypass Box on the Rack---------------------------------17
Chapter 9 : How to Install the Maintenance Bypass
Box into the Tower Stands ------------------------------23
Chapter 10 : Wiring---------------------------------------------------------25
Chapter 11 : Start-up Operation----------------------------------------27
Chapter 12 : Maintenance------------------------------------------------28
Chapter 13 : Technical Specications -------------------------------30
Appendix 1 : Warranty ----------------------------------------------------33

Chapter 1 Product Introduction
1
Chapter 1 : Product Introduction
The Maintenance Bypass Box (MBB) is designed to operate in conjunction with the
Delta RT series 1 ~ 3kVA UPS. It ensures that the connected critical loads continue
to be powered by the input power during UPS maintenance or during the unlikely
event of a UPS failure.

2
Amplon RT Series
Chapter 2 : Important Safety Instructions
z
zOnly qualied service personnel can perform installation and maintenance of the
Maintenance Bypass Box.
z
zThe Maintenance Bypass Box must operate in conjunction with Delta RT series
1 ~ 3kVA UPS. Please refer to the following table.
Maintenance
Bypass Box
Model
MBB-RT-1.5K
PDB1115A1300B8
MBB-RT-2K
PDB1116A1300B8
MBB-RT-3K
PDB1117A1300B8
Applicable to
Delta RT series
UPS Model
RT-1K
RT-1.5K RT-2K RT-3K
z
zBefore installation of the Maintenance Bypass Box, please completely turn o󰀨
the UPS and cut o󰀨 the input power and battery power (if applicable).
z
zTo reduce the risk of re, only connect the Maintenance Bypass Box to a circuit
with branch circuit overcurrent protection in accordance with the National Electri-
cal Code, ANSI/ NFPA 70 and the Canadian Electrical Code, Part 1, C22.1. The
suggested branch circuit breaker’s current capacity is listed in the table below.
Model Maximum Current of
Branch Circuit Breaker
MBB-RT-1.5K (PDB1115A1300B8) 20A
MBB-RT-2K (PDB1116A1300B8) 20A
MBB-RT-3K (PDB1117A1300B8) 30A
z
zFailure to properly install the Maintenance Bypass Box may result in severe
damage to your UPS or load equipment.
z
zPlease install the Maintenance Bypass Box in an indoor temperature controlled
environment that is free of conductive contaminants.

Chapter 2 Important Safety Instructions
3
z
zDo not operate the unit in an extremely dusty/ unclean area or a location near
heating devices, water and excessive humidity. Do not expose the unit to direct
sunlight.
z
zSelect a location where provides good air circulation for the unit at all times.
z
zProperly route power cords so they cannot be walked on or damaged.
z
zThe Maintenance Bypass Box must be well grounded due to a possible risk of
current leakage.
z
zThe Maintenance Bypass Box is not intended for use in direct patient care or
life support applications.

4
Amplon RT Series
Chapter 3 : Package List
For PDB1115A1300B8
No. ITEM Q’ty Drawing
1MBB EAR (For Rack) 2 PCS
2MBB EAR (For Tower) 1 PC
3MBB EAR (For Tower) 1 PC
4UPS Output Cover 1 PC
5M4 Screw (Flat Head) 4 PCS
6M4 Screw (Pan Head) 2 PCS

5
Chapter 3 Package List
No. ITEM Q’ty Drawing
7M5 Screw 4 PCS
8#6-32 Screw 3 PCS
9M5 Cage Nut 4 PCS
10
RS-232 Cable 1 PC
For PDB1116A1300B8 & PDB1117A1300B8
No. ITEM Q’ty Drawing
1MBB EAR (For Rack) 2 PCS
2MBB EAR (For Tower) 1 PC

6
Amplon RT Series
No. ITEM Q’ty Drawing
3UPS Output Cover 1 PC
4M4 Screw 4 PCS
5M5 Screw 4 PCS
6#6-32 Screw 4 PCS
7M5 Cage Nut 4 PCS
8RS-232 Cable 1 PC
NOTE :
1. If there is any damage or anything missing, please immediately contact
the dealer from whom you purchased the unit.
2. If the Maintenance Bypass Box needs to be returned, carefully repack
the Maintenance Bypass Box and all of the accessories using the original
packing material that came with the unit.

Chapter 4 Standard Compliance
7
Chapter 4 : Standard Compliance
z
zUL/ CE
z
zIEC/ EN 62040-1
z
zIEC/ EN 62040-2 CATEGORY C2

8
Amplon RT Series
Chapter 5 : Rear View
NOTE :
There are no operational components or interfaces on the front of the MBB.
z
zPDB1115A1300B8
AC INPUTUPS OUTPUT
MANUAL BYPASS SWITCH
RS-232UPS RS-232
UPS INPUT
WARNING:
OPENING THIS COVER
PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED
SERVICE PERSONNEL
CAN OPEN AND
OPERATEIT.
OUTPUT SOCKET
（ 12A MAX. EACH BANK & TOTAL OUTPUT
）
BY
PASS
NORMAL
3
7 8
2 15 46
z
zPDB1116A1300B8
UPS OUTPUT
AC INPUT
UPS INPUT
UPS RS-232 RS-232
MANUAL BYPASS SWITCH
16A MAX.
16A MAX. EACH BANK
OUTPUT SOCKET （ 16A MAX. TOTAL OUTPUT ）
WARNING:
OPENING THIS COVER
PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED
SERVICE PERSONNEL
CAN OPEN AND
OPERATE IT.
BY
PASS
NORMAL
37 8
2
1
5 46
z
zPDB1117A1300B8
AC INPUT
UPS OUTPUTUPS INPUT
RS-232UPS RS-232
MANUAL BYPASS SWITCH
OUTPUT SOCKET （
24A MAX. TOTAL OUTPUT ）
20A MAX. EACH BANK
24AMAX.
BREAKER
WARNING:
OPENING THIS COVER
PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED
SERVICE PERSONNEL
CAN OPEN AND
OPERATEIT.
BY
PASS
NORMAL
7 8
2
1
5 46 39

Chapter 5 Rear View
9
No. Item Connection
1AC Input Connects to the main AC utility.
2UPS Output Connects to the UPS’s output socket.
3UPS Input Connects to the UPS’s AC input power cord.
4Manual Bypass
Switch
No connection is needed. The function is to switch
the UPS into manual bypass mode for maintenance
without power supply interruption.
5Manual Bypass
Switch Cover Plate
No connection is needed. After you unscrew the
two screws shown in Figure 27 to remove the
cover plate, the MBB’s detector will automatically
activate and send a message to the UPS to ask it
to transfer into bypass mode.
6Output Sockets Connect to the critical loads.
7UPS RS-232 Connects to the UPS’s RS-232 port.
8RS-232 Connects to your computer’s RS-232 port.
9Output Breakers
No connection is needed. The function is to prevent
the output socket(s) from damage caused by
overload.

10
Amplon RT Series
Chapter 6 : How to Install the
Maintenance Bypass Box on the UPS
NOTE :
1. In this User Manual, MBB means Maintenance Bypass Box.
2. For the meaning of 1~
10
shown in this chapter, please refer to Figure 3.
z

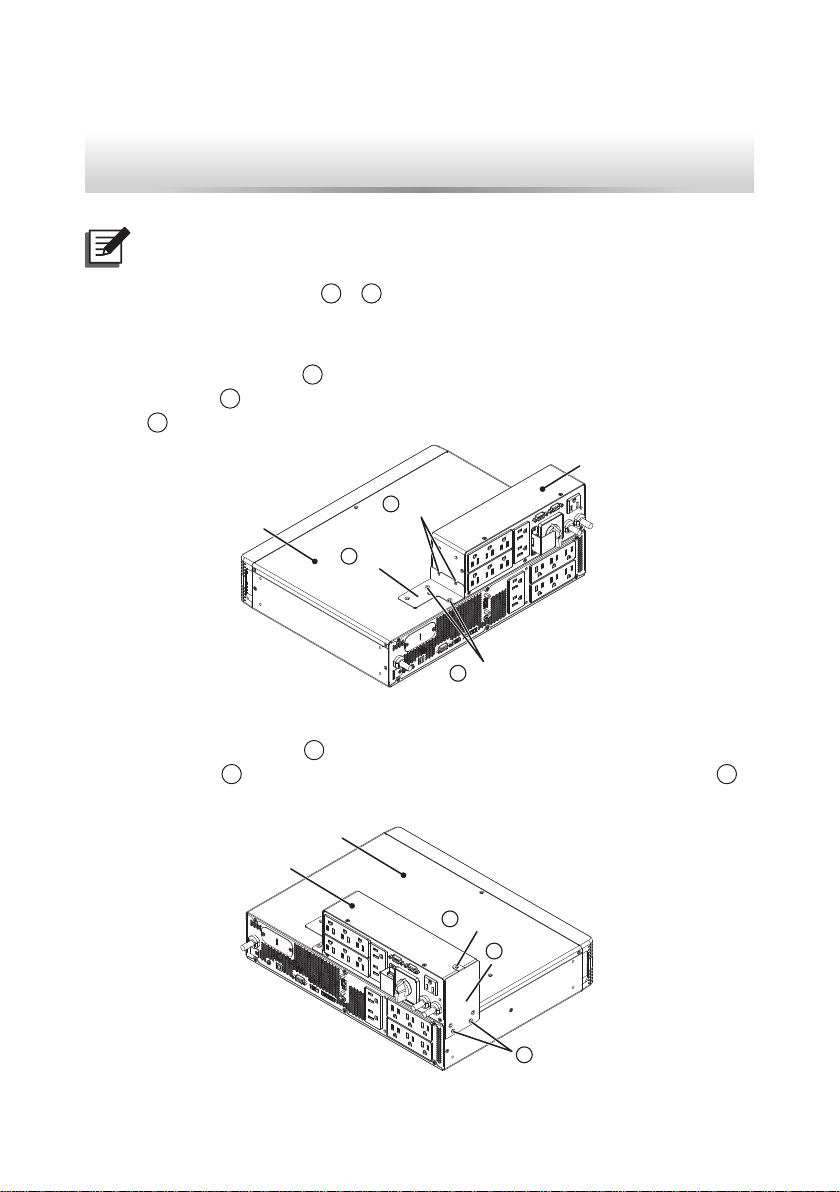

zPDB1115A1300B8
1. Fix the MBB Ear ( 3 ) on the top cover of the UPS with two at-head M4
screws ( 5) and at the left side of the MBB with two pan-head M4 screws (
6). Please refer to Figure 1.
6× 2 PCS
5× 2 PCS
3× 1 PC
UPS
MBB
(Figure 1)
2. Fix the MBB Ear ( 2 ) at the right side of the UPS with two at-head M4
screws ( 5) and at the right side of the MBB with one #6-32 screw ( 8).
Please refer to Figure 2.
8× 1 PC
2× 1 PC
5× 2 PCS
UPS
MBB
(Figure 2)

11
Chapter 6 How to Install the Maintenance
Bypass Box on the UPS
3. Install the UPS Output Cover ( 4) at the back of the UPS with two #6-32
screws ( 8).
8× 2 PCS
4× 1 PC
UPS
MBB
(Figure 3)
z
zPDB1116A1300B8/ PDB1117A1300B8
NOTE :
Since models PDB1115A1300B8 and PDB1117A1300B8 have the same
standard accessories and the accessory installation methods are the
same, only model PDB1115A1300B8 is used for illustration (please see
Figure 4 ~ Figure 6).
1. Fix the MBB Ear ( 2) at the left side of the UPS with two M4 screws ( 4)
and at the left side of the MBB with one #6-32 screw ( 6). Please refer to
Figure 4.
6× 1 PC
2× 1 PC 4× 2 PCS
UPS
MBB
(Figure 4)

12
Amplon RT Series
2. Fix the MBB Ear ( 2) at the right side of the UPS with two M4 screws ( 4)
and at the right side of the MBB with one #6-32 screw ( 6).
4× 2 PCS
2× 1 PC
6× 1 PC
UPS
MBB
(Figure 5)
3. Install the UPS Output Cover ( 3) at the back of the UPS with two #6-32
screws ( 6).
6× 2 PCS
3× 1 PC
UPS
MBB
(Figure 6)

13
Chapter 7 How to Install the Maintenance
Bypass Box on the External Battery Pack
Chapter 7 : How to Install the Maintenance Bypass
Box on the External Battery Pack
NOTE :
1. In this User Manual, MBB means Maintenance Bypass Box.
2. For the meaning of 1~
10
shown in this chapter, please refer to Figure 3.
z
zPDB1115A1300B8
1. Fix the MBB Ear ( 3) at the rear of the external battery pack with two pan-
head M4 screws ( 6 ) and at the left side of the MBB with two at-head M4
screws ( 5). Please see Figure 7.
6× 2 PCS
5× 2 PCS
3× 1 PC
External
Battery Pack
MBB
UPS
(Figure 7)
2. Fix the MBB Ear ( 2) at the right side of the external battery pack with two
at-head M4 screws ( 5) and at the right side of the MBB with one #6-32
screw ( 8).

14
Amplon RT Series
5× 2 PCS
2× 1 PC 8× 1 PC
External
Battery Pack
UPS
MBB
(Figure 8)
3. Install the UPS Output Cover ( 4) at the back of the UPS with two #6-32
screws ( 8).
8× 2 PCS
4× 1 PC
External
Battery Pack
UPS
MBB
(Figure 9)

15
Chapter 7 How to Install the Maintenance
Bypass Box on the External Battery Pack
z
zPDB1116A1300B8/ PDB1117A1300B8
NOTE :
Since models PDB1115A1300B8 and PDB1117A1300B8 have the same
standard accessories and the accessory installation methods are the
same, only model PDB1115A1300B8 is used for illustration (please see
Figure 10 ~ Figure 12).
1. Fix the MBB Ear ( 2) at the left side of the external battery pack with two
M4 screws ( 4) and at the left side of the MBB with one #6-32 screw ( 6).
4
× 2 PCS
6× 1 PC
2× 1 PC
External
Battery Pack
UPS
MBB
(Figure 10)
2. Fix the MBB Ear ( 2) at the right side of the external battery pack with two
M4 screws ( 4) and at the right side of the MBB with one #6-32 screw ( 6).
4× 2 PCS
2× 1 PC
External
Battery Pack
UPS
MBB
6× 1 PC
(Figure 11)

16
Amplon RT Series
3. Install the UPS Output Cover ( 3) at the back of the UPS with two #6-32
screws ( 6).
6× 2 PCS
External
Battery Pack
UPS
MBB
3× 1 PC
(Figure 12)
