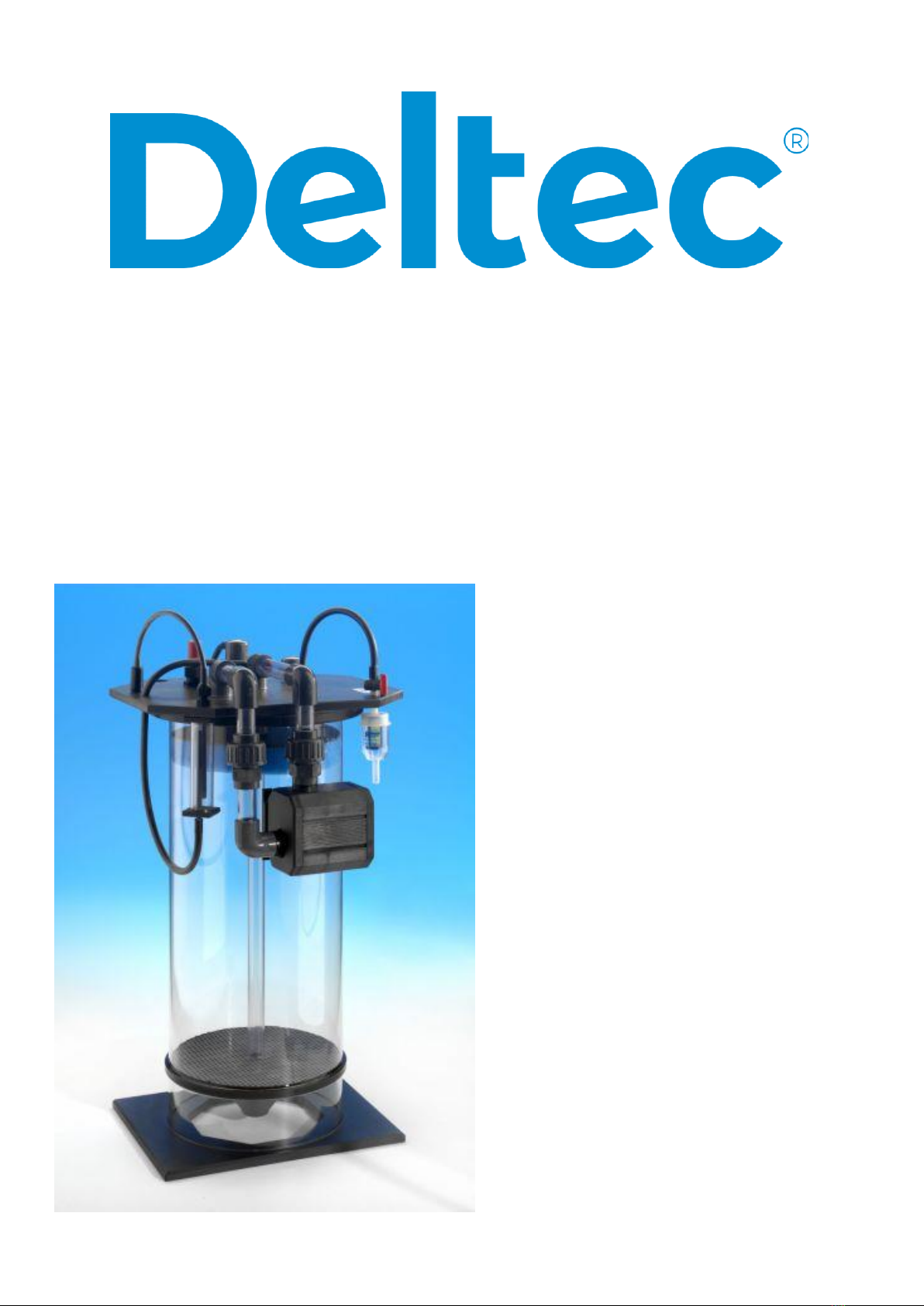

Deltec PF 501 Guide

PF Series Fluidized Bed Calcium Reactors
(PF 501 –PF 1370)
Operating instruction
and Spare parts list

EN
IMPORTNT SAFETY INSTRUCTIONS
WARNING To guard against injury, basic safety precautions should be observed, including the following.
1) READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2) DANGER –To avoid possible electric shock, special care should be taken since water is employed in the use of
aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the
appliance to an authorized service facility for service or discard the appliance.
a) If the appliance falls into the water DON´T reach for it! First unplug it and then retrieve it. If electrical
components of the appliance get wet, unplug the appliance immediately. (Non-immersible equipment only)
b) If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
(Immersible equipment only)
c) Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not
interned to be wet.
d) Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or has been dropped or
damaged in any manner.
e) To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one
side of a wall-mounted receptacle to prevent water from dripping onto the receptacle or plug.
A “drip-loop”, shown in the figure below, should be arranged by the user for each cord connecting an aquarium
appliance to a receptacle. The “drip-loop” is that part of the cord below the level of the receptacle, or the
connector if an extension cord is used, to prevent water travelling along the cord and coming in contact with
the receptacle.
If the plug or socket does get wet, DON´T unplug the cord. Disconnect the fuse or circuit breaker that supplies
power to the appliance. Then unplug and examine for presence of water in the receptacle.
3) Close supervision is necessary when any appliance is used by or near children.
4) Always unplug an appliance from an outlet when not in use, before putting an or taking off parts, and before
cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.
5) Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the
appliance manufacturer may cause an unsafe condition.
6) Make sure an appliance mounted on a tank is securely installed before operating it.
7) Read and observe all the important notices on the appliance.
8) If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or
watts than the appliance rating may overheat. Care should bee taken to arrange the cord so that it will not be
tripped over or pulled.
9) This appliance has a polarized plug (one blade is wider than the other). As safety feature, this plug will fit in a
polarized outlet only one way. If the plug does not fit, contact a qualified electrician. Never use with an extension
cord unless plug can be fully inserted. Do not attempt to defeat this safety feature.
Exception: This instruction may be omitted for an appliance that is not provided with a polarized attachment plug.
Removing of the plug invalidates the warranty!
SAVE THESE INSTRUCTIONS

EN
Deltec Fluidized Bed Calcium Reactor PF501 - PF1370
The correct calcium level is a vital requirement in keeping and growing corals successfully in marine aquaria.
The calcium level should be kept above 400 and preferably at 470/500 mg/litre.
With the Deltec calcium reactor it is possible to adjust and control the calcium level in a simple manner.
The Deltec calcium reactor consists of
- a cylindrical transparent container
- bubble counter
- solenoid valve (optional)
- non return valve
- provision for pH electrode
- micro filter
Installation and operating instruction
Wash the granulate to be used thoroughly before filling it into the Deltec calcium reactor. The granulate
must be free of all floating matters and other foreign particles.
The Deltec PF Calcium reactors operate on the fluidized bed principle; it is therefore important to use only
Deltec Hy Carb Media to achieve best results.
-Remove the reactor head by turning it anticlockwise.
-Remove the strainer plate and sponge.
-Fit the cap No. 12 over the central feed pipe No. 15 to prevent media to enter the pipe.
-Fill the Vessel up to the fill line.
-Refit the strainer plate with the sponge pointing downwards.
-Clean the O-Ring and all sealing surfaces and grease the O-Ring with silicon spray or silicon grease.
-Refit the reactor head and turn it clockwise
Place the Deltec calcium reactor on an even surface, close to the filter sump or the aquarium.
Please note
The bubble counter should be filled with tap water. To do this, loosen the cap nut of the pressure fitting,
remove the hoses, withdraw the bubble counter and fill it under a tap.
Connecting the reactor
-Connect a flexible CO2 supply hose to the bubble counter (or the solenoid valve if supplied).
-The micro filter should be connected to a water supply either from a separate
pump or else to a bypass of the main aquarium pump.
-Open the tap at the micro filter and allow the Deltec calcium reactor to be filled.
-Start the circulation pump
-To ease bleeding, raise the outlet hose higher than the reactor body for a short period.
Open and set the CO2 supply to app. one bubble per second. Adjust the tap at the micro filter to a drip (app.
2-4 drops/second, coming out at the outlet hose).
Please note
To adjust the DKH (calcium level) either increase the CO2or decrease the water flow. Avoid excessive supply
of CO2. Please ensure that sufficient time is allowed for any adjustments to take effect before testing the
water. The Deltec calcium reactor can also be operated automatically by fitting a pH electrode instead of
the red plug at the top of the Deltec calcium reactor. A suitable pH controller would control the pH value by
opening/closing the solenoid valve. For normal operation the pH level should be between 6,2-6,5.
To get best results, it is important to check the correct water flow and CO2supply on a regular basis and the
resulting DKH level at the outlet.
Important
Never restrict or block the water flow from the outlet hose, since this could lead to on increase of pressure
inside the reactor.
technical data
dimensions (l/w/h) app.
quantity app.
for aquaria up to
tube ø
PF 501
200 x 170 x 500 mm
2,9 kilos
1000 ltr.
110 mm
PF 601
260 x 210 x 550 mm
8,7 kilos
2000 ltr.
160 mm
PF 601S
305 x 255 x 550 mm
14,0 kilos
3000 ltr.
200 mm
PF 1001
375 x 305 x 1080 mm
34,0 kilos
5000 ltr.
200 mm
PF 1370
480 x 350 x 1300 mm
97,0 kilos
20000 ltr.
300 mm

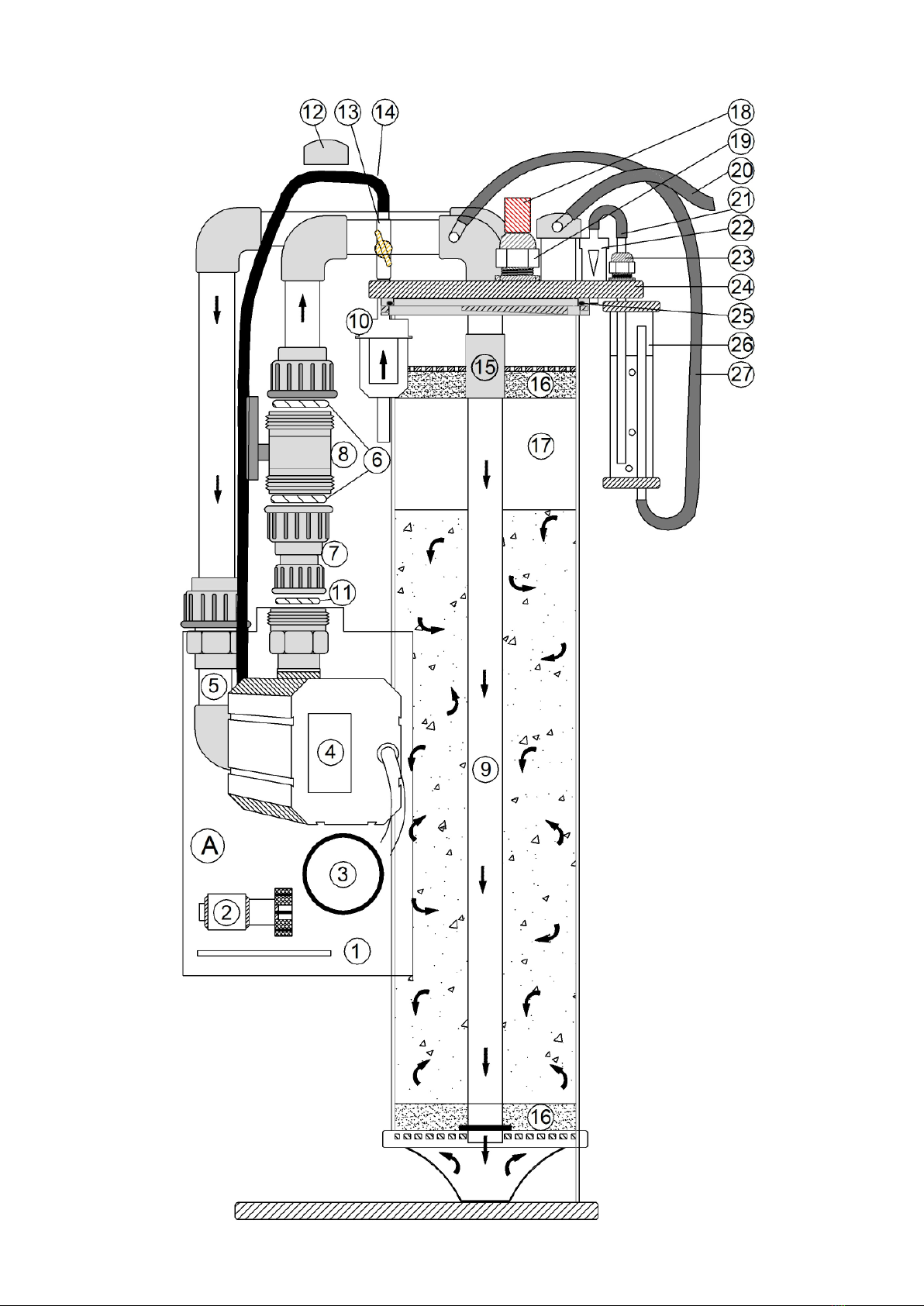

PF 501 / PF 601 / PF 601S

Spare parts list
Description
87300000 87320000 PF 501 / PF 601
A 28055000 28060000 Pump + piping
1 87308000 87328000 Pipe inside
3 69511000 69513000 O-Ring pump
5 69517000 69527000 Bayonet ring
7 26015000 26020000 Stator-07
9 xxxxxxxx 87327000 Adapter
11 93041400 93041400 O-Ring coupling
13 93010010 93010010 Tap
15 87303000 87323000 Strainer
17 87301000 87321000 Body
19 65904000 65904000 Fitting PG 13,5
21 61750014 61750020 Silicon hose 4/6
23 65901000 65901000 Fitting PG 7
25 80500110 80500160 O-Ring Bayonet
Bubble counter
27 61751035 61751046 Silicon hose 5/8
Art. Nr.
PF 601S
87340000
28065000
87348000
69513000
69527000
26030000
87327000
93041400
93010010
87343000
87341000
65904000
61750021
65901000
80500200
87252000
61751046
26 87252000 87252000
24 87302000 87322000 Cover87342000
Non return valve8714000022 87140000 87140000
20 61751050 61751060 Silicon hose 5/861751060
18 65900000 65900000 65900000 Plug red
Sponge Set 2 pcs.
65425000 6542800016 65426000
14 61751019 61751020 61751022 Silicon hose 5/8
Cap93141000 9314100012 93141000
10 64056000 64056000 Micro filter64056000
8 28056000 28061000 Suction line28066000
6 xxxxxxxx 25094000 Bearing plate-07 25094000
4 xxxxxxxx 69530000 Front cover69530000
2 27015000 27020000 Impellor-0727030000
PF 601S
B xxxxxxxx 25020000 Pump25030000
Art. Nr.
PF 501 Art. Nr. PF 601

PF 1001

Spare parts list
Description
PF 1001
Pump (point 1-5)
Shaft
Impellor
O-Ring pump
Stator
Suction line
O-Ring shut off val.
Connector
Shut off valve
Pipe inside
Micro filter
O-Ring coupling
Cap
Tap
Silicon hose 5/8
Strainer
Sponge Set 2 pcs.
Body
Plug red
Fitting PG 13,5
Silicon hose 5/8
Silicon hose 4/6
Non return valve
Fitting PG 7
Cover
O-Ring Bayonet
Bubble counter
Silicon hose 5/8
Art. Nr.
PF 1001
87360000
A 87158000
1 89130000
2 89036000
3 10501700
4 69704200
5 87366000
6 93402300
7 87365000
8 93402100
9 87328000
10 64056000
11 93042400
12 93142000
13 93010010
14 61751022
15 87363000
16 65428000
17 87361000
18 65900000
19 65904000
20 61751100
21 61750021
22 87140000
23 65901000
24 87362000
25 80500200
26 87252000
27 61751046
