1 Dear Customer,
1.1 Contact data
67 19 681 D3439
D3439.201.01.01.0209.2019 5
1Dear Customer,
Thank you for your purchase of this CEREC Primemill® unit from
Dentsply Sirona.
This device enables you to produce dental restorations, e.g. from
ceramic material with a natural appearance (CEramic REConstruction).
Improper use and handling can create hazards and cause damage.
Please therefore read and follow these operating instructions carefully.
Always keep them within easy reach.
Also pay attention to the safety instructions to prevent personal injury
and material damage.
Your
CEREC Primemill team,
1.1 Contact data
Customer Service Center In the event of technical queries, please use our online contact form at
the following address:
http://srvcontact.sirona.com
Manufacturer's address Sirona Dental Systems GmbH
Fabrikstrasse 31
64625 Bensheim
Germany
Tel.: +49(0) 6251/16-0
Fax: +49(0) 6251/16-2591
e-Mail: [email protected]
www.dentsplysirona.com

2 General data
2.1 Identification of the danger levels
Dentsply Sirona
Operating Instructions CEREC Primemill
667 19 681 D3439
D3439.201.01.01.0209.2019
2General data
Please read this document completely and follow the instructions
exactly. You should always keep it within reach.
Original language of the present document: German.
2.1 Identification of the danger levels
To prevent personal injury and material damage, please observe the
warning and safety information provided in these operating instructions.
Such information is highlighted as follows:
DANGER
An imminent danger that could result in serious bodily injury or death.
WARNING
A possibly dangerous situation that could result in serious bodily
injury or death.
CAUTION
A possibly dangerous situation that could result in slight bodily injury.
NOTE
A possibly harmful situation which could lead to damage of the
product or an object in its environment.
IMPORTANT
Application instructions and other important information.
Tip: Information for simplifying work.

Dentsply Sirona
Operating Instructions CEREC Primemill
2 General data
2.2 Formats and symbols used
67 19 681 D3439
D3439.201.01.01.0209.2019 7
2.2 Formats and symbols used
The formats and symbols used in this document have the following
meaning:
Prerequisite
1. First action step
2. Second action step
or
➢ Alternative action
Result
➢ Individual action step
Requests you to do something.
See "Formats and symbols used
[→7]"
Identifies a reference to another
text passage and specifies its
page number.
● List Designates a list.
"Command / menu item" Indicates commands / menu
items or quotations.
2.3 Note PC / Acquisition Unit
When a PC is described in this document, this refers to a PC for the
acquisition unit (if present). The PC is represented symbolically.

3 General description
3.1 Certification
Dentsply Sirona
Operating Instructions CEREC Primemill
867 19 681 D3439
D3439.201.01.01.0209.2019
3General description
3.1 Certification
CE mark
Sirona Dental Systems GmbH hereby declares that the CEREC
Primemill radio system type complies with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at Dentsply
Sirona Internet homepage.
This product bears the CE mark in accordance with the provisions of
Council Directive 2006/42/EC (machinery directive). As such, the
following standards apply: DIN EN ISO 12100:2011-03, DIN EN
61010-1:2011-07 and DIN EN 61326-1:2013-07.
CAUTION
CE mark for connected products
Further products which are connected to this unit must also bear the
CE mark. These products must be tested according to the applicable
standards.
Examples of CE mark for connected products:
● EN 60601-1:2006 based on IEC 60601-1:2005
● EN 60950-1:2006 based on IEC 60950-1:2005
● UL 60950 second edition 2010
RoHS compliance
This symbol indicates that this product does not contain any toxic or
hazardous substances or components above the maximum concen-
tration value set out in the Chinese standard SJ / T 11364-2014, and
can be recycled following disposal and should not be carelessly dis-
carded.
IC declaration (For Canada only)
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.

Dentsply Sirona
Operating Instructions CEREC Primemill
3 General description
3.2 Intended use
67 19 681 D3439
D3439.201.01.01.0209.2019 9
3.2 Intended use
This device is used for computed-aided production of dental
restorations, abutments, parts of abutments and drilling templates for
implant placement.
This unit must not be used for any other purpose. If the unit is used for
any purpose other than the one mentioned above, it may be damaged.
Intended use also includes compliance with these Operating
Instructions and the relevant maintenance instructions.
CAUTION
Follow the instructions
If the instructions for operating the unit described in this document are
not observed, the intended protection of the user may be impaired.
For the USA only
CAUTION: According to US Federal Law, this product may be sold only
to or by instruction of physicians, dentists, or licensed professionals.
Dry processing
CAUTION
In the event of dry processing without a suction device, dust can be
created from the materials being processed. Breathing in this dust
can have associated health risks. As such, observe the information
and requirements of the suction device.
Dry processing is only permitted in conjunction with CEREC Suction
devIce 230V or 120V.
● CEREC Suction Device 230 V/120 V, ordered together with the unit:
REF 6569730.
● CEREC Suction Device 230 V/120 V, if ordered separately:
REF 6580786.
NOTE
Before using dry processing, verify the functioning, correct connection
and the tightness of the connections. All available suction openings
must be free.
NOTE
Before dry processing check that the CEREC suction device contains
a functioning HEPA fine-dust filter.

3 General description
3.3 Legend
Dentsply Sirona
Operating Instructions CEREC Primemill
10 67 19 681 D3439
D3439.201.01.01.0209.2019

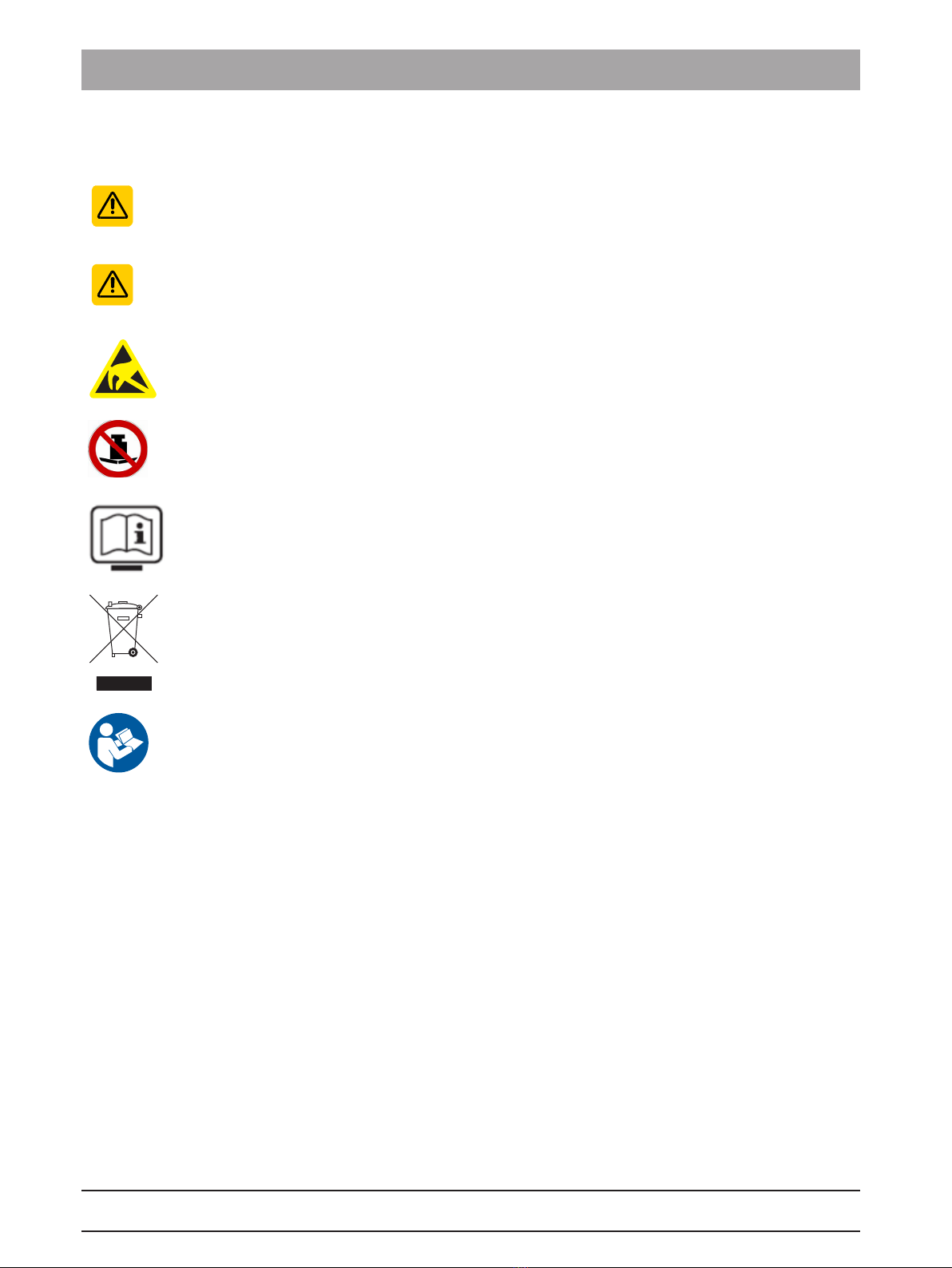

3.3 Legend
This symbol can be found on the rating plate on the unit.
Meaning: See warning notice in section "Replacing the main fuses
[→57]".
This symbol can be found on the door of the unit.
Meaning: See warning in section "Opening the processing chamber
door during the machining process [→13]".
This symbol can be found on the rating plate on the unit.
Meaning: ESD warning sign,
see section "Electrostatic charge [→13]".
This symbol can be found on the drawer of the unit.
Meaning: Meaning: No heavy loads.
See notice in section "Installation site [→18]".
This symbol can be found on the rating plate on the unit.
Meaning: The accompanying documents are available on the
Dentsply Sirona homepage.
Product disposal symbol (see "Disposal [→63]").
Follow the operating instructions.
To ensure safe operation of the unit, the user must follow the operat-
ing instructions.

Dentsply Sirona
Operating Instructions CEREC Primemill
3 General description
3.3 Legend
67 19 681 D3439
D3439.201.01.01.0209.2019 11
Symbols on the packaging
Take note of the following symbols on the packaging:
Top
Protect from moisture
Fragile; handle with care
Stack limit
Temperature during storage and transport
Relative humidity during storage and transport
Air pressure during storage and transport

4 Safety
4.1 Basic safety information
Dentsply Sirona
Operating Instructions CEREC Primemill
12 67 19 681 D3439
D3439.201.01.01.0209.2019
4Safety
4.1 Basic safety information
4.1.1 Prerequisites
NOTE
Important information on building installation
In order to prevent the risk of an electric shock, this unit must only be
connected to a supply mains with a ground wire.
The building installation must be performed by a qualified expert in
compliance with the national regulations.
NOTE
Restrictions regarding installation site
The system is not intended for operation in areas subject to explosion
hazards.
NOTE
Do not damage the unit!
The unit can be damaged if opened improperly.
It is expressly prohibited to open the unit with tools!
4.1.2 Maintenance and repair
As manufacturers of dental instruments and laboratory equipment, we
can assume responsibility for the safety properties of the unit only if the
following points are observed:
● The maintenance and repair of this unit may be performed only by
Dentsply Sirona or by agencies authorized by Dentsply Sirona.
● Components which have failed and influence the safety of the unit
must be replaced with original (OEM) spare parts.
● Only original cables may be used, so that EMC requirements are
met.
Please request a certificate whenever you have such work performed. It
should include:
● The type and scope of work.
● Any changes made in the rated parameters or working range.
● Date, name of company and signature.
4.1.3 Modifications to the product
Modifications to this product which may affect the safety of the operator,
patients or third parties are prohibited by law!

Dentsply Sirona
Operating Instructions CEREC Primemill
4 Safety
4.2 Opening the processing chamber door during the machining process
67 19 681 D3439
D3439.201.01.01.0209.2019 13
4.1.4 Accessories and consumables
In order to ensure reliable, high-quality results, product safety, and
durability, our range of CEREC Primemill production units must only be
operated with original accessories and consumables from Dentsply
Sirona or approved accessories and consumables from third-party
suppliers.
In particular, only the power cable also supplied or the corresponding
original spare part may be used with the unit. The user is responsible
for any damage resulting from the use of nonapproved accessories and
consumables.
Approved accessories and consumables also include grinding/milling
instruments, blocks, and coolants. The current selection of approved
blocks and corresponding grinding/milling instruments can be found in
the latest software as well as in the "Bur tables for the CEREC milling
and grinding units" in the downloads area at:
https://my.cerec.com
These lists are updated from time to time.
4.2 Opening the processing chamber door during
the machining process
CAUTION
Instruments that continue to run
When the processing chamber door is opened during the machining
process, the instruments could continue to run for a short time
(approx. 2–3 seconds).
➢ Be careful not to touch the instruments with your hand or any
other object during this time.
➢ Avoid opening the processing chamber door while the milling and
production unit is in operation.
➢ Before you open the processing chamber door, end any actions
that are running by pressing the "Stop" button on the production
unit touch display or in the application software.
4.3 Electrostatic charge
4.3.1 ESD warning labels
ESD warning label CAUTION
Risk of injury or damage to components from electrostatic discharge
For electrical components labeled with an ESD warning label,
observe the following instructions.
➢ Apply the ESD protective measures.
➢ Do not touch connector pins or sockets without applying ESD
protective measures first.
➢ Do not establish any connections between these connectors
without applying ESD protective measures first.

4 Safety
4.3 Electrostatic charge
Dentsply Sirona
Operating Instructions CEREC Primemill
14 67 19 681 D3439
D3439.201.01.01.0209.2019

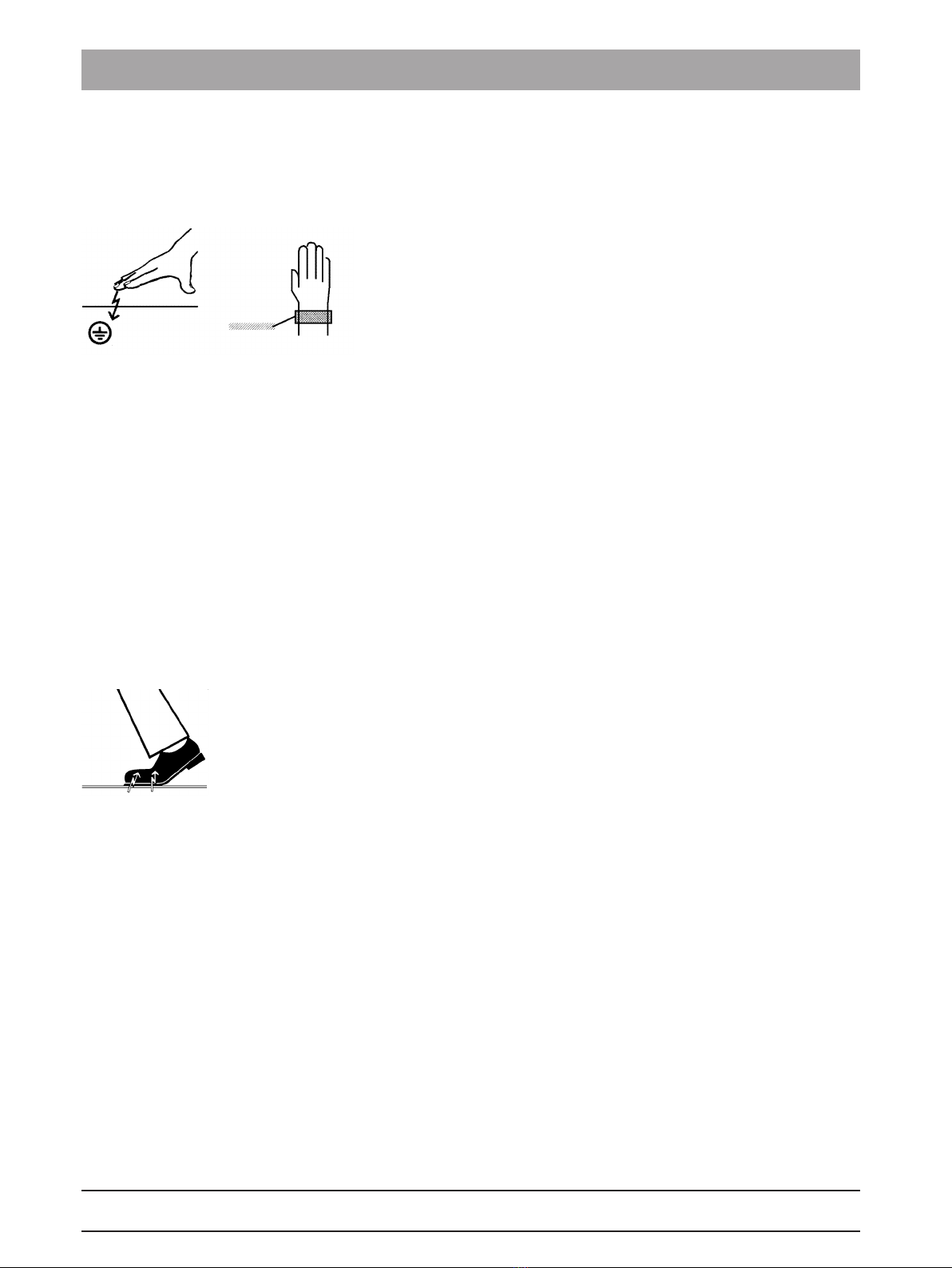

4.3.2 ESD protective measures
ESD ESD stands for ElectroStatic Discharge.
ESD protective measures ESD protective measures include:
● Procedures for preventing electrostatic charge build-up (e.g. air
conditioning, air moistening, conductive floor coverings and non-
synthetic clothing)
● Discharging the electrostatic charges of your own body on the frame
of the UNIT, the protective ground wire or large metallic objects
● Connecting yourself to ground using a wrist band.
Training We therefore recommend that all persons working with this system be
instructed on the significance of this warning label. Furthermore, they
also should receive training in the physics of electrostatic discharges
which can occur in the practice and the destruction of electronic
components which may result if such components are touched by
electrostatically charged USERS.
The content of this training is explained in the Chapter "About the
physics of electrostatic charges" [→14].
4.3.3 About the physics of electrostatic charges
What is an electrostatic charge? An electrostatic charge is a voltage field on and in an object (e.g. a
human body) which is protected against conductance to ground
potential by a nonconductive layer (e.g. a shoe sole).
Formation of an electrostatic charge Electrostatic charges generally build up whenever two bodies are
rubbed against each other, e.g. when walking (shoe soles against the
floor) or driving a vehicle (tires against the street pavement).
Amount of charge The amount of charge depends on several factors:
Thus the charge is higher in an environment with low air humidity than
in one with high air humidity; it is also higher with synthetic materials
than with natural materials (clothing, floor coverings).
Electrostatic discharge must be preceded by electrostatic charging.
The following rule of thumb can be applied to assess the transient
voltages resulting from an electrostatic discharge.
An electrostatic discharge is:
● perceptible at 3,000 V or higher
● audible at 5,000 V or higher (cracking, crackling)
● visible at 10,000 V or higher (arc-over)
The transient currents resulting from these discharges have a
magnitude of 10 amperes. They are not hazardous for humans because
they last for only several nanoseconds.

Dentsply Sirona
Operating Instructions CEREC Primemill
4 Safety
4.4 Wireless phone interference with equipment
67 19 681 D3439
D3439.201.01.01.0209.2019 15
Background Integrated circuits (logical circuits and microprocessors) are used to
implement a wide variety of functions in dental/X-ray/CAD/CAM
systems.
The circuits must be miniaturized to a very high degree in order to
include as many functions as possible on these chips. This leads to
structure thicknesses as low as a few ten thousandths of a millimeter.
It is obvious that integrated circuits which are connected to plugs
leading outside of the unit via cables are sensitive to electrostatic
discharge.
Even voltages which are imperceptible to the user can cause
breakdown of the structures, thus leading to a discharge current which
melts the chip in the affected areas. Damage to individual integrated
circuits may cause malfunction or failure of the system.
To prevent this from happening, the ESD warning label next to the plug
warns of this hazard. ESD stands for ElectroStatic Discharge.
Connector pins or sockets bearing ESD warning labels must not be
touched or interconnected without ESD protective measures.
4.4 Wireless phone interference with equipment
The use of mobile wireless phones in practice or hospital environments
must be prohibited to ensure safe operation of the unit.

4 Safety
4.5 Disturbance of data transmission
Dentsply Sirona
Operating Instructions CEREC Primemill
16 67 19 681 D3439
D3439.201.01.01.0209.2019
4.5 Disturbance of data transmission
Note on wireless communication Data communication between the acquisition unit and the CEREC
Primemill production unit should preferably be established via the
wireless interface CEREC Radio Device or WLAN.
As for all wireless connections (e.g. cell phones), heavy utilization of the
available radio channels or shielding caused by building installations
(e.g. metal-shielded X-ray enclosures) may impair the quality of the
connection. This may become noticeable through a reduction in range
and/or a slower data transmission rate. In extreme cases, it will be
impossible to establish a wireless connection at all.
Dentsply Sirona has selected the best possible configuration for data
communication via the wireless interface (CEREC Radio Device) or
WLAN, which generally ensures perfect functioning of this connection.
However, in individual cases unrestricted wireless data communication
may be impossible for the reasons mentioned above and/or due to local
circumstances. In such cases, a cable LAN connection should be
selected to ensure uninterrupted operation. If the only LAN interface on
the rear of the acquisition unit is occupied by another plug, remove this
wireless interface connection and instead connect the LAN cable with
the CEREC Primemill production unit.
4.6 Ventilation slots
Under no circumstances may the ventilation slots on the unit be
covered, since otherwise the air circulation will be obstructed. This can
cause the unit to overheat.
Do not spray liquids such as disinfectants into the ventilation slots. This
may lead to malfunctions. Use wipe disinfection only in the vicinity of the
ventilation slots.

Dentsply Sirona
Operating Instructions CEREC Primemill
5 Installation and startup
5.1 Transport and unpacking
67 19 681 D3439
D3439.201.01.01.0209.2019 17
5Installation and startup
5.1 Transport and unpacking
All products from Dentsply Sirona are carefully checked prior to
shipment. Please perform an incoming inspection immediately after
delivery.
1. Check the delivery note to ensure that the consignment is complete.
2. Check whether the product shows any visible signs of damage.
NOTE
Damage during transport
If the product was damaged during transport, please contact your
carrying agent.
If return shipment is required, please use the original packaging for
shipment.
The unit must be drained before it is ever transported if it has been in
operation (see "Removing water from the unit [→59]").
Transport without packaging
CAUTION
Damage to the unit or risk of injury during transport without packaging
There is a danger of the unit falling down if it is grasped by its plastic
housing.
➢ The unit should always be carried by two persons.
➢ Do not grasp the unit by its plastic housing.
➢ Always grasp the unit by its chassis next to its feet.
5.2 Disposal of packaging materials
The packaging must be disposed of in compliance with the relevant
national regulations. Please observe the regulations applicable in your
country.

5 Installation and startup
5.3 Installation site
Dentsply Sirona
Operating Instructions CEREC Primemill
18 67 19 681 D3439
D3439.201.01.01.0209.2019
5.3 Installation site
1500mm
59”
1500mm
59”
1500mm
59”
1500mm
59”
1500mm
59”
1500mm
59”
1500mm
59” 1500mm
59”
1500mm
59”
1500mm
59”
1500mm
59”
CAUTION
Install out of the reach of patients!
Do not install or operate the production unit in the vicinity of the
patient (place it at least 1.5m away from the patient).
The production unit requires a level base of approx. 729mm x 465mm
(W x D). The height of the production unit is:
● with the processing chamber door closed: 454mm
● with the processing chamber door, open: 675 mm
Install the production unit so that the main switch is easily accessible.
Make sure that the ventilation slots underneath and at the back of the
unit remain unobstructed. The distance between the back of the unit
and the wall must at least be 10 cm.
Note the weight of 46kg!
The unit must not be installed at sites with a high level of humidity or
dust!

Dentsply Sirona
Operating Instructions CEREC Primemill
5 Installation and startup
5.3 Installation site
67 19 681 D3439
D3439.201.01.01.0209.2019 19
NOTE
Installation in a cabinet
If the unit is installed in a cabinet, you must provide for adequate heat
exchange.
The ambient temperature surrounding the unit must be between 5°C
(41°F) and 40°C (104°F).
CAUTION
Risk of injury and damage to the unit
The unit can be tilted when the drawer is extended.
➢ Install the unit so that the front does not project beyond the base.
CAUTION
Risk of injury and damage to the unit
Avoid tilting the unit. Do not lean against the pulled-out drawer and do
not apply a vertical load of more than 5kg onto the pulled-out drawer.

5 Installation and startup
5.4 Commissioning
Dentsply Sirona
Operating Instructions CEREC Primemill
20 67 19 681 D3439
D3439.201.01.01.0209.2019
5.4 Commissioning
NOTE
Important information on initial startup
Observe the software installation instructions!
5.4.1 Functional elements
Unit overview
BAF
E
D
C
H
G
Production unit overview
A Processing chamber E Webcam
B Touch display F LED strip
C ON/OFF switch G Drawer
D RFID scanner H Water tank
