Dear Customer,
This brief operating instructions describes only functions that
are available in the USA. You can use these document to quickly
find the most important control procedures and functions of
your dental treatment unit. However, the brief operating instruc-
tions cannot replace the complete operating instructions, which
contains many important descriptions and warnings. The
complete operating instructions describes all the functions of
the Intego product family, also functions that are not available in
the USA.
The care and cleaning of your dental treatment unit are
described thoroughly in the complete operating instructions. A
quick overview of the required measures is provided in a docu-
ment entitled "Care and Cleaning Plans for the dental treatment
unit and the Instruments".
Your Intego Team
Content
Overview of Intego .............................................................. 3
Power switch ........................................................................... 4
EasyTouch user interface .................................................. 4
Keys and displays on the touchscreen ....................... 5
User interface of the assistant element ..................... 7
Creating chair programs ................................................... 8
Pneumatic foot switch ........................................................ 8
C+ electronic foot control ................................................. 9
4-way foot control ............................................................. 10
3-way standard and Sprayvit E syringe ..................... 11
Highspeed handpiece / air motor /
other air-driven instruments ...........................................11
Electric motor ....................................................................... 12
Endodontics function ........................................................ 13
ApexLocator .......................................................................... 16
SiroSonic L ............................................................................. 19
SiroCam AF ........................................................................... 20
Sivision program ................................................................. 24
Configuration of the dental treatment unit (setup) 27
Overview of the touchscreen dialogs ...................... 30
6571801 KGBA Intego EN for USA.book Seite 2 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 3

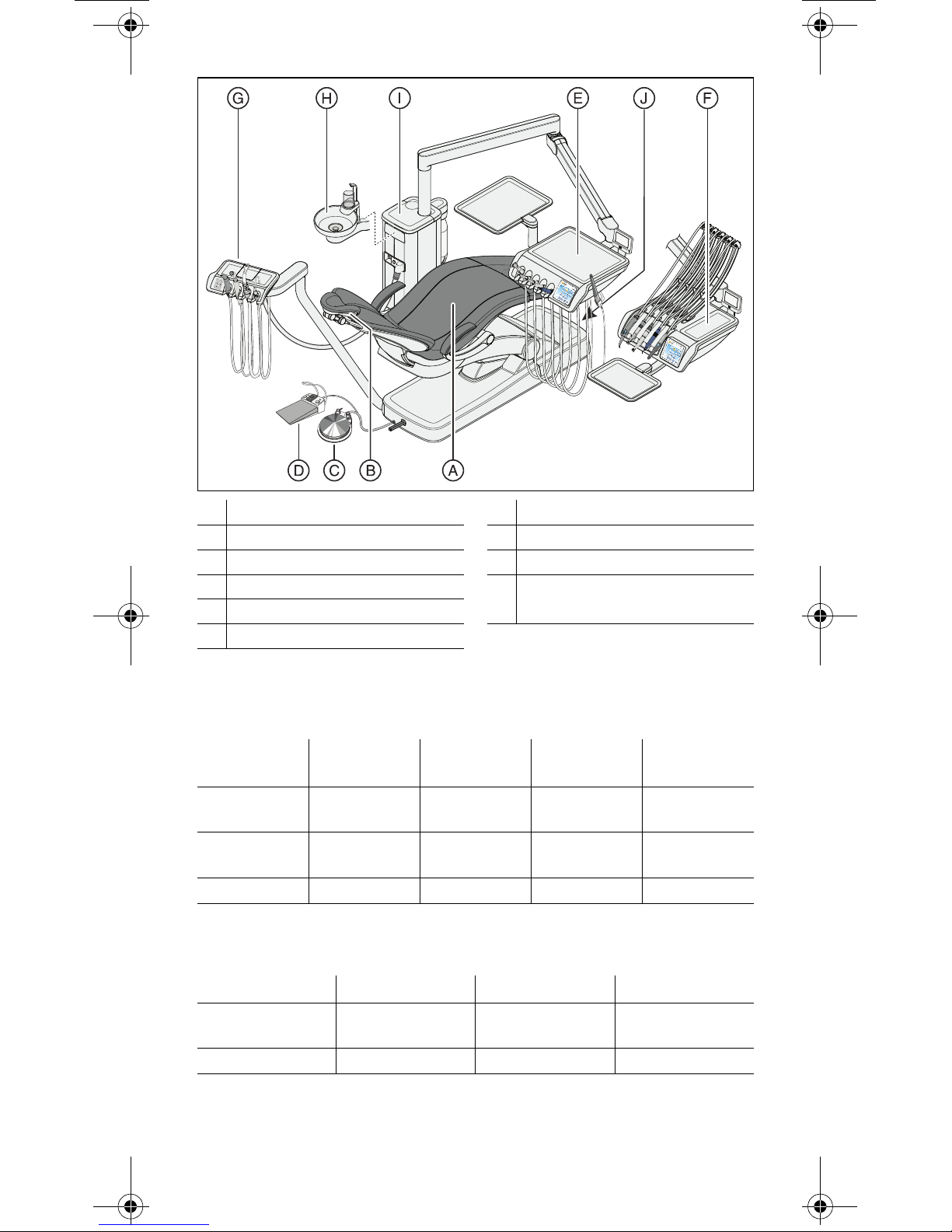

Overview of Intego
Dentist element instruments
Assistant element instruments
APatientchair
*GAssistantelement
B Double-jointed head support H Cuspidor bowl
C Pneumatic foot control I Water unit
D C+ electronic foot control J Power switch and external
device connection
E TS dentist element
F CS dentist element
* Maximum load exerted by patient and accessories: 185 kg
Position 1 Positions
2, 3
Position 4 Position 5 Additional tray
(only for TS)
Standard 3-
way syringe
Turbine Turbine SiroSonic L SiroCam
AF
Sprayvit E Motor BL E/
BL ISO E
Motor BL E/
BL ISO E
SiroCamAF
SiroSonic L
Position 1 Position 2 Position 3 Position 4
Standard 3-
way syringe
additional
spray aspirator
Spray aspirator Saliva ejector
Sprayvit E
6571801 KGBA Intego EN for USA.book Seite 3 Dienstag, 10. Oktober 2017 9:27 09

4Dentsply Sirona
Power switch
The dental treatment unit has a power
switch (A) at the base of the chair. At the
end of the working day, the dental treat-
ment unit should be switched off to save
energy and for safety reasons. This
switches off the air and water supply as
well as all electronic components. It then
no longer consumes any energy.

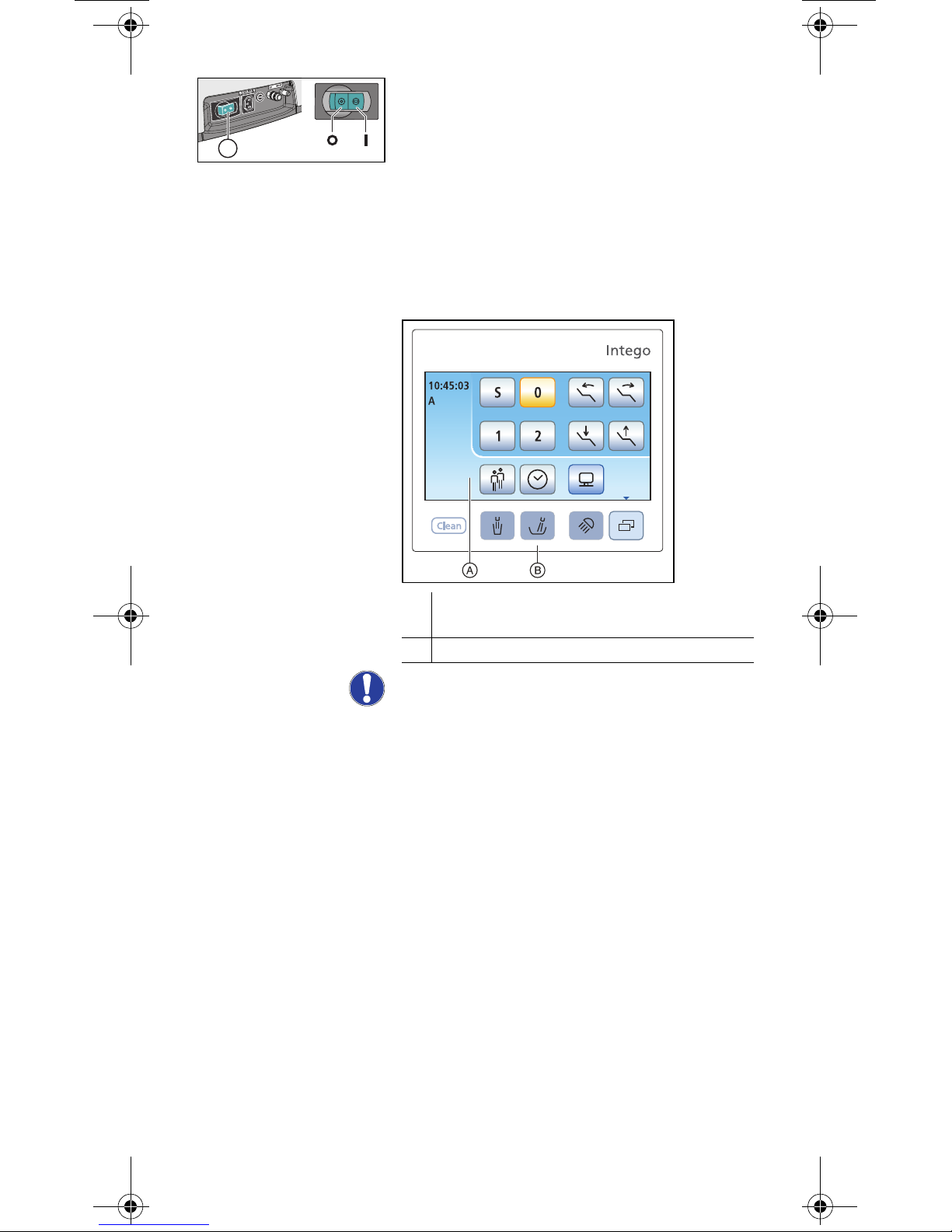

EasyTouch user interface
For an overview of touch-screen programs,
see the end of this quick reference guide.
A
A Touchscreen (pressure-sensitive user
interface)
B Fixed keys (membrane keyboard)
6571801 KGBA Intego EN for USA.book Seite 4 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 5
Keys and displays on the
touchscreen

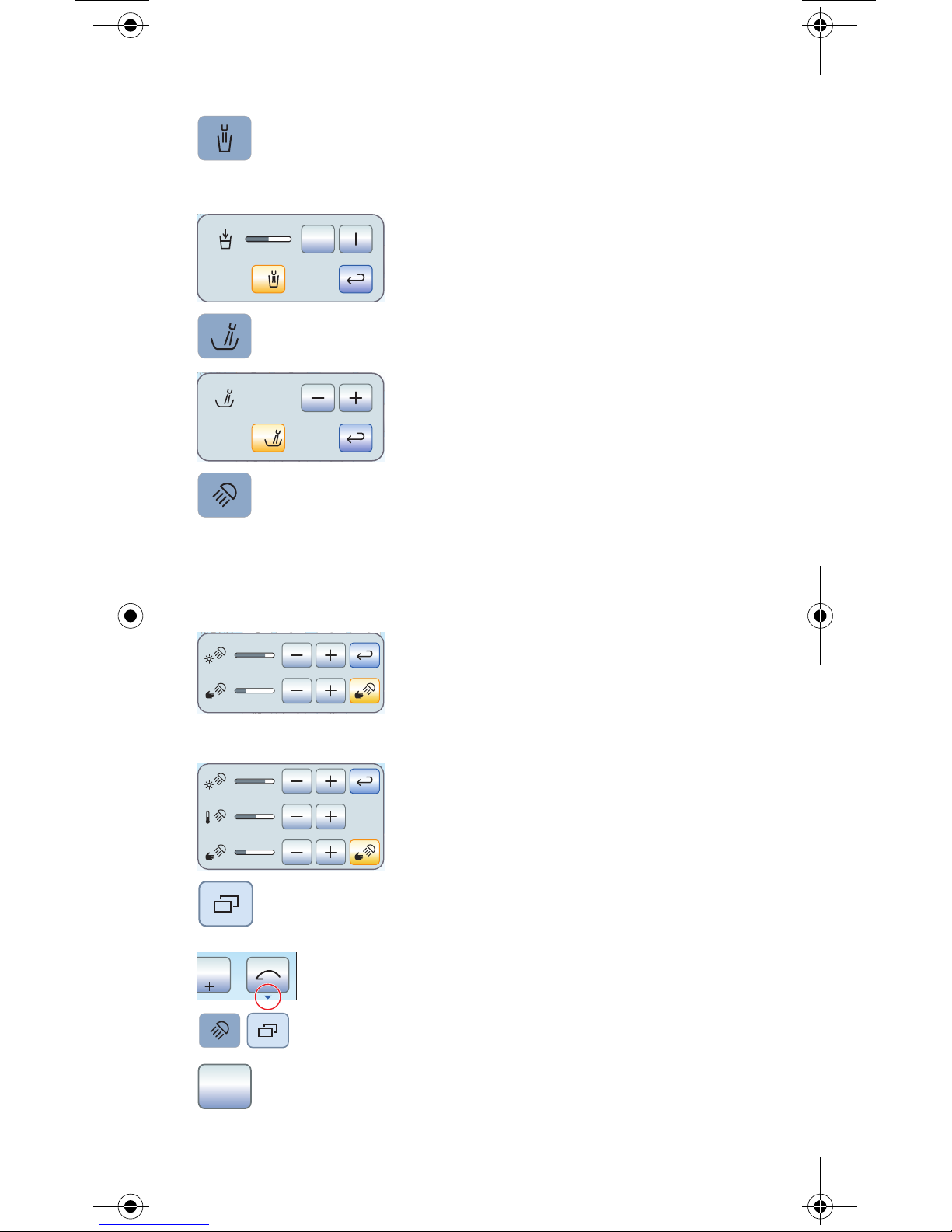

Tumbler filling
This function is only available if cuspidor is
present.
Starts or stops the tumbler filling function.
When the Tumbler filling key is pressed
(> 2 s), the setting text for coupling
tumbler filling to mouth rinsing position S
and filling time appears.
Flushing the cuspidor
Starts or stops cuspidor flushing.
When the Flushing key is pressed (> 2 s),
the setting text for coupling flushing to
mouth rinsing position S and flushing time
appears.
Operating light
Switches the operating light on, to the
composite function, or off. The composite
function is used to prevent premature
curing of composite materials.
With the LEDlight, brightness is set using
the no-touch sensor.
In the LEDview and LEDview Plus, the
setting dialog appears when the Operating
light key is pressed (> 2 s). The brightness
of the light and the distance from which
the no-touch sensor should react to move-
ments can be adjusted.
The color temperature of the light can also
be adjusted for the LEDview Plus.
Sub-dialog
Some programs are divided into a main
program and sub-screens.
This is indicated by a small arrow at the
bottom right of the touchscreen. It points
to the fixed key Sub-dialog below the
touchscreen.

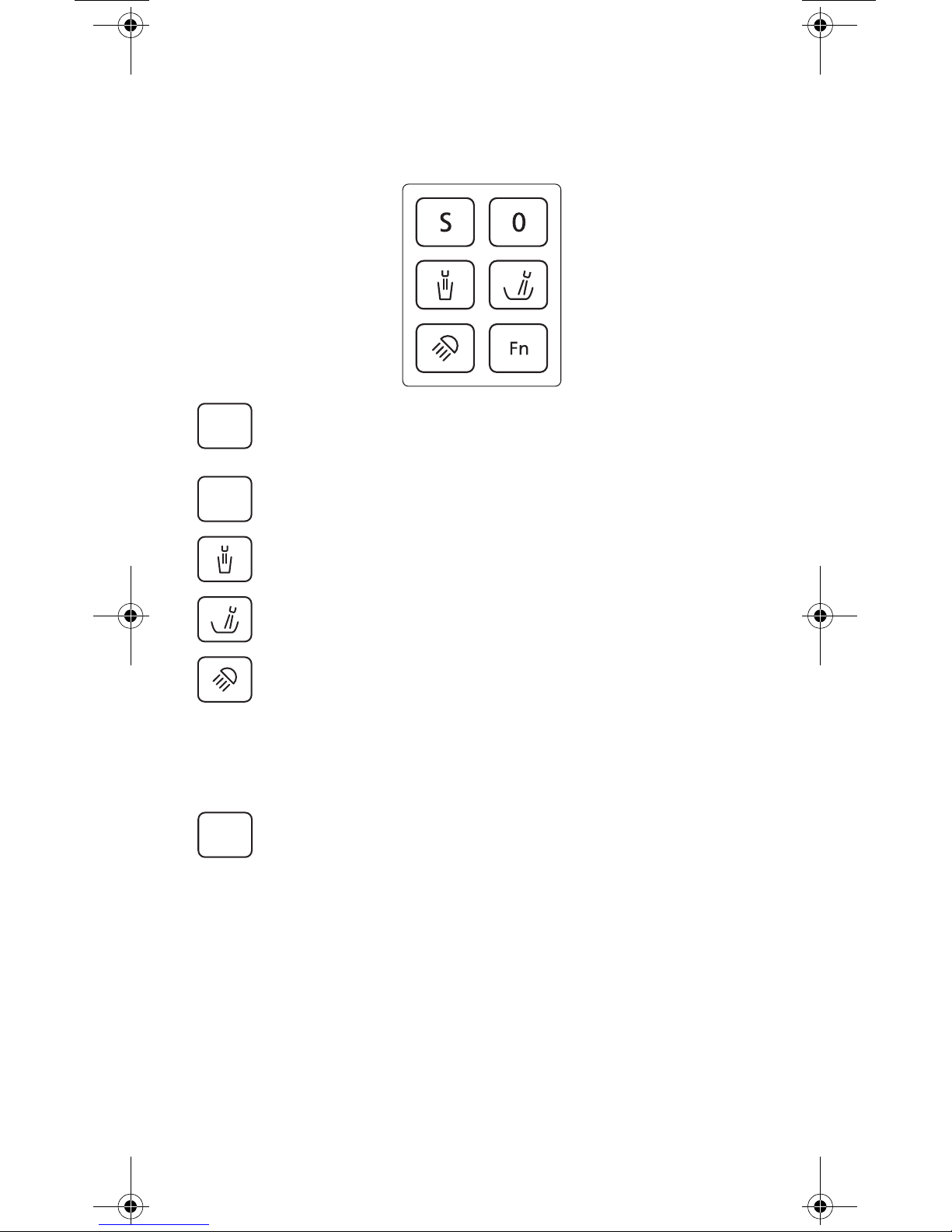

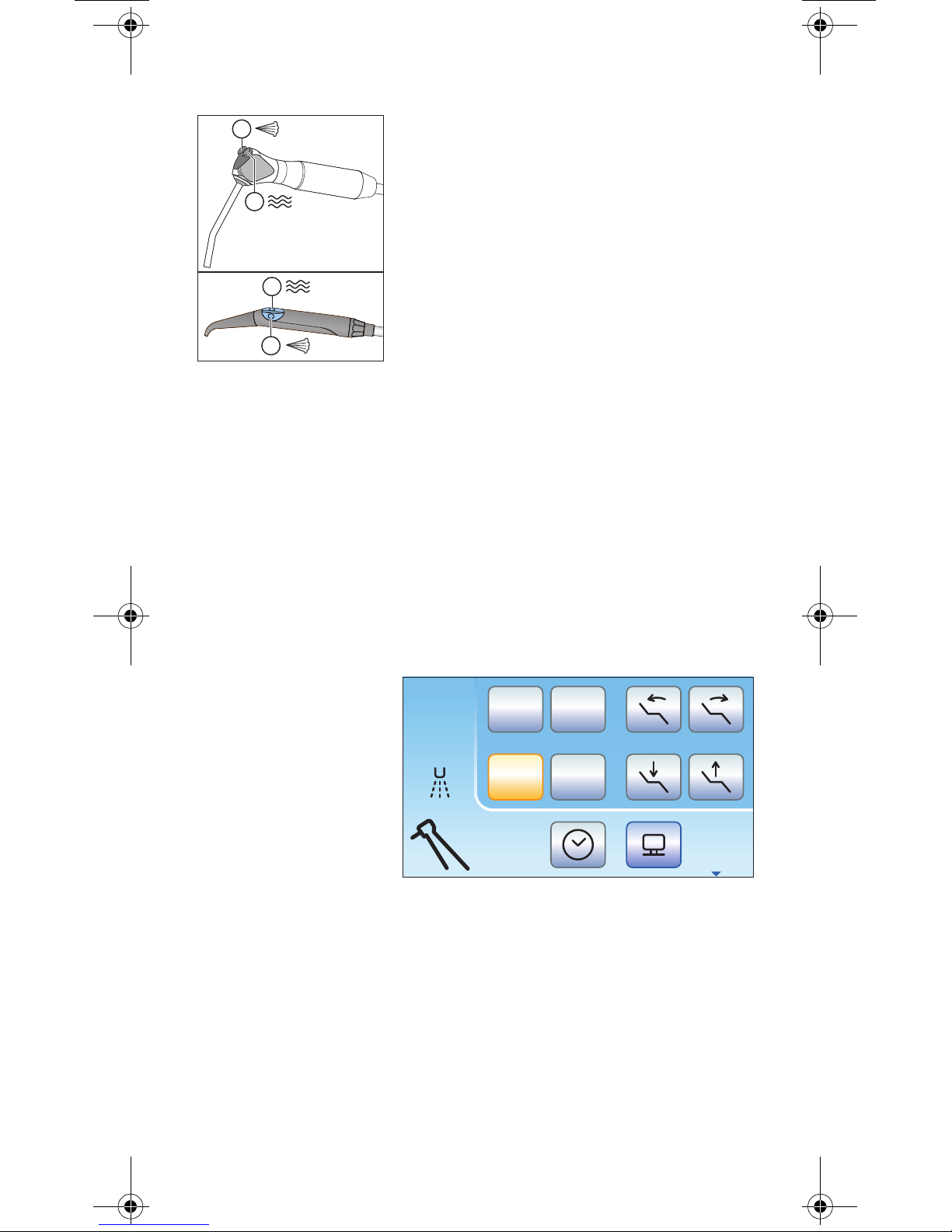

Chair program S
Mouth rinsing position (programmable)
with last-position memory function
0:45:03
2
1
0S
S
0:45:03
2
1
0S
S
0:45
40
S
6571801 KGBA Intego EN for USA.book Seite 5 Dienstag, 10. Oktober 2017 9:27 09

6Dentsply Sirona

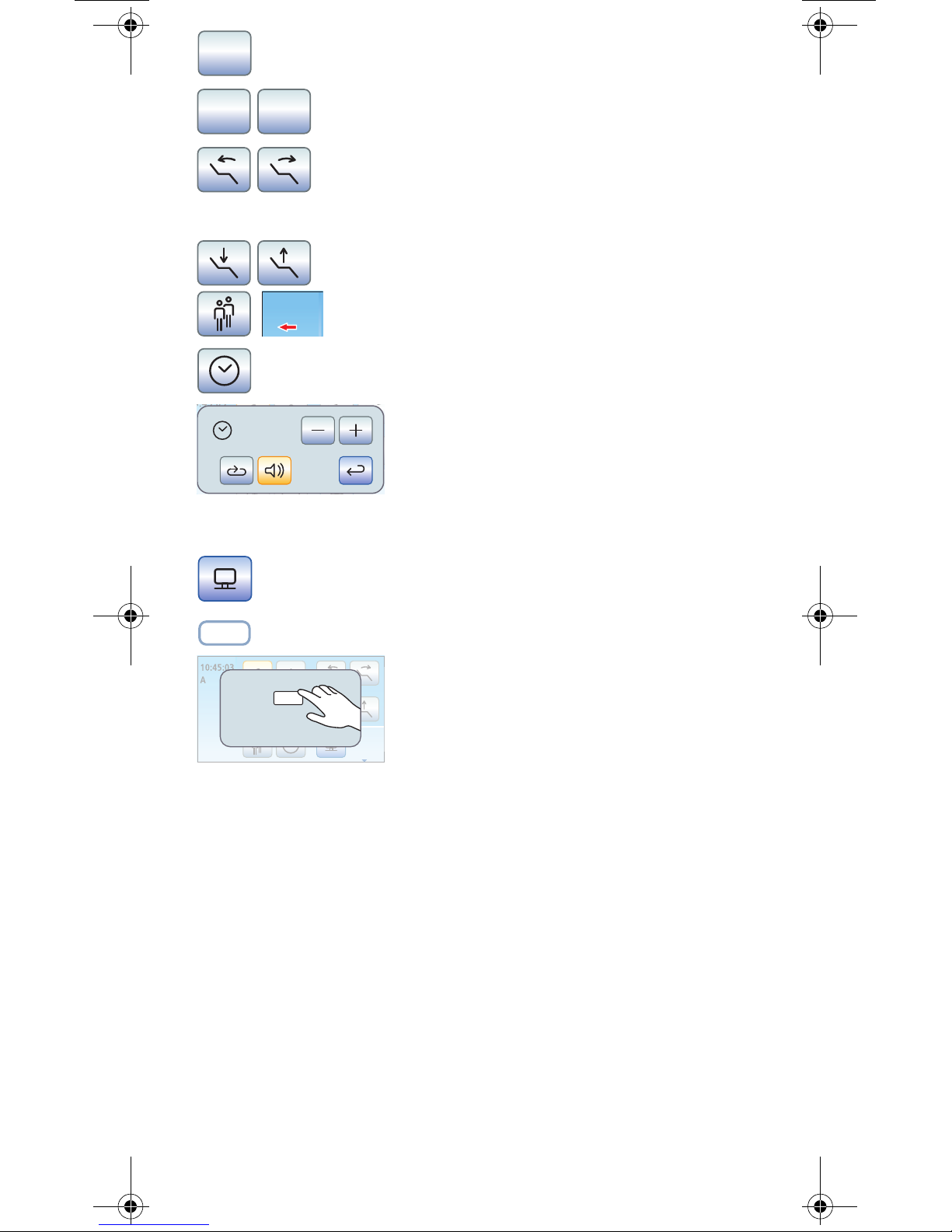

Chair program 0
Entry/exit position (programmable)
Chair programs 1 and 2
(programmable)
Backrest tilt
Moves the seat and backrest without any
compression or stretching effects for the
patient
Chair height
User profile
Changes the user profile
Timer function
Starts and stops the timer.
If the Timer key is held down (>2s), the
Timer function settings screen appears. Set
the time and select whether you want to
switch the time loop (i.e. the timer restarts
automatically after the time is up) and the
acoustic signal for the selected timer on or
off.

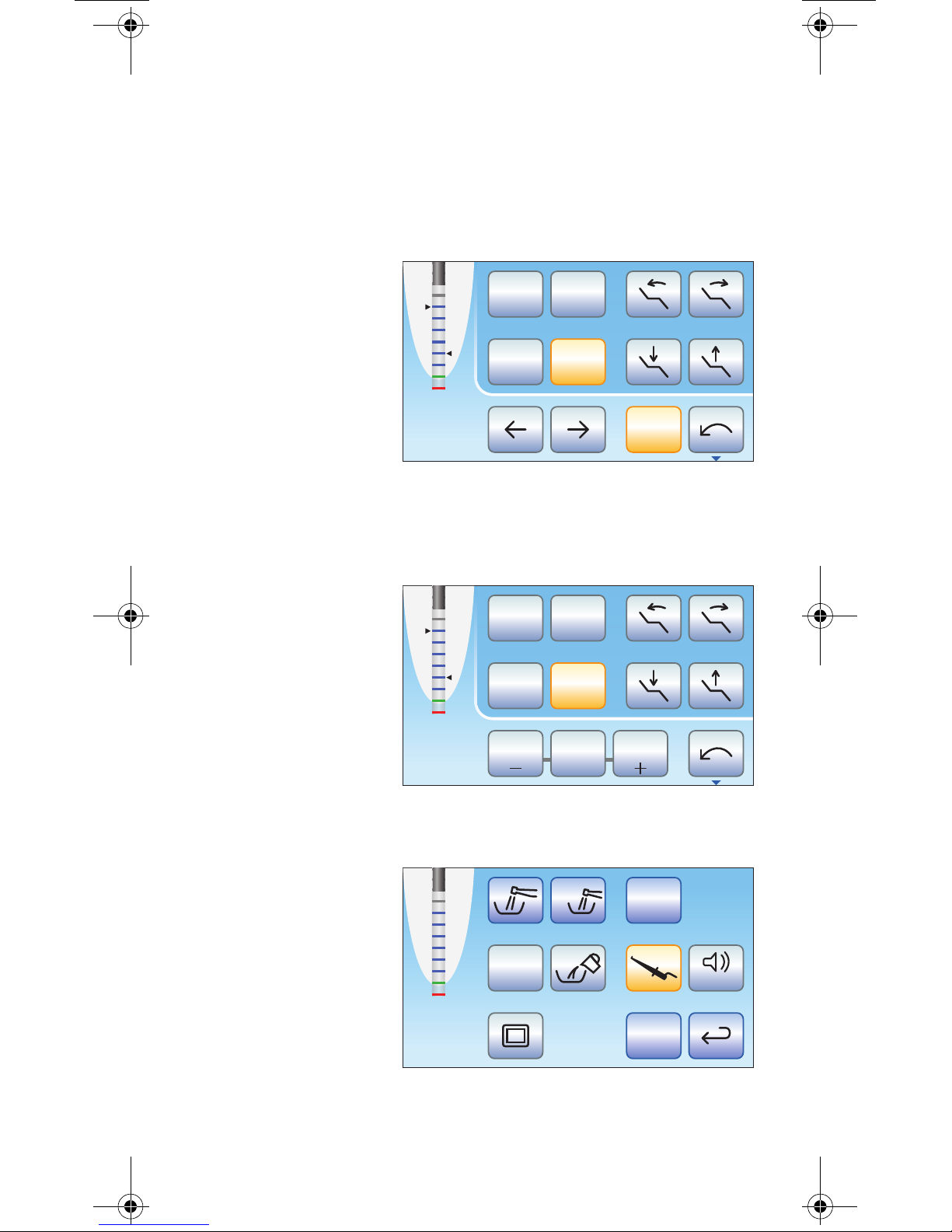

Sivision program
Calling of the Sivision screen for PC control
Clean key
With instruments in place: switches the
entire user interface of the dentist element
to no function. The instruments of the
dentist and assistant elements can no
longer be activated. The Sivision monitor
and the camera system are switched off.
Pressing > 3 s again reactivates the dental
treatment unit. This is used to make sure
that no unwanted functions can be acci-
dentally triggered while cleaning the
surface or from interference from an
external HF device
0
2
1
B
10:45:03
0:45:03
2
1
0S
0:15
Clean
A
10:45:03
2
1
0S
Clean
3 sec
6571801 KGBA Intego EN for USA.book Seite 6 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 7
User interface of the assistant
element
This functions are available if the assistent
element is directly attached to the dental
treatment unit. Not valid for Rear Delivery.
Chair program S
Mouth rinsing position (programmable)
with last-position memory function
Chair program 0
Entry/exit position (programmable)
Tumbler filling
on/off
Flushing the cuspidor
on/off
Operating light / Composite function
Repeated pressing of the key allows the
following switching positions to be set:
1. Switched on
2. Composite function
3. Switched off
Fn key
Starts and stops the timer.
S
0
Fn
6571801 KGBA Intego EN for USA.book Seite 7 Dienstag, 10. Oktober 2017 9:27 09

8Dentsply Sirona
Creating chair programs
The four factory preset chair programs:
• Mouth rinsing position S
• Entry/exit position 0
•1and2
can be individually reprogrammed for each
of the two user profiles (A to B).
The Start or Instrument dialog is
displayed on the touchscreen.
1. Move the patient chair to the desired
treatment position.
2. Switch the operating light on or off (this
will be included in the program).
3. Press and hold the desired program key
(S, 0, 1 or 2) (> 2s).
An acoustic signal sounds. Your settings
are now stored under the desired
program key.
Note: Chair programs S and 0 can also be
programmed on the assistant element side
if the assistant element is attached directly
to the dental treatment unit.

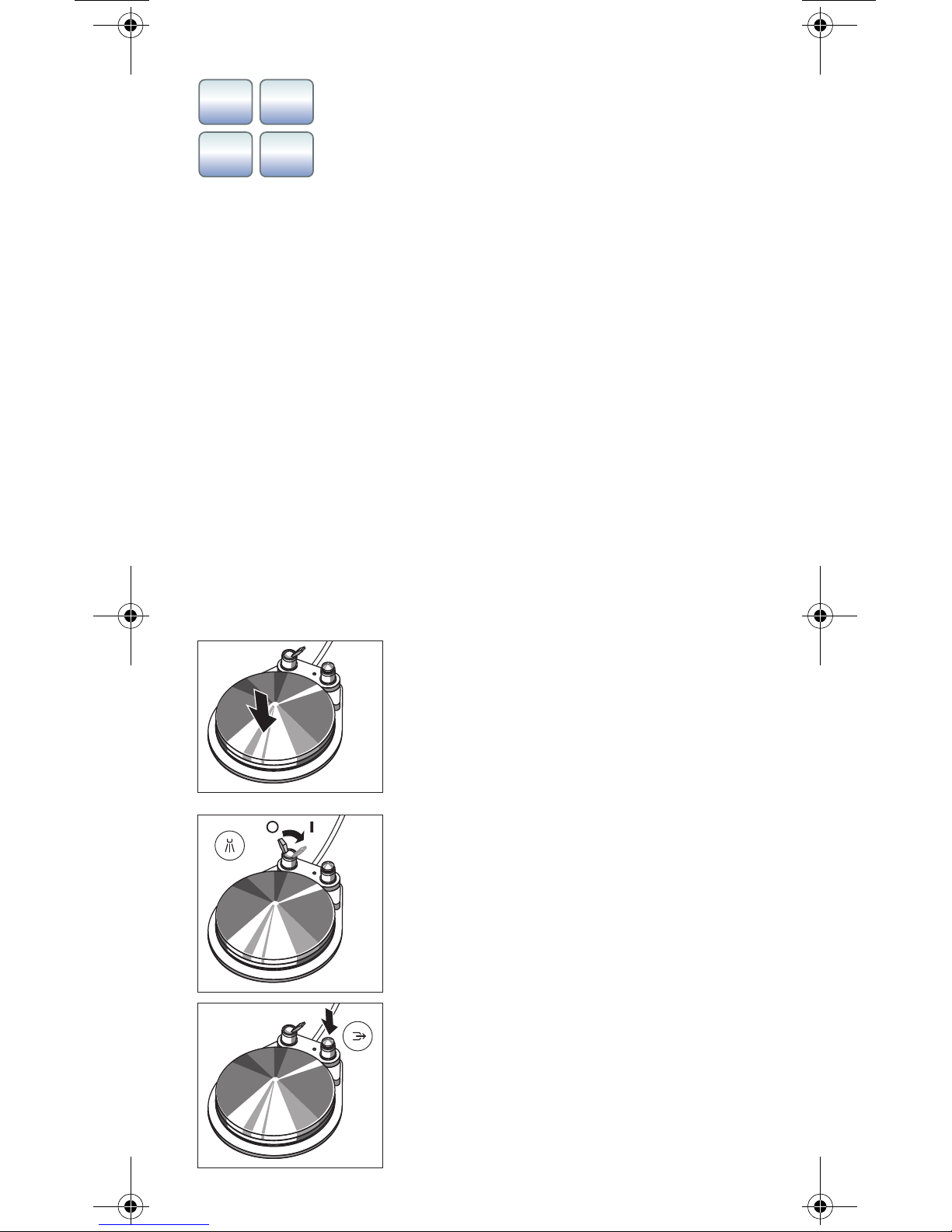

Pneumatic foot switch
Foot pedal
Drag an instrument (electric motor,
turbine/air motor, SiroSonic L) and step
on the foot pedal.
The instrument is switched on with the
set speed and intensity. For highspeed
handpieces/air motors, the speed is
controlled by the pedal action.
Spray switch
Move the toggle switch.
Left position: Spray off
Right position: Spray on
The spray is either switched on or off
when an instrument is activated.
Chip blower
With the chip blower, an air jet comes out
of the bur.
Take an instrument and press the right
button.
The chip blower remains switched on as
long as the button is pressed.
2
1
0
S
6571801 KGBA Intego EN for USA.book Seite 8 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 9

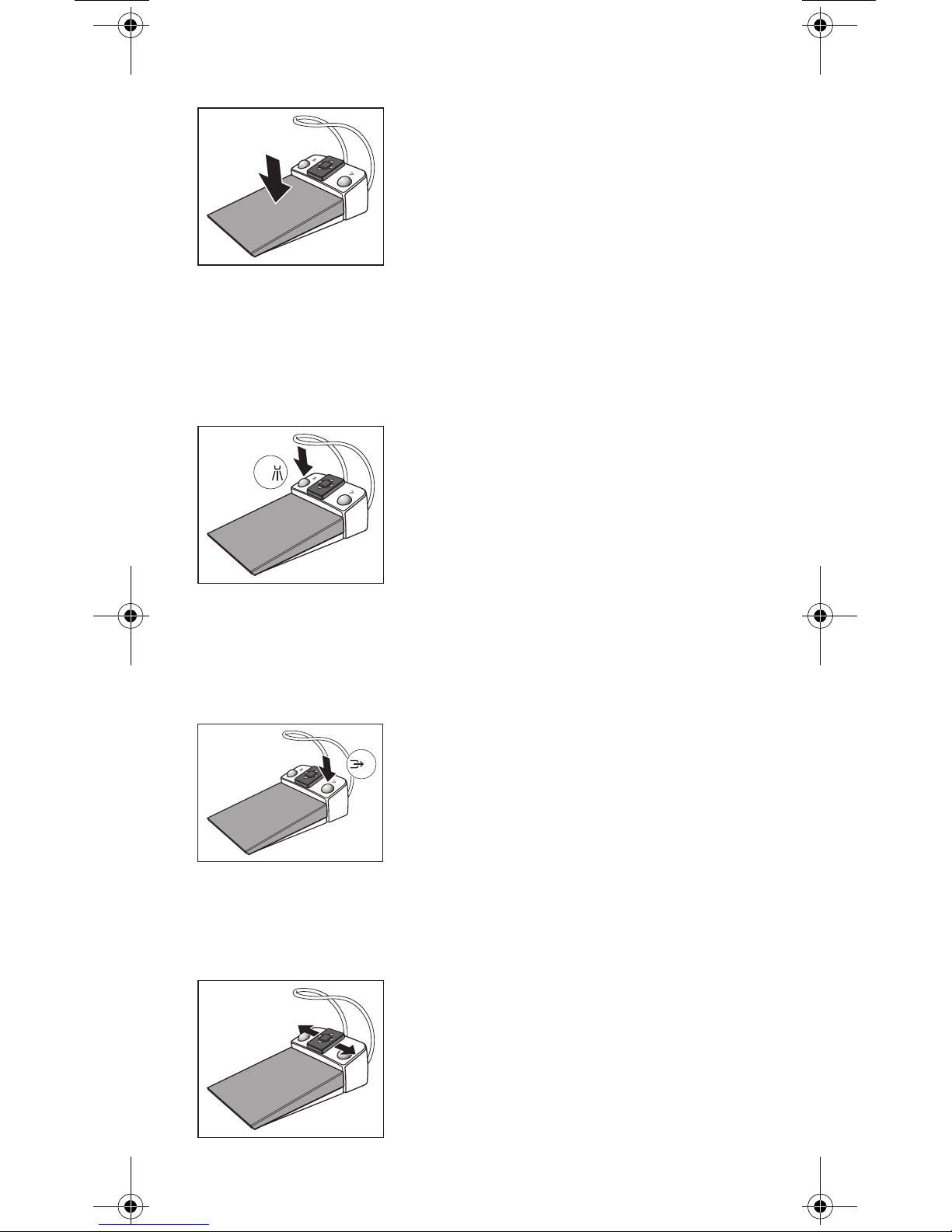

C+ electronic foot control
Foot pedal
All instruments are in place.
Press the foot pedal.
The Start dialog is shown.
An instrument is removed.
Press the foot pedal.
The instrument is activated. If the stan-
dard foot switch function is selected, the
motor and the SiroSonic L can be
controlled in relation to the pedal stroke.
When the intraoral camera is removed
from the holder, the camera image
focuses and the display switches to the
still or live image.
Left button
All instruments are in place.
Press the left button.
The chair moves to mouth rinsing posi-
tion S.
An instrument is removed.
Press the left button.
The preset cooling medium in the sub-
dialog (spray or air) is switched on/off. If
the intraoral camera is removed, the
video still image is saved in Sidexis; the
live image is displayed in the next quad-
rant in Si Video.
Right button
All instruments are in place.
Press the right button.
The chair moves to entry/exit position 0.
An instrument is removed.
Press the right button.
The chip blower remains switched on as
long as the button is pressed. When the
intraoral camera is removed, it is
possible to toggle between single image
and quad image in Si Video.

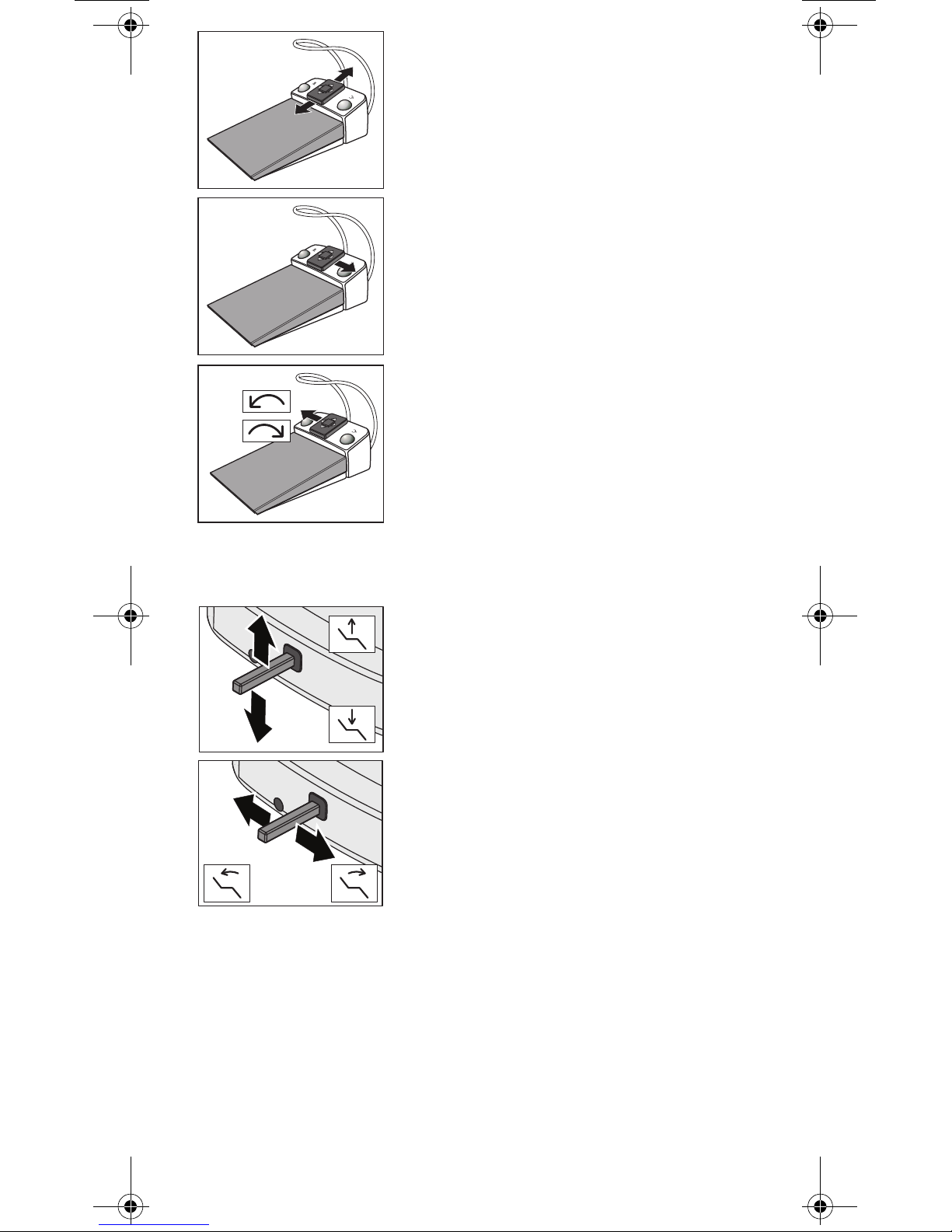

4-way foot control plate
All instruments are in place.
Move the 4-way foot control plate to
the left or right.
Left: Chair program 1 is loaded.
Right: Chair program 2 is loaded.
S
0
S
0
S
S
0
0
S
0
6571801 KGBA Intego EN for USA.book Seite 9 Dienstag, 10. Oktober 2017 9:27 09

10 Dentsply Sirona
An electric motor or SiroSonic L is
removed.
Slide the 4-way foot switch plate up or
down.
Up: The speed or intensity is increased.
Down: The speed or intensity is
decreased.
An electric motor or SiroSonic L is
removed.
Slide the 4-way foot control plate to the
right.
The instrument settings saved for the
favorite key, e.g. speed, intensity and
activation of spray are called up.
An electric motor is removed.
Slide the 4-way foot switch plate to the
left.
The clockwise/counterclockwise rota-
tion of the electric motor is activated.
4-way foot control
Adjusting the chair height
Slide the 4-way foot control upward or
downward.
Inclining the backrest
Slide the 4-way foot control to the left
or right.
S
0
S
0
S
0
6571801 KGBA Intego EN for USA.book Seite 10 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 11
3-way standard and
Sprayvit E syringe
A= air button
B= water button
Available option: Sprayvit E with reverse
key assignment
Highspeed handpiece /
air motor / other air-driven
instruments
If your dental treatment unit is equipped
with the pneumatic foot switch, the drive
air for the turbine can be regulated by the
foot pedal.
When the highspeed handpiece is removed
from the holder, a highspeed handpiece
signal appears on the touchscreen.
B
A
A
B
A
10:45:03
2
1
0S
6571801 KGBA Intego EN for USA.book Seite 11 Dienstag, 10. Oktober 2017 9:27 09

12 Dentsply Sirona
Electric motor
For electric motor, the brushless motors
BL E and BL ISO E are available. The speed
range of the motors lies between 100 and
40,000 rpm.
Accessing saved speed
The electric motor is removed from the
holder.
Touch one of the favorite keys briefly
(<1 s).
The favorite key is highlighted orange.
At the left of the favorite keys, the
selected speed is displayed in rpm
(revolutions per minute).
By moving the 4-way switch plate of the
C+ electronic foot switch to the right, the
settings of the favorite keys can be
accessed consecutively.

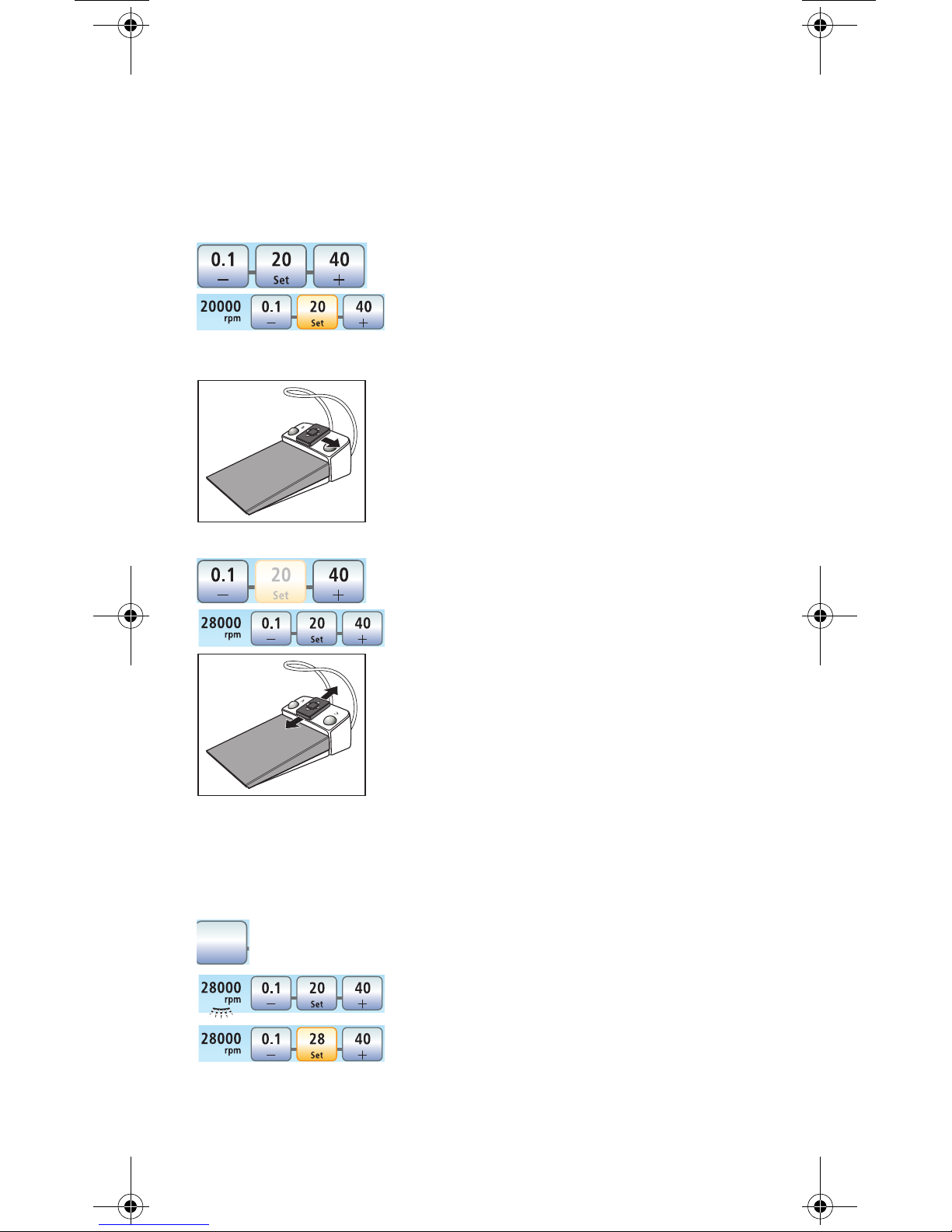

Changing the speed
Press and hold the left or right favorite
key (> 1 s).
The speed is increased or reduced.
The speed can also be increased or
reduced by moving the 4-way switch plate
of the C+ electronic foot switch up or
down.
Saving the speed
The desired speed is set.
Via the C+ electronic foot switch: The
spray is switched on or off (will be
saved).
1. Press and hold the middle favorite Set
(> 2 s).
The speed flashes.
2. Press one of the three favorite keys.
An acoustic signal sounds. The set
speed and if applicable, activation of
spray is saved on the favorite key.
S
0
S
0
20
Set
6571801 KGBA Intego EN for USA.book Seite 12 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 13
Setting the direction of rotation via
the foot switch
The rotational direction of the motor can
also be set via the 4-way foot control plate
of the C+ electronic foot switch.
An electric motor is removed.
1. Move the 4-way foot control plate to the
left.
When counterclockwise rotation is
switched on, the Counterclockwise key
is marked orange on the Touchscreen.
2. Move the 4-way foot control plate to
the left again to reverse the rotational
direction.
Endodontics function
Speed and torque of the rotating instru-
ment can be set precisely using the
Endodontics function.
The basic functionality of the Endodontics
function is described below. For more
information, please refer to your complete
Intego Operating Instructions.
Switching on the endodon-
tics function
Endodontics function is assigned to the
burr drive removed from the holder.
The desired electric motor for endodon-
tics function is removed from the
holder.
Press the Endodontics function key in
the sub-dialog Motor.
The Endodontics dialog is displayed on
the touchscreen.
Switching the endodontics
function on/off
If the Endodontics function is switched on,
when the burr drive assigned to the
endodontics function is removed from the
holder, the torque and/or speed of the
contra-angle handpiece is displayed
instead of that of the motor on the
EasyPad display. To show the motor speed
again when the burr drive is removed, the
Endodontics function must first be
switched off.
S
0
2
1
0S
rpm
300
Ncm
1.00
Endo 3 Cal
6571801 KGBA Intego EN for USA.book Seite 13 Dienstag, 10. Oktober 2017 9:27 09

14 Dentsply Sirona

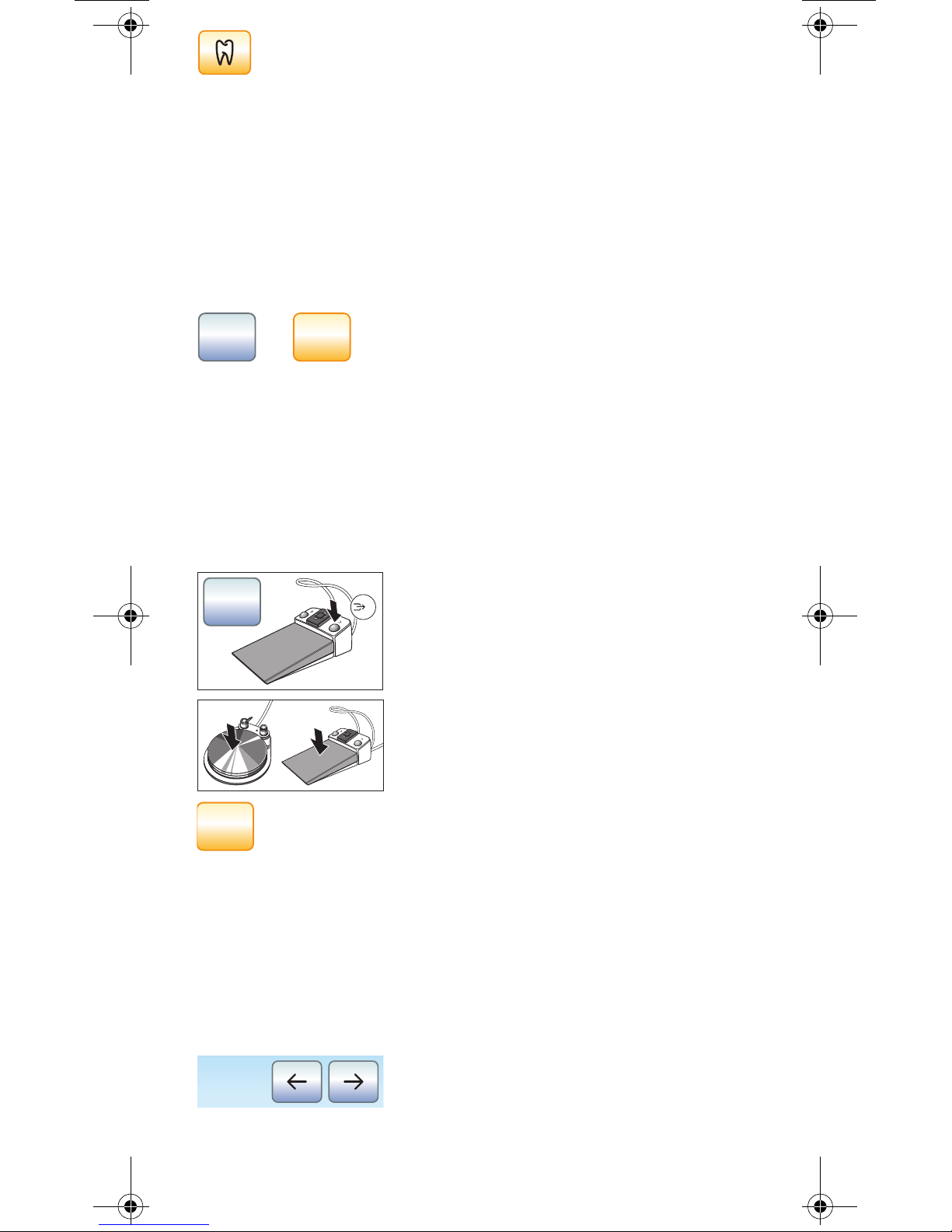

Press the Endodontics function key.
If the key is blue, the Endodontics func-
tion is deactivated. The Motor screen
opens when the burr drive is removed
from its holder.
Calibrating the burr drive
Calibration is required when the Endodon-
tics function is started, every time the
contra-angle handpiece is changed, and
every time the contra-angle handpiece is
lubricated. Recalibration is not necessary
after changing a file.
An uncalibrated drilling instrument is
shown with a blue calibration key. An
orange key indicates that the drilling instru-
ment has been calibrated.
The Endodontics function is switched
on and a drilling instrument is dragged.
1. Attach the contra-angle handpiece that
you wish to use with endodontics func-
tion to the electric motor.
2. Insert a file in the contra-angle hand-
piece. This ensures that the file is taken
into account in the measurement.
3. Press the Cal key on the touchscreen or
press the right button of the C+ elec-
tronic foot control.
The key flashes. The burr drive is ready
for calibration.
4. Hold down the foot pedal throughout
the duration of the calibration.
The Cal key continues to flash. During
calibration, increasing speeds are set on
the motor. If the burr drive is calibrated,
the key permanently remains high-
lighted orange. Calibration is then
completed.
Selecting a working step
Speed and torque can be saved for up to
six working steps. At the end of each work
step, the required settings can be accessed
immediately by selecting the next step.
The work steps can be selected via the
forward/back keys.
Cal Cal
/
S
0
0
Purge
Cal
S
0
Cal
Endo 3
6571801 KGBA Intego EN for USA.book Seite 14 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 15
Setting the speed and
torque
With the endodontics function switched
on, torque and speed of the contra-angle
handpiece are indicated, but not of the
motor. The control electronics of the burr
drive calculate the motor control based on
the contra-angle handpiece gear reduction
and the torque and speed settings.
The working step with which the speed
and torque are to be changed is
selected.
Use the – and + keys to set the speed
and torque of the contra-angle hand-
piece. You can also hold down the keys
for this purpose.
On the favorite keys 1, 2 and 3, torque
values for the steps of the endodontic
treatment can be stored and retrieved, see
"Electric motor" [12]. The set speed
remains unchanged. Speed is not saved on
the favorite keys.
Switching AutoReverse ON/
OFF
If the auto-reverse function is switched on,
the burr drive automatically switches to
counterclockwise rotation when the torque
set is reached. If the foot control is pressed
again, the burr drive switches back to
clockwise rotation.
Touch the AutoRev key.
If the key is marked orange, the Auto
Reverse function is activated.
rpm
300
Ncm
1.00
Auto
Rev
6571801 KGBA Intego EN for USA.book Seite 15 Dienstag, 10. Oktober 2017 9:27 09

16 Dentsply Sirona
ApexLocator
The ApexLocator can be used to measure
the working length of the root canal file in
endodontic treatments using electrical
impedance.
The ApexLocator can be used as follows:
• For measurement during treatment with
the motor and the optional Endodontics
function with electronic torque limitation
Distance display in the Endodontics
program
• For measurement during treatment with
the motor, without electronic torque
limitation
Distance display in the Motor program
• For manual measurement using a file
clamp
Distance display in the Start sub-screen
2
1
0S
Endo 3 Cal
Stop
Max
2
1
0S
rpm
2700
Stop
Max
1.2 4020
Set
Setup
San
Aqua Apex Dist
Auto
6571801 KGBA Intego EN for USA.book Seite 16 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 17
The measured root canal depth is shown in
the distance display on the touchscreen. A
bar with 11 display levels shows the distance
from the root canal file to the physiological
apex. The root canal is divided into four
colored sections in the distance display.

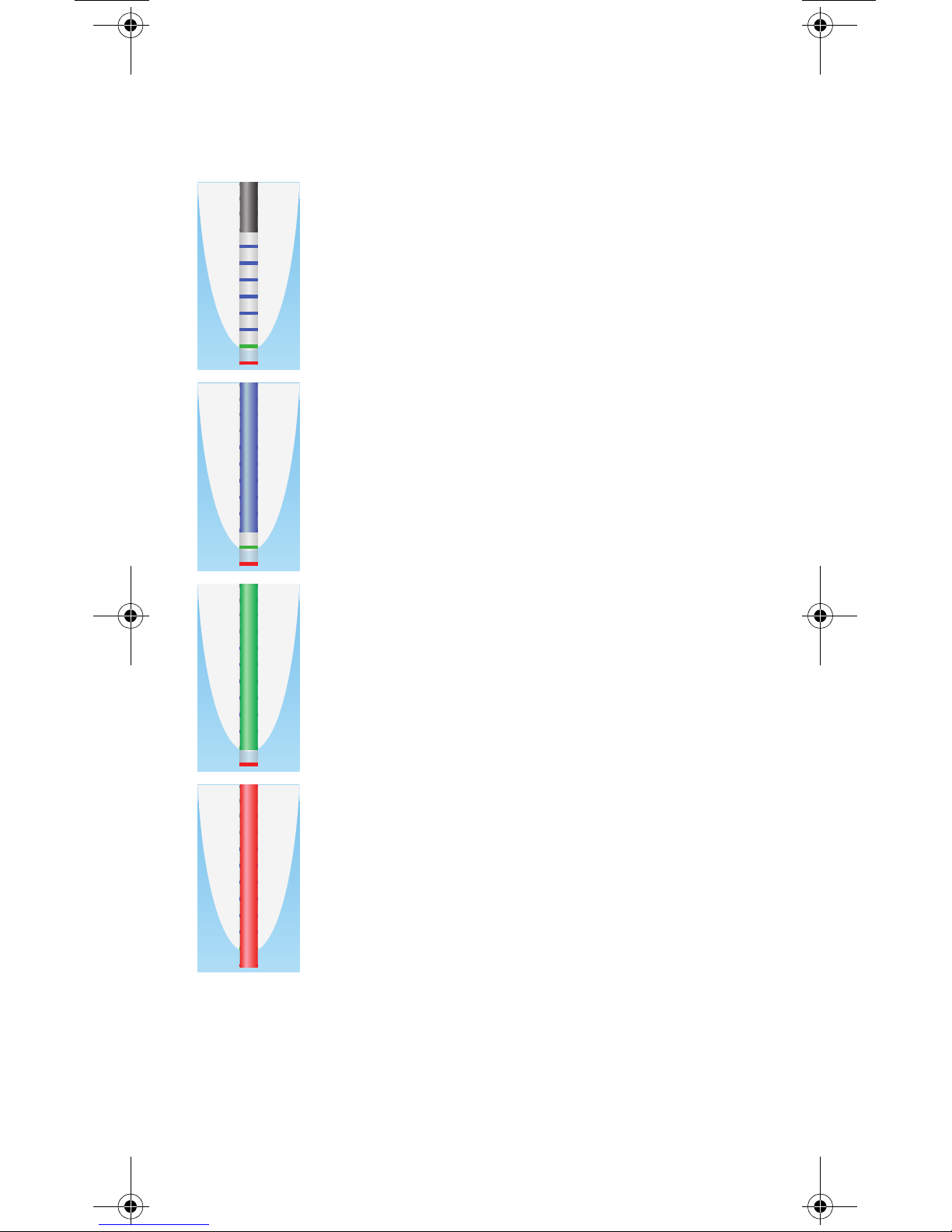

Gray region
The tip of the root canal file is in the middle
region of the root canal.
Blue region
The tip of the root canal file is near the
apex.
Green region
The tip of the root canal file has reached
the physiological apex.
Red region
The tip of the root canal file has pierced the
physiological apex. The instrument over-
shoot is displayed.
In addition to the graphical distance
display on the touchscreen, the position of
the file in the root canal can also be indi-
cated as an acoustic signal.
6571801 KGBA Intego EN for USA.book Seite 17 Dienstag, 10. Oktober 2017 9:27 09

18 Dentsply Sirona
Automatic motor stop
You can make a setting to determine that
the motor stops automatically at a preset
distance from the apex. The motor stop can
be combined with the Auto-Reverse func-
tion.
The sub-dialog Motor or the sub-dialog
Endodontics is displayed on the touch-
screen.
1. To u c h t h e Apex stop key.
If the key is highlighted orange, the
automatic motor stop is activated. The –
and + keys are displayed.

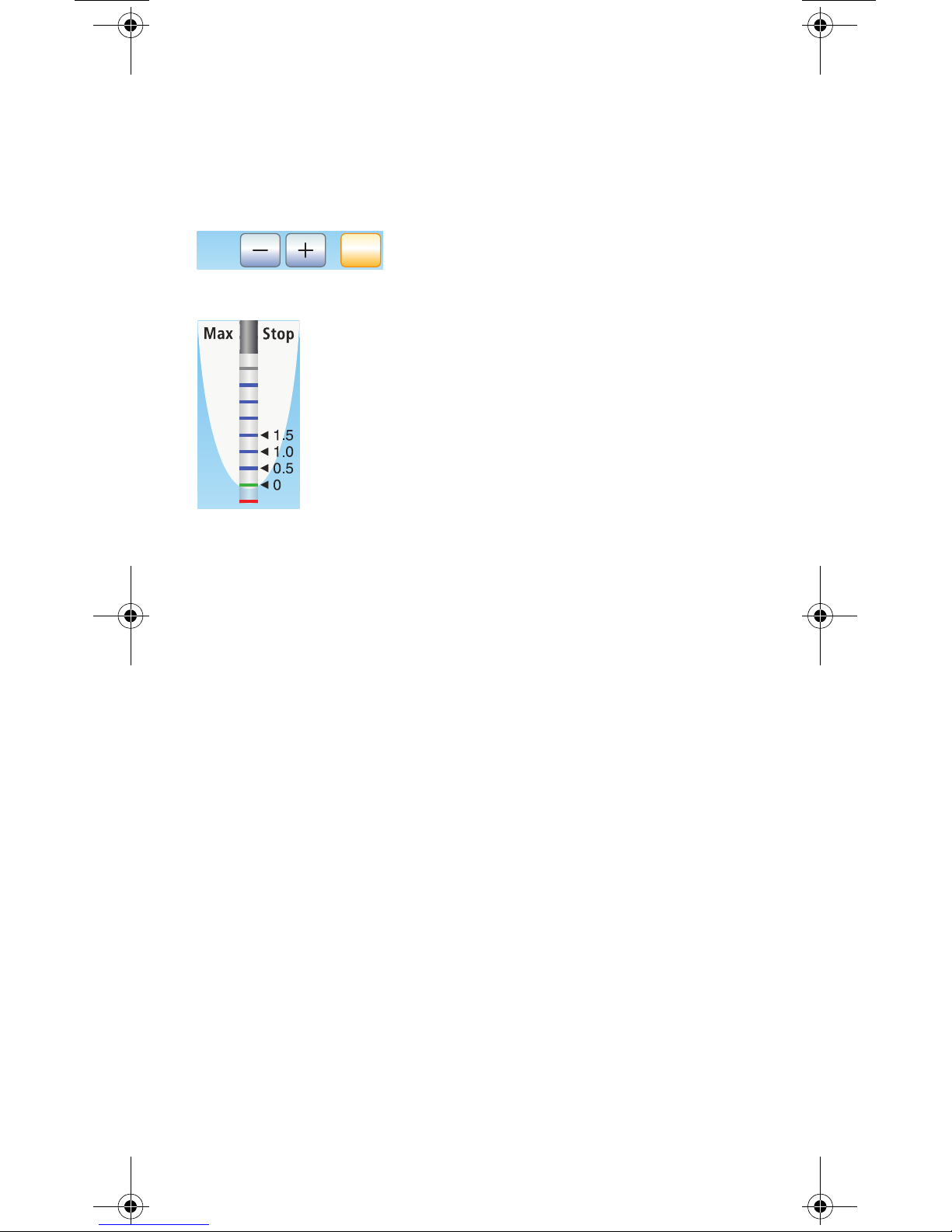

2. Use the – and + keys to set the required
apex distance from 1.5 to 0. If the
distance is 0, the motor does not stop
until it reaches the physiological apex.
Please note that the distance values are
not a metric length measurement!
The set distance is displayed to the left
of the – and + keys. The preset motor
stop position is displayed as a black
triangle to the right of the distance
display under the text "Stop".
For more details, please refer to your
complete Intego Operating Instructions.
Apex
Stop
0.5
Apex
6571801 KGBA Intego EN for USA.book Seite 18 Dienstag, 10. Oktober 2017 9:27 09

Dentsply Sirona 19

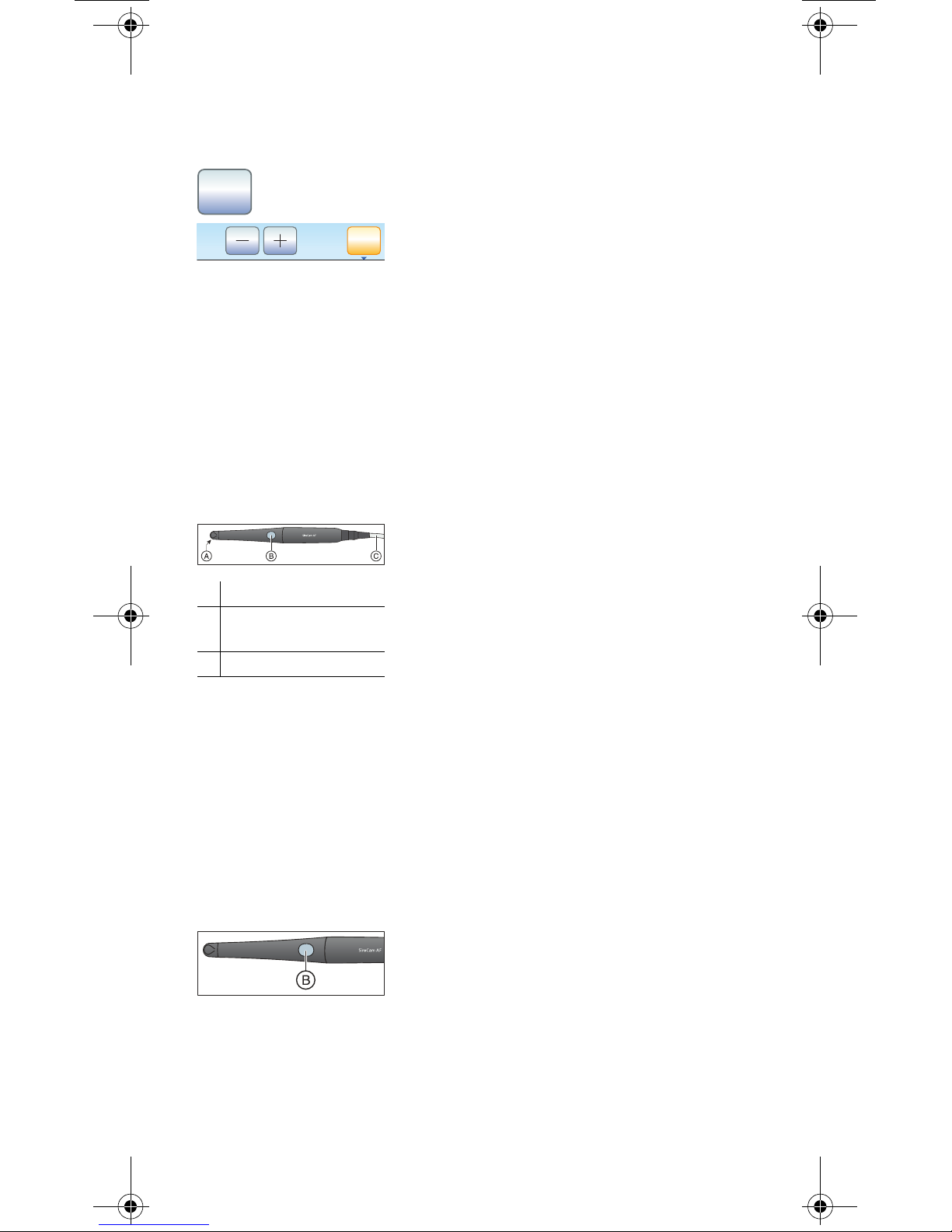

SiroSonic L
The SiroSonic L scaler is used to remove
plaque and to rinse the prepared root canal
for endodontic treatment.
Accessing intensity settings
The SiroSonic TL scaler is removed.
Touch one of the favorite keys briefly
(<1 s).
The favorite key is highlighted orange.
The selected intensity is displayed to the
left of the favorite keys.
By moving the 4-way switch plate of the
C+ electronic foot switch to the right, the
settings of the favorite keys can be
accessed consecutively.
Changing the intensity
Press and hold the left or right favorite
key (> 1 s).
The intensity is increased or reduced.
The size of the increments depends on the
intensity range setting:
From 1 to 5% = 1% increments
From 5 to 50% = 5% increments
From 50 to 100% = 10% increments
The speed can also be increased or
reduced by moving the 4-way switch plate
of the C+ electronic foot switch up or
down.

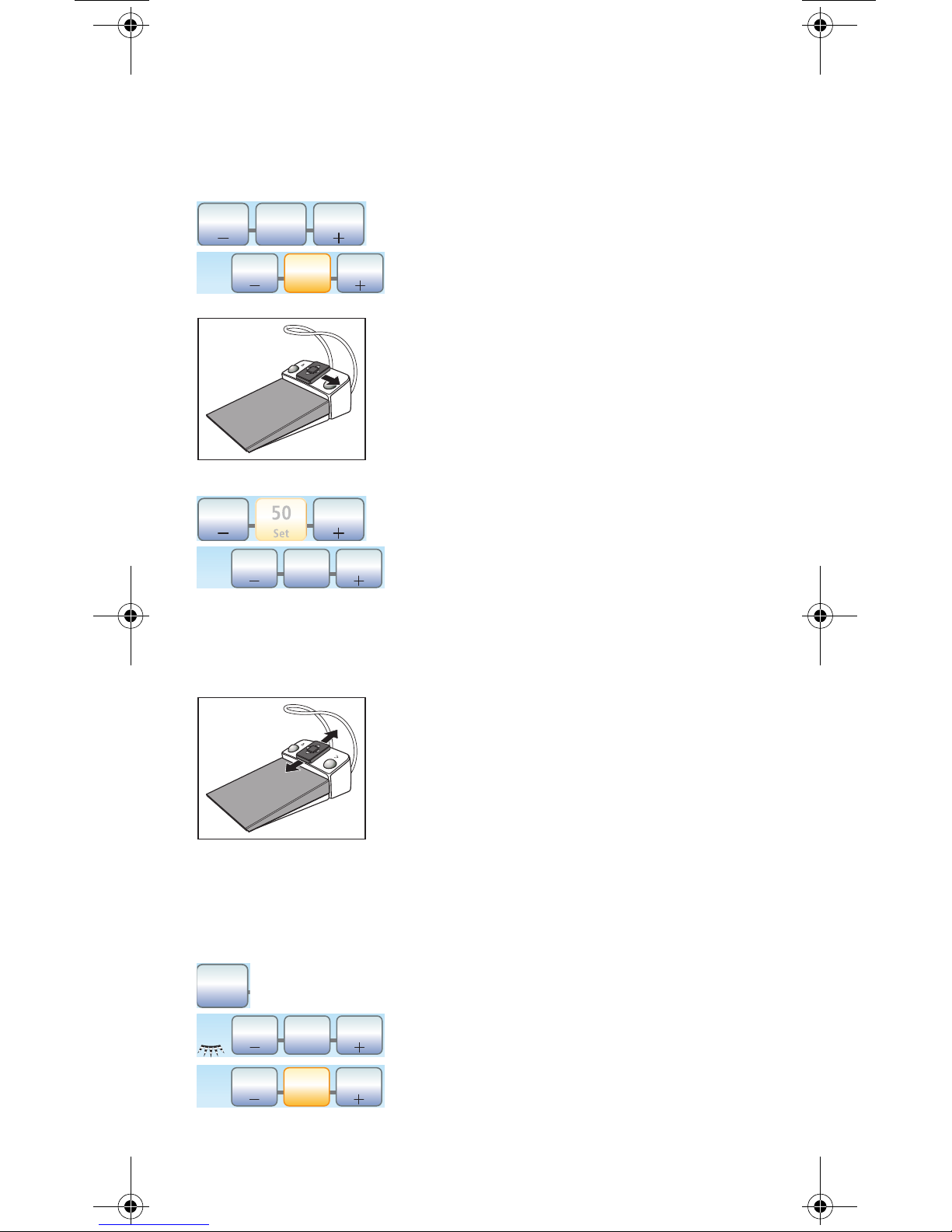

Saving intensity
The desired intensity is set.
Via the C+ electronic foot switch: The
spray is switched on or off (will be
saved).
Press and hold the middle favorite Set
(> 2 s).
The intensity display flashes.
Press one of the three favorite keys.
An acoustic signal sounds. The intensity
set and, if applicable, activation of spray
will be saved on the favorite key.
1 10050
Set
50 1 10050
Set
S
0
1 10050
Set
20 1 10050
Set
S
0
50
Set
20 1 10050
Set
20 1 10020
Set
6571801 KGBA Intego EN for USA.book Seite 19 Dienstag, 10. Oktober 2017 9:27 09

20 Dentsply Sirona
Switching on the endodontics function
The intensity of the endodontics function is
limited for safety reasons, e.g. in order to
prevent broken needles. The intensity can
be adjusted from 1e to 5e.
The SiroSonic TL scaler is removed.
1. To u c h t h e Endo key.
The key is highlighted orange. The
endodontics intensity (endo mode) is
displayed instead of ultrasonic intensity
(ultrasonic mode).
2. Use the – and + keys to set the desired
endodontics intensity (1e to 5e).
By pressing the Endo key again, the user is
returned to ultrasonic mode.
The intensity settings cannot be saved on
the favorite keys in endo mode.
SiroCam AF
The Sivision digital video system enables
the acquisition of intraoral and extraoral
images. The SiroCam AF intraoral camera
generates digital image data which can be
transmitted via a USB 2.0 port (high-speed
universal serial bus) to a connected PC and
stored there. This PC can then display the
images on the Sivision monitor of the
dental treatment unit. The Sidexis or Si
Video can be used as a PC video applica-
tion.
The video images represent an outstanding
possibility for improving patient communi-
cation.
Focusing the SiroCam AF
The SiroCam AF intraoral camera adjusts
the image focus at the touch of a button.
The focus is continuously variable.
1. Direct the camera to the subject to be
acquired.
2. Press the Auto focus key (B).
If the dental treatment unit is equipped
with the C+ electronic foot control, it can
be configured in setup that the camera
image can be focused with the foot switch,
see "Switching on/off the electric foot
control C+ function for intraoral camera
focus" [28].
Endo
3e Endo
ALenswindow
B Key for automatic
focus
C Connecting cable
6571801 KGBA Intego EN for USA.book Seite 20 Dienstag, 10. Oktober 2017 9:27 09
