DENTSPLY PROPEX II User manual

FISDR-ISR / F1902127X / 03 /2012 –updated 01/2016
APEX LOCATOR
User Manual

1 / 120

2 / 120
CONTENTS
English ....................................................................................... 4
Français ......................................................................................26
Deutsch ......................................................................................50
Español ......................................................................................72
Italiano ........................................................................................94
Electronic instructions for use
For additional languages, visit our website: www.dentsplymaillefer.com
Technical modifications on our products are not subject to notification. Photos of our
devices are not contractual.
Des modifications techniques peuvent être apportées à nos produits sans préavis.
Les photos de nos dispositifs sont non contractuelles.
Technische Änderungen an unseren Produkten können ohne Vorankündigung
erfolgen. Fotos unserer Produkte sind unverbindlich.
Las modificaciones técnicas de nuestros productos no son objeto de notificación. Las
fotos de nuestros dispositivos no son contractuales.
Modifiche tecniche dei prodotti non soggette a notifica. Le foto dei dispositivi sono
solo indicativel.

3 / 120

4 / 120
User Manual
Table of contents
Introduction 5
1. Indications for use 5
2. Contraindications 6
3. Warnings 6
4. Precautions 7
5. Adverse Reactions 8
6. Step-by-Step Instructions 9
A. Contents 9
B. Connecting the AC plug adapter 9
C. Recharging the Battery 10
D. Replacement of the Rechargeable Battery 11
E. Getting Started 12
F. Search for the Apex 13
G. Sound Adjustment 15
H. Demo Mode 15
I. Automatic Shutdown 16
J. Maintenance of your ProPex®II 16
K. Warranty 17
L. Technical Specifications 17
M. Standard Symbols 18
7. Disinfection, cleaning and sterilization 19
8. Troubleshooting 22
9. Disposal of the Product 24
Appendix
Electromagnetic compatibility (emc)...............................................116

5 / 120
FOR DENTAL USE ONLY
DIRECTIONS FOR USE
Introduction
Congratulations on the purchase of ProPex®II.
ProPex®II is a device aimed at detecting the minor apical foramen based on analysis
of electrical properties of different tissues inside the root canal system. For optimal
safety and performance, read this user manual carefully before use. Make sure you
have understood and followed the clinical precautions - as well as the general
warnings, precautions and contraindications - before proceeding to determining a
working length.
Keep this user manual for future reference.
1. Indications for use
ProPex®II is an electronic device used to indicate the location of the apex and the
working length. This product must only be used in hospital environments, clinics or
dental offices, by qualified practitioners.

6 / 120
2. Contraindications
The ProPex®II is not recommended for use:
in patients who have a pacemaker or other implanted electrical devices, or have
been cautioned by their physicians against the use of small electric appliances
such as shavers, hair dryers, etc,
in patients allergic to metals,
in children.
3. Warnings
The scale indication on the ProPex®II screen does not represent a distinct length
or distance in mm or other linear units. It simply indicates the file progression
towards the apex.
The following patient's related factors may prevent accurate readings:
-Blocked root canals,
-Teeth with large apices,
-Root fracture or perforation,
-Metal crowns or bridges, if they come into contact with the file or the lip clip.
Inaccurate or incorrect readings due to the environment are likely to occur in the
following cases:
-Presence of portable or movable radio frequency transmitters in the
surroundings.
-Film viewers or other Illumination devices which use an inverter may cause
abnormal operation of the apex locator. Such devices should be turned off
during use of the ProPex®II.
Electromagnetic interference could cause improper operation of the device. In
such cases the device behavior may become abnormal or random. Usage of any
devices emitting electromagnetic radiation, such as cellular phones, remote
controls, transceivers, etc., should be prohibited in the vicinity of ProPex®II.
General safety warnings:
-In order to prevent infectious agent transfer it is highly recommended to use a
rubber dam system during the endodontic procedure.
-Make sure that the lip clip, hook or fork does not come into contact with an
electric power source such as an electrical socket. This could result in a
severe electrical shock.
-Do not use ProPex®II in the presence of flammable substances.
Only use the original battery pack from your supplier.
Only use the original charger.

7 / 120
4. Precautions
Important notice
The use of apex locators alone without a preoperative and postoperative radiograph
is not a recommended practice, since apex locators may not be able to work properly
in all conditions.
It is mandatory to confirm radiographically the working length established using the
apex locator.
It is important to follow the precautions below and pay close attention to any condition
or situation that may influence the electrical conductivity during the procedure.
Inaccurate or incorrect readings are likely to occur in the following cases, all
procedure related:
-Partially blocked canal.
-Size of the measuring file differing significantly from the canal diameter. Ideally,
the selected file should be the thickest one capable of reaching the apex.
-Presence of liquids and/or tissue debris in the access cavity. Prior to the use of
the device, the access cavity must be dried with a cotton pellet in order to
prevent leaking current.
-Contact of the file or the lip clip with metallic dental structures. Be particularly
careful with patients fitted with metal crowns or bridges.
-Contact of the file with another instrument.
-Very dry canal, for instance in the presence of restoration. In this case the canal
must be moistened with an irrigation solution, or with GlydeTM file prep.
-Contact between the file and the gums (this may cause a false reading indicating
that the apex has been reached).
-Use of an ultrasonic scaler with the counter electrode attached to the patient
(electrical noise from the scaler could interfere with the apex localization).
-Use of the apex locator in conjunction with an electric scalpel.
-Use of a damaged lip clip, hook or fork.
For apex localization, concentrations of NaOCl higher than 5 % may result in
reduced accuracy.

8 / 120
As a safety precaution in order to avoid over-instrumentation, it is recommended
to proceed as follows: place the file onto an endodontic ruler at the point where
the ProPex®II indicates ‘APEX’. Subtract a minimum of 0.5 mm from the
measured file length.
Please also respect the following precautions:
-For your own safety, be aware of wearing personal protective equipment
(gloves, glasses, mask).
-If the bar graph makes sudden large movements in the coronal part of the canal,
slowly continue advancing the file toward the apex until the signal returns to
normal.
-This ProPex®II unit must not be connected to or used in combination with any
other apparatus or system. It must not be used as an integral component of any
other apparatus or system. Using replacement parts or accessories not supplied
by the original manufacturer or vender could adversely affect the EMC
performance of the ProPex®II.
-The device must be used with the manufacturer's original accessories only.
-Unplug the device before replacing the battery.
-Never use batteries that are leaky, deformed, discolored or otherwise abnormal.
-In case of battery leakage, carefully dry the battery terminals and remove all of
the leaked liquid. Then replace the battery with a new one.
-If you do not use the device for a long period of time, it is recommended to
remove the battery from the device to prevent possible fluid leakage.
-Dispose of old batteries according to local codes and regulations.
-Accessories including lip clips, hooks or forks should be clean and without
residue of chemical disinfectants or other medicinal solutions such as sodium
hypochlorite or formalin.
-Do not expose ProPex®II to any liquid.
-ProPex®II must be stored in normal temperature (< 60°C) and humidity
conditions.
5. Adverse Reactions
If the apex locator provides incorrect reading and there is no radiographic data (see
"Important notice" in the “Precautions” section in chapter 4), the following adverse
reactions may occur:
Incomplete root canal treatment,
Apex perforation.

9 / 120
6. Step-by-Step Instructions
A. Content
Check the content of the equipment before use:
-one ProPex®II apex locator
-one switching charger with EU, UK, USA, AUS exchangeable plugs
-one measurement cable
-two lip clips
-two connection hooks
-two connection forks
-one user manual

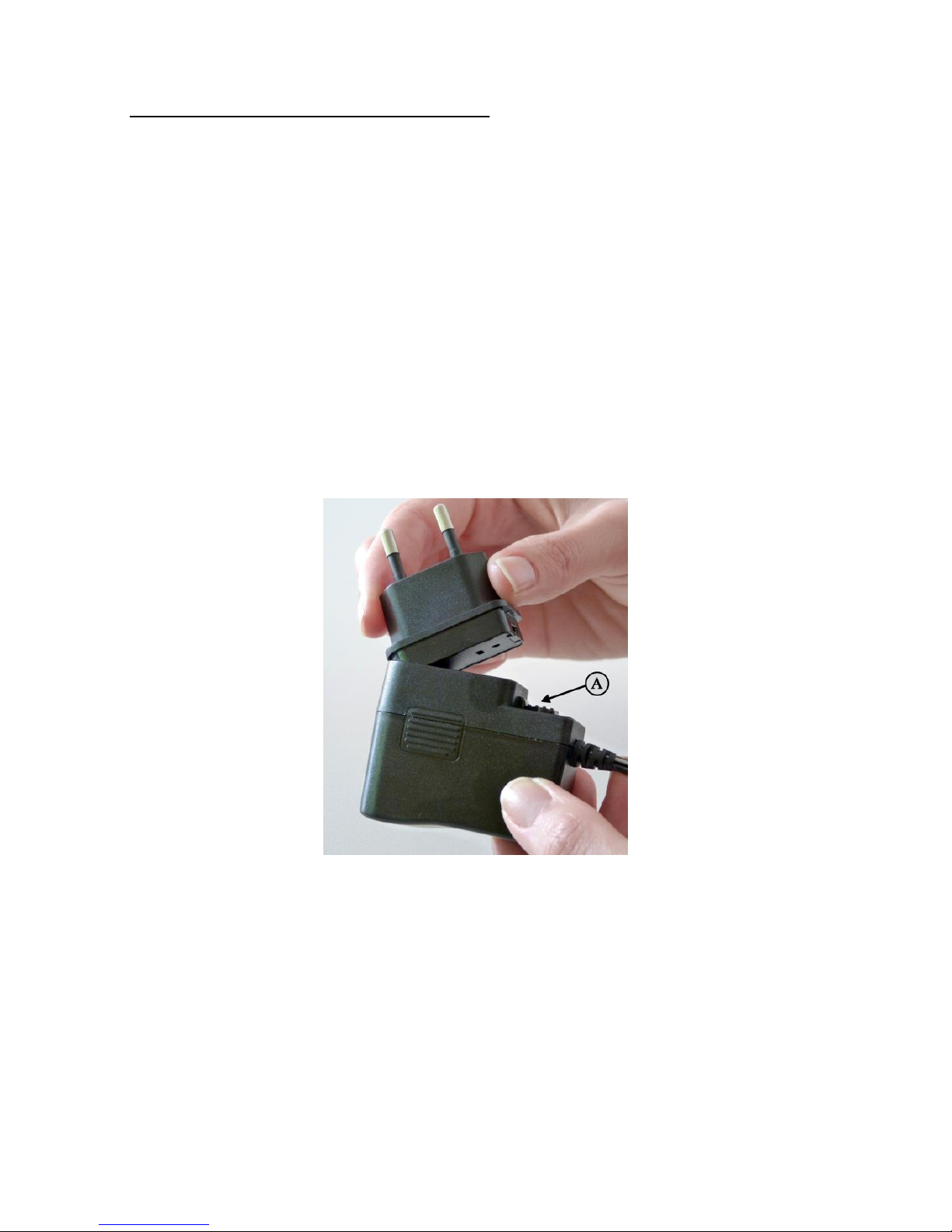

B. Connecting the AC plug adapter
Select the plug adapter that matches your electric power outlet.
Align and insert the plug adapter at the rounded edge and then snap it into place by
inserting the opposite end. To remove, pull the locking button (A) and pull out the
plug adapter.

10 / 120
C. Recharging the Battery
The ProPex®II is delivered with a rechargeable battery.
On ProPex®II a screen indicator shows the level of the battery charge. When this is
flashing, the battery requires recharging. However, it is still functional for several
treatments before the battery shuts down.
Procedure for recharging the battery:
1. Disconnect the measurement cable
2. Connect the charger cable to the ProPex®II
3. Connect the charger to the mains

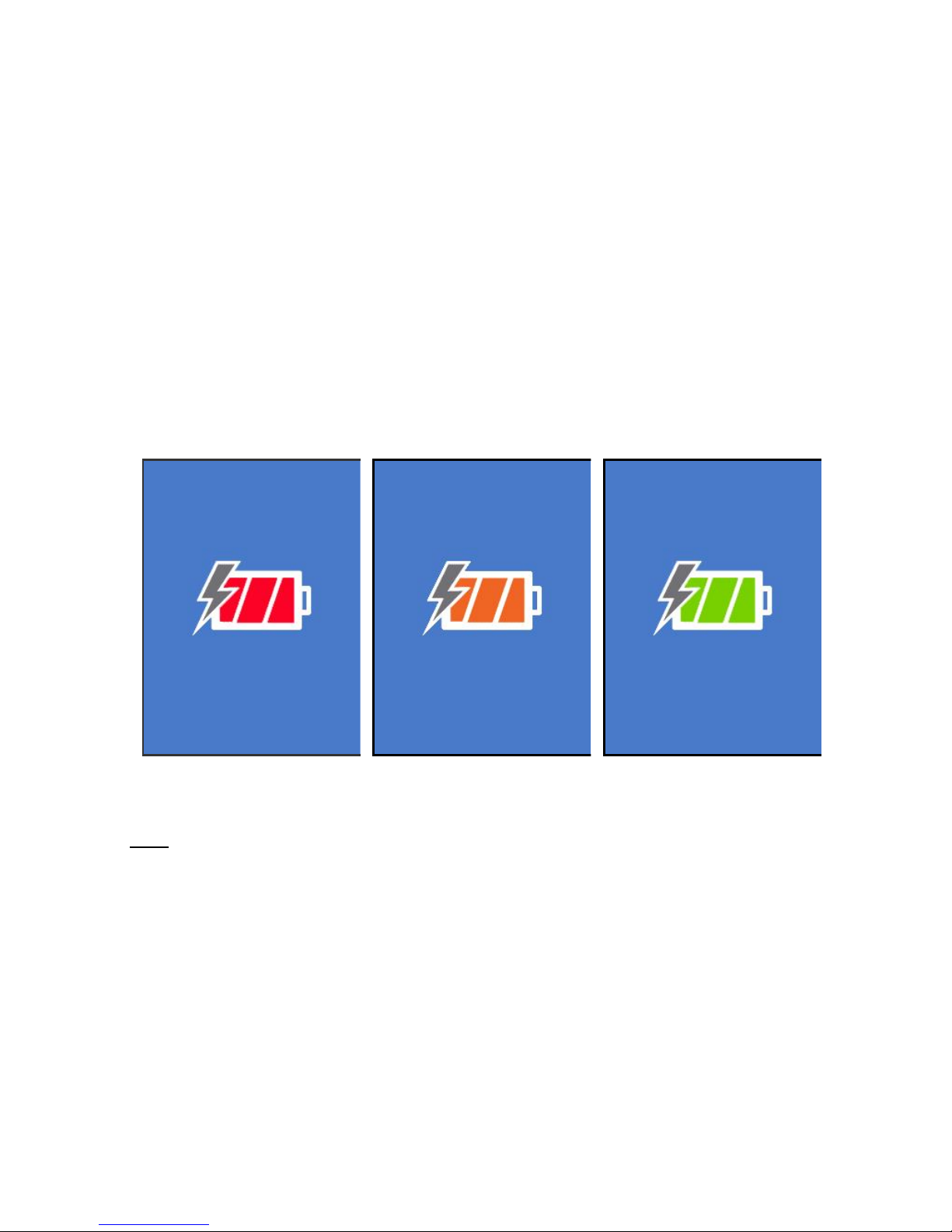

Charging screen will appear during battery charging. When the battery image on the
screen stops blinking and turns green, the charging is complete.
Low
Mid
Full
Duration of charging: About 12 hours (24 hours after long periods without use).
Note: ProPex®II cannot be used while charging.

11 / 120

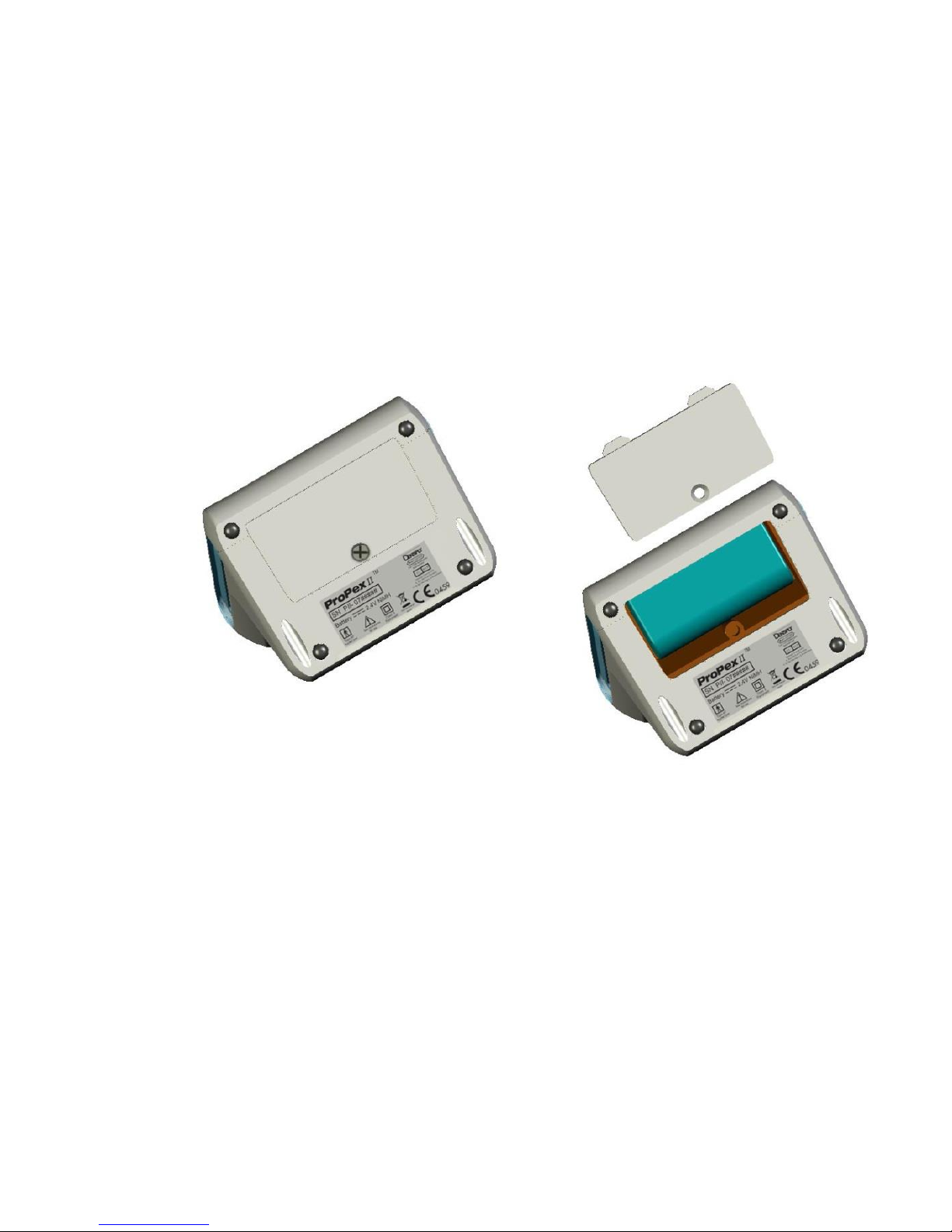

D. Replacement of the Rechargeable Battery
The battery compartment is located at the bottom of ProPex ®II and its cover is
secured by a screw.
1. Release the screw and remove the battery compartment cover
2. Remove the battery and disconnect the battery cable from the connector
3. Insert the new battery cable into the connector
4. Insert the battery into the battery compartment
5. Close the battery compartment and secure it with the screw
Warning: Use only original battery pack from your supplier !

12 / 120
E. Getting Started
1. Disconnect the charger from the device if connected.

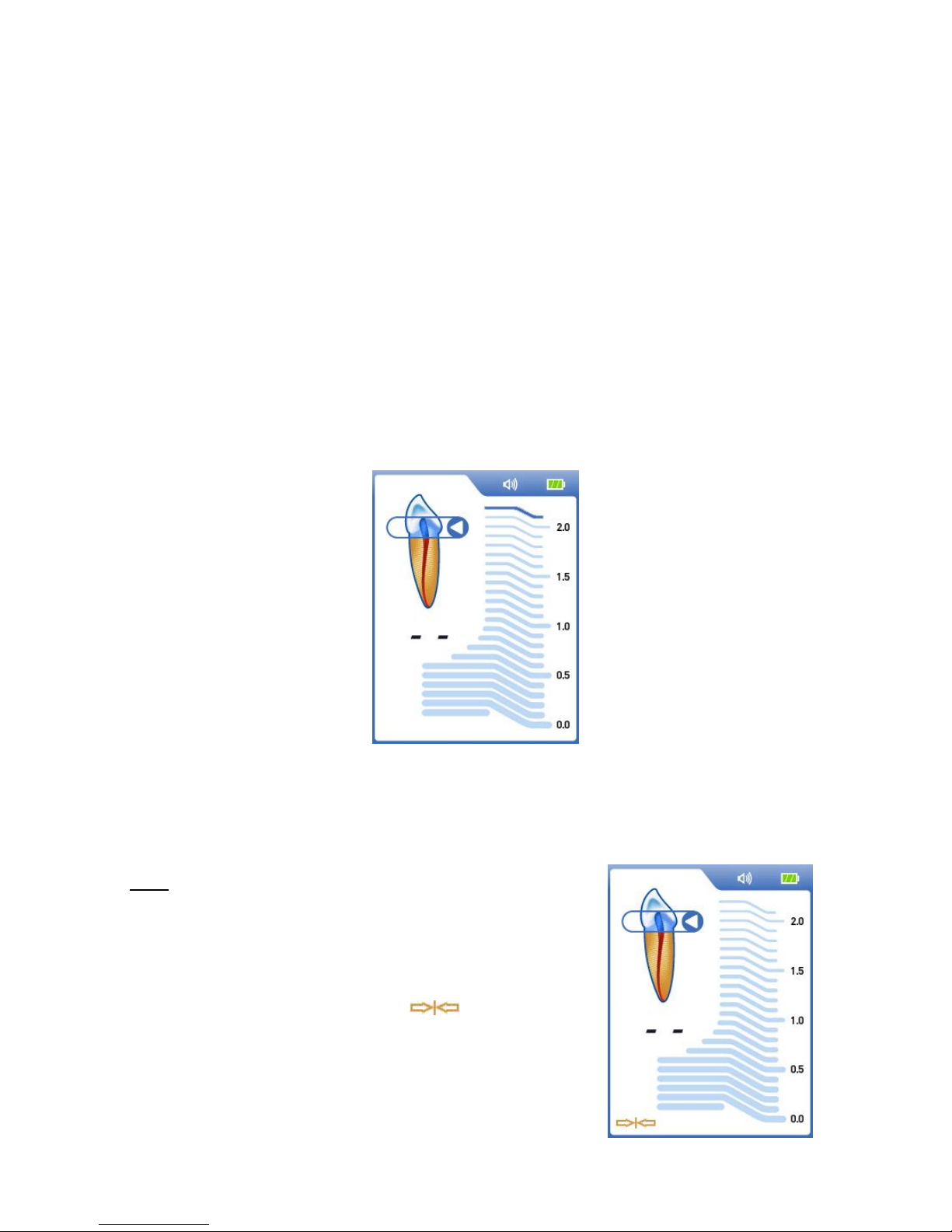

2. Connect the measurement cable and switch the device On –after a short
logo presentation, the main screen is displayed and the cursor on the tooth
image will start blinking.
(While turning the device On without the measurement cable –the main
screen will be displayed without cursor on the tooth image).
3. Attach the lip clip to the patient.
4. Insert the file into the canal –(to ensure precise measurements the file size
should be adjusted to the canal diameter).
5. Connect the hook to the file.
The cursor on the tooth will stop blinking (accompanied by a double beep signal).
A blinking cursor and no sound signal indicates a faulty connection. Check your
connections, clean your hook connection, moisten the canal, if necessary, and start
again.
No other adjustments are necessary before starting measurement.
Note: Connection test feature is included in ProPex® II
in order to check the cables:
●Connect metal part of the connection hook
to the lip clip
●“Connection test” icon should appear
in the bottom left corner of the display,
indicating proper connection
●If no icon appears, the connection hook or
the measurement cable should be replaced

13 / 120

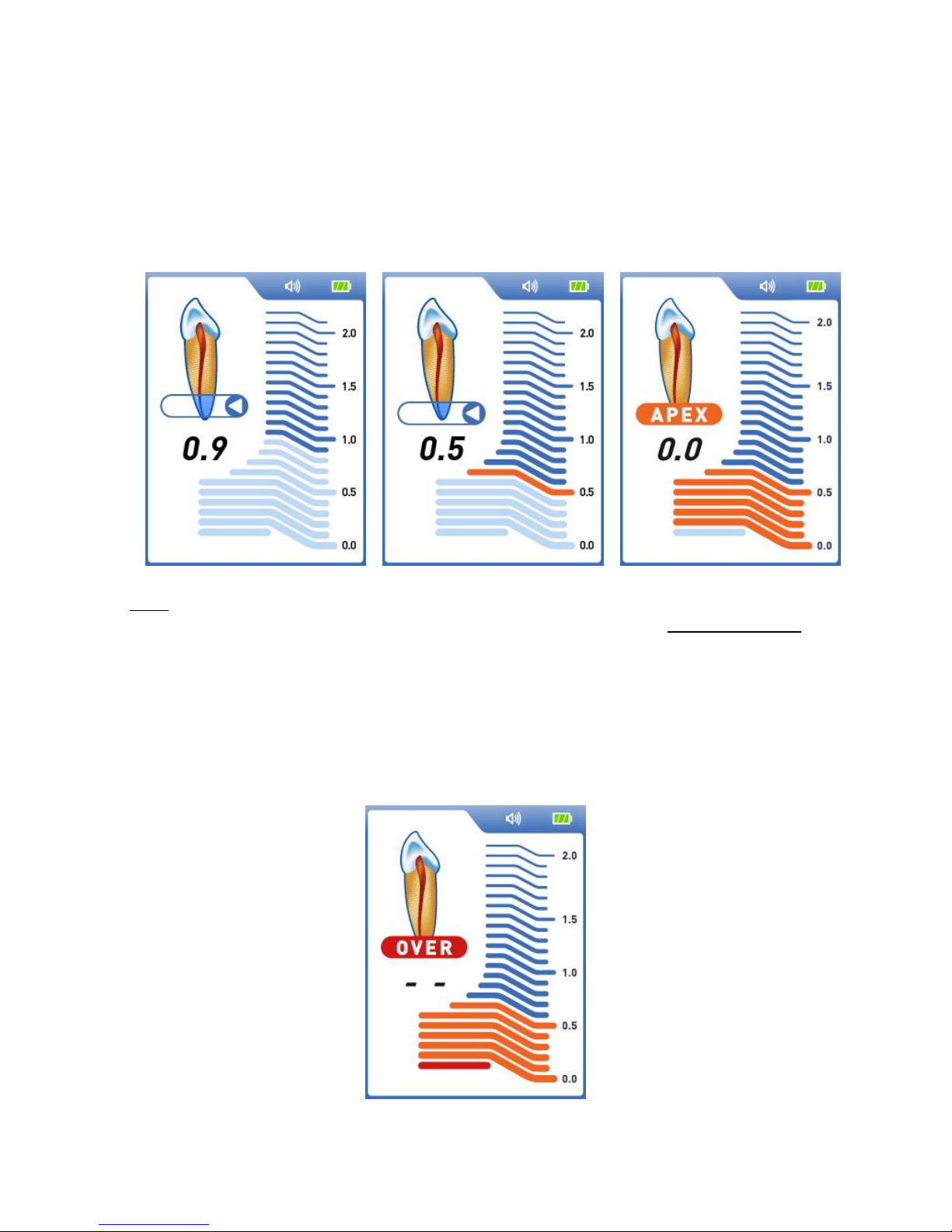

F. Searching for the Apex
1) Coronal and Medial Zone
Slowly introduce the file into the canal.
The cursor on the tooth icon indicates the progression of the file inside the canal.
Further progression of the file in the canal is shown both by the cursor on the tooth
icon and by numerical value on the graphical scale. ProPex®II emits audible
information of file progression via a series of progressive rate beeps. If the bar graph
makes sudden large movements in the upper part of the canal, continue slightly
towards the apex so the signal returns to normal.
Warning: The scale indication on the ProPex®II screen does not represent a distinct
length or distance in mm or other linear units. It simply indicates the file
progression towards the apex.

14 / 120
2) Apical Zone
The apical zone is divided into 10 segments graduated from 0.9 to 0.0 (apex) as
visual information of file progression.
When the apex is reached, the cursor shows “APEX” and a solid tone is emitted.
Beginning of Apical
Zone
Middle of Apical Zone
Apical position
Note: As a safety precaution in order to avoid over-instrumentation, it is
recommended to proceed as follows: place the fill onto an endodontic ruler at
the point where the ProPex®II indicates ‘APEX’. Subtract a minimum of 0.5
mm from the measured file length.
3) Over-instrumentation
A red segment and a warning signal indicate that the file has passed the Apex. The
cursor on the tooth icon shows “OVER”.

15 / 120
G. Sound Adjustment
ProPex®II is equipped with a sonic indicator which enables monitoring of the
progression of the file within the canal.
This function, in conjunction with the display of progression, enables working "blind"
while still monitoring the progression of the file.
The volume can be adjusted to one of four levels: mute, low, normal and high, by
successive presses on the volume key.
H. Demo Mode
The built-in Demo mode is available to become acquainted with the device and to
demonstrate its operation.
1. Disconnect the measuring cable or the charger from the device if connected
and turn Off the device.
2. To start Demo Mode, press and hold the (On/Off) button for about 2
second until the second beep sounds and “Demo” indication appears in the
bottom left corner of the display.
3. During Demo cycle device operating sequence is shown on the screen.
Press button to pause the simulation; press button again to resume.
4. When Demo cycle is completed, it is repeated automatically until interrupted
by the operator.
5. To exit Demo mode press button and hold it for about 2 sec. until a beep
sounds.
Note: If measurement cable is connected to ProPex®II during Demo cycle, the
device switches automatically to normal operation mode.

16 / 120
I. Automatic Shutdown
ProPex®II automatically shuts down after 5 minutes without use. It is advisable,
however, to manually switch off equipment after measurement by simply pressing
the key (On/Off).
J. Maintenance of your ProPex®II
The device does not contain user serviceable parts. The service and repair should
be provided by factory trained service personnel only.
After each use, all the objects that were in contact with infectious agents should
be cleaned using towels impregnated with a disinfecting and detergent solution (a
bactericidal, fungicidal and aldehyde free solution). Use of chemical agents may
cause damage to the equipment. We recommend to use only a disinfecting
solution which is approved for its efficacy (VAH/DGHM-listing, CE marking, FDA
approval).
Other recommendations:
-Do not expose ProPex®II to any liquid. In particular, avoid spilling with chemical
solutions used for treatment. These chemicals could cause damage, deform or
discolor the device. Be especially careful to avoid spilling formalin cresol (FC)
and sodium hypochlorite as they are quite aggressive. Wipe up any chemical
spills immediately (some chemicals may leave discoloration and spots even if
they are immediately wiped up).
-Handle the device carefully; do not drop, bump or expose the unit to any kind of
impact or shock. Rough handling could cause significant damage.
-Do not drop anything on or bang the measuring cable plug after it has been
inserted into the connector.
-ProPex®II must be stored in normal temperature (< 60°C) and humidity
conditions.
Reprocessing procedure:
-The lip clip, the hook and the fork must be sterilized between treatments by
autoclaving at 134°C.
-The measuring cable cannot be autoclaved.
See the section "Disinfection, cleaning and sterilization procedure for the ProPex®II
accessories" for the detailed procedure.

17 / 120
K. Warranty
ProPex®II is warranted for 24 months from the date of purchase. The accessories
(cables, battery etc.) are warranted for 6 months from the date of purchase.
The warranty is valid for normal usage conditions. Any modification or accidental
damage will render the warranty void.
L. Technical Specifications
ProPex®II complies to IEC60601-1 safety standard and the requirement of CE
Marking of Conformity.
ProPex®II electronic apex locator belongs to the following category of medical
devices:
-Internally powered equipment (2.4V NiMH rechargeable battery)
-Type BF applied parts
-Not suitable for use in the presence of flammable anesthetic mixtures with air,
oxygen or nitrous oxide
-Continuous operation
-Ingress of liquids –not protected
-Environmental conditions during transportation: temperature: –20ºC to +60ºC
(0 to 140ºF); relative humidity: 10% to 90%, non-condensing
Technical specifications
Dimensions: 130 x 80 x 63 mm
Weight: 360 gr.
Type of screen: Color Graphic TFT
Screen dimensions: 3.5 “
Supply: 2.4V NiMH rechargeable battery
Switching charger: Input: 100-240 V AC ~ 50-60 Hz
Output: 6V DC ± 5%, 1000 mA

18 / 120
M. Standard symbols
On the device label appear standard symbols as follows:
Class II equipment
Type BF Applied part
Follow instructions for use
Direct current
Recycling : PLEASE DO NOT THROW AWAY! This product and all
its components must absolutely be recycled through your supplier
.

19 / 120
7. Disinfection, cleaning and sterilization procedure
for the ProPex®II accessories
Foreword
The lip clip, the hook and the fork must be cleaned, disinfected and sterilized before
each use to prevent any contamination. This concerns the first use as well as the
subsequent uses.
General recommendations
The user is responsible for the sterility of the product for the first cycle and each
further usage as well as for the usage of damaged or dirty instruments.
For your own safety, please wear personal protective equipment (gloves,
glasses, mask).
Use only disinfecting solution which is approved for their efficacy (VAH/DGHM-
listing, CE marking, FDA approval)
Procedure for lip clip, hook and fork
Operation
Operating mode
Warning
1.
Pre-
Disinfection or
Decontaminati
on
- Soak immediately just
after usage all
instruments in a
disinfectant solution
combined with proteolytic
enzyme if possible.
- Follow instructions and observe
concentrations and immersion
time given by the manufacturer
(an excessive concentration may
cause corrosion or others defects
on instruments).
- The disinfectant solution should
be aldehyde free (to avoid blood
impurities fixation).
- Do not use disinfectant solution
containing Phenol or any products
which are not compatible with the
instruments (See general
recommendation).
- For visible impurities that are
observed on instruments, a pre-
cleaning is recommended by
brushing them manually with soft
material.
