Denver WAS-18110M User manual

Mobile Phone
WAS-18110M
www.facebook.com/denverelectronics
User Guide
English, Deutsch, Dansk, Suomalainen,
Svenska, Français, Nederlands, Español,
Italiano, Polski, Português

Start to Use
Put in/Take out battery
Put in battery
1.Open the battery cover
2. Put battery into the battery slot. Keep
three metal points of battery facing
downward and matching with the three
metal connection points on phone.
3. Close the cover. Make sure that cover is
completely matched and the cover matching
sound could be heard.

Remark：Shut down all devices and cut
theconnection with charger when removing
battery. Please use battery which is
matched with this phone only.
Insert/Take out SIM card
1. Insert SIM card：Remove battery cover；
Insert and slide the SIM card with the metal
part facing downward by following below
arrow direction at battery slot until SIM card
is completely inserted in right position.

2. Take out SIM card：Hold the notch of
SIM card and lift it slightly up by the other
hand to take card out.
Remark：Please note that you should use
GSM SIM card only, because it doesn’t
support 3G.
Remark：Phone must be power off when
putin and take out battery.
SIM card and the contact point will be
easily damaged due to scratch and bending.
Please be careful when inserting andtaking
out the SIM card.
Battery Charging
Phone could be charged when phone is
power off or power

Make sure that battery is inserted in
phone before charging.
1. Plug in the charger.
2. Plug out the charger from power jack first
after it is charged. Then unplug charger
from phone.
Remark：Battery indication will
bedisplayed after several minutes ifbattery
is over-discharged.

Not enough battery alert
Phone will give alert when battery is not
enough and display a message of low
battery on screen. Please charge battery.
Please charge battery when you receive the
alert of low battery during calling in order to
keep the calling.
Your Phone
Turn ON, Turn OFF and keypad lock: to
turn on and turn off the phone, press and
hold the red end call key.
Avaa näppäimistö painamalla ja pitämällä
*-painiketta
Lukitse näppäimistö painamalla vasenta
valintanäppäintä ja *-painiketta
Stand by Mode
When phone is ready to use but no
operation is done on phone, then phone is
under stand by mode

Icons on Screen
Icons might be displayed on screen.
Battery status
Signal status
Alarm
Message
Silent mode
General mode
Vibration mode
Missed call

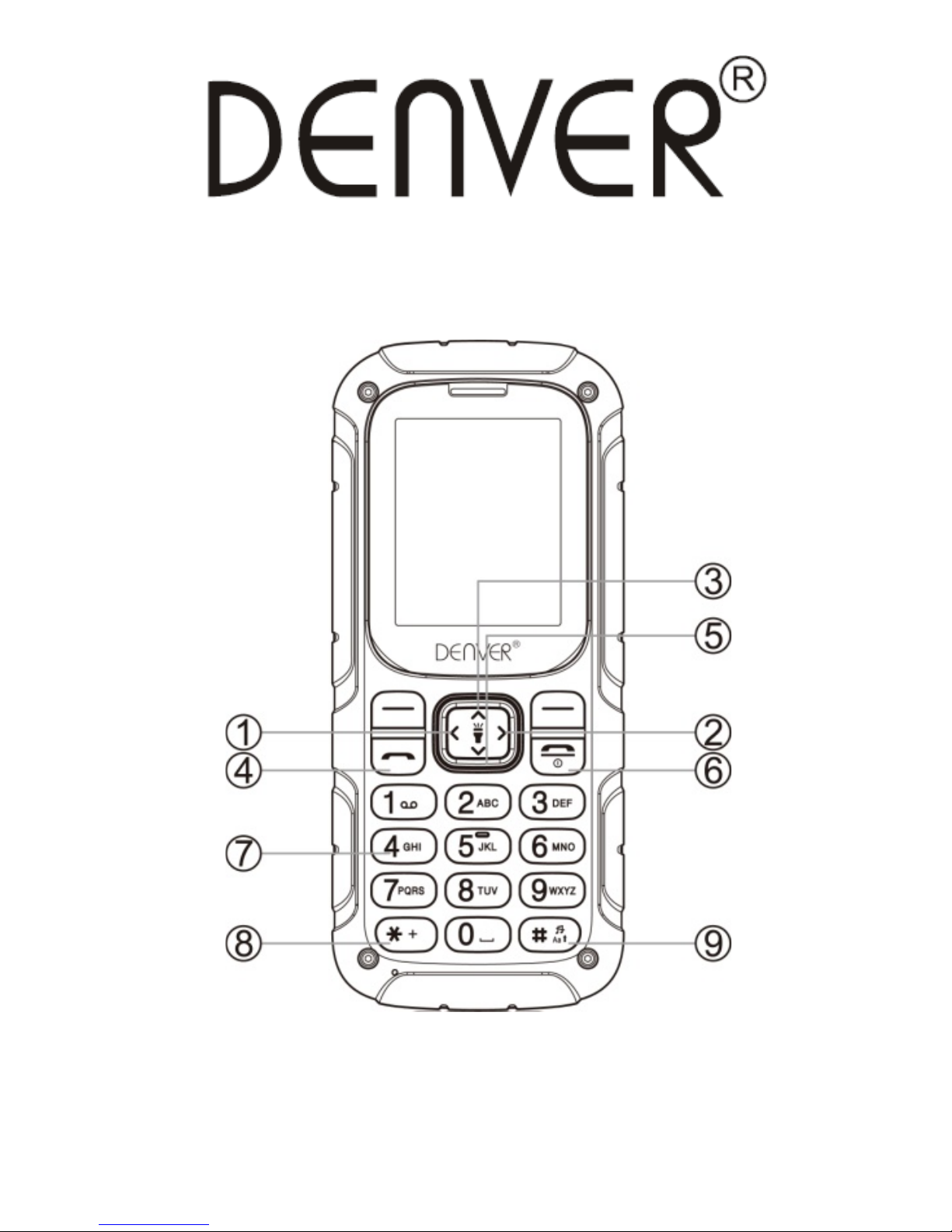

Key Functions
Key
Key Name
Functions
1 Navigation
Left key
Standby mode
：
press to enter
message
Operating：press to
move cursor left
2 Navigation
Right key
Standby mode
：
press
to enter profiles
Operating ：press
to move cursor right

3 Navigation
Up key
Standby mode
：
press
to enter main menu
Operating ：press
to move cursor up
4
Answer
Key
(Green
key)
Press to make
outgoing call or
press to pick up
phone when there is
incoming call.
Standby mode：
press to enter call
list
5
Navigation
Down
key
Standby mode
：
press
to enter phonebook
Operating ：press
to
move cursor down
6
End Key
(Red
Key)
Phone Off
：
Long
press to switch on;
Phone On：Long
press to switch off;
Operating：Press
to go back to idle

screen
7
Numeric
key
Pressto input
numbers or letters
8 * key
Standby mode
：
Long press to lock
the keypad.Short
press to type in *，
+,P.
Editing mode: Press
to use normal
symbol.
9 # key
Standby mode
：
Long
press to set phone
silent mode, short
press to type in #.
Editing mode ：
Press
to switch typing
method.
Voice Dial

Make an International Call
1. Press 0 key for twice times and sign “+ ”
will
come out. Then enter country code, area
code and phone number (without a zero in
front of mobile phone number) Press Send
key to enter voice dial to call out.
2. Dial a fixed line: “＋”country code +
entirephone number + Send key.
Dial extension No. of a Fixed line
Some extension numbers of fixed line
couldn’t be dialed directly. You need to dial
telephone exchange first and then dial the
extension number. Type in a P symbol
between telephone exchange number and
extension number, this phone willdial the
extension number automatically. Follow
below method to make a symbol P: short
press * key for three times. Then it will
display a P symbol on screen.
Main menu: To access the Main Menu on
your phone, press the selection key on the
top left
- Messaging:to write and read SMS text
messages
- Contacts:to manage and save contacts

- Calls Log: Missed Calls, dialled calls...
- Multimedia: Kamera, videotallennin,
kuvien katselu, musiikkisoitin, videosoitin,
käärmepeli
- Kalenteri: Voit lisätä uuden tapaamisen
- Hälytys: Hälytyksen asettaminen
- Settings: to customize your phone
- Organisoija:
Pelit, tiedostonhallinta, laskin,
äänitallennin, E-kirja, Bluetooth
- FM-radio: Radion kytkeminen päälle ja
pois päältä.
Making a call: to make a call from the
Home screen, select the desired number by
using thekeypad and then press the green
call button. To end the call, press the red
end call key.
Call a number from the contacts: from the
main screen, press the upper right selection
key; this will automatically open the
Contacts. Scroll through contacts with the
UP/DOWN keys and press the green call
button to call the desired contact.
Call anumber from the call log: from the
main screen, press the green call key, the
missed, received, and outgoing calls will
be automatically displayed.

Scroll with UP/Down keys and press the
green call button when you find the number
you want to call.
Add contacts to the Contacts: Select
Menu > Contacts > Options > New, Enter
the name and the new number, then press
Save.
Speed dial: in Menu > Contacts >
Options >Others> Speed Dial > Options >
Edit, you can assign to keys 2-9 certain
numbers that will be called automatically if
you press and hold the related button.
Memory status: this feature within the
contacts settings allows you to see how
much free storage there is on the phone and
SIM card.
Send and read SMS
Send SMS:from the main screen, choose
Menu >Messaging > Write message and
write your message. Press Options > Send
to > Insert number and enter the number
using the numeric keypad or Insert
contacts to select from the Contacts the
contact you want to text.

Read SMS: when you receive a new text
message, the phone displays an envelope
icon on the top bar(until the message is
read/for as long as the message is unread)
and a notification pop up appears on the
main screen. Press the upper left selection
key to enter the Inbox or access it fromthe
main screen by selecting Menu >
Messages >Inbox.
Bluetooth: Under Organizer>
Bluetooth >Open Bluetooth you can turn
on Bluetooth.With the Paired Device, you
can search forother devices (headsets,
phones…). Select the device you would like
to associate with and confirm it on both
devices.
Soittoäänen asettaminen: valitse Valikko >
Asetukset> Profiilit > Valinnat >
Asetukset > Soittoäänen asetukset, voit
asettaa viestin merkkiäänen ja puhelun
soittoäänen
Pressing and hold #button to change
Meeting mode, General mode, Silence
mode.
Phone Settings: from Menu >
Settings >Phone settings, you have/will

have access to various settings such as
Date and Time, Language, and Display.
Select Restore to reset the factory
settings of WAS-18110M: enter the phone
password 1234 to confirm the restoring.
Radio frequency (RF) exposure and SAR
THIS DEVICE MEETS INTERNATIONAL
GUIDELINES FOR EXPOSURE TO RADIO
WAVES
Your mobile device is a radio transmitter
and receiver. It is designed and
manufactured not to exceed the limits for
exposure to radio frequency (RF)
recommended by international guidelines
(ICNIRP). These limits are part of
comprehensive guidelines and establish
permitted levels of RF energy for the
general population. The guidelines were
developed by independent scientific
organizations through periodic and thorough
evaluation of scientific studies. The
guidelines include a substantial safety
margin designed to assure the safety of all
persons, regardless of age and health.
The exposure standard for mobile devices
employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The
SAR limit stated in the international

guidelines is 2.0 watts/kilogram (W/kg)*.
Tests for SAR are conducted using
standard operating positions with the device
transmitting at its highest certified well
below the maximum value. This is because
the device is designed to operate at multiple
power levels so as to use only the power
required to reach the network. In general,
the closer you are to a base station, the
lower the power output of the device. power
level in all tested frequency bands.
Although the SAR is determined at the
highest certified power level, the actual SAR
of the device while operating can be well
below the maximum value. This is because
the device is designed to operate at multiple
power levels so as to use only the power
required to reach the network. In general,
the closer you are to a base station, the
lower the power output of the device.
SAR values may vary depending on
national reporting and testing requirements
and the network band. Use of device
accessories and enhancements may result
in different SAR values.
The SAR limit for mobile devices used by
the public is 2.0 W/kg averaged over 10
grams ofbody tissue. The guidelines
incorporate a substantial margin of safety to
give additional protection for the public and

to account for any variations in
measurements. SAR values may vary
depending on national reporting
requirements and the network band.
The highest SAR value for this model phone
tested for use is 0.373W/kg.
Electric and electronic equipment and
included batteries contains materials,
components and substances that can be
hazardous to your health and the
environment, if the waste material
(discarded electric and electronic equipment
and batteries) is not handled correctly.
Electric and electronic equipment and
batteries is marked with the crossed out
trash can symbol, seen below. This symbol
signifies that electric
and electronic equipment and batteries
should not be disposed of with other
household waste, but should be disposed of
separately.
As the end user it is important that you
submit your used batteries to the approriate
and designated facility. In this manner you
make sure that the batteries are recycled in
accordance with legislature and will not
harm the environment.

All cities have established collection points,
where electric and electronic equipment and
batteries can either be submitted free of
charge at recycling stations and other
collection sites, or be collected from the
households. Additional information is
available at the technical department of your
city

ALL RIGHTS RESERVED
DENVER ELECTRONICS A/S
WWW.DENVER-ELECTRONICS.COM
Importer:
DENVER ELECTRONICS A/S
Omega 5A, Soeften
8382 Hinnerup,DENMARK
Hereby, Inter Sales A/S, declares that this
senior mobile phone DENVER
WAS-18110M is in compliance with the
essential requirements andother relevant
provisions of Directive 1999/5/EC. A copy of
the Declaration of Conformity may be
obtained at
DENVER ELECTRONICS A/S, Omega
5A ,Soeften8382 Hinnerup,Denmark
