Denver DVH-7787 MK2 User manual

www.denver-electronics.com
DVH-7787 MK 2

Do not use powering

ATTENTION: this symbol indicates that this appliance is a class 1 laser product.
• D o not try to open the cover or look at the laser beam.
• Never touch the laser lens inside the compartment.
CLASS 1 LASER PRODUCT
is in safe operating condition.

SCART OUT
HDMI
COAXIAL
USB
7
7
8
8
DC 5V.1.5A
7
DC IN jack
7
FRONT AND REAR PANEL
FRONT PANEL
REAR PANEL

ENTER
VOL
OSD P/N A-B
PROG ANGLE SUBTITLE VIDEO
1 2 3
4 5 6
7 8 9
0/10 10+ GOTO
REV FWD PREV NEXT
L/R PLAY/PAUSE STOP
SETUP TITLE
MENU
RETURN
MUTE AUDIO REPEAT RESET
ZOOM SLOW USB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
23
24
25
26
27
28
29
30
31
17 32
33
1. Power Button
2. PROG(program) Button
3. ANGLE Button
4. Numeric Buttons
5. REV(reverse) Button
6. FWD(forward) Button
7. L/R Button
8. PLAY/PAUSE Button
9. SETUP Button
10. ENTER Button
11. MENU Button
12. MUTE Button
13. AUDIO Button
14. (volume up) Button
15. OSD(on screen display) Button
16. (volume down) Button
17. ZOOM Button
18. Open/Close Button
19. VIDEO Button
20. SUBTITLE Button
22. NEXT Button
23. PREV(previous)Button
24. STOP Button
25. TITLE Button
26. Navigation Buttons
27. RETURN Button
28. RESET Button
29. REPEAT Button
30. A-B Button
31. P/N(PAL/NTSC) Button
32. USB Button
33. SLOW Button
22
21. GOTO Button
REMOTE CONTROL

3
Press to power on the unit from standby mode, press again to turn to standby mode.
(It depends on the recording of
During playback a DVD disc with multi-angle recording, press repeatedly to select the
viewing angle. disc).
ANGLE
During DVD playback, press repeatedly to select the
recording of disc).
SUBTITLE
desired subtitle (It depends on
VIDEO
L/R
Press to change to Mono L, Mono R, Mix Mono or Stereo(It depends on disc type).
SETUP
Press to enter setup menu, using navigation and ENTER button to set to desired
depends on the recording of the disc).
Press to return to disc's title page (Function
TITLE
depends on the recording of the disc).
Press to return to disc's menu page (Function
MENU
appear on screen. Use the Direction
GOTO
time, then press the ENTER Button to start playback.
screen. Use the Direction
the ENTER Button to start playback.
DVD:
CD:
Press to switch video mode.
During DVD playback, press the GOTO Button once, the Title, Chapter and Time
selection menu will and Numeric Buttons to select
the desired title, chapter and
During CD playback, press the GOTO Button once, the Track and Time selection menu
will appear on and Numeric Buttons to select the desired
track and time, then press
setting. Press the setup button to exit setup menu.
REMOTE CONTROL OPERATION
NOTE: The parental passcode is "8888".

4
During playback, press repeatedly to select the desired audio mode.
(Function depends on the recording of disc).
AUDIO
During playback, press the SLOW Button repeatedly
Button to resume normal playback.
During playback, press the A-B Button to define the starting point, press again to
(This function is not available on all discs).
To cancel, press the A-B Button again.
A-B
SLOW
define the ending ponit, the unit will then play the selected section repeatedly.
to set slow motion speed.
Press (Play/Pause)
During movies playback, press
repeatedly to zoom in or zoom out the picture.
ZOOM
Press repeatedly to select and set the color system to NTSC, PAL or AUTO to match
the color system of the connected TV.
P/N (PAL/NTSC)
(On Screen Display)
During playback, press repeatedly to
OSD
display playing status or turn it off.
Press to reset to default settings.
RESET
VOL +/–
Press to adjust volume level.
USB
(It depends on the recording of the disc).
Press to enter DISC/USB mode selection window, using direction and ENTER button
on to select and set to desired mode.
REMOTE CONTROL OPERATION
Press to turn off the sound, press again to resume.
MUTE
RETURN
Press to return to previous menu. (It depends on the recording of the disc).

Repeat Playing:
(CD)
Repeat Playing:
(DVD)
(CD/DVD)Program:
~ Press the REPEAT button to "Repeat 1", the current track will be played repeatedly.
~ Press the REPEAT button again to "Repeat All", all tracks will be played repeatedly.
~ Press the REPEAT button the third time to "Repeat Off ", repeat will be cancelled.
~ Press the REPEAT button to "Repeat Chapter", the current chapter will be played repeatedly.
~ Press the REPEAT button again to "Repeat Title", the ttitle will be played repeatedly.
~ Press the REPEAT button the third time to "Repeat All", all files will be played repeatedly.
~ Press the REPEAT button the fourth time to "Repeat Off", repeat will be cancelled.
DVD:
T C T C
5 -- :-- T C
9 -- :-- T C
13 -- :--
2 -- :-- 6 -- :-- 10 -- :-- 14 -- :--
3 -- :-- 7 -- :-- 11 -- :-- 15 -- :--
4 -- :-- 8 -- :-- 12 -- :-- 16 -- :--
PLAY CLEAR PLAY CLEAR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
CD:
----
1 -- :--
3. For wrong setting,
4. After programming, using the direction buttons to highlight the PLAY Button on the screen,
2. Using the direction and numeric buttons to set the desired Title, Chapter or Tracks.
clear all settings. highlight the CLEAR Button on screen, then press the ENTER button to
press the ENTER button to start program playing.
1. During DVD or CD playback, press the PROG Button on remote control, the program setting
menu will appear as below:
5
REMOTE CONTROL OPERATION

p DISC
If you want to switch to playing the Disc from USB, please press the USB button to pop up the DISC/USB
mode selection window, using navigation button to select DISC, press ENTER to confirm, the appliance will
turn back to disc reading.
If you want to switch to playing the USB, please press the USB button to pop up the DISC/USB mode selection
window, using navigation button to select USB, press ENTER to confirm, the appliance then recognize and
read the USB.
CONNECTION
SCART OUT
HDMI
COAXIAL
DC 5V.1.5A
HDMI
6
REMOTE CONTROL OPERATION

7
CONNECTION
SCART OUT
HDMI
COAXIAL
DC 5V.1.5A
Yellow
Red
White
Video
L
R
Video input jack ( Yellow )
Audio left channel input jack ( White )
Audio right channel input jack ( Red )
Audio/Video Cable(not included)
SCART
Yellow
Red
White
SCART OUT
HDMI
COAXIAL
DC 5V.1.5A

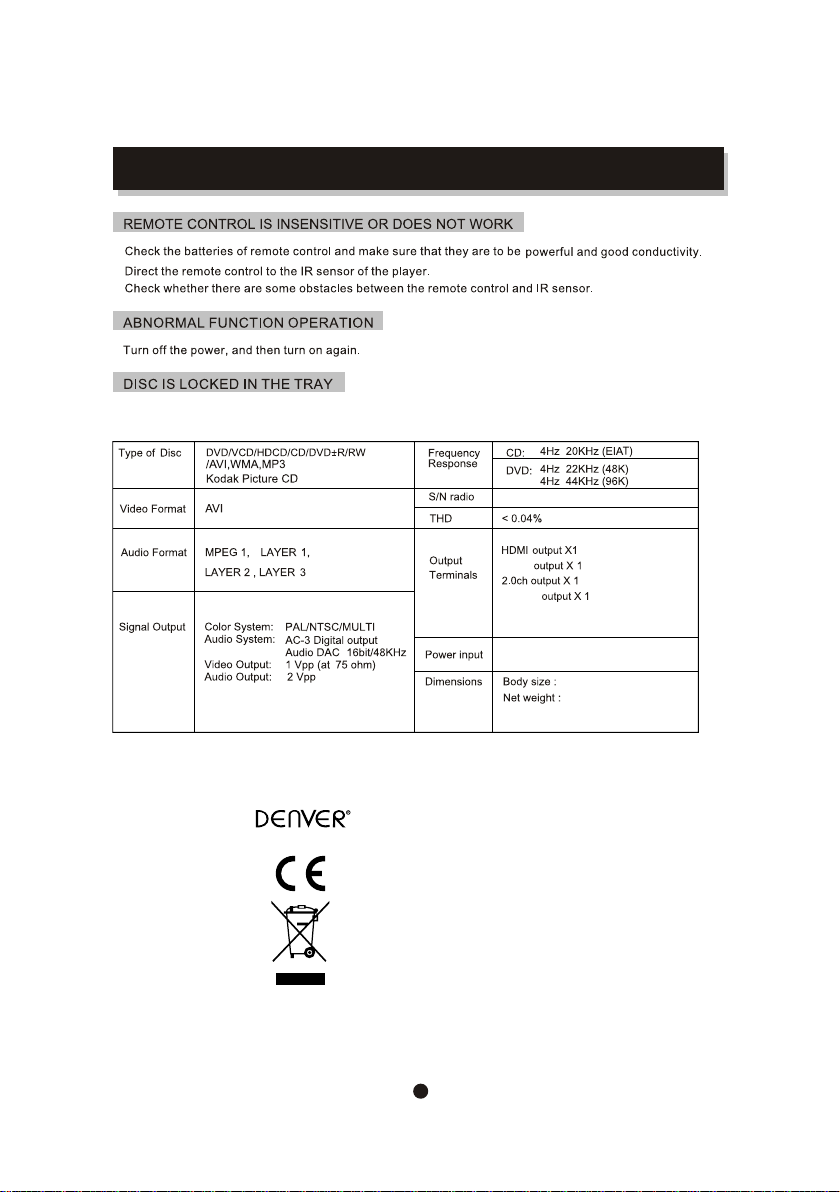

A/V
