Makita CL183D Manual

Model No.
Specication CL183D CL100D (For comparison)
Battery
Voltage: V 18 10.8
Capacity: Ah 1.3 1.3
Energy capacity: W 24 14
Cell Li-ion Li-ion
Charging time: min 60 with DC18WA 50 with DC10WA
Suction power: W 14 14
Max sealed suction: kPa (mmH2O) 2.2 (220) 1.8 (180)
Max air ow: m3/min 1.2 1.2
Continuous use (approx): min 24 12
Dust capacity: mL 600 600
Dimensions: mm (")
Length
without T-nozzle and
Straight pipe 454 (17-7/8) 454 (17-7/8)
with T-nozzle and
Straight pipe 966 (38) 966 (38)
Width 102 (4) 103 (4-1/16)
Height 148 (5-7/8) 150 (5-7/8)
Weight according to
EPTA-Procedure 01/2003*1: kg(lbs) 1.1 (2.5) 0.88 (1.94)
*1 With BL1813G, without Nozzle and Straight pipe

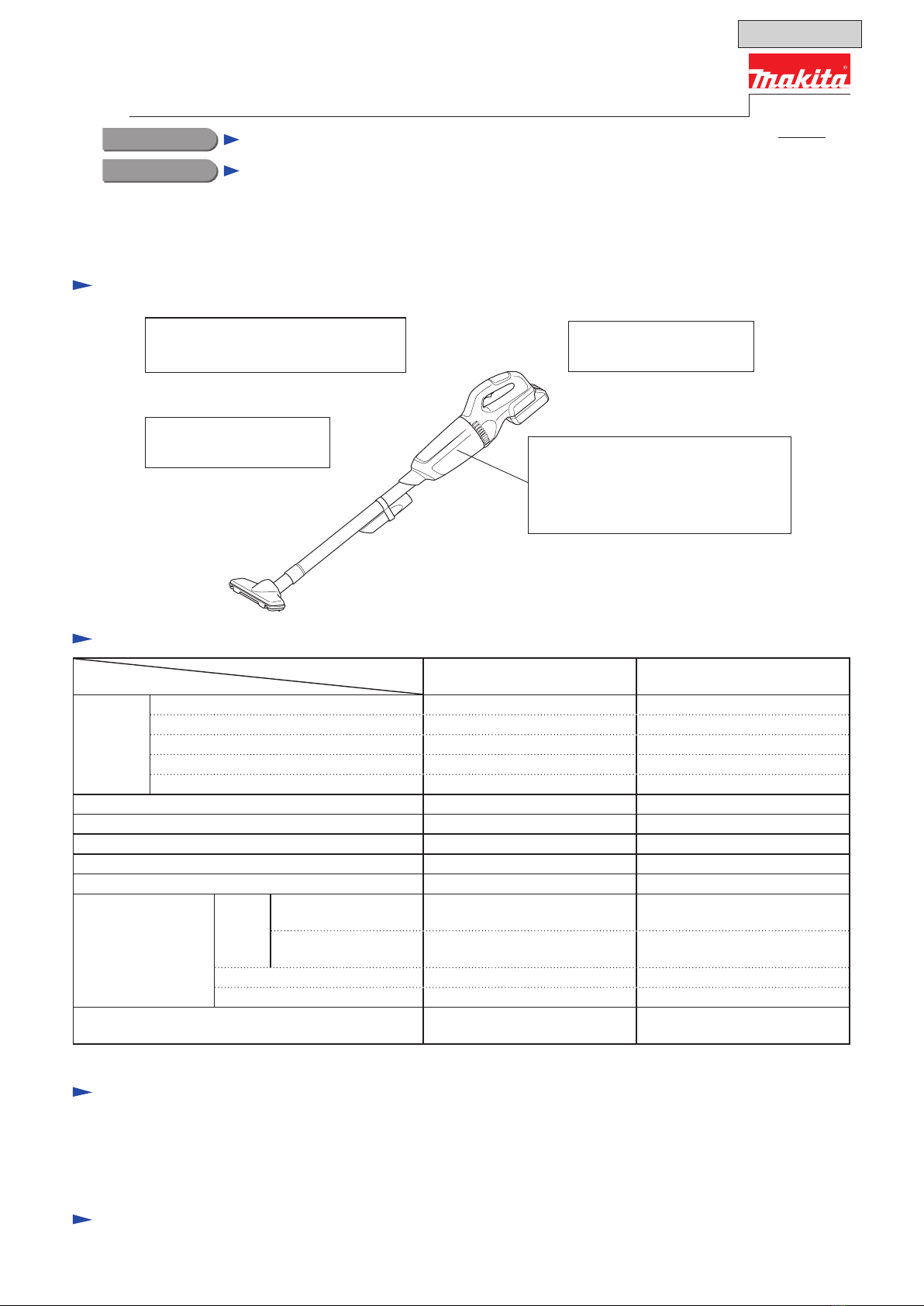

Features and benets
Powered by 18V 1.3Ah
Li-ion Battery BL1813G
Ergonomic handle
with easy on/off trigger
Quick dust disposal
• You can easily dispose of dust simply
by removing front housing.
• Disposable paper bag is not necessary,
resulting in reduced maintenance cost.
Standard equipment
Optional accessories
Specication
Housing color
Ivory or Makita blue
CONCEPT AND MAIN APPLICATIONS
Model CL183D is a handy cordless cleaner of cloth-ltration type powered by
18V 1.3Ah Li-ion battery BL1813G.
Nozzle assembly
Straight pipe
Sash nozzle
Sash nozzle holder
Filter
Battery*2
Battery cover*3
Charger*2
*2 Battery and Charger are not supplied with "Z" model.
*3 Supplied with the same quantity of extra battery.
Note: The standard equipment may vary by country or model variation.
Charger DC18WA
Battery BL1813G
Nozzle assembly (for rug/carpet)
Shelf brush
Flexible hose
Round brush
Filter
Pre-lter
TECHNICAL INFORMATION
PRODUCT
P 1/ 7
Model No.
Description Cordless cleaner
CL183D
OFFICIAL USE
for ASC & Sales Shop

P 2/ 7
Repair
[2] -1. Capsule
[1] NECESSARY REPAIRING TOOLS
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
Commercial tools are available for repairing this product.
DISASSEMBLING
Fig. 1
3. Remove 4x18 Tapping screw (d) and Flat washer 4 (e) to disassemble Valve (f) from Capsule (c).
(d)(e)
(f)
Assemble Capsule section by reversing the disassembly procedure (Fig. 1).
ASSEMBLING
1. Align the Notch of Capsule (a) with that of Housing (b) by turning Capsule (c).
2. Pull off Capsule (c).
(a)
(b)
(c)
(c)
(c)

P 3/ 7
Repair
[2] -2. Motor section
DISASSEMBLING
(b)
1. Prefilter (a) is held with Housing rib (b).
Turn Prefilter (a) to make Tab (c) free from Housing rib (b).
Remove Prefilter (a).
2. Unscrew seven 3x16 Tapping screws (d) from Housing R (e).
Remove Stay (f).
3. Disconnect Flag terminals (g).
Remove DC Motor (h).
(e)
(h)
(g)
Fig. 2
(a)
(a)
(f)
(c)
(c)
Note: Blow dust out of Housing before assembling.
(d)

P 4/ 7
Repair
[2] -2. Motor section
ASSEMBLING
1. Assemble DC Motor while
fitting its Notch (a) to
Protrusion of Housing L (b).
2. Assemble Housing R
(c) with seven 3x16
Tapping screws (d).
3. Assemble Stay (e) while fitting
its Groove (f) to Protrusion of
Housing (g).
(1) Connect Flag terminals with DC Motor’s terminals (Fig. D-2).
(2) Mount DC Motor and Prefilter to Housing L (Fig. 3).
Fig. 3
(a)
(g)
(f)
(f)
4. Turn Prefilter to bring its Tab (h) under Rib of Housing (i).
(h)
(h)
(h)
(g)
(b)
(c)
(i)
(i)
(i)
(i)
(e)
(d)

P 5/ 7
Repair
[2] -3. Switch lever
ASSEMBLING
1. Assemble Compression spring 4 (a) to Switch lever (b)
by pressing the Spring until it stops.
2. Assemble Switch lever (b) into Housing (c).
(b)
Fig. 4
(a)
(a)
(b)
(c)

Circuit diagram
P 6/ 7
Fig. D-1
Line filter
(if used)
Controller
Switch
(a)
Flag receptacle
with lock (#250 t=0.8)
(a) Flag receptacle w/o lock (#187 t=0.5)
White
Color index of lead wires' sheath
Black
Red
Blue
Yellow
Orange
DC Motor
18AWG*
*American Wire Gauge
Red marking
18AWG*
18AWG*
22AWG*
18AWG*
18AWG*
Flag receptacle
with lock (#187 t=0.8)

Wiring diagram
P 7/ 7
(d)
(c)
(b)
(a)
Connect Flag terminals (a) to Switch (b) and DC motor (c)
while facing the wire connected portions to Housing L (d).
Put Electrical parts to Housing L (d).
(h)
(i) Be careful not to put Lead wires
on Rib B (i).
(g)
Put Lead wires between Rib A (h) and the inner wall of
Housing L (d).
Controller
(e)
(a)
Wiring to Switch, DC Motor, Terminal
Wiring in Housing L
Fig. D-2
Fig. D-3
(f) (c)
(b)
Put Line filters (g) in the
area designated with gray
if it is used.
(f)
(d)
Connect Flag terminals (e)
to Terminal (f) as drawn.
