Designs for Vision NanoCam 4K/Go User manual

NanoCam 4K/Go
U
SER
GUIDE
Model
s: N4K/NCG
Ver. 4.22 (En)
®

2
NANOCAM 4K/GO™USER GUIDE
D
ATE OF
I
SSUE
:
4
-25-2022

3
N
ANOCAM
4K/G
O
U
SER
G
UIDE
DESIGNS FOR VISION,INC.LED DAYLITE®HDI™
The Designs for Vision NanoCam 4K and NanoCam Go
Cameras provide portable high definition and resolution for
medical procedures. They are designed to be comfortable yet
functional. They can be used with most of Designs for Vision
headlight systems.
INDICATIONS FOR USE
The Designs for Vision NanoCam 4K and NanoCam Go are
video recording devices used to aid in visualization for
medical professionals. It is intended to document various
tissues and/or body parts. This device is intended to be used
by medical professionals, requiring no specific training other
than what is contained in this manual.
CONTRAINDICATIONS
None known
WARNINGS
Save these instructions. This manual contains
important safety and operating instructions

4
NANOCAM 4K/GO™USER GUIDE
Always examine the unit and accessories for
damage before commencing use. Damaged
accessories must not be used and must be
replaced. Use original Designs for Vision, Inc.
parts and accessories only. The use of
unapproved parts may void the warranty.
To reduce the risk of battery explosion, follow
these instructions and those marked on the
battery
Do not Autoclave
For indoor use only
If the equipment is used in a manner not
specified by Designs for Vision, Inc., the
protection provided by the equipment may be
impaired
This equipment and accessories do not
contain serviceable parts. All repairs need to
be conducted by Designs for Vision, Inc.
service personnel
Do not let liquids enter openings or ports. Do
not immerse parts
in solutions. Allowing

5
N
ANOCAM
4K/G
O
U
SER
G
UIDE
liquids to enter openings or ports may void
warranty.
Equipment not suitable for use in the presence
of a flammable anesthetic mixture with air or
in an oxygen rich environment
Care must be taken when operating this
equipment around other equipment to avoid
reciprocal interference. Potential
electromagnetic or other interference could
occur to this or to the other equipment. Try to
minimize this interference by not using other
equipment in conjunction with this device
No modification of this equipment is allowed.
Performing unauthorized modification on the
equipment, accessories
or the product
labelling may void the warranty
Never make changes or modifications to the
cameras/footpedal
Do not short circuit
Do not expose to fire

6
NANOCAM 4K/GO™USER GUIDE
When replacing battery, be careful to not
crimp or crush wires inside of power pack
Protect battery from fluids and damp
environments
Charge batteries with supplied charger only
Waste of electrical and electronic equipment
must not be disposed as unsorted municipal
waste. It must be collected separately, and
must be disposed as per local regulations
Do not use within 8 inches of electrocautery
devices to maintain proper function
Always use a cloth to clean/disinfect
products
Any serious incident that has occurred in
relation to the device should be reported to
the manufacturer and the competent
authority of the Member State in which the
user and/or patient is established.

7
N
ANOCAM
4K/G
O
U
SER
G
UIDE
SPECIFICATIONS
NanoCam 4K
Weight w/o headlight
31g
Weight w/headlight (UltraMini)
51 g
Camera Dimensions
1.015”L x .986” W x .822”H
Camera Dimensions w/brackets
1.625” L x .986” W x 1.33” H
Resolution
4K, 1080P
Megapixels
13
Lens Magnification
16mm: 2.0X/25mm: 3.0X
Software
DBR Software Version: 1.3.1
Headlight
Panoramic UltraMini
Cable
Removable USB Micro to USB

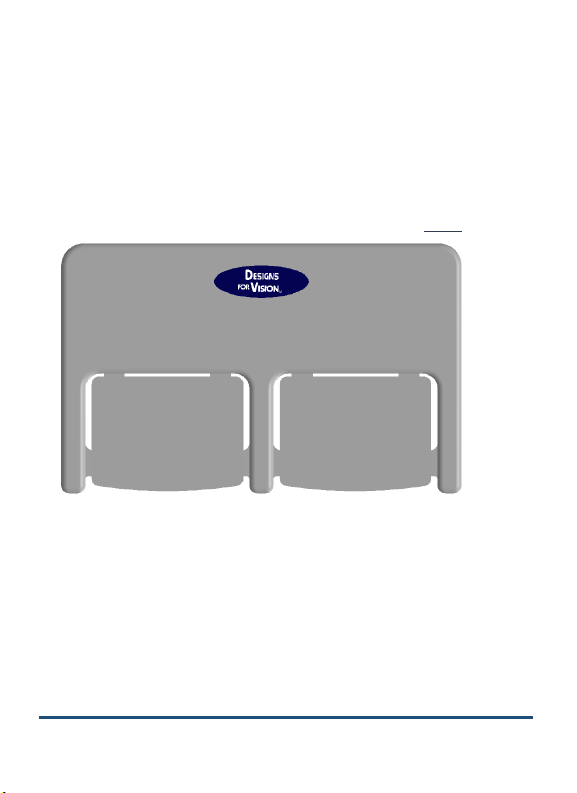

Footpedal
Bluetooth Enabled Wireless
Footpedal Dimensions
10.3” L x 7.3” W
Footpedal Weight
1484 g
NanoCam Go
Weight w/o headlight
14g
Weight w/headlight (UltraMini)
34g
Camera Dimensions
.812” L x .757” W x .616” H
Camera Dimensions w/brackets
1.38” L x .757” W x 1.01” H
Resolution
1080P, 720P
Megapixels
3.4
Lens Magnification
16mm: 2.0X/25mm: 3.0X
Software
DBR Software Version: 1.3.1
Headlight
Panoramic UltraMini
Cable
Removable USB Micro to USB
Compliance
EUMDR Approved, IEC 60601
Footpedal
Bluetooth Enabled Wireless
Footpedal Dimensions
10.3” L x 7.3” W
Footpedal Weight
1484 g

8
NANOCAM 4K/GO™USER GUIDE
COMPUTER(PC) REQUIREMENTS
Minimum Requirements
NanoCam 4K
NanoCam Go
@720p CPU Rating over 3000
●
●
@720p Screen Res 1024 x 768
pix
●
●
@1080p Intel i5 or i7 Processor
●
●
@1080p Intel Graphics Card
●
●
@1080p 8GB Ram
●
●
@1080p CPU Rating 4000 or
higher
●
●
@1080p Screen Res 1920 x 1080
pix
●
●
@720p/1080p Windows 7 or
higher
●
@2160p Windows 10
●
@2160p CPU Rating 6000
●
@2160p Screen Res 3840 x 2160
pix
●
@2160p 4K resolution screen
●
Recommended Requirements
NanoCam 4K
NanoCam Go
Intel i5 or i7 Processor
●
●
8GB Ram
●
16 GB Ram
●
Windows 10
●
●
CPU Rating over 10,000
●
1920 x 1080 Screen Res
●
●

9
N
ANOCAM
4K/G
O
U
SER
G
UIDE
MAC REQUIREMENTS
Minimum Requirements
NanoCam 4K
NanoCam Go
@720p MacBook Air/Pro, iMac,
Mac-Mini 2015 or later
●●
@1080p MacBook Air/Pro, iMac,
Mac-Mini 2017 or later
●●
@1080p Intel i5/i7 Processor
●
●
8GB RAM
●
●
OS X Version 10.13(High Sierra)
●
●
MacBook Air/Pro 2013
●
●
2 USB ports
●
●
Recommended Requirements
NanoCam 4K
NanoCam Go
MacBook Air/Pro, iMac, Mac-Mini
2018 or later
●
16GB Ram
●
I7 Processor
●

10
NANOCAM 4K/GO™USER GUIDE
TRANSPORT & STORAGE
TEMPERATURE:
RELATIVE HUMIDITY:
ATMOSPHERIC PRESSURE:
-40OC to 70OC
10% to 100% including
condensation
500 to 1060 hPa
ENVIRONMENTAL OPERATING CONDITIONS
TEMPERATURE:
RELATIVE HUMIDITY:
ATMOSPHERIC PRESSURE:
10OC to 40OC
30% to 75%
700 to 1060 hPa
APPROVALS
IEC 60601-1, IEC 60601-1-2, Class A, CISPR 11, IEC 62133, IEC 62366-1
EQUIPMENT CLASS:
Class II
INGRESS OF WATER:
NanoCam FOOT PEDAL ONLY:
IPX0 (ordinary equipment)
IPX1
MODE OF OPERATION: Continuous
PROTECTION FROM SHOCK: NO APPLIED PARTS
METHODS OF STERILIZATION: Not Intended to be Sterilized
OXYGEN RICH ENVIRONMENT: Not Intended for Oxygen Rich
Environments
PATENTS: REVEAL 11,099,376 B1
A) Dimensions and weight measured without the micro-video lens or locking ring

11
N
ANOCAM
4K/G
O
U
SER
G
UIDE
CONTENTS
Device Description................................................................12
Directions for Use.................................................................13
Using the NanoCam 4K/Go...................................................13
Inspection and Preventative Maintenance ..........................22
Description of Symbols.........................................................24
Replacement Parts ...............................................................25
Electromagnetic Information ...............................................25
Warranty ..............................................................................33

12
NANOCAM 4K/GO™USER GUIDE
DEVICE DESCRIPTION
The NanoCam 4K and NanoCam Go are video recording
devices that are meant to be used in conjunction with Designs
for Vision headlights. Both cameras offer high definition
recording and image taking capability in two different
magnifications 2.0X and 3.0X. They can be used for
fluorescent guided applications as well (if equipped). They are
operated using a bluetooth footpedal that allows for hands
free operation for taking video and still images.
Accessories include:
Hex Drivers
Cable Wrap Kit
Operation Manual
Registration Card
Carrying Case
USB Extension Cables
16mm/25mm Video Lens System)
Bluetooth Enabled Footpedal
Bluetooth USB Plug-In Module
USB Drive w/Camera Software
Focusing Card
REVEAL Filter Cap(if equipped)

13
N
ANOCAM
4K/G
O
U
SER
G
UIDE
Note:
For all instructions referring to the headlights
and power pack options that are available for use with
these cameras please refer to their specific instruction
manual for proper use
DIRECTIONS FOR USE
USING THE NANOCAM 4K/GO
NOTE: Before proceeding, plug the USB flash drive that came
with your NanoCam 4K/Go into an available PC and run the
setup file. Prior to your first use, you will need to perform the
following steps to properly align and setup the camera, light
(if equipped) and micro-video lens system of your NanoCam
4K/Go
1. MOUNTING NANOCAM 4K/GO AND INSERTING CABLES
2. ALIGNING NANOCAM 4K/GO WITH YOUR FIELD OF VIEW
3. FOCUSING YOUR NANOCAM 4K/GO
4. ALIGNING THE HEADLIGHT WITH YOUR NANOCAM 4K/GO

14
NANOCAM 4K/GO™USER GUIDE
1. MOUNTING NANOCAM 4K/GO AND INSERTING CABLES
Mount the camera/s to your frames or headset using the
supplied T-Mount. Attach the Headlight (Fig. 1) to the camera
as shown. Plug the small connector of the headlight cable into
the top of the headlight. Plug the large connector of the cable
into the headlight connector on the power pack.
Double click on the camera software icon and wait for the
program to start. You can now plug the USB connector from
FIG.
1
LED
HEADLIGHT
M
ICRO
V
IDEO LENS
SYSTEM
L
ENS
S
YSTEM
LOCK RING
SLIDE
HEADLIGHT
ONTO
CAMERA T-MOUNT
C
AMERA
T-MOUNT

15
N
ANOCAM
4K/G
O
U
SER
G
UIDE
the camera into an available USB port on your PC. Once the
camera connects, you should see live video on your monitor.
2. ALIGNING NANOCAM 4K/GO WITH YOUR FIELD OF VIEW
While wearing the camera on your frame/headset, look
through your surgical telescopes (loupes) at the provided

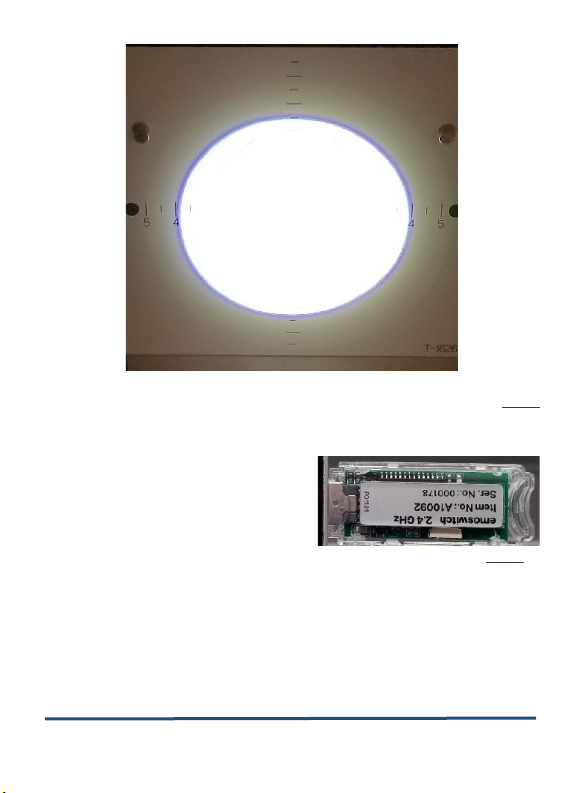

focusing card. NOTE: It is helpful to have the card placed on a
flat surface with the video monitor directly in front of you. The
card should be placed in the center of your field of view.
Grasp the camera and move either up or down until the video
image on your monitor is centered with your vision through
your surgical telescopes (loupes). NOTE: Make sure to keep
your head still when shifting your view from the surgical
telescopes (loupes) to the video monitor. Carefully remove
your frame making sure to not shift the camera. Get the blue
cap hex screwdriver included with your NanoCam 4K/Go.
Place the driver into the opening for the locking shaft and turn
clockwise to tighten. This will lock the camera with your
telescopes. Place the camera back on your face. NOTE: Gently

16
NANOCAM 4K/GO™USER GUIDE
Pull up and down on your camera to confirm that it is locked
in place.
3. FOCUSING YOUR NANOCAM 4K/GO

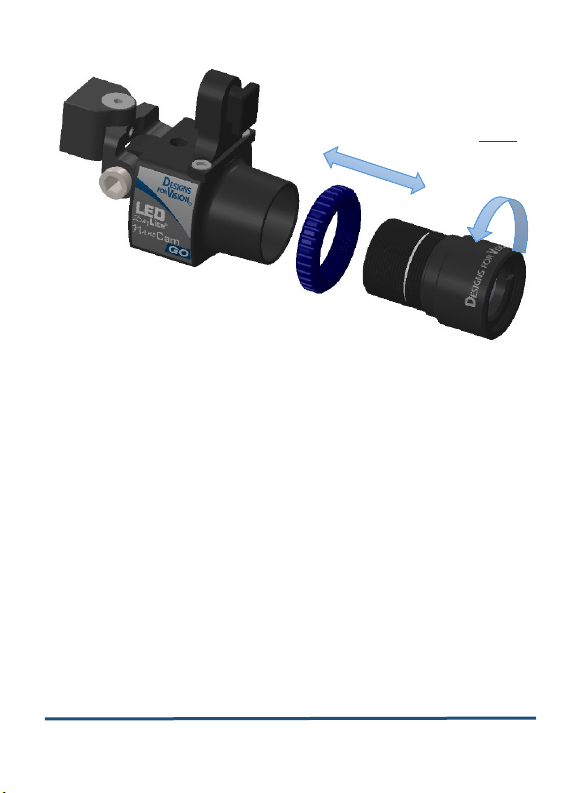

Next, you will need to focus the micro-video lens system. Your
NanoCam HDi™comes with two magnifications of micro-video
lens systems 2.0X (16mm) and 3.0X (25mm). If you wish to
change the magnification, carefully unscrew the micro-video
lens system and replace it with one of the other magnification
lens systems (Fig. 2).
NOTE: Be careful not to allow any dust or contaminants to
enter the open camera body.
NOTE: Make sure to re-install the lens system lock ring when
changing the lens system.
Rotate the micro-video lens system until the video image on
your monitor is in focus. NOTE: Rotating the micro-video lens
system clockwise decreases the focal length of the camera.
Rotating the micro-video lens system counter-clockwise
increases the focal length of the camera.

17
N
ANOCAM
4K/G
O
U
SER
G
UIDE
While holding the micro-video lens system with one hand, use
your other hand to turn the lens system lock ring counter-
clockwise until it locks the micro-video lens system into place.
The micro-video lens systems have been optically matched
with your surgical telescopes (loupes). When properly
focused, the camera will have the same magnification and
depth of field as what you see through your surgical
telescopes (loupes).
FIG.
2

18
NANOCAM 4K/GO™USER GUIDE
4. ALIGNING THE HEADLIGHT WITH YOUR NANOCAM 4K/GO
The final adjustment is the headlight. Get the hex screwdriver
included with your camera. Gently pull up and down on the
headlight to place the spot of light in the center of what you
see through your surgical telescopes (loupes). Shift your view
from the surgical telescopes to the video monitor to confirm
that the light properly fills the video image. Carefully remove
your frame making sure to not shift the headlight. Place the
driver into the opening for the locking shaft of the headlight
and turn clockwise to tighten. This will lock the headlight with
your camera.
Your NanoCam 4K/Go should now be fully aligned and
focused to your frame mounted telescopes. The image on
your video monitor should look like the next picture (Fig. 3).
The settings will stay locked in place for future uses.

19
N
ANOCAM
4K/G
O
U
SER
G
UIDE
5. FOOT PEDAL OPERATION
Your NanoCam 4K/Go are
available with a USB Bluetooth
enabled foot pedal to allow for
hands free operation. You must connect the USB Bluetooth
Receiver to your device at all times to operate the footpedal.
Once connected to a PC with the Designs for Vision, Inc.®
FIG.
3
F
IG.4

20
NANOCAM 4K/GO™USER GUIDE
software already installed, the foot pedal will help to control
the camera functions.
NOTE: For foot pedal to function, NanoCam HDi™software
has to be the active screen on your PC. The default settings
for the foot pedal are Record Start/Stop, and Snapshot (Fig.
4). When you press Record Start/Stop, you will also hear an
audible alert. Video will be recording at full resolution and
Note: The USB Bluetooth Receiver is paired to one footpedal,
the footpedal will not work with another receiver. They both
have the same serial number printed on them to identify the
pair
F
IG.5
RECORD/STOP
SNAPSHOT
