Aseptico AEU-525 Transport III Manual

OPERATION &
MAINTENANCE MANUAL
AEU-525
Portable Dental System
Transport III

TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . .1
Safety Precautions . . . . . . . . . . . . . . . . . . .2
Setting Up the Unit . . . . . . . . . . . . . . . . . .3-9
Figure 21 - Fr nt & Side View . . . . . . . . .7
Figure 22 - Back & Side View . . . . . . . . .8
Figure 23 - Back View . . . . . . . . . . . . . . .9
Operation Functions . . . . . . . . . . . . . . .10-16
Customizing lectric Motor Settings . .12-13
Operation . . . . . . . . . . . . . . . . . . . . . . .17-18
Sterilization & Maintenance . . . . . . . . .19-21
Repacking Instructions . . . . . . . . . . . . . . .22
Troubleshooting . . . . . . . . . . . . . . . . . . . . .23
Replacement Parts List . . . . . . . . . . . . . . .24
Symbol Definitions . . . . . . . . . . . . . . . . . . .25
Specifications . . . . . . . . . . . . . . . . . . . . . .26
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .27
Notes . . . . . . . . . . . . . . . . . . . . . . . . . .28-29
P.O. Box 1548 • Woodinville, WA 98072
8333 216 th Street S. . • Woodinville, WA 98072
[phone] • [phone]
www.aseptico.com • [email protected]
i.
This device has been tested and found to comply with the
emissions requirements of I C 60601-1-2:2001-09. These
requirements provide reasonable protection against harmful
electromagnetic interference in a typical medical installation.
However, high levels of radio-frequency (RF) emissions from
electrical devices, such as cellular phones, may disrupt the
performance of this device. To mitigate disruptive
electromagnetic interference, position this device away from
RF transmitters and other sources of electromagnetic energy.
Classifications in accordance with
UL-60601-1:
- Class I
- Types B and BF Applied Parts
- Ordinary Protection
- Not suitable for use in the presence of a
flammable anesthetic mixture with air, oxygen,
or nitrous oxide.
Note: For reliable grounding, connect to receptacle
marked “Hospital Grade”.
To prevent injury to people and damage to property,
please heed relevant warnings and remarks. They
are marked as follows:
WARNING: Serious injury or death may result if
ignored.
CAUTION: Damage to property or the
environment may result if ignored.
NOTE: Important additional information
and hints.
INDICATIONS FOR USE:
The A U-525 Transport III is a portable self-contained dental
system that is used for endodontic and general dentistry
applications.
RX: FEDERAL LAW RESTRICTS THIS DEVICE TO
SALE BY OR ON THE ORDER OF A DENTIST
41E
MEDICAL -- GENERAL MEDICAL EQUIPMENT
AS TO ELECTRICAL SHOCK FIRE AND MECHANICAL
HAZARDS ONLY IN ACCORDANCE WITH:
UL 60601-1: First Edition - Medical Electrical
Equipment, Part 1 General Requirements for Safety.
ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012
C1:2009/(R)2012 and A2:2010/(R)2012 - Medical
electrical equipment—Part 1 General requirements
for basic safety and essential performance.
CAN/CSA C22.2 NO. 60601-1-08 (2013) - Medical
Electrical Equipment - Part 1 General Requirements
for Basic Safety and Essential Performance (Adopted
IEC 60601-1 2005, third edition, 2005-12), Includes
Corrigendum 1 2011.

1.
Your new Aseptico A U-525 Transport III System is the finest portable electric dental system
available. The System features a high-torque brushless micro motor with digital controls for the
handpiece ratios, speed, torque, motor direction, and L D illumination. The dual-voltage system
includes a 3-way air/water syringe, HV and saliva ejector vacuum systems, a self contained
water system, self contained waste system with a near-full level warning and vacuum pump
safety shutoff, oilless air compressor, and vacuum pump. An optional ultrasonic scaler is also
available. The system comes in a case with built-in wheels and a handle for maximum portability.
Congratulations!
This Transport III System is engineered to provide many years of reliable service. Please read the
instructions provided in this manual to receive the best and longest service from your Aseptico
equipment. Separate manuals may be provided to cover the operation and maintenance of other
accessories for your unit.
PACKAGE CONTENTS:
• Portable Case with lectronic Control, Compressor, and Vacuum Pump
• lectric Motor Control Console includes an Autoclavable 40K Brushless Micro Motor with
ISO -type coupling and L D light source
• TA-90D 3-Way Air/Water Syringe
• HV and Saliva jector Vacuum Hoses with Valves
• Water Supply and Air Reserve Bottles
• A -7PM On/Off Foot Control
• Power Cords (One each U.S. and uro)
• Operation & Maintenance Manual
• Handpiece (Purchased separately - see below)
OPTIONAL EQUIPMENT:
• Optional Air lectric Module with Ultrasonic Scaler Assy (PN: 330597)
• Optional Water Supply Adapter Assembly (PN: 330607)
• Optional Auxiliary Water Outlet Fitting (PN: AA-60)
HANDPIECES PURCHASED SEPARATELY:
•AHP-72S-FO Highspeed 1:5 Increaser Contra-Angle Handpiece with Fiber Optic
• AHP-63NAK Lowspeed 1:1 Contra-Angle Handpiece
• AHP-101 Lowspeed 1:1 Straight Handpiece for Prophy
• AHP-64 Lowspeed 1:1 Straight Handpiece
• AHP-88MN 8:1 Reduction Latch-Head Contra-Angle ndo Handpiece
• AHP-88MNP 8:1 Reduction Push-Button Head Contra-Angle ndo Handpiece
.NOTE: A List f Replacement Parts is Pr vided n Page 24.

2.
SAFETY PRECAUTIONS:
Aseptico accepts no liability for direct or consequential injury or damage resulting from improper
use, arising in particular through the non-observance of the operating instructions, or improper
preparation and maintenance.
WARNING: Clean, disinfect, and sterilize new or repaired handpieces and instruments before first
use and between each patient use. Only use sterilized handpieces and instruments
during treatment. Non-sterilized handpieces and instruments may cause bacterial or viral
infections. Always sterilize handpieces and instruments after operation.
CAUTION: Always examine unit components for damage before commencing treatment. Damaged
components must not be used and must be replaced.
WARNING: Use for intended purposes only. Failure to observe the operating instructions may result
in the patient or user suffering serious injury or the product being damaged, possibly
beyond repair. Before using this product, make sure that you have studied and
understood the operating instructions.
WARNING: Do not install where there is a risk of an explosion. The 525 Transport III System is not
intended for operation in the presence of flammable anesthetics or gases.
WARNING: Always operate a high-speed handpiece with water coolant. Operating a high-speed
handpiece without water coolant can cause thermal injury to the patient.
CAUTION: The lens for the electric motor L D is soft and can be damaged. If the lens needs to be
cleaned, use a lint-free swab and isopropyl alcohol - do not use other solvents as they
might adversely react with the L D assembly.
CAUTION: The A U-525 Transport electric motor is not recommended for use with endodontic files
that have torque limit requirements less than 100 g-cm.
WARNING: Do not use this device for dental implant procedures.
CAUTION: Do not run saline solutions through the water system -- saline will rust the water filters.
WARNING: For use by qualified and trained personnel only.
WARNING: CONTRAINDICATIONS
Ultrasonic oscillations emitted by the optional Ultrasonic Scaler may prevent the proper
function of cardiac pacemakers. Therefore, Aseptico recommends that patients with a
cardiac pacemaker should not be treated with the Ultrasonic Scaler component of the
A U-525 Transport III System.
WARNING: The optional Ultrasonic Scaler instrument tips oscillate at high frequency and can fracture
during operation. To help prevent the tips from fracturing and possibly injuring the the
patient, always follow the scaler manufacturer's operating instructions and recommended
ultrasonic power settings.
WARNING: Do not use the optional Ultrasonic Scaler dry. If used dry, the Instrument Tip will heat
immediately. This may cause thermal injury to the tooth. nsure that adequate liquid
coolant is always available.
CAUTION: Never use the optional Ultrasonic Scaler on metal or porcelain restorations. The high
frequency ultrasonic oscillations may loosen the restoration.
CAUTION: Operating the A U-525 without using the High or Low Volume vacuation can cause the
compressor motor to cycle on/off, possibly affecting other electrically powered equipment
sharing the same circuit.
CAUTION: Dispose of electronic waste and waste containing amalgam in accordance with local
regulations.

3.

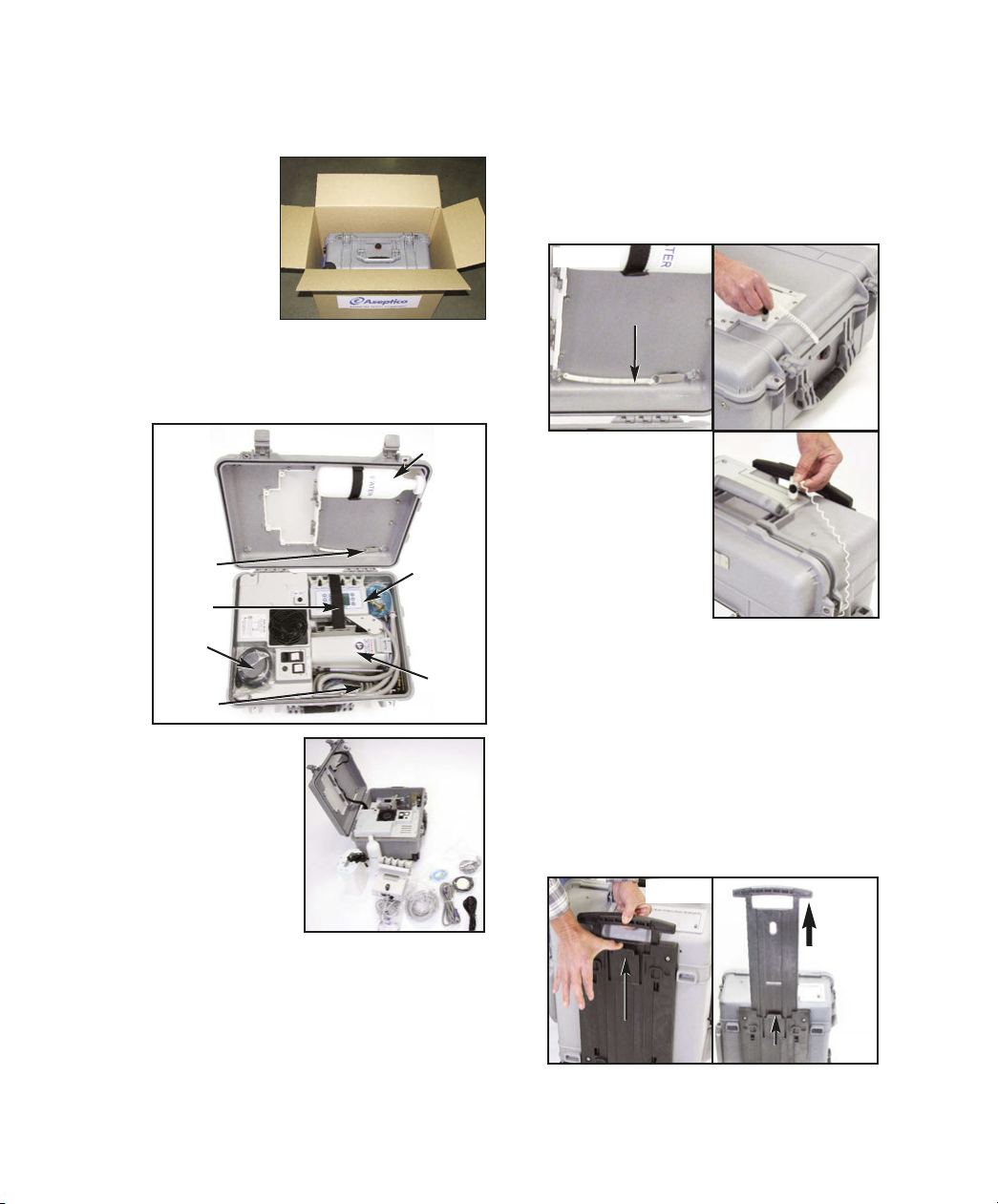

1. Unpack the
A U-525
Transport III
System from its
shipping carton
(Fig. 1). (Save
cardboard
carton and all
packing materials in case the unit needs to
be shipped again.)
2. Lay Transport III case flat on floor with
case lid facing upward (Fig. 2). Open lid.
3. Remove accesso-
ries and place
them aside for
assembly later
(Fig. 3).
4. Remove System
components from
case and place
aside temporarily
(Fig. 3):
a. Loosen water-bottle holding strap on
inside of lid and remove water bottle.
b. Unhook waste-bottle bungee cord and
remove waste bottle.
c. Loosen air/electric-module holding strap
and remove air/electric module assembly.
SETTING UP THE UNIT(*):
5. Detach fastener tool from inside case lid
(Fig 4a). Use the tool to loosen the four
fasteners on the outside of the rear metal
door (Fig. 4b). Turn fastener counter-
clockwise 1/4 turn, to
loosen. Stand unit
upright. Use the
fastener tool to
loosen the two
fasteners on the
small metal door
located on the top of
the case (Fig. 4c).
Open case lid and reattach fastener tool to
its Velcro®mounting pad, then close and
lock case lid. NOTE: This fastener tool can
also be used to loosen the air/electric
module hold-down screw shown in Figure
13b, page 5.
6. On front (handle) side of unit, pull handle
locking tab outward while raising the
handle (Fig. 5a). Lift handle all the way up
until the locking tab engages the bottom
slot (Fig 5b).
FIG. 4a
FIG. 3
FIG. 4b
FASTENER
TOOL
FIG. 4c
FIG. 1
WATER
BOTTLE
FIG. 2
AIR/ELECTRIC
MODULE
115V
POWER CORD
WASTE
TANK
& BUNGEE
CORD
FOOT
PEDAL
HOLDING
STRAP
FASTENER
TOOL
(*) Also refer to the Aseptico Transport III video at www.aseptico.com for asic setup instructions.
FIG. 5a FIG. 5b
LOCKING
TAB
BOTTOM SLOT

4.
7. Open the
small metal
door on the
top of the case
and locate the
high and low
vacuum hose
connectors in
the recess
under the
door. Pull both
hoses all the
way out of the
recess so they extend to the top of the
handle as shown in Fig. 6.
8. (NOTE: The user may choose to inter-
change Step 8 with Step 9, to facilitate
easier setup of the syringe and optional
scaler.) On the back
side of the unit,
position the air/
electric module
assembly over the
top of the handle as
shown in Figure 7a,
then lower the
assembly so its
mounting bracket rests on the opening in
the handle (Fig. 7b). Rotate the bottom of
the assembly forward so that its locking
knob aligns with and engages the vertical
slot in the handle (Fig. 7b). Rotate the
locking knob 90° to secure the air/electric
assembly to the handle (Fig. 7c).
9. (NOTE: The user might have chosen to
interchange Step 9 with Step 8, for easier
setup of the syringe and optional scaler.)

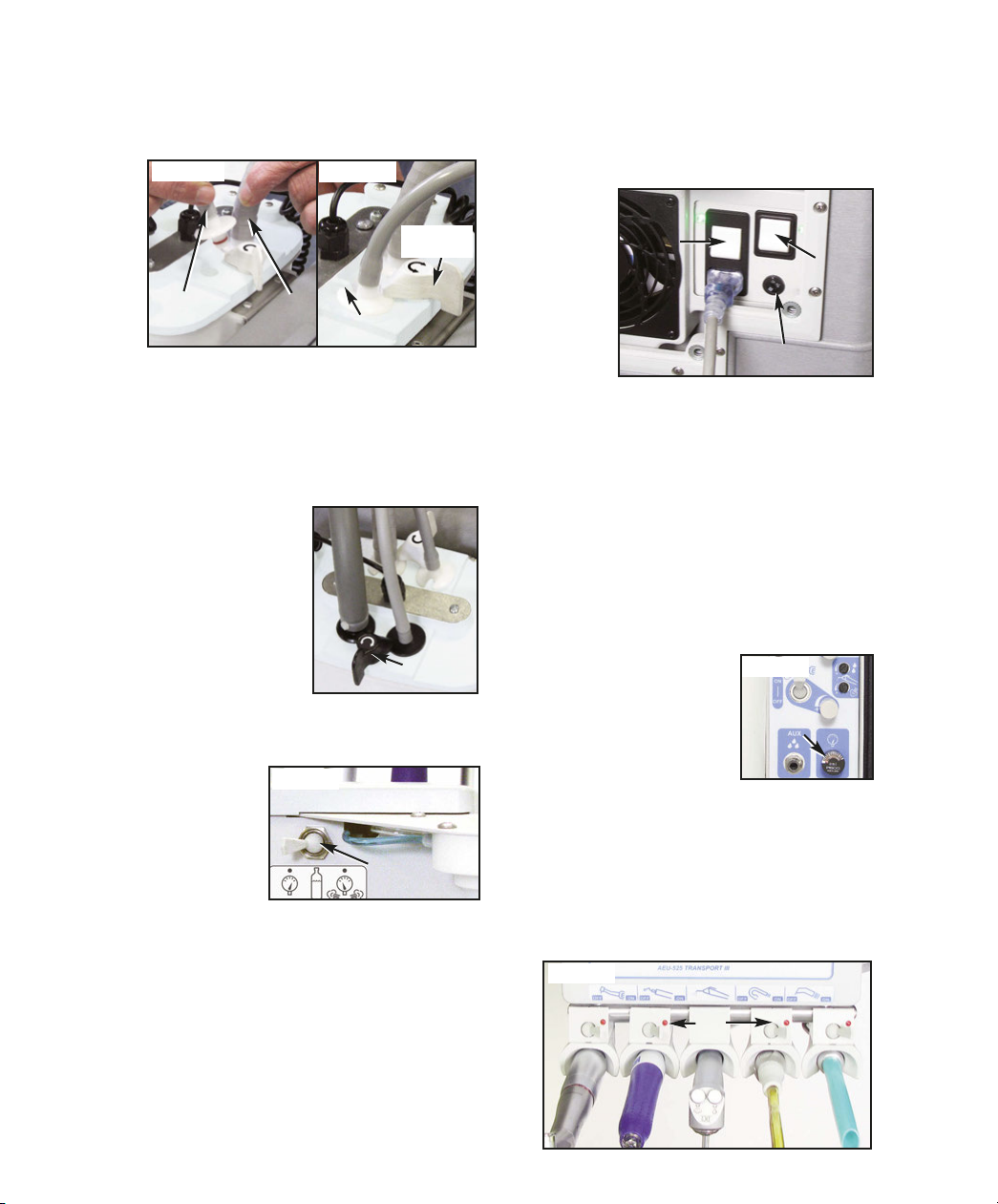

Place air/water
syringe and optional
scaler into their
respective
instrument holders
on the air/electric
module (refer to the
location-ID label on
top of the module).
(See Fig. 8)

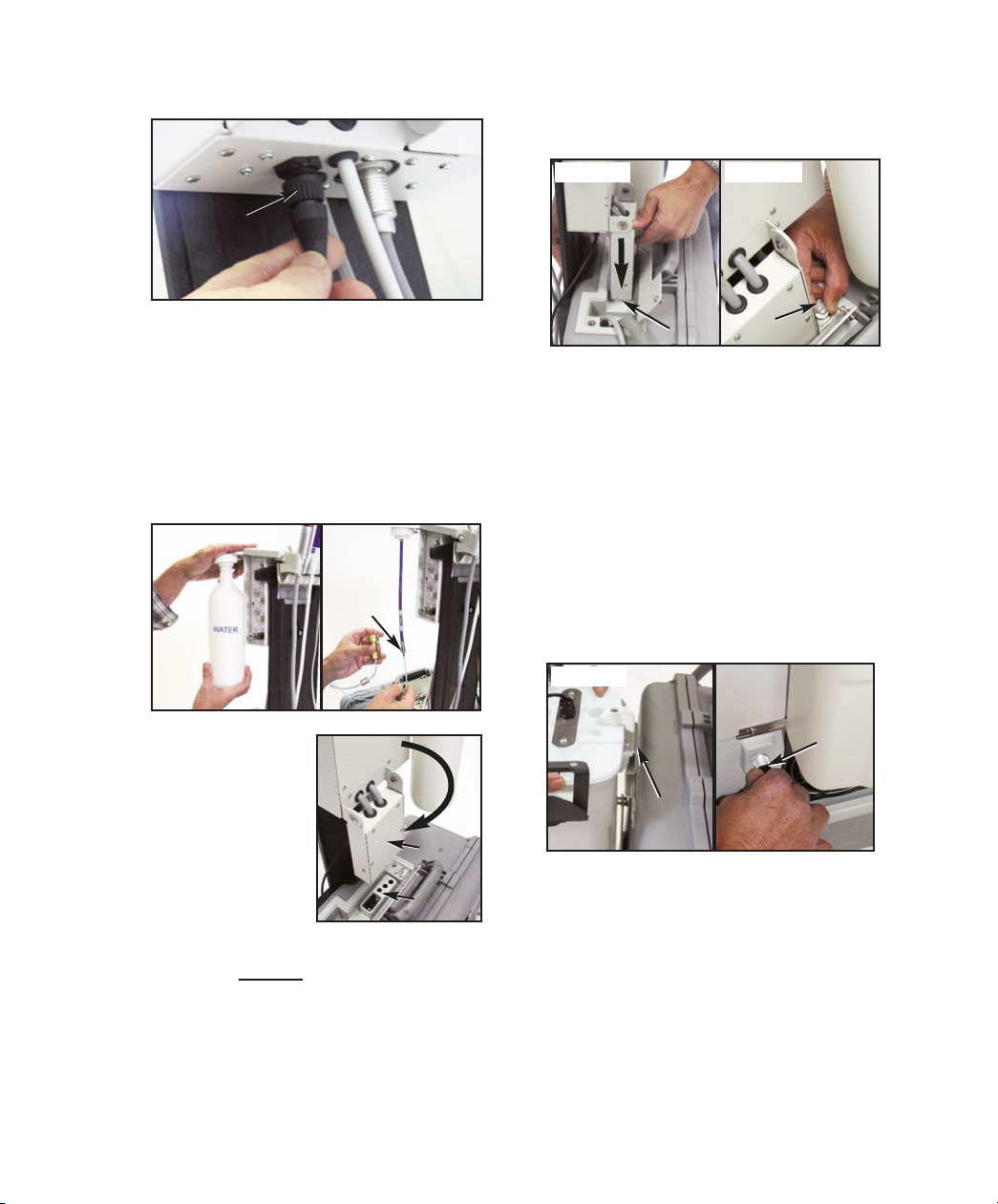

10. Install electric motor connector into
receptacle located on bottom of air/electric
module (Fig. 9). Align the round dimple on
the motor cord connector with the mark on
the receptacle and push cord straight into
receptacle. To remove motor/cord, pull
motor cord connector straight out of
receptacle. Place motor into its instrument
holder on the module and attach
appropriate -Type handpiece.
11. Install foot control connector into
receptacle located on bottom of air/electric
module (Fig. 10). Once the connector pins
are properly engaged, tighten the outer
sleeve to lock into place. Place foot control
on floor.
SETTING UP THE UNIT - C nt’d
FIG. 7b
FIG. 7c
FIG. 7a
LOCKING KNOB
LOCKING KNOB
FIG. 9
MOTOR
CONNECTOR
ALIGNMENT
DIMPLE
MOUNTING
BRACKET
FIG. 8 OPTIONAL
SCALER
FIG. 6
HIGH
VACUUM
HOSE
LOW
VACUUM
HOSE
(DOOR)

5.
12. Fill the water-supply bottle with clean water or
other suitable irrigation fluid and attach to the
water bottle cap on the left side of the
air/electric module (Fig. 11a).
Optional Water-Supply Adapter - Attach the
optional water-supply adapter (PN 330607) to
the end of the water bottle filter tube (Fig.
11b). Attach the opposite end of the Adapter
to the water supply. Toggle the water bottle
purge switch to the purge position.
13. On the back side of
the air/electric
module, rotate the
rear housing
downward 180°
(Fig. 12). (Note the
connector block in
the recess directly
below the rear
housing.)
14. Disengage the locking tab on the handle.
Slowly and carefully lower the air/electric
module down until the rear housing
engages the connector block in the recess
below (Fig 13a). (NOTE: nsure that the
three O-rings on the housing are lubricated
with an appropriate lubricant, preferably
containing PTF . Dry O-rings will damage
the seals, resulting in poor performance.)
Lock the module into place by hand-
tightening the hold-down thumb-screw on
the housing, until snug (Fig 13b).
15. nsure that the lid on the waste container
is securely latched onto the container.
Hang the container onto the bracket
located on the back side of case lid (Fig.
14a). Plug the level-sensor cord connector
into the socket located on the motor
housing (Fig. 14b). The connector plug
and the socket are keyed and fit only in
one position. Gently press the connector
against the socket and rotate until the
connector aligns with and enters the
socket. NOTE: If the sensor is accidentally
unplugged, a warning beep will sound and
the compressor will automatically shut off.

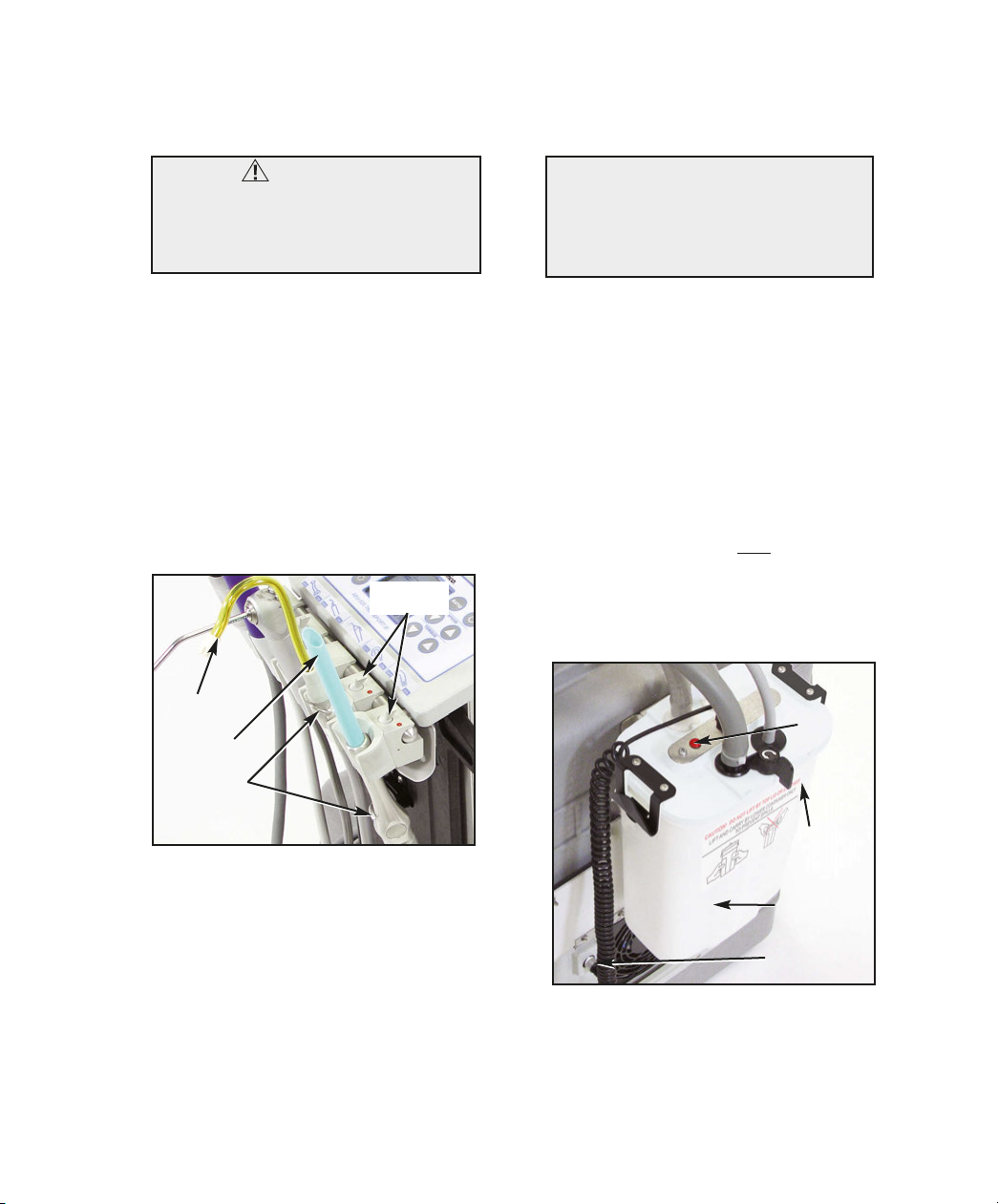

16. Attach the HV and saliva ejector hose
connectors (white) to their respective ports
on the top of the waste tank (Fig. 15a, page
6). Note that the notches in the hose
connectors align to the white tabs on the
tank. Rotate the white locking latch over the
top of the two hose connectors to secure
them into position (Fig. 15b, page 6).
FIG. 11a FIG. 11b
OPTIONAL
WATER
SUPPLY
ADAPTER
FIG. 12
CONN.
BLOCK
REAR
HOUSING
FIG. 13a FIG. 13b
HOLD-DOWN
SCREW
CONNECTOR
FIG. 10
FOOT CONTROL
CONNECTOR
FIG. 14a FIG. 14b
SENSOR
CORD
BRACKET
WASTE
TANK

6.
Place the HV and saliva ejector valves
into their respective instrument holders on
the air/electric module (refer to the
location-ID label on top of the module).
Attach the desired evacuator/saliva ejector
tips into the valves.
17. Attach the HV and saliva ejector hose
connectors (black)
from Step # 6, page
3, to their
respective ports on
the top of the waste
tank (Fig. 16).
Rotate the black
locking latch
overtop the two
hose connectors to
secure them in place.
18. Toggle the water-bottle purge switch
located on the
back side of
the air/
electric
module to the
“PR SSUR ”
position (Fig.
17).
19. Verify that the voltage-selector switch
located on the motor housing is set to the
proper 115V or 230V power source (Fig.
18). Attach the power cord to the power
inlet receptacle and plug into a grounded
electrical outlet. NOTE: nsure that the
power cord is correct for the voltage
source in the country of use.
Turn both rocker switches on the motor
housing to the ‘ON’ (I) position. The left-
hand
switch
turns
the unit
power
On/Off
and
also
acts as
a circuit
breaker for the whole unit. The right-hand
switch acts as a circuit breaker for the
compressor. lectrical overloads will trip
the two switches. If either switch is found
in a neutral position (midway between ‘ON’
and ‘OFF’), check for overload causes and
correct the problem. Then, place the switch
in the ‘ON’ position. Green L D’s adjacent
to each switch illuminate when the
switches are On. NOTE: When the unit is
in use, it’s compressor motor will
occasionally turn On and Off, to maintain
proper pressure.
20. nsure that the system
operating pressure is
maintained at 45-55 PSI
(3.10-3.79 bar). The
pressure gauge is
located on the side of
the air/electric module (Fig. 19).
21. Turn all instrument holder and manifold
control panel toggle switches to the ‘ON’
position: toggle the instrument holders toward
the red dot (see Fig. 20); toggle the manifold
panel switches to the UP position (see Fig.
19). NOTE: If the vacuum comes on, reseat
the vacuum handpieces in their holders.
SETTING UP THE UNIT - C nt’d
FIG. 16
ROTATING
LATCH
FIG. 17
WATER BOTTLE
PURGE SWITCH
FIG. 18
VOLTAGE SELECTOR
SWITCH
POWER
ON/OFF COMPRESSOR
ON/OFF
FIG. 19
PRESSURE
GAUGE
FIG. 20
RED
DOTS
FIG. 15a FIG. 15b
ALIGNMENT
TAB
HVE
HOSE
SALIVA
E ECTOR
HOSE
ROTATING
LATCH

7.
FIG. 21 - AEU-525 Transport III - Front View
WAT R SUPPLY
BOTTL
HIGH VOLUM
VACUATOR (HV )
FOOT CONTROL
WAST
CONTAIN R
LCD
DISPLAY
SALIVA J CTOR
SYRING
SCAL R
L CTRIC MOTOR
ELECTRIC MOTOR CONTROL PANEL
(Pages 10-13)
MANIFOLD PANEL
(Pages 14 - 15)
SCAL R
CONTROLS
HANDPI C
WAT R
CONTROLS
PR SSUR
GAUG
AUXILIARY WAT R OUTPUT CONN CTOR
HANDPI C
AIR
CONTROLS
SYRING
FLOW
CONTROLS

8.
FIG. 22 - AEU-525 Transport III - Back View
WAT R
BOTTL
HV
HOS
SETTING UP THE UNIT- C nt’d
AIR/ L CTRIC
MODUL ASS MBLY
FOOT
CONTROL
HIGH VACUUM
HOS
WAT R BOTTL
PURG SWITCH
SALIVA
J CTOR
HOS
LOW VACUUM
HOS
INSTRUMENT HOLDERS
(Page 10)
ON
OFF
L V L
S NSOR
CORD
ASS MBLY
WAST
CONTAIN R

9.
FIG. 23 - AEU-525 Transport III - Back View
R D L D
WASTE 85% FULL
ALARM LED
(Page 16)
WATER BOTTLE PURGE SWITCH
(Page 6)
COMPRESSOR
ON/OFF
SWITCH
& CIRCUIT
BREAKER
POWER ENTRY AND CIRCUIT BREAKER PANEL
(Page 6)
115V/230V
VOLTAGE
SELECTOR
SWITCH
POWER
INLET
ON/OFF
SWITCH
& CIRCUIT
BREAKER
POWER
CORD
WAST
S NSOR
CONN CTOR

10.
be 'On' and the instrument removed from its
holder before operation can begin. NOTE:
The HV and saliva ejector are not
controlled by the Foot Control - they will
automatically start when removed from their
holders and their toggle switches are On.
4. INSTRUMENT CONTROLS (Figs 26 & 27)
The Transport III includes controls for the
motor, vacuum valve holders, and optional
scaler. These holders include an On/Off
toggle switch
(Fig. 26)
which when
turned 'Off'
(toggle to the
left), keeps
the instrument
off, even when
removed from
its holder. When the toggle switch is
turned 'On' (toggle toward the red dot), the
instrument will automatically activate when
removed from its holder.

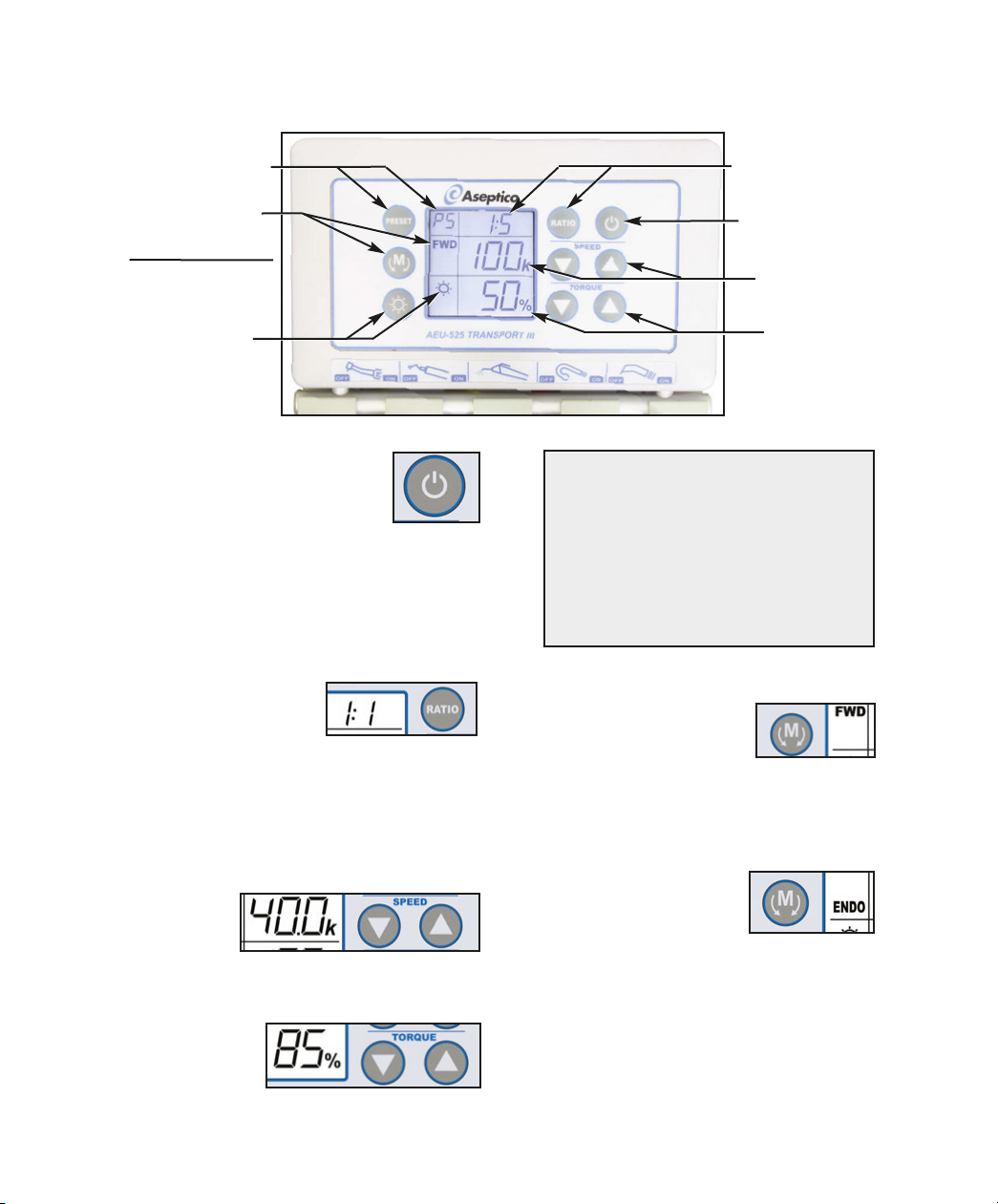

5. ELECTRIC MOTOR AND CONTROL
PANEL (Fig. 28) - There are two different
control modes that can be used to operate
the Transport III electric motor: Manual
Mode using the console buttons, or Preset
Mode using the preprogrammed Presets:
A. MANUAL OPERATION - When the
electric motor is not running, the user can
adjust its ratio, speed, torque, motor
direction, and motor L D settings using the
control panel keypad (The Preset indicator
in upper left of LCD display will blink on and
off, indicating the change):
1. ON/OFF POWER SWITCH & CIRCUIT
BREAKER (Fig. 24) - Controls power
On/Off to the Transport III. When the unit is
turned On, the green L D next to the
power switch will illuminate.
2. COMPRESSOR CIRCUIT BREAKER
SWITCH (Fig. 24) When the switch is On
(circuit closed/continuity complete), the
compressor will start and the green L D
next to the switch will illuminate. When the
switch trips open (continuity interrupted)
due to a compressor overload, the switch
and L D turn Off. Simply turn the switch
back On to reset breaker. NOTE: If switch
is found in a neutral position (midway
between On and Off), find and correct the
fault then turn the switch to the On
position. IMPORTANT: The switch should
be left in the On position when not in use.
3. ON/OFF FOOT CONTROL (Fig. 25) – The
Foot Control provides On/Off operation to
the motor, water, and air coolant to the
handpiece, and the handpiece light, when
the electric motor is removed from its
holder and its water & air toggle switches
are toggled ‘ON’. The Foot Control also
provides On/Off opera-
tion to the optional
ultrasonic scaler and
water coolant to the
scaler when the scaler
is removed from its
holder and the water
toggle switch is toggled
‘ON’. For instrument
operation, apply foot pressure to any part of
the disk. The instrument holder toggle must
OPERATION FUNCTIONS:
APPLY PRESSURE
TO ACTIVATE
INSTRUMENT
FIG. 25
FIG. 27
HVE
ELECTRIC
HANDPIECE
SALIVA
E ECTOR
FIG. 26
ON
OFF
SYRINGE
PWR
ON/OFF
FIG. 24
COMPRESSOR
CIRCUIT
BREAKER
OPTIONAL
SCALER

5) Press MOTOR DIRECTION button
repeatedly to cycle through and select the
Forward (FWD) or Reverse
(R V) settings. An audible
beep indicates reverse
direction when the motor is running.
6) To switch the electric motor to ndo-
dontic operating mode, first select the 8:1
handpiece ratio, then press the MOTOR
DIRECTION button repeatedly until the
word "ENDO" appears in
the Motor Direction
window. Next, select the
desired Torque level using
the UP/DOWN Torque buttons. The unit is
then ready to operate in NDO mode - the
rotation of the handpiece will automatically
alternate between forward and reverse
when the selected torque is reached (in
order to free the instrument).
11.
1) Depress the Standby button
to turn electric motor control
panel on or off. If the console
was turned off using the
Standby button, the Display will darken
and all the buttons, except the Standby
button, will become inoperative. Press
the Standby button again to turn on the
control panel and return the motor to its
last used settings.
2) Press the RATIO button repeatedly to
select the ratio that
matches the handpiece
being used. Available
ratios are: 1:5, 1:2, 1:1, 5:1, and 8:1.
NOTE: The user can reprogram the unit to
display only a preferred set of ratio(s) from
the five available options. Refer to page
12 for complete instructions on
Customizing Ratios.
3) Press the SPEED Up/Down buttons to
select the
desired
operating
speed for the handpiece being used. See
Figure 29 for handpiece speed ranges.
4) Press the TORQUE Up/Down buttons to
select the de-
sired operating
torque
percen-tage.
Fig. 28 - Transport III Electric Motor Control Panel
ILLUMINATION
CONTROL
w/DISPLAY
SPEED (RPM)
SELECTOR
w/DISPLAY
MOTOR DIRECTION
(FWD/REV) SELECTOR
w/DISPLAY
TORQUE
SELECTOR
w/DISPLAY
-OR-
ILLUMINATION
SELECTOR
PRESET SELECTOR
w/DISPLAY
HANDPIECE RATIO
SELECTOR
w/DISPLAY
CONTROL PANEL
STANDBY
BUTTON
Fig. 29 - Transport III Speed Ranges
1:5 10,000 - 200,000 RPM
1:2 4,000 - 80,000 RPM
1:1 2,000 - 40,000 RPM
5:1 400 - 8,000 RPM
8:1* 280 - 5,000 RPM
*280 - 1300 RPM in ENDO Mode
ENDODONTIC MODE
(ENDO) SELECTOR
w/DISPLAY

CUSTOMIZING RATIOS:
The user can enable or disable individual
handpiece ratio options, so that only preferred
or commonly used ratios are displayed during
the ratio selection process. Follow these steps
to reprogram the unit with customized ratio
options:
1. Press and hold the Ratio button to enter the
Ratio Customization Mode.
2. Press the Ratio button repeatedly to switch
between the available ratio options. ach Ratio
displays in the Ratio window as the user cycles
through the five options.
3. When the desired ratio is displayed, press the
Preset button to toggle the ratio to either
enabled or disabled status. The word "On" will
appear in the Preset display window when
enabled, and two dashes "_ _" will appear when
disabled (see Figs. 30a & 30b).
4. Repeat Step 3 above for the remaining four
ratio options until only the desired ratios are
enabled.
5. Press and hold the Ratio button to exit the Ratio
Customization Mode. Only the enabled ratios
will be displayed when selecting Ratio options;
any ratio that has been disabled will not be
displayed (unless you re-enable it).
NOTE: The system must always have at least
one ratio option enabled. If the user attempts to
disable the last operational ratio, the system will
emit a beep sound and ignore the user's
command to disable this remaining option.
NOTE: If the factory defaults are restored, all
customized Ratio option settings will be
overwritten.
12.
7) Press and release the ILLUMINATION
button to turn the hand-
piece L D On/Off. To
activate the handpiece
and L D, remove the handpiece from its
holder, turn the Illumination button 'On',
and press the foot pedal to operate the
motor. When the foot pedal is released
and the motor has stopped, the light will
turn off after approximately 20 seconds.
Press and hold the Illumination button for
three seconds to enter the L D intensity
adjustment mode. When in this mode, press
the Torque Up/Down buttons to select the
desired illumination in 10% increments, from
10% to 100%. The handpiece L D will
automatically turn on and change intensity
as the adjustments are made. The display
icon will also blink as the adjustments are
made. To exit the adjustment mode, press
and release the Illumination button.
B. PRESET OPERATION - The Transport
III electric motor module is shipped with
five preprogrammed factory Presets for
each ratio (see Fig. 31, page 13). This
allows the user to instantly access a wide
range of settings. After the handpiece ratio
has been selected, press the Preset
Button repeatedly to cycle
through five different
Presets (P1 - P5). When
the desired Preset is displayed, its
operating parameters are automatically
activated. ach Preset can store the
following parameters:
- Bur/Drill Speed
- Motor Direction
- Torque Setting
- L D Light 'On' or 'Off'
- ndo Mode Activation (8:1
handpiece ratio only)
NOTE: The electric motor is programmed at
the factory to initially start up with Ratio 1:5
and Preset No.1 active. Subsequently, when
the System power is turned on, the last
settings used will be activated.
OPERATION FUNCTIONS - C nt'd:
Fig. 30a -Ena led
Fig. 30 -Disa led

save its new settings (a beep will sound).
4) Press the foot pedal to activate the
motor and begin operation.
FACTORY DEFAULTS: The electric motor
module will retain the factory default
settings (Fig. 31) in memory until changed
by the user. To recall the original factory
defaults, press and hold the PR S T and
RATIO buttons simultaneously for
approximately 3 seconds. IMPORTANT:
When factory defaults are recalled, all user-
customized Ratio and Preset settings will
be overwritten.
13.
Figure 31 - Factory Default Presets
RATIO PRESET
NO.
SPEED
(RPM) DIRECTION TORQUE ENDO MODE
(8:1 Ratio Only)
HANDPC
LED
1:5
1 200,000 FWD 100 % —On
2 150,000 FWD 100 % —On
3 150,000 FWD 50 % Torque Limit —On
4 100,000 FWD 100 % —On
5 100,000 FWD 50 % Torque Limit —On
1:2
1 80,000 FWD 100 % —Off
2 60,000 FWD 100 % —Off
3 60,000 FWD 50 % Torque Limit —Off
4 40,000 FWD 100 % —Off
5 40,000 FWD 50 % Torque Limit —Off
5:1
1 2,000 FWD 100 % —On
2 1,500 FWD 100 % —On
3 1,200 FWD 100 % —On
4 800 FWD 100 % —On
5 400 FWD 100 % —On
8:1
( NDO
MOD )
1 300 FWD 100% Y S Off
2 300 FWD 70% Y S Off
3 300 FWD 50% Y S Off
4 300 FWD 30% Y S Off
5 300 FWD 10% Y S Off
1:1
1 40,000 FWD 100 % —On
2 40,000 FWD 50 % Torque Limit —On
3 20,000 FWD 100 % —On
4 10,000 FWD 100 % —On
5 8,000 FWD 100 % —On
CUSTOMIZING PRESETS:
ach Preset can be customized by the
user with its own unique set of operating
parameters:
1) First select the Ratio, then select the
Preset number of the Preset you wish to
customize.
2) Adjust the Preset's speed, torque,
handpiece illumination, and motor direction
as desired. NOTE: The NDO Mode feature
can only be enabled when an 8:1 ratio is
selected. The Preset indicator will blink on
and off, indicating a change is in process.
3) Press and hold the Preset button to

7. 3-WAY AIR/WATER SYRINGE (Fig. 33a)
• Pressing the left button dispenses water.
• Pressing the right button dispenses air.
• Pressing both buttons simultaneously
dispenses an air/water mist. This mist
can be adjusted with the two syringe flow
control knobs located on the manifold
control panel (see Fig. 32b). The top
knob adjusts the water flow and the
bottom knob adusts the air flow. Turn the
knobs clockwise to decrease the flow or
counterclockwise to increase the flow.
SLEEP MODE:
After 20 minutes of motor inactivity, the
electric motor module automatically enables
an energy-saving Sleep Mode which turns
off the display. When in this mode, three
square symbols will blink consecutively
across the darkened LCD.
To turn the unit on again and light up the
display, the user can either press the
standby button on the control panel or
remove the handpiece from its holder and
then press on the foot pedal. The last used
settings will be restored.
6. OPTIONAL SCALER (Fig. 32) – The
Transport III can be equipped with an
optional piezoelectric scaler system that
provides adjustable ultrasonic levels and a
water coolant system. The scaler includes
3 instrument tips: The #37 instrument is
specially developed for subgingival
scaling, furcations, supragingival fine
scaling and spot removal. The #38 tip is
used for lingual and buccal subgingival
scaling and furcations. The #39 tip is used
for universal lingual and buccal
supragingival scaling.
The scaler is controlled by the scaler
ultrasonic setting adjustment knob which is
located on the left side of the optional
air/electric module, on the manifold control
panel (see Fig. 32). The ultrasonic intensity
can be adjusted by turning the control knob
clockwise to maximum or counterclockwise
to minimum. When scaling, follow the tip
manufacturer's recommended ultrasonic
settings for each tip.
The coolant level is controlled by the
scaler water On/Off toggle switch and the
coolant flow adjustment knob, located just
below the ultrasonic adjustment knob (see
Fig. 32). Turn knob counter-clockwise to
increase coolant flow; or clockwise to
decrease coolant flow.
14.
OPERATION FUNCTIONS - C nt’d:
FIG. 33a FIG. 33b
SYRINGE
AIR
AD UST
AIR
WATER
SYRINGE
WATER
AD UST
Verify that the optional scaler’s
coolant flow of no less than
20ml/min is availa le at the tip.
SEE ACCOMPANYING SCALER
DOCUMENTS
WARNING:
nsure proper coolant flow before using the
optional scaler on a patient. Heat emitted by
the scaler may damage teeth if coolant water
is not atomized at the scaler tip.
FIG. 32
SCALER
ULTRASONIC
CONTROL SWITCH
SCALER
COOLANT FLOW
AD USTMENT SWITCH
SCALER
COOLANT
ON/OFF SWITCH

a.) Toggle the bottle pressure relief valve
to “PURG ” (see Fig. 35) to remove
pressure from the water bottle.
b.) Unscrew the bottle from its cap.
c.) Fill bottle with water or other non-
saline solution.
d.) Screw bottle back into its cap.
e.) Toggle the pressure relief valve back to
“PR SSUR ” to repressurize the bottle.
10. AIR BOTTLE (Fig. 36) - The 750ml air
bottle is located inside the upper right
corner of the case and stores pressurized
air for the 3-way air/water syringe. The
bottle includes a filter equipped with a
drain plug that allows condensation to be
removed. To
drain condensa-
tion, place a
container or
towel or below
the filter and
use pliers to
carefully loosen
the black knob
on the bottom
of the filter.
IMPORTANT:
To open the
drain, turn the black knob clockwise (follow
arrow on “DRAIN “ label); to close
drain, turn the knob counter-clockwise. Do
not overtighten.
8. HANDPIECE CONTROLS:
Water - The handpiece water toggle valve
allows water to flow to the working hand-
piece when the foot pedal is depressed. The
toggle valve is located on the manifold
control panel (see Fig. 34). Place the toggle
in the upward position to turn handpiece
water On or downward to turn it Off.
A water control valve is also provided to
adjust the volume of water flow to the
handpiece. This valve is located next to the
toggle valve (Fig. 34).
Air - The handpiece air toggle valve allows
air to flow to the working handpiece when
the foot pedal is depressed. The toggle
valve is located on the manifold control
panel (see Fig. 34). Place the toggle in the
upward position to turn handpiece air On
or downward to turn it Off. An air flow
control valve is also provided to adjust the
volume of air to the handpiece. This valve is
located next to the toggle valve (Fig. 34).
9. WATER SUPPLY BOTTLE (Fig. 35) - The
Transport III incorporates a self-contained
pressurized water system. The system
consists of one 1-liter bottle with a
pressure release toggle valve that allows
pressure to be released from the bottle
while maintaining system pressure. To refill
the water supply bottle:
15.
FIG. 34
HANDPIECE AIR
AD USTMENT VALVE
HANDPIECE AIR
ON/OFF VALVE
HANDPIECE WATER
AD USTMENT VALVE
HANDPIECE WATER
ON/OFF VALVE
DRAIN
PLUG
AIR
BOTTLE
WARNING:
Before removing the Water Supply Bottle, toggle
the water pressure relief valve to the "PURG "
position, allowing pressure to release.
FIG. 36
FIG. 35
PRESSURE
POSITION
TOGGLE
VALVE
PURGE
POSITION WATER
BOTTLE

11. HVE AND SALIVA E ECTOR VACUUMS
The unit is equipped with a high volume
evacuator (HV ) and low volume saliva
ejector system (Fig. 37). Both high and low
volume systems can operate
simultaneously. When the vacuum holder
toggle switches are toggled Off (to left
side), the vacuum system will stay off,
even when the vacuum valves are
removed from their holders. When the
vacuum holder toggle switches are toggled
On (toward the red dot), the vacuum will
start automatically when the vacuum
valves are removed from their holders.
12. WASTE CONTAINER -- When the HV or
saliva ejector instruments are in use, the
vacuum pump will run and waste from the
vacuum system will collect in the 1.8 liter
plastic waste container located on the
back side of the unit (Fig. 38). The
container provides two separate waste
compartments: one for HV and the other
for the saliva ejector. (The HV compart-
ment contains a vacuum-intake screen for
collecting large debris.) ach compartment
includes its own 85%-full sensor. When
either one of these sensors reaches the
85%-full level, an audible alarm will start to
16.
OPERATION FUNCTIONS - C nt’d:
FIG. 37
SALIVA
E ECTOR
HVE
VALVES
TOGGLE
SWITCHES
IMPORTANT:
To prevent the HV and Low Volume (Saliva
jector) compressor system from running
excessively, ensure that the vacuum heads are
firmly cradled in their holders after each use
and that their control levers are toggled ‘Off’’.
beep and a red L D on the tank lid will
flash (see Fig. 38). If both compartments
continue to fill, the compressor/cacuum
pump will automatically shut down before
either compartment reaches 100% full.
The alarm will sound until the container is
emptied - To empty Waste Container:
1. Disconnect vacuum hoses and level
sensor wire connector.
2. Detach waste container assembly from
unit and carry container and contents to
proper waste disposal location.
3. Unsnap lid and empty both container
compartments (side-pour out), then
rinse out container.
4. Replace lid, reattach container
assembly to unit, and reconnect hoses
and level sensor.
13. AUXILIARY WATER OUTPUT (Fig. 21)--
Water or other solutions placed in the
water bottle can be withdrawn through the
auxiliary water output using an Aseptico
fitting (PN AA-60) attached to tubing. The
output has an auto shutoff to prevent
leakage.
WARNING:
Before removing the Air Bottle, vent all reserve
air pressure in the bottle. Press the right (Air)
button on the 3-Way Air/ Water Syringe, or turn
either the HV or LV toggle switches ‘On’ with
unit power off, to depressurize the air.
FIG. 38
SALIVA E ECTOR
WASTE
COMPARTMENT
HVE WASTE
COMPARTMENT
85%-FULL
LED
SENSOR
CONNECTOR

17.
OPERATION:
TORQUE - Adjust the up/down TORQU
arrows on the display to the desired
torque.
MOTOR DIRECTION - Select either
forward (FWD) or reverse (R V) direction
on the display.
ILLUMINATION - If using a handpiece
with L D illumination, turn the L D button
on the display On or Off.
ENDO MODE - To select endodontic
operating mode (8:1 handpiece ratio must
first be selected) press the Motor Direction
button repeatedly until “ NDO” appears in
the Motor Direction window.
6. Handpiece Water/Air:
Toggle the handpiece water and air toggle
valves, located on the side of the
air/electric module, to the On position
(pointing upward). Adjust the handpiece
water and air flow control knobs to the
desired settings. (Turn clockwise to
decrease flow, counterclockwise to
increase.)
NOTE: Some compressed air is used to
cool the motor and handpiece. This air
vents around the L D and axially through
the -coupling to the handpiece.
7. Using the Optional Ultrasonic Scaler:
See accompanying documents.
a. Toggle the Scaler Water Toggle Switch,
located on the side of the optional
air/electric module, to the On position
(pointing upward).
IMPORTANT:
Turn Off the handpiece water and air
when using handpieces that do not
support internal irrigation.
1. After the Transport III unit has been set up
and you have made yourself familiar with
the operation functions, you are ready for
operation as follows:
2. Turn the power and circuit breaker
switches on the rear of the case to the 'On'
(I) position. The green L Ds next to the
switches and the electric motor control
panel display will light up, and the unit will
pressurize. NOTE: If electric motor control
panel doesn’t illuminate, press the Standby
Button to turn the panel On.
3. Toggle the instrument holder toggle switch
of the instrument to be used to the ‘On’
position (pointed toward the red dot).
4. Check the pressure gauge on the side of
the air/electric module and ensure that the
system operating pressure is within the
acceptable 45 - 55 PSI range.
5. Using the Electric Motor:
a. Attach the proper sterile -type
handpiece to the motor and set the RATIO
Selector to match the gear ratio of the
handpiece being used (i.e. 1:5 for a 1:5
increaser handpiece, or 8:1 for a 8:1
reduction handpiece).
b. Select the desired preprogrammed
PR S T on the display panel, OR,
manually adjust the speed, torque, motor
direction, electric motor L D, or NDO
settings using the panel keypad:
SPEED - Adjust the up/down SP D
arrows on the display to the desired RPM.
NOTE: When selecting the SP D,
ensure that the Ratio Selector matches
the handpiece ratio.The RPM display will
indicate bur speed when the Ratio
Selector is set to the proper gear ratio.

18.
b. Screw on a sterile Instrument Tip to the
Scaler handpiece and tighten it firmly.
Turn carefully backwards approximately
1mm. This will put the tip in a neutral
position so it can move freely.
IMPORTANT: Rinse the water line before
attaching tip by pressing the foot switch
and allowing the water to flow for 30
seconds.
c. Turn the Scaler Water Flow Control
knob to the desired setting (clockwise to
decrease flow, counterclockwise to
increase). The water should create a mist
around the Scaler tip.
d. Adjust the Scaler Ultrasonic Setting
knob to the desired setting.
8. Using the 3-Way Air/Water Syringe:
a. Use the syringe as necessary for
irrigation or drying. Press left button for
water, right button for air, or both buttons
simultaneously for a mist. IMPORTANT: A
plastic dental barrier sheath made for the
3-way syringe must be used on syringes
that have not been autoclaved.
b. Adjust the water and air flow by using a
screwdriver to turn the two small
adjustment screws located on the side of
the air/electric module. Upper screw
controls water, lower screw controls air.
Turn screws clockwise to decrease flows,
counterclock-wise to increase flows.
9. Using the HVE and Saliva Ejector
Vacuums:
Adjust the vacuum pressure on the HV
(high vacuum) and saliva ejector (low
vacuum) by moving the control levers on
their respective valve heads.
10. Remove the instrument to be used from
its holder.
11. Press the foot control to activate motor or
scaler and begin operation.
12. mpty the waste container when the 85%-
full alarm sounds or when the red L D
located on the container lid flashes.
NOTE: The unit’s vacuum system will
automatically shut down if the waste tank
is not promptly emptied. The audible
alarm will also continue to sound until the
container is emptied.
OPERATION - C nt’d :
WARNING:
nsure proper coolant flow before using
the optional Scaler on a patient. Heat
emitted by the Scaler may damage
teeth if coolant water is not atomized at
the Scaler tip.
