INSTRUCTION MANUAL
GUIDE D’UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE
GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE
USAR EL PRODUCTO.
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-D
e


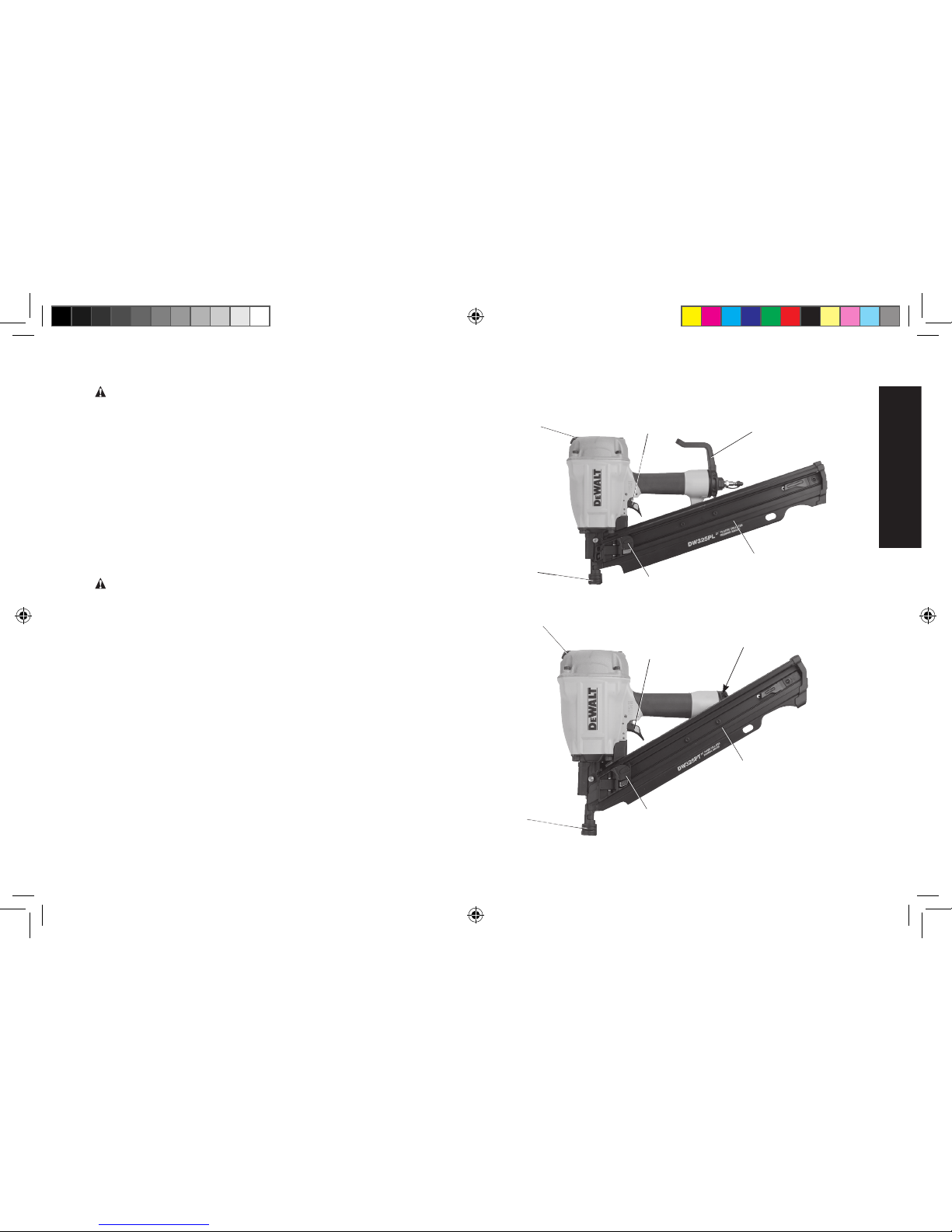

DW325PT
30° Paper Tape Framing Nailer
Clouese à Charpente de 30° pour ruban de papier
Clavadora Estructural de 30° Para Cinta De Papel
DW325PL
21° Plastic Collated Framing Nailer
Clouese à charpentede 21° en plastique
Clavadora Para Moarcos de 21° Con Unión de Plástico
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 1 11/14/14 3:06 PM

9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 2 11/14/14 3:06 PM

BEFORE OPERATING THIS TOOL, CAREFULLY READ AND
UNDERSTAND ALL INSTRUCTIONS IN THE IMPORTANT
SAFETY INSTRUCTIONS SECTION.

The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to these
symbols.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury
which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR
ANY D
e
WALT TOOL, CALL US TOLL FREE AT: 1-800-4-D
e
WALT
(1-800-433-9258)



WARNING: Do not operate this unit until you read this instruction
manual for safety, operation and maintenance instructions.
WARNING: This product contains chemicals known to the State
of California to cause cancer, and birth defects or other reproductive
harm. Wash hands after handling.
WARNING: Some dust contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm such
as asbestos and lead in lead based paint.

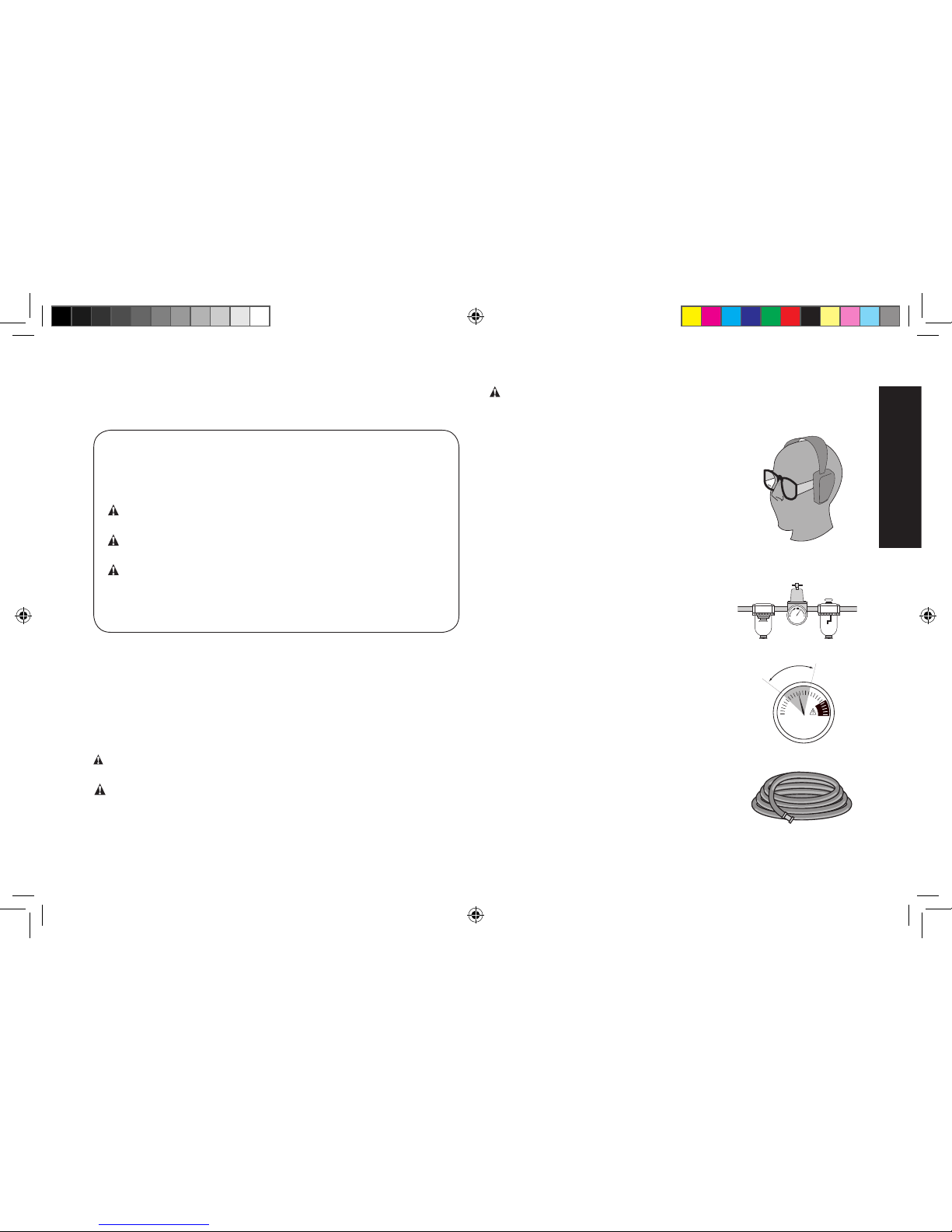

• Actuating tool may result in flying Fig. A
FIG. B
FIG. C
FIG. D
debris, collation material, or dust
which could harm operator’s eyes.
The operator and all those persons in the
general area should wear safety glasses
with permanently attached side shields.
Approved safety glasses are imprinted
with the characters “Z87.1”. It is the
employer’s responsibility to enforce the
use of eye protection equipment by the
tool operator and other people in the work
area. (Fig. A)
• Always wear appropriate personal
hearing and other protection during
use. Under some conditions and duration
of use, noise from this product may
contribute to hearing loss. (Fig. A)

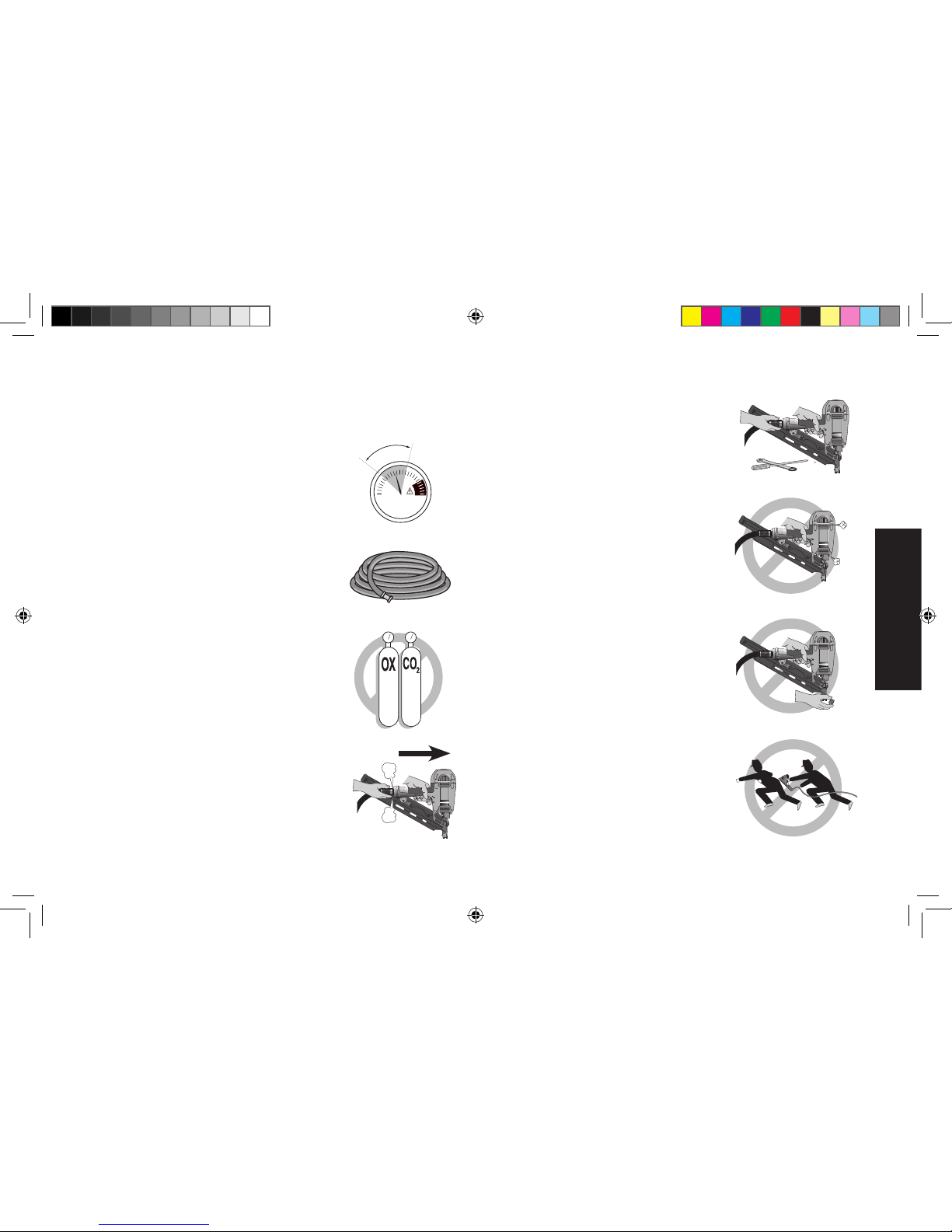

• Use only clean, dry, regulated air.
Condensation from an air compressor can
rust and damage the internal workings of
the tool. (Fig. B)
• Regulate air pressure. Use air
pressure compatible with ratings on
the nameplate of the tool. (Not to
exceed 120 psi, 8.3 bar) Do not connect
the tool to a compressor rated at over
200 psi. The tool operating pressure must
never exceed 200 psi even in the event of
regulator failure. (Fig. C)
English
1
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 1 11/14/14 3:06 PM

• Only use air hose that is rated for a maximum working
pressure of at least 150 PSI (10.3 BAR) or 150% of the
maximumsystempressure,whicheverisgreater. (Fig. D)

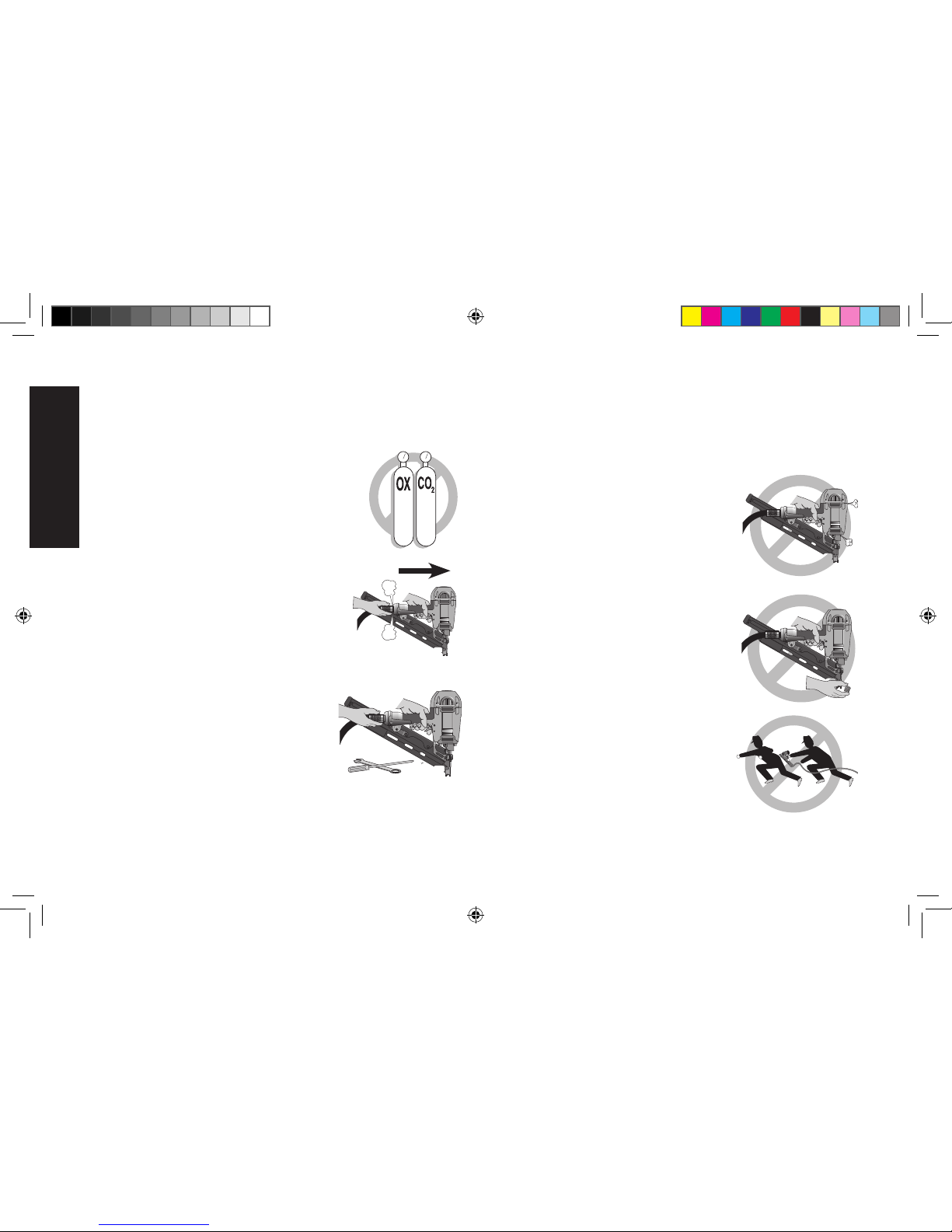

• Donotusebottledgasestopowerthis FIG. E
FIG. F
FIG. G
tool. Bottled compressed gases such as
oxygen, carbon dioxide, nitrogen,
hydrogen, propane, acetylene or air are
not for use with pneumatic tools. Never
use combustible gases or any other
reactive gas as a power source for this tool.
Danger of explosion and/or serious
personal injury may result. (Fig. E)
• Usecouplingsthatrelieveallpressure
from the tool when it is disconnected
from the power supply. Use hose
connectors that shut off air supply from
compressor when the tool is disconnected.
(Fig. F)
• Disconnecttoolfromairsupplywhen
not in use. Always disconnect tool
from air supply and remove fasteners
from magazine before leaving the
area or passing the tool to another
operator. Do not carry tool to another
workareainwhichchanginglocation
involves the use of scaffoldings, stairs,
ladders, and the like, with air supply
connected.Donotmakeadjustments,
remove magazine, perform maintenance or clear jammed
fasteners while connected to the air supply. If the contact trip is
adjusted when the tool is connected to the air supply and nails are
loaded, accidental discharge may occur. (Fig. G)
• Connect tool to air supply before loading fasteners, to
prevent a fastener from being fired during connection. The
tool driving mechanism may cycle when tool is connected to
the air supply. Do not load fasteners with trigger or contact trip
depressed, to prevent unintentional firing of a fastener.
• Do not remove, tamper with, or FIG. H
FIG. I
FIG. J
otherwise cause the tool, trigger, or
contact trip to become inoperable.
Do not tape or tie trigger or contact trip in
the on position. Do not remove spring
from contact trip. Make daily inspections
for free movement of trigger and contact
trip. Uncontrolled discharge could result.
• Inspect tool before use. Do not
operate a tool if any portion of the tool,
trigger, or contact trip is inoperable,
disconnected,altered,ornotworking
properly. Leaking air, damaged parts
or missing parts should be repaired or
replaced before use. (Fig.H)
• Donotalterormodifythetoolinany
way. (Fig. I)
• Alwaysassumethatthetoolcontains
fasteners.
• Do not point the tool at co-workers
or yourself at any time. No horseplay!
Work safe! Respect the tool as a working
implement. (Fig. J)
English
2
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 2 11/14/14 3:06 PM

• Keepbystanders,children,andvisitorsawaywhileoperating
a power tool. Distractions can cause you to lose control. When
tool is not in use, it should be locked in a safe place, out of the
reach of children.
• Remove finger from trigger when not driving fasteners.
Never carry tool with finger on trigger.
Accidental discharge could result. Using
the trigger lock-off will prevent accidental
discharge.
• Do not overreach. Maintain proper
footing and balance at all times. Loss of
balance may cause cause personal injury.
(Fig. K)
• Makesurehoseisfreeofobstructions
or snags. Entangled or snarled hoses
can cause loss of balance or footing.
• Usethetoolonlyforitsintendeduse.
Do not discharge fasteners into open
air, concrete, stone, extremely hard
woods, knots or any material too
hard for the fastener to penetrate.
Do not use the body of the tool or top
cap as a hammer. Discharged fasteners
may follow unexpected path and cause
injury. (Fig. L)
• Alwayskeepfingersclearofcontact
trip to prevent injury from inadvertent
release of nails. (Fig. M)
• RefertotheMaintenance and Repairs
sections for detailed information on
the proper maintenance of the tool
• Always operate the tool in a clean,
FIG. P
FIG. N
FIG. O
lighted area. Be sure the work surface
is clear of any debris and be careful not
to lose footing when working in elevated
environments such as rooftops.

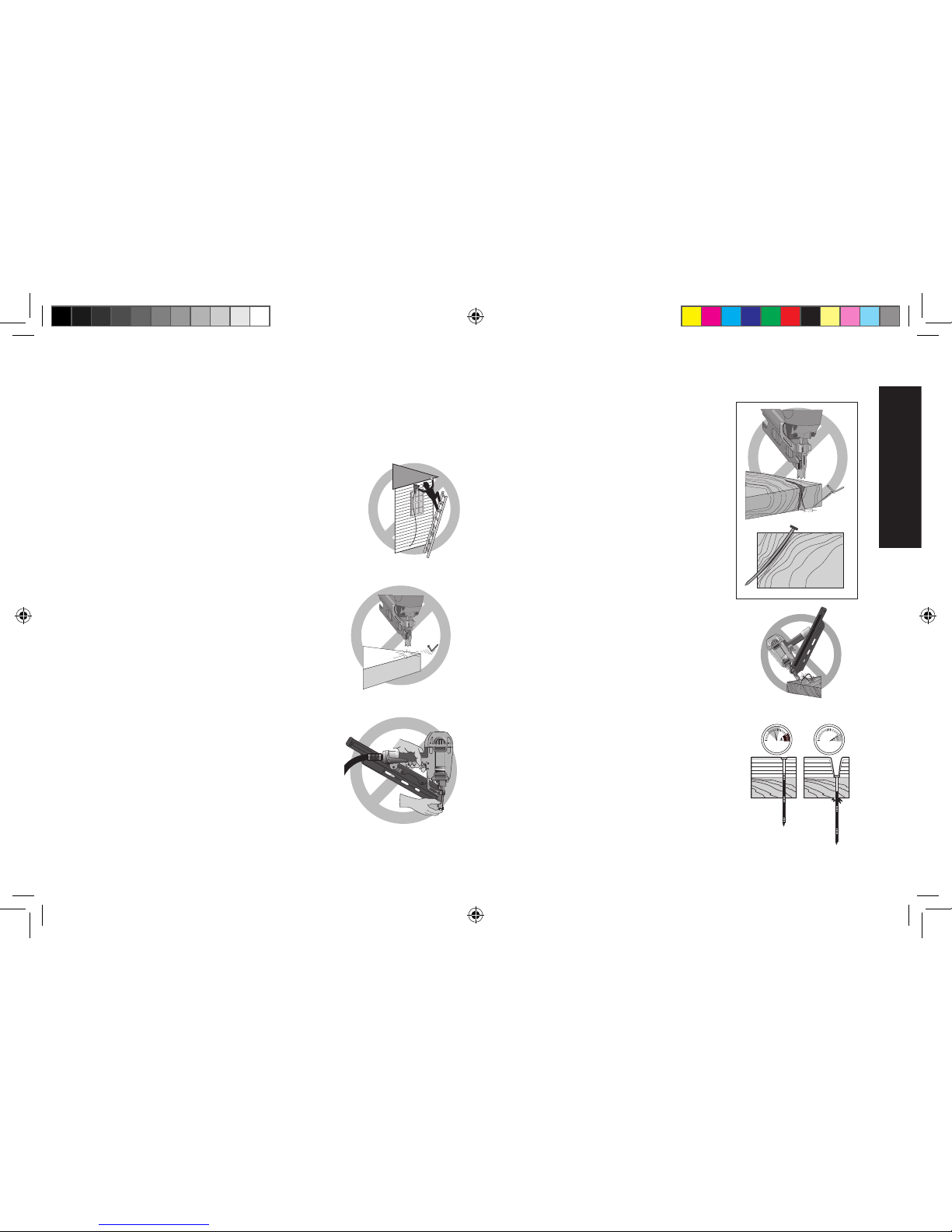

• Do not drive fasteners near edge
of material. The workpiece may split
causing the fastener to ricochet, injuring
you or a co-worker. Be aware that the nail
may follow the grain of the wood (shiner),
causing it to protrude unexpectedly from
the side of the work material. Drive the
nail perpendicular to the grain to reduce
risk of injury. (Fig. N)
• Do not drive nails onto the heads
of other fasteners or with the tool
at too steep an angle. Personal injury
from strong recoil, jammed fasteners, or
ricocheted nails may result. (Fig. O)
• Beawareofmaterialthicknesswhen
using the nailer. A protruding nail may
cause injury.
• Beawarethatwhenthetoolisbeing
utilized at pressures on the high end
of its operating range, nails can be
driven completely through thin or
very soft work material. Make sure
the pressure in the compressor is set so
that nails are set into the material and not
pushed completely through. (Fig. P)
FIG. K
FIG. L
FIG. M
English
3
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 3 11/14/14 3:06 PM

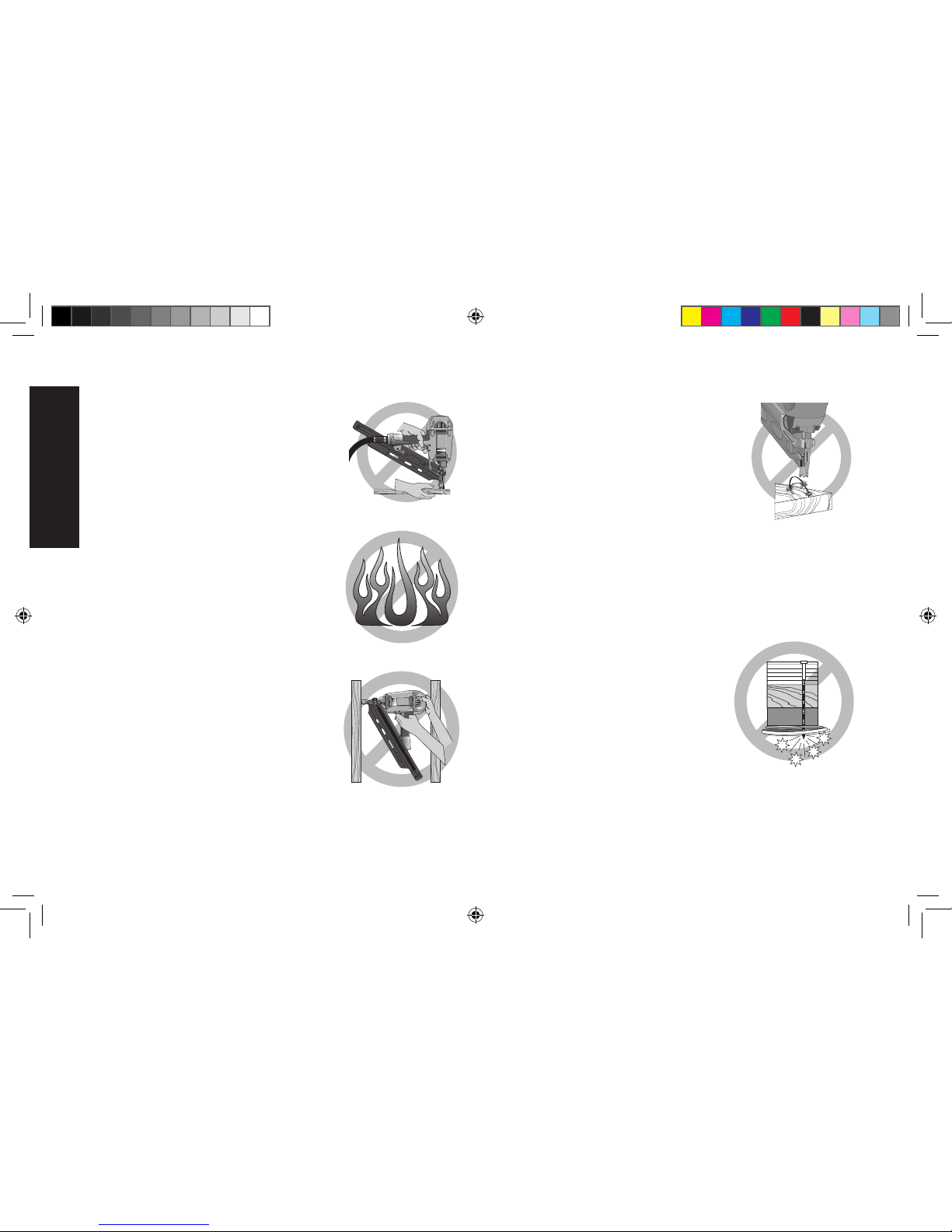

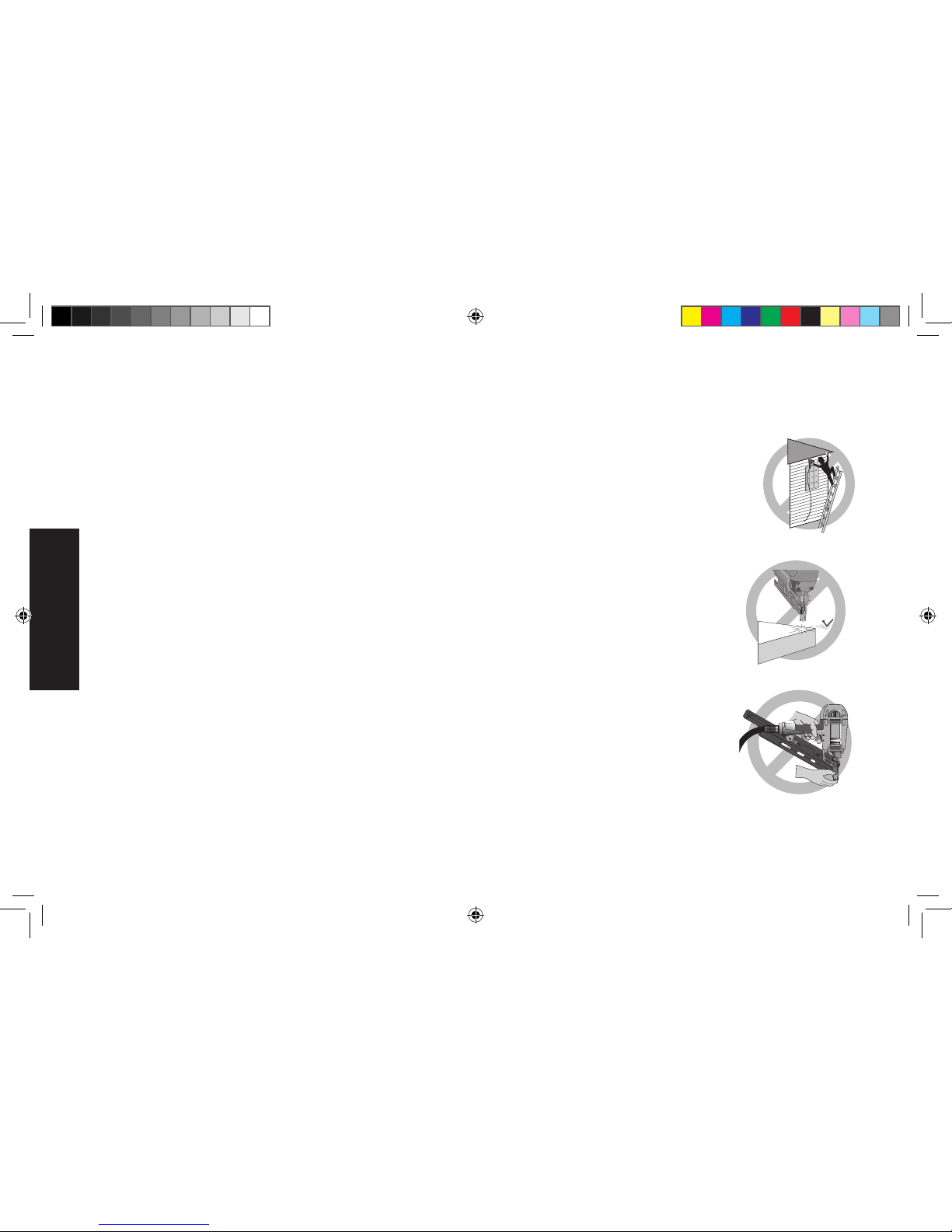

• Keephandsandbodypartsclearof FIG. Q
Fig. R
FIG. S
immediateworkarea. Hold workpiece
with clamps when necessary to keep
hands and body out of potential harm. Be
sure the workpiece is properly secured
before pressing the nailer against the
material. The contact trip may cause the
work material to shift unexpectedly.
(Fig.Q)
• Do not use tool in the presence of
flammable dust, gases or fumes. The
tool may produce a spark that could
ignite gases causing a fire. Driving a nail
into another nail may also cause a spark.
(Fig.R)
• Keepfaceandbodypartsawayfrom
back of the tool cap when working
in restricted areas. Sudden recoil can
result in impact to the body, especially
when nailing into hard or dense material.
(Fig. S)
• Grip tool firmly to maintain control
while allowing tool to recoil away
from work surface as fastener is
driven. In “Contact Actuation Mode” if
contact trip is allowed to recontact work
surface before trigger is released an
unwanted fastener will be fired.
• Choice of triggering method is
important. Check the manual for triggering options.
CONTACT ACTION TRIGGER
• Whenusingthecontactactiontrigger,
FIG. T
be careful of unintentional double
fires resulting from tool recoil.
Unwanted fasteners may be driven if
the contact trip is allowed to accidentally
re-contact the work surface. (Fig. T)
TO AVOID DOUBLE FIRES:
 • Donot engagethetoolagainst the
work surface with a strong force.
 • Allowthetooltorecoilfullyaftereachactuation.
 • Usesequentialactiontrigger.
• When “contact” actuating the framing nailer, always
keeptoolincontrol. Inaccurate placement of tool can result
in misdirected discharge of a fastener.
SEQUENTIAL ACTION TRIGGER
• Whenusingthesequentialaction FIG. U
trigger, do not actuate the tool
unless the tool is placed firmly
againsttheworkpiece.
• Donotdrivenailsblindly into walls,
floorsorotherworkareas.Fasteners
driven into live electrical wires, plumbing,
or other types of obstructions can result
in injury. (Fig.U)
• Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use tool while tired or under
the influence of drugs, alcohol, or medication. A moment
of inattention while operating power tools may result in serious
personal injury.
English
4
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 4 11/14/14 3:06 PM

WARNING: Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities contains chemicals
known to the State of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• leadfromlead-basedpaints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenicandchromiumfromchemically-treatedlumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to
filter out microscopic particles.
WARNING: ALWAYS USE SAFETY GLASSES. Everyday
eyeglassesareNOTsafetyglasses.Alsousefaceordustmask
if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY
EQUIPMENT:
• ANSIZ87.1eyeprotection(CAN/CSA/Z94.3),
• ANSIS12.6(S3.19)hearingprotection,
• NIOSH/OSHA/MSHArespiratoryprotection.



A. Trigger
B. Exhaust
C. Rafter hook
D. Contact trip
E. Pusher
F. Magazine
FIG. 1
F
A
D
C
E
DW325PL
DW325PT
B
F
A
D
C
E
B
English
5
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 5 11/14/14 3:06 PM



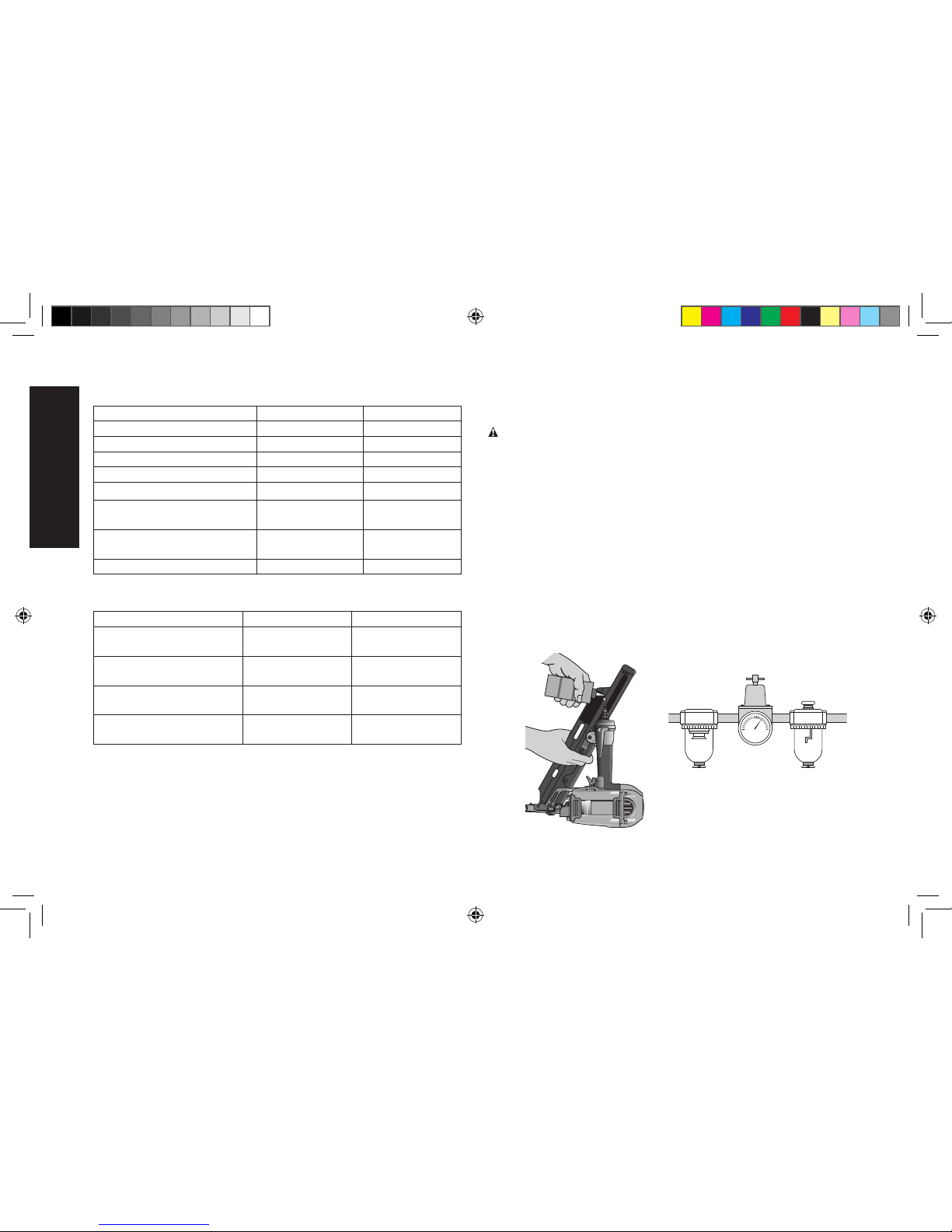

MODEL DW325PT DW325PL
HEIGHT 12.5" (305 mm) 12.5" (305 mm)
WIDTH 4.75" (121 mm) 4.75" (121 mm)
LENGTH 17.5" (444 mm) 17.5" (444 mm)
WEIGHT 7.6 lb (3.45 kg) 7.6 lb (3.45 kg)
MAGAZINE ANGLE 30° 21°
RECOMMENDED
OPERATING PRESSURE
70 - 120 psig 70 - 120 psig
AIR CONSUMPTION PER
100 CYCLES
7.5 cfm @ 80 psi 7.5 cfm @ 80 psi
LOADING CAPACITY Up to 92 Nails Up to 64 Nails

MODEL DW325PT DW325PL
NAIL LENGTHS 2" - 3-1/4"
(50 mm - 83 mm) 2" - 3-1/4" (50 mm - 83 mm)
SHANK DIAMETERS .113" - .131"
(2.8 mm - 3.3 mm) .113" - .148" (2.8 mm - 3.7 mm)
FASTENER COLLATION 30° - 34°
Paper tape 21° Plastic collated
NAIL TYPE 30° clipped head/
30° full head 21° round head


WARNING: Read the section titled Important Safety Instructions
at the beginning of this manual. Always wear eye and ear protection
when operating this tool. Keep the nailer pointed away from yourself
and others. For safe operation, complete the following procedures
and checks before each use of the nailer.
1. Before you use the nailer, be sure that the compressor tanks
have been properly drained.
2. Lubricate the tool following these directions:
a. Use D
e
WALT pneumatic tool oil or a non-detergent S.A.E. 20
weight oil. DO NOT use detergent oil or additives as they will
damage o-rings and rubber parts.
b. Use a filter-regulator-lubricator in the air line between the
compressor and the tool when possible.
c. If a lubricator is not available, add 5 to 10 drops of oil in the air
fittingaleasttwiceadayorevery4hoursofuse.
FIG. 2 FIG. 3
English
6
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 6 11/14/14 3:06 PM

3. Wear proper eye, hearing and respiratory protection.
 4.Removeallfastenersfromthemagazine.
5. Check for smooth and proper operation of contact trip and
pusher assemblies. Do not use tool if either assembly is not
functioning properly. NEVER use a tool that has the contact trip
restrained in the up position.
 6.Check air supply. Ensure that air pressure does not exceed
recommended operating limits, refer to Tool Specifications.
7. Connect air hose.
8. Check for audible leaks around valves and gaskets. Never use a
tool that leaks or has damaged parts.
WARNING: To reduce the risk of personal injury, disconnect tool
from air supply before performing maintenance, clearing a jammed
fastener, leaving work area, moving tool to another location or
handing the tool to another person.

WARNING: Always wear proper eye [ANSI Z87.1 (CAN/CSA
Z94.3)]andhearingprotection[ANSIS12.6(S3.19)]whenoperating
this tool.
WARNING: Keep fingers AWAY from trigger when not driving
fasteners to avoid accidental firing. NEVER carry tool with finger on
trigger. In contact mode tool will fire a fastener if safety is bumped
while trigger is depressed.
Sequential Trip: Sequential trip requires the operator to hold the
contact tip against the work surface before pulling the trigger. This
makes accurate fastener placement easier. The sequential trip allows
exact fastener placement without the possibility of driving a second
fastener on recoil, as described under Contact Trip. The sequential
trip tool has a positive safety advantage because it will not accidentally
drive a second fastener if the tool is contacted against the work or
anything else while the operator is holding the trigger pulled.
Contract Trip: The common operating procedure on contact trip
tools is for the operator to contact the work surface to actuate
the trip mechanism while keeping the trigger pulled, thus driving
a fastener each time the work is contacted. This will allow rapid
fastener placement on many jobs, such as sheathing, decking
and pallet assembly. All pneumatic tools are subject to recoil when
driving fasteners. The tool may bounce, releasing the trip, and if
unintentionally allowed to recontact the work surface with the trigger
still actuated (finger still holding the trigger pulled) an unwanted
second fastener will be driven.
TO CHANGE OPERATING MODES (FIG. 1, 4–6)
WARNING: Disconnect air line from tool and remove fasteners
from magazine before making adjustments or personal injury may
result.
WARNING: Be aware that once the locking pin is removed, the
trigger is converted to a selectable trigger, enabling either sequential
trip or contract trip operating modes.
WARNING: Always know the tool operating mode before
connecting to an air supply and/or using the tool.

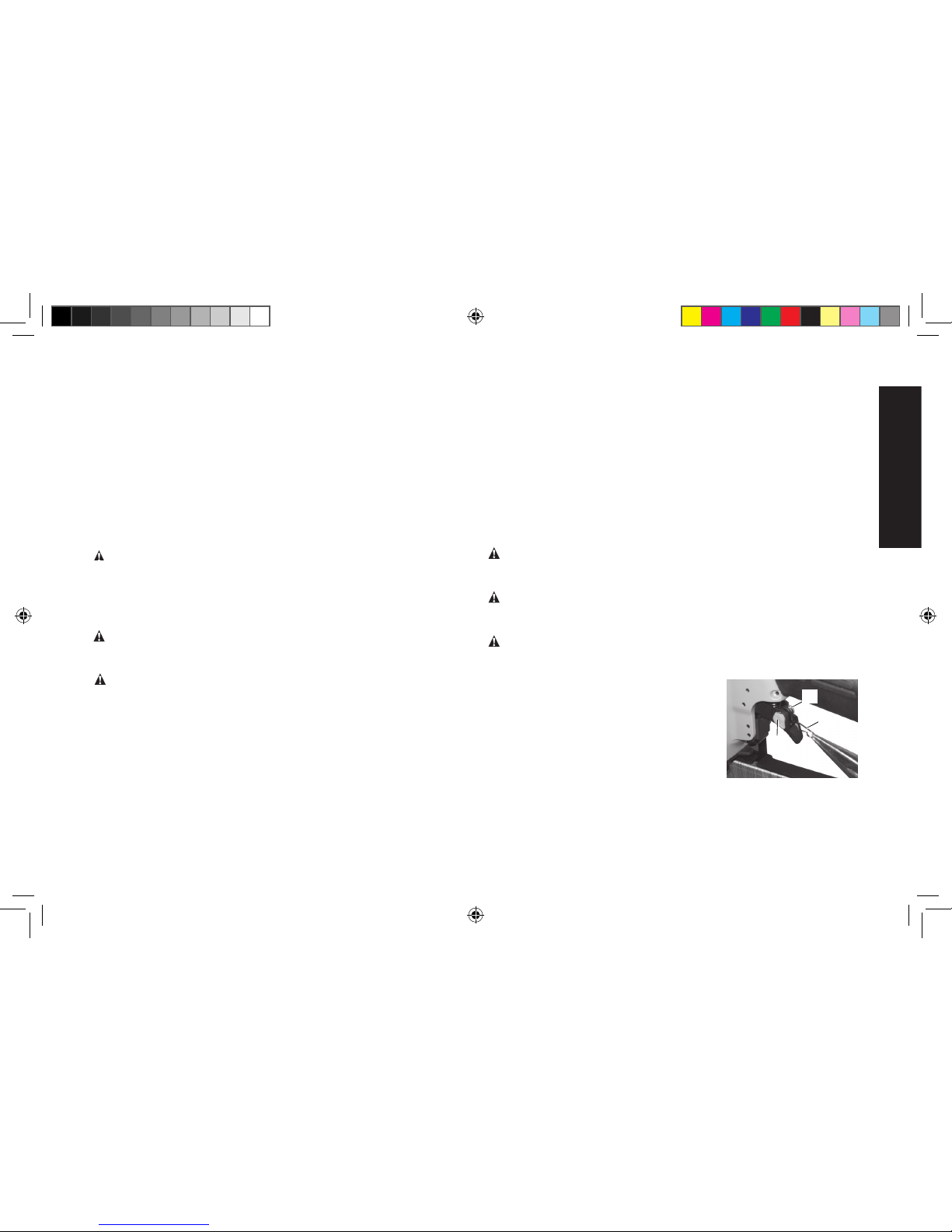

The tool is initially locked in the sequential FIG. 4
H
I
J
trip operating mode. In order to enable the
mode selection feature the mode locking
pin (H) must be removed.
NOTE: The mode locking pin is for
shipping purposes only. Discard pin after
removing.
English
7
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 7 11/14/14 3:06 PM

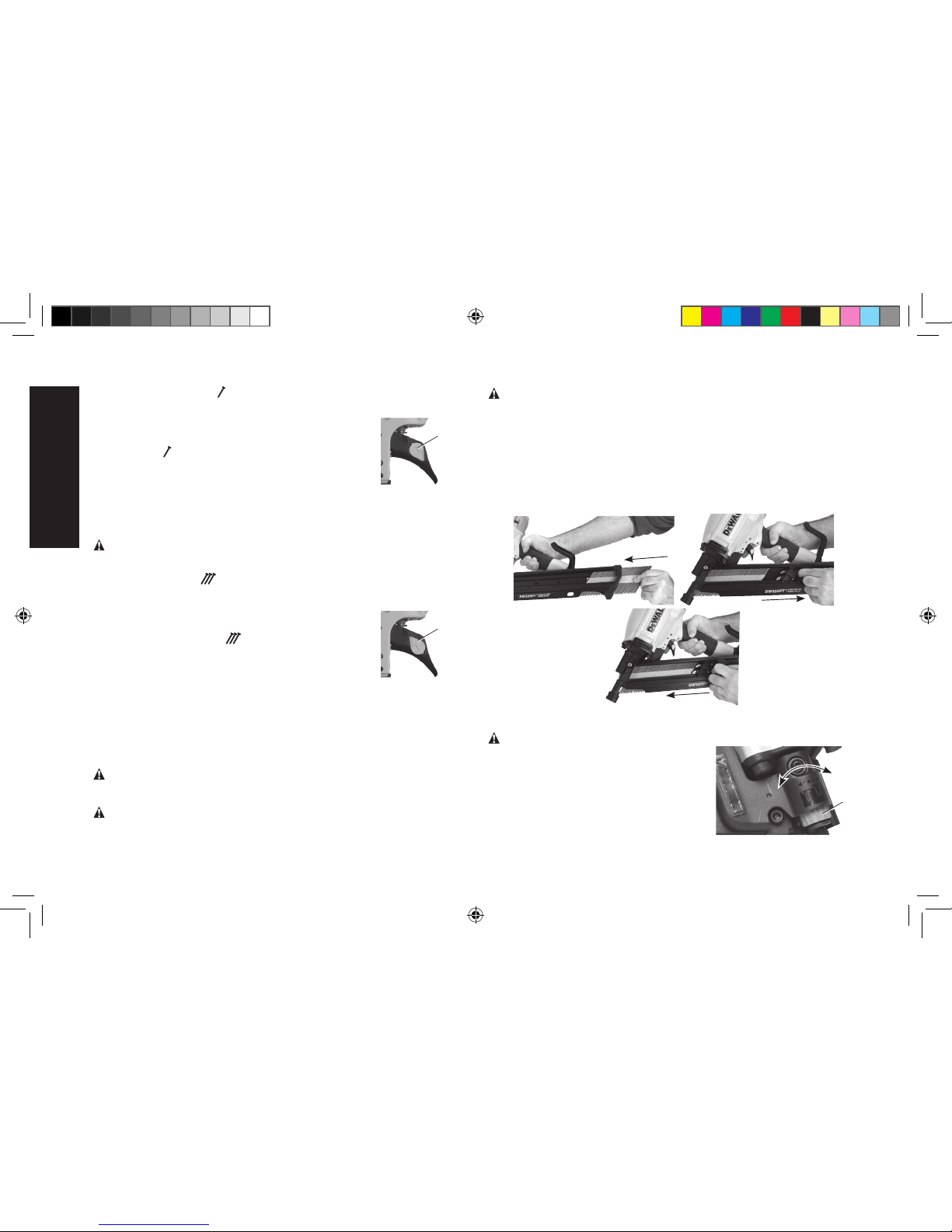

SEQUENTIAL TRIP-
1. Remove mode locking pin (H), if installed.
2. Push and hold in pivot pin (I) while rotating the J
FIG. 5
selector (J) 180° clockwise to the sequential trip
position .
3. Ensure the selector is fully seated in the new
position.
To operate the nailer in sequential trip mode:
1. Depress the contact trip firmly against the work surface.
2. Depress the trigger.
WARNING: A nail will fire each time the trigger is depressed as
long as the contact trip remains depressed.
CONTACT TRIP -
1. Remove mode locking pin, if installed.
2. Push and hold in pivot pin (I) while rotating the
J
FIG. 6
selector (J) 180° counterclockwise to the
contact trip position .
3. Ensure the selector is fully seated in the new
position.
To operate the nailer in contact trip mode:
1. Depress the trigger.
2. Push the contact trip against the work surface. As long as the
trigger is depressed, the tool will fire a nail every time the contact
trip is depressed. This allows the user to drive multiple nails in
sequence.
WARNING: Do not keep trigger depressed when tool is not in use.

WARNING: Keep tool pointed in a safe direction when loading
nails.
WARNING: Never load nails with the contact trip or trigger
activated.
1. Hold nailer with magazine (F) tilted downward and insert
appropriate collated nail sticks into magazine. See Tool
Specifications to determine appropriate nail sizes and angles.
2. Pull the nail pusher (E) back and carefully allow the pusher to slide
forward until it makes contact with the nails.
FIG. 7

WARNING: Disconnect air line from FIG. 8
G
tool and remove fasteners from
magazine before making adjustments or
personal injury may result.
English
8
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 8 11/14/14 3:06 PM

The fastener depth control adjustment feature provides control of
the nail drive depth from flush with or just above the work surface
to shallow or deep countersink.
Rotate depth control adjustment wheel (G) to give the desired depth
of drive.

The integrated rafter hook (C) can be rotated to either side of the tool
to accommodate left- or right-handed users.
NOTE: The rafter hook can not be removed.

WARNING: Read the section titled Important Safety Instructions
at the beginning of this manual. Always wear eye and ear protection
when operating this tool. Keep the nailer pointed away from yourself
and others. For safe operation, complete the following procedures
and checks before each use of the nailer.
When operating tools at temperatures below freezing, complete
preparation procedures outlined above and follow the directions
below.
1. Make sure compressor tanks have been properly drained prior
to use. Always drain the compressor tanks at least once daily
while using the nailer. This is especially important in cold weather
because any moisture in the air in the tanks will condense in the
cold temperature.
2. Keep the tool as warm as possible prior to use.
3. Put 5 to 10 drops of D
e
WALT Pneumatic Tool Oil or winter weight
pneumatic oil containing ethylene glycol in the end cap.
4. Lower air pressure to 80 psi or less.
5. Actuate the tool 5 or 6 times into scrap lumber to lubricate o-rings.
6. Turn pressure up to operating level (not to exceed 120 psi) and
use tool as normal.
7. Re-lubricate with D
e
WALT Pneumatic Tool Oil or winter weight
pneumatic oil containing ethylene glycol in the end cap at least
twice a day or after 4 hours of use.

Tool should operate normally. However, keep tool out of direct sunlight
as excessive heat can damage bumpers, o-rings and other rubber
parts.

WARNING: Disconnect air line from tool and remove fasteners
from magazine before making adjustments or personal injury may
result.

ACTION Lubricate tool with 5-10 drops of D
e
WALT Pneumatic
Tool Oil
WHY Prevents failure of o-rings
HOW Insert drops into air fitting on end cap of tool
ACTION Drain compressor tanks and hoses daily
WHY Prevents accumulation of moisture in compressor and
nailer
HOW Open petcocks or other drain valves on compressor
tanks. Allow any accumulated water to drain from
hoses
English
9
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 9 11/14/14 3:06 PM

ACTION Clean magazine, pusher, and contact trip mechanism
WHY Permits smooth operation, reduces wear, and
prevents jams
HOW Blow clean with compressed air. The use of oils or
solvents is not recommended as they tend to attract
debris
ACTION Before each use, check to ensure all screws, nuts and
fasteners are tight and undamaged
WHY Prevents jams, leaks and premature failure of tool
parts
HOW Tighten loose screws or other fasteners using the
appropriate hex wrench or screwdriver

WARNING: Blow dirt and dust out of all air vents with clean, dry air
at least once a week. To minimize the risk of eye injury, always wear
ANSI Z87.1 approved eye protection when performing this.
WARNING: Never use solvents or other harsh chemicals for
cleaning the non-metallic parts of the tool. These chemicals may
weaken the plastic materials used in these parts. Use a cloth
dampened only with water and mild soap. Never let any liquid get
inside the tool; never immerse any part of the tool into a liquid.

WARNING: To reduce the risk of serious personal injury, remove
nails from magazine before making any adjustments or servicing this
tool.
Refer to the Troubleshooting Guide at the end of this section.
To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment should be performed by a D
e
WALT factory service
center, a D
e
WALT authorized service center or other qualified service
personnel. Always use identical replacement parts.

WARNING: Since accessories, other than those offered by
DEWALT, have not been tested with this product, use of such
accessories with this tool could be hazardous. To reduce the risk of
injury, only DEWALT, recommended accessories should be used with
this product.
Recommended accessories for use with your tool are available
at extra cost from your local dealer or authorized service center.
If you need assistance in locating any accessory, please contact
DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD
21286, call 1-800-4-DEWALT (1-800-433-9258) or visit our website
www.dewalt.com.

Thank you for your purchase. Register your product now for:
 • WARRANTY SERVICE: Registering your product will help you
obtain more efficient warranty service in case there is a problem
with your product.
 • CONFIRMATION OF OWNERSHIP: In case of an insurance
loss, such as fire, flood or theft, your registration of ownership will
serve as your proof of purchase.
 • FOR YOUR SAFETY: Registering your product will allow us to
contact you in the unlikely event a safety notification is required
under the Consumer Product Safety Act.
Register online at www.dewalt.com/register.

D
e
WALT will repair, without charge, any defects due to faulty materials
or workmanship for seven years from the date of purchase. This
warranty does not cover part failure due to normal wear or tool
abuse. For further detail of warranty coverage and warranty repair
information, visit www.dewalt.com or call 1-800-4-D
e
WALT (1-800-
English
10
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 10 11/14/14 3:06 PM

433-9258). This warranty does not apply to accessories or damage
caused where repairs have been made or attempted by others. This
warranty gives you specific legal rights and you may have other rights
which vary in certain states or provinces.
In addition to the warranty, D
e
WALT tools are covered by our:
1 YEAR FREE SERVICE
D
e
WALT will maintain the tool and replace worn parts caused by
normal use, for free, any time during the first year after purchase.
Nailer wear items, such as o-rings and driver blades, are not covered.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of your
D
e
WALT Power Tool, Laser, or Nailer for any reason, you can return
it within 90 days from the date of purchase with a receipt for a full
refund – no questions asked.
LATIN AMERICA: This warranty does not apply to products sold
in Latin America. For products sold in Latin America, see country
specific warranty information contained in the packaging, call the
local company or see website for warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels
become illegible or are missing, call 1-800-4-D
e
WALT (1-800-433-
9258) for a free replacement.
English
11
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 11 11/14/14 3:06 PM


MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW.
FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT A D
e
WALT SERVICE CENTER OR CALL 1-(800)-4-D
e
WALT.
WARNING: To reduce the risk of serious personal injury, remove
fasteners from magazine before making any adjustments or servicing this tool.
SYMPTOM CAUSE FIX
Trigger valve housing leaks O-ring or valve stem failure Replace valve using Trigger Valve Kit
Top cap leaks air Loose cap screws Tighten cap screws using appropriate hex wrench
Damaged or worn gasket or o-ring Replace gasket/o-rings using Nailer O-Ring Repair Kit
Exhaust leaks Main seal or o-ring damaged, debris
in tool. Replace gasket/o-rings using Framing Nailer O-Ring Repair Kit
Air leaks around nose when
tool is at rest. (Driver blade in
up position.)
Damaged or worn o-rings Replace gasket/o-rings using Framing Nailer O-Ring Repair Kit
Air leaks around nose when
tool is in actuated position.
(Driver blade in down position.)
Damaged or worn bumper Replace bumper using: Frame Nailer Bumper Kit
Tool does not cycle in cold
weather Tool not receiving air Check air supply
Valve may be frozen Warm up tool. Lubricate with D
e
WALT Pneumatic Tool Oil or winter weight
pneumatic oil containing ethylene glycol
Damaged or worn o-rings Replace gasket/o-rings using Framing Nailer O-Ring Repair Kit
Broken or damaged driver blade Replace driver blade
Lack of power; sluggish Low air pressure Check air supply
Lack of lubrication Lubricate tool using D
e
WALT pneumatic tool oil
Damaged or worn o-rings Replace gasket/o-rings using framing nailer o-ring repair kit
Exhaust port blocked or clogged Disconnect air, remove exhaust plate from top of tool, clean port
Depth adjustment set too shallowly Reset depth adjustment
Driver damaged or worn Replace driver blade
English
12
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 12 11/14/14 3:06 PM


MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW.
FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT A D
e
WALT SERVICE CENTER OR CALL 1-(800)-4-D
e
WALT.
WARNING: To reduce the risk of serious personal injury, remove
fasteners from magazine before making any adjustments or servicing this tool.
SYMPTOM CAUSE FIX
Skipping nails; intermittent feed Air restricted Check air supply and couplers
Lack of lubrication Lubricate tool using D
e
WALT pneumatic tool oil
Nosepiece screws loose Tighten nosepiece screws using appropriate hex wrench
Wrong size/angle fasteners Use only recommended fasteners
Dirty magazine Clean magazine track and nosepiece
Damaged/Worn magazine Replace magazine
Broken or damaged driver blade Replace driver blade
Trigger valve o-ring worn or
damaged Replace valve using Trigger Valve Kit
Worn piston o-ring Replace O-ring using Framing Nailer O-Ring Repair Kit
Worn or damaged pusher spring Replace spring using Magazine Pusher Spring Kit
Fasteners jam in tool Driver channel in nosepiece worn Replace nosepiece
Wrong size/ angle fasteners Use only recommended fasteners
Worn driver blade Replace driver blade
Nosepiece screws loose Tighten nosepiece screws using appropriate hex wrench
Nails not feeding properly Ensure nails are feeding properly through the magazine and into the nose
English
13
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 13 11/14/14 3:06 PM

AVANT DE FAIRE FONCTIONNER CET OUTIL, LIRE
ATTENTIVEMENT ET COMPRENDRETOUTESLESDIRECTIVES
DE LA SECTION “CONSIGNES DE SÉCURITÉ IMPORTANTES”


Les définitions ci-dessous décrivent le niveau de danger pour
chaque mot-indicateur employé. Lire le mode d’emploi et porter
une attention particulière à ces symboles.
DANGER: indique une situation dangereuse imminente qui,
si elle n’est pas évitée, entraînera la mort ou des blessures
graves.
AVERTISSEMENT : indique une situation potentiellement
dangereuse qui, si elle n’est pas évitée, pourrait entraîner la
mort ou des blessures graves.
ATTENTION : indique une situation potentiellement
dangereuse qui, si elle n’est pas évitée, pourrait entraîner des
blessures légères ou modérées.
AVIS : indique une pratique ne posant aucun risque de
dommages corporels mais qui par contre, si rien n’est fait
pour l’éviter, pourrait poser des risques de dommages
matériels.
POUR TOUTE QUESTION OU REMARQUE AU SUJET DE CET
OUTIL OU DE TOUT AUTRE OUTIL D
e
WALT, COMPOSEZ LE
NUMÉRO SANS FRAIS : 1 800 4-DEWALT (1 800 433-9258)




AVERTISSEMENT: ne pas utiliser cet appareil avant d’avoir lu
le mode d’emploi ainsi que l’intégralité des directives de sécurité,
d’utilisation et d’entretien.
AVERTISSEMENT: ce produit contient des produits chimiques
reconnus par l’État de la Californie comme étant cancérigènes et
pouvant entraîner des anomalies congénitales ou d’autres problèmes
liés aux fonctions reproductrices. Se laver les mains après toute
manipulation.
AVERTISSEMENT: certaines poussières contiennent des produits
chimiques reconnus par l’État de la Californie comme cancérigènes et
pouvant entraîner des anomalies congénitales et d’autres problèmes liés
aux fonctions reproductrices, te

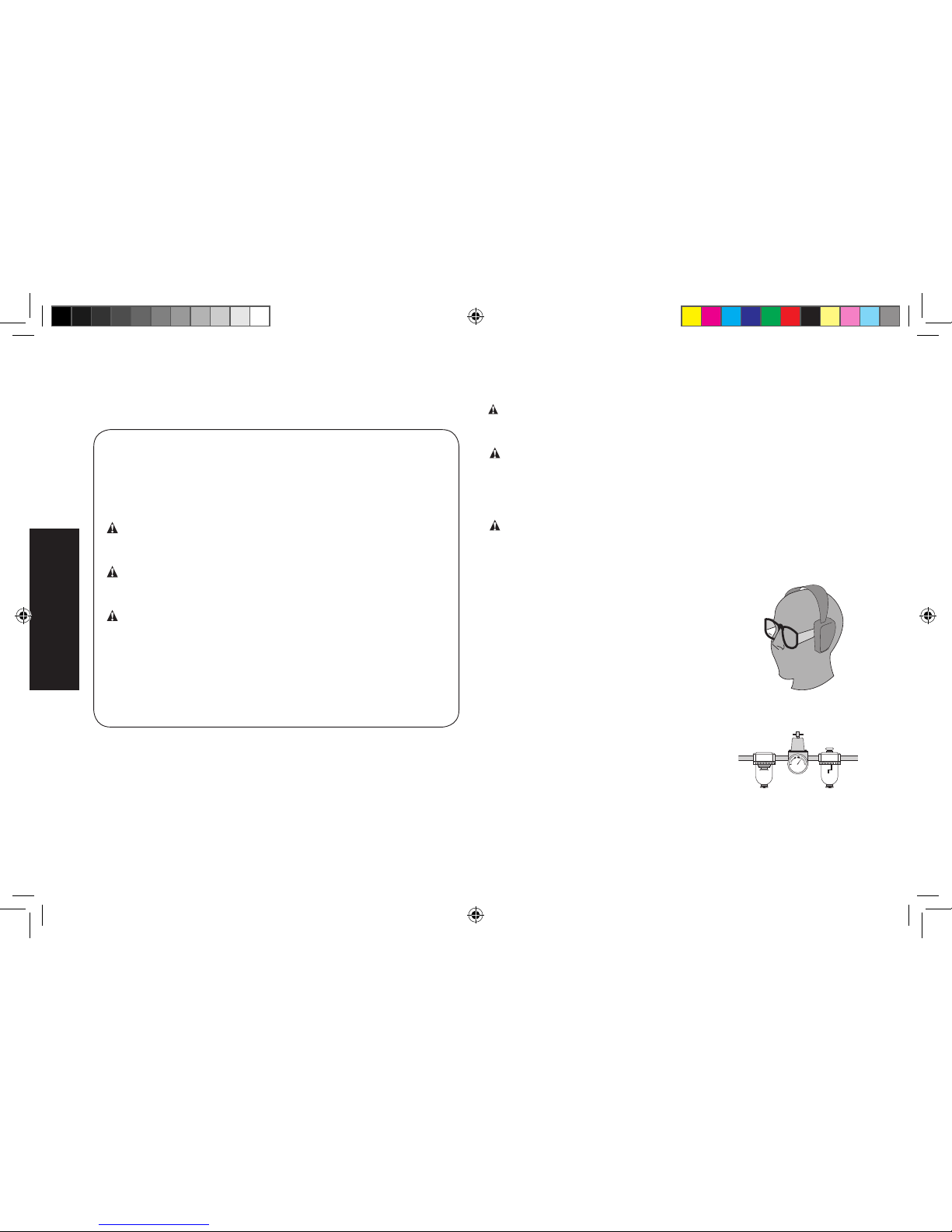

• La mise en marche de l’outil peut FIG. A
FIG. B
projeter des débris, du matériel
amalgamé ou de la poussière
pouvant causer des blessures
oculaires à l’opérateur. L’opérateur et
toutes les personnes dans la zone
environnante doivent porter des lunettes
de sécurité avec écrans latéraux fixes.
Les lunettes de sécurité approuvées sont
estampillées avec la mention “Z87.1”.
L’employeur a la responsabilité d’imposer
à l’opérateur et à toutes autres personnes
dans la zone de travail le port
d’équipement de protection des yeux.
(fig. A)
• Toujours porter des protecteurs
d’oreilles appropriés et autres dispositifs de protection
durant l’utilisation. Selon les conditions et la durée d’utilisation,
le bruit émis par cet outil peut causer une perte auditive. (fig. A)
Français
14
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 14 11/14/14 3:06 PM

• Utiliseruniquementdel’airpropre,secetrégulé. La conden
sation provenant d’un compresseur d’air peut faire rouiller et
endommager les composantes internes de l’outil. (fig. B)
• Régulerla pression d’air. Utiliser une
FIG. E
FIG. F
FIG. C
FIG. D
pression compatible avec la pression
nominale indiquée sur la fiche
signalétique de l’outil. (Ne doit pas
excéder 120 psi, 8,3 bars.) Ne pas
raccorder l’outil à un compresseur d’une
puissance nominale supérieure à 200 psi.
La pression de fonctionnement de l’outil
ne doit jamais excéder 200 psi même
dans l’éventualité d’une défaillance du
régulateur. (fig. C)
• Utiliser exclusivement un tuyau
d’air prévu pour une pression de
fonctionnement maximale d’au moins
10,3 bars (150 psi) ou 150 % de la
pression maximale du système, selon
la pression la plus élevée. (Fig. D)
• Ne pas utiliser de gaz en bouteille
pour faire fonctionner cet outil. Les
gaz comprimés en bouteille comme
l’oxygène, le bioxyde de carbone, l’azote,
l’hydrogène, le propane, l’acétylène ou l’air
ne doivent pas être utilisés avec les outils
pneumatiques. Ne jamais utiliser de gaz
combustibles ou tout autre type de gaz
réactif comme source d’énergie pour cet
outil. Leur utilisation représente un danger
d’explosion et peut se solder par des
blessures corporelles. (fig. E)
• Utiliserdesraccordsquilibèrenttoute FIG. G
FIG. H
FIG. I
FIG. J
la pression de l’outil lorsqu’il est
débranché de la source d’alimentation.
Utiliser des connecteurs de tuyau qui
coupent l’alimentation d’air du
compresseur quand l’outil est débranché.
(fig. F)
• Débrancher l’outil de la source
d’alimentation en air lorsqu’il n’est
pas utilisé. Toujours débrancher l’outil
de la source d’alimentation en air et
retirer les attaches qui se trouvent
dans le magasin avant de quitter la
zone de travail ou de remettre l’outil à
un autre opérateur. Ne pas transporter
l’outil vers une autre zone de travail
qui comprend des échafaudages, des
marches, des échelles etc., avec la
source d’alimentation en air raccordée.
Ne pas effectuer de réglages, retirer
le magasin, effectuer l’entretien ou
débloquer des attaches coincées
pendant que l’outil est raccordé à
la source d’alimentation en air. Une
décharge accidentelle pourrait se produire
si le déclencheur est réglé alors que l’outil
est raccordé à la source d’alimentation en
air et que des clous sont chargés. (fig. G)
• Brancher l’outil à la source
d’alimentation en air avant de
charger les attaches afin de prévenir
qu’une attache soit éjectée au
Français
15
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 15 11/14/14 3:06 PM

cours du branchement. Le mécanisme d’entraînement de
l’outil peut être mis en cycle lorsque l’outil est branché à la source
d’alimentation en air. Ne pas enfoncer la détente ou le déclencheur
lors du chargement des attaches pour prévenir un clouage par
inadvertance.
• Ne pas retirer, modifier ou rendre non fonctionnel, l’outil, la
détente ou le déclencheur de l’outil de quelque façon que
ce soit. Ne pas fixer de ruban ou d’attache sur la détente ou le
déclencheur pour le maintenir en position de MARCHE. Ne pas
retirer le ressort du déclencheur. Inspecter quotidiennement le bon
fonctionnement de la détente et du déclencheur. Une décharge
non contrôlée pourrait survenir.
• Inspecterl’outilavantdel’utiliser.Nepasfairefonctionnerun
outil si une partie de l’outil, de la détente ou du déclencheur
n’est pas fonctionnelle, est débranchée, modifiée ou ne
fonctionne pas correctement. Les fuites d’air ainsi que les
pièces endommagées ou manquantes doivent être réparées ou
remplacées avant utilisation. (fig. H)
• Nepastransformeroumodifierl’outildequelquefaçonque
ce soit. (fig. I)
• Toujoursconsidérerquel’outilcontientdesattaches.
• Ne jamais pointer l’outil en direction d’un collègue de
travailoude soi-même. Pas de chamaillerie! Toujours travailler
prudemment! Respecter l’outil en tant qu’élément essentiel au
travail. (fig. J)
• Tenir les spectateurs, les enfants et les visiteurs à l’écart
durant l’utilisation d’un outil mécanique. Les distractions
peuvent entraîner une perte de maîtrise. Verrouiller l’outil dans un
endroit sûr, hors de la portée des enfants lorsqu’il n’est pas utilisé.
• Enleverledoigtdeladétentelorsquevousneclouezpas.Ne
jamais transporter l’outil avec le doigt sur la détente. Cette
pratique pourrait se solder par une décharge intempestive. Utiliser le
bouton de verrouillage de la détente pour empêcher une décharge
intempestive
• Ne pas tendre le bras trop loin. Il faut FIG. K
FIG. L
FIG. M
demeurer bien campé sur ses pieds et en
équilibre en tout temps. Une perte
d’équilibre risquerait d’entraîner une
blessure corporelle. (fig. K)
• S’assurer que le tuyau est exempt
d’obstructions ou d’emmêlements.
Des tuyaux entremêlés ou vrillés peuvent
faire perdre l’équilibre ou perdre pied.
• N’utiliser l’outil que pour les travaux
pour lesquels il a été conçu; ne pas
décharger les attaches à l’air libre ni
dans des matériaux durs, comme le
béton, la pierre, le bois ou les noeuds
ou tout autre matériel trop difficile à
pénétrer. Ne pas utiliser le corps de
l’outil ou le couvercle supérieur en
guise de marteau. Les attaches éjectées
peuvent suivre une trajectoire inattendue et
causer des blessures. (fig. L)
• Toujours garder les doigts éloignés
du déclencheur par contact afin
d’éviter une décharge accidentelle et
les risques de blessure. (fig. M)
• Consulter les sections Entretien
et Réparations pour obtenir les
renseignements détaillés sur l’entretien approprié de l’outil.
Français
16
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 16 11/14/14 3:06 PM

• Toujoursutiliserl’outildansunendroit
propre et bien éclairé; s’assurer que la
surface de travail est exempte de débris et
prendre soin de ne pas perdre l’équilibre
lorsqu’on travaille dans un endroit surélevé,
tel un toit.
• Nepasenfoncerlesattachesprèsdes
bords de la pièce; celle-ci pourrait se
fractionner, ce qui risque de faire ricocher
l’attache et de blesser quelqu’un, y compris
l’utilisateur ou un collègue de travail.
S’assurer de ne pas enfoncer l’attache en
direction du fil du bois afin qu’il ne dépasse
pas le bord de la pièce. Enfoncer le clou
perpendiculaire au fil du bois afin de réduire

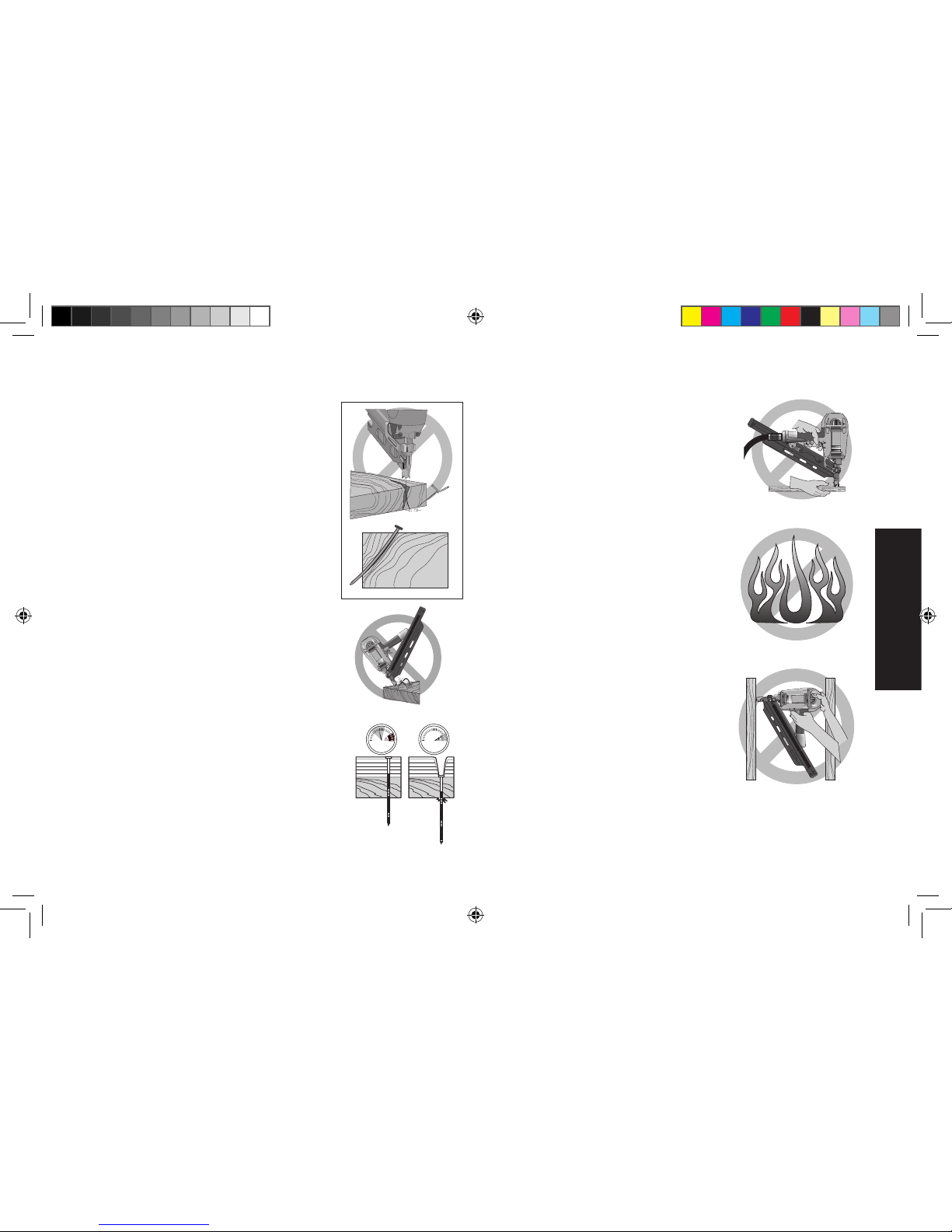

les risques de blessure. (fig. N)
• Nepasenfoncerdecloussurlestêtes
d’autres attaches ou à un angle trop
aigu. Cette pratique peut se solder par une
blessure corporelle provoquée par un recul,
un coincement d’attache ou un ricochet de
clou. (fig. O)
• S’informerdel’épaisseurdumatériau
lorsque vous utilisez une cloueuse. Un
clou en saillie peut causer des blessures.
• Être conscient que lorsque l’outil est
utilisé à des pressions du côté élevé
de sa gamme de fonctionnement, les
clous peuvent passer complètement
à travers un matériau mince ou très
souple. S’assurer que la pression dans le
compresseur est réglée de sorte que les
clous sont fixés dans le matériau et non
poussés entièrement dans celui-ci. (Fig. P)
• Garder les mains et les parties du
corps éloignées de la zone de travail
immédiate. Au besoin, maintenir la pièce
à travailler avec des serres afin de garder
les mains et les parties du corps éloignées
du danger potentiel. S’assurer que la pièce
à travailler est adéquatement fixée avant de
pousser la cloueuse contre sa surface. Le
déclencheur peut entraîner le déplacement
inopiné de la pièce à travailler. (fig. Q)
• Ne pas utiliser l’outil en présence de
poussières, de gaz ou d’émanations
inflammables. L’outil peut générer une
étincelle qui risque d’enflammer les gaz,
provoquant ainsi un incendie. Une étincelle
peut également survenir si un clou est
enfoncé sur un autre clou. (fig. R)
• Garderlevisageetlespartiesducorps
éloignés de l’arrière du couvercle de
l’outil lorsque le travail est effectué
dans des endroits restreints. Un recul
soudain peut entraîner un impact au corps,
particulièrement durant un clouage dans
des matériaux durs ou denses. (fig. S)
• Saisir l’outil fermement pour
en garder la maîtrise tout en lui
permettant de reculer hors de la
surface de travail lorsque l’attache est enfoncée. En « mode
d’actionnement par contact », si le déclencheur retouche la pièce
avec la détente enfoncée, l’outil clouera.
FIG. P
FIG. N
FIG. O
FIG. Q
FIG. R
FIG. S
Français
17
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 17 11/14/14 3:06 PM

• Le choix de la méthode de déclenchement est important.
Consulter le présent mode d’emploi pour connaître les options de
déclenchement.
GÂCHETTE À ACTION PAR CONTACT
• Lorsde l’utilisation de lagâchette

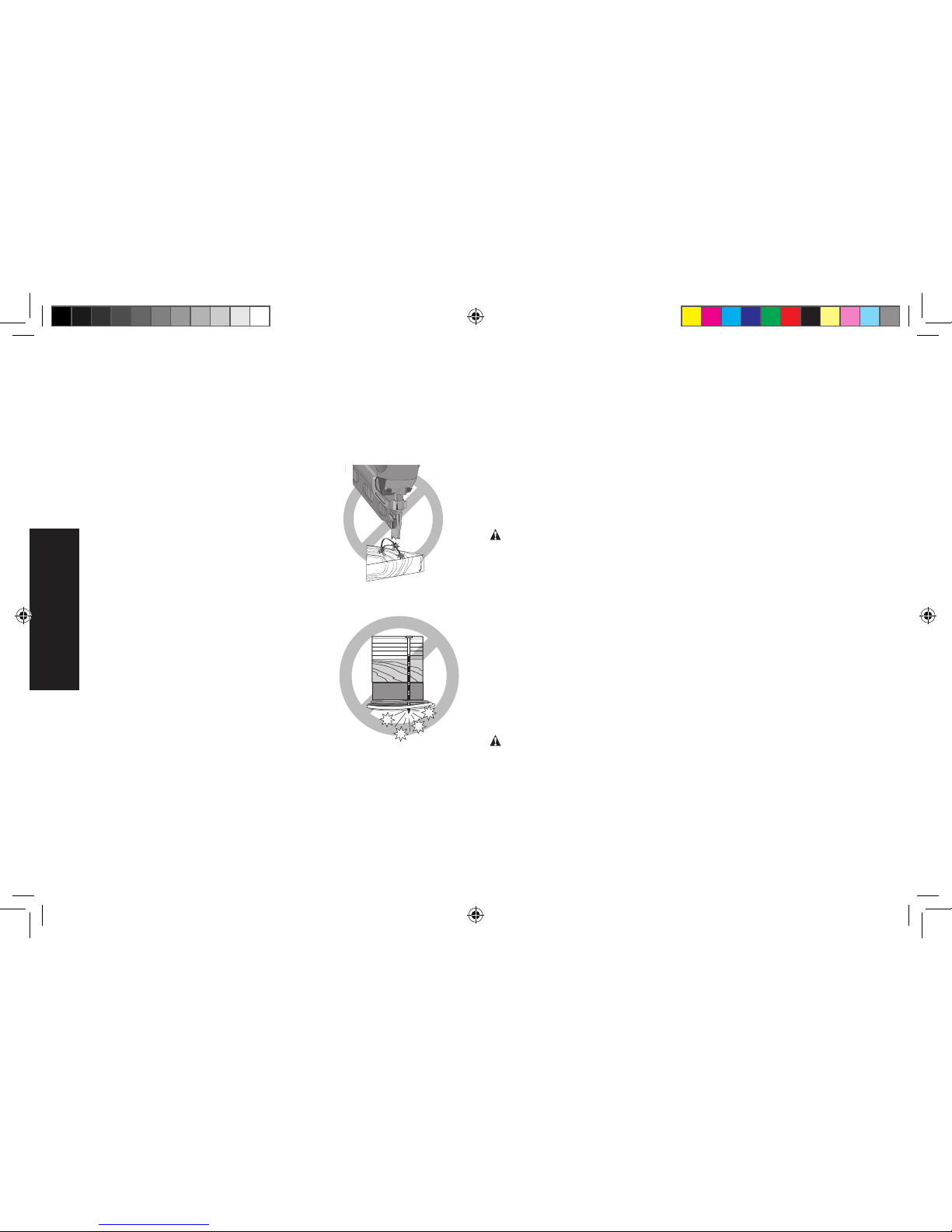

FIG. U
FIG. T
parcontact,prendregardeaux
doubles déclenchements
intempestifs provoqués par le
recul de l’outil. Il existe un risque
de libérer involontairement des
fixations si, par accident, le
déclencheur par contact touche à
nouveau la surface de travail (fig. T).
POUR ÉVITER LES DOUBLES
DÉCLENCHEMENTS:
• Ne pas presser l’outil contre la
pièce avec trop de force.
• Permettre à l’outil d’effectuer
complètement son mouvement de
recul après chaque actionnement.
• Utiliser la gâchette à action
séquentielle.
•Lors de l’« actionnement par
contact » de la cloueuse, il faut
toujours bien maîtriser l’outil. Un
positionnement imprécis de l’outil peut entraîner la libération mal
dirigée d’une fixation.
DÉTENTE À ACTION SÉQUENTIELLE
• Lorsqu’onutiliseladétenteàactionséquentielle,nepas
actionner l’outil à moins qu’il ne soit solidement appuyé
sur la pièce à travailler.
• Ne pas enfoncer de clous à l’aveugle dans les murs, les
planchers ou autres zones de travail. Des attaches enfoncées
dans des fils électriques sous tension, de la plomberie ou d’autres
types d’obstacles peuvent entraîner des blessures. (fig. U)
• Demeurer alerte, prêter attention au travail à effectuer
et faire preuve de bons sens pendant l’utilisation d’un
outil mécanique. Ne pas utiliser un outil lorsqu’on ressent
de la fatigue ou après avoir consommé des drogues, de
l’alcool ou des médicaments. Un moment d’inattention durant
l’utilisation d’outils mécaniques peut entraîner de graves blessures.
AVERTISSEMENT: Les scies, meules, ponceuses, perceuses
ou autres outils de construction peuvent produire des poussières
contenant des produits chimiques reconnus par l’État californien
pour causer cancers, malformations congénitales ou être nocifs au
système reproducteur. Parmi ces produits chimiques, on retrouve :
• leplombdanslespeinturesàbasedeplomb;
• la silice cristallisée dans les briques et le ciment ou autres
articles de maçonnerie ; et
• l’arsenic et le chrome dans le bois ayant subi un traitement
chimique.
Le risque associé à de telles expositions varie selon la fréquence à
laquelle on effectue ces travaux. Pour réduire toute exposition à ces
produits : travailler dans un endroit bien aéré, en utilisant du matériel
de sécurité homologué tel un masque les microscopiques.
AVERTISSEMENT: TOUJOURS PORTER DES LUNETTES
DE SÉCURITÉ. Les lunettes optiques ne constituent PAS des
lunettes de sécurité. Utiliser également un masque facial
ou anti-poussières si l’opération génère de la poussière.
TOUJOURS PORTER UN ÉQUIPEMENT DE PROTECTION
HOMOLOGUÉ :
• protection oculaire conforme à la norme ANSI Z87.1 (CAN/
CSAZ94.3),
Français
18
9R208191_DW325PL_DW325PT_DEWALT, FRAMING NAILER(LPF).indd 18 11/14/14 3:06 PM
