DeWalt DCW600 User manual

If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-DeWALT
Instruction Manual
Guide D’utilisation
Manual de instrucciones
DCW600
20V Max* Compact Router
Toupie compacte 20 V max*
Router Compacto 20 V Máx*
final page size: 8.5 x 5.5 in

ENGLISH
1
English (original instructions)
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
WARNING: To reduce the risk of injury, read the
instructionmanual.
If you have any questions or comments about this or
any DeWALT tool, call us toll free at:
1-800-4-DeWALT (1-800-433-9258).
1 Battery pack
2 Battery release button
3 On/Off switch
4 Variable speed dial
5 Depth adjustment ring
6 Motor
7 Spindle lock button
8 Spindle
9 Guide pin groove
10 Worklights
11 Micro-adjustment scale
12 Locking lever
13 D-shaped subbase
14 Turret stop
15 Depth adjustment rod
16 Plunge lock lever
17 Guide pins
18 Plunge base side handles
19 Motor stop
20 Plunge subbase
Fig. A
1
2
4
3
8
9
7
10
5
9
11
12
13
14
18
1716
18
15
19
6
20
20
17

ENGLISH
2
GENERALPOWERTOOLSAFETYWARNINGS
WARNING: Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock,
fire and/or seriousinjury.
SAVE ALL WARNINGS
AND INSTRUCTIONS FOR
FUTUREREFERENCE.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
powertool.
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust orfumes.
c ) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to losecontrol.
2) Electrical Safety
a ) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electricshock.
b ) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electricshock.
d ) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electricshock.
e ) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electricshock.
f ) If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personalinjury.
b ) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personalinjuries.
c ) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool. Carrying power tools with your
finger on the switch or energizing power tools that
have the switch on invitesaccidents.
d ) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personalinjury.
e ) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or
long hair can be caught in movingparts.
g ) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-relatedhazards.
h ) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of asecond.
4) Power Tool Use and Care
a ) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for
which it wasdesigned.
b ) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
berepaired.
c ) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power toolaccidentally.
d ) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrainedusers.
e ) Maintain power tools and accesories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
powertools.
f ) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier tocontrol.
g ) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking
into account the working conditions and the

ENGLISH
3
work to be performed. Use of the power tool for
operations different from those intended could result
in a hazardoussituation.
h ) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpectedsituations.
5) Battery Tool Use and Care
a ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used
with another batterypack.
b ) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury andfire.
c ) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or afire.
d ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
orburns.
e ) Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior resulting
in fire, explosion or risk ofinjury.
f ) Do not expose a battery pack or tool to
fire or excessive temperature. Exposure to
fire or temperature above 265 °F (130°C) may
causeexplosion.
g ) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside the
specified range may damage the battery and increase
the risk of fire.
6) Service
a ) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool ismaintained.
b ) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized serviceproviders.
Additional Safety Rules for Routers
• Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the
operator an electricshock.
• Use clamps or another practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body leaves it unstable
and may lead to loss ofcontrol.
• DO NOT cutmetal.
• Keep handles and gripping surfaces dry, clean, and
free from oil and grease. This will enable better control
of thetool.
• Maintain firm grip with both hands on the tool to
resist startingtorque. Maintain a firm grip on the tool
at all times whileoperating.
• Always follow the bit manufacturer’s speed
recommendations as some bit designs require
specific speeds for safety or performance. If you are
unsure of the proper speed or are experiencing any type of
problem, contact the bitmanufacturer.
• Keep hands away from cutting area above and
below the base. Never reach under the workpiece for
any reason. Keep the router base firmly in contact with
the workpiece whencutting.
• Never run the motor unit when it is not inserted in
one of the router bases. The motor is not designed to
behandheld.
• Keep cutting pressure constant. Do not overloadmotor.
• Use sharp bits. Dull bits may cause the router to swerve
or stall underpressure.
• Be sure that the motor has stopped completely
before you lay the router down. If the cutter head is still
spinning when the tool is laid down, it could cause injury
ordamage.
• Be sure that the router bit is clear of the workpiece
before starting the motor. If the bit is in contact with
the workpiece when the motor starts, it could make the
router jump, causing damage orinjury.
• ALWAYS disconnect tool from power source before
making adjustments or changingbits.
• Keep hands clear of bit when motor is running to
prevent personalinjury.
• NEVER touch the bit immediately after use. It may be
extremelyhot.
• Provide clearance under workpiece for router bit
when through-cutting.
• Tighten collet nut securely to prevent the bit
fromslipping.
• Never tighten collet nut without abit.
• Do not use router bits with a cutting diameter in
excess of 1-3/8" (34.9mm) in thistool.
• Always use cutters with a shank diameter of 1/4"
(6.4 mm) which corresponds to the size of the collet
in yourtool.
• Always follow the bit manufacturer's speed
recommendations as some bit designs require
specific speeds for safety or performance. If you are
unsure of the proper speed or are experiencing any type of
problem, contact the bitmanufacturer.
• Not recommended for use in a routertable.

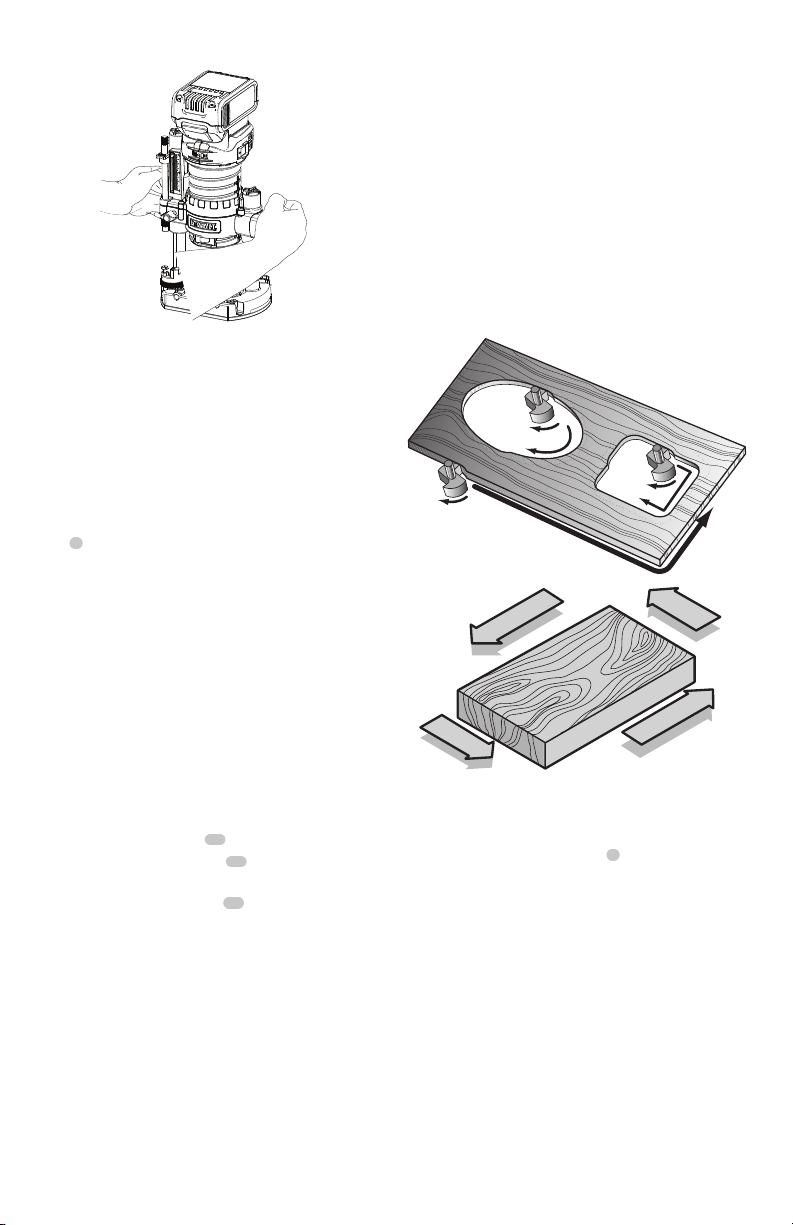

• Avoid climb-cutting (cutting in the opposite
direction of that shown in FigureQ). Climb-cutting
increases the chance for loss of control resulting in

ENGLISH
4
possible injury. When climb-cutting is required (backing
around a corner), exercise extreme caution to maintain
control of router. Make smaller cuts and remove minimal
material with eachpass.
• Do not hand-hold the router in an upside-down or
horizontal position. The motor can separate from the
base if not properly attached according to theinstructions.
• Before starting the motor clear the work area of all
foreignobjects.
• Do not use in a routertable.
• Always keep the chip shield (if included) clean and
inplace.
• Do not press spindle lock button while the motor is
running. Doing so can damage the spindlelock.
• Always make sure the work surface is free from nails
and other foreign objects. Cutting into a nail can cause
the bit and the tool tojump.
Additional Safety Information
WARNING: ALWAYS use safety glasses. Everyday
eyeglasses are NOT safety glasses. Also use face or
dust mask if cutting operation is dusty. ALWAYS WEAR
CERTIFIED SAFETYEQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratoryprotection.
WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to the State
of California to cause cancer, birth defects or
other reproductive harm. Some examples of these
chemicalsare:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-
treatedlumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopicparticles.
• Avoid prolonged contact with dust from power
sanding, sawing, grinding, drilling, and other
construction activities. Wear protective clothing and
wash exposed areas with soap and water. Allowing
dust to get into your mouth, eyes, or lay on the skin may
promote absorption of harmfulchemicals.
WARNING: Use of this tool can generate and/
or disperse dust, which may cause serious and
permanent respiratory or other injury. Always use
NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles
away from face andbody.
WARNING: Always wear proper personal hearing
protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration
of use, noise from this product may contribute to
hearingloss.
CAUTION: When not in use, place tool on its side
on a stable surface where it will not cause a
tripping or falling hazard. Some tools with large
battery packs will stand upright on the battery pack
but may be easily knockedover.
• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be
caught in movingparts.
The label on your tool may include the following symbols. The
symbols and their definitions are asfollows:
V.........................volts
Hz .......................hertz
min.....................minutes
or DC......direct current
......................Class I Construction
(grounded)
…/min..............per minute
BPM....................beats per minute
IPM.....................impacts per minute
RPM....................revolutions per
minute
sfpm ...................surface feet per
minute
SPM....................strokes per minute
A.........................amperes
W........................watts
or AC........... alternating current
or AC/DC....alternating or
direct current
......................Class II
Construction
(double insulated)
no.......................no load speed
n.........................rated speed
......................earthing terminal
.....................safety alert symbol
.....................visible radiation
.....................wear respiratory
protection
.....................wear eye
protection
.....................wear hearing
protection
.....................read all
documentation
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below and then follow charging
proceduresoutlined. When ordering replacement battery
packs, be sure to include the catalog number andvoltage.
Your tool uses a DeWALT charger. Be sure to read all safety
instructions before using your charger.
READ ALL INSTRUCTIONS
Important Safety Instructions for All
Battery Packs
WARNING: Read all safety warnings and all
instructions for the battery pack, charger and
power tool. Failure to follow the warnings and
instructions may result in electric shock, fire and/
or seriousinjury.
• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery
pack from the charger may ignite the dust orfumes.
• NEVER force the battery pack into the charger. DO
NOT modify the battery pack in any way to fit into
a non-compatible charger as battery pack may
rupture causing serious personal injury. Consult

ENGLISH
5
the chart at the end of this manual for compatibility of
batteries andchargers.
• Charge the battery packs only in designated
DeWALTchargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or
exceed 104°F (40°C) (such as outside sheds or metal
buildings in summer). For best life store battery packs in
a cool, drylocation.
NOTE: Do not store the battery packs in a tool with
the trigger switch locked on. Never tape the trigger
switch in the ONposition.
• Do not incinerate the battery pack even if it is
severely damaged or is completely worn out. The
battery pack can explode in a fire. Toxic fumes and
materials are created when lithium ion battery packs
areburned.
• If battery contents come into contact with the skin,
immedicately wash area with mild soap and water.
If battery liquid gets into the eye, rinse water over the open
eye for 15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of
a mixture of liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persist, seek medicalattention.
WARNING: Burn hazard. Battery liquid may be
flammable if exposed to spark orflame.
WARNING: Fire hazard. Never attempt to open the
battery pack for any reason. If the battery pack case
is cracked or damaged, do not insert into the charger.
Do not crush, drop or damage the battery pack. Do
not use a battery pack or charger that has received a
sharp blow, been dropped, run over or damaged in
any way (e.g., pierced with a nail, hit with a hammer,
stepped on). Damaged battery packs should be
returned to the service center forrecycling.
Transportation
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do
not place the battery pack in aprons, pockets, tool
boxes, product kit boxes, drawers, etc., with loose
nails, screws, keys, etc. Transporting batteries
can possibly cause fires if the battery terminals
inadvertently come in contact with conductive
materials such as keys, coins, hand tools and the
like. The US Department of Transportation Hazardous
Material Regulations (HMR) actually prohibit
transporting batteries in commerce or on airplanes in
carry-on baggage UNLESS they are properly protected
from short circuits. So when transporting individual
battery packs, make sure that the battery terminals
are protected and well insulated from materials that
could contact them and cause a shortcircuit.
NOTE: Lithium-ion batteries should not be put in
checkedbaggage.
Shipping the DeWALT FLEXVOLT™ Battery
The DeWALT FLEXVOLT™ battery has two modes: Use
and Shipping.
Use Mode: When the FLEXVOLT™ battery stands alone or is
in a DeWALT 20V Max* product, it will operate as a 20V Max*
battery. When the FLEXVOLT™ battery is in a 60V Max* or a
120V Max* (two 60V Max* batteries) product, it will operate
as a 60V Max* battery.
Shipping Mode: When the
cap is attached to the
FLEXVOLT™ battery, the
battery is in Shipping Mode.
Strings of cells are
electrically disconnected within the pack resulting in three
batteries with a lower Watt hour (Wh) rating as compared to
one battery with a higher Watt hour rating. This increased
quantity of three batteries with the lower Watt hour rating
can exempt the pack from certain shipping regulations that
are imposed upon the higher Watt hourbatteries.
The battery label indicates two Watt hour ratings (see
example). Depending on how the battery is shipped, the
appropriate Watt hour rating must be used to determine
the applicable shipping requirements. If utilizing the
shipping cap, the pack will be considered 3 batteries at
the Watt hour rating indicated for “Shipping”. If shipping
without the cap or in a tool, the pack will be considered one
battery at the Watt hour rating indicated next to “Use”.
USE: 120 Wh Shipping: 3 x 40 Wh
Example of Use and Shipping Label Marking
For example, Shipping Wh rating might indicate 3 x 40 Wh,
meaning 3 batteries of 40 Watt hours each. The Use Wh
rating might indicate 120 Wh (1 battery implied).

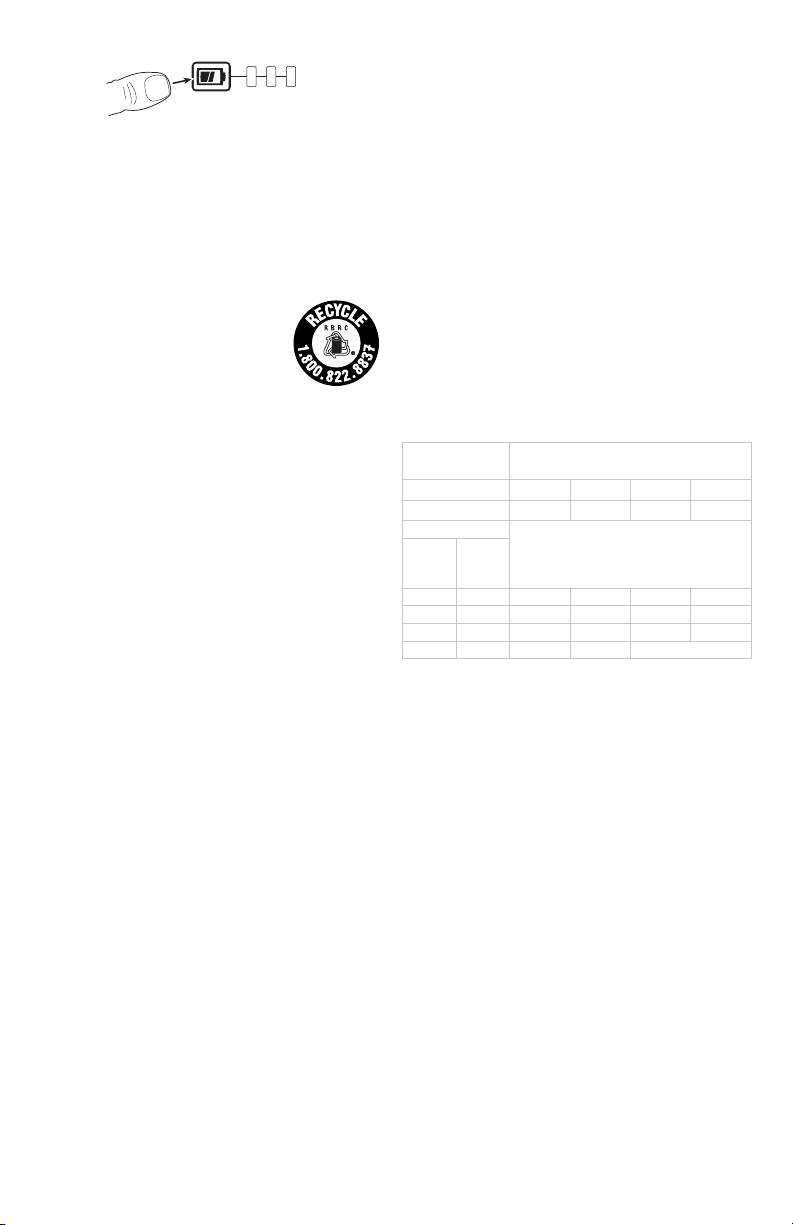

Fuel Gauge Battery Packs (Fig. B)
Some DeWALT battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
The fuel gauge is an indication of approximate levels of
charge remaining in the battery pack according to the
followingindicators:
75–100% charged
51–74% charged
< 50% charged
Pack needs to be charged
To actuate the fuel gauge, press and hold the fuel gauge
button. A combination of the three green LED lights will
illuminate designating the level of charge left. When the
level of charge in the battery is below the usable limit, the
fuel gauge will not illuminate and the battery will need to
berecharged.

ENGLISH
6
Fig. B
NOTE: The fuel gauge is only an indication of the charge left
on the battery pack. It does not indicate tool functionality
and is subject to variation based on product components,
temperature and end-userapplication.
For more information regarding fuel gauge battery packs,
please call 1-800-4-DeWALT (1-800-433-9258) or visit our
website www.dewalt.com.
The RBRC® Seal
The RBRC® (Rechargeable Battery
Recycling Corporation) Seal on the nickel
cadmium, nickel metal hydride or lithium-
ion batteries (or battery packs) indicates
that the costs to recycle these batteries
(or battery packs) at the end of their useful life have already
been paid by DeWALT. In some areas, it is illegal to place
spent nickel cadmium, nickel metal hydride or lithium-ion
batteries in the trash or municipal solid waste stream and
the Call2Recycle® program provides an environmentally
consciousalternative.
Call 2 Recycle, Inc., in cooperation with DeWALT and other
battery users, has established the program in the United
States and Canada to facilitate the collection of spent nickel
cadmium, nickel metal hydride or lithium-ion batteries. Help
protect our environment and conserve natural resources by
returning the spent nickel cadmium, nickel metal hydride
or lithium-ion batteries to an authorized DeWALT service
center or to your local retailer for recycling. You may also
contact your local recycling center for information on
where to drop off the spent battery. RBRC® is a registered
trademark of Call 2 Recycle,Inc.
Important Safety Instructions for All
Battery Chargers
WARNING: Read all safety warnings and all
instructions for the battery pack, charger and
power tool. Failure to follow the warnings and
instructions may result in electric shock, fire and/
or seriousinjury.
• DO NOT attempt to charge the battery pack with
any chargers other than the ones in this manual.
The charger and battery pack are specifically designed to
worktogether.
• These chargers are not intended for any uses other
than charging DeWALT rechargeable batteries.
Any other uses may result in risk of fire, electric shock
orelectrocution.
• Do not expose the charger to rain orsnow.
• Pull by the plug rather than the cord when
disconnecting the charger. This will reduce the risk of
damage to the electric plug andcord.
• Make sure that the cord is located so that it will not
be stepped on, tripped over or otherwise subjected
to damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in
risk of fire, electric shock orelectrocution.
• When operating a charger outdoors, always provide
a dry location and use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electricshock.
• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The smaller
the gauge number of the wire, the greater the capacity
of the cable, that is, 16 gauge has more capacity than 18
gauge. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. When using
more than one extension to make up the total length,
be sure each individual extension contains at least the
minimum wire size. The following table shows the correct
size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The
lower the gauge number, the heavier thecord.
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
(meters)
120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
American Wire Gauge
More
Than Not More
Than
0 6 18 16 16 14
610 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
• Do not place any object on top of the charger or
place the charger on a soft surface that might block
the ventilation slots and result in excessive internal
heat. Place the charger in a position away from any heat
source. The charger is ventilated through slots in the top
and the bottom of thehousing.
• Do not operate the charger with a damaged cord
orplug.
• Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.
• Do not disassemble the charger; take it to an
authorized service center when service or repair
is required. Incorrect reassembly may result in a risk of
electric shock, electrocution orfire.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce
thisrisk.
• NEVER attempt to connect 2 chargerstogether.
• The charger is designed to operate on standard
120V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.

ENGLISH
7
WARNING: Shock hazard. Do not allow any liquid to
get inside the charger. Electric shock mayresult.
WARNING:Burn hazard. Do not submerge the
battery pack in any liquid or allow any liquid to
enter the battery pack. Never attempt to open the
battery pack for any reason. If the plastic housing of
the battery pack breaks or cracks, return to a service
center forrecycling.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only DeWALT rechargeable battery packs.
Other types of batteries may overheat and burst
resulting in personal injury and propertydamage.
CAUTION: Under certain conditions, with the charger
plugged into the power supply, the charger can
be shorted by foreign material. Foreign materials
of a conductive nature, such as, but not limited to,
grinding dust, metal chips, steel wool, aluminum
foil or any buildup of metallic particles should be
kept away from the charger cavities. Always unplug
the charger from the power supply when there is no
battery pack in the cavity. Unplug the charger before
attempting toclean.

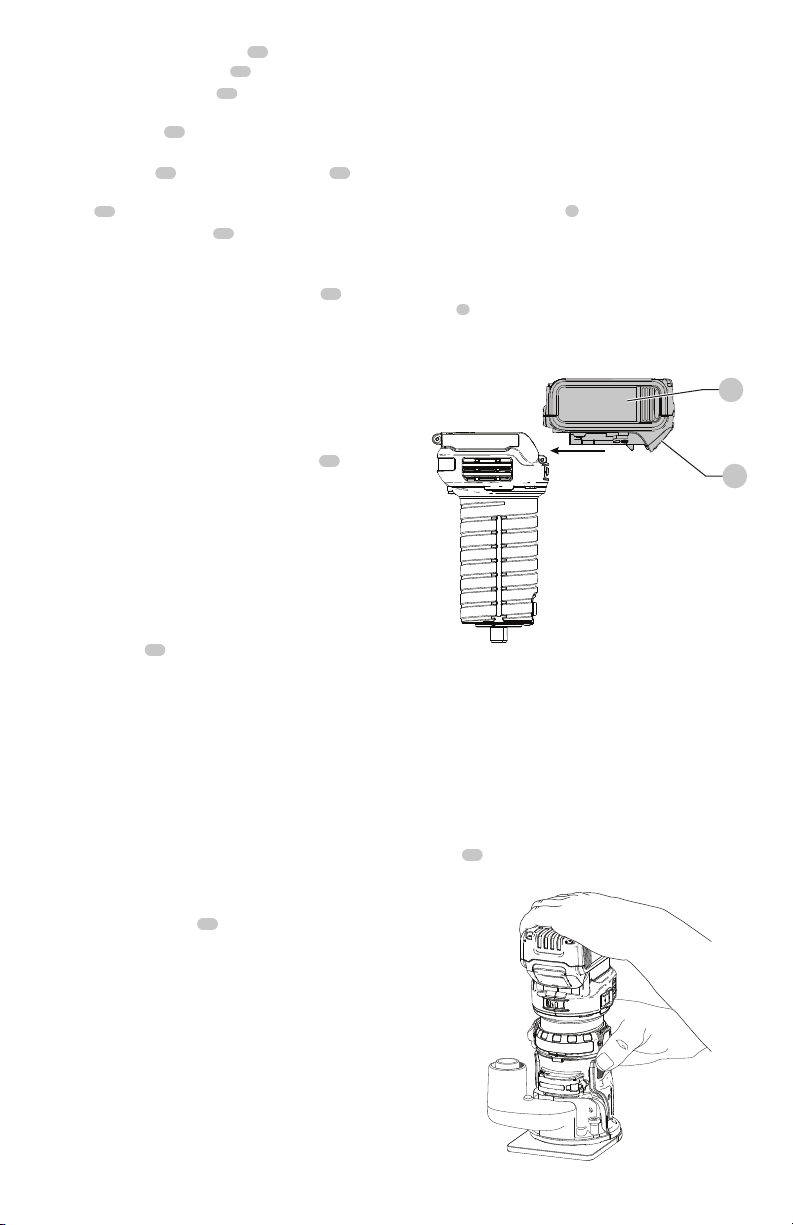

Charging a Battery (Fig. C)
1. Plug the charger into an appropriate outlet before
inserting batterypack.
1
2
Fig. C
2. Insert the battery pack1 into the charger, making sure
the battery pack is fully seated in the charger. The red
(charging) light will blink continuously indicating that
the charging process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is
fully charged and may be used at this time or left in the
charger. To remove the battery pack from the charger,
push the battery release button2 on the battery pack
and then slide the battery pack out of thecharger.
NOTE: To ensure maximum performance and life of lithium-
ion battery packs, charge the battery pack fully before
firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
Charging
Fully Charged
Hot/Cold Pack Delay*
*DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:
The red light will continue to blink, but a yellow indicator
light will be illuminated during this operation. Once the
battery pack has reached an appropriate temperature, the
yellow light will turn off and the charger will resume the
chargingprocedure.
The compatible charger(s) will not charge a faulty battery
pack. The charger will indicate faulty battery pack by
refusing tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and
battery pack to be tested at an authorized servicecenter.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery packwarms.
The DCB118 charger is equipped with an internal fan
designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to becooled.
Never operate the charger if the fan does not operate
properly or if ventilation slots are blocked. Do not permit
foreign objects to enter the interior of thecharger.
Electronic Protection System
Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against
overloading, overheating or deepdischarge.
The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the lithium-
ion battery pack on the charger until it is fullycharged.
Wall Mounting
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
These chargers are designed to be wall mountable or to
sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet,
and away from a corner or other obstructions which may
impede air flow. Use the back of the charger as a template
for the location of the mounting screws on the wall. Mount
the charger securely using drywall screws (purchased
separately) at least 1" (25.4 mm) long, with a screw head
diameter of 0.28–0.35" (7–9mm), screwed into wood to an
optimal depth leaving approximately 7/32" (5.5 mm) of the

ENGLISH
8
screw exposed. Align the slots on the back of the charger
with the exposed screws and fully engage them in theslots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using
a cloth or soft non-metallic brush. Do not use water or
any cleaningsolutions.
Important Charging Notes
1. Longest life and best performance can be obtained if
the battery pack is charged when the air temperature is
between 65°F and 75°F (18°– 24°C). DO NOT charge
the battery pack below +40°F (+4.5°C), or above
+104°F (+40°C). This is important and will prevent
serious damage to the batterypack.
2. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and
does not indicate a problem. To facilitate the cooling of
the battery pack after use, avoid placing the charger or
battery pack in a warm environment such as in a metal
shed or an uninsulatedtrailer.
3. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp
or other appliance;
b. Check to see if receptacle is connected to a light
switch which turns power off when you turn out
the lights;
c. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately 65°F– 75°F (18° –24°C);
d. If charging problems persist, take the tool, battery
pack and charger to your local servicecenter.
4. The battery pack should be recharged when it fails to
produce sufficient power on jobs which were easily
done previously. DO NOT CONTINUE to use under these
conditions. Follow the charging procedure. You may
also charge a partially used pack whenever you desire
with no adverse effect on the batterypack.
5. Foreign materials of a conductive nature such as, but
not limited to, grinding dust, metal chips, steel wool,
aluminum foil, or any buildup of metallic particles
should be kept away from charger cavities. Always
unplug the charger from the power supply when there
is no battery pack in the cavity. Unplug the charger
before attempting toclean.
6. Do not freeze or immerse the charger in water or any
otherliquid.
Storage Recommendations
1. The best storage place is one that is cool and dry, away
from direct sunlight and excess heat orcold.
2. For long storage, it is recommended to store a fully
charged battery pack in a cool dry place out of the
charger for optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged beforeuse.
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
COMPONENTS FIG. A
WARNING: Never modify the power tool or any part
of it. Damage or personal injury couldresult.
Refer to Figure A at the beginning of this manual for a
complete list ofcomponents.
Intended Use
This tool is designed for professional medium-duty
routingapplications.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Bit Installation and Removal (Fig.D)
WARNING: Projectile hazard. Only use bits with
shanks that match the installed collet. Smaller
shank bits will not be secure and could become loose
duringoperation.
CAUTION: Never tighten the collet without first
installing a router bit in it. Tightening an empty
collet, even by hand, can damage thecollet.
NOTICE: Do not use router bits with a cutting
diameter in excess of 1-3/8" (34.9 mm) in thistool.
To Install the Bit
1. Remove the motor unit from the base unit. Refer to
Removing the Motor from the Fixed Base/Removing
the Motor from the Plunge Base (ifneeded).
2. Clean and insert the round shank of the desired router
bit into the loosened collet as far as it will go and then
pull it out about 1/16" (1.6 mm).
3. Depress the spindle lock button7 to hold the spindle
shaft in place while turning the collet nut22 clockwise
with the wrenchprovided.
NOTE: The unit is equipped with multiple spindle lock
detents allowing an optional "manual ratchet" method
of tightening thebit.
To tighten with the "manual ratchet" method:
a. Without removing the wrench from the collet
nut22, release pressure on the spindle lock
button7.
b. With the wrench still on the collet nut, reverse the
tightening direction to reset the wrenchposition.

ENGLISH
9
c. Depress the spindle lock button again and turn the
wrenchclockwise.
d. Repeat the procedure until the collet nut reaches
desiredtightness.
NOTE: Tighten collet nut securely to prevent the bit
fromslipping.
NOTICE: Plunge Base Only—When tightening
or changing collets, do not allow the wrenches to
contact the plunge rods. If the rods are damaged, the
plunge action will berestricted.
7
22
Fig. D
To Remove the Bit
1. Remove the motor unit from the base unit (refer to
Removing the Motor from the Fixed Base/Removing
the Motor from the Plunge Base).
2. Depress the spindle lock button7 to hold the
spindle shaft in place while turning the collet nut22
counterclockwise with the wrenchprovided.
To loosen using the "manual ratchet" method:
1. Without removing the wrench from the collet nut22,
release pressure on the spindle lock button7.
2. With the wrench still on the collet nut22, reverse the
loosening direction to reset the wrenchposition.
3. Depress the spindle lock button7 again and turn the
wrenchcounterclockwise.
4. Repeat the procedure until the collet nut22 is loose
and the bit can beremoved.
Collets
NOTE: Never tighten the collet without first installing a
router bit in it. Tightening an empty collet, even by hand,
can damage thecollet.
To change collet sizes, unscrew the collet assembly as
described above. Install the desired collet by reversing the
procedure. The collet and the collet nut are connected. Do
not attempt to remove the collet from the colletnut.
Locking Lever Adjustment (Fig.E)
Excessive force should not be used to clamp the locking
lever. Using excessive force may damage thebase.
When the locking lever is clamped, the motor should not
move in thebase.
Adjustment is needed if the locking lever will not clamp
without excessive force or if the motor moves in the base
afterclamping.
To adjust the locking lever’s clamping force:
1. Open the locking lever12 (fixed base) or39
(plungebase).
2. Using a hex wrench turn locking lever adjustment
screw23 in smallincrements.
Turning the screw clockwise tightens the lever, while
turning the screw counterclockwise loosens thelever.
Fig. E
12
23
39

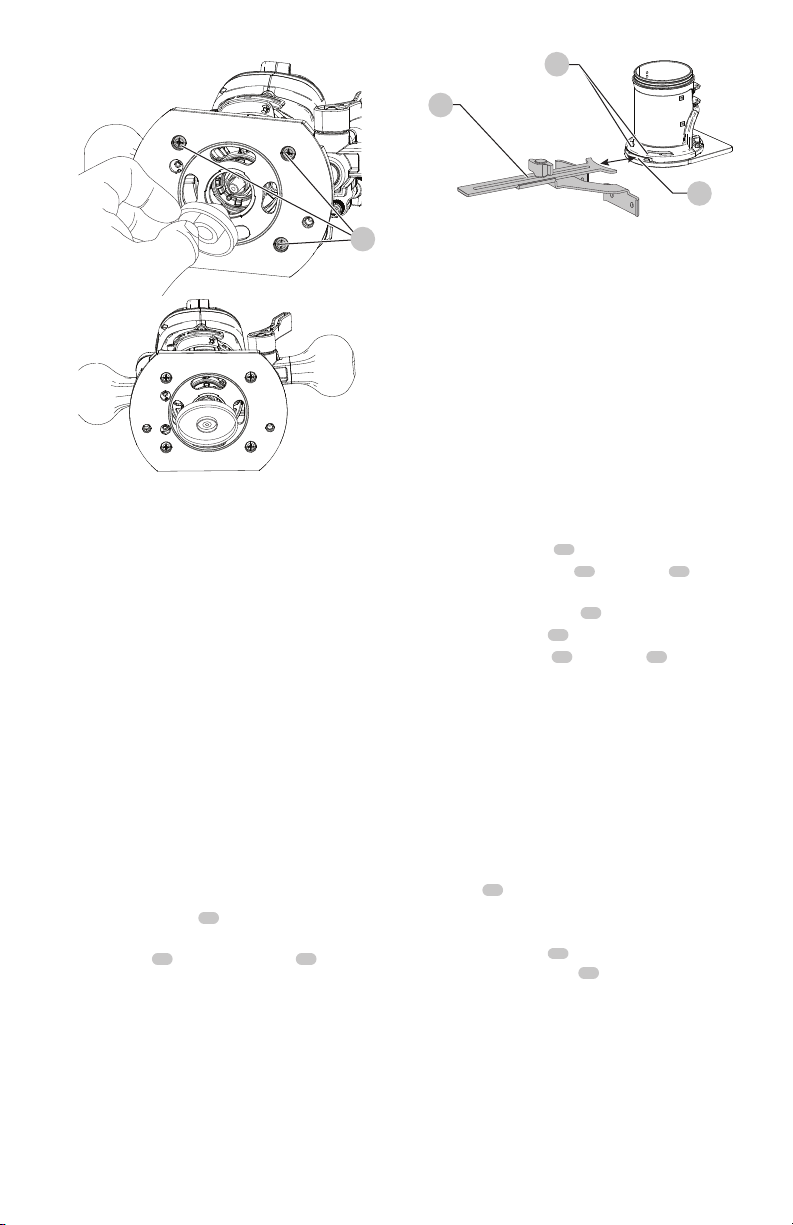

Centering the Subbase (Fig.A, F1, F2)
If you need to adjust, change, or replace the subbase, a
centering tool is recommended (refer to Accessories). The
centering tool consists of a cone and apin.
To adjust the subbase, follow the stepsbelow.
Figure F1 shows adjusting the subbase on the fixed
base and Figure F2 shows adjusting the subbase on the
plungebase.
1. Loosen but do not remove the subbase screws24 so
the subbase movesfreely.
2. Insert the pin into the collet and tighten the colletnut.
3. Insert the motor into the base and clamp the locking
lever12 / 39 on thebase.
4. Place the cone on the pin and lightly press down on the
cone until it stops. This will center thesubbase.
5. While holding down on the cone, tighten the
subbasescrews.
Fig. F1
24 24

ENGLISH
10
Fig. F2
24
Using Template Guides
The round subbase will accept universal template guides.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
servicecenter.
NOTE: The D-shape subbase does not accommodate
template guides and is designed to accommodate bits up
to 1-3/8" (34.9mm) indiameter.
To Use Template Guides:
1. Center the subbase. See Centering TheSubbase.
2. Install template guide (available as an accessory) on the
subbase and tightensecurely.
Installing a Fixed Base Edge Guide (Fig.G)
(Included with some models)
An edge guide (model DNP618) for your fixed base is
available from your local retailer or service center at
extracost.
1. Remove the motor from the fixed base. Refer to
Removing the Motor from the FixedBase.
2. Remove flat head screws26 from storage holes on
edgeguide.
3. Slide edge guide25 into edge guide slot27 on side
of fixed base (Fig.G). Insert the two flat head screws
through the appropriate holes in the subbase to secure
the edge guide. Tightenhardware.
4. Follow all instructions included with the edgeguide.
NOTE: To remove the edge guide, reverse the above
procedure. After removing edge guide, always replace the
two flat head screws into the storage holes on the edge
guide to preventloss.
26
25
27
Fig. G
Using a Premium Edge Guide
(Plunge Base Only)
(Included with some models)
A Premium Edge Guide (model DW6913) is available from
your local retailer or service center at extra cost. Follow the
assembly instructions included with the edgeguide.
Installing a Plunge Base Edge Guide with
Guide Rods (Fig.H)
(Included with some models)
An edge guide (model DW6913) for your plunge base
is available from your local retailer or service center at
extracost.
1. Attach the guide rods35 to the plunge routerbase.
2. Attach the thumb screws36 and springs37 to
thebase.
3. Tighten the thumb screws36.
4. Slide the edge guide38 over therods.
5. Attach thumb screws36 and springs37 to the
edgeguide.
6. Tighten the thumb screws temporarily. Refer to
Adjusting the EdgeGuide.
Adjusting the Edge Guide (Fig.A, H)
Follow the assembly instructions included with the
edgeguide.
1. Draw a cutting line on thematerial.
2. Lower the router carriage until the cutter is in contact
with theworkpiece.
3. Lock the plunge mechanism by releasing the plunge
lock lever16
4. Position the router on the cutting line. The outer cutting
edge of the cutter must coincide with the cuttingline.
5. Slide the edge guide38 against the workpiece and
tighten the thumb screws36.

ENGLISH
11
36
37
36
37
35
38
36
37
Fig.H
Attaching a Dust Extraction System to the
Fixed Base (Fig.I)
(Included with some models)
To connect the router to a dust extraction system for dust
collection, follow these steps:
1. Remove the motor unit from the base. Refer to
Removing the Motor from theFixed Base.
2. Attach dust extraction system attachment accessory28
to the base as shown. Tighten thumb screws29
securely byhand.
3. Attach hose adapter to dust extraction system
attachmentaccessory.
4. When using dust extraction system attachment, be
aware of the placement of the dust extraction system.
Be sure that the dust extraction system is stable and that
its hose will not interfere with thework.
Fig.I
28
29
Attaching a Dust Extraction System to the
Plunge Base (Fig.J)
(Included with some models)
1. Remove the motor unit from the base. Refer to
Removing the Motor from the PlungeBase.
2. Slide tab30 (inset) on dust extraction system
attachment34 into slot in plunge base and snap
tab31 (inset) into hole in plungebase.
3. Secure to base with supplied plastic washer32 and
thumb screw33. Tighten thumb screw securely
byhand.
4. Attach hose adapter to dust extraction
systemattachment.
When using dust extraction system attachment, be aware
of the placement of the dust extraction system. Be sure
the dust extraction system is stable and its hose will not
interfere with thework.
Fig.J
30
34
31
32
33

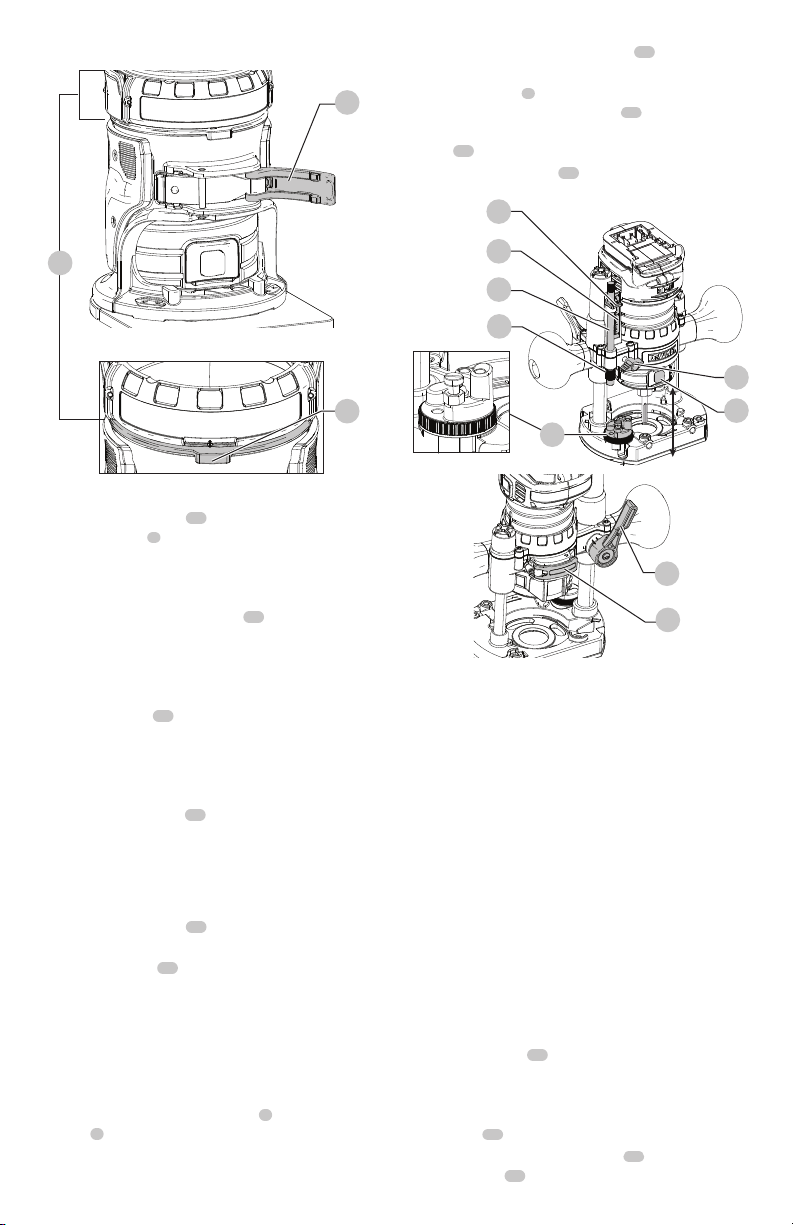

Set-Up: Fixed Base (Fig.A,K, L)
Inserting the Motor into the Fixed Base
1. Open the locking lever12 on thebase.
2. If the depth adjustment ring5 is not on the motor6,
thread the depth adjustment ring onto the motor until
the ring is about halfway between the top and bottom
of the motor as shown. Insert the motor into the base
by aligning the groove on the motor6 with the guide
pins17 on the base. Slide the motor down until the
depth adjustment ring snaps intoplace.
NOTE: Guide pin grooves9 are located on either side
of the motor so it can be positioned in twoorientations.
3. Adjust the depth of cut by turning the depth
adjustment ring. Refer to Adjusting the Depth ofCut.
4. Close the locking lever12 when the desired depth
isachieved.
Fig. K
21
12
21

ENGLISH
12
5
12
11
Fig. L
Adjusting the Depth of Cut (Fig.L)
1. Open the locking lever12 and turn the depth
adjustment ring5 until the bit just touches the work
piece. Turning the ring clockwise raises the cutting
head while turning it counterclockwise lowers the
cuttinghead.
2. Turn the micro-adjustment scale11 clockwise until the
0 on the scale lines up with the pointer on the bottom
of the depth adjustmentring.
3. Turn the depth adjustment ring until the pointer lines
up with desired depth of cut marking on the micro-
adjustment scale11.
NOTE: Each mark on the adjustment scale represents
a depth change of 1/64" or .015" (0.4 mm) and one
full (360º) turn of the ring changes the depth 0.5"
(12.7mm).
4. Close the locking lever12 to lock thebase.
Removing the Motor from the Fixed
Base (Fig.K)
1. Remove the battery pack from the motor. Refer to
Installing and Removing the BatteryPack.
2. Open the locking lever12 on thebase.
3. Grasp the motor unit with one hand, depressing both
quick release tabs21.
4. With the other hand, grasp the base and pull motor
from thebase.
Set-up: Plunge Base (Fig.A, M)
Inserting the Motor into the Plunge
Base
1. Remove the depth adjustment ring5 from the
motor6. It is not used with the plunge base.
NOTE:Snap depth adjustment ring onto fixed base,
when not in use, to preventloss.
2. Open the plunge base locking lever39.
3. Making sure the spindle lock button is facing front,
insert the motor6 into the base by aligning the groove
on the motor with the guide pins17 on the base. Slide
the motor down until the motor stops on the motor
stop19.
4. Close the locking lever39.
Fig. M
40
7
15
14
41
42
43
39
16
Adjusting the Plunge Routing Depth
(Fig.M)
WARNING: Laceration hazard. Do not change the
turret stop while the router is running. This will
place your hands too near the cutterhead.
WARNING: To prevent loss of control, ALWAYS
tighten the travel-limiting nuts together.
Inadvertent movement could prevent full
bitretraction.
WARNING: To prevent loss of control, set
the travel-limiting nuts so that bit can be
retracted into the base of the router, clear of
theworkpiece.
WARNING: To reduce the risk of injury, NEVER
adjust or remove the stop nut. Motor can
disengage resulting in loss ofcontrol.
CAUTION: Turn the router on before plunging the
cutter head into theworkpiece.
1. Unlock the plunge mechanism by pulling down the
plunge lock lever16. Gently push down on the two
handes to plunge the router down as far as it will go,
allowing the bit to just touch theworkpiece.
2. Lock the plunge mechanism by releasing the plunge
lock lever16.
3. Loosen the depth adjustment rod15 by turning the
thumb screw40counterclockwise.

ENGLISH
13
4. Slide the depth adjustment rod15 down so that it
meets the lowest turret stop14.
5. Slide the zero adjuster tab41 on the depth adjustment
rod down so that the top of it meets zero on the depth
adjustment scale42.
6. Grasping the top, knurled section of the depth
adjustment rod15, slide it up so that the tab41 aligns
with the desired depth of cut on the depth adjustment
scale42.
7. Tighten the thumb screw40 to hold the depth
adjustment rod inplace.
8. Keeping both hands on the handles, unlock the plunge
mechanism by pulling the plunge lock lever16 down.
The plunge mechanism and the motor will move up.
When the router is plunged, the depth adjustment
rod will hit the turret stop, allowing the router to reach
exactly the desireddepth.
Using the Rotating Turret for Stepped
Cuts (Fig.M)
If the depth of cut required is more than is acceptable in
a single pass, rotate the turret so that depth rod15 lines
up with taller turret stop initially. After each cut, rotate the
turret so that the depth stop lines up with shorter post until
the final depth of cut isreached.
WARNING: Do not change the turret stop while the
router is running. This will place your hands too near
the cutterhead.
Fine Adjustment of Routing Depth
(Fig.M)
The knurled knob43 at the bottom end of the depth
adjustment rod can be used to make minoradjustments.
1. To decrease the cutting depth, rotate the knob
clockwise (looking down from the top of the router).
2. To increase the cutting depth, rotate the knob
counterclockwise (looking down from the top of
therouter).
NOTE: One complete rotation of the knob results in a
change of about 5/128" or .04" (1 mm) indepth.
Removing the Motor from the
PlungeBase (Fig.M)
1. Remove the battery pack from the motor. Refer to
Installing and Removing the BatteryPack.
2. Open the locking lever39 on thebase.
3. Grasp the motor unit with one hand and the base with
the other hand, pull motor from theplungebase.
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. N)
CAUTION: Before inserting the battery, check
to see that the switch is in the OFF position. An
accidental start-up can causeinjury.
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack1 into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button2 and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
Fig. N
1
2
Proper Hand Position (Fig. A, O, P)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
When using the fixed base, one hand should be on top
of the battery and the other hand around the fixed base
(Fig.O). When using the plunge base, grasp the side
handles18 (Fig. A) firmly as shown in Fig.P.
Fig. O

ENGLISH
14
Fig. P
Starting and Stopping the Motor
(Fig.A,N)
CAUTION: Before starting the tool, clear the work
area of all foreign objects. Also keep firm grip on tool
to resist startingtorque.
CAUTION: To avoid personal injury and/or damage to
finished work, always allow the power unit to come to
a COMPLETE STOP before putting the tooldown.
To turn the unit on, depress the side of the dust-protected
switch3 that has the symbol “I.” To turn the unit off,
depress the side of the switch that has the symbol “O.”
Cutting with the Fixed Base
Set up the router to use the fixed base by following the
instructions in the Assembly and Adjustmentssection.
After the router is set-up, install the battery pack as shown
in Fig.N, then set your router speed (refer to Choosing
Router Speed).
NOTE: Always feed the router opposite to the direction in
which the cutter isrotating.
Cutting with the Plunge Base (Fig.A, P)
NOTE: The depth of cut is locked in the plunge base's
default state. The plunge lock requires user actuation to
enable the "release to lock" plungemechanism.
NOTE: Grip both side handles18 whileoperating.
1. Depress the plunge lock lever16 and plunge the router
down until the bit reaches the setdepth.
2. Release the plunge lock lever16 when desired depth
isreached.
NOTE: Releasing the plunge lock lever automatically
locks the motor inplace.
NOTE: If additional resistance is needed, use the hand
to depress the plunge locklever.
3. Perform thecut.
4. Depressing the plunge lock lever will disable the locking
mechanism allowing the router bit to disengage from
the workpiece.
5. Turn the routeroff.
Direction of Feed (Fig.Q)
The direction of feed is very important when routing and
can make the difference between a successful job and a
ruined project. The figures show the proper direction of feed
for some typical cuts. A general rule to follow is to move the
router in a counterclockwise direction on an outside cut and
a clockwise direction on an insidecut.
Shape the outside edge of a piece of stock by
following these steps:
1. Shape the end grain, left to right
2. Shape the straight grain side moving left to right
3. Cut the other end grain side
4. Finish the remaining straight grain edge
Fig. Q
1
4
3
2
Choosing Router Speed (Fig.A)
Refer to the Speed Selection Chart to choose a router
speed. Turn the variable speed dial4 to control
routerspeed.
Soft Start Feature
The compact routers are equipped with electronics to
provide a soft start feature that minimizes the start up
torque of themotor.
Variable Speed Control (Fig.A)
WARNING: If the speed control ceases to
operate, or is intermittent, stop using the tool
immediately. Take it to a DeWALT factory service
center or a DeWALT authorized service center
forrepair.

ENGLISH
15
WARNING: Always follow the bit manufacturer’s
speed recommendations as some bit designs
require specific speeds for safety or performance.
If you are unsure of the proper speed or are
experiencing any type of problem, contact the
bitmanufacturer.
This router is equipped with a variable speed dial4 with
7speeds between 16000 and 25500 RPM. Adjust the speed
by turning the variable speed dial4.
NOTICE: The router is equipped with electronics
to monitor and maintain the speed of the tool
while cutting. In low and medium speed operation,
the speed control prevents the motor speed from
decreasing. If you expect to hear a speed change and
continue to load the motor, you could damage the
motor by overheating. Reduce the depth of cut and/or
slow the feed rate to prevent tooldamage.
The compact routers are equipped with electronics to
monitor and maintain the speed of the tool whilecutting.
SPEED SELECTION CHART*
DIAL SETTING APPROX. RPM APPLICATION
116000
Large diameter bits and cutters217500
319100
420700
Small diameter bits and cutters.
Softwoods, plastics, laminates.
522300
623900
725500
*The speeds in this chart are approximate and are for reference only. Your
router may not exactly produce the speed listed for the dial setting.
NOTE: Make several light passes instead of one heavy pass
for better qualitywork.
Worklights (Fig. A)
The worklights 10 are located at the front of the
motor6 . To turn on the worklight, switch on the on/off
switch3 . Worklights will remain on 20 seconds after the
on/off switch is moved to the off position.
NOTE: The worklights are for lighting the immediate work
surface and are not intended to be used as aflashlight.
NOTE: If worklights flash, check the charge on the battery;
it could be low. If they still flash with a charged battery, the
unit should be taken to a service center for evaluation.
MAINTENANCE
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Cleaning
WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1 approved eye
protection when performingthis.
WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a dry cloth. Never let
any liquid get inside the tool; never immerse any part
of the tool into aliquid.
NOTE FOR PLUNGE BASE ONLY: Use only a DRY cloth to
wipe the plunge rods. These rods require no lubrication.
Lubricants attract dust, reducing the performance of
yourtool.
Waxing Motor and Base
To maintain a smooth action when moving the motor unit
in relation to the base, the outside of the motor unit and the
inside of the base can be waxed using any standard paste or
liquid wax. Per the manufacturers instructions, rub the wax
onto the outside diameter of the motor unit and the inside
diameter of the base. Allow wax to dry and buff off residue
with a softcloth.
Accessories
WARNING: Since accessories, other than those
offered by DeWALT, have not been tested with this
product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only DeWALT
recommended accessories should be used with
thisproduct.
Recommended accessories for use with your tool
are available at extra cost from your local dealer or
authorized service center. If you need assistance in
locating any accessory, please contact DeWALT Industrial
Tool Co., 701East Joppa Road, Towson, MD 21286, call
1-800-4-DeWALT (1-800-433-9258) or visit our website:
www.dewalt.com.
Repairs
The charger and battery pack are notserviceable.
WARNING: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement, when
applicable) should be performed by a DeWALT factory
service center or a DeWALT authorized service center.
Always use identical replacementparts.
Register Online
Thank you for your purchase. Register your product nowfor:
• WARRANTY SERVICE: Registering your product will
help you obtain more efficient warranty service in case
there is a problem with yourproduct.
• CONFIRMATION OF OWNERSHIP: In case of
an insurance loss, such as fire, flood or theft, your
registration of ownership will serve as your proof
ofpurchase.
• FOR YOUR SAFETY: Registering your product will
allow us to contact you in the unlikely event a safety
notification is required under the Federal Consumer
SafetyAct.
Register online at www.dewalt.com/register.

ENGLISH
16
Three Year Limited Warranty
DeWALT will repair, without charge, any defects due to
faulty materials or workmanship for three years from
the date of purchase. This warranty does not cover part
failure due to normal wear or tool abuse. For further detail
of warranty coverage and warranty repair information,
visit www.dewalt.com or call 1-800-4-DeWALT (1-800-
433-9258). This warranty does not apply to accessories
or damage caused where repairs have been made
or attempted by others. THIS LIMITED WARRANTY IS
GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states do not allow
limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential
damages, so these limitations may not apply to you. This
warranty gives you specific legal rights and you may have
other rights which vary in certain states orprovinces.
In addition to the warranty, DeWALT tools are covered
byour:
1 YEAR FREE SERVICE
DeWALT will maintain the tool and replace worn parts
caused by normal use, for free, any time during the first year
afterpurchase.
2 YEARS FREE SERVICE ON DEWALT BATTERY PACKS
DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120,
DCB127, DCB201, DCB203BT, DCB207, DCB361
3 YEARS FREE SERVICE ON DEWALT BATTERY PACKS
DCB200, DCB203, DCB204, DCB204BT, DCB205, DCB205BT,
DCB206, DCB230, DCB606, DCB609
NOTE: Battery warranty voided if the battery pack is
tampered with in any way. DeWALT is not responsible
for any injury caused by tampering and may prosecute
warranty fraud to the fullest extent permitted bylaw.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of
your DeWALT Power Tool, Laser, or Nailer for any reason, you
can return it within 90 days from the date of purchase with
a receipt for a full refund – no questionsasked.
LATIN AMERICA: This warranty does not apply to products
sold in Latin America. For products sold in Latin America,
see country specific warranty information contained in
the packaging, call the local company or see website for
warrantyinformation.
FREE WARNING LABEL REPLACEMENT: If your warning
labels become illegible or are missing, call 1-800-4-DeWALT
(1-800-433-9258) for a freereplacement.
