DeWalt DWS520 User manual

DWS520
Final Page size: A5 (148mm x 210mm)

B
Copyright
DeWALT
English (original instructions) 5

1
Fig. A
1
2
3
10
4
26
10
25
5
6
7
11
8
12
13
8
19
21
5
9

2

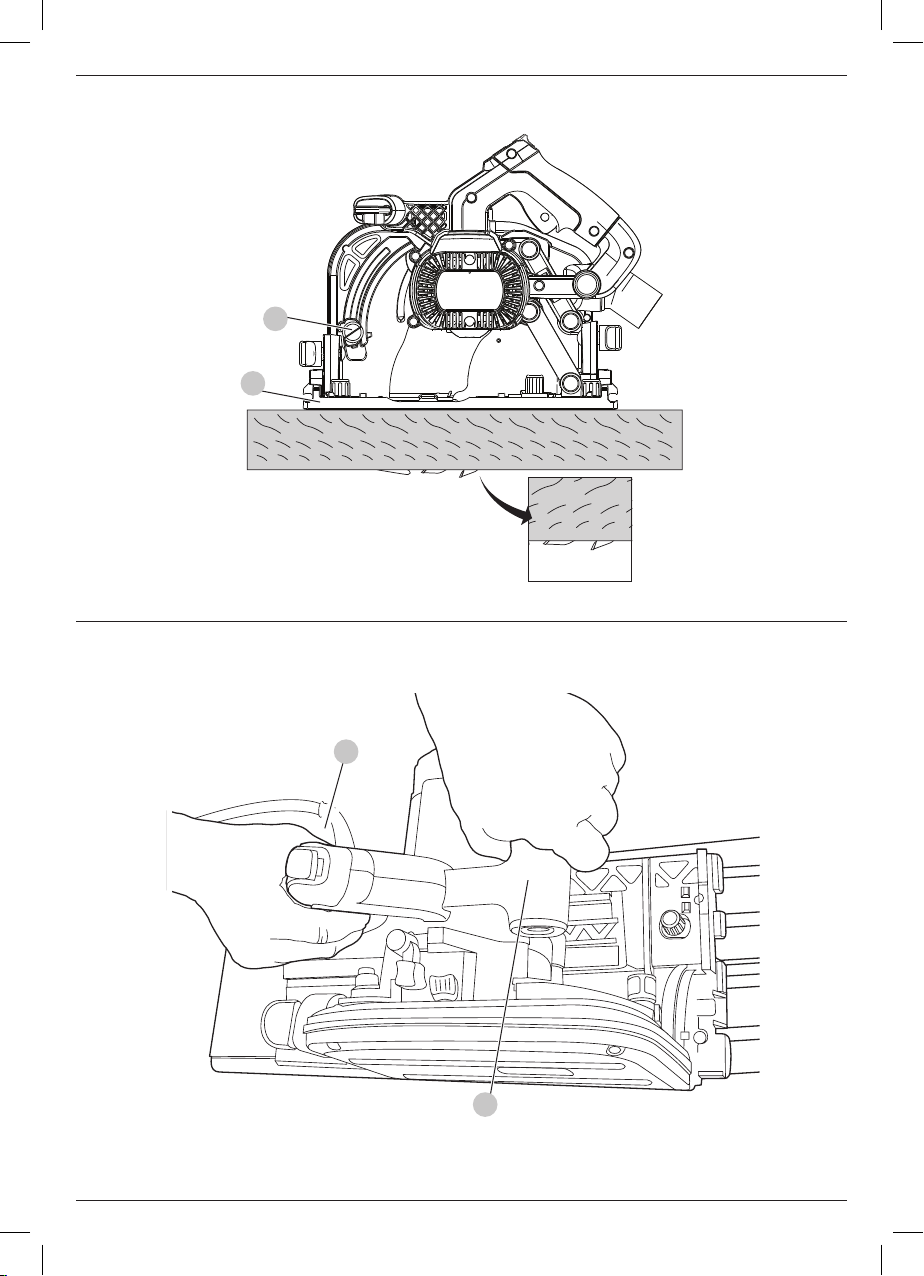

Fig. C
Fig. B
2–3 mm 2–3 mm
13
12
16
15
14 11
17
18

3
Fig. E
Fig. D
8
3
6
4

4
Fig. G
Fig. F
12mm
20
24
20
23
22

ENGLISH
5
EC-Declaration of Conformity
Machinery Directive
Plunge Saw
DWS520
DeWALT
declares that these products described under
Technical Data are in compliance with:
2006/42/EC, EN62841-1:2015; EN62841-2-5:2014.
These products also comply with Directive 2014/30/EU and
2011/65/EU. For more information, please contact
DeWALT
at
the following address or refer to the back of themanual.
The undersigned is responsible for compilation of the technical
file and makes this declaration on behalf of
DeWALT
.
Markus Rompel
Director Engineering
DeWALT
, Richard-Klinger-Straße 11,
D-65510, Idstein, Germany
10.08.2016
WARNING: To reduce the risk of injury, read the
instruction manual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
thesesymbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
Congratulations!
You have chosen a
DeWALT
tool. Years of experience, thorough
product development and innovation make
DeWALT
one of the
most reliable partners for professional power toolusers.
Technical Data
DWS520
GB/XE
DWS520
LX
Voltage VAC 230 115
Type 3 3
Power output W1300 1300
No-load speed min-1 1750-4200 1750-4200
Blade diameter mm 165 165
Maximum depth of cut
90˚ (without guide rail) mm 59 59
90˚ (with guide rail) mm 55 55
Blade bore mm 20 20
Bevel angle adjustment 47˚ 47˚
Weight kg 5 5
Noise values and vibration values (triax vector sum) according to EN62841-2-5:
LPA (emission sound pressure level) dB(A) 91 91
LWA (sound power level) dB(A) 102 102
K (uncertainty for the given sound level) dB(A) 3 3
Vibration emission value a
h
= m/s2<2.5 <2.5
Uncertainty K = m/s21.5 1.5
The vibration and/or noise emission level given in this
information sheet has been measured in accordance with
a standardised test given in EN62841 and may be used to
compare one tool with another. It may be used for a preliminary
assessment ofexposure.
WARNING: The declared vibration and/or noise emission
level represents the main applications of the tool. However
if the tool is used for different applications, with different
accessories or poorly maintained, the vibration and/or
noise emission may differ. This may significantly increase
the exposure level over the total workingperiod.
An estimation of the level of exposure to vibration and/
or noise should also take into account the times when the
tool is switched off or when it is running but not actually
doing the job. This may significantly reduce the exposure
level over the total workingperiod.
Identify additional safety measures to protect the
operator from the effects of vibration and/or noise such
as: maintain the tool and the accessories, keep the
hands warm (relevant for vibration), organisation of
workpatterns.
English (original instructions)
PLUNGE SAW
DWS520

6
ENGLISH
General Power Tool Safety Warnings
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
powertool.
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust orfumes.
c ) Keep children and bystanders away while operating
a power tool. Distractions can cause you to losecontrol.
2) Electrical Safety
a ) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of
electricshock.
b ) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if
your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electricshock.
d ) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electricshock.
e ) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electricshock.
f ) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personalinjury.
b ) Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection used
for appropriate conditions will reduce personalinjuries.
c ) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on
invitesaccidents.
d ) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personalinjury.
e ) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in movingparts.
g ) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-relatedhazards.
h ) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe
injury within a fraction of asecond.
4) Power Tool Use and Care
a ) Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which it
wasdesigned.
b ) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must berepaired.
c ) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power toolaccidentally.
d ) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrainedusers.
e ) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained powertools.
f ) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier tocontrol.
g ) Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardoussituation.

7
ENGLISH
h ) Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpectedsituations.
5) Service
a ) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool ismaintained.
ADDITIONAL SPECIFIC SAFETY RULES
Safety instructions for all saws
a ) DANGER: Keep hands away from cutting area
and the blade. Keep your second hand on auxiliary
handle, or motor housing. If both hands are holding the
saw, they cannot be cut by the blade.
b ) Do not reach underneath the workpiece. The guard
cannot protect you from the blade below the workpiece.
c ) Adjust the cutting depth to the thickness of the
workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
d ) Never hold piece being cut in your hands or across
your leg. Secure the workpiece to a stable platform.
It is important to support the work properly to minimize
body exposure, blade binding, or loss of control.
e ) Hold power tool by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring. Contact with a "live" wire will
also make exposed metal parts of the power tool "live" and
shock the operator.
f ) When ripping always use a rip fence or straight edge
guide. This improves the accuracy of cut and reduces the
chance of blade binding.
g ) Always use blades with correct size and shape
(diamond versus round) of arbour holes. Blades that
do not match the mounting hardware of the saw will run
eccentrically, causing loss of control.
h ) Never use damaged or incorrect blade washers or
bolt. The blade washers and bolt were specially designed
for your saw, for optimum performance and safety
ofoperation.
Causes and Operator Prevention of Kickback
• Kickback is a sudden reaction to a pinched, bound or
misaligned saw blade, causing an uncontrolled saw to lift up
and out of the workpiece toward the operator;
• When the blade is pinched or bound tightly by the kerf closing
down, the blade stalls and the motor reaction drives the unit
rapidly back toward the operator;
• If the blade becomes twisted or misaligned in the cut, the teeth
at the back edge of the blade can dig into the top surface of
the wood causing the blade to climb out of the kerf and jump
back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper
precautions as given below:
a ) Maintain a firm grip with both hands on the saw and
position your arms to resist kickback forces. Position
your body to either side of the blade, but not in line
with the blade. Kickback could cause the saw to jump
backwards, but kickback forces can be controlled by the
operator, if proper precautions are taken.
b ) When blade is binding, or when interrupting a cut
for any reason, release the trigger and hold the saw
motionless in the material until the blade comes to
a complete stop. Never attempt to remove the saw
from the work or pull the saw backward while the
blade is in motion or kickback may occur. Investigate
and take corrective actions to eliminate the cause of
bladebinding.
c ) When restarting a saw in the workpiece, centre the
saw blade in the kerf and check that saw teeth are
not engaged into the material. If saw blade is binding,
it may walk up or kickback from the workpiece as the saw
is restarted.
d ) Support large panels to minimise the risk of blade
pinching and kickback. Large panels tend to sag
under their own weight. Supports must be placed under
the panel on both sides, near the line of cut and near the
edge of the panel.
e ) Do not use dull or damaged blades. Unsharpened
or improperly set blades produce narrow kerf causing
excessive friction, blade binding and kickback.
f ) Blade depth and bevel adjusting locking levers
must be tight and secure before making cut. If blade
adjustment shifts while cutting, it may cause binding
andkickback.
g ) Use extra caution when making a “plunge cut” into
existing walls or other blind areas. The protruding
blade may cut objects that can cause kickback.
Safety Instructions for Plunge-Type Saws
a ) Check guard for proper closing before each use.
Do not operate the saw if guard does not move
freely and enclose the blade instantly. Never clamp
or tie the guard with the blade exposed. If saw is
accidentally dropped, guard may be bent. Check to
make sure that guard moves freely and does not touch the
blade or any other part, in all angles and depths of cut.
b ) Check the operation and condition of the guard
return spring. If the guard and the spring are not
operating properly, they must be serviced before
use. Guard may operate sluggishly due to damaged parts,
gummy deposits, or a build-up of debris.
c ) Assure that the guide plate of the saw will not shift
while performing the “plunge cut” when the blade
bevel setting is not at 90°. Blade shifting sideways will
cause binding and likely kickback.
d ) Always observe that the guard is covering the blade
before placing saw down on bench or floor. An
unprotected, coasting blade will cause the saw to
walk backwards, cutting whatever is in its path. Be

8
ENGLISH
aware of the time it takes for the blade to stop after switch
is released.
Additional Safety Instructions for All Saws
With Riving Knife
a ) Use the appropriate riving knife for the blade being
used. For the riving knife to work, it must be thicker than
the body of the blade but thinner than the tooth set of
theblade.
b ) Adjust the riving knife as described in this instruction
manual. Incorrect spacing, positioning and alignment
can make the riving knife ineffective in preventing
kickback.
c ) For the riving knife to work, it must be engaged in
the workpiece. The riving knife is ineffective in preventing
kickback during short cuts.
d ) Do not operate the saw if riving knife is bent. Even a
light interference can slow the closing rate of a guard.
Additional Safety Instructions for Plunge-
Type Saws
• Wear ear protectors. Exposure to noise can cause
hearingloss.
• Wear a dust mask. Exposure to dust particles can cause
breathing difficulty and possible injury.
• Do not use blades of larger or smaller diameter than
recommended. For the proper blade rating refer to the
technical data. Use only the blades specified in this manual,
complying with EN 847-1.
• Never use abrasive cut-off wheels.
WARNING: We recommend the use of a residual current
device with a residual current rating of 30mA or less.
Residual Risks
In spite of the application of the relevant safety regulations
and the implementation of safety devices, certain residual risks
cannot be avoided. These are:
• Impairment of hearing.
• Risk of accidents caused by the uncovered parts of the rotating
cutting disc.
• Risk of injury when changing the disc.
• Risk of dust inhalation from materials that when cut, can be
harmful.
Electrical Safety
The electric motor has been designed for one voltage only.
Always check that the power supply corresponds to the voltage
on the rating plate.
Your
DeWALT
tool is double insulated in accordance
with EN62841; therefore no earth wire is required.
WARNING: 115 V units have to be operated via a fail-safe
isolating transformer with an earth screen between the
primary and secondary winding.
If the supply cord is damaged, it must be replaced only by
DeWALT
or an authorised serviceorganisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 13A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for
the power input of your charger (see Technical Data). The
minimum conductor size is 1.5 mm2; the maximum length
is30m.
When using a cable reel, always unwind the cablecompletely.
Package Contents
The package contains:
1 Plunge saw
1 Hex key
1 Instruction manual
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.
Maximum depth of cut
Blade diameter
Wear ear protection.
Wear eye protection.
Date Code Position (Fig. A)
The date code 26, which also includes the year of manufacture,
is printed into thehousing.
Example:
2019 XX XX
Year of Manufacture

9
ENGLISH
Description (Fig. A–C, F, G)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1 Plunge trigger
2 On/off switch
3 Main handle
4 Shoe
5 Bevel adjustment knob
6 Depth adjustment knobs
7 Depth scale
8 Front handle
9 Dust extraction outlet
10 Rail adjuster
11 Blade
12 Lock button
13 Lock lever
14 Blade clamping screw
15 Outer flange
16 Inner flange
17 Riving knife
18 Riving knife adjustment screws
19 Speed wheel
20 Cutting indicator
21 Anti-kickback knob
22 Outer guard
23 Guide rail
24 Blade position indicators
25 Bevel scale
Intended Use
The DWS520 plunge saw is designed for professional sawing
applications and cutting wood products.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
This heavy-duty plunge saw is a professional power tool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect tool from power
source before making any adjustments or removing/
installing attachments or accessories. Be sure the
trigger switch is in the OFF position. An accidental start-up
can cause injury.
Bevel Adjustment (Fig. A)
The bevel angle can be adjusted between 0° and 47°.
1. Loosen the bevel adjustment knobs 5.
2. Set the bevel angle by tilting the saw shoe 4 until the mark
indicates the desired angle on the bevel scale 25.
3. Tighten the bevel adjustment knobs 5.
Changing the Saw Blade (Fig. A–C)
1. Press the lock button 12.
2. Press the plunge saw down to stop (blade change position).
3. Turn the lock lever 13 clockwise until it stops.
4. Press the lock lever 13 down and rotate the blade until the
lock position is found.
NOTE: The blade 11 is now locked and cannot be turned
byhand.
5. Turn the blade clamping screw 14 anti-clockwise
toremove.
6. Remove the outer flange 15 and used blade 11. Place the
new blade on the inner flange 16.
7. Replace the outer flange 15 and blade clamping screw 14.
Turn the screw clockwise by hand.
NOTE: The direction of rotation of the saw blade and the
rotation of the plunge saw MUST be the same.
8. Tighten the blade clamping screw firmly using the hex key.
9. Release and turn the lock lever 13 anti-clockwise until
itstops.
10. Move the plunge saw back to top position.
11. Push plunge trigger 1 forward, to lock saw blade change.
Adjusting the Riving Knife (Fig. A–C)
For the correct adjustment of the riving knife 17, refer to the
figureC. Adjust the clearance of the riving knife after changing
the saw blade or whenever necessary.
1. Follow Changing the Saw Blade steps 1–4.
2. Loosen the riving adjustment screw 18 with an hex key and
set the riving knife as shown in figureC.
3. Tighten the riving knife screw 18.
4. Turn the lock lever 13 anti-clockwise until it stops.
5. Move the plunge saw back to top position.
6. Push plunge trigger 1 forward, to lock saw blade change.
Depth of Cut Adjustment (Fig. D)
The cutting depth can be set at 0–59 mm without guide rail
attached; with the guide rail attached: 0–55 mm.
1. Loosen the depth adjustment knob 6 and move the
pointer to obtain the correct depth of cut.
2. Tighten the depth adjustment knob 6.
NOTE: For optimal results, allow the saw blade to protrude from
the workpiece by about 3 mm (Fig.D).

10
ENGLISH
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect tool from power
source before making any adjustments or removing/
installing attachments or accessories. Be sure the
trigger switch is in the OFF position. An accidental start-up
can cause injury.
Proper Hand Position (Fig. E)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal injury,
ALWAYS hold securely in anticipation of a sudden
reaction.
Proper hand position requires one hand on the front handle 8,
with the other hand on the main handle3.
Switching On and Off (Fig. A)
Press the on/off switch to turn the plunge saw on.
Guiding the Tool (Fig. A, E, F)
WARNING:
• ALWAYS secure the workpiece in such a manner that
it cannot move while sawing.
• ALWAYS push the machine forwards. NEVER pull the
machine backwards towards you.
• ALWAYS use the plunge saw with both hands. Put
one hand on the main handle 3 and the second hand
on the front handle 8 as shown in figureE.
• ALWAYS use the clamp to hold the rail to
theworkpiece.
• Make sure the cord is not in the path of the saw.
• Use proper hand position to guide the saw properly.
• The cutting indicator 20 displays the cutting line for 0° and
47° cuts (without guide rail).
• The blade position indicator 24 shows the blade position
for full plunge.
• For optimum results, clamp the workpiece bottom up.
Cutting
1. Place the machine with the front part of the saw base on
theworkpiece.
2. Press the on/off switch to turn the saw on.
3. Push the plunge switch 1 forward, press the saw down to
set cutting depth and push it forward into cutting direction.
Plunge Cuts
WARNING: To avoid kickbacks, the following in-structions
MUST be observed when plunge cutting:
• Place the machine onto the guide rail and release the
anti-kickback knob 21 by turning it anti-clockwise.
• Turn the machine on and slowly press the saw down
onto the set cutting depth and push forward in the
cutting direction. The cut indicators 20 display the
absolute front and the absolute rear cutting points
of the saw blade (dia. 165 mm) at maximum cutting
depth and using the guide rail.
• If kickback happened during the plunge cut, turn the
anti-kickback knob 21 anti-clockwise to release it
from the rail.
• When you have finished the plunge cut, turn the anti-
kickback knob 21 clockwise into the lock position.
Guide System (Fig. A, E)
The guide rails, which are available in different lengths, allow for
precise, clean cuts and simultaneously protect the workpiece
surface against damage.
In conjunction with additional accessories, exact angled cuts,
mitre cuts and fitting work can be completed with the guide
rail system.
Securing the workpiece with clamps ensures a secure hold and
safe working.
The guide clearance of the plunge saw must be very small
for best cutting results and can be set with the two rail
adjusters10.
1. Release the screw inside the rail adjuster to adjust
theclearance.
2. Adjust the knob until saw locks on rail.
3. Rotate knob back until saw slides easily.
4. Hold the rail adjuster in position and lock the screw again.
NOTE: ALWAYS readjust the system for use with other rails.
Splinterguard
The guide rail is equipped with a splinterguard, which has to be
cut to size before the first use:
IMPORTANT: ALWAYS read and follow the guide system
instructions before cutting the splinterguard!
1. Set the speed of the plunge saw to level 5.
2. Place the guide rail on a scrap piece of wood.
3. Set the plunge saw on 5 mm cut depth.
4. Place the saw on the rear end of the guide rail.
5. Turn the saw on, press it down to the set cutting depth and
cut the splinterguard along the full length in one contiuous
operation. The edge of the splinterguard now corresponds
exactly to the cutting edge of the blade.
WARNING: To reduce the risk of injury, ALWAYS secure
the guide rail 23 with a clamp.
Speed Adjustment (Fig. A)
The speed can be regulated between 1750 and 4200/min using
the speed wheel 19. This enables you to optimise the cutting
speed to suit the material. Refer to the following chart for type
of material and speed range.

11
ENGLISH
Type of Material to be Cut Speed Range
Solid wood (hard, soft) 3–5
Chipboards 4–5
Laminated wood, blockboards, veneered and
coated boards
2–5
Paper and carton 1–3
Wall Cutting (Fig. A, G)
1. Place the plunge saw with the outer guard 22 on a clean,
flat floor.
2. Press the shoe 4 with the front side on the door against the
adjusted depth stop.
Dust Extraction (Fig. A)
WARNING: Risk of dust inhalation. To reduce the risk of
personal injury, ALWAYS wear an approved dustmask.
Your tool is fitted with a dust extraction outlet 9.
The Dust Extraction Adapter allows you to connect the tool to
an external dust extractor, either using the AirLock™ system
(DWV9000-XJ), or a standard 35mm dust extractorfitment.
WARNING: ALWAYS use a vacuum extractor designed
in compliance with the applicable directives regarding
dust emission when sawing wood. Vacuum hoses of most
common vacuum cleaners will fit directly into the dust
extractionoutlet.
MAINTENANCE
Your
DeWALT
power tool has been designed to operate
over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper tool
care and regularcleaning.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect tool from power
source before making any adjustments or removing/
installing attachments or accessories. Be sure the
trigger switch is in the OFF position. An accidental start-up
can cause injury
WARNING: If the saw blade is worn replace it with a new
sharp blade..
Lubrication
Your power tool requires no additionallubrication.
Cleaning
WARNING: Blow dirt and dust out of the main housing
with dry air as often as dirt is seen collecting in and around
the air vents. Wear approved eye protection and approved
dust mask when performing thisprocedure.
WARNING: Never use solvents or other harsh chemicals
for cleaning the non-metallic parts of the tool. These
chemicals may weaken the materials used in these parts.
Use a cloth dampened only with water and mild soap.
Never let any liquid get inside the tool; never immerse any
part of the tool into aliquid.
Optional Accessories
WARNING: Since accessories, other than those offered
by
DeWALT
, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only
DeWALT
recommended
accessories should be used with thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
Protecting the Environment
Separate collection. Products and batteries marked
with this symbol must not be disposed of with normal
household waste.
Products and batteries contain materials that can
be recovered or recycled reducing the demand for raw
materials. Please recycle electrical products and batteries
according to local provisions. Further information is available at
www.2helpU.com.

12

13

14
Belgique et
Luxembourg België en Luxemburg
DeWALT - Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark DeWALT (Stanley Black&Decker AS)
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland DeWALT
Richard Klinger Str. 11
65510 Idstein
Tel: [phone]
Fax: [phone]
www.dewalt.de
[email protected]
Ελλάς DeWALT (Ελλάς) Α.Ε.
EΔΡΑ-ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España DeWALT Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France DeWALT (Stanley Black & Decker France SAS)
62 Chemin de la Bruyère
CS 60105,
69574 DARDILLY Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
www.dewalt.ch
[email protected]
Ireland DeWALT
Building 4500, Kinsale Road
Cork Airport Business Park
Cork, Ireland
Tel: [phone]
Fax: [phone]
www.dewalt.ie
[email protected]
Italia DeWALT
via Energypark 6
20871 Vimercate (MB), IT
Tel: [phone]
39 039-9590200
Fax: [phone]
www.dewalt.it
Nederlands DeWALT
Netherlands BVPostbus 83,
6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge DeWALT
Postboks 4613
0405 Oslo, Norge
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A-1230 Wien
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 614
www.dewalt.at
[email protected]
Portugal DeWALT
Ed. D Dinis, Quina da Fonte
Rua dos Malhoes 2 2A 2º Esq.
Oeiras e S. Juliao da Barra, paço de Arcos e Caxias
2770 071 Paço de Arcos
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi DeWALT
PL47
00521 Helsinki, Suomi
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige DeWALT
BOX 94
43122 Mölndal
Sverige
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye Sanayi ve Ticareet Bakanlığı tebliğince kullanim ömrü 7 yıldır.
Stanley Black & Decker Turkey Alet Üretim San. Tic. Ltd.Şti.
AND Kozyataği - İçerenköy Mah. Umut Sok. AND Ofis Sit. No: 10-12 / 82-83-84
Ataşehir/İstanbul, Türkiye
Tel: [phone]
Faks: [phone]
www.dewalt.com.tr
[email protected]
United Kingdom DeWALT, 210 Bath Road;
Slough, Berks SL1 3YD
Tel: [phone]
Fax: [phone]
www.dewalt.co.uk
[email protected]
Australia DeWALT
810 Whitehorse Road Box Hill
VIC 3128 Australia
Tel: Aust 1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa DeWALT
P.O. Box - 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
N733602 08/19
