Chapter 1 Introduction
EC510/511-SD
User’s Manual
A47410911

www.d.com
2
Chapter 1 Introduction
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2017. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.d.com
3
Chapter 1 Introduction
Table of Contents
Copyright.............................................................2
Trademarks.......................................................... 2
FCC and DOC Statement on Class A ..................... 2
About this Manual................................................4
Warranty ............................................................4
Static Electricity Precautions .................................4
Safety Measures...................................................4
Safety Precautions ...............................................5
About the Package............................................... 5
Chapter 1 - Introduction.......................................6
Overview.................................................................................6
Key Features ...........................................................................6
Specifications...........................................................................7
Getting to Know the EC510/EC511-SD .....................................8

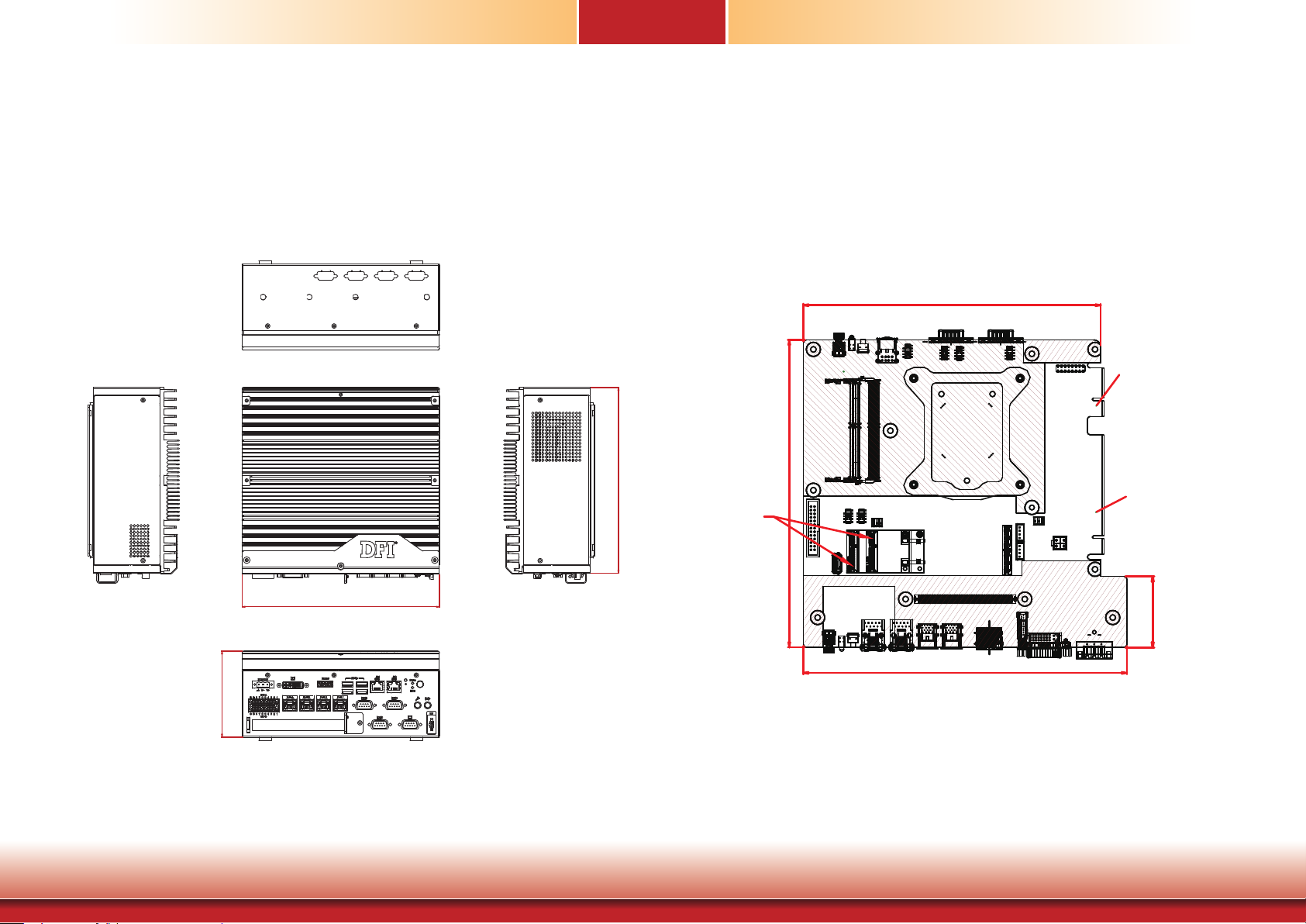

Mechanical Dimensions ............................................................9
Chapter 2 - Getting Started ..................................10
Chapter 3 - Installing the Devices......................... 11
Removing the Chassis Cover................................................... 11

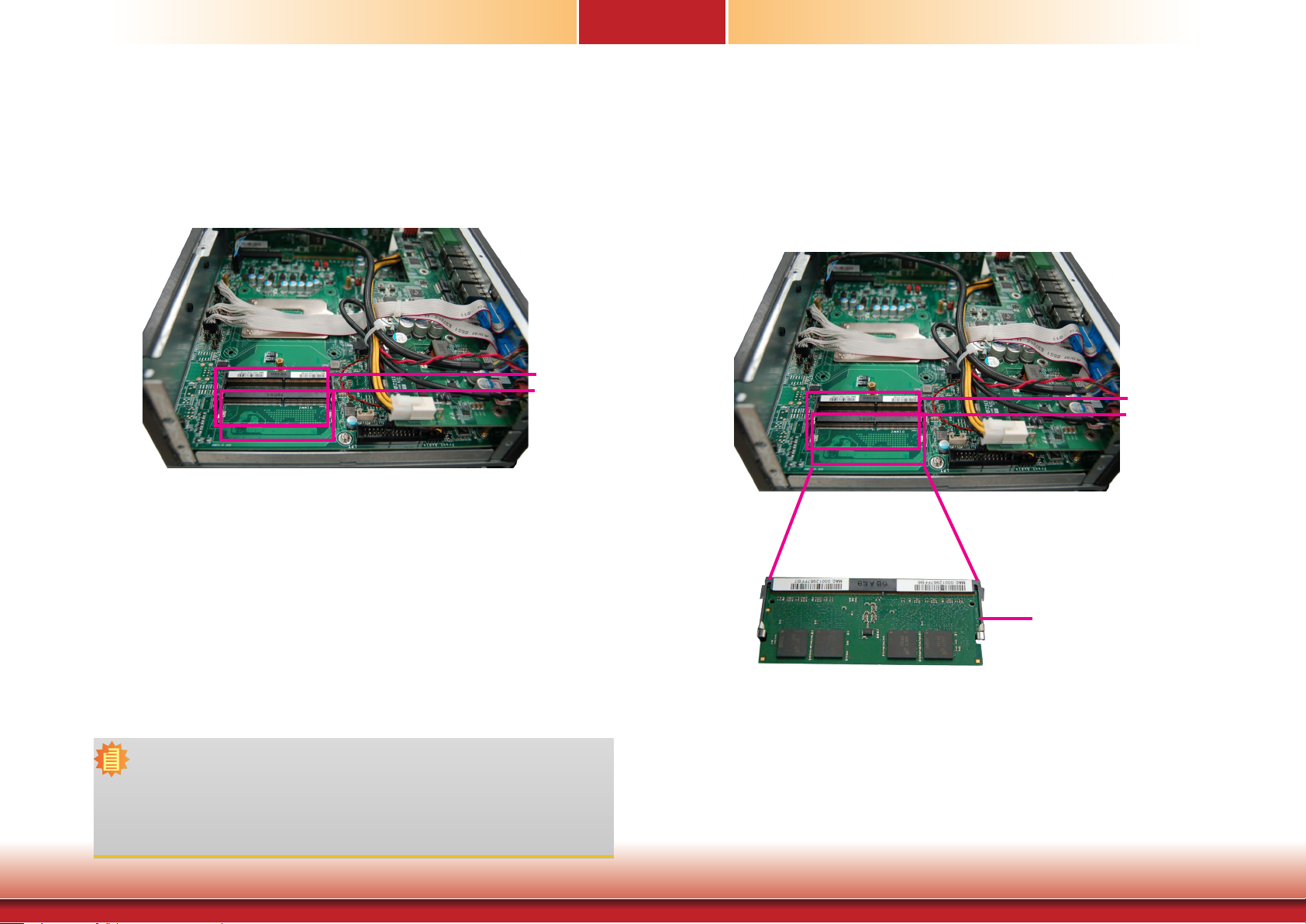

Installing a SODIMM ..............................................................12
Installing a 2.5” SATA Drive....................................................13
Installing a Mini PCIe or mSATA Card ..................................... 14
Installing a PCI or PCIe Expansion Card.................................. 15
Installing a CPU.....................................................................16
Chapter 4 - Jumper Settings.................................18
Clear CMOS Data ...................................................................18
Auto Power-on Select.............................................................18
COM1/COM2 RS232 Power Select (maindboard)..................... 19
COM1 /COM2 /COM3 RS232/422/485 Select (mainboard)...... 20
Chapter 5 - Ports and Connectors......................... 21
Front Panel I/O Ports .............................................................21
USB Ports (mainboard) ............................................................................... 21
COM (Serial) Ports (mainboard)................................................................... 22
9~36V DC-in .............................................................................................. 22
RJ45 LAN Ports........................................................................................... 23
Display Interfaces ....................................................................................... 23
I/O Connectors ...................................................................... 24
Parallel Connector....................................................................................... 24
SATA (Serial ATA) Connectors...................................................................... 24
SATA (Serial ATA) Power Connectors............................................................ 25
SMBus Connector ...................................................................................... 25
Cooling Fan Connectors............................................................................... 26
Digital I/O Connector (mainboard)............................................................... 26
Audio Connector......................................................................................... 27
Front Panel Connector ............................................................................... 27
S/PDIF Connector ....................................................................................... 28
LPC Connector............................................................................................ 28
Expansion Slots .......................................................................................... 29
12V DC-out ................................................................................................ 30
Digital I/O Connector (daughter board) ....................................................... 31
LAN Ports (daughter board) ....................................................................... 31
Chapter 6 - Mounting Options ..............................32
Chapter 7 - BIOS Setup .......................................33
Main .......................................................................................................... 34
Advanced .................................................................................................. 34
Security...................................................................................................... 42
Boot........................................................................................................... 43
Exit............................................................................................................ 45
Chapter 8 - Supported Software ...........................47
Chapter 9 - RAID ................................................ 63
Chapter 10 - Intel AMT Settings ..........................67

www.d.com
4
Chapter 1 Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-
sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or damages to the product that
has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or
servicing. After installation or servicing, cover the system chassis before plugging the power
cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

www.d.com
5
Chapter 1 Introduction
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 EC510/EC511-SD system unit
• 1 CD disk includes: Drivers/Manual
Optional Items
• Wall Mount kit
• Power Cord
• Power Adapter (100W/120W/160W)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

www.d.com
6
Chapter 1 Introduction
Chapter 1 - Introduction
Chapter 1

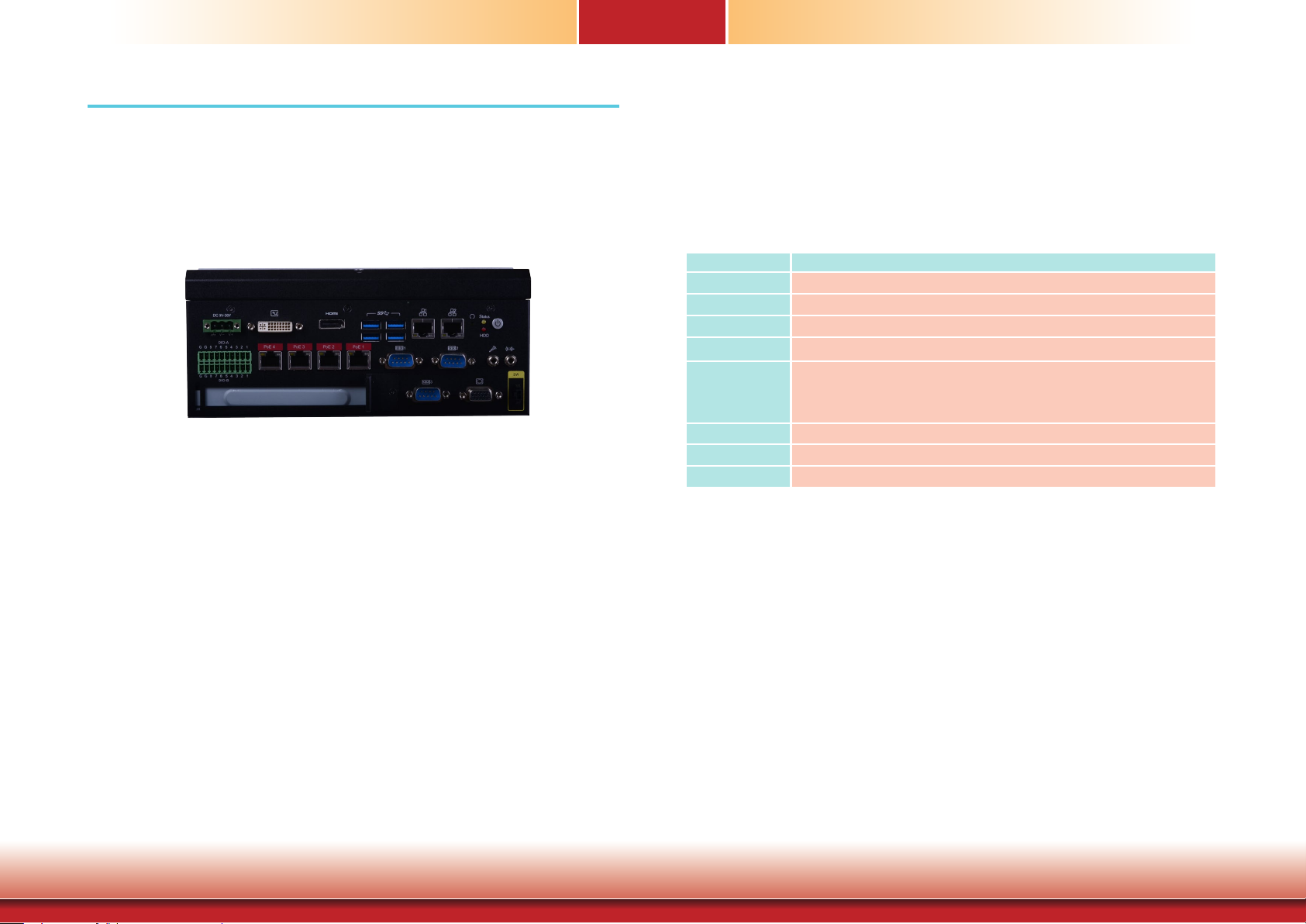

Overview
Key Features
Model Name EC510/EC511-SD
Processor 6th Generation Intel®CoreTM processors
Chipset Intel®Q170 Chipset
LAN 6 LAN ports (or 4 PoE + 2 LAN ports)
COM 3 COM ports
Display VGA
DVI (DVI-D signal) or HDMI by request
HDMI or DP (DP available upon request)
USB 4 USB 3.0 Type A ports
DIO 16-bit digital input/output
Power 9~36V DC-in
Front Panel

www.d.com
7
Chapter 1 Introduction
Specifications
Processor 6th/7th Generation Intel®CoreTM Processors, LGA 1151 Socket
• Intel®Core™i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
• Intel®Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
• Intel®Core™i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
• Intel®Core™i7-7700T, Quad Core, 8M Cache, 2.9GHz (3.8GHz), 35W
• Intel®Core™ i5-7500T, Quad Core, 6M Cache, 2.7GHz (3.3GHz), 35W
• Intel®Core™i3-7101TE, Dual Core, 3M Cache, 3.4GHz, 35W
Chipset Intel®Q170 Chipset
Memory Two 260-pin SODIMM
•Supports dual-channel DDR4 1866/2133MHz
•Supports up to 32GB system memory
Graphics Intel®HD Gen 9 Graphics
OpenGL 5.0, DirectX 12, OpenCL 2.1
• Supports these codecs:
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/
H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
• Output displays:
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
Triple/Dual
Display
VGA (+)
DVI-I (DVI-D signal) / HDMI (HDMI available upon request) (+)
HDMI / DP (DP available upon request)
Storage •Two 2.5" SATA Drive Bay
•SATA 3.0 port with data transfer rate up to 6Gb/s
Ethernet •One Intel®I211AT PCIe (10/100/1000Mbps)
•One Intel®I219V
•Four Intel®I210IT PCIe (10/100/1000Mbps) for Gigabit Ethernet or
PoE ports
Chapter 1
Power Power input voltage: 9~36V DC-in (terminal block connector)
Cooling System Fanless with heatsink
Environment • Operating Temperature:
0 to 50°C (SSD or mSATA-mini, with 0.7m/s air ow)
• Storage Temperature:
-20 to 85°C
• Relative Humidity:
5 to 95% RH (non-condensing)
Construction • Aluminum + SGCC
Mounting • Wall mount
- Mounting brackets and screws (optional)
Dimensions • 235mm x 102.5mm x 222mm (W x H x D)
Weight • 4.1 kg
OS Support •Windows 7 (32/64-bit)
•Windows 8.1 (64-bit)
•Windows 10
Other Features System Reset, Programmable via Software from 1 to 255 Seconds
Standards and
Certications
• Shock:
Half sine wave 3G, 11ms, 3 shock per axis
• Vibration: IEC68-2-64
Expansion One full-size Mini PCIe (PCIe/USB)
One half-size Mini PCIe (USB/mSATA)
1 x PCI slot (EC510-SD)
1 x PCIe x16 slot (EC511-SD)
Front I/O Ports - One status and one HDD LED
- One power button with LED
- One reset button
- Six RJ45 LAN ports; four of these six can be PoE GbE (RJ-45) (supports
IEEE 802.3af, 15.4W per port)
- One VGA port/one DVI (DVI-D signal)/one HDMI or DP
(DP available upon request)
- Four USB 3.0 Type A ports
- One Line-out and one Mic-in Ports
- Two RS-232/422/485 (DB-9) (RS-232 with power) and
one RS-232/422/485 (DB-9)
- Two set of 8-bit DIO
- One 9~36V DC-in 3-pole terminal block

www.d.com
8
Chapter 1 Introduction
Power Button with LED (Green)
Press to power on or power off the system.
Reset Button
Press to reset the system.
HDD LED (Red)
Indicates the status of disk drives.
Status LED (Orange)
Indicates system status as below.
Remote Power-on/Power-off Switch Connector
Connects distant power on/off switch.
USB 3.0 Ports
Connect to USB 3.0 as well as devices based on previous USB versions.
COM Ports
All COM ports can be selected among RS232, RS422 and RS485.
COM1 and COM2 can be selected between RS232 and RS232 with power via jumper settings.
DIO Connector
The DIO connector provides 16-bit digital input/output.
DVI-I (DVI-D signal) / HDMI / VGA Connector
Connects the DVI-I / HDMI / VGA connector of an LCD monitor.
Line-out and Microphone Ports
Connect audio devices such as microphones and speakers.
Gigabit LAN Ports (1~6)
Connect the system to a local area network.
LAN 3~6 can be Power over Ethernet (PoE) that is capable of delivering 15.4W of power to
connected devices.
DC-in
DC 9~36V power input via a terminal block connector.
PCIe Expansion Slot
Provides PCIe or PCI expansion connectivity via a riser card.
Getting to Know the EC510/EC511-SD
Chapter 1
HDD LED
HDD State Disk access
activity Disk drives present or not present
LED Behavior Blink Off
Front I/O Ports
Front View
Status LED
Suspend Mode S0 Sleep S4, S5
LED Behavior Always ON Blinking Off
Rear View
Notes:
1. Please gently press the power button to avoid possible damages.
2. The HDMI is a DP/HDMI combo port but can only transmit HDMI signals (unless wired as a DP
port by request). Please plug in an HDMI cable with the right orientation and alignment to avoid
damage to the connector. You should feel resistance (due to a pin on the right) if the cable is not
inserted correctly.
Align this edge with the
left side of the connector
Angled-corner
(up)
Angled-corner
Aligning side
(left) pin
COM2
DC-in
DVI-I
(DVI-D signal)
HDMI(2)
USB 3.0 LAN1 LAN2
VGA
Remote power on/off
Digital IO
Expansion slot
COM1
Status LED (Orange)
HDD LED (Red)
Power Button
(1)
with LED (Green)
PoE 1~4
or
LAN 3~6
COM3
Mic-in, Line-out
Reset

www.d.com
9
Chapter 1 Introduction
Mechanical Dimensions
Chassis Dimensions
Chapter 1
102.50
235
221.20
Front View
Right View
Left View
Rear View
Motherboard Dimensions
Gold finger
PCIE X4
PCIE X16
228
216.70
209.55
50
Gold finger
mini PCIe

www.d.com
10
Chapter 2 Getting Started
Chapter 2 - Getting Started
Chapter 2
Preparing the System
Before you start using the system, you need the following items:
• SATA hard drive
• AC power adapter
• Optical drive (for installing software/drivers)
• Memory module
Installing Devices
The following devices can be installed in the system.
• Memory module
• SATA hard drives
• Mini PCIe and mSATA card
• PCIe or PCI expansion cards
Configuring the BIOS
To get you started, you may need to change configurations such as the date, time and the
type of hard disk drive.
1. Power-on the system.
2. After the memory test, the message “Press DEL to run setup” will appear on the screen.
Press the Delete key to enter the BIOS setup utility.
Installing an Operating System
To install an OS, you need an optical drive or a USB flash drive and boot from such a device.
Make sure a 2.5” SATA drive is already installed.
1. Refer to the following chapters for information on installing SATA drives.
2. Refer to your operating system manual for instructions on installing the operating system.
Installing the Drivers
The system package includes a CD disk. The CD includes drivers that must be installed to pro-
vide the best system performance. Refer to the Supported Software chapter for instructions on
installing the drivers.
