Diamond INN/V5-A2 User manual

Mod: INN/V5-A2
Production code: RD 800
07/2016

SG03355
INSTRUCTIONS FOR INSTALLATION AND
USE COOLING DISPLAY
RD 800 F I / F B / F W
Made in France
JUILLET 2016

3

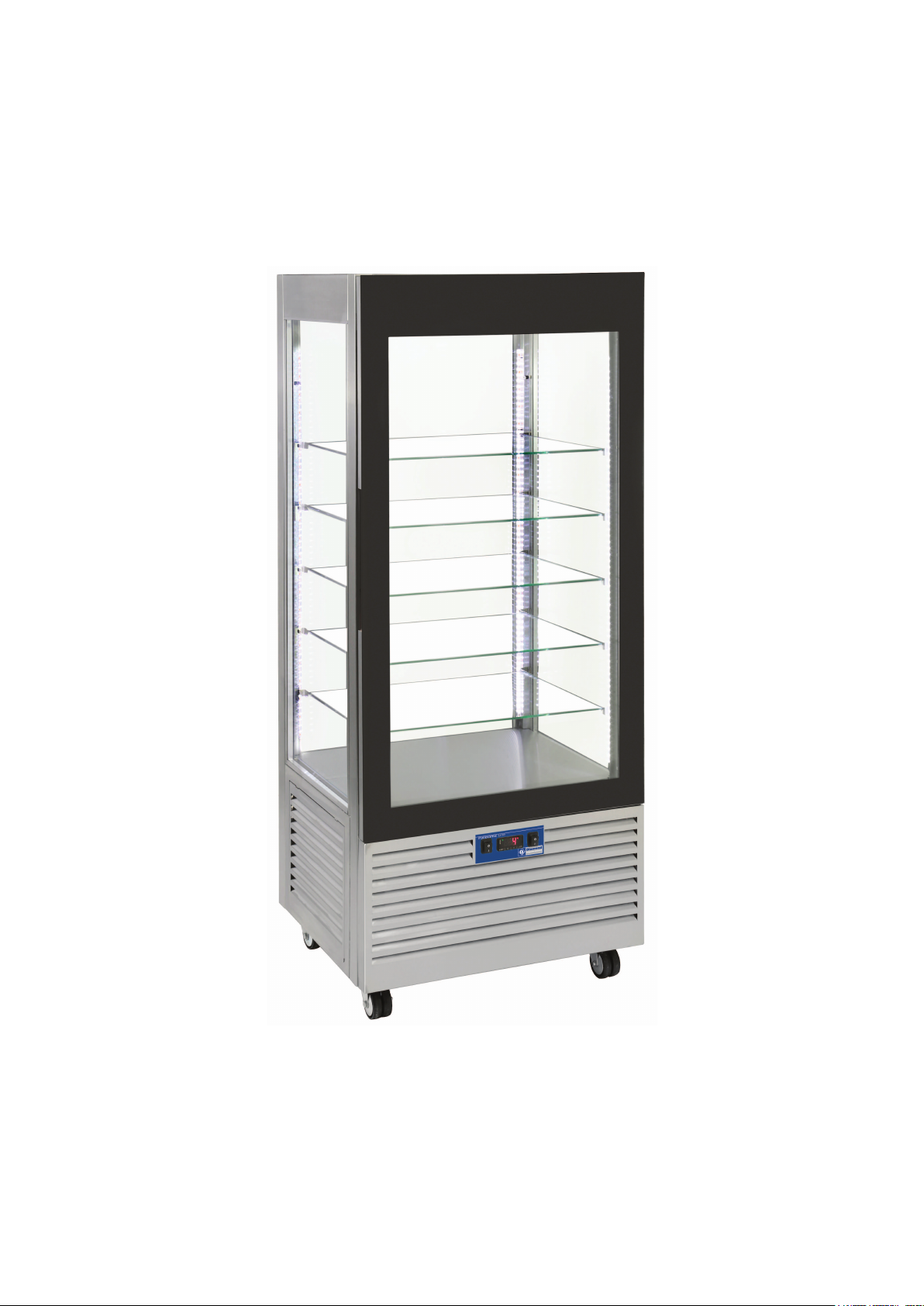

COOLING DISPLAY
RD 800 F I / F B / F W
Congratulations for purchasing this top end professional equipment! You have chosen
equipment that combines optimum technical properties with extreme user comfort.
We want you to get the greatest possible satisfaction out of this equipment.
1. SAFETY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any risk of fire,
electric shock, scald or other wounds and damage. During the use of this
appliance, fundamental circumspection of security must always be noticed,
such as :
- Take into account the instructions to be systematically kept with the
appliance.
- Install the appliance always in instructions respect. A 10 cm distance
minimum with the partition or the wall is necessary.
- Protect the appliance from direct light of the sun, frost and humidity.
- Never leave the appliance within the reach of children or disabled persons
without surveillance.
- The machine has to be used only by qualified person.
- Never move the appliance when it is working.
- Check that the appliance is definitely off before connecting it up or
disconnecting it.
- Do not touch the hot surfaces of the appliance. The temperature of the hot
surfaces can be very important when the appliance is working. Always use
handles and control knobs.
- Do not use the appliance for other functions than determined use.
- Do not leave the electrical cord in contact of hot surfaces.
- The appliance should not be used close to combustible materials.
- During use, look after not to obstruct hearings of aeration of the appliance
- To avoid any electric shock, never plunge the cord or plug in water or quite
other liquid.
- If the cord is harmed, it must be replaced by the producer, its after sale
service or persons of similar skills to avoid any risk.
- Entrust repairs only to a skilled person.
- Use only spare parts of origin.
- Before cleaning the appliance, do not forget to disconnect it.

4
2. CONTENTS OF CARDBOARD PACKAGING
Device : Cooling Display
Accessories :5 glass
Technical documentation of the thermostat
The present note
3. CONFORMITY OF USE
Use the equipment exclusively for keeping food at temperatures included between
2°C and 10°C (except for meat). You get a refrigerating panoramic display RD80
which enables you to highlight your products (desserts, cakes, pies, cocktails,
beverage, etc.).
Fresh products will be presented during working and service hours. Afterwards they
will be stored in a conventional cool chamber.
To take shelter from light is very important for hygiene and it lasts the storage of
foodstuff. The light generates a photochemical reaction on the food, which causes
discoloration, loss of flavour and alimentary characteristics.
In order to soften this phenomenon, avoid to exhibit the machine at the sun.
4. WAY OF FUNCTIONING
The cooling display keeps food at a constant temperature of 2°C pre-adjusted in the
factory.
Press on the switch (n°3 on picture), the machine is on. The preset electronic
thermostat (n°2 on picture) flashes and displays the temperature. Press on the
switch (n°1 on picture) to turn on light.
1
2
3
Switch Light+Turning plates
Switch On/Off
Electronic thermostat
1
2
3

5
5. FUNCTIONING / MANIPULATION
a) Installation / Assembly :
-Place the equipment on a stable surface.
-Position the accessories
-A distance of 10 cm from the partition or the wall is considered enough.
- Never place the device near a wall or near a partition made of combustible
materials even if it is very well isolated.
- Caution : the display cooling must not be exposed at the sun.
b) First starting :
First cleaning
Clean the device before the first use. (See 6 Cleaning)
Connection of the device
-Make sure that the voltage and frequency of the electrical system comply with
the values indicated on the nameplate.
-Always check that the electric power supply cable or plug are free of damage.
-Make sure that every control knob is positioned on 0.
-Remove the flange at the bottom left (when facing the display) to pay out the
entire length of the cord and feed it through the square hole then close it before
inserting the plug into the socket.
-Connect the electric power supply cable to a socket with a protection wire.
-The display is now connected.
NB: To connect the display to a socket without any protection wire, or to connect
directly to the electrical system, ask for a qualified electrician to make the
connection.
c) Use of device :
Elements of command and display
Command/Display
Function
Electronic thermostat (n°1 on picture)
Temperature setting
Switch 0/I (n°2 on picture)
Light On/Off
Switch 0/I (n°3 on picture)
On/Off

6
Starting
- Press on the on/off switch (n°3 on picture) to start the unit. The electronic
thermostat turns on.
- Wait for the unit to be at the right temperature (stop of the compressor).
- Press on the light switch (n°1 on picture) to start the light.
Temperature setting
The electronic thermostat is preset in factory. It can be adjusted if necessary.
To modify the temperature, refer to the technical documentation of the
thermostat.
Regulation of defrost
The defrost is an important operation for ventilated refrigerating displays like RD
800 F I / F B / F W.
A homogeneous temperature is ensured thanks to the air circulation through the
evaporator. This evaporator has a negative temperature when the compressor is
working. In this way, its blades “trap” the humidity as frost, and the air of the
chamber dries. If there is too much frost, the air cannot circulate through the
evaporator and the internal temperature rises.
In order to avoid this phenomenon, the defrost programmed in the factory stops the
compressor 10min every 2 hours.
These valuescan be adjusted byyour technician. It depends on the type of products
presented in the refrigerating display, on the use and the environment.
To stop the display during the night and the closing days enables a total defrost.
Stopping the appliance
Set each switch (n°1 and 3 on picture) on 0: the appliance is no longer
functioning.
Disconnect the power supply cable.
Clean the appliance. (See 6. Cleaning)
d) Breakdown / repair :
In case of breakdown or of damaged part, please call your after-sales service and
confide any technical operation to a qualified person.
When you contact the after-sales service of your distributor or your store, provide
him with the complete reference of your device (commercial name, type and serial
number). This information appears on the visible descriptive plate behind the device.

7
6. CLEANING AND MAINTENANCE
Disconnect the device
- Clean regularly the metallic parts after each use by using only use non-abrasive
products, warm water and wash liquid: avoid the abrasive toweling. Rinse your
device with a wet sponge and dry it with a soft cloth.
- Dry the device with a clean soft cloth.
- Never clean the device under a water jet, the infiltrations would risk to damage it in
an irreparable way.
- Never immerse the cord or the plug in the water or quite other liquid to avoid any
electric shock
- Every week the condenser must be removed from any dust with a vacuum-cleaner.
First, always disconnect the display before doing this operation. Then, to have an
access to the condenser, remove the front grid of the display. The container for the
evaporation of condensation particles must be cleaned with a wet sponge as well.
To have an access, remove the side grid of the display.
CAUTION : In places with a high rate of humidity (>60%), it is obligatory to
proceed to a total defrost every week.
7. TECHNICAL SPECIFICATIONS
Model
RD 800 F I
RD 800 F B
RD 800 F W
Effective Volume
480 l
480 l
480 l
Dimensions
645x800x1865
645x800x1865
645x800x1865
Weight
180 Kg
180 Kg
180 Kg
Power
500 W
500 W
500 W
Gas
R 134 A
R 134 A
R 134 A
Temperature
+2° to +10° C
+2° à +10° C
+2° à +10° C
Voltage
220-240 V ~
220-240 V ~
220-240 V ~
Frequency
50-60 Hz
50-60 Hz
50-60 Hz
Grids
665 x 455 (x5)
665 x 455 (x5)
665 x 455 (x5)
Glasses
0
0
0
Colour
Stainless Steel
Black
Whith
Wires colours correspondence:
Phase Brown or Black or Grey
Neutral Blue
Earth Yellow-Green

8
8. NORMS AND LEGALS DISPOSALS
The device is conform to :
73/23 CEE: 19/02/1973
86/336 CEE: 03/05/1989
CEE: 92/31
CEE: 28/04/1992
CEE: 22/07/1993
EN 60335-1
EN 55104
EN 60555-2
EN 60555-3
In order to comply with the directive 2004/108/CE concerning the electromagnetic
compatibility, and according to the norm EN 61000-3-11, the maximal impedance of
the network accepted (Zmax) at the plug in point has to be under 0,42 Ω.The
technician has to check this value, with the distributor if necessary.
9. ELIMINATION OF THE ELECTRIC AND ELECTRONIC WASTE
The device respects the directives :
2002/96/CE (DEEE) N°34270064800021
2002/95/CE (ROHS)
Reach rule
Never put the device among household waste.
The device must be put down in a center of recycling for the electric equipments.
The materials of the device are indeed reusable. By eliminating correctly the electric
and electronic wastes, the recycling and quite other shape of re-use of worn
equipments, you participate in a significant way in the environmental protection.
For any information about the collection of electric and electronic waste, please
contact your distributor.

9
10. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the
distributor or the retailer. Please contact the store where you bought your device to
know the precise conditions.
The guarantee grants no right for damages.
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect
current regulations or instructions appearing in this user guide.
Guarantee cannot apply for bad manipulations during service, inapropriate usage,
negligences, device overload and electric power supply variations, overload or
defective installation.
Damages due to impacts or bad weather are not covered by the guarantee. Final
user is responsible for the transport. If delivred by a transporter, the recipient must
issue reserves before delivery.
Guarantee ends with interventions, reparations, modifications by non-qualified
persons, or inappropriate usage.
11. MAINTENANCE GUIDE
ANOMALIE
CAUSE
REMEDE
The display does not start
Switch on position « off »
Switch on position « on»
No information on the thermostat
Check the plug
The display does not stop
No refrigerating power
Clean the condenser
The display does not
regulate
Helicoïd ventilator is blocked
Remove foreign or
Eventually replace the ventilator
The temperature rises up
Presence of ice
Make a total defrost
Presence of water droplets
on the top
Appearance of ice
Adjust the parameters of defrost
Presence humidity marks on
the display
High level of humidity in the air
Presence of condensation
on the display
Display in defrost phase
Presence of water under the
display
Container for condensation
particles is full, total defrost too late
Empty and clean the container
and reposition the holds

X 2
Notice
A
B

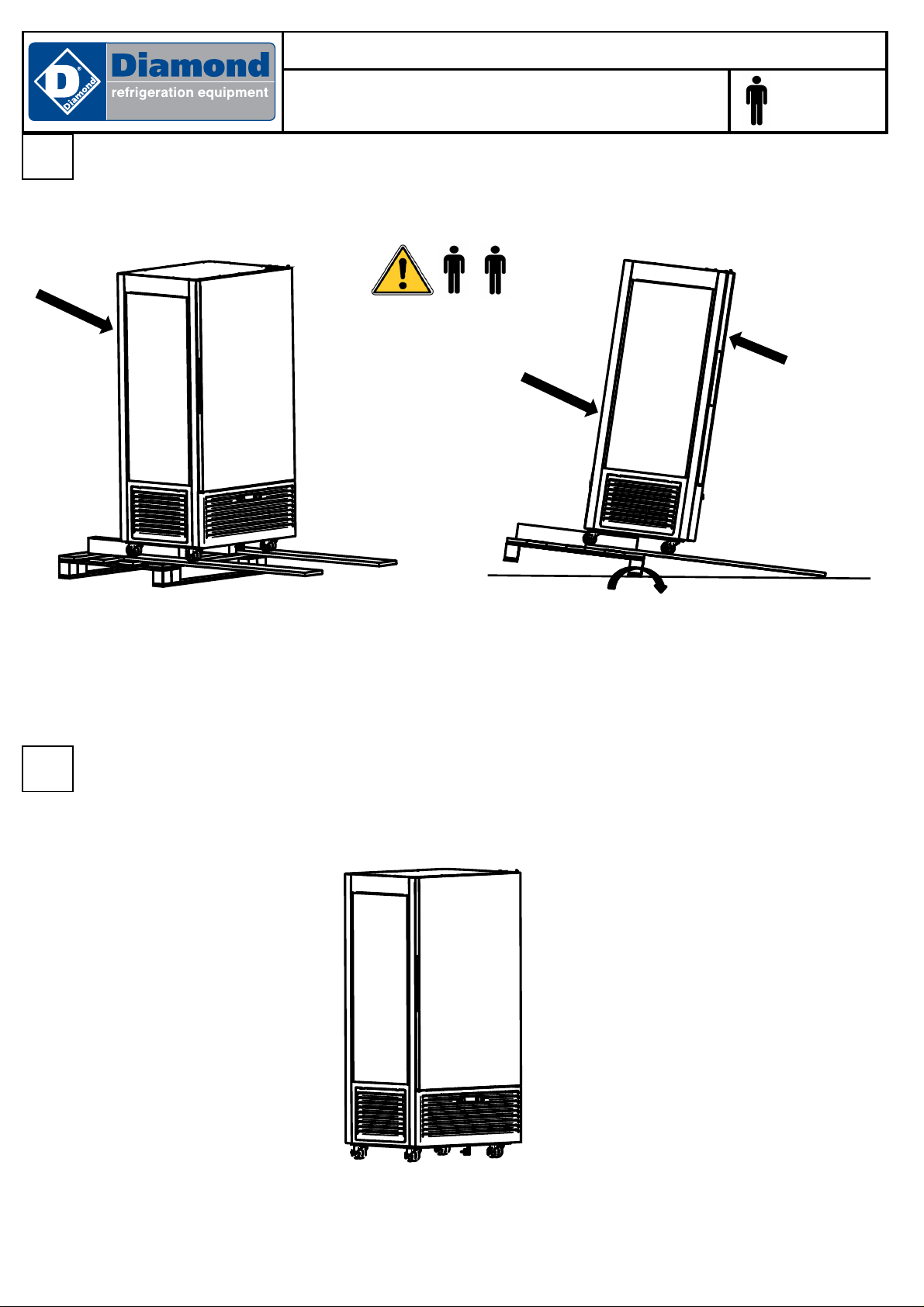

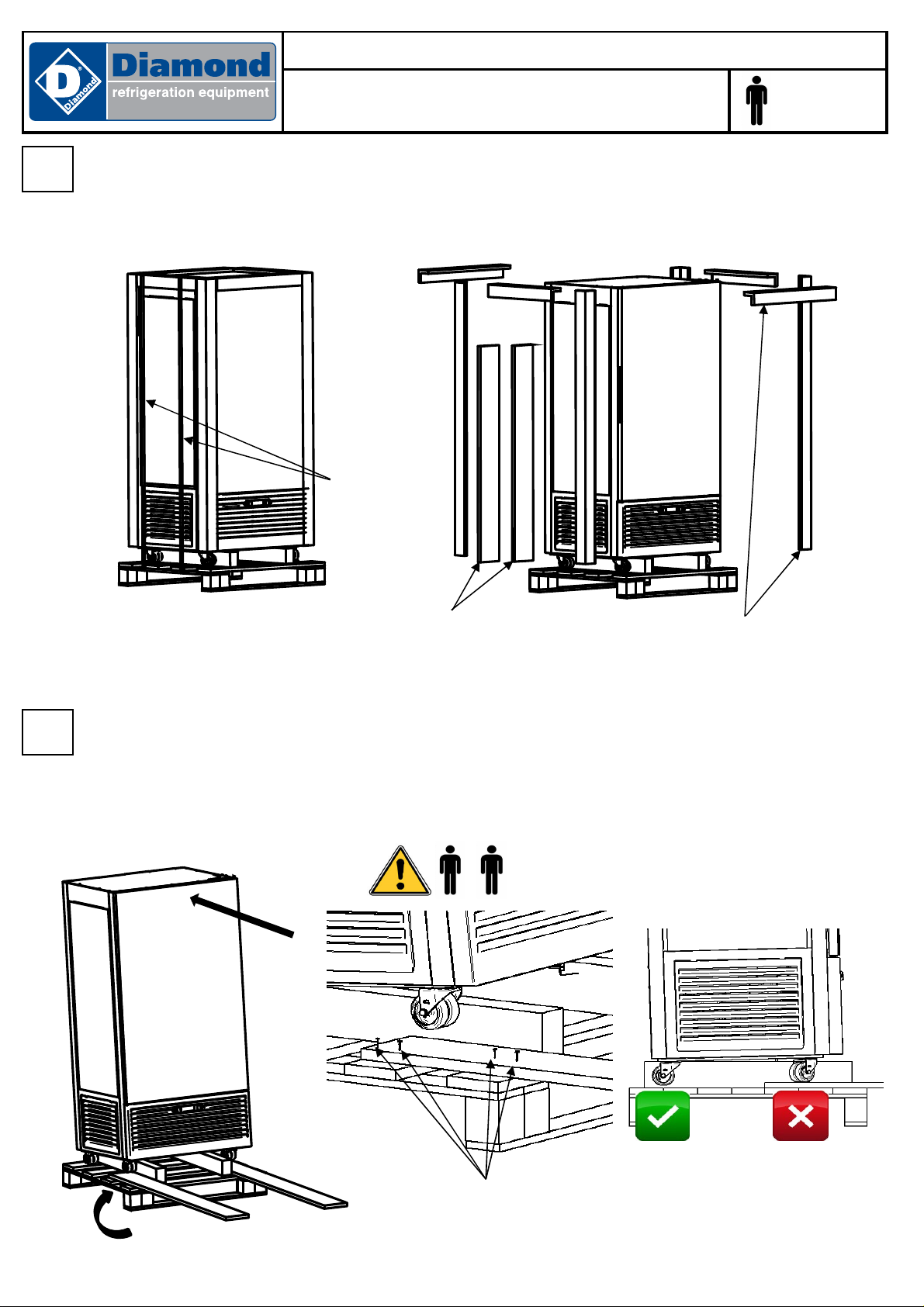

Couper les 2 sangles (1), puis retirer les 2 planches (2) et les 8 cornières (3).
Cut the two straps (1), remove the 2 boards (2) and the 8 angles (3).
Incliner légèrement la vitrine et glisser les planches (2) sous les roues avant. Fixer les planches (2) sur la
palette avec les 8 vis fournies. Aligner les roues. Les planches (2) doivent reposer sur les 2 premieres lattes
de la palette.
Slightly tilt the unit and place the boards (2) under the front wheels. Fix the boards (2) with the 8 screws.
Align the wheels. The boards (2) should rest on the two first lath of the pallet.
DEBALLAGE VITRINE REFRIGEREE /
COOLING DISPLAY UNPACKING
1
23
vis / screws
SG03356
10

X 2
Notice
DEBALLAGE VITRINE REFRIGEREE /
COOLING DISPLAY UNPACKING
D
CPousser la vitrine doucement sur les planches, retenir la vitrine dès que les planches s'inclinent.
Slowly push the unit on the boards, and retain it as soon as the boards tilt.
Respecter la notice, située à l'interieur de la vitrine pour l'utilisation.
Respect the utilisation notice located inside the cooling display for use.
SG03356
11
