DICE Silverline iPod Kit User manual

DICE interface for iPod
for selected Mazda vehicles
Installation Guide/User Manual

2
Copyrights and Trademarks
Copyright 2008 DICE Electronics, LLC.
The DICE Electronics logo is a trademark of DICE Electronics, LLC.
iPod is a trademark of Apple, Inc.
All rights reserved.
Printed in the U.S.A

Table of contents
3
Icon legends
Press button
Turn jog dial
Turn jog dial repeatedly
Press button repeatedly
Double-Click
Copyrights and trademarks 3
Icon legends 3
Warranty and safety 4
Product registration 5
iPod hierarchy 7
Charging 7
Mazda-CDC integration kit 8-16
Integration kit contents 9
DIP switches 10
DIP switch settings 11
Installation 12
iPod audio source 15
Controls in CDC emulation 15
Browsing function in CDC emulation 16
Mazda-SAT integration kit 17-28
Integration kit contents 18
DIP switches 19
DIP switch settings 20
Installation 21
Supported iPod models 6
iPod audio source 24
Controls in SAT emulation 24
Viewing the text fields 25
Selecting modes 26
Browsing in modes 27
Auxiliary audio source 29
Troubleshooting 31
Disclaimer and warranty 33
Installation notes 34
Text scroll settings 28

4
Warning and safety!
Please read these instructions carefully before proceeding. Failure to follow instructions may result in improper operation
or injury. Neither DICE Electronics, LLC. nor Apple Inc., its regional offices, distributors or resellers take any responsibility for
any damage or injury as a result of using the integrationkit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try toaltercables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
- Keep the unit and iPod away from fluids.
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled and
components may become loose from vibration and heat. Small components and packaging materials may be a chocking
hazard when handled by children.

Congratulations on your purchase
Thank you for purchasing the DICE integration kit for iPod. Please review our user manual and installation guide before
operating the unit. This interface was designed and manufactured to seamlessly integrate with your vehicle's factory
entertainment system.
5
In order to validate your warranty period and to receive telephone or online support, you MUST register your DICE
product.
To register your DICE product, please complete the following steps:
1. Visit http://www.diceelectronics.com/register
2. Complete the product registration form.
3. Submit the form.
4. Save the registration/support/warranty sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call DICE Electronics at 1-888-342-3999.
Product registration

6
FW:3.1.1 FW:1.2.1
FW:1.2.1 FW:1.4.1
FW:1.3.1 FW:1.1.3 FW:1.1.1
FW:1.0.3
FW:1.0.3
Supported iPod models and firmware version requirements
For the latest firmware versions and models not listed, please contact your authorized dealer or DICE Electronics, LLC.
iPod
4th generation
20GB 40GB
iPod
4th generation color display
20GB 30GB 40GB 60GB
iPod classic
80GB 160GB
iPod
5th generation (video)
30GB 60GB 80GB
iPod mini
4GB 6GB
iPod nano
3th generation (video)
4GB 8GB
iPod nano
1st generation
1GB 2GB 4GB
iPod nano
2nd generation (aluminum)
2GB 4GB 8GB
iPod touch
8GB 16GB 32GB

The interface automatically charges the battery of the iPod when
connected and the key is in the ACC/ON position. Charging icon will appear
on the upper right corner
of the iPod screen to
indicate charging.
Charging
iPod hierarchy
By default, the interface creates a Playlist having a name that is the same as the name
of the iPod.This Playlist is the very first on the list of Playlists shown while browsing in
Playlist mode. This Playlist contains all the songs on the iPod. Once a Playlist is active
an Artist may be selected within that Playlist using the Artist Mode. Albums by the
selected Artist and within the selected Playlist may be selected in Album Mode. "ALL
ARTIST" and "ALL ALBUM" designateall available contentin those categories.
Playlist
Artist
Album
Song
t
n
e
t
n
o
c
e
l
b
a
s
w
o
r
b
s
s
e
L
Morebrowsablecontent
7

Mazda CDC - integration kit

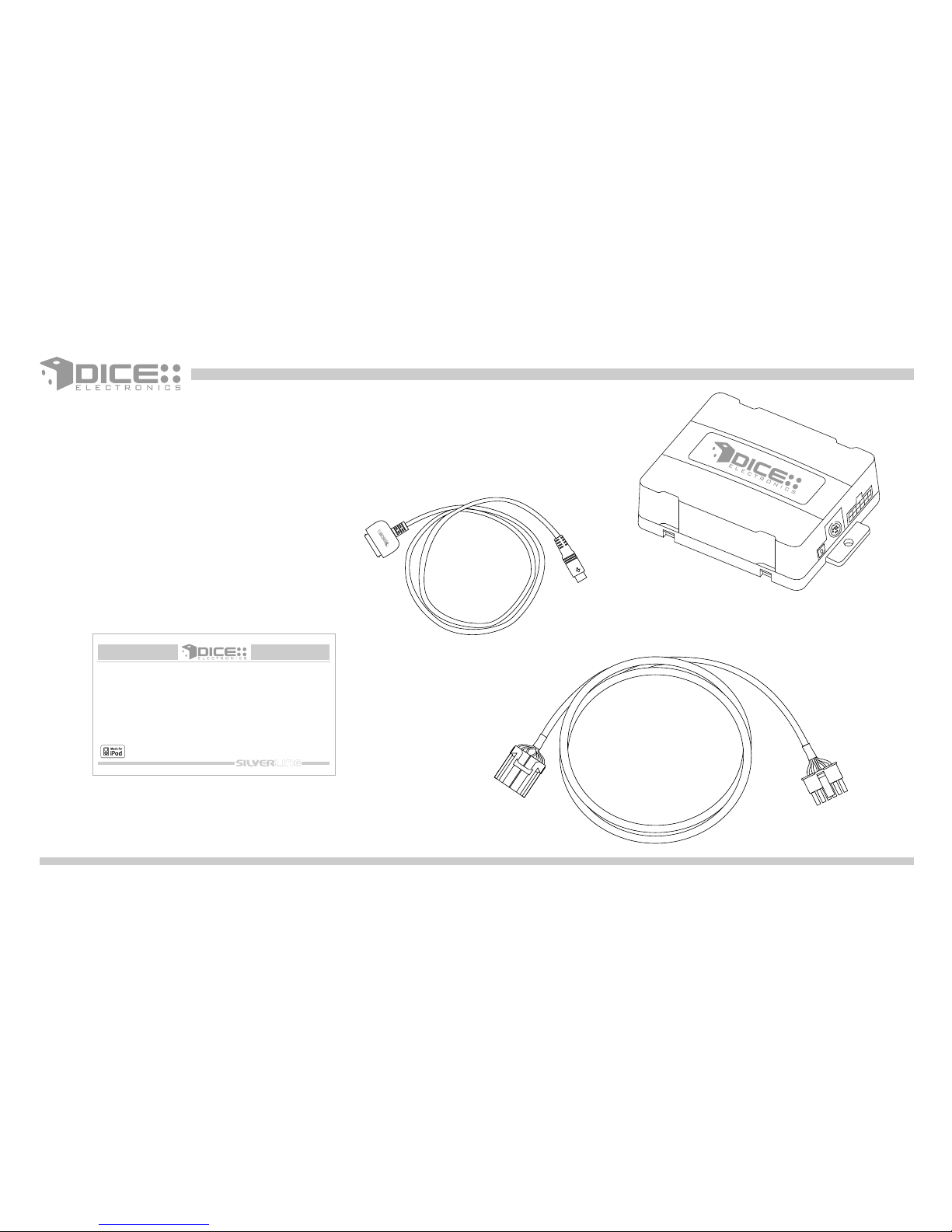

Integration kit contents
1Vehicle specific interface unit
1Vehicle specific harness (R2)
1 iPod docking cable
1 User manual
DICE interface for iPod
for selected Mazda vehicles
Installation Guide/User Manual
9

10

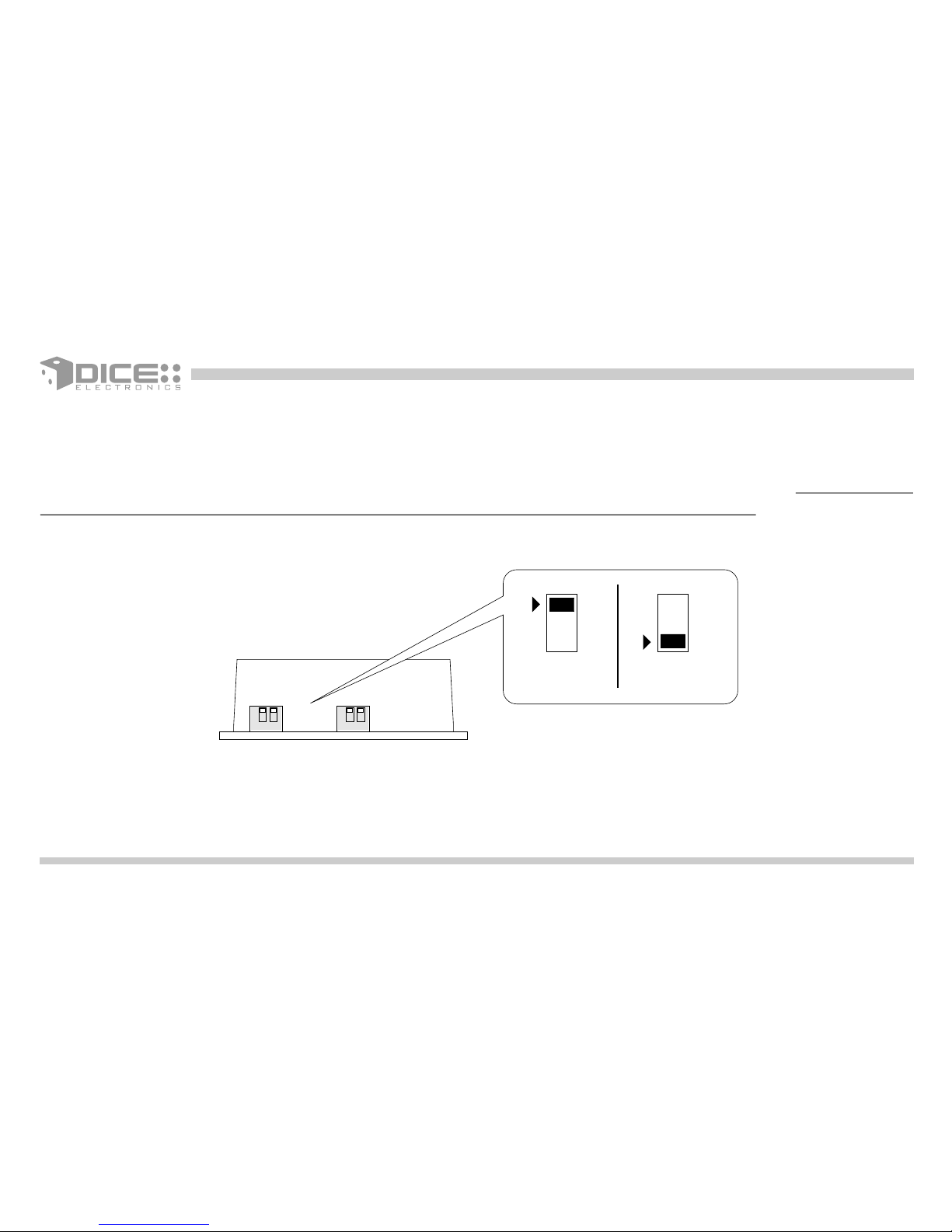

Dip switches
ON 1 2
"iPod Config.
Switch"
"Car Config.
Switch"
DICE Module
ON/OFF Switch Positions
ON 1 2
ON
1 2
OFF
The configuration switches located on the DICE module are used to set the operation of the interface by the installer.
Incorrect dip switch settings may cause the DICE interface not to work properly or not to operate at all. Disconnect the
vehicle harness from module and cycle ignition off for 50 seconds after changing the switches!

11
Dip switch settings
OFF OFF
ON ON
It is best selected when Text display
is NOT supported by the radio.
Track numbers and times are not
synchronized between the iPod and
radio. Because there is less data
transfer between the iPod and radio,
this mode has the fastest response
time.
iPod configuration switches
Settings
"Locked"
(works as described on pg.16)
"iPod"
(iPod controls are functional)
OFF OFF ON ON
It is best selected when controls
from the radio are preffered. Use
this mode to browse within the
contents of the iPod by category as
described on pg. 16.
Dip switch 1 Dip switch 2 Dip switch 1 Dip switch 2
OFF OFF
Default
Car configuration switches
Settings
CD changer (CDC)
Dip switch 1
OFF OFF
Switches should remain in the default OFF
position.
Dip switch 2

Installation
Installation should only be performed by a qualified professional. Beware of sharp edges to avoid injury and exercise
caution when removing trims as they may break.The module should be placed at an accessible location toallow AUX cable
to be connected, such as in the glove box, the center console or under the front seat.
1Pull vehicle into service bay and access radio/centerconsole.
2Disconnect both battery terminals.These cables must be disconnected during installation to ensure proper initialization
of the module when it is connected.
3Before pulling out the radio, removing surrounding trims and screws. Most trims can be removed by carefully pulling on
the piece or using trim removaltools.Trim is usually held in place by snap-in clips.
4The radio is held in place by a few bolts. To remove these a 10mm socket is usually needed. Consult your dealership if
additional information is needed on removing the radio.
12

5 - Connect vehicle specific harness -You can access the CD changer/SAT port located on the back of the radio. Unplug
the factory connection if present and plug the Mazda-R2 connector into the receptacle. Plug the factory connection to
the cable receptacle if it was removed from the radio.The connector should securely lock.
CDC/SAT port
factory radio
harness connection
connect to
interface unit
Mazda-R2
connector
13

6Connect the vehicle specific connector and the iPod docking cable to the DICE module. Apply cable ties to secure
the cables.
1/8"
AUX
input
iPod
dock
cable
input
vehicle
specific
connector vehicle specific connectoriPod docking cable
receptacle receptacle
7
T
Verify that all connections have been properly made.
8Reconnect the car's battery. est the unit before seating the cables and reinstalling the panels/trim.
14

CLOCK
SET FM1/2 AM CD TAPE/MD
LOAD
disc
COMPACT
DIGITAL AUDIO
TRACK
SEEK APC SCAN
PROG
RPT
RDM PUSH
PWR VOL
1 2 3
4 5 6
DISC
DISC
Multi Function Audio System
U
T
O
-
A
M
H
-
D
S
U
I
S
P
P
E
-
E
N
S
U
N
T
TEXT
D
I
O
U
A
C
O
H
S
N
U
T
P
iPod audio source
15

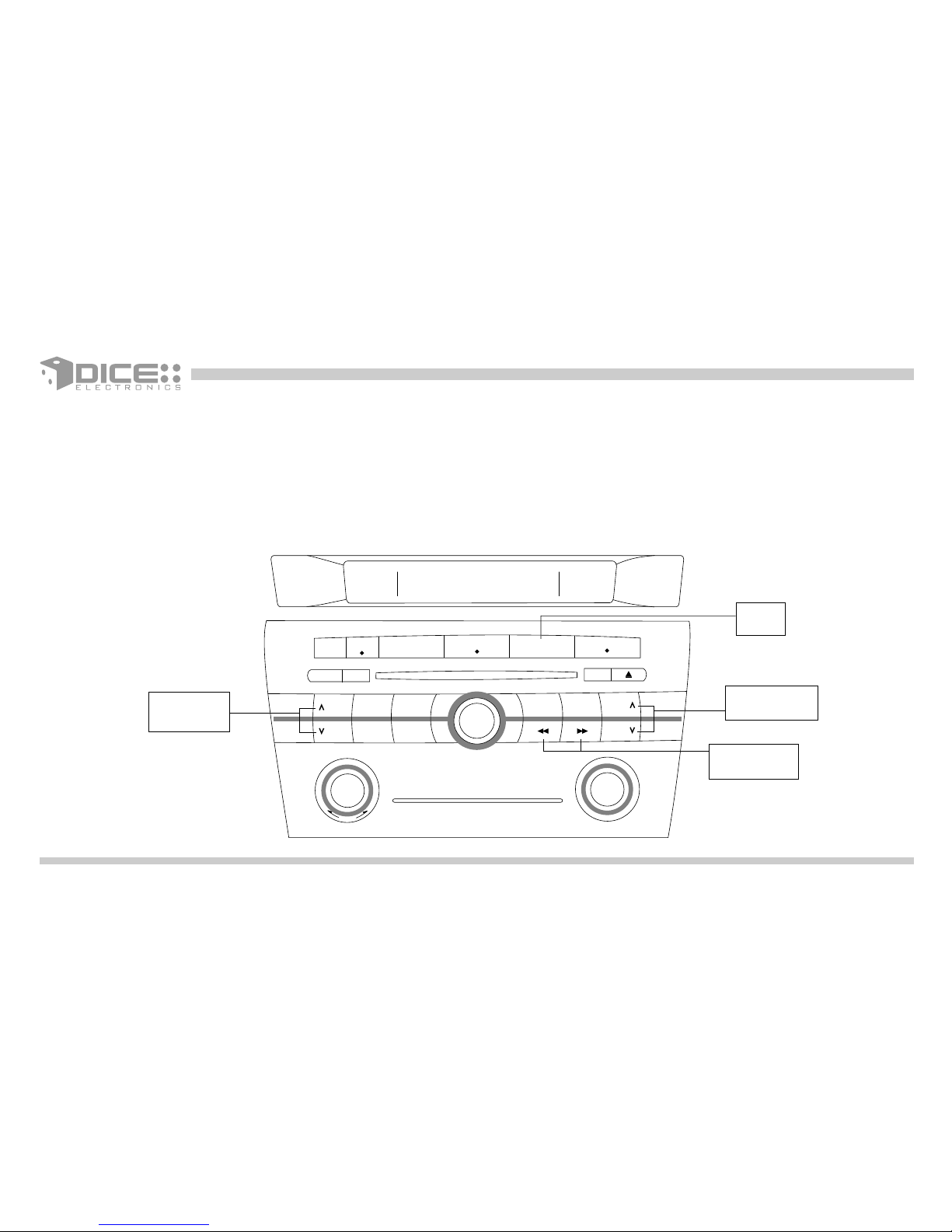

Controls in CDC emulation
Press the CD button to access the interface and its features. Pressing this button repeatedly will cycle through sources
present (internal CD if present, followed by external) in your vehicle. When the iPod audio source is active (DISC 5,Track1),
use the Seek track button to select next/previous Song.
Source
selector
Press to
change Track
Press to change
DISC.
Press to RW or
FFW.
2:14 EX 1 1 118'
::

2:14 EX 1 1 118'
::
B - in CDC emulationrowsing function
After connecting the iPod and selecting the iPod audio source, use the desired Mode by selecting DISC 1-4. Change Track
by pressing the Seek/Track button. Text display is not supported, however recent iPod firmware upgrades show the
Title/Artist information of the currently played song. Alternately, you may select iPod mode (p.11).
TRACK MODE -
PLAYLIST MODE -
ARTIST MODE -
(within the
selected Playlist)
ALBUM MODE -
(
Artist in the selected
Playlist)
within the selected
AUDIO SOURCE -
TRACK
SEEK APC
2:14 EX 2 1 118'
::
2:14 EX 3 1 118'
::
2:14 EX 4 1 118'
::
2:14 EX 5 1 118'
::
2:14 EX 1 2 118'
::
2:14 EX 2 2 118'
::
2:14 EX 3 2 118'
::
2:14 EX 4 2 118'
::
2:14 EX 5 2 118'
::
DISC
DISC
DISC
DISC
DISC
DISC
DISC
DISC
DISC
DISC
TRACK
SEEK APC
TRACK
SEEK APC
TRACK
SEEK APC
TRACK
SEEK APC
16

Mazda SAT - integration kit

Integration kit contents
1Vehicle specific interface unit
1Vehicle specific harness (R2)
1 iPod docking cable
1 User manual
DICE interface for iPod
for selected Mazda vehicles
Installation Guide/User Manual
18

Dip switches
ON 1 2
"iPod Config.
Switch"
"Car Config.
Switch"
DICE Module
ON/OFF Switch Positions
ON 1 2
ON
1 2
OFF
The configuration switches located on the DICE module are used to set the operation of the interface by the installer.
Incorrect dip switch settings may cause the DICE interface not to work properly or not to operate at all. Disconnect the
vehicle harness from module and cycle ignition off for 50 seconds after changing the switches!
19

Dip switch settings
OFF OFF
ON ON
Default
It is best selected when Text display
is NOT supported by the radio.
Track numbers and times are not
synchronized between the iPod and
radio. Because there is less data
transfer between the iPod and radio,
this mode has the fastest response
time. Content is selected on the
iPod.
iPod configuration switches
Settings
"Locked"
(recommended in SAT emulation)
"iPod"
(recommended in emulation)CDC
OFF OFF ON ON
It is best selected when controls
from the radio are preffered. Use
this mode to browse within the
contents of the iPod by category as
described on pp. 24-28.
Dip switch 1 Dip switch 2 Dip switch 1 Dip switch 2
This setting is recommended for
Navigation radios or for Non-Nav
radios when manual scroll feature
is preferred.
In this setting, the Title text field will
display "Album * Artist" and the Name
text field will display "Song name".
Both Short scrolling and Long Static
can be selected in Preset 6.
Car configuration switches
Settings
Single text fields
(recommended for Non-Nav radios)
Dual text fields
(recommended for Nav radios)
OFF OFF ON OFF
Dip switch 1 Dip switch 2 Dip switch 1 Dip switch 2
This is the recommended setting
for Non-Nav radios.
In this setting the Name and Title
text fields displays identical song
information.
(Song name*Album*Artist)
Only Short Scrolling can be
selected in Preset 6.
OFF OFF
Default
ON
OFF
20
