Digicom GSM 2G WLL Owner's manual

2G WLL 06/05/2008
For further information
visit our website
http://www.digicom.it
GSM Gateway
2G WLL - Wireless Local Loop
lConnect your analog phone to GSM line
lPhone line always available
lCalls from “PSTN-mobile” to “mobile-mobile”
lEasy connection to PABX
lSend/Receive data up to 85 Kbps
DESCRIPTION
It simulates a traditional PSTN line where this
one is not available!
Turn your “PSTN-mobile” calls into “mobile-
mobile” calls!
Connect your PC to Internet via GPRS.
Digicom 2G WLL simulates an analog line where
the traditional PSTN line is not available or where it
is not convenient to take it.
You can connect your analog phone to GSM line
with Digicom 2G WLL, in this way you will be able
to call a mobile phone using your home phone as it
were a mobile phone, saving the costs.
Thanks to the FAX G3 functionality, besides the
voice, data and SMS functionalities, 2GWLL is the
ideal solution for small ofce/home ofce applications as well as in residential and rural installations.
Connect 2G WLL to the PABX and, automatically
if the PABX allows it, or dialing a preset prex, you
will be able to call GSM users using the SIM present
into 2G WLL.
You will perform “mobile-mobile” connections
at a more convenient cost than the “PSTN-mobile”
calls.
Voice+Fax+Data+SMS
2G WLL
USB
Fax
GSM/GPRS
PSTN
ISDN
PABX
2G WLL
Fax
GSM/GPRS

For further information
visit our website
http://www.digicom.it
2G WLL has an internal backup battery that guarantees
its operation even when power is off.
If you need to connect your phone controller to your
alarm control unit, you can connect it to 2G WLL and,
wihout any additional conguration, the phone calls will
be made through the GSM network.
Internet and E-mail always available. Digicom 2G WLL
is also a GPRS/GSM USB modem to be always online.
TECHNICAL FEATURES
GSM/GPRS
lGSM network type Quad-band 850/900/1800/1900 MHz
lGSM Module: GSM/GPRS TM2
lTransmitter power: Class 4 (2W) for EGSM at 850/900MHz and
Class 1 (1W) for DCS at 1800/1900MHz
lGPRS Class 10
lSIM card: 3V compatible (Plug in, small)
Phone and Fax Interface
lVoice Interface: FXS
l2 Connectors: RJ11 6/2 (voice and fax)
lOff-hook AC impedance: 600 ohm
lOn-hook line voltage: 48VDC
lOff-hook line current: 25mA
lDialing type: Tone (DTMF), Pulse (optional)
lRinging voltage: 48 VAC rms - REN: 3
lMetering pulses generation: 16 KHz (optional)
lPolarity reversal (optional)
Connection
lVoice call
lAnalog Group 3 fax
lGPRS up to 85Kbps
lShort Messaging Service (SMS)
lCSD up to 9.6 Kbps
Power supply
lExternal adapter
lInput: 100-240 VAC / 50-60Hz / 0,5A
lOutput: 9VDC / 1.0A
Battery Backup
lStandby time: 8h
lTalk time: 2h
GSM Antenna
lQuad-Band Omnidirectional Antenna (included)
lConnector type: SMA
lImpedance: 50 ohm
lHigh gain omnidirectional external antenna (optional)
lHigh gain directional external antenna (optional)
Data Interface
lData interface: USB 1.1 (2.0 compatible)
lConnector type: USB mini B
lDriver: Windows Vista, XP, 2000
Other
lDimensions: 180x137x40mm
lOperating Temperature: -0°/55°
lWalll mount kit (optional)
lLeds: Power/Error, Status, Mode, Memory, Battery
lCE Mark and Rohs compliant

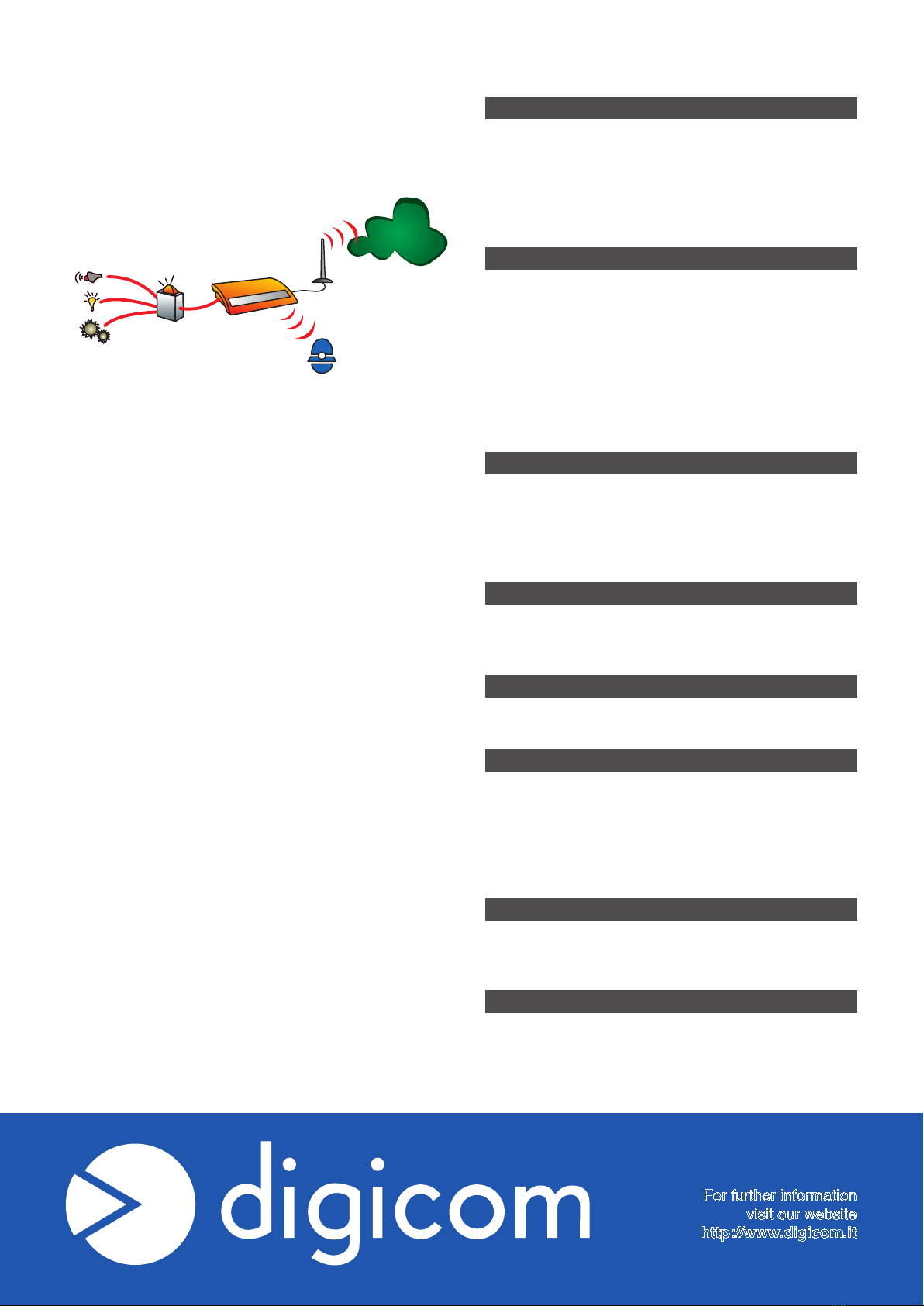

GSM/GPRS
Security Service
Sensors 2G WLL
Alarm
Control Unit
