Dimplex WFE3BE User manual

08/53943/0 ISSUE: 1
WFE Wall Fan Convector
Model: WFE3BE, WFE3SE
INSTRUCTION MANUAL
Installation and Operating
This product is supplied and operated with a Bluetooth Remote Control handset

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE ISTRUCTIONS MAY CAUSE INJURY
AND/OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this heater in the immediate surroundings of a bath,
shower or a swimming pool.
WARNING – This heater must not be located immediately above or below a
xed socket outlet.
WARNING - This heater must be earthed
The supply circuit to the heater must incorporate a double pole isolating switch
having a contact separation of at least 3mm in all poles.
WARNING – Ensure all packaging including Bluetooth remote control is
removed from the inside of the product before wall mounting or startup.
DO NOT - Use the heater until it is wall mounted correctly.
The heater carries a warning ‘Do Not Cover’ to alert the user to the risk of
overheating that exists if the heater is accidentally covered.
Keep combustible materials such as drapes and other furnishings clear from the
front of the heater. Do not use heater to dry your laundry.
NEVER cover or obstruct in any way the air inlet slots at the front of the heater
or the heat outlet slots in the base of the heater.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
expierience or knowledge if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall only switch on/ o
the appliance provided that it has been placed or installed in its intended
2

normal operating position and they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand the hazards
involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
CAUTION: Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vunerable people are
present.
If young children, the aged, or inrm are likely to be left in the vicinity of the
heater, we advise that adequate precautions should be taken. We recommend
that a guard be tted to ensure contact with the heater is avoided and objects
cannot be inserted into the product.
WARNING: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and o by the utility.
DO NOT use where excessive dust or moisture is present. For further
information, please contact our guard supplier direct on Tel. No. 01603 667957,
or in the case of diculty or for further advice contact our Customer Helpline.
WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a battery go straight to a
hospital emergency room.
• Examine devices and make sure the battery compartment is correctly
secured, i.e. that the battery cover is tted securely. Do not use if the
compartment is not secure.
• Dispose of used batteries immediately and safely. Flat batteries can still be
dangerous.
3

Model Identifier(s): WFE3BE WFE3SE
Nominal heat output Pnom 3.0kW 3.0kW
Height (mm) 350 350
Width (mm) 571 571
Depth (mm) 120 120
Minimum heat
output (indicative) Pmin 1.0kW 1.0kW
Maximum continuous heat output Pmax,c 3.0kW 3.0kW
Auxiliary electricity Consumption
At nominal heat output elmax 0.00 0.00
At minimum heat output elmin 0.00 0.00
In standby mode elSB <0.0005 <0.0005
Type of heat output/ room temperature control
Electronic room temperature control plus week timer Yes
With open window detection Yes
With adaptive start control Yes
This product complies with Lot20 of the Energy Eciency Directive (2015/1188).
Energy Related Product Directive
Technical Details
4

All Models
Controls
Digitally controlled, Electronic Thermostat
Timer modes:
7 Day Programmable User Timer
Continuous heat modes:
Frost Protect, Runback, Comfort O
Controller UI Button to initiate pairing with Bluetooth remote
Controller Functions
• Heat Selection: High / Low
• Adaptive-Start
• Advance time period
• Adjustable SP range (7-30°C)
• Bluetooth for control
Construction Durable epoxy-polyester powder coated steel casing with slotted forward
facing grille
Element Stitched element with integral thermal cut-out
Installation Fixed directly to the wall through the back panel
Safety Eelectrical reset, self-hold cut-out
IP Rating No Rating
Battery Backup
None. However all programmed timer proles will be retained during
short term power losses. In order to ensure their correct operation, it is
necessary to restore the time and date settings,this happens automatically
once paired with the remote.
Supply ~230-240 V, 50Hz Class I, with earth wire
Colour / Finish
• Black body with Cherry wood side panels
• Silver body with Black side panels
Approvals CE, BEAB
Warranty 2 years
Country of Origin British Isles
Manufacturer Glen Dimplex Heating & Ventilation (GDC Group Ltd.)
5

Installation
WARNING: The installation of this appliance should be carried out by a competent
electrician and be in accordance with the current IEE wiring regulations
and any local or insurance regulations.
Before undertaking installation work, ensure the electricity supply is disconnected
from any relevant xed wiring. Supply cable is not provided with this appliance, and
a competent electrician should therefore install it.
The appliance must be tted horizontally with the cable or conduitentry at bottom
right. It should be mounted such that the underside is at least 350mm above the oor
and the top of the heater is 150mm below any overhanging shelf or obstruction.
This heater must be used on an A.C.~ supply only and the voltage marked on the
heater must correspond to the supply voltage.
To comply with the I.E.E. Wiring Regulations, the appliance must be earthed; the supply
circuit must be adequate for the input of the appliance, and the circuit protected by
a suitable 13A fuse. A suitable termination to the xed wiring of the premises must
be provided adjacent to the nal position of the appliance. In this instance, such a
termination can be a double-pole switch with a contact separation of at least 3mm in
all poles.
The heater must not be located immediately below a xed socket-outlet
Procedure
Release the front cover from the unit by undoing the two screws under the bottom
edge. Carefully remove the cover by pulling bottom-front forward, and then lift to
release the top from the retaining slots. Remove packaging containing Bluetooth
remote control.
Mark screw xing positions on the wall in accordance with the dimensions shown on
the diagram in Fig 2. The unit must be secured to the wall with four screws through
the holes provided.
The two upper holes are keyhole shaped to enable the two upper screws to be
positioned rst. The unit can then be hung on these screws while the two lower
screws are positioned. Before nally tightening all four screws, ensure the unit is truly
horizontal. Fit a 3 core 1.5 square millimetre exible cord through the cable entry bush,
connect wires to the appropriate terminals and tighten cable clamp.
Alternatively the heater may be connectedwith conduit through the base after
removing the knockout containing the cable entry bush (see ‘A’ in Fig. 2).
6

Fig. 1
Fig. 2
shelf
571mm
510mm
150mm min
6mm
8mm
10mm
350mm
280
mm
‘A’ 350mm
35mm
571
mm
120
mm
350
mm
350mm
MIN
7

Wiring
See Fig. 3
Component
A. Terminal Block
B. Cable Clamp
C. Power Supply Cable
After ensuring the electricity supply is not live, electrical connections can be made,
either to an adjacent double-pole switch having a contact separation of at least
3mm in all poles or to a plug-top for use in a standard 13A socket.
If the latter: Connect Green and Yellow wire to plug terminal marked Eor Green or
Green and Yellow. Connect Blue wire to plug terminal marked Nor Black. Connect
Brown wire to plug terminal marked L or Red.
Ret cover, rst hooking top over the back of the unit and then securing the bottom
by retting the two screws under the bottom edge.
The appliance is now ready for use and the electricity supply can be reinstated.
WARNING: This appliance must be earthed
Electrical
A
C
B
Fig. 3
8

9

The product is supplied with a Bluetooth remote control, the remote control should be
contained in the carrier bag along with these instructions. This remote control is required
to operate the appliance. When paired with the remote control various operational modes
and features can be accessed.
IMPORTANT NOTE:
The remote control is required to operate the appliance. It is important
that the remote control remains near the appliance at all times.

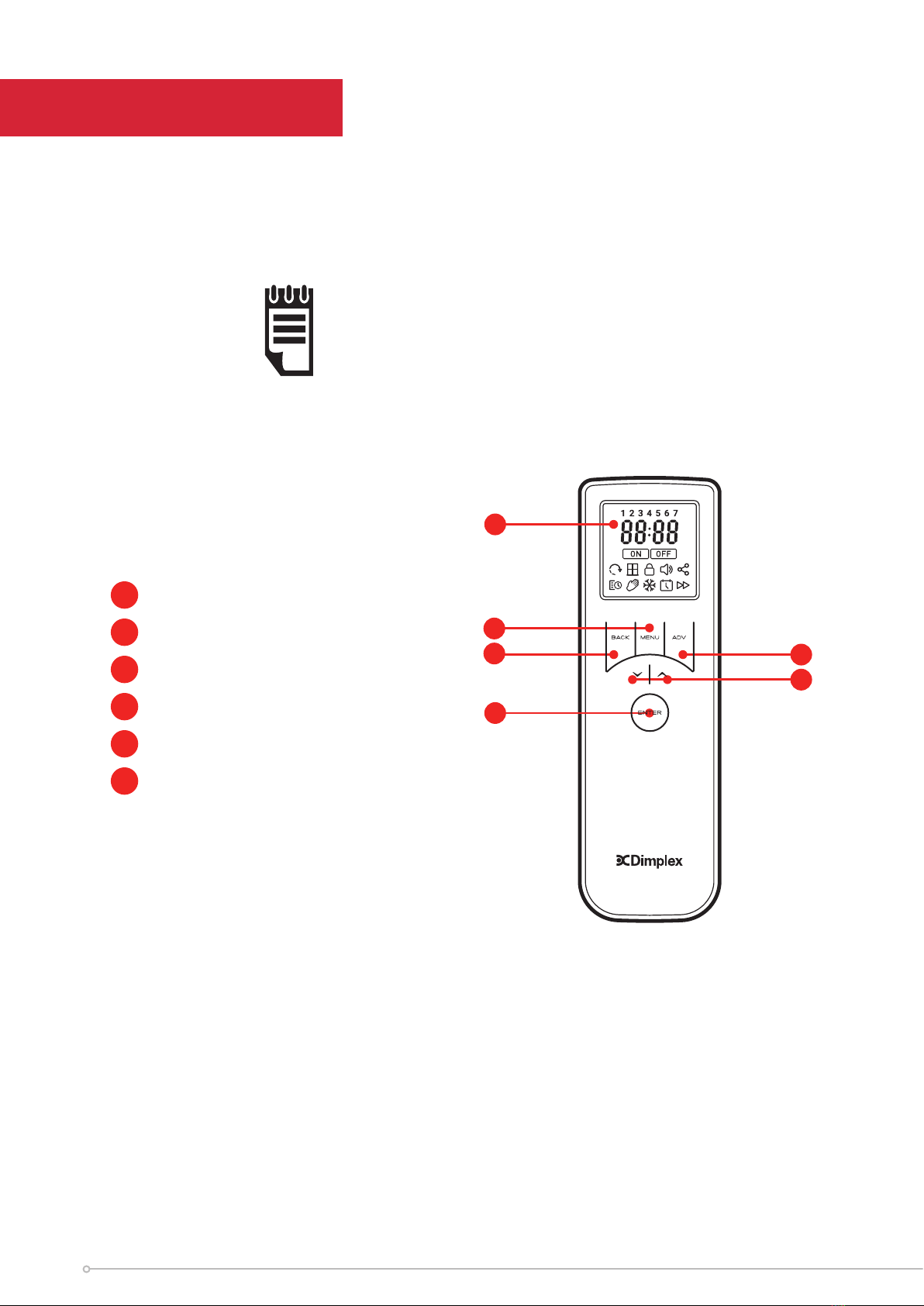

Remote Control
1Display Screen
2‘Menu’ Button
3‘Back’ Button
4‘Advance’ Button
5‘Up and Down’ Arrows
6‘Enter’ Button
1
3
6
2
4
5
10

Fitting the Batteries:
The remote requires two AA batteries, these are supplied with the product contained
in the bag along with the instructions and remote.
To t the batteries:
1. On the rear of the remote, remove the
battery cover by pushing the catch
downwards and pulling outwards in one
motion.
2. It should be possible to completely remove
the battery cover to reveal the battery
cavity.
3. Carefully insert the new batteries, ensuring
the polarity is correct. Ensure the ‘+’ and
‘-‘ signs on the batteries match the signs
marked inside the battery cavity.
4. Once the batteries are in place, replace the cover, ensuring the clip has engaged fully.
Once the batteries have been successfully tted the remote control will immediately
start scanning for a product to control. At this stage it is necessary to complete the
pairing process, see Remote Pairing Instructions.
Remote control cradle:
The remote control is supplied with a wall
mounting cradle. If desired, mount the cradle in
a suitable location. The cradle can be mounted
using suitable screws and the appropriate wall
xing solution, not supplied.
Mark and drill the wall accordingly to mount
the remote control cradle. The remote control
can also be xed to the cradle using the
bottom xing screw. The use of this screw is
optional, particularly if the remote will be used
as a portable device.
NOTE:
If the remote cradle is not initially required please store in a suitable
location in case of future use. The bottom fixing screw should also be
stored with the cradle
11

To pair the product to the Bluetooth remote:
1. Press the Bluetooth button which is located on the front of the product. The product
will emit a beep and begin to broadcast a signal to be paired via Bluetooth.
2. Wake the remote by briey holding the ENTER
button.
Once awake the remote will then immediately
search for the product. This is indicated by the
rotating loading graphic and ashing connectivity
icon. on the remote followed by the pairing
sequence.
NOTE:
The remote will attempt to pair with the first product it finds. Please
ensure that no other products are broadcasting within the vicinity to
prevent pairing to the incorrect product.
3. The remote will search for devices for 1 minute. If no product can be found, the
remote will display ‘NO PROD’ before returning to a sleep state. If this happens,
please repeat steps 1 and 2.
4. If connection is successful the product will emit a second beep and the remote
screen will show a solid connectivity icon for 4 seconds then revert to the home
screen.
NOTE:
After initial pairing the Time and Date must be set before the remote
will revert to the home screen.
Solid icon
Remote Pairing Instructions
NOTE:
If no remote pairs within 2 minutes, the product will stop broadcasting.
ashing icon
loading
graphic
12

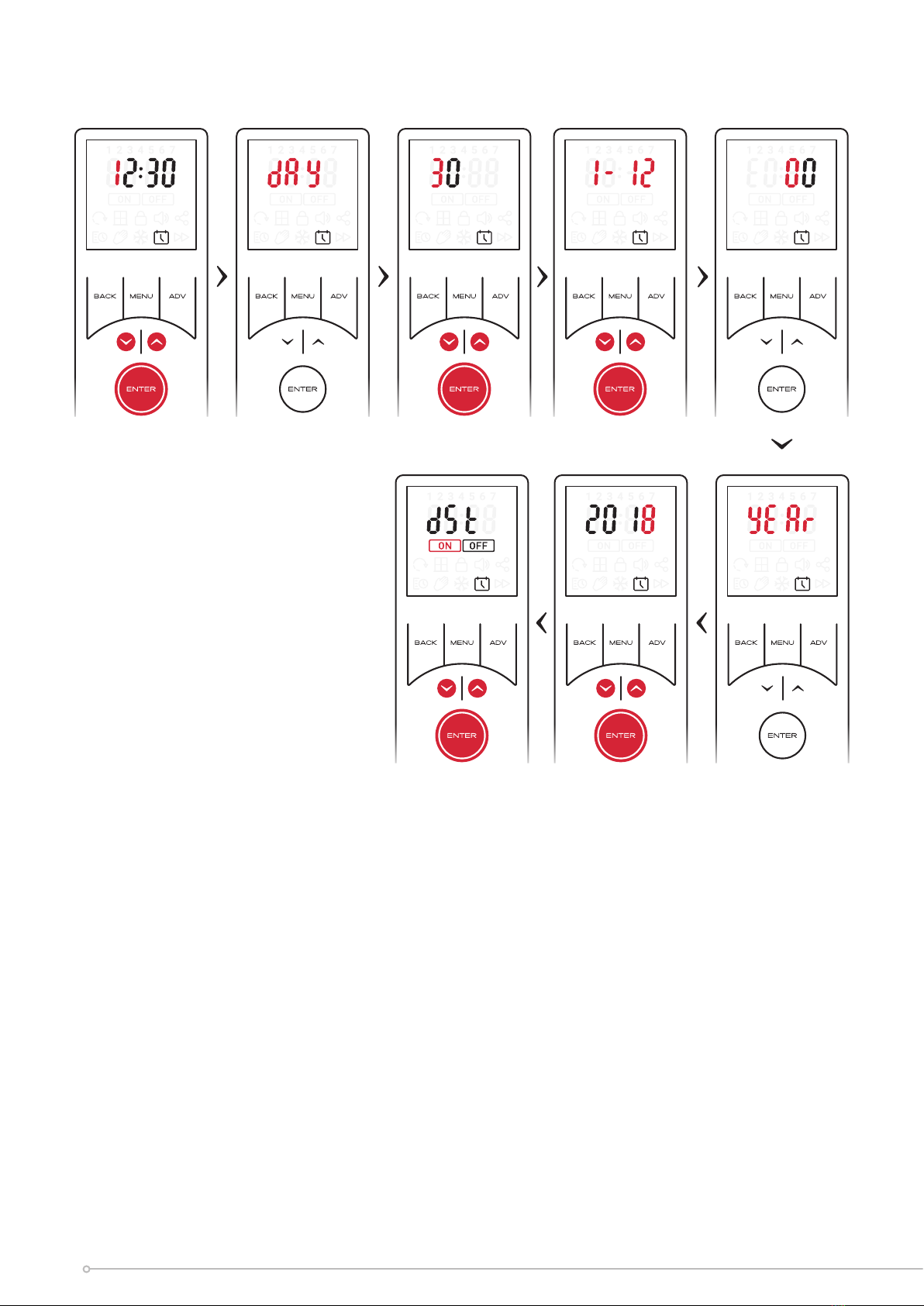

Setting Time & Date
After initial remote control start up and after replacing the batteries it is required to
set the time and date. It is not possible to navigate to the home screen and product
settings until the time and date have been set.
It is possible to modify these settings at any stage from within the menu structure,
see page 19.
Setting Time
It is required to set the hour and minute digits independantly.
1. The rst digit of the Hour setting will be blinking. Use the
arrow key to set the rst digit of the time.
2. Conrm the selection by pressing the ENTER button, the
second digit of the Hour can then be set.
3. Once the hour digits have been set and conrmed, step 1
& 2 should be repeated to set the minute.
Setting Date
Once the time has been set the remote will automatically move to the date setting.
1. After conrming the last time digit ‘Day’ will blink three times and then change to
a two digit number with the rst digit blinking. This two digit number represents
the day of the month.
2. Use the arrow key to set the rst digit of the date and conrm using the ENTER
button.
3. The second digit will then blink and can be set as per step 2.
4. After the day has been conrmed it is necessary to set the month, this is indicated
by ‘1-12’ blinking on the screen.
5. A numerical value for the month can be set using steps 2 & 3 above.
6. Once the month has been set the year can be set. Each digit must be set and
conrmed individually.
7. Finally the remote will oer an option to turn on or o day light saving settings. ‘On’
and ‘O’ can be selected using the arrow keys and conrmed by pressing enter.
Once the time and date have been set the remote will revert to the home screen and
normal operation can resume.
13

14

Operation
The product is controlled using the remote control. The remote consists of a display
screen and six touch sensitive buttons. The function of each button and the meaning of
each screen icon is explained in the graphic below. The remote oers fully programmable
time and temperature control with a host of additional useful control features.
It is possible to control the appliance in various operational modes including Manual
operation mode, User timer and frost protection mode. There are also advanced
operating modes such as a runback mode and also a landlord PIN protected function. .
Button Functions
1. MENU - enters the main product
menu.
2. ENTER - used to conrm
selections & settings.
3. BACK - returns to the previous
screen. If held for 2 seconds,
the heater will enter Comfort
O mode.
4 & 5. Arrow keys - used to
navigate through the menus and
adjust the room temperature
set-point.
6. ADV - use depends on the active
mode and settings, typically
used to advance the program
in timer mode or to initiate a
runback period in Manual/ PIN
mode.
Advanced button functions & Shortcut keys
Comfort O - Press and hold for 2 seconds
Temp Settings - Press and hold for 2 seconds
Heating Settings - Press and hold for 2 seconds
Service Info - Press and hold for 2 seconds
Advance Menu - Press and hold both and for 2 seconds
Factory Reset - Press and hold both and for 5 seconds
Heating On
Heating O
Adaptive Start
Timer Schedule
Manual Mode
Frost Protection
Connectivity
Pin Lock
Advance
Set Time & Date
Days of the week
Time Numerals
Symbol Key
NOTE:
All setting changes and communications between the remote control and the
appliance are signified with an audible ‘beep’ from the appliance. This beep
signifies that connection is successful and the appliance has received a command
from the remote control.
15

Waking from Standby Mode
When in standby mode, holding ENTER for two seconds will wake the remote and
attempt to reconnect to the product, this will be signied by the connectivity icon
and loading graphic appearing on the screen.
The remote control provides the option of a number of standard control modes,
• Timer Mode: provides the greatest exibility to the user. Four heating periods are
available throughout each day and these can be customised for every day of the
week. The desired set temperature can be set for each time slot independantly
• Manual Mode: Maintains the displayed temperature for an undetermined period.
The default ‘comfort’ temperature in manual mode is set to 21°C however this can
be adjusted to suit.
• Frost Protect: maintains a room temperature of 7°C. This mode should be used to
provide protection against frost.
• Comfort O: no room temperature control
There are also a number of advanced control options and features available
• Runback Mode: This is an additional feature available to manual mode, with this
mode active the manual mode will operate for a determined time period and then
revert to Comfort O mode.
• Setback Mode: This is an additional feature available to timer mode, with this mode
active the appliance will control the room to a pre-set temperature during timer
‘o’ periods.
• Adaptive start Mode: This is a predictive mode that functions alongside the timer
mode. When activated it will automatic calculate when the appliance needs to switch
on so that the desired room temperature has been achieved from the start of a heat
on time period. If not active the appliance will only switch on at the programmed
on time.
• PIN Lock Mode: This mode will lock the appliance in the existing mode and will only
allow some basic functions to operate. Once activated, in order to change settings
the user must input a pre-set PIN. This is ideal where it is desired to limit the use
and functionality of the appliance.
Operating Modes
16

Typically the Home Screen will display the active operational mode, the desired room
temperature set-point and the heating status. Any of the Advance function which are
active will also be displayed on the home screen. Pressing ENTER while on the Home
screen will display the current time..
Target room temperature (set-point)
display, this is not an actual room
temperature display.
Product heating status display, this
indicates when the appliance is actively
heating or maintain a room temperature,
‘ON’ will be displayed. Otherwise, ‘OFF’
will be displayed
Active mode display, the active mode of
operation is displayed at the bottom of
the screen
Sleep mode, when the remote is left
inactive, the remote display will sleep,
turning the screen o. Briey hold ENTER
to wake the remote back up.
The remote control will enter sleep mode if left idol for the following intervals
Home Screen – Sleep after 10 seconds
Menu Screens – Sleep after 15 seconds
Settings – Sleep after 30 seconds
NOTE:
When the remote wakes, it must search for and re-connect with the heater. This
happens automatically and is indicated by the connectivity icon and the pairing
graphic. Once pairing is complete the product will beep and the remote home
screen is visible.
Home Screen
17

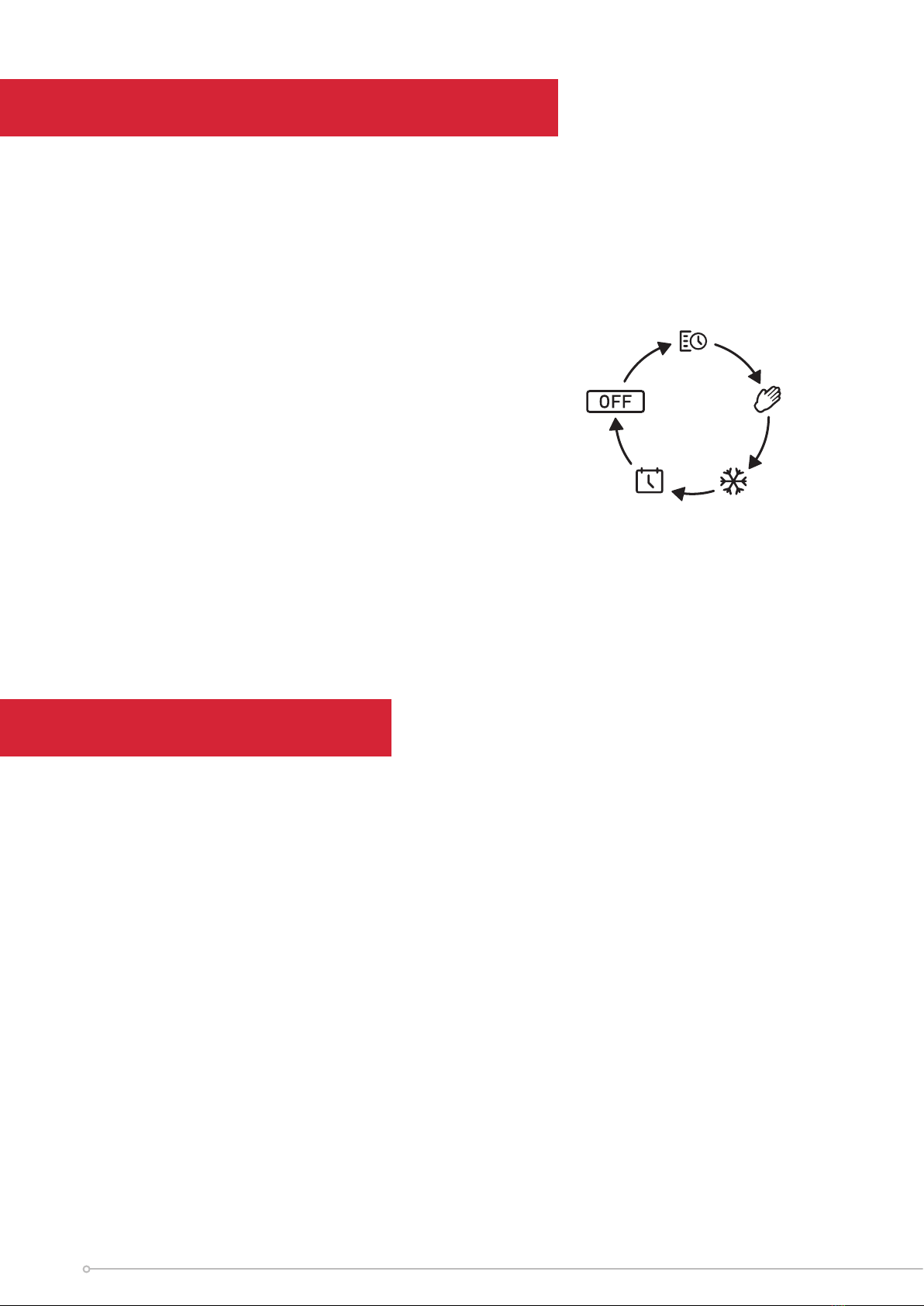

The remote control and menus are navigated using the six button keypad. In order to
select/ change operational mode, press the MENU button. The remote will then enter
the basic menu structure, this menu provides the option to quickly select the following
options, each option is represented by an icon.
• Timer Mode: Activate mode or set/alter the
program times and temperatures,
• Manual Mode: Activate manual heating mode,
• Frost Protect: Activate frost protection mode,
• Time & Date: change the time and date settings
• OFF: Activate Comfort o mode
The primed mode for selection will be indicated by the ashing icon, use the Arrow
keys to navigate to the desired icon and conrm selection using the ENTER key.
Depending on the mode selected you may be prompted for further action, see relevant
section relating to this mode.
The heater is tted with an adjustable electronic thermostat enabling the room
temperature to be controlled in all the operational modes. The minimum controllable
room temperature available is 7°C and the maximum temperature is 30°C.
A temperature of 21°C represents a normal ‘Comfort’ room temperature and this is
set as default in manual mode. Frost protect has a default value of 7°C. Temperatures
in Timer mode can be set to suit the application.
The temperature set point can be adjusted at any stage by using the Up & Down
arrows when the home screen is active.
Thermostat Control
Navigation and Selecting Modes
Timer
Schedule
Manual
Mode
Frost
Protect
Time/Date
Comfort
O
18

The remote control oers the facility to select the heat output from the appliance
between HI and LO heat settings, HI heat is set by default. This is a global heat setting
and once set all other operational modes will operate with this setting.
In order to set/change the heat setting,
• From the home screen press and hold the ADV button for 2 seconds. The remote
will enter the heat selection screen.
• Use the arrow keys to navigate to the desired setting and conrm using the
ENTER key.
• The remote will return to the home screen and all heating modes will function
with the selected heat output.
NOTE:
The HI temperature setting will modulate the heat output to optimise the eciency
of the product. As the room temperature approaches the set-point the heater will
automatically switch to the lo heat setting.
Heat Output Selection
19

The Timer oers the most ecient mode of operation for a predictable heat demand.
The user has the exibility program up to four distinct time and temperature proles
per day, per week. The user has the ability to adjust the temperature during any heating
period and additional functions such as ‘Advance’ and set back add to the exibility
and comfort of this heating mode.
Activating the Timer
To activate the Timer mode:
• Press the MENU key from the home screen.
• Use the arrow keys to highlight the Schedule Icon,
• Press ENTER to enter Timer Settings.
• Ensure ‘On’ is highlighted and Press ENTER again to activate timer mode.
The active settings and target set temperature will be displayed on the home screen.
Timer Mode
NOTE:
If Adaptive Start is enabled, the heater may operate outside the
programmed heating period. This is normal and is required to ensure the
adaptive start function operates correctly.
NOTE:
If Set back mode is enabled, the heater will not revert to o outside the
programmed ‘On’ periods. The appliance will remain active and control to
the pre-set setback temperature.
20
