DIODE LED AlphaTECH LED STRIP LIGHT User manual

1 OF 8 IG121620-3.0
AlphaTECH® LED Strip Light INSTALLATION GUIDE
®AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE
SUBMERSIBLE
DIMMABLE
IP69
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Install in accordance with national and local electrical code
regulations.
2. This product is intended to be installed and serviced by a
qualied, licensed electrician.
3. Do not modify or disassemble this product beyond instructions
or the warranty will be void.
4. Do not use if there is any damage to the xture or wiring.
Inspect periodically.
5. Do not install in direct sunlight or damage to the LED phosphor
will occur.
6. Do not attempt to x this product in the eld.
7. Failure to follow safety warnings, and installation instructions
will void the warranty for this product.

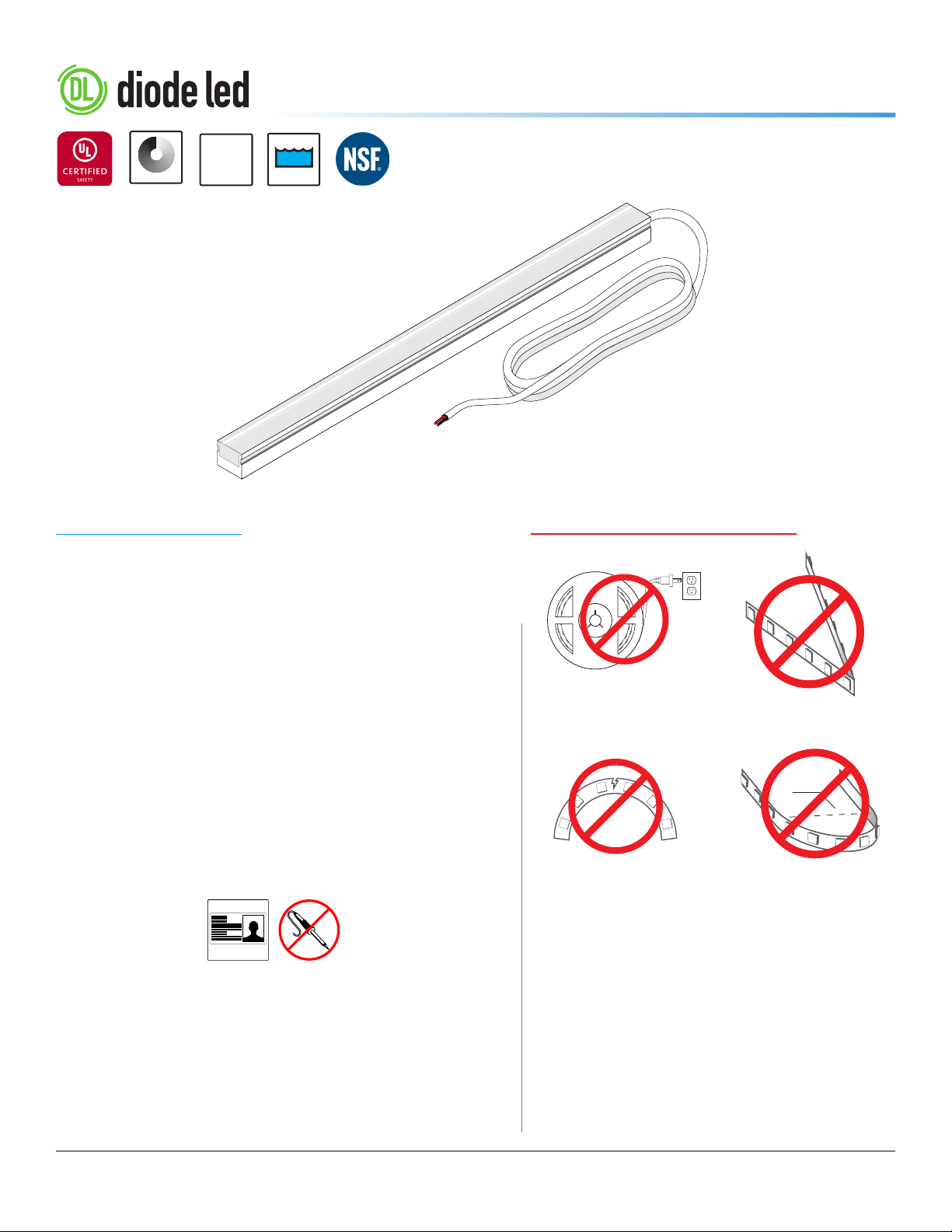

SAFETY & WARNINGS HANDLE PRODUCT WITH CARE!
DO NOT BEND LED STRIP
LIGHT TO A DIAMETER LESS
THAN 12 INCHES.
12 in.
DO NOT BEND LED STRIP LIGHT
ON A HORIZONTAL PLANE.
DO NOT FOLD, CREASE, OR
TWIST LED STRIP LIGHT.
DO NOT POWER STRIP
LIGHT WHILE ATTACHED TO
SPOOL OR TIGHTLY COILED.

2 OF 8 IG121620-3.0
AlphaTECH®LED Strip Light INSTALLATION GUIDE
AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE
INSTALLATION
TURN POWER OFF AT CIRCUIT
BREAKER
CHANNEL SIDE VIEW
SHOCK HAZARD! May result in serious
injury or death.
Turn power OFF at circuit breaker prior to
installation.

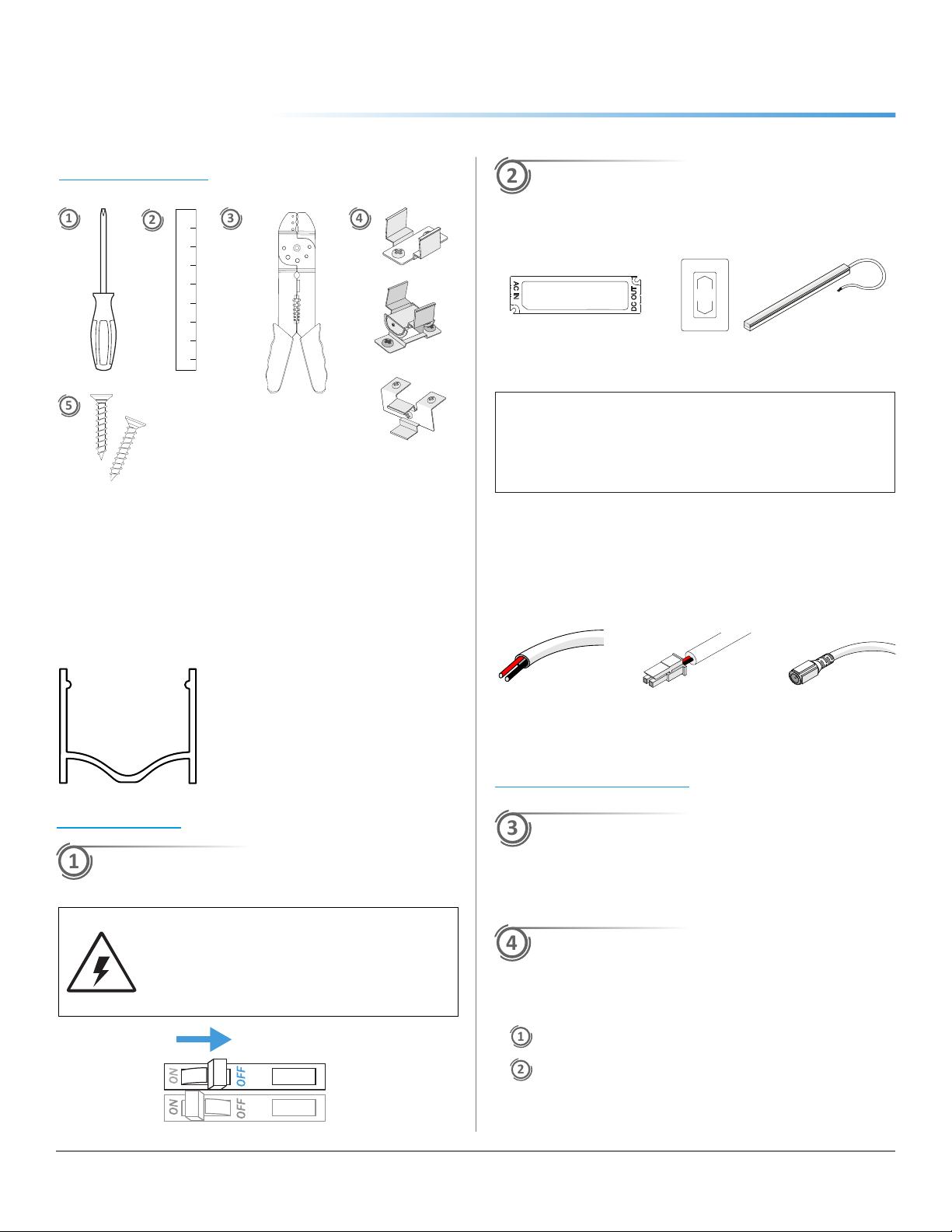

REQUIRED TOOLS
1
2
3
1. Phillips-head Screwdriver
2. Ruler (Recommended)
3. Wire Stripper (Recommended)
4. Mounting Channel, or (2) Mounting Clips per 12”.
5. (2) Screws per Mounting Clip
DETERMINE LOCATION TO INSTALL
COMPONENTS
1
3
2
4
INSTALLATION (CONT.)
Refer to SYSTEM DIAGRAMS
1) Class 2 Driver 2) Control 3) Strip Light
WIRE GAUGE & VOLTAGE DROP
Ensure applicable wire is installed between driver, xture,
and any controls in between. When choosing wire, factor in
voltage drop, amperage rating, and type (in-wall rated, wet
location rated, etc.)
TEST CONNECTION
Prior to mounting, attach to Class 2 LED Driver, turn on power and
test connection to ensure system is operating properly. Turn off
power again before mounting.
MOUNT AlphaTECH®LED STRIP LIGHT
Indoor/Outdoor Installation (pg. 3)
Underwater/Pool Installation (pg. 4)
4
5
*Note: There are several ways to install AlphaTECH®LED Strip Light.
Please follow one of the options listed below.
Note: AlphaTECH®Strip Light is available with the following
connections. Ensure Class 2 power supply is compatible with
connector prior to installation.
Bare Lead* MIC Lead** DC Lead**
*Must be used for pool/spa applications.
**For use in non-waterproof applications only.
1
2

3 OF 8 IG121620-3.0
AlphaTECH®LED Strip Light INSTALLATION GUIDE
AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE
INDOOR/OUTDOOR INSTALLATION
Connect AlphaTECH®LED Strip Light, then press
rmly into channel. If necessary, include a small
amount of silicone adhesive/sealant within the
channel to hold it in place.
*Note: Placing AlphaTECH®LED Strip Light within another
channel may not be necessary nor recommended.
1
2
UNDERWIRE CHANNEL
Bottom Entry
H .41 in.
(10.4mm)
W .62 in.
(15.74mm)
+ −
+ −
H .62 in.
(15.74mm)
W .76 in.
(19.3mm)
W .76 in.
(19.3mm)
L 6 in.
(152.4 mm)
2.5 in. (63.5mm) 20/2 AWG Wire
2.5 in. (63.5mm) 20/2 AWG Wire
2.5 in. (63.5mm) 20/2 AWG Wire
2.5 in. (63.5mm) 20/2 AWG Wire
L 48 in.
(1219.2 mm)
End Entry
or
Bottom Entry
Bottom Entry
a
Fasten mounting clip to surface. If running wire
under channel, place AlphaTech wires in o󰀨set
(smaller) side of strain relief, and any thru-wires on
opposite (wider) side of strain relief.
Place Underwire Channels end-to-end onto
mounting clip, over strain relief, to create smooth,
linear surface.
3
Beginning of run
(6” Connection Channel)
Continue run
(48” Channels)
Run Completion
(48” Channel)
Additional connections
(6” Connection Channel)
Connector/AlphaTech wire
(place in offset)
Thru-wires
(place opposite of offset)
Mounting Clip
Strain relief

4 OF 8 IG121620-3.0
AlphaTECH®LED Strip Light INSTALLATION GUIDE
AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE
Screw mounting clip to surface
Place AlphaTECH®Strip Light into mounting clip
The following options are not required for installation
of AlphaTECH®LED Strip Light.
MOUNTING CLIP
1
2
NSF
3.93mm dia.
INDOOR/OUTDOOR INSTALLATION
Press AlphaTECH® LED Strip Light rmly into
channel. If necessary, include a small amount of
silicone adhesive/sealant within the channel to hold
it in place.
Press channel around the outside edges of
AlphaTECH®Strip Light.
*Note: Placing AlphaTECH®LED Strip Light within another
channel may not be necessary nor recommended.
1
2
CHANNEL
b
c

5 OF 8 IG121620-3.0
AlphaTECH®LED Strip Light INSTALLATION GUIDE
AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE
UNDERWATER/POOL INSTALLATION (UL676)
NEC 680
When installing in water, install in accordance with NEC 680. Per
UL instrucons It is required to mount strip light with AlphaTech
Mounng Channel for these applicaons.
CHANNEL & MOUNTING CLIPS
ATTENTION: FIBERGLASS & VINYL LINED POOLS
Unlike concrete pools, most berglass and vinyl lined pools have
strict warranty guidelines that do not allow the user to deface the
pool wall surface. Diode LED does not recommend mounng to
berglass or vinyl pool walls and/or defacing the surface in any way
(ex. drilling into surface to route lead wires). It is recommended
to mount to a separate pool coping or lip to ensure your pool
warranty is not voided. Always consult with your pool supplier and
contractor for proper installaon of 3rd party products.
Wall Mount Coping MountRecessed Mount
Concrete Pools Only
(Channel only) (Channel only)
Concrete Pools
Fiberglass Pools
Vinyl-Line Pools
Concrete Pools Only
(Channel or Clips)
Mount channel to dry surface using either a mounng clip, or chlorine
resistant waterproof adhesive. Allow adhesive to cure/dry.
Once adhesive is dry, rmly press AlphaTECH® into mounng
channel or clips working one end to the other.
To Class 2 LED Driver,
GFCI, & Circuit Breaker
To Additonal
AlpaTECH®
Pool / Spa
Juncon Box
Corrosion
Resistant Conduit
4 in. Min.
48 in. Min.
J-Box to Edge of Pool
8 in. Min.
Boom of J-box
to Top of Water Line
Seal Conduit Entry with
pool-grade silicone sealant
For concrete pools, seal conduit entry with pool-grade silicone
sealant. DO NOT drill holes in berglass pools/hot tubs or vinyl-
lined pools. An alternate method is to route the wire directly
out of pool.

6 OF 8 IG121620-3.0
AlphaTECH®LED Strip Light INSTALLATION GUIDE
AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE
TROUBLESHOOTING
TOOLS & RESOURCES
AlphaTECH®SPECIFICATION SHEET
For full specicaons.
Shift in
brightness
and/or kelvin
• Ensure an appropriate gauge of
wire is installed between strip light
and LED driver. See VOLTAGE
DROP CHARTS.
Some LEDs
are not
functional
• Ensure strip light has not been bent
excessively, which could damage
circuitry.
Lights are
ickering
• Ensure a compatible driver and/or
dimming control is installed. Check
for loose connections.
Lights are
turning on/o󰀨
repeatedly
• Ensure driver is not overloaded. An
overloaded driver will trip the internal
auto-reset (of driver) repeatedly,
turning the system on/o󰀨.

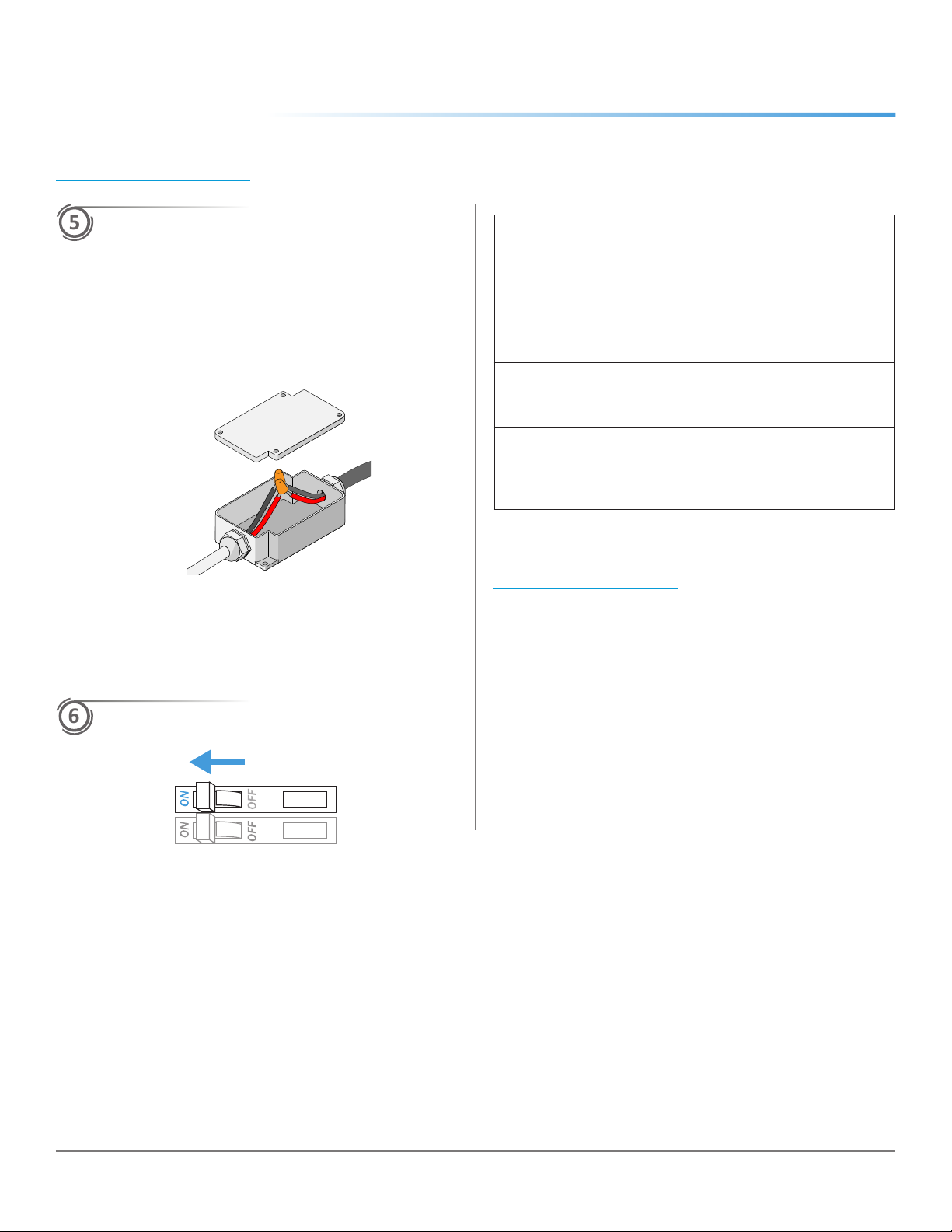

5
TURN POWER ON AT CIRCUIT BREAKER
6
ATTACH DRIVER AND LIGHTING
CONTROL.
Verify a compatible driver is installed. Utilize
applicable wiring when installing outdoors. (Use of
wet location-rated junction box recommended)
INSTALLATION (CONT.)
Using a pool/spa rated junction box, connect lead
wires from AlphaTECH®Strip Light to wet location
rated wires connected to power supply.
OUTDOOR/UNDERWATER INSTALLATION

7 OF 8 IG121620-3.0
AlphaTECH®LED Strip Light INSTALLATION GUIDE
AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE

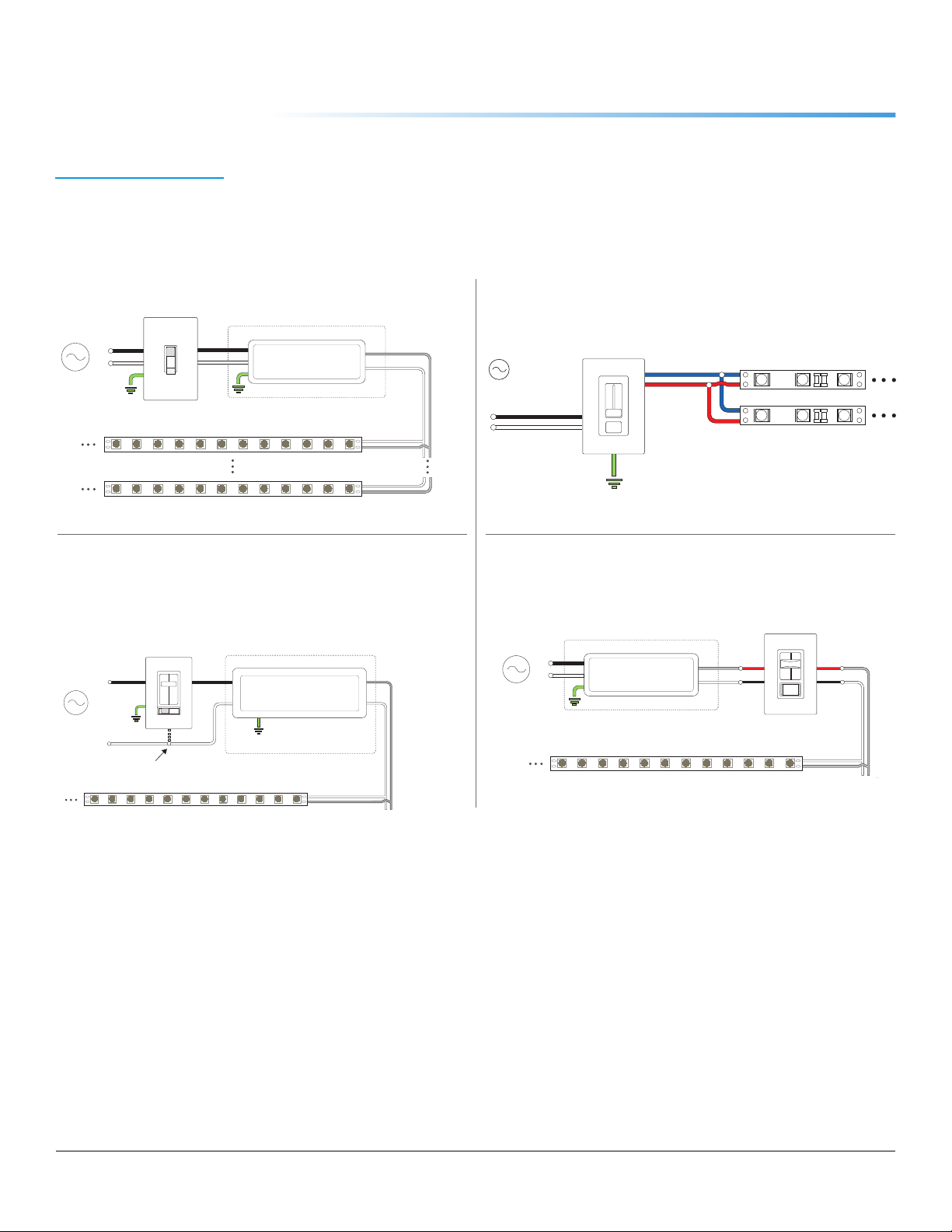

The following diagrams are provided as example system designs. For information regarding larger systems or systems not
pictured below, please see our web page or contact technical support. Always review each component installation guide for
detailed and up-to-date wiring instructions. Install in accordance with national and local electrical codes.
L
N
G*
N
LV+
V−
120VAC On/Off Switch Class 2 Low Voltage Driver2
Installed in Junction Box7
V+
V-
LED Tape Light / Fixture
8
Install appropriate wire gauge / type
V+
V-
AC Power
50/60Hz
INPUT
OUTPUT
Traditional ON/OFF Switch System
AC Power
50/60Hz
Compatible Dimming Control
or On/Off Switch5
LED Tape Light / Fixture8
L
Install appropriate wire gauge / type
OMNIDRIVE®Dimmable Driver6
Some dimmers may require an
additional neutral wire connection.
NNGND*
N
LV+
V−
V+
V−
V+
V−
INPUT
OUTPUT
Class 2 Low Voltage Driver2
Installed in Junction Box7
REIGN®24V Dimmer System
OMNIDRIVE®Electronic Dimmable Driver
System
SWITCHEX®Dimmer/Driver System
G*
N
LV+
V−
Class 2 Low Voltage Driver3
Installed in Junction Box7
V- (Black)
Input Output
V+ (Red)
Install appropriate wire gauge / type
V+
V-
LED Tape Light / Fixture8
REIGN 12-24V Dimmer4
V+
V-
L
N
AC Power
50/60Hz
INPUT
OUTPUT
1. Driver may not require a fault ground connection. Refer to driver specications for additional information.
2. Install a compatible Class 2 constant voltage driver. Refer to each driver specication sheet for full power ratings & load deratings.
3. Install a Class 2 constant voltage driver compatible with a low voltage PWM controller/dimmer switch. Refer to each driver specication sheet for full power
ratings & load deratings.
4. Determine the number of low voltage outputs of the driver when installing multiple PWM controllers/dimmer switches. No more than one PWM controller/dimmer
switch can be attached to a single output of the driver.
5. Install a compatible dimming control or switch. See the ‘Electronic Dimmable Driver / Dimmer Compatibility List’ for compatible dimming controls. See the
dimming control manufacturer installation guide for complete wiring instructions.
6. Ensure to load the driver at least 60% of the labeled load for proper dimming performance (required for dimmable installations only).
7. Refer to driver or controller specications for a compatible junction box.
8. See xture specications for maximum series run limits.
N (WHT)
120 VAC
~ 60Hz
V+ (RED)
V−(BLUE)
+
−
+
−
L (BLK)
SWITCHEX
(Dimmer + Driver)
LED ARRAY / FIXTURE
Ground (GRN)
Install applicable wire gauge / type
Install applicable wire gauge / type
SYSTEM DIAGRAMS

8 OF 8
®Toll Free: 877.817.6028 | Fax: [phone] | www.DiodeLED.com | [e-mail]
© 2020 Elemental LED Inc. All rights reserved. Specicaons are subject to change without noce.
IG121620-3.0
AlphaTECH®LED Strip Light INSTALLATION GUIDE
AlphaTECH® LED STRIP LIGHT
INSTALLATION GUIDE
Wire
Gauge
10 W
.42 A
20 W
.83 A
30 W
1.3 A
40 W
1.7 A
50 W
2.1 A
60 W
2.5 A
22 AWG 53 . 27 . 17 . 13 . 11 . 9 .
18 AWG 134 . 68 . 45 . 33 . 27 . 22 .
16 AWG 215 . 109 . 72 . 54 . 43 . 36 .
14 AWG 345 . 174 . 115 . 86 . 69 . 57 .
12 AWG 539 . 272 . 181 . 135 . 108 . 90 .
10 AWG 784 . 397 . 263 . 197 . 158 . 131 .
Wire
Gauge
10 W
.42 A
20 W
.83 A
30 W
1.3 A
40 W
1.7 A
50 W
2.1 A
60 W
2.5 A
70 W
2.9 A
80 W
3.3 A
100 W
4. 2 A
22 AWG 53 . 27 . 17 . 13 . 11 . 9 . 8 . 7 . 6 .
18 AWG 134 . 68 . 45 . 33 . 27 . 22 . 19 . 17 . 14 .
16 AWG 215 . 109 . 72 . 54 . 43 . 36 . 31 . 27 . 22 .
14 AWG 345 . 174 . 115 . 86 . 69 . 57 . 49 . 43 . 36 .
12 AWG 539 . 272 . 181 . 135 . 108 . 90 . 77 . 68 . 56 .
10 AWG 784 . 397 . 263 . 197 . 158 . 131 . 112 . 98 . 82 .
24V Voltage Drop & Wire Length Distance Chart
Example: 24V Voltage Drop & Wire Length Distance Chart
Determine load size. Let’s assume
load is 55 W. Round up to nearest
load.
1
Determine distance from driver
to load. Let’s assume the
distance is 90 ft.
2
It is recommended to install 12 AWG to
eliminate excess voltage drop.
3
VOLTAGE DROP CHARTS
For best performance and lumen output, ensure proper wire gauge is installed to compensate for voltage drop of low voltage circuits.
