Directed Directechs DB3 User manual

DB3 403.TL17
v1.00
2022 Toyota Sienna Hybrid (Smart Key)

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 11
Module programming for convenience only (skip transponder) 12
Connecting the module 12
LED diagnostics and troubleshooting 14
Soft reset 16
Hard reset 16
Feature programming 17
Feature and option list 18
Limited one year consumer warranty 19

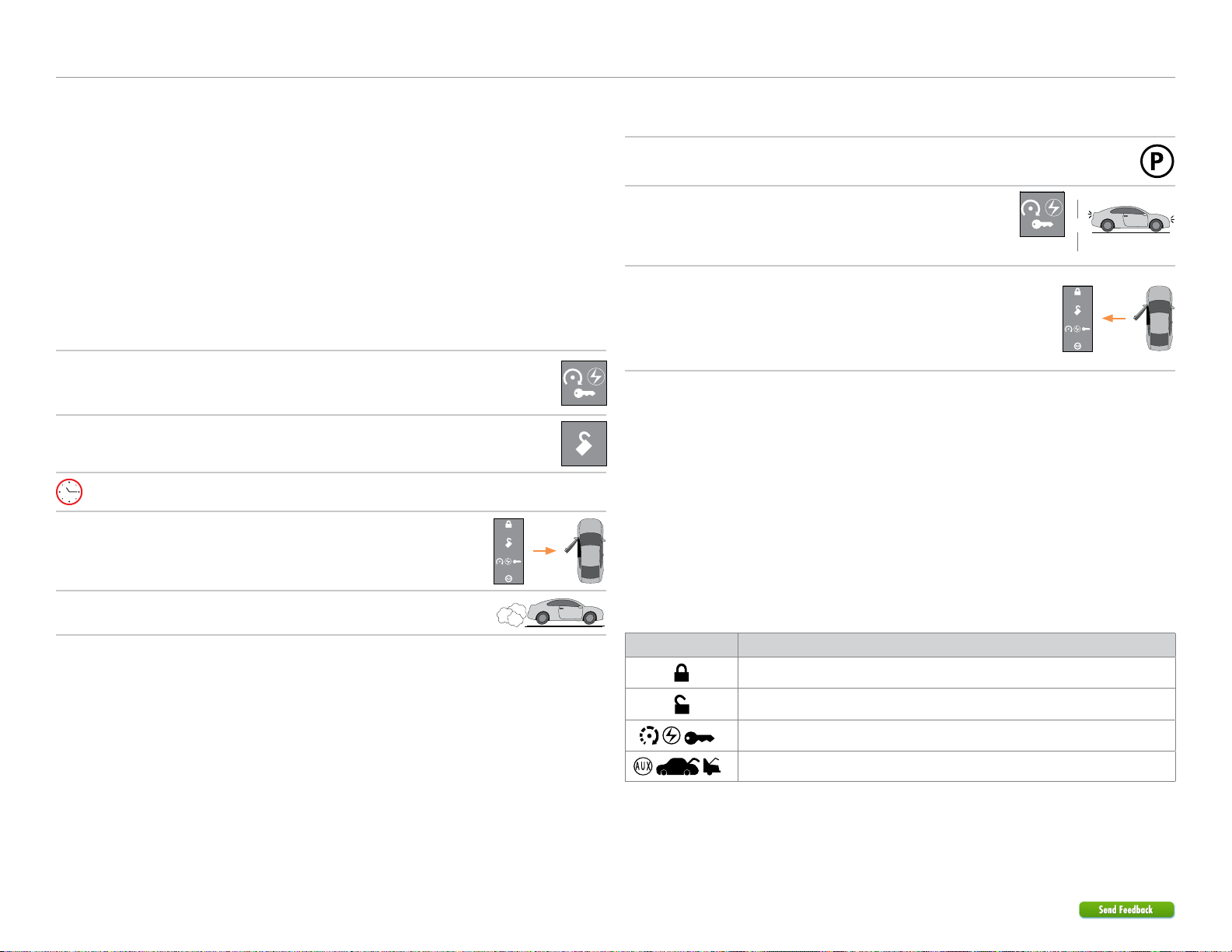

Quick Reference Guide (customer copy)
20
Contents

3403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Auto Headlamp Shutoff
Parking Lights Control
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Sliding Door Control Driver
Sliding Door Control Passenger
Trunk / Hatch Release
DS4+/DS3+/VSM3 Only
Control of aftermarket alarm with OEM remote
Fuel level/EV battery level
Key2GO
Immobilizer Bypass-Data No Key Req'd
Accessory Activation
Ignition Activation
Remote Start Takeover
SmartStart
Start (Crank) Activation
Starter / Ignition Interrupt
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible T-Harness is not compatible.
AUX
Keys required for
programming 1Keys required for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the "Vehicle connections" following the installation diagram.
Conditions and Limitations
Remote Start: To remote start the vehicle, all doors must be closed and locked.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if
not supported in data.
[2] Tach: An optional connection required on some remote starters, which do not support a tach signal in D2D.
[3] Power liftgate: This connection is only required if vehicle is equipped with a power liftgate.

6403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram
D2D Port
(+) Ignition 2
(-) Trunk/Hatch Release
(+) Ignition 1
(+) 12V Input
1412
10 42
(-) Ground HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
Autolight Interr. (veh. side): Orange/Yellow: 9
IMI Interrupt (veh. side): Orange/Red: 10
IMI Interrupt (conn. side): Yellow/Red: 11
Autolight Interr. (conn. side): Yellow: 8
IMI (conn. side): Yellow/Black: 10
(AC) Tach Input
IMO Data Output: Green/Black: 2 4: Violet/White:
IMO Data
Input
Cut
(-) Parking Lights Output
(+) Starter Output
(-) Unlock Output
(-) Lock Output
Black PTS
Button Conn.
(at PTS switch)
ENGINE
START
STOP
(-) PTS 1: Black, pin 6
2345
11 10 9 8 7
16
12
(-) PTS 2:
Blue, pin 12
(-) PTS 3:
Violet, pin 11
3 X 1A
Diodes
XKD2D65
(-) PTS Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
(-) Hood Input Hood Pin
Autolight:
Yellow, pin 5
(-) Parking Lights:
Green, pin 3
Headlight
(white conn. at headlight switch)
123456781112131415161718 9
10
313233343536
3738 30 2122
232425262728 20 19
29
3940
CAN Bus Low:
White, pin 1
CAN Bus High:
Lt. Green, pin 2
(-) Factory Alarm
Disarm/Unlock:
Blue, pin 4
(-) Factory Alarm
Arm/Lock:
Lt. Green,
pin 28
Body ECU
(black bottom conn. of dash fuse box)
678
1112131415161718 9
10
30 2122 232425262728 20
19
29
123
45
Body ECU
(white conn. on dash fuse box)
(+) Ignition 1:
Black, pin 13
Plug 2E
(white conn. at dash fuse box)
18
19
20
21
22
23
9
10
11
12
1
2
3
4
14
15
16
17
5
6
7
8
13
25 242627
17 16
23 22 21 20 19 18
15 14 13 12 11 10 9 8 7 6 5
1234
(-) Power Liftgate:
Red, pin 21
16
8
9
1
OBDII
Diagnostic
Connector
(-) Ground:
White/Black,
pin 4
(+) 12V:
Black (7.5A),
pin 16
1235678
15
28
161718192021222324
29303132333435363738
44 43 424546474849505152
9101112 413
1426
2740
415354
25
39
(+) Starter:
Violet,
pin 4
IMI:
Violet,
pin 25
IMO: Green, pin 39
Control ECU
(black conn. right of dash fuse box)
24
25 17
23 22 21 20 19 18
16 15 14 13 12 11 10
8
9 1
7 6 5 4 3 2
(+) Ignition 2:
White, pin 8
Plug AD1
(white conn. left of dash fuse box)

7403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Locating components in the vehicle

8403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2022 Toyota Sienna Hybrid (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High Body ECU on dash fuse box, bottom black 30 pin plug, pin 2 Data Lt. Green
H1/4 Tan (DATA) HS CAN Low Body ECU on dash fuse box, bottom black 30 pin plug, pin 1 Data White
H1/5 Orange/Green No Connection No Connection
H1/6 Orange/Brown No Connection No Connection
H1/7 Brown Relay N.O. No Connection No Connection
H1/8 Yellow Relay COM. Autolight Interrupt (connector side) Headlight Switch, white 40 pin plug, pin 5 Cut Yellow
H1/9 Orange/Yellow Relay N.C. Autolight Interrupt (vehicle side) Headlight Switch, white 40 pin plug, pin 5 Cut Yellow
H1/10 Orange/Red Relay N.C. IMI Interrupt (vehicle side) Hybrid Vehicle Control ECU right of dash fuse box, black 54 pin plug, pin 25 Data Violet (IMI)
H1/11 Yellow/Red Relay COM. IMI Interrupt (connector side) Hybrid Vehicle Control ECU right of dash fuse box, black 54 pin plug, pin 25 Data Violet (IMI)
H1/12 Brown/Red Relay N.O. No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Input Remote Starter
H1/14 Black (-) W2W Only - Ground Remote Starter
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - Lock Output Remote Starter
H2/2 Green/Black IMO Data Output Hybrid Vehicle Control ECU right of dash fuse box, black 54 pin plug, pin 39 Data Green (IMO)
H2/3 Green/White (-) W2W Only - Door Output Remote Starter
H2/4 Red/Black (-) PTS Output Push Start Switch, black 12 pin plug, pin 6
Push Start Switch, black 12 pin plug, pin 12
Push Start Switch, black 12 pin plug, pin 11
Must use three 1A diodes.
-
-
-
Black
Blue
Violet
H2/5 Violet/White (AC) W2W Only - Tach Output [2] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black No Connection No Connection
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black (Data) IMI (connector side) Hybrid Vehicle Control ECU right of dash fuse box, black 54 pin plug, pin 25 Data Violet (IMI)
H2/11 Orange/Black No Connection No Connection
H2/12 Blue/Red (-) W2W Only - Unlock Output Remote Starter

9403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet IMO Data Input Hybrid Vehicle Control ECU right of dash fuse box, black 54 pin plug, pin 39 Data Green (IMO)
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black No Connection No Connection
H3/7 Pink/White (+) W2W Only - Parking Light Input Remote Starter
H3/8 Violet (+) W2W Only - Starter Input Remote Starter
H3/9 Pink (+) W2W Only - Ignition Input Remote Starter
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

10 403.TL17 1.00 2022 Toyota Sienna Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
Factory Alarm Arm Body ECU on dash fuse box, bottom black 30 pin plug, pin 28 - Lt. Green (key lock)
Factory Alarm Disarm Body ECU on dash fuse box, bottom black 30 pin plug, pin 4 Double - Blue (key unlock)
Hood Pin [1] Body ECU on dash fuse box, bottom black 30 pin plug, pin 27 - Black
Ignition Dash Fuse Box, white 23 pin plug (2E), pin 13 + Black
OBD 12 Volts OBD-Data Link Connector, white 16 pin plug, pin 16 + Black (7.5A)
OBD Ground OBD-Data Link Connector, white 16 pin plug, pin 4 - White/Black
Parking Lights - Headlight Switch, white 40 pin plug, pin 3 - Green
Power Liftgate [3] Body ECU on dash fuse box, white 27 pin plug, pin 21 - Red
Second Ignition Left of Dash Fuse Box, white 25 pin plug (AD1), pin 8 + White
Starter Hybrid Vehicle Control ECU right of dash fuse box, black 54 pin
plug, pin 4
+ Violet
Tachometer [2] (program engine checking off)
