Dish Network 40.0 User manual

Remote User Guide

Safety Instructions
You must keep safety in mind while using this device. Keep
these and any other instructions for future reference.
Observe Warnings: Carefully follow all warnings on the device
and in the operating instructions.
Heat: Do NOT place the device near heat sources such as
radiators, stoves, heat registers, or other appliances that
produce heat.
Care and Use
Cleaning: Do NOT use liquid, abrasive, solvent, or aerosol
cleaners. Use a damp cloth for cleaning.
When Not in Use: Remove the batteries if this device is to be
left unattended or unused for a long period of time.
Refer servicing to qualied personnel when a
solid object or liquid has fallen onto or into the
device.
Do NOT attempt to service this device. Refer all
servicing to qualied personnel. Opening covers
other than the battery cover will void the warranty.
Publishing Information
Copyright © 2011. EchoStar Technologies L.L.C., Englewood,
Colorado 80112. All rights reserved.
The information in this User Guide may change without notice.
Revisions may be issued to tell you about such changes.
Send comments or questions about this User Guide to
[e-mail] or
Technical Publications, EchoStar Technologies L.L.C,
90 Inverness Drive Circle East, Englewood, Colorado 80112.
Document Number: 188891
Printed in
DISH Network is a registered trademark of
DISH Network L.L.C.
All product names, trade names, or corporate names
mentioned in this User Guide are acknowledged to be the
proprietary property of the registered owners.

1
Conguring the 40.0 Remote
1
2
3
4
Conrm your remote has the
green number 1 key installed.
Pull the remote battery cover off.
If your remote has a blank,
black key, continue to Insert the
Batteries on page 2.
Separate the key from the
remote by inserting your
thumbnail or a coin in the crease.
Remove the key by grasping at
the bottom.
Insert the key face up and slide
into place.
5
Note: If you are using the green TV1 key that comes
installed in your remote, skip these steps. Go to Insert
the Batteries (page 2).

2
Insert the Batteries
Pull the remote battery cover
off.
Insert 4 AAA batteries,
making sure to match the
plus (+) ends with the plus
markings on the battery case.
Replace the remote battery
cover.
1
2
3

3
Using System Wizard
Use System Wizard initially to set up the remote
to work with the receiver. System Wizard can also
store/restore the settings for your XiP system in both
your remote control’s memory and on the receiver.
This feature is helpful if you ever need to program a
replacement remote or a new system.
Note: If your batteries are low, replace them before
beginning.
Press and hold 0 until
System Wizard message
appears. Make sure the
remote and receiver are in
line of sight.
Or, Press MENU, select
Remote Control, and then
select System Wizard.
If rst time in System
Wizard, follow instructions
provided.
Follow the on-screen
options to Backup or
Restore setting for your
XiP system and remote
control settings.
Select Continue to return
to your paid programming.
1
2
3
4
OR

4
Linking Remote to Receiver
Verify the antenna
is installed on the back
of the receiver.
Turn your receiver and
TV on, and press
SYSTEM INFO on the
front panel of the receiver.
Conrm that you
see the System
Info screen.
Press and release SAT
on your remote. Wait until
you hear a tone and see
the remote listed on the
screen.
Conrm that your remote
operates your receiver by
pressing remote buttons.
If this is not working, go
back to step 4.
3
2
1
4
5
Use these instructions
to link the remote
to the receiver if
your receiver does
not support System
Wizard.
REMOTE
ANTENNA
SYSTEM
INFO

5
SAT Mode
To use the features described in this section, make sure you
are in SAT mode by pressing the SAT Mode button.
Note: Some features may not be available depending on your
receiver model.
SAT
Power & TV Power
Top button turns the receiver on/off
Bottom button turns the TV on/off
Volume and
Mute Buttons
Control TV
volume
Programming
required
Recall
Return to last TV
channel viewed
Picture-In-
Picture (PIP)
Buttons
Watch two
separate
programs at
same time (in
Single Mode)
Number Buttons
Enter a channel
number or navigate
through menus
Menu
Access receiver
features and
settings
Pair/Input
Press once for
Input. Press and
hold for Pair
Themes
Search for
programs
using Themes
Info
Retrieve info
on programs
Search
Search for a
program
Shortcut Keys
Access
frequently
used features
Digital Video
Recorder (DVR)
Buttons
Pause live TV and
play or record
programming
Format
Format the
picture to the
desired width
to match the
program you
are viewing
System Wizard
Press and hold to
x remote control
issues and sync
data
Arrow/Select
Buttons
Channel up/down,
navigate through
menus, and select
a desired option
View Satellite
Programming
Exit out of any
menu/guide and
return to viewing
live TV
Cancel
Return to previous
menu or to watch
a program
Browse
See what is on
other channels
while watching TV
Program Guide
Display current
and future satellite
program listings
Page Buttons
Page up/down
in menus
Press this
button for
SAT Mode
Dish OnDemand
Explore interactive
TV features

6
TV Mode TV
To use the features described in this section, make sure
you are in TV mode by pressing the TV Mode button.
Remote programming is required. Note: Some features
may not be available depending on your receiver model.
Note: Remote operation is different on DISH Network TVs.
See your DISH Network TV User’s Guide for proper operation.
Power & TV Power
Top button turns
the TV on/off
Bottom button
turns the TV on/off
Press this button
for TV Mode
Mute
Turn TV volume
on or off
Recall
Return to last TV
channel viewed
Picture-In-Picture
(PIP) Buttons
Watch two separate
programs at same
time (in Single
Mode)
Number
Buttons
Enter a channel
number or
navigate
through menus
TV Menu
Access menu
features available
on some TVs
Pair/Input
Switch between
TV inputs
(available only for
certain makes and
models of TVs)
Up/Down
Arrow Button
Channel up/
down on the TV
Volume
Control TV
volume
Select Button
Select a program
or menu

7
DVD Mode DVD
Power & TV Power
Top button turns the
DVD/VCR/BD on/off
Bottom button
turns the TV on/off
Number Buttons
Enter a channel
number or
navigate through
menus
Pair/Input
Press once
for Input
Press and
hold for Pair View Satellite
Programming
Exit out of any
menu/guide
and return to
viewing live TV
Press this button
for DVD Mode
FWD
Forward a
videotape or
DVD
Play
Play a videotape
or DVD
Pause
Pause a
videotape or
DVD
Back
Rewind a
videotape
or reverse a
DVD
Stop
Stop playing
a DVD, stop
playing or
recording a
videotape
Record
Record on a
videotape
To use the features described in this section, make sure you
are in DVD mode by pressing the DVD Mode button. You
can use this mode to operate a Blu-ray disc player or VCR.
Remote programming is required. Note: Some features
may not be available depending on your receiver model.

8
DVR Functions
• Press twice to go to the list of recorded
programs.
• Plays a live or recorded program.
• Pauses a live or recorded program.
• Stops recording a program.
• Records a program.
• Press BACK once to reverse the program
four times as fast as normal play. Press
BACK twice to reverse at 15 times normal
speed, three times to reverse at 60 times
normal speed, and four times to reverse
at 300 times normal speed. The on-
screen bar shows how far you’ve gone.
For a live program, you can only reverse
back to the last channel change or back
one hour, whichever occurs rst.
• Press SKIP BACK to skip back about 10
seconds in a program.
• Press FWD (Forward) once to fast-
forward through the program four times
normal speed. Press FWD twice to
forward at 15 times normal speed, three
times to forward at 60 times normal
speed, and four times to forward at 300
times normal speed. The on-screen bar
shows how far you’ve gone. Of course,
you cannot forward into the part of a
live program that has not been broadcast.

9
DVR Functions, continued
• Press SKIP FWD to skip ahead about
30 seconds in the program.
• Press PAUSE and then press BACK
to reverse the program in slow motion
at 1/4 the speed of normal play. Press
BACK again to reverse at normal
speed.
• Press PAUSE and then press FWD to
forward the program in slow motion at
1/15 the speed of normal play. Press
FWD twice to forward at 1/4 as fast
as normal play. Press FWD three
times to play the program. Of course,
you cannot forward a live program that
has not been broadcast yet.
• Press PAUSE and then press SKIP
BACK to reverse the recording frame-
by-frame.
• Press PAUSE and then press SKIP
FWD to advance the recording frame-
by-frame.
+
+
+
+

10
Using Remote Button
Shortcuts
In addition to their normal functions, some buttons
on your remote control have special shortcut
functions when you are navigating the on-screen
Electronic Program Guide (EPG), or inside a drop-
down menu of options or scrollable list of events
displayed by your receiver.
DVR Buttons
The following table lists some
of these shortcuts for the gray
set of buttons that normally
control your DVR functions.
Note: Scheduled updates to your receiver software
may add to or modify these shortcuts.
Buttons In Guide Display Scroll in Lists
Move 3 hours back By 1 screen
upward
Watch highlighted show No
Move 3 hours ahead By 1 screen
downward
24 hours back To beginning of list
24 hours ahead To end of list
Buttons From Live TV Scroll in Lists
Jumps to menu bar Jumps to menu bar
Access Quick Clicks list No
Access Setting screen No
Access Broadband Setup No
Colored Buttons
The following table lists some of the shortcuts for
the colored set of buttons on your remote control.
Note: Scheduled updates to your receiver software
may add to or modify these shortcuts.
+

11

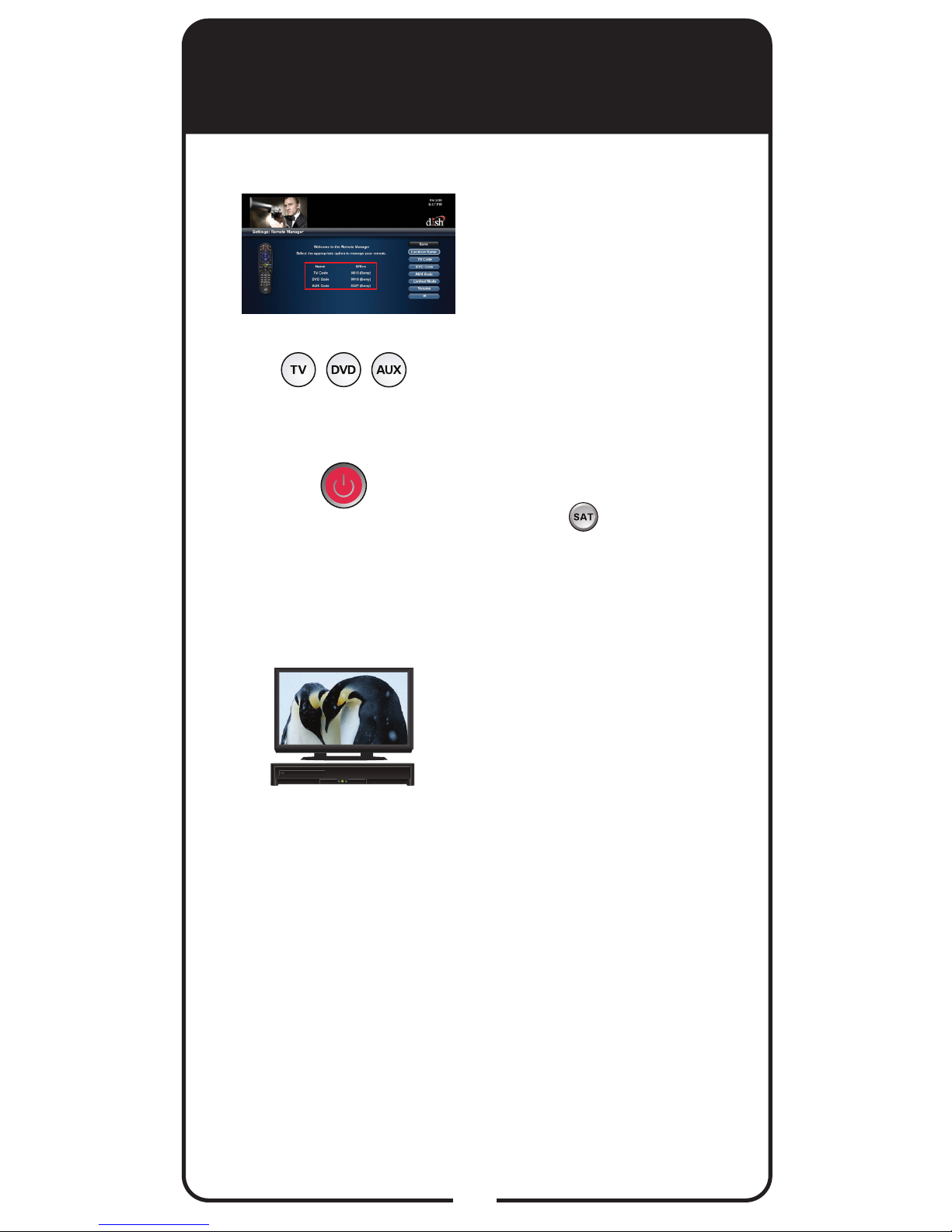

Programming Remote to
Control Another Device
Entering a Code
Turn the device and
receiver on.
Press MENU and select
the Settings tile. From the
Settings screen, select
Remote Control.
Select the TV Code, DVD
Code, or AUX Code
option on the Remote
Control settings screen. If
programming in TV Code or
DVD Code, continue to
Step 4. If programming in
AUX Code, continue with
this step.
For programming in
AUX Mode only:
Scroll the Aux Device: list
to select and highlight your
device type. Select Next.
Select Enter Code.
Using the on-screen
keypad, enter the four-digit
code for your device.
Select Continue.
3
2
1
4
5

12
Entering a Code, continued
7
6
5
8
Conrm that the code you
entered appears for the
programmed device (TV,
DVD, or AUX) on the Remote
Control settings screen.
Press the Mode button for the
device you are programming
(TV, DVD, or AUX). Release.
Press POWER.
If device does not turn off,
press SAT to switch
modes and release. Try
entering the code again. If
device turns off, continue to
step 10.
Using remote, turn the device
back on and try some other
remote buttons to see if they
work.
Repeat steps 1 through 10
until you have the best code
for controlling your device.
Programming Remote to
Control Another Device, con’t.

13
Programming Remote to
Control Another Device, con’t.
Scanning the Remote Database
Turn the device and
receiver on.
Press MENU and select
Settings tile. From the
Settings screen, select
Remote Control.
Select either TV Code, DVD
Code, or AUX Code option,
as applicable.
Select the Look Up Code
option. Note: The three-digit
device codes used by other
DISH Network remote controls
cannot be used.
Scroll the Sort By: (or Aux
Device:) list to position the
selected option within the blue
highlight bar.
Highlight device’s name in the
Brand: list and select Next.
Note: If the brand is not listed,
see Entering a Code on
page 11. The available device
codes and the code ready
to be tested displays for the
selected brand.
Press the Mode button for
the device you are setting up.
Release.
1
2
3
4
5
6
7

14
Press POWER to turn off
your device. If device turns
off, continue with step 9.
If it does not turn off, press
and release SAT to
switch modes. Select No
on screen and repeat steps
7 and 8 for the next code.
Using the remote, turn the
device on and try some
other remote buttons to
make sure they work.
When nished, press and
release SAT to switch
modes.
If the code worked for
other buttons, select Yes
and continue to step 11.
If the code did not work,
select No and repeat steps
6 through 9 for the next
code for the brand of your
device.
On the Home screen,
conrm that the device’s
brand name is in
parentheses after a four-
digit code.
Programming Remote to
Control Another Device, con’t.
Scanning the Remote Database,
continued
8
9
10

15
Displaying Device Code
and Remote Address
To identify the device code that your remote control
is using or the address that your remote control is
using, complete the following steps:
Press MENU, select Settings
tile, and then select Remote
Control. The Home screen
for your current remote
control displays.
Verify that the brand name
of TV shown in parentheses
after the code matches the
brand name of your TV.
For DVD and AUX modes,
the codes should be
accompanied by the brand
name of your equipment in
parentheses. Remember that
the type of device controlled
in DVD mode may be either
a DVD/BD player or a VCR,
and AUX also may be an
audio receiver, accessory,
amplier, or a second TV.
Record the stored device
code in the Reference Table
on the inside back cover of
this Guide.
3
2
1
4

16
Placing Remote in Limited
Mode
Limited Mode locks out all the device mode
operations except for the device’s power, Mute, and
Volume. This prevents you from accidentally tuning
away from satellite programming.
Note: Limited Mode cannot be used with audio
ampliers.
Press MENU, select
Settings tile, and then
select Remote Control.
Select the Limited Mode
option.
Use the arrow button to
highlight Enabled and
then select it. Highlight and
select Save.
To take the remote out of
Limited Mode, highlight
Disabled instead of
Enabled in step 3.
1
2
3Enabled
Disabled
Limited Mode
Enabled
Disabled
Limited Mode

17
Locating a Lost Remote
Activate your receiver’s
front panel controls and
touch LOCATE REMOTE.
Find the remote that you
are looking for in the list of
remotes on the right-hand
side of the screen.
Select the Locate option
next to the remote you want
to nd.
If the missing remote control
is linked to this receiver
and within RF range, there
should be a series of tones
you can hear to help you
nd the location of the
remote. Press any button
to turn off the Locate tones
after nding the remote.
If the remote control you
want to nd is not listed, it
is not linked to the receiver
or is out of RF range;
therefore, Locate isn’t an
option.
1
2
3
4
The next time you misplace the remote control or
wonder where one is, try the Locate feature.
LOCATE
REMOTE

18
Avoiding RF Interference
Because your remote control uses UHF-2G radio
frequencies, you might experience interference
from certain other devices transmitting nearby. The
instructions in this section describe how to avoid such
conicts.
Ensure the UHF-2G remote
antenna is connected to the correct
input on the receiver’s back panel
and is not touching anything.
Tighten only by hand.
Vary the tilt angle of the receiver’s
remote antenna, locating the
antenna’s tip away from any other
electronic equipment or metal
surfaces, even if separated by
wooden shelving.
Move the receiver to a different
location. Place the receiver on
as high a surface as possible,
above all other equipment in your
entertainment center.
Use the optionally available special
cable to connect the remote
antenna to the receiver and place it
away from other equipment.
Move any nearby antenna or radio
equipment away from the UHF-
2G remote antenna. Do not place
an over-the-air antenna, WiFi,
Bluetooth, or Zigbee devices on or
near the remote antenna.
2
3
4
Adjusting the Antenna
Your receiver links to and communicates with its
remote control(s) through a special antenna connected
to the Remote Antenna input on the receiver’s back
panel.
Note: This special remote antenna cannot be used
with any other DISH Network satellite receivers or their
remotes. Conversely, remote antennas used with other
DISH Network satellite receivers and remotes cannot
be used with your XiP receiver or remote controls.
REMOTE
ANTENNA
1
5
REMOTE
ANTENNA
