DITEC PWR50 H User manual

Ditec PWR50 H/HR/HV/AC
Automation for swing gates
(Translation of the original instructions)
IP2393EN • 2021-10-26
www.ditecautomations.com
Technical Manual

2
IP2393EN
Contents
Subject Page
General safety precautions 3
Declaration of incorporation of partly completed machinery 5
1. Technical specifications 6
2. Standard installation 9

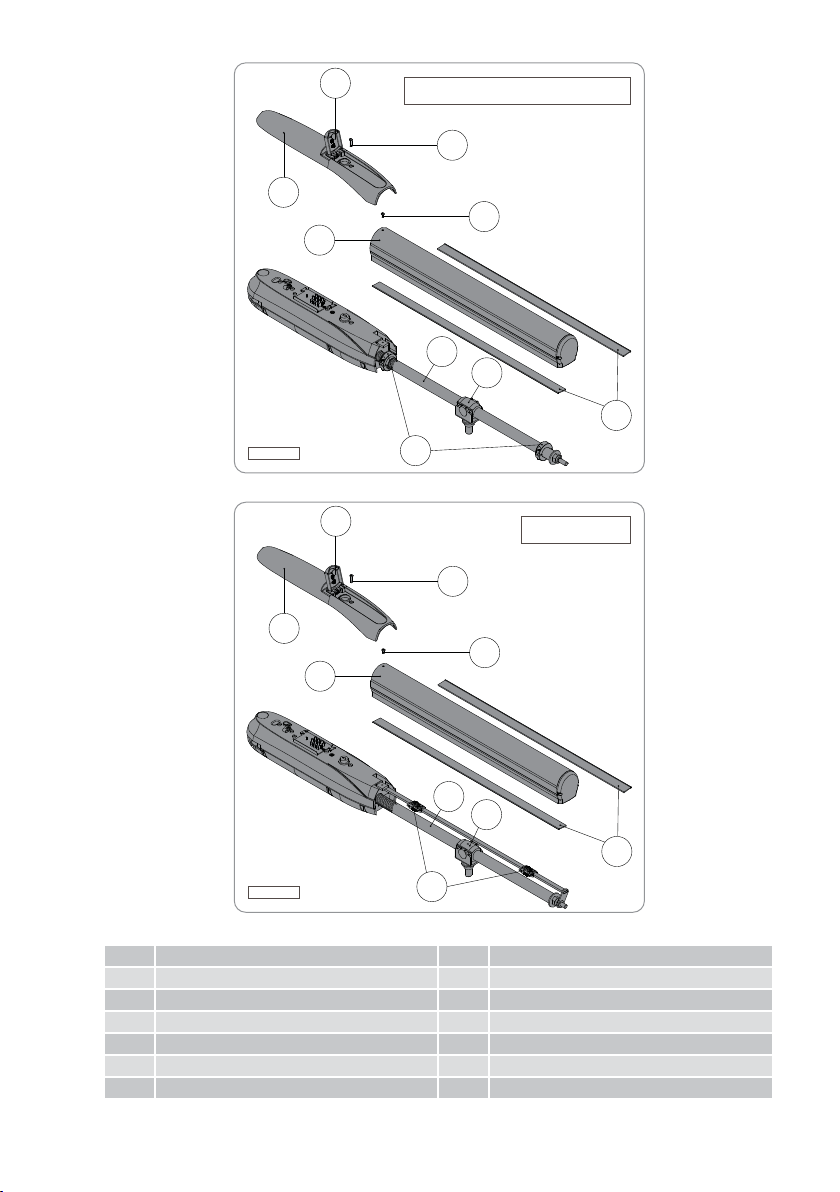

3. Gearmotor dimensions and references 10
4. Installation 12
4.1 Preliminary checks 12

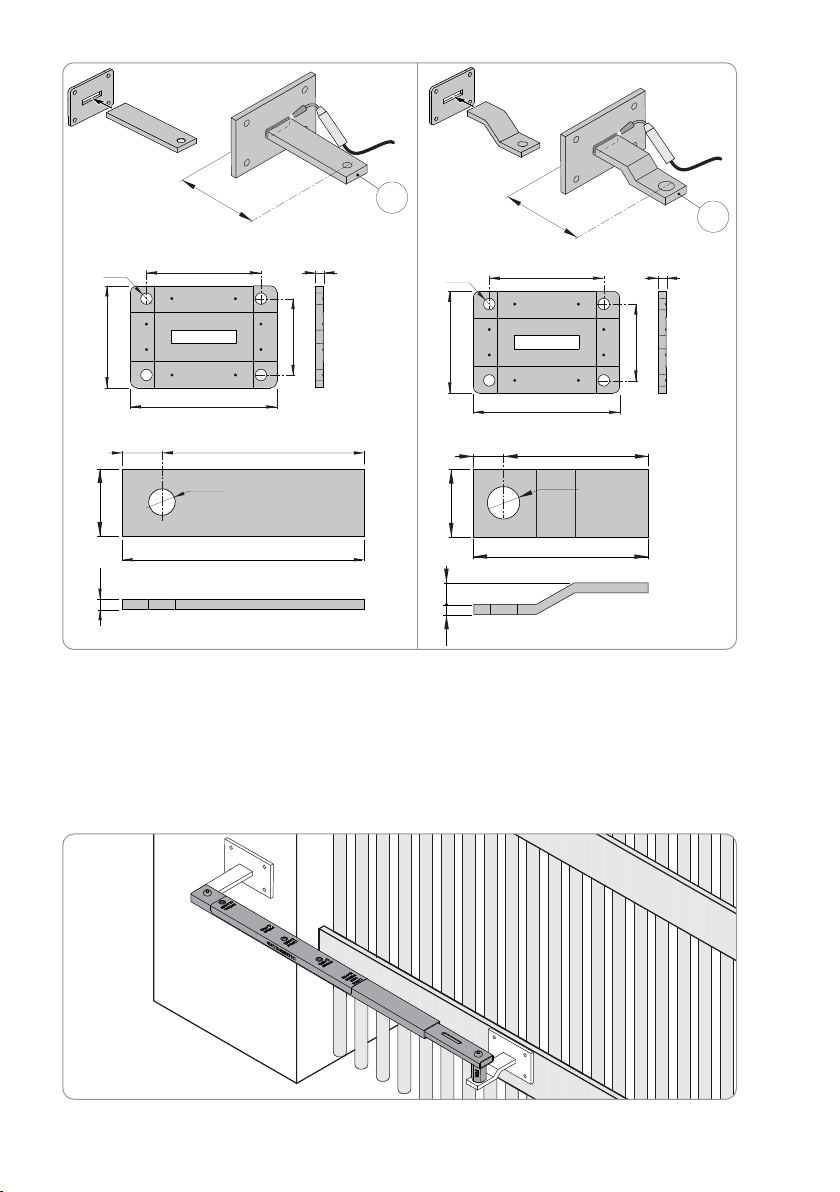

4.2 Bracket fastening 13
4.3 Using the mounting tool 14
4.4 Installing the gear motor 15

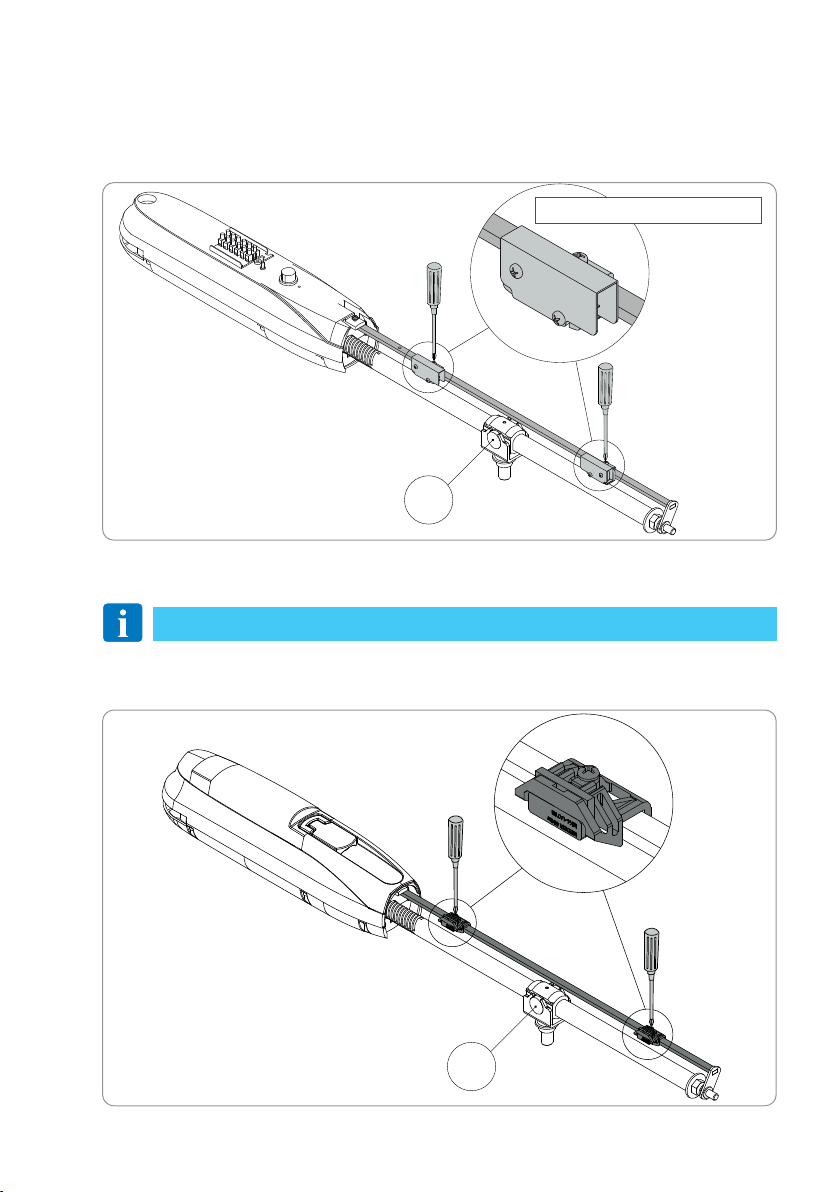

4.5 Adjusting the end stops and limit switches 16

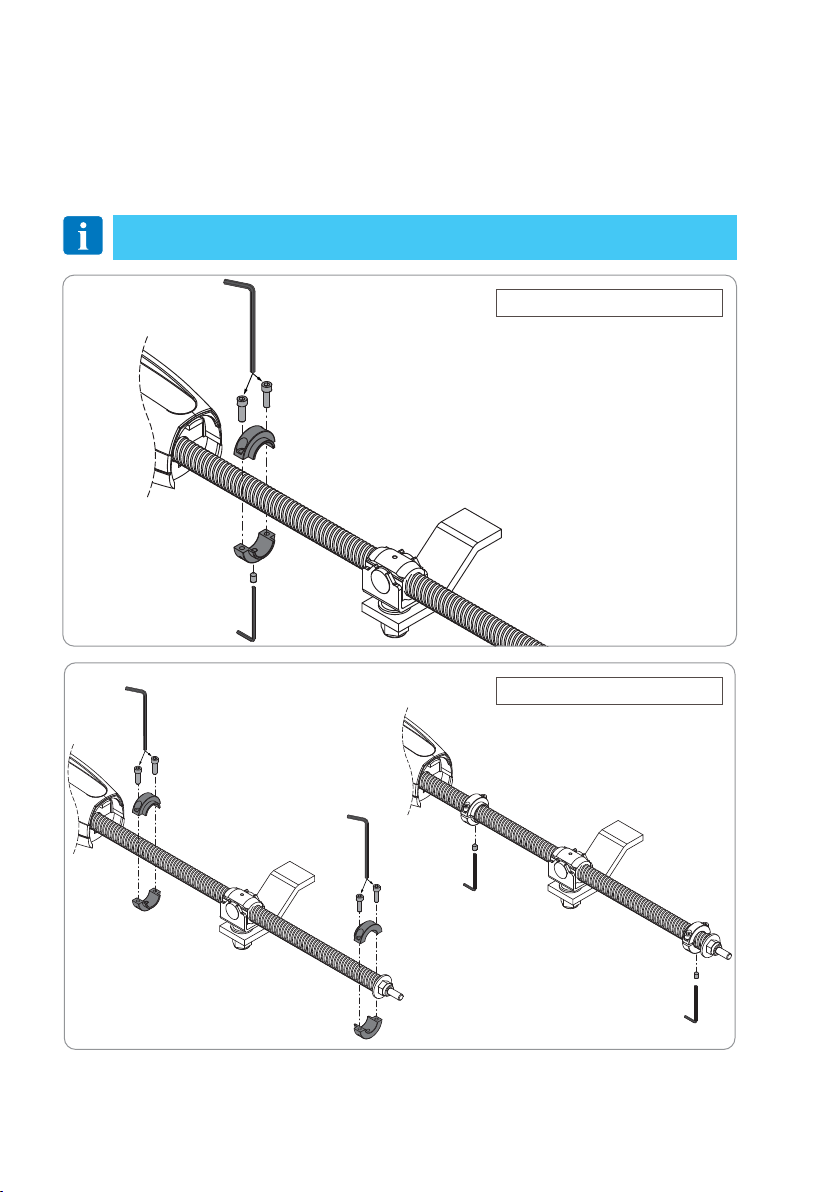

4.5.1 Mechanical end stops 16
4.5.2 Adjusting the limit switch with microswitch for opening and closure (optional for Ditec
PWR50AC) 17
4.5.3 Adjusting the magnetic limit switches (optional for Ditec PWR50H/HR, standard on Ditec
PWR50HV) 17
4.6 Electrical connections 18

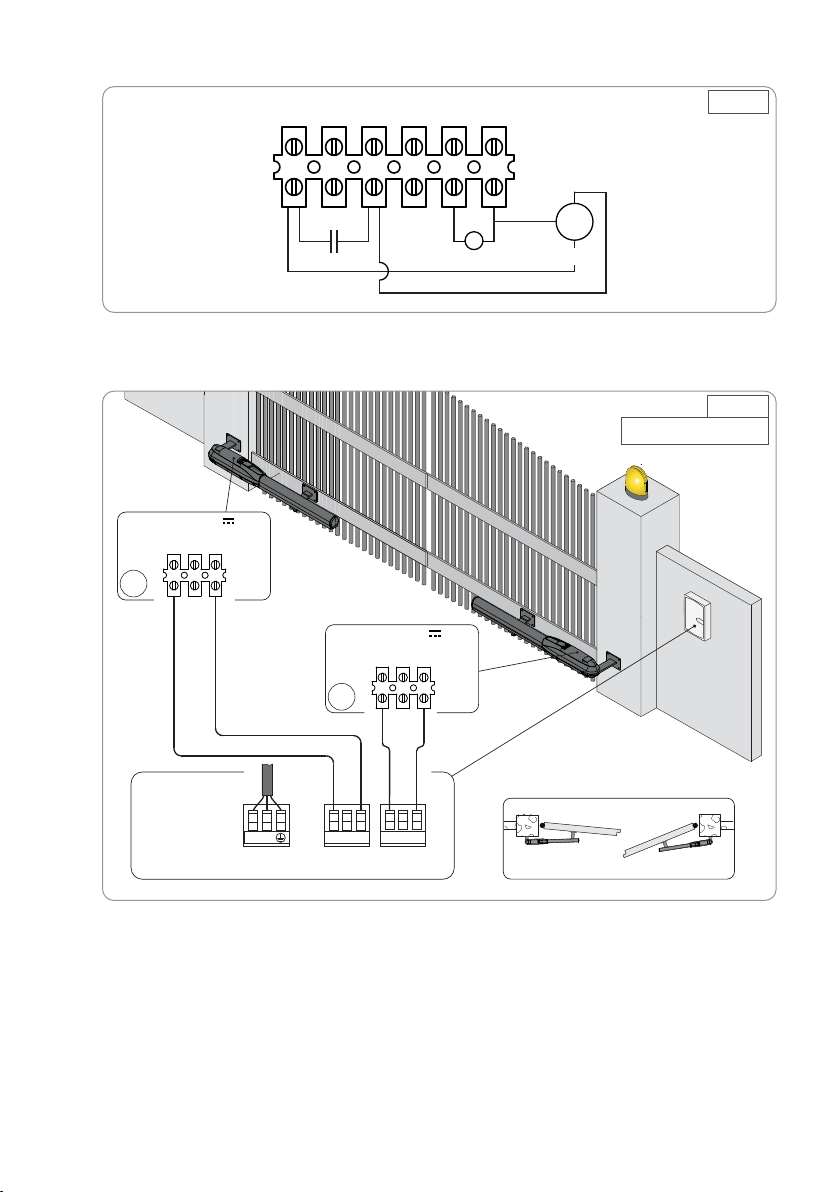

4.6.1 Ditec PWR50AC connection diagram 18
4.6.1a Motor connection diagram (PWR50AC) 19
4.6.2 Ditec PWR50H/HR/HV connection diagram 19
5. Reversible mode 20
5.1 Mode change for Ditec PWR50AC 20
5.2 Reversible mode for Ditec PWR50HR: connecting the PWR50KR protection relay 21
6. Routine maintenance plan 22
7. Troubleshooting 22
Key
This symbol indicates instructions or notes regarding safety, to which special attention
must be paid.
This symbol indicates useful information for the correct functioning of the product.

3
IP2393EN
General safety precautions
This installation manual is intended for qualified personnel only
•Installation, electrical connections and adjustments must be per-
formed by qualified personnel, in accordance with Good Working
Methods and in compliance with the current regulations • Read
the instructions carefully before installing the product. Wrong
installation could be dangerous • Before installing the product,
make sure it is in perfect condition •
The packaging materials (plastic, polystyrene, etc.) should not
be discarded in the environment or left within reach of children,
as they are a potential source of danger • Do not install the product
in explosive areas and atmospheres: the presence of inflammable
gas or fumes represents a serious safety hazard • Make sure that
the temperature range indicated in the technical specifications is
compatible with the installation site • Before installing the motori-
zation device, make sure that the existing structure, as well as all
the support and guide elements, are up to standards in terms of
strength and stability. Verify the stability and smooth mobility of the
guided part, and make sure that no risks of fall or derailment subsist.
Make all the necessary structural modifications to create safety
clearance and to guard or isolate all the crushing, shearing, trapping
and general hazardous areas • The motorization device manufac-
turer is not responsible for failure to observe Good Working Methods
when building the frames to be motorized, or for any deformation
during use • The safety devices (photocells, safety edges, emergen-
cy stops, etc.) must be installed taking into account the applicable
ATTENTION! Important safety instructions.
Please follow these instructions carefully. Failure to observe
the information given in this manual may lead to
severe personal injury or damage to the equipment.
Keep these instructions for future reference.
This manual and those for any accessories can be
downloaded from www.ditecautomations.com.

4
IP2393EN
laws and directives, Good Working Methods, installation premises,
system operating logic and the forces developed by the motorized
door or gate • The safety devices must protect against crushing,
cutting, trapping and general danger areas of the motorized door or
gate. Display the signs required by law to identify hazardous areas.
Each installation must bear a visible indication of the data identifying
the motorized door or gate • Before connecting the power supply,
make sure the plate data correspond to those of the mains power
supply. An omnipolar disconnection switch with a contact opening
distance of at least 3mm must be fitted on the mains supply. Check
that there is an adequate residual current circuit breaker and a
suitable overcurrent cutout upstream of the electrical installation
in accordance with Good Working Methods and with the laws in force
• When requested, connect the motorized door or gate to an effec-
tive earthing system that complies with the current safety standards
• Before commissioning the installation to the end user, make sure
that the automation is adequately adjusted in order to satisfy all the
functional and safety requirements, and that all the command, safe-
ty, and manual release devices operate correctly •
During installation, maintenance and repair operations, cut
off the power supply before opening the cover to access the
electrical parts • The protection cover of the operator must be
removed by qualified personnel only.
The electronic parts must be handled using earthed antistat-
ic conductive arms. The manufacturer of the motorization
declines all responsibility if component parts not compatible with
safe and correct operation are fitted • Only use original spare parts
for repairing or replacing products • The installer must supply all
information concerning the automatic, manual and emergency
operation of the motorized door or gate, and must provide the user
with the operation and safety instructions.

5
IP2393EN
Declaration of incorporation of partly completed
machinery
EC Declaration of Incorporation
We:
ASSA ABLOY Entrance Systems AB
Lodjursgatan 10
SE-261 44 Landskrona
Sweden
Declare under our sole responsibility that the types of equipment with names:
Ditec PWR50H Irreversible automation for swing gates with mechanical limit switches
Ditec PWR50HV Irreversible automation for swing gates with magnetic limit switches
Ditec PWR50HR Reversible automation for swing gates with mechanical limit switches
Ditec PWR50AC Irreversible/reversible automation for swing gates with mechanical limit switch
(opening)
Comply with the following directives and their amendments:
2006/42/EC Machinery Directive (MD), regarding the following essential health and safety
requirements: 1.1.2, 1.1.3, 1.2.1, 1.2.2, 1.2.3, 1.2.4.2, 1.2.6, 1.3.9, 1.4.3, 1.7.2,
1.7.3, 1.7.4, 1.7.4.1, 1.7.4.2.
2014/30/EU Electromagnetic Compatibility Directive (EMCD)
2011/65/EU Restriction of hazardous substances (RoHS 2)
2015/863/EU Restriction of hazardous substances (RoHS 2 Amendment)
Harmonized European standards that have been applied:
EN 61000-6-3:2007 + A1:2011 + AC:2012
EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019
Other standards or technical specifications that have been applied:
IEC 60335-1:2010 + C1:2010 + C2:2011 + A2:2013 + C1:2014 + A2:2016 + C1:2016
EN 12453:2017
The manufacturing process ensures the compliance of the equipment with the technical file.
Do not put equipment into service until the installed finished Automatic Entrance System has been
declared compliant with Directive 2006/42/EC on Machinery.
Responsible for technical file:
Matteo Fino
Business Area PGA
Ditec S.p.A.
Largo U. Boccioni, 1
21040 Origgio (VA)
Italy
Signed for and on behalf of ASSA ABLOY Entrance Systems AB by:
Place Date Signature Position
Origgio 2021-10-26 Matteo Fino President B.A. PGA
© ASSA ABLOY, All rights reserved

6
IP2393EN
1. Technical specifications
Limits of use (wing weight and width)
1
0
100
200
300
400
500
600
700
800
23
(m)
(Kg)
45
Tab. 1.0
Chart 1.0
Ditec PWR50AC Ditec PWR50H Ditec PWR50HV Ditec PWR50HR
Type Irreversible / Reversible Irreversible Irreversible Reversible
Stroke control
(limit switch)
Mechanical end stop (on
opening)
Mechanical end
stops
Magnetic limit
switches
Mechanical
end stops
Power supply 230V ~ / 50Hz 24V
Maximum
power absorption 1.1A 12A
Power absorbed
250W 65W nom / 288W max
Max thrust 6000 N 6000 N
Max stroke 500mm
Opening time 24÷32s / 90° 14÷80 s / 90°
Intermittent oper-
ation
200 cycles/day [max]
30 consecutive cycles at
20°C
300 cycles/day [max]
80 consecutive cycles at 20°C
Lifespan 150,000÷450,000 cycles 180,000÷600,000 cycles
(see the product lifespan charts - Tab. 1.1)
Operating
temperature -20°C / +55°C (-35°C + 55°C with NIO active)
Protection rating IP44
Dimensions (mm) 1044 x 100 x 124h
Weight (kg) 10.5

7
IP2393EN
Index of conditioning factors
Ditec PWR50AC Ditec PWR50H/HV/HR
Gate wing weight
>400kg 10 -
>500kg - 10
>550kg 20 -
>600kg - 20
>650kg 30 -
>700kg - 30
Gate wing width >3m 10
>4m 20
Solid gate wing 15
Windy area 15
VA/VC/PO/PC speed setting higher than the default
values 10
R1/R2 force setting higher than the default values 10
Product lifespan - Ditec PWR50AC/H/HV
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di gravosità (%)
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli
Product lifespan - Ditec PWR50HR
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di gravosità (%)
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli

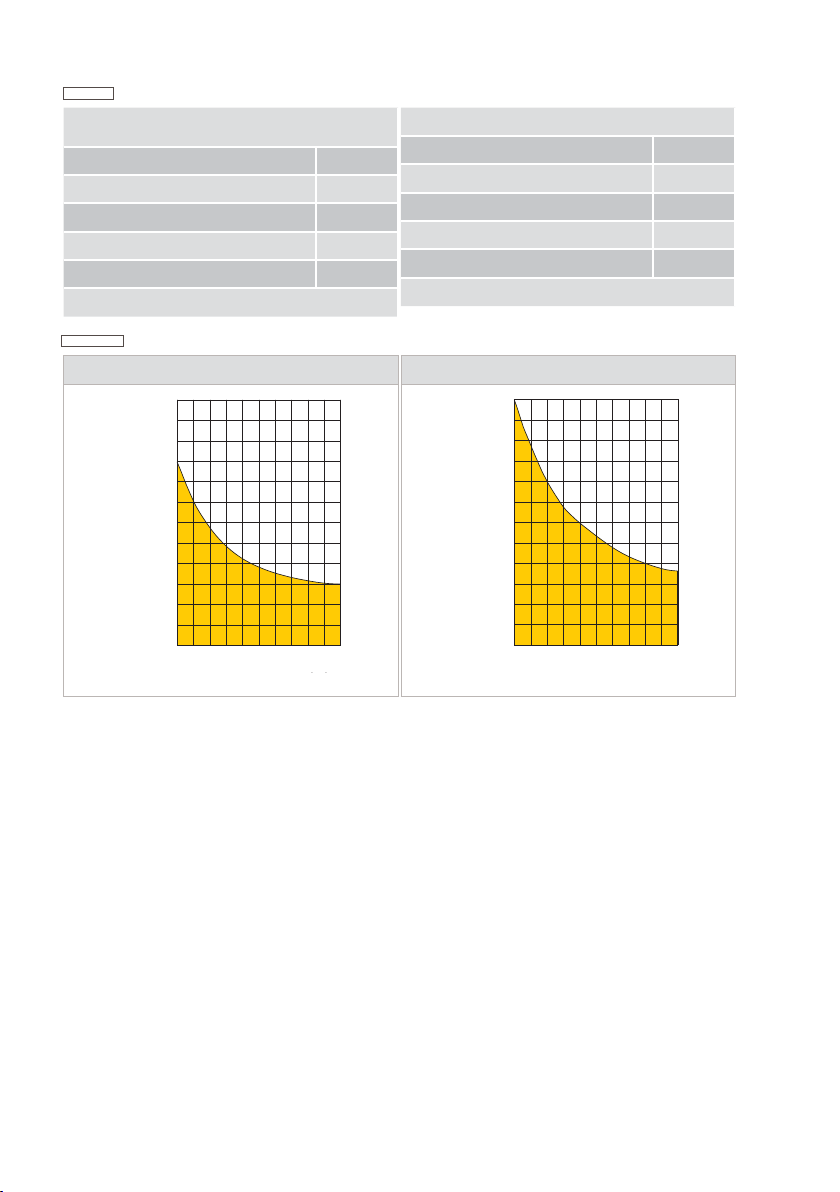

Tab. 1.1
Chart 1.1
The product lifespan is conditioned by the extent of other onerous conditions:
with reference to Tab. 1.1, various corrective factors have been assessed in relation to the weight
and width of the wing and the usage conditions; when taken as a whole, they affect the lifespan of
the operating unit (see Chart 1.1).

8
IP2393EN
The chart below shows an example of an operating unit lifespan calculation:
Example of lifespan calculation - Ditec
PWR50AC/H/HV
Gate wing weight = 300kg 0
Gate wing width = 4.5m 20
R1/R2 = 80 (default 50) 10
Solid wing = NO 0
Total stress index 30
Estimated lifespan 240,000 cycles
Example of lifespan calculation - Ditec PWR50HR
Gate wing weight = 300kg 0
Gate wing width = 4.5m 20
R1/R2 = 80 (default 50) 10
Solid wing = NO 15
Total stress index 45
Estimated lifespan 280,000 cycles
Product lifespan - Ditec PWR50AC/H/HV
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di gravosità (%)
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli
Product lifespan - Ditec PWR50HR
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di gravosità (%)
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli
Tab. 1.2
Chart 1.2
max no. of cycles
index of conditioning factors (%) index of conditioning factors (%)
max no. of cycles

9
IP2393EN
2. Standard installation
Ref. Description Cable
1Transmitter /
2Flashing light 2 x 1mm²
Aerial (integrated in the flashing light)
coaxial 58Ω
3Key-operated selector switch 4 x 0.5mm²
Wireless keypad with digital combination /
4Actuator 4 x 1.5mm²
5Photocells 4 x 0.5mm²
6Control panel 3G x 1.5mm²
A
Connect the power supply to a certified-compliant omnipolar switch (not included) with
a contact opening distance of at least 3mm.
Connection to the mains must be via an independent channel, separated from the
connections to the command and safety devices.
1
4
6
A
32
5
5
4
5

10
IP2393EN
3. Dimensions and gear motor references
124
100
525
1044
10
11
9
15
17
13
7
8
Fig. 3.1
PWR50AC

11
IP2393EN
Ref. Description Ref. Description
7Rear cover 13 Mechanical end stops
8Release lock hatch 14 Magnetic limit switches
9Screw for fastening the rear cover 15 Drive screw
10 Screw for fastening the front cover 16 Split nut + magnet
11 Front cover 17 Split nut
12 Protective brushes
10
11
9
12
15
16
13
7
8
10
11
9
12
7
8
14
16
15
PWR50H/HR
PWR50HV
Fig. 3.2
Fig. 3.3

12
IP2393EN
A
P
D
E
L
B
C
min 60 mm / 90°
S

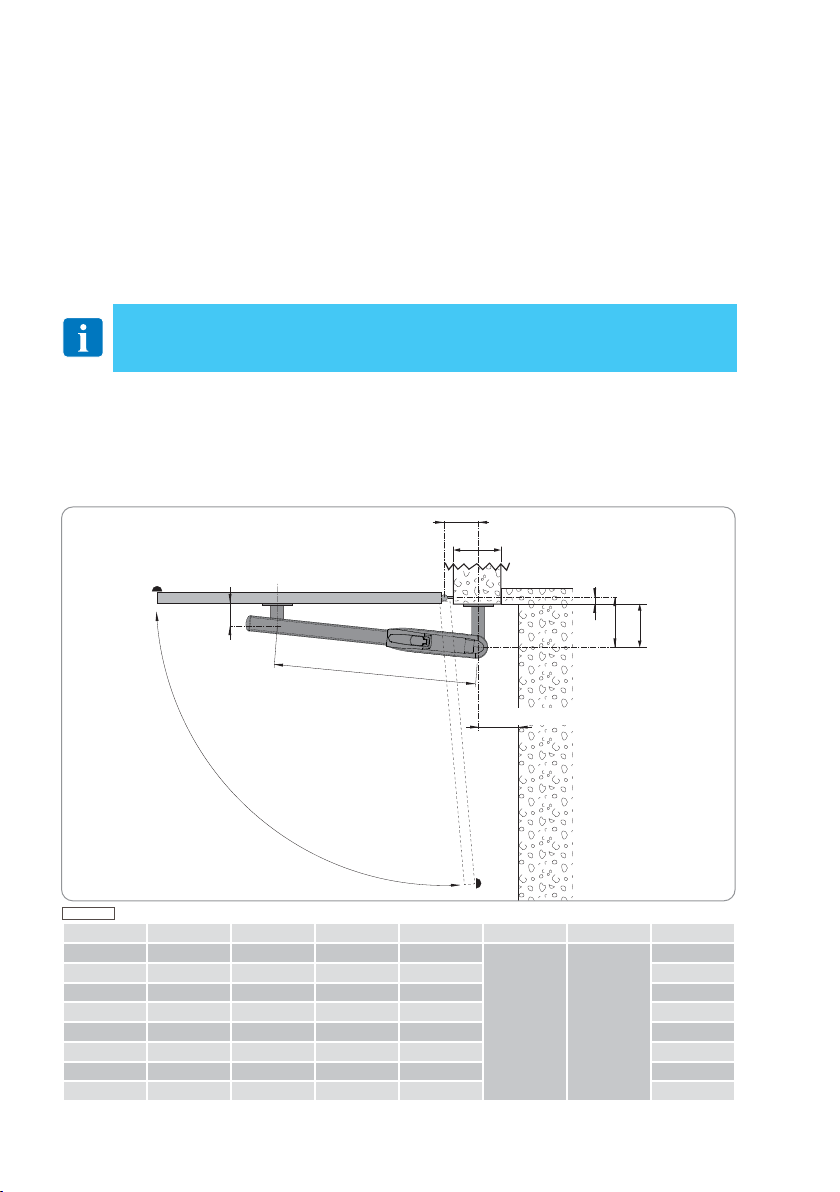

Tab. 4.1
A B C S D E L P min
200 190 20 170 120°
120 910
220
200 200 50 150 110° 220
100 220 50 170 90° 120
130 210 70 140 95° 150
170 220 100 120 95° 190
200 190 100 90 100° 220
150 220 150 70 95° 170
130 290 220 70 90° 150
4. Installation
The given operating and performance features can only be guaranteed with the use of DITEC ac-
cessories and safety devices. Unless otherwise specified, all measurements are expressed in mm.
4.1 Preliminary checks
Make sure the gate structure is sturdy and the hinges are lubricated and smooth.
If possible, fit an opening and closing stop. Otherwise, use the mechanical stops (integrated
for opening stop with PWR50AC, optional for closing stop with PWRFM, integrated for opening
and closing stops with PWR50H/HR) and/or the electromechanical limit switches (included for
PWR50HV) if available. The mechanical construction elements must comply with the requisites
of Standard EN12604.
The automation fastening point varies according to the space available and the gate to
be automated. The installer must therefore choose the best solution to ensure that the
system works correctly in each individual situation.
The installation measurements indicated in the table allow you to choose the values of [A] and [B]
on the basis of the required opening angle and in relation to the on-site spaces and overall dimen-
sions.
Increasing measurement [A], you reduce the approach speed during opening.
Reducing measurement [B], you increase the gate opening angle.
Measurements [A] and [B] must, however, be compatible with the effective motor stroke.

13
IP2393EN
4.2 Fastening the brackets
After selecting the most suitable point for fastening the front bracket [18] to the gate wing, to
establish its height you must first size, position and fasten the rear bracket [17].
If necessary, shorten the rear bracket [17] following the indications given in Tab. 4.1.
-Once you have fastened the rear bracket [17] following the measurements given on page 9,
fasten the front bracket [18] to the gate.
- With the gate fully closed, position the front bracket [18], respecting the measurement (L).
Make sure the front bracket [18] and rear bracket [17] are properly levelled, as shown in the
figures below, then fasten the front bracket [18] to the gate.
L
17
18

14
IP2393EN
4.3 Using the mounting tool
During installation, the bracket positioning operation can be greatly simplified by using the
mounting tool (PWRMI - optional accessory), which allows you to ascertain the correct fastening
position of the brackets and the distance between them. This avoids positioning errors and incor-
rect fastening hole alignment, thanks also to the built-in spirit-level.
The mounting tool is compatible with all the pistons of the PWR, Obbi and Luxo series.
80 60
115
90
Ø9 6
185
15 170
10
Ø14
S
17
E
18
140
20
50
10 42
120
Ø22
80 60
115
90
Ø9 6
50

15
IP2393EN

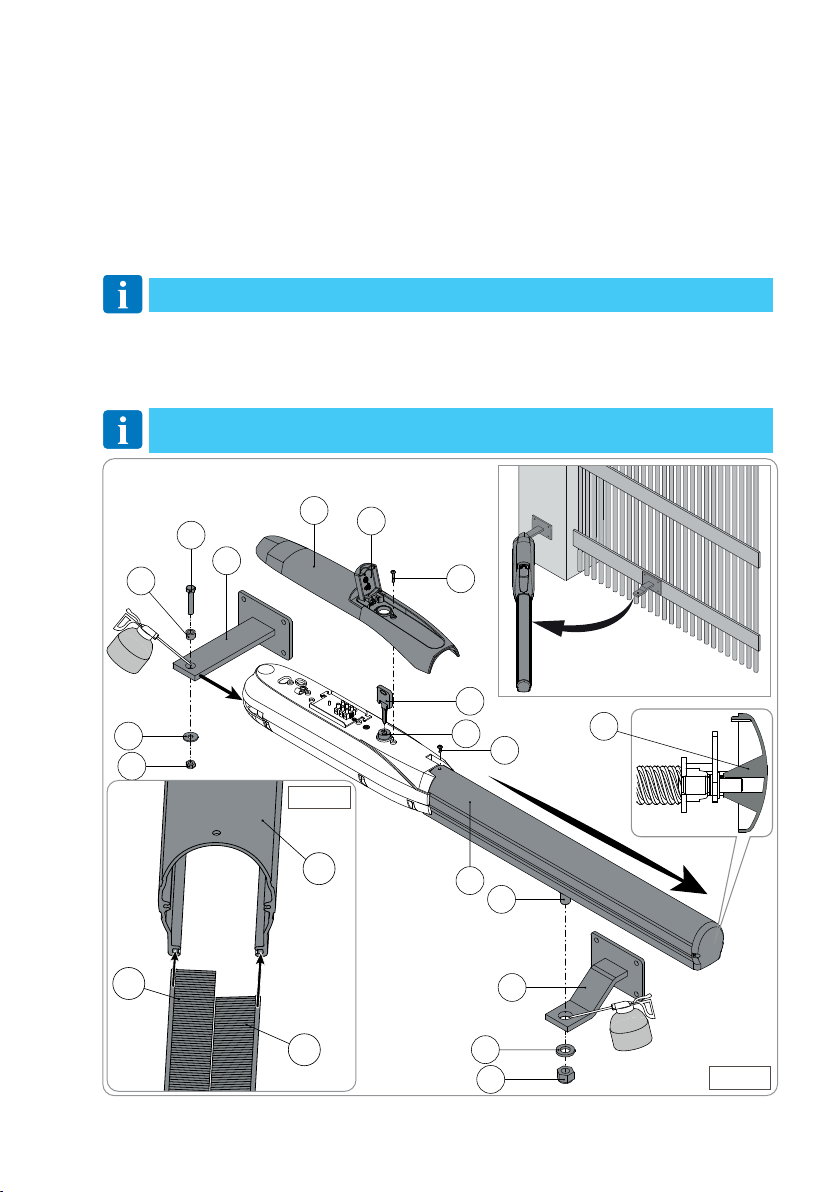

4.4 Installing the gear motor
• Open the lock hatch [8], loosen the 3.9x22mm screw [9] and remove the rear cover [7].
Loosen the screw M4 x 8mm [10] and take out the front cover [11] as shown in the figure.
Release the motor by inserting the key [23] in the relative lock [24] and turning it clockwise (see
the USER INSTRUCTIONS).
• Fasten the motor to the rear bracket [17] using the M8 x 45mm screw [19], the bush [20] and
the Ø 24mm washer [21], then tighten the M8 self-locking nut [22] as far as it will go.
• Open the gate wing manually and insert the front coupling pin [25] in the slot of the front fas-
tening bracket [18]. Lock the pin in the bracket using the washer Ø30mm [26] and nut M16 [27]
supplied. Before installing the motor, grease the rotation points.
NOTE: pay special attention to the correct assembly of the washer on the brackets.
• For PWR50H/HR/HV insert the protective brushes [12] in the relative guides on the front cover
[11] (see Fig. 4.1b).
• After making the adjustments (par. 4.5), insert the front cover [11] on the drive screw and fix it
in place using the screw [10].
NOTE: make sure the drive screw [25] enters the head [28] of the cover [11] correctly (detail
in figure 4.1a).
9
24
10
a
23
21
22
25
18
26
27
8
7
19
17
11
20
28
11
12
12
Fig. 4.1b
Fig. 4.1a

16
IP2393EN
4.5 Adjusting the end stops and limit switches
4.5.1 Mechanical end stops
Bring the wing to its fully open (or closed - PWR50H-HR) position, then loosen the mechanical
end stop with a 5mm Allen spanner just enough so it can slide along the drive screw. Bring it
up against the split nut, then tighten the screws with the 5mm Allen spanner and fix the 3mm
lockscrew.
3mm
5mm
PWR50AC
PWR50H-HR
NOTE: PWR50AC has an end stop on opening only. PWR50H-HR have end stops on both
opening and closure.
3mm
3mm
5mm
5mm

17
IP2393EN
4.5.2 Adjusting the limit switch with microswitch for opening and
closure (optional for Ditec PWR50AC)
Bring the gate wing to its fully open or closed position. Loosen the limit switches with a Phillips
screwdriver (just enough so they can slide along the guide), then bring them above the split nut
[17] until the sensor is activated. Fix them in place.
17
PWR50AC
NOTE: not available for PWR50AC.
4.5.3 Adjusting the magnetic limit switches (optional for Ditec
PWR50H/HR, standard on Ditec PWR50HV)
Bring the gate wing to its fully open or closed position. Loosen the limit switches with a Phillips
screwdriver (just enough so they can slide along the guide), then bring them above the split nut
[16] until the magnetic sensor is activated. Fix them in place.
16

18
IP2393EN
LN
Motoriduttore con
ritardo in apertura
V/Y U/X W/Z
Quadro elettronico
M2
Alimentazione
230V ~- 50/60 Hz
Motoriduttore con
ritardo in chiusura
V/Y U/X W/Z
M1
UWVXZY
M1
M2
Fig. 4.6d
4.6 Electrical connections
NOTE: the electrical connections and start-up of the PWR50AC gear motors are shown in
the installation manuals of the LCA70 and LCA80 control panels.
NOTE : the electrical connections and start-up of the PWR50H/HR/HV gear motors are
shown in the installation manuals of the LCU40H control panels.
To connect the automation to the control panel, proceed as follows:
• Remove the rear cover [7] as explained in paragraph 4.4.
• Fit the cable gland on the automation, inserting it in the relative threaded slot in the metal
fusion (Fig. 4.6a, 4.6b and 4.6c).
• Connect the various wires as shown in the electrical diagram in Fig. 4.6d and 4.6f.
• Fasten the rear cover [7] to the gear motor.
To increase the protection of the motor cable, a corrugated flexible tube can be used.
M
Fig. 4.6a Fig. 4.6b Fig. 4.6c
PWR50AC
PWR50AC
PWR50H-HR-HV
4.6.1 Ditec PWR50AC connection diagram
Gear motor with delay
during opening
Gear motor with delay
during closing
Control panel
Power supply

19
IP2393EN
LN 33 32 31
36 35 34
Alimentazione
230V ~- 50/60 Hz
24V 24V
Motoriduttore 24V con
ritardo in apertura
33/36 32/35 31/34
Motoriduttore 24V con
Quadro elettronico
ritardo in chiusura
33/36 32/35 31/34
M2
M1
M1
M2
Fig. 4.7f
PWR50H/HR/HV
4.6.2 Ditec PWR50H/HR/HV connection diagram
4.6.1a Ditec PWR50AC motor connection diagram
Gear motor 24V with
delay during opening
Gear motor 24V with
delay during closing
Control panel
Power supply
V/Y U/X W/Z
freno
6μF S2 motore
M
Fig. 4.7e
Brake Motor

20
IP2393EN
5. Reversible mode
5.1 Mode change for Ditec PWR50AC
The motor is supplied in irreversible mode. To make the motor reversible, insert the pin [M].
NOTE: this operation must be carried out with the motor activated.
When the pin [M] is removed, the motor becomes irreversible.
M
M
