DITEC TS35 User manual

Ditec TS35
Automation for swing gates
(Translation of the original instructions)
Technical Manual
www.ditecentrematic.com
IP2373EN • 2020-07-28

2
IP2373EN
EN
Contents
Key
Subject Page
1. General safety precautions 3
2. Declaration of incorporation of partly completed machinery 4
2.1 Machinery Directive 4
3. Technical specifications 5
3.1 Gearmotor dimensions 5
4. Standard installation 6
5. Installation 7
5.1 Preliminary checks 7
5.2 Fastening the brackets 8
5.3 Electrical connections 10
6. Release instructions 11
7. Routine maintenance plan 11
8. Troubleshooting 12
9. Disposal 12
i
This symbol indicates instructions or notes regarding safety, to which special atten-
tion must be paid.
This symbol indicates useful information for the correct operation of the product.

3
IP2373EN
EN
1. General safety precautions
This installation manual is intended for qualified personnel only.
Installation, electrical connections and adjustments must be performed in accordance
with Good Working Methods and in compliance with the present standards.
Read the instructions carefully before installing the product.
Incorrect installation could be dangerous.
Before installing the product, make sure it is in perfect condition.
Before installing the motorisation device, make all the necessary structural modifi-
cations to create safety clearance and to guard or isolate all the crushing, shearing,
trapping and general hazardous areas.
Make sure the existing structure is up to standard in terms of strength and stability.
The motorisation device manufacturer is not responsible for failure to observe Good
Working Methods when building the frames to be motorised, or for any deformations
during use.
The safety devices (photocells, safety edges, emergency stops, etc.) must be installed
taking into account the applicable laws and directives, Good Working Methods, installa-
tion premises, system operating logic and the forces developed by the motorized gate.
The safety devices must protect the crushing, shearing, trapping and general haz-
ardous areas of the motorised door.
Display the signs required by law to identify hazardous areas.
Each installation must bear a visible indication of the data identifying the motorized gate.
When requested, connect the motorized gate to an effective earthing system that
complies with current safety standards.
During installation, maintenance and repair operations, cut off the power supply before
opening the cover to access the electrical parts.
The automation protection casing must be removed by qualified personnel only.
The manufacturer of the motorisation device declines all responsibility if com-
ponent parts not compatible with safe and correct operation are fitted.
Only use original spare parts when repairing or replacing products.
The installer must supply all information on the automatic, manual and emergency
operation of the motorised gate, and must provide the user with the operating in-
structions.
Failure to respect the information given in this manual
may cause personal injury or damage to the device.
Keep these instructions for future reference

4
IP2373EN
EN
2. Declaration of incorporation of partly com-
pleted machinery
(Directive 2006/42/EC, Annex II-B)
The manufacturer Entrematic Group AB, with headquarters in Lodjursgatan 10, SE-261 44
Landskrona, Sweden, declares that the Ditec TS35AC automation for swing gates:
- is designed to be installed on a manual gate to form a machine pursuant to Directive 2006/42/
EC. The manufacturer of the motorised gate must declare conformity with Directive 2006/42/
EC (annex II-A) prior to initial machine start-up;
- complies with the applicable essential safety requirements indicated in Annex I, Chapter 1 of
the Directive 2006/42/EC;
- complies with the Electromagnetic Compatibility Directive 2014/30/EU;
- complies with the RED Directive 2014/53/EU;
- the technical documentation complies with Annex VII-B of the Directive 2006/42/EC;
- the technical documentation is managed by the Technical Office of Entrematic Italy (with head-
quarters in Largo U. Boccioni 1 – 21040 Origgio (VA) – ITALY) and is available upon request,
sending an e-mail to [email protected]om;
- a copy of the technical documentation will be given to competent national authorities, following
a suitably justified request.
Landskrona, 2020-07-28 Matteo Fino
(Chairman)
2.1 Machinery Directive
Pursuant to the Machinery Directive (2006/42/EC), the installer who motorises a door or gate has
the same obligations as the manufacturer of machinery and as such must:
- prepare the technical data sheet which must contain the documents indicated in Annex V of the
Machinery Directive;
- (the technical data sheet must be kept and placed at the disposal of competent national author-
ities for at least ten years from the date of manufacture of the motorised door or gate);
- draw up the EC Declaration of Conformity in accordance with Annex II-A of the Machinery Di-
rective and deliver it to the customer;
- affix the EC marking on the motorised door or gate, in accordance with point 1.7.3 of Annex I of
the Machinery Directive.

5
IP2373EN
EN
3. Technical specifications
Usage limits (gate wing weight and width)
1
0
50
100
150
200
250
300
350
400
450
2
(m)
(Kg)
2,51,5 3 3,5
i
To prevent forced entry, the use of an elec-
tric lock is recommended with gate wings
measuring more than 2.5m in length.
Power supply 230V~ / 50Hz
Max absorption 1,5A
Power absorbed 330W
Capacitor 8µF
Max thrust 3500N
Maximum stroke 400mm
Opening time 18-22s / 90°
Intermittence S2= 10min / S3= 30%
Lifespan 100000 cycles
Operating temperature -20°C / +55°C
Degree of protection IP33
Dimensions (mm) 1182x93x174
Weight (kg) 4,00
3.1 Gearmotor dimensions
124 7,5
8
93
86
21
1141
1182
617 402
47
20
35 7,5
ø10,4
70
30
12
6
6
57
10
8
ø10
90 50
ø12,4
60
48
130
115
25
ø12

6
IP2373EN
EN
4. Standard installation
Ref. Description Cable
1Transmitter /
2Flashing light 2 x 1mm²
Antenna (integrated in the flashing light)
RG58 50Ω
3Key selector switch 4 x 0,5mm²
Digital combination wireless keypad /
4Actuator 4 x 1,5mm²
5Photocells 4 x 0,5mm²
6Control panel 3G x 1,5 mm²
A
Connect the power supply to a type-approved omnipolar switch (not supplied), with a
contact opening distance of at least 3mm. Connection to the mains must be via an independent channel,
separated from the connections to the command and safety devices.
Left wing (TS35ACS) Right wing (TS35ACD)
iThe gearmotors are left and right and are different from each other.
1
4
6
A
32
5
5
4
5
1

7
IP2373EN
EN
5. Installation
The declared operating and performance features can only be guaranteed with the use of Ditec
accessories and safety devices.
5.1 Preliminary checks
Make sure the gate structure is sturdy and the hinges are lubricated and smooth.
Install a stop in the open and closed positions (the mechanical structural elements must be com-
pliant with the requirements of the standard EN12604).
Check that the installation measurements are correct in relation to the distance between the
hinge of the wing and the corner of the pillar [C] and the desired opening angle [D].
i
The automation fastening point varies according to the space available and the gate
to be automated. The installer must therefore choose the best solution to ensure
that the system works correctly in each individual situation.
The installation measurements indicated in the table allow you to choose the values of [A] and [B] on
the basis of the required opening angle and in relation to the on-site spaces and overall dimensions.
Increasing measurement [A], you reduce the opening approach speed.
Reducing measurement [B], you increase the gate opening angle.
Measurements [A] and [B] must, however, be compatible with the effective piston stroke
Tab. 5.1
A B C S D E L P min
150 130 15 115 110°
46 1120
170
160 120 30 90 105° 180
160 160 45 115 100° 180
100 165 50 115 90° 120
130 160 70 90 95° 150
120 200 85 115 95° 140
150 200 85 115 90° 170
130 190 100 90 95° 150
130 220 105 115 90° 150
D
E
L
min 60 with 90° opening
A
P min
B
C
S
i
Unless otherwise specified, all measurements are expressed in mm.

8
IP2373EN
EN
5.2 Fastening the brackets
- Fasten the tail bracket , en-
suring that the measurements
[A] and [B] are correct for the
desired opening angle [D] (see
tab. 5.1).
400mm min
screws M10 - not
supplied
- Fasten the piston to the tail
bracket with the pin Fin-
cluded.
- With the gate closed, extend the actuator tube completely 3, unscrewing it to reach its maxi-
mum length, and then re-tighten by one complete turn as shown in the figure.
M4
F
10mm
CLOSE
OPEN
STOP!
15mm
STOP!
1 x 360°
3

9
IP2373EN
EN
- Fit the head bracket and fasten the piston to the head bracket with the pin Fincluded.
- Unlock the gear motor and check, by moving the gate manually, that the gate moves freely
400mm min
1°
- Install the gear motor so that it is inclined by an angle of approximately 1°.
throughout its entire stroke without impediment.
M4
F
i
i
To work correctly, the gear motors must be assembled with the motor casing at the
bottom.
Slightly lubricate the front and rear
articulated joints.

10
IP2373EN
EN
5.3 Electrical connections

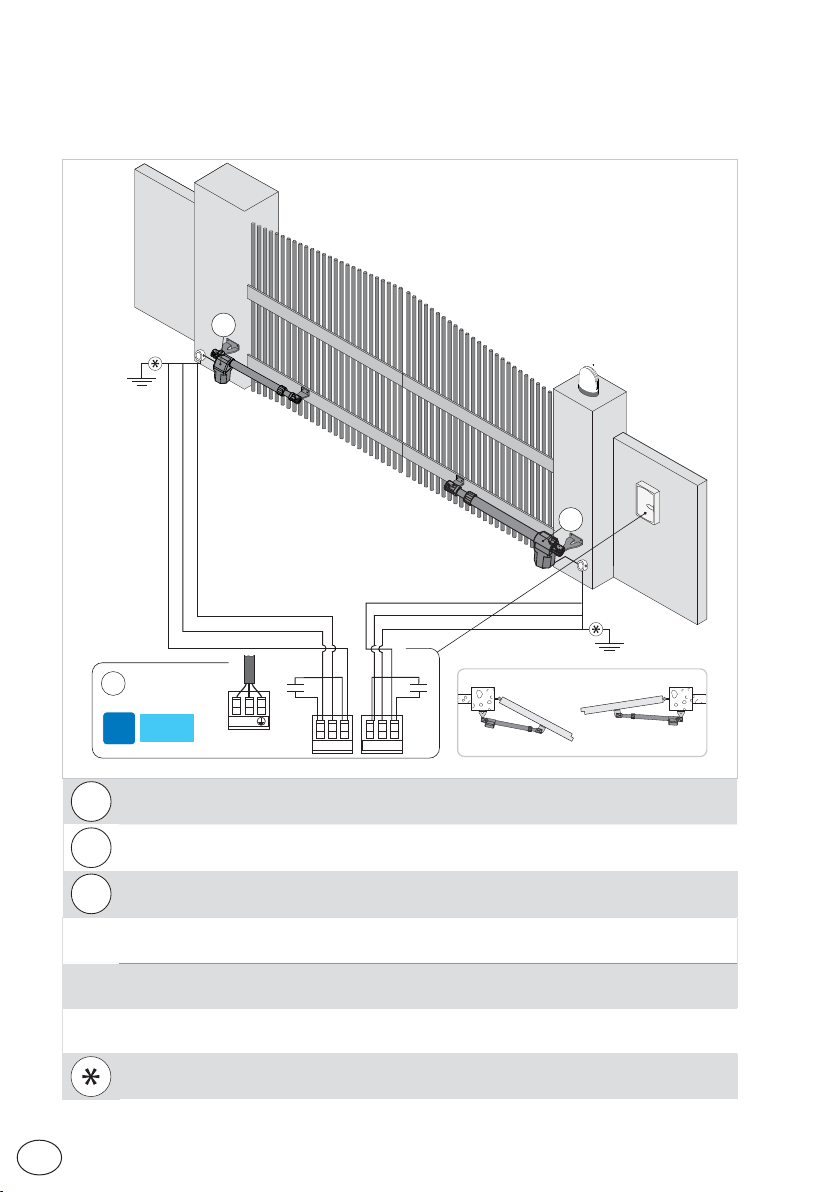

The gear motors TS35AC may be connected to the LCA70 and LCA80 electronic control panels.
The electrical connections and the procedure for setting up Ditec TS35 gear motors are illustrated in the
figure and in the installation manuals of the LCA70 (-> link) and LCA80 (-> link) electronic control panels.
M1 Gearmotor with closure delay
M2 Gearmotor with opening delay
CU Control unit
V/Y BLACK
U/X BROWN
W/Z GREY
YELLOW/GREEN
M2
M1
LN
XZY
UWV
230V~ - 50Hz
M2
M1
CU
iW= com

11
IP2373EN
EN
NOTE: for spare parts, refer to the spares price list.
7. Routine maintenance plan
Carry out the following operations and checks every 6 months or 36.000 cycles.
Disconnect the 230V~ power supply:
- Clean and lubricate the gate rotation pins, hinges and drive screw with neutral grease.
- Check the resistance of the fixing points.
- Check the electrical connections are in good condition.
Reconnect the 230V~ power supply:
- Check the power adjustment.
- Check all the commands and safety functions (photocells) are operating correctly.
- Check the release system is working correctly.
i
6. Release instructions
In the event of a fault or a power failure, open the window, insert the key in the relative lock and
turn it counterclockwise (as indicated by the arrow). Release the electric lock (if present).
Manually open the gate. To lock the gate again, close the hatch, turn the key anticlockwise and
remove the key.
WARNING: the gate lock and
release operations must be
performed with the motor idle.
Do not enter within the operating
range of the gate.

IP2373EN
Entrematic Group AB
Lodjursgatan 10
SE-261 44, Landskrona
Sweden
www.entrematic.com
8. Troubleshooting
Problem Possible cause Operation
The gate doesn’t
open or close.
No power supply. Make sure the mains supply is active.
Gearmotor released. See the release instructions.
Photocells occupied. Check the photocells are clean and op-
erating correctly.
Permanent STOP command. Check the STOP command or the con-
trol panel.
Faulty selector. Check the selector or control panel.
Faulty remote control. Check the condition of the batteries.
Electric lock not working. Check the lock is positioned and work-
ing correctly.
Il cancello apre ma
non chiude. Photocells occupied. Check the photocells are clean and op- erating correctly.
9. Disposal
The packaging components (cardboard, plastic, etc.) must be separated out for recycling.
Refer to the local disposal regulations before proceeding.
The packaging materials must not be discarded in the environment or left within reach of
children, as they are a potential source of danger.
To dispose of electrical and electronic equipment, batteries and accumulators correctly,
take the product to the differentiated disposal and recycling centres, respecting the reg-
ulations in force.
