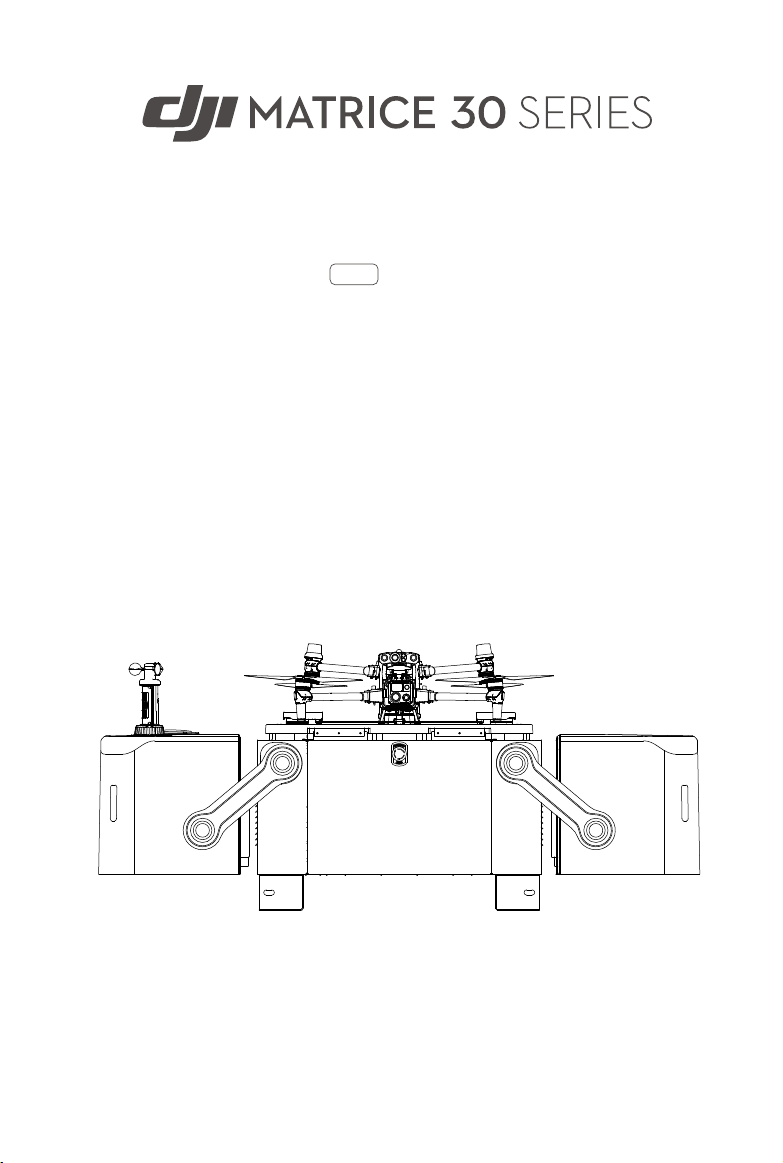

dji MATRICE 30 Series User manual

Dock Bundle
User Manual
2023.06v1.0

2
©2023 DJI All Rights Reserved.
Searching for Keywords
Search for keywords such as FOV and Mount to find a topic. If you are using Adobe
Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on
Mac to begin a search.
Navigating to a Topic
View a complete list of topics in the table of contents. Click on a topic to navigate to
that section.
Printing this Document
This document supports high resolution printing.
This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized
by DJI, you are not eligible to use or allow others to use the document or any part of
the document by reproducing, transferring or selling the document. Users should only
refer to this document and the content thereof as instructions to operate DJI UAV. The
document should not be used for other purposes.

©2023 DJI All Rights Reserved.
3
Using this Manual
Legend
Important Hints and Tips
Read Before Use
DJITM provides users with tutorial videos and the following documents.
1. Safety Guidelines
2. Quick Installation Guide
3. Installation and Setup Manual
4. User Manual
It is recommended to watch all tutorial videos and read the Safety Guidelines before
using for the first time. Prepare for dock installation and first flight by reviewing the Quick
Installation Guide. Refer to the Installation and Setup Manual and this user manual for
more information.
• DJI Dock must be installed and set up by an authorized service provider.
Unauthorized installation and set up may lead to safety risks. Contact DJI
Support for more information on authorized service providers.
Download DJI Assistant 2
Download and install DJI ASSISTANTTM 2 (Enterprise Series) using the link below:
https://www.dji.com/dock/downloads
Video Tutorials
Go to the address below or scan the QR code to watch the tutorial videos, which
demonstrate how to use the product safely.
• The operating temperature of DJI Dock is -35° to 50° C (-31° to 122° F), while that
of the aircraft is -20° to 50° C (-4° to 122° F). Both products DO NOT meet the
standard operating temperature for military grade application of -55° to 125° C
(-67° to 257° F), which is required to endure greater environmental variability.
Operate the products appropriately and only for applications that meet the
operating temperature range requirements of that grade.
https://www.dji.com/dock/video

4
©2023 DJI All Rights Reserved.
Contents
Using this Manual 3
Legend 3
Read Before Use 3
Download DJI Assistant 2 3
Video Tutorials 3
Product Profile 7
Introduction 7
Feature Highlights 8
Overview 9
Flight Procedure 12
Flight Safety 14
Compliance with Regulations 14
Environment and Wireless Communications Requirements15
Flight Restrictions and Unlocking 16
Remote Controller B 20
Flight Test Checklist 21
Dock 25
Electrical Cabinet 25
Dock Cover 28
Emergency Stop Button 31
Environment Sensors 32
Landing Pad 34
Dock RTK Module 35
Air Conditioning System 35
Backup Battery 35
Dock Network Connection 37
IP Rating of the Dock 37
Aircraft 39
Flight Modes 39
Vision System and Infrared Sensing System 39
Return to Home 43
Aircraft Indicators 48
Beacons and Auxiliary Light 49

©2023 DJI All Rights Reserved.
5
Propellers 50
FPV Camera 52
Cameras 52
Gimbal 54
Aircraft RTK 55
IP Rating of the Aircraft 55
Intelligent Flight Battery 56
DJI FlightHub 2 61
Cloud Management 61
Real-time Device Information 63
Dock Management 69
Appendix 74
Aircraft Settings Using the Remote Controller 74
Firmware Update 74
Access to a Third-Party Cloud Platform 75
Specifications 76
Using Third-Party Payloads 82
Troubleshooting List 84
FAR Remote ID Compliance Information 85

6
©2023 DJI All Rights Reserved.
Product Profile
This chapter introduces the Dock Bundle and
lists the components of the dock and the
aircraft.

©2023 DJI All Rights Reserved.
7
Product Profile
Introduction
DJITM Dock is an automatic unattended operation platform with highly integrated design,
including an ultra wide-angle camera, wind speed gauge, rainfall gauge, communication
antennas, RTK module, and UPS power supply. DJI Dock has strong environmental
adaptability. With built-in lightning protection and a protection level of IP55 (refer to IEC
60529 standard), DJI Dock can operate even in harsh climates. The longest maintenance
interval is six months [1]. DJI Dock comes with a quick-charging module and TEC air
conditioner, allowing it to cool down the battery in a short time. It takes approximately 25
minutes [2] to charge the battery from 10% to 90%. And the operating radius is up to 7 km. [3]
One DJI Dock weighs less than 105 kg and has a dimension smaller than 1 square-meter
footprint, and supports quick installation and configuration.
DJI MATRICE TM 30 Series (M30/M30T) Dock Version is equipped with a multi-redundancy
flight controller system, six-directional sensing and positioning system [4], high-
performance multi-camera load, and a new FPV camera with night vision, providing
automatic Return to Home and obstacle sensing. The aircraft has a maximum flight time
of approximately 40 minutes. [5]
DJI FlightHub 2 is a cloud-based aircraft task management platform, allowing users to
plan flight routes, set flight task plans, view livestreams, upload and download media
files, and conduct remote debugging. It can also work with DJI Dock and Matrice 30 Series
Dock Version aircraft to perform unattended operations, achieving efficient flight task and
device management.
[1] Depending on environmental conditions and the frequency of DJI Dock operations, it is
recommended that maintenance be conducted every six months or less.
[2] Measured at a temperature of 25° C (77° F). As the temperature increases, the battery
cooling time will increase and lengthen downtime.
[3] Measured in environments without transmission or signal interference, and wind speeds
<4 m/s, where the aircraft has a flight speed of 15 m/s and reserves 20% battery as a safety
buffer for landing.
[4] The vision system and infrared sensing systems are affected by surrounding conditions.
Refer to the Vision System and Infrared Sensing System section for more information.
[5] Measured in windless environment with a constant flight speed of 10 m/s, and should be
used for reference only. The actual use time may vary depending on the environment, flight
mode, and the use of accessories.

8
©2023 DJI All Rights Reserved.
Matrice 30 Series Dock Bundle User Manual
Feature Highlights
Automated Operation: The powerful adaptability allows DJI Dock to operate in harsh
environments. DJI Dock can work with the Matrice 30 Series Dock Version aircraft to
perform automatic flight tasks, battery charging and management, temperature and
humidity control, achieving unattended operations.
Precise Positioning and Flight: The internal RTK module of DJI Dock can receive a
dual-band multi-mode GNSS signal, providing high-precision data for centimeter-level
positioning. Precise flight and landing can be achieved when used with the Matrice 30
Series Dock Version aircraft. [1]
Video Transmission: Matrice 30 Series Dock Version aircraft features long-range
transmission O3 Enterprise (OCUSYNCTM 3.0 Enterprise) technology, providing users with
improved transmission quality and ensure safer flight in complex environments.
Cloud Management: DJI FlightHub 2 supports flight task planning and device
management of the dock. Users can set flight task plans based on actual needs. The
aircraft will automatically takeoff according to the preset task plans, and the media files
will be automatically uploaded to DJI FlightHub 2. During the operation, livestreams
and real-time device information can be viewed remotely to monitor the operation site.
Users can also view the operation status of the dock and aircraft and conduct remote
debugging, making device management more convenient. [2]
[1] The dock coordinates need to be calibrated to obtain accurate absolute position when
configuring the dock.
[2] For more information, refer to the DJI FlightHub 2 User Guide, which is available to
download from the official DJI website https://www.dji.com/flighthub-2/downloads.

©2023 DJI All Rights Reserved.
9
Matrice 30 Series Dock Bundle User Manual
Overview
DJI Dock
1. Status Indicators
2. Internal Video
Transmission Antennas
3. Dock Cover Arms
4. Matrice 30 Series Dock
Version
5. Landing Pad Bolts
6. Wind Speed Gauge
7. Integrated Security
Camera
8. Camera Auxiliary Light
9. Rainfall Gauge
10. Dock Cover Propeller
Bumpers
11. Emergency Stop
Button
12. Electrical Cabinet
Triangular Lock
13. Mounting Base
Brackets

10
©2023 DJI All Rights Reserved.
Matrice 30 Series Dock Bundle User Manual
123
5
14
16
19
2 0
15
18
3
11 12
21 22
5
4
4
4
4
6
9
10
7
78
13
17
Matrice 30 Series Dock Version
21
M30
M30T
1. FPV Camera
2. Forward Infrared Sensing
System
3. Forward Vision System
4. Left and Right Vision Systems
5. Left and Right Infrared Sensing
Systems
6. microSD Card Slot
7. Upward Vision System
8. Upward Infrared Sensing
System
9. Power Button/Indicator
10. PSDK Port
11. Upward Beacon
12. Assistant Port
13. Frame Arm Folding Buttons
14. Frame Arms
15. Motors
16. Propellers
17. Aircraft Rear Indicators
18. GNSS Antennas
19. Video Transmission
Antennas
20. Front LEDs
21. Gimbal and Camera [1]
22. Charging Ports
[1] The M30 and M30T are equipped with different
cameras. Refer to the actual product purchased.

©2023 DJI All Rights Reserved.
11
Matrice 30 Series Dock Bundle User Manual
Rear View
23 23
25
26 27
2 8
29
24
Bottom View
30 30
31
32 32
33
23. Backward Vision System
24. Backward Infrared Sensing System
25. Air Vent
26. TB30 Intelligent Flight Battery
27. Battery Level LEDs
28. Battery Level Button
29. Battery Release Toggle
30. Downward Vision System
31. Downward Infrared Sensing System
32 Bottom Auxiliary Light
33. Downward Beacon
• DO NOT disassemble the product without the assistance of a DJI authorized
dealer (except for components allowed to be disassembled by users in this
guide), otherwise it will not be covered under warranty.
DJI RC Plus Remote Controller
DJI RC Plus remote controller can be used for dock configuration and debugging. The
remote controller can also link to the aircraft as controller B for manual flight control.
Refer to the Remote Controller B section for more information.

12
©2023 DJI All Rights Reserved.
Matrice 30 Series Dock Bundle User Manual
• For more information, refer to the DJI FlightHub 2 User Guide which is available
to download from the official DJI website https://www.dji.com/flighthub-2/
downloads.
Bind Dock to Project
(Device Management)
Edit Flight Route
(Flight Route Library)
Plan Flight Task
(Task Plan Library)
Real-Time Project Details
（
View Media Files
(Media Files)
Power on aircraft
Open dock cover
Release driving rods
Aircraft take off
Close dock cover
Aircraft return to dock
Open dock cover
Aircraft landing
Live Flight Control
Pull back driving rods
Aircraft return to center
Close dock cover
Rotate and fold propellers
Upload media files to
DJI FlightHub 2
Power off aircraft
Charge batteries
Wait for next flight
Flight Altitude
Flight Speed
Gimbal Pan/Tilt
Camera Action
… …
Flight Trajectory
Device Statuses
Warning Messages
Livestreams
Plan Timer
RTH Altitude
Signal Lost Action
Device Maintenance
Device Details
Remote Debugging
Issue Report
Photos
Livestream Records
DJI FlightHub 2
The Dock and the Aircraft
Automatic flight
Resume Flight Route
Gain Control
RTH

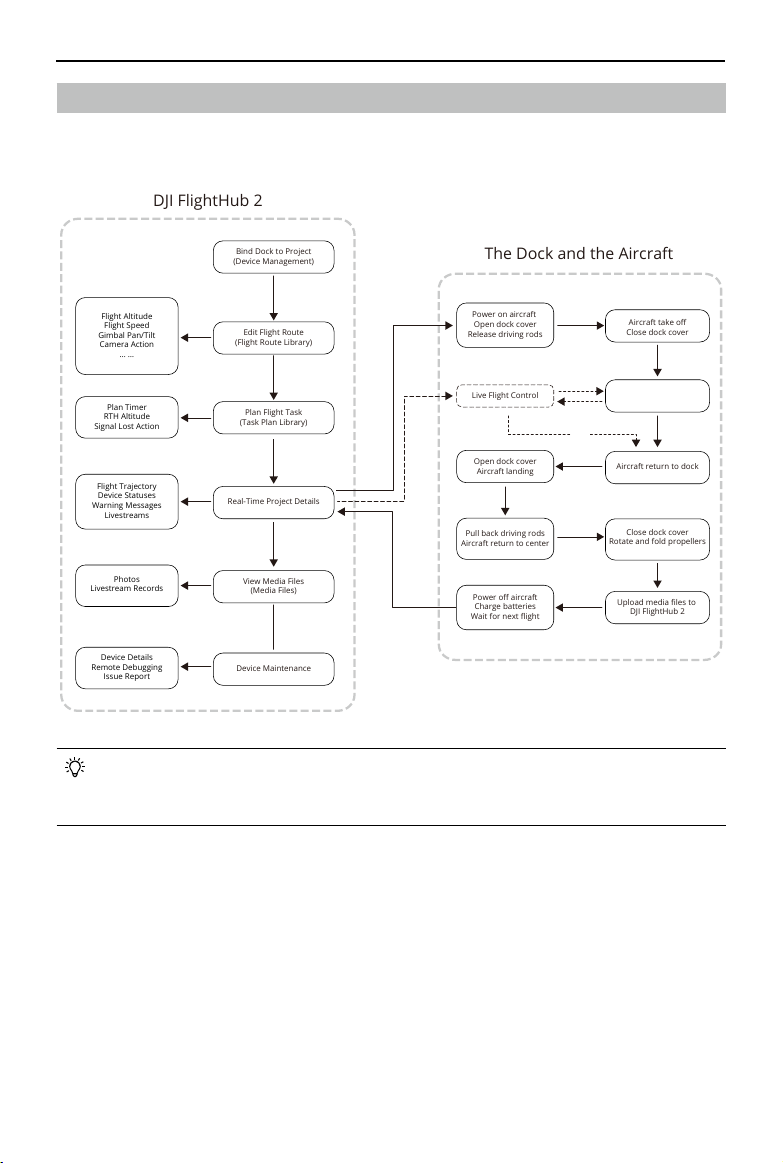

Flight Procedure
The operating procedure in FlightHub 2 and the automated flight procedure of the dock
and the aircraft is shown in the figure:

©2023 DJI All Rights Reserved.
13
Flight Safety
This chapter provides information
about compliance with regulations,
flight environment and wireless
communication requirements, and
introduces the control of remote
controller B and flight test checklist.

14
©2023 DJI All Rights Reserved.
Flight Safety
Compliance with Regulations
1. DO NOT operate in the vicinity of manned aircraft. DO NOT interfere with the
operations of manned aircraft. Be alert and make sure there is no other aircraft in the
operation area.
2. DO NOT fly the aircraft in venues of major events, including but not limited to sporting
events and concerts.
3. DO NOT fly the aircraft without authorization in areas prohibited by local laws.
Prohibited areas include airports, national borders, major cities and densely
populated areas, venues of major events, areas where emergencies have occurred
(such as forest fires), and locations with sensitive structures (such as nuclear power
plants, power stations, hydropower plants, correctional facilities, heavily traveled
roads, government facilities, and military zones).
4. DO NOT fly the aircraft above the authorized altitude. DO NOT use the aircraft to carry
illegal or dangerous goods or payloads.
5. Make sure you understand the nature of your flight operation (such as for recreation,
for public use, or for commercial use) and have obtained corresponding approval
and clearance from the related government agencies before flight. Consult with your
local regulators for comprehensive definitions and specific requirements. Note that
remote-controlled aircraft may be banned from conducting commercial activities in
certain countries and regions. Check and follow all local laws and ordinances before
flying, as those rules may differ from those stated here.
6. Respect the privacy of others when using the camera. DO NOT conduct surveillance
operations, such as image capture or video recording on any person, entity, event,
performance, exhibition, or property without authorization or where there is an
expectation of privacy, even if the image or video is captured for personal use.
7. Be advised that in certain areas, the recording of images and videos from events,
performances, exhibitions, or commercial properties by means of a camera may
contravene copyright or other legal rights, even if the image or video was shot for
personal use.
8. DO NOT use this product for any illegal or inappropriate purpose, such as spying,
military operations, or unauthorized investigations. DO NOT trespass onto the private
property of others. DO NOT use this product to defame, abuse, harass, stalk, threaten,
or otherwise violate the legal rights of others, such as privacy and publicity rights.

©2023 DJI All Rights Reserved.
15
Matrice 30 Series Dock Bundle User Manual
Environment and Wireless Communications Requirements
1. DO NOT fly the aircraft in severe weather conditions, including strong winds (speeds
exceeding 12 m/s), sandstorms, snow, rain, smog, hail, lightning, tornadoes, or
hurricanes.
2. Avoid obstacles, crowds, trees, and bodies of water (recommended height is at least 3 m
above water).
3. Be extremely alert when flying near areas with magnetic or radio interference. It is
recommended to set the remote controller as controller B during flight tests. Pay close
attention to the video transmission quality and signal strength on DJI Pilot 2. Sources
of electromagnetic interference include but are not limited to: high voltage lines,
large-scale power transmission stations or mobile base stations, and broadcasting
towers. The aircraft may behave abnormally or lose control when flying in areas with
too much interference. Return to the dock and land the aircraft, and make future task
plans until the flight test is stable.
4. Fly in wide open areas. Tall buildings, steel structures, mountains, rocks, or tall trees
may affect the accuracy of the GNSS and block the video transmission signal.
5. Avoid interference between the dock and other wireless equipment. It is
recommended to power off nearby Wi-Fi and Bluetooth devices.
6. The performance of the aircraft and its batteries are limited when flying at high
altitudes. Fly with caution.
7. DO NOT use the aircraft or the dock in an environment at risk of a fire or explosion.
8. Only operate the dock and the aircraft only for applications in the operating
temperature range. The operating temperature of DJI Dock is -35° to 50° C (-31° to
122° F), and the operating temperature of the aircraft is -20° to 50° C (-4° to 122° F). In
low-temperature environments, it is necessary to check whether the dock cover and
the aircraft is covered with snow and ice, and whether the propellers are frozen using
the dock camera livestreams.
9. Make sure to set an alternate landing site before flight. The aircraft will fly to the
alternate landing site when the dock's conditions are not suitable for landing. Follow
the instructions in DJI Pilot 2 to set an alternate landing site when configuring the
dock. An obvious sign should be set up near the alternate landing site. Make sure that
the area within the five-meter radius of the alternate landing site is clear of obstacles.

16
©2023 DJI All Rights Reserved.
Matrice 30 Series Dock Bundle User Manual
Flight Restrictions and Unlocking
GEO (Geospatial Environment Online) System
The DJI Geospatial Environment Online (GEO) system is a global information system that
provides real-time information on flight safety and restriction updates and prevents
UAVs from flying in restricted airspace. Under exceptional circumstances, restricted areas
can be unlocked to allow flight. Prior to that, the user must submit an unlocking request
based on the current restriction level in the intended flight area. The GEO system may not
fully comply with local laws and regulations. Users shall be responsible for their own flight
safety and must consult with the local authorities on the relevant legal and regulatory
requirements before requesting to unlock a flight in a restricted area.
GEO Zones
DJI’s GEO system designates safe flight locations, provides risk levels and safety notices
for individual flights and offers information on restricted airspace. All restricted flight
areas are referred to as GEO Zones, which are further divided into Restricted Zones,
Authorization Zones, Warning Zones, Enhanced Warning Zones, and Altitude Zones.
GEO Zones include but are not limited to airports, venues of major events, areas where
emergencies have occurred (such as forest fires), nuclear power plants, correctional
facilities, government facilities, and military zones. Users can view real-time GEO
information in DJI FlightHub 2.
By default, the GEO system limits takeoffs and flights in zones that may cause safety or
security concerns. A GEO Zone map that contains comprehensive information on GEO
Zones around the globe is available on the official DJI website:
https://fly-safe.dji.com/nfz/nfz-query.
The settings and alerts provided by DJI on operations within GEO Zones are only to assist
the user in ensuring flight safety and DO NOT guarantee full compliance with all local laws
and regulations. Before each flight task, the user is responsible for seeking advice on the
relevant local laws, regulations, and requirements for the safety of their own aircraft.
Flight Restrictions in GEO Zones
The following section describes in detail the flight restrictions for the above mentioned
GEO Zones.
GEO Zone Flight Restriction Scenario
Restricted
Zones (Red)
UAVs are prohibited from flying
in Restricted Zones. If you have
obtained permission to fly in
a Restricted Zone, please visit
https://fly-safe.dji.com/unlock
or contact [email protected] to
unlock the zone.
The aircraft cannot take off, and a
prompt will appear in DJI FlightHub 2
when the flight route passes through
the Restricted Zones.

©2023 DJI All Rights Reserved.
17
Matrice 30 Series Dock Bundle User Manual
Authorization
Zones (Blue)
The aircraft will not be able to
take off in an Authorization
Zone unless it obtains a
permission to fly in the area.
The aircraft cannot take off, and a
prompt will appear in DJI FlightHub 2
when the flight route passes through
the Authorization Zones. To fly in
an Authorization Zone, the user is
required to submit an unlocking
license request and synchronize the
license to the dock in DJI Pilot 2 app.
Warning Zones
(Yellow)
Enhanced
Warning Zones
(Orange)
The aircraft can fly in the zone.
The aircraft can fly in the zone. Please
view GEO information in DJI FlightHub 2
and stay alert.
Altitude Zones
(Gray)
The aircraft’s altitude is limited
when flying inside an Altitude
Zone.
The aircraft cannot take off, and a
prompt will appear in DJI FlightHub 2
when the planned flight altitude exceeds
the maximum altitude of the aircraft.
When creating a flight task in Task Plan Library, make sure that the selected flight
route does not pass through any GEO zones, and that the RTH altitude and flight
route altitude is at least 5 m below the altitude limit. It is recommended that the
flight route keeps a horizontal distance of at least 20 m from the GEO zone.
Buffer Zone
Buffer Zones for Restricted Zones/Authorization Zones: to prevent the aircraft from
accidentally flying into a Restricted or Authorization Zone, the GEO system creates a
buffer zone of about 20 meters wide outside each Restricted and Authorization Zone.
As shown in the illustration below, the aircraft can only take off and land away from
the Restricted or Authorization Zone when inside the buffer zone. The aircraft cannot
fly toward the Restricted or Authorization Zone unless an unlocking request has been
approved. The aircraft cannot fly back into the buffer zone after leaving the buffer zone.
Buffer Zones for Altitude Zones: a buffer zone of about 20 meters wide is established
outside each Altitude Zone. As shown in the illustration below, when approaching the
buffer zone of an Altitude Zone in a horizontal direction, the aircraft will gradually reduce
its flight speed and hover outside the buffer zone. When approaching the buffer zone
from underneath in a vertical direction, the aircraft can ascend and descend in altitude

18
©2023 DJI All Rights Reserved.
Matrice 30 Series Dock Bundle User Manual
Unlocking GEO Zones
To satisfy the needs of different users, DJI provides two unlocking modes: self-Unlocking
and Custom Unlocking. Users may request on the DJI Fly Safe website.
Self-Unlocking is intended for unlocking Authorization Zones. To complete Self-
Unlocking, the user is required to submit an unlocking request via the DJI Fly Safe website
at https://fly-safe.dji.com/unlock Once the unlocking request is approved, the user may
synchronize the unlocking license to the dock using the DJI Pilot 2 app to unlock the zone.
The user can designate an unlocked period during which multiple flights can be operated.
Custom Unlocking is tailored for users with special requirements. It designates user-
defined custom flight areas and provides flight permission documents specific to the
needs of different users. This unlocking option is available in all countries and regions and
can be requested via the DJI Fly Safe website at https://fly-safe.dji.com/unlock.
For more information about unlocking, please visit https://fly-safe.dji.com or contact
[email protected].
or fly away from the Altitude Zone. The aircraft cannot fly toward the Altitude Zone. The
aircraft cannot fly back into the buffer zone in a horizontal direction after leaving the
buffer zone.
Ground
Restricted Zone/
Authorized Zone
Ground
Buffer Zone
Altitude Zone
Altitude Limit
20 m 20 m
20 m 20 m
5m
Flight Altitude

©2023 DJI All Rights Reserved.
19
Matrice 30 Series Dock Bundle User Manual
Max Altitude
Max Radius
Home Point
Altitude of aircraft when
powered on
Home Point not manually updated during flight
Flight Restrictions DJI FlightHub 2 Prompt
Max Altitude Altitude of the aircraft cannot
exceed the value set in DJI
FlightHub 2.
Flight route altitude exceeds
maximum altitude, the dock is
unable to perform flight task.
Max Distance The straight-line distance from
the aircraft to the Home Point
cannot exceed the max flight
distance set in DJI FlightHub 2.
Flight route distance exceeds
maximum distance, the dock is
unable to perform flight task.
• The aircraft cannot take off when the GNSS signal is weak.
• DO NOT fly the aircraft close to airports, highways, railway stations, railway
lines, city centers, or other sensitive areas.
Maximum Altitude & Distance Restrictions
Maximum flight altitude restricts the aircraft flight altitude, while maximum flight distance
restricts the aircraft flight radius around the dock. These limits can be set using the DJI
FlightHub 2 for improved flight safety. The maximum flight altitude is 120 m (393.7 ft) by
default. Fly at altitudes lower than the maximum altitude in accordance with all local laws
and regulations.*
* Flight altitude restrictions vary in different regions. DO NOT fly above the maximum altitude
set forth in your local laws and regulations.

20
©2023 DJI All Rights Reserved.
Matrice 30 Series Dock Bundle User Manual
Remote Controller B
DJI RC Plus remote controller can be linked to the aircraft as controller B. During on-
site flight tests, the remote controller can take over control and manually control flight.
After the remote controller gains control, press and hold the RTH button on the remote
controller, and the aircraft will return to the dock.
Linking Remote Controller B
The dock is already linked to the aircraft when it is purchased together in the Dock Bundle.
Link the remote controller to the aircraft as controller B following the steps below:
1. Power on the remote controller and the aircraft.
2. Run DJI Pilot 2, tap Controller A > Switch to Controller B.
3. Press and hold the power button on the aircraft for at least five seconds.
4. When linking is successful, the remote controller will beep twice.
Gaining Control Using Remote Controller B
1. To gain control of the aircraft, press the aircraft control button on the upper-left of
the remote controller; and then press the orange Pause button on the upper-right to
control flight manually.
2. To gain control of the gimbal camera, tap on the upper right corner of the gimbal
camera view in DJI Pilot 2.
• Make sure to link the dock to the aircraft first, and then link tremote controller B.
• The remote controller is not included in the Matrice 30 Series Dock Bundle. Pay
attention to flight safety when manually controlling with the remote controller.
Visit https://www.dji.com/cn/matrice-30/downloads, carefully read, understand,
and follow the instructions in the disclaimer and safety guidelines and the user
manual.
• DO NOT update the Home Point after gaining control. Otherwise the aircraft
cannot return to the dock.
Control of the Dock and the Remote Controller
1. Control over the aircraft is independent of control over the gimbal camera. The control
sticks are used for operating the gimbal if the remote controller only has control over
the gimbal camera. When the remote controller has full control, the control sticks are
used for controlling the aircraft and the dials for adjusting gimbal movement.
2. By default, the dock connected to the aircraft is granted control of both the aircraft
and the gimbal camera, while the remote controller is not given any control.
