VenaFlow Elite mimics ambulation
and reduces DVT rates
VenaFlow®Elite S

1Inflation Cycle
indicator
3Patient Compliance
counter reset push button
2Patient Compliance
counter
4ON/OFF/RESET
push button
7
Battery Indicator
*Note: Not all VenaFlow Elite
Systems contain a battery
5S Mode Operation
button
8S Mode Operation
indicator
6
1
2
345
6
7
8
1. Set up Pump
•Press bed hanger release on the back of the pump and gently pull out
bed hanger hook to the desired width.
•Connect tubing to the pump. Plug pump into electrical outlet.
2. Apply Cu
•The VenaFlow Elite system will automatically detect the type of cu and the number of cus attached and apply appropriate
pressures. Cus must be attached prior to powering on the service.
•Be sure to secure cu straps snug but not tight. When using the calf cu and thigh cu, rotation of the aircell on the leg does not
aect performance of the system.**
Bed hanger release
Graphical display
Pump indicator lights
(green = on, flashing
red = alarm)
Telescoping bed
hanger hook
Calf or Thigh Cu:
For varied patient sizes, trim for proper, snug fit.
•Apply cu snugly with the tube pointed
toward the foot. Aircell can be orientated to
patient and nursing preference (posterior,
lateral, anterior, or medial).**
Symbol Definitions
Power on/o button and alarm reset Tube alarm See VenaFlow Elite System
operator’s manual Dual calf/thigh
S Mode Operation Call for service Battery Single calf/thigh
Compliance monitor reset Inflation cycle indication
(Bars indicate cus are inflating) Lock mode Dual foot
CVisual only compliance alarm enabled Visual and audio compliance
alarm enabled Single foot
Foot Cu:
•Apply foot cu snugly with the aircell
centered on bottom of foot and with the
tube pointed to the left. Foot cus are only
for use in standard rapid mode.
Single/Dual Leg
operation indicator

www.DJOglobal.eu
3. Connect System
Connect cus to the tubing that is attached to the pump.
Intended Use/Indications
The VenaFlow Elite System is intended as a prophylaxis for deep vein thrombosis (DVT).
Contraindications
The VenaFlow Elite System should not be used by persons with known or suspected deep vein thrombosis, severe congestive heart failure, pulmonary edema, thrombophlebitis, severe arteriosclerosis, or active infection. Do
not use on extremities which are not sensitive to pain, where cu will interfere with gangrene, on patients with vein ligation or recent skin grafts, or extreme deformity of the leg. Do not use the VenaFlow Elite System where
increased venous or lymphatic return is undesirable.
Warning and Precautions
• The VenaFlow Elite cus are designed for single patient use only.
• Risk of explosion if used in the presence of flammable anaesthetics.
• The equipment or system should not be used adjacent to or stacked with other equipment and, if adjacent or stacked use is necessary, the equipment or system should be observed to verify normal operation in the
configuration in which it will be used.
• Medical Electrical Equipment needs special precautions regarding EMC. Portable and Mobile RF Communications Equipment can be aected by other Medical Electrical Devices.
• Cus used in combination with warming devices may cause skin irritation. Regularly check for patient comfort, compliance and skin irritation.
• Special attention should be given to those patients with neuropathies or tissue viability problems (i.e. diabetes, arterial or venous insuciencies).
• To prevent extremity compartment syndrome, special attention should be given to patients who are positioned in the supine lithotomy position for extended lengths of time. This includes patients with or without
compression cus.
• If you experience pain, swelling, sensation changes or any unusual reactions while using this device, consult your medical professional immediately.
4. Standard Rapid Mode Operation
•Press ON/OFF/RESET button.
•Cu inflation alternates between the two legs every 30
seconds.
•Distal aircell inflates first and the proximal aircell follows.
•Pressures settle at 45mmHg ± 15%. (Foot Cu peak ~130
mmHg.)
•After six seconds the cu deflates.
•Alarm will sound if the system is not functioning properly.
5. S Mode Operation
•When powered on, the VenaFlow Elite System will default
to standard rapid inflation mode. If a slower inflation is
desired, select the S mode operation button.
•Once selected, both cus will inflate simultaneously once
per minute.
•Both cus will inflate and compress for a total of 10 seconds.
•While in S mode the icon will appear in the top center
of the graphical display. The device will remain in S mode
until user presses the S mode operation button again.
This button allows user to toggle between standard rapid
inflation mode and S mode.
6. Locking in Standard Rapid
or S Mode
•To lock in standard rapid mode, make sure the device is in
standard rapid mode, then press and hold the S mode
button for 5 seconds. Do the same to unlock it.
•To lock in S mode, make sure the device is in S mode and
press and hold the S mode button for 5 seconds. Do
the same to unlock it.
•Once the system is locked in either standard or S mode, the
lock symbol will appear on the screen.

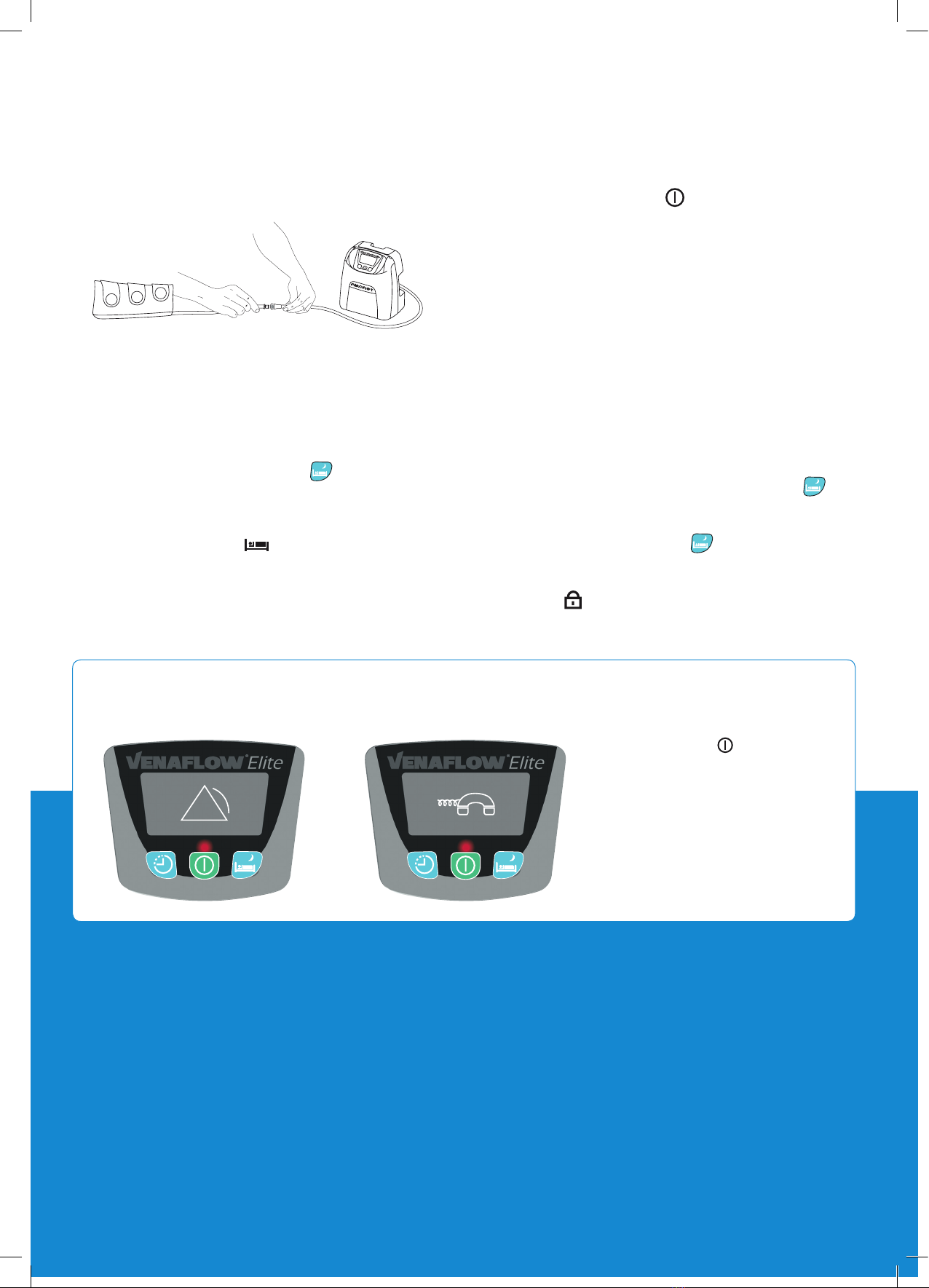

Check Tubes Alarm
(Kinked or Disconnected Tube)
Call For Service Alarm
(Ship back to DJO for repair)
Alarm Reset
•To reset any alarm, press the center
ON/OFF/RESET button and
take steps to correct the alarm if
necessary.
•Note: Pressing ON/OFF/RESET
following alarm only resets the alarm.
The device will continue to run and will
not shut down. Alarm will continue at
next cycle if not corrected.

©  DJO - -EN - Rev B
DJO Global International |a Guildford Business Park |Guildford |Surrey |GU XG |UNITED KINGDOM
www.DJOglobal.co.uk
ORDERING INFORMATION
Part Number Description Quantity Max.
Circumference
30BI-S VenaFlow Elite System with S mode (International) 1N/A
30BI-SB VenaFlow Elite System battery version with S mode (International) 1N/A
3040 VenaFlow Elite Calf Cu Pair 48cm
3042 VenaFlow Elite XL Calf Cu Pair 56cm
3043 VenaFlow Elite Bariatric Calf Cu Pair 76cm
3045 VenaFlow Elite Thigh Cu Pair 74cm
3046 VenaFlow Elite Foot Cu Pair Universal
3050 VenaFlow Elite Foam Calf Cu Pair 48 cm
3008 Tube Assembly, 168 cm Each
3008XL Tube Assembly, 260 cm Each
3008XXL Tube Assembly, 320 cm Each
3008XXXL Tube Assembly, 380 cm Each
SYSTEM REPLACEMENT PARTS
Part Number Description
3071 Bed Hanger
3072 Tube Attachment Tag
3073 Fuse
FEATURES & BENEFITS
Features Benefits
Low Profile, Lightweight Design Easily stored, easily transported
Telescoping Bed Hanger Extends to accommodate up to 9cm
Automatic Single/Dual Leg Detection System automatically detects and icon(s) appear on screen
Automatic Cu Detection System automatically identifies and adjusts pressure based on cus attached prior to turning pump on
Preset Pressures & Alarms No adjustments necessary
Compliance Monitor/Alarm Available with compliance counter plus alarm notification for non-compliance
One Pump for Calf, Thigh, & Foot Cus Provides for ease of use and minimizes inventory
Soft, Breathable Cus Assists in increasing patient comfort and compliance
S Mode Operation Toggle between Standard Mode (rapid) and S Mode (slower, sustained inflation).
Can also lock into Standard or S Mode by pressing button for five seconds
