CR65W
USERMANUAL
MANUELDEL'UTILISATEUR
130.com.ua
Autogood products «130»

CONTENTS
IMPORTANTSAFETY
INSTRUCTION ..........................................................................2
PACKAGECONTENTS..................................................................................................3
CONTROLSAND FUNCTIONS ....................................................................................4
INSTALLATION AND CONNECTION .............................................................................6
GETTING
START ...........................................................................................................7
INTRODUCTIONOF OTHERFUNCTIONS................................................................12
ON-SCREENDISPLAY(OSD) MENUS ......................................................................14
ADDITIONAL
INFORMATION ......................................................................................16
130.com.ua
Autogood products «130»

TABLEDESMATIÈRES
IMPORTANTINSTRUCTIONSDESÉCURITÉ............................................................18
CONTENUDE L'EMBALLAGE....................................................................................19
COMMANDESET
FONCTIONS ..................................................................................20
INSTALLATIONET
CONNEXION ................................................................................22
DÉMARRER .................................................................................................................23
INTRODUCTION AUXAUTRES FONCTIONS ............................................................28
MENUS À L'ÉCRAN(OSD)..........................................................................................30
INFORMATIONS
COMPLÉMENTAIRES .....................................................................32
130.com.ua
Autogood products «130»

2
IMPORTANTSAFETYINSTRUCTION
About the Product
• Please do not install the product in a highly humid environment.
• Please avoid fierce impact upon the product
• Due to high temperatures during summer, please do not expose the product
to long period of time, because it may reduce the product’s lifespan.
• Please do not install the product in places that may cause interference while
driving.
• A somewhat higher temperature is normal while operating the product;
however, if the product is melting and burning, immediately turn off the power.
About the car charger
• Only use the car charger provided by manufacture, others might cause
malfunctions or danger.
• To avoid damage, please do not constantly plug in and remove the car charger.
• Ensure it is connected to a proper power source. The voltage
requirements are described on the car charger
• Please do not touch the car charger with wet hands.
• If the car charger is damaged, it should be replaced immediately. Please do
not try to fix it on your own.
About the Battery
• Only use the battery approved by the manufacturer
• There is a built-in battery, please avoid usage in high-temperature environments
130.com.ua
Autogood products «130»

3
PACKAGECONTENTS
* Supplied accessories may vary by region.
130.com.ua
Autogood products «130»

4

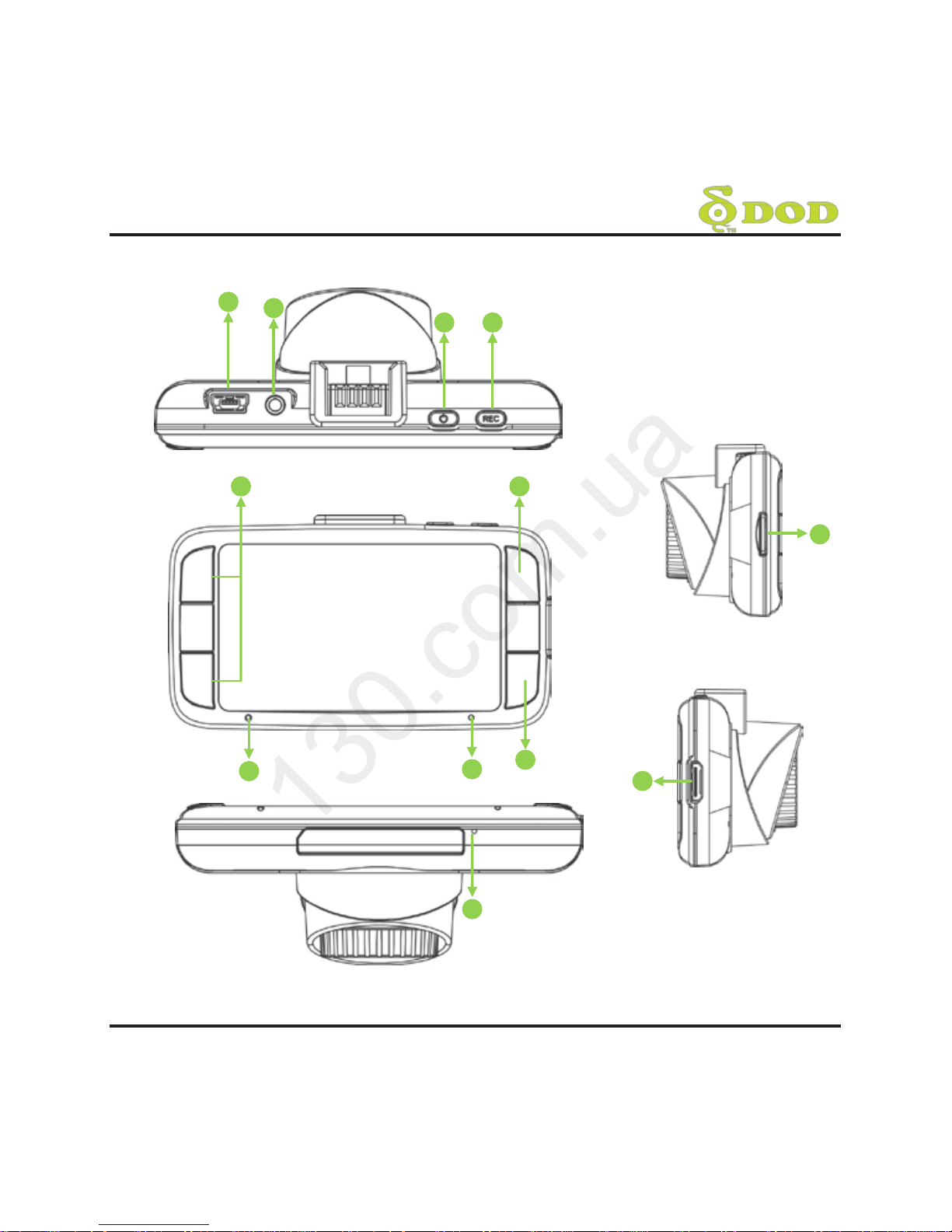

CONTROLSANDFUNCTIONS
6
7
1
3 4
2
5 6
7
8
9
10
11
12
130.com.ua
Autogood products «130»

5
CONTROLSANDFUNCTIONS
１ USB Port
Turn on/off the unit
2 AV Output Port
3 Power/ [ ]
4 Record/Shutter/OK/[ REC]
When the unit is on Recording, press it
for
stop Recording.
When it is at Camera Mode, press it for
photo shooting.
When it is at Playback Mode, press it for
playback pause and play.
When it is at Menu Setting, press it for
activating the selected OSD menu item.
5 Arrow Keys/[ ] , [ ]
When the On-Screen Display (OSD)
menu is
activated, it is used as directional arrows
to select the desired menu items.
When it is at Playback mode, press it to
select
the file you want to view. During movie
playing back, press it to Rewind or fast
forward the tape.
6 Menu/SOS Emergency File Lock/[ ]
Turns on the On-Screen Display (OSD)
menu, Exits and saves menu setting. It
is not activated when the unit is on
recording.
Please press [REC] to stop recording
and back to Standby Mode.
When the unit is on recording, press it
for file lock.
7 Mode/Mute/[ ]
It is not activated when the unit is on
recording. Please press [REC] to stop
recording and back to Standby Mode.
Toggle the unit among “Camera Mode”
“Playback Mode” and “Standby Mode”.
Press and hold [] until icon appears
during recording, the record audio turns
of
f.
8 Light Indicator
• Steady blue – Unit is charging
• Steady red – Unit is at Standby Mode,
Camera Mode or Playback Mode
• Flashing red – Unit is on Recording but
not charging
9 Microphone
Reset Key
Micro SD Card Slot
Required a micro SDHC card, class 10 or
above.
HDMI Output Slot
10
11
12
130.com.ua
Autogood products «130»

6

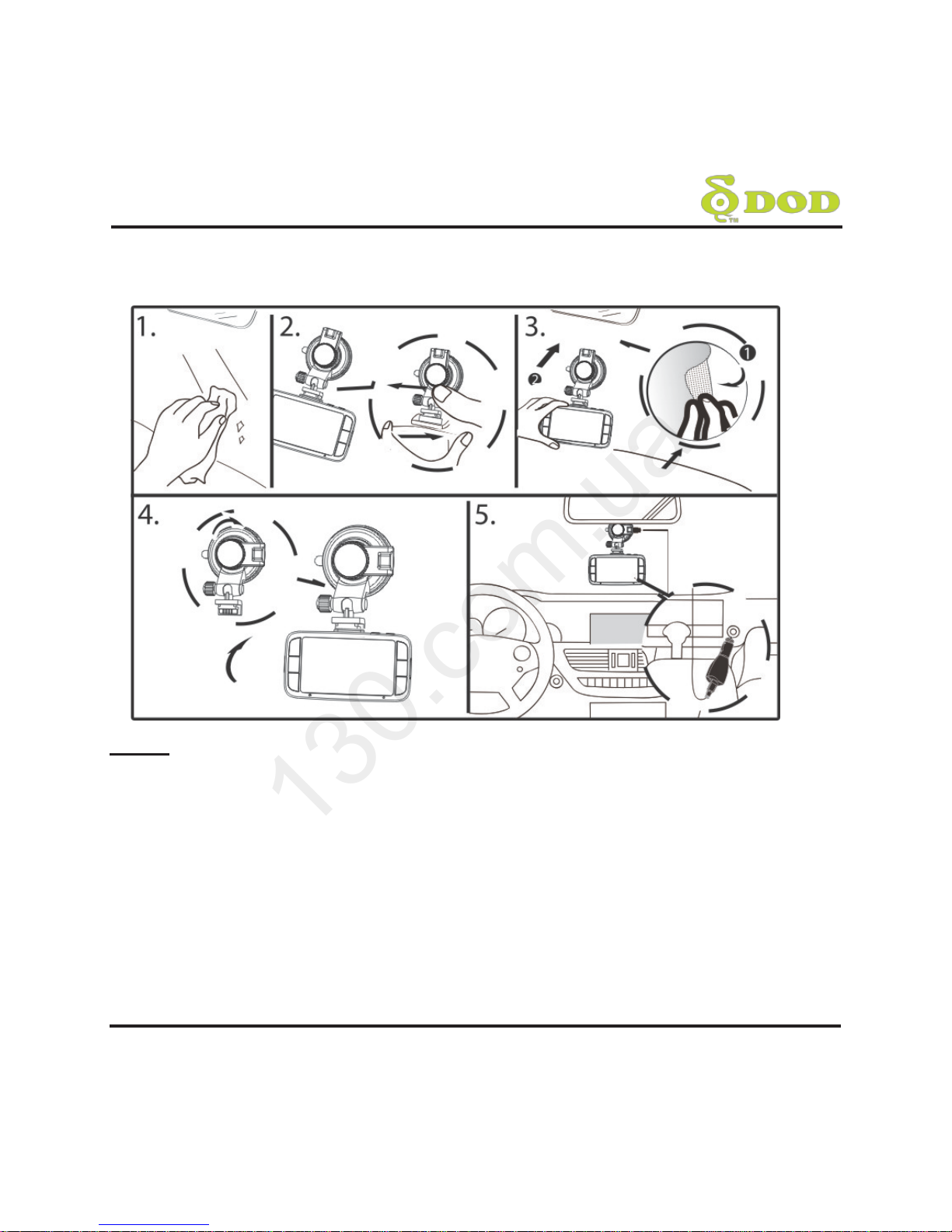

INSTALLATIONANDCONNECTION
NOTE:
• Assemble the unit on to the bracket and mount the bracket on to the
windshield glass.
• Only use the car charger provided by manufacture, others might cause
malfunctions or danger.
• Please cautiously select the location where the unit will be mounted, do not
mount the unit in places that may obstruct the driver’s view or affect the
normal operation of the airbag.
• If grease, fingerprints, or blots are found on the external/internal windshield
of the car, please wipe it clean or install the unit on an unaffected area. Blots
may worsen the recording quality or may cause the bracket to be unstable.
130.com.ua
Autogood products «130»

7
GETTINGSTART
1. Insert a memory card (sold separately)
• Please insert a micro SDHC card with class 10 or above, into the slot located
on the side of the unit.
• Be sure to format the SD card before the initial use.
*This Camera supports to 32GB Micro SD Card. Please contact with your local deal for purchase
information.
2. Turning the power on / off
• Press [ ] button to turn the unit on.
• To turn the unit off, press the [ ] button again.
* After the unit has been installed in your car, connect the car power adapter and start the engine;
the unit will automatically turn on.
130.com.ua
Autogood products «130»

8
GETTINGSTART

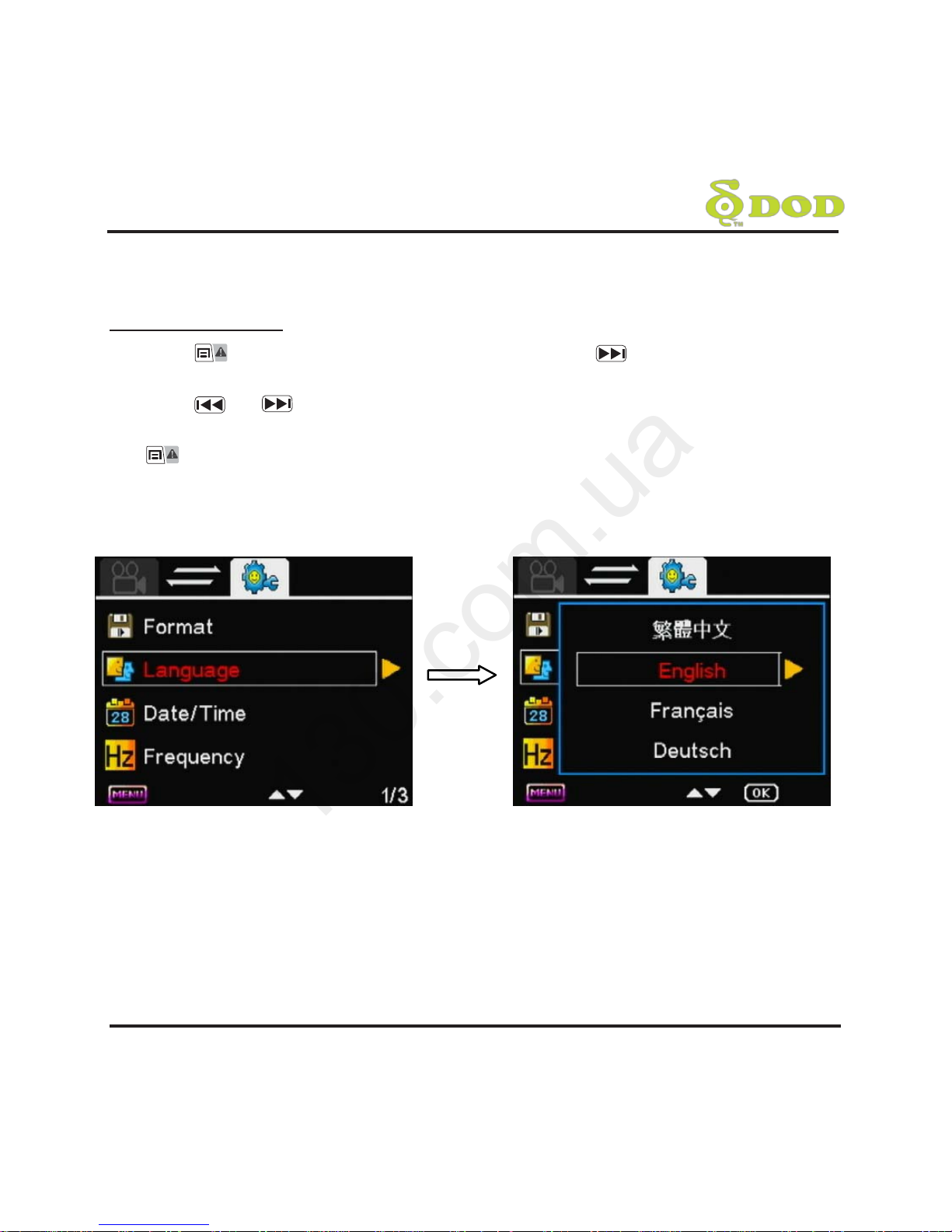

3. Select language
• Press [] Twice to enter system settings, Select [] to Language
• Press [REC].
• Press[ ]or[] to move to Language, and then press[REC]to select the
desired language.
* [ ] is not activated when the unit is on Recording Mode, please press [REC] to stop
recording and return to Standby Mode.
130.com.ua
Autogood products «130»

9
GETTINGSTART
4. Setting the date and time
• Press[] Twice to enter System settings, Select [] to Date/Time.
• Press [REC].
• Press[ ] / [ ] , then select [REC] to set Year, Month, Day, Time, and
Format fields.
• Press [REC]

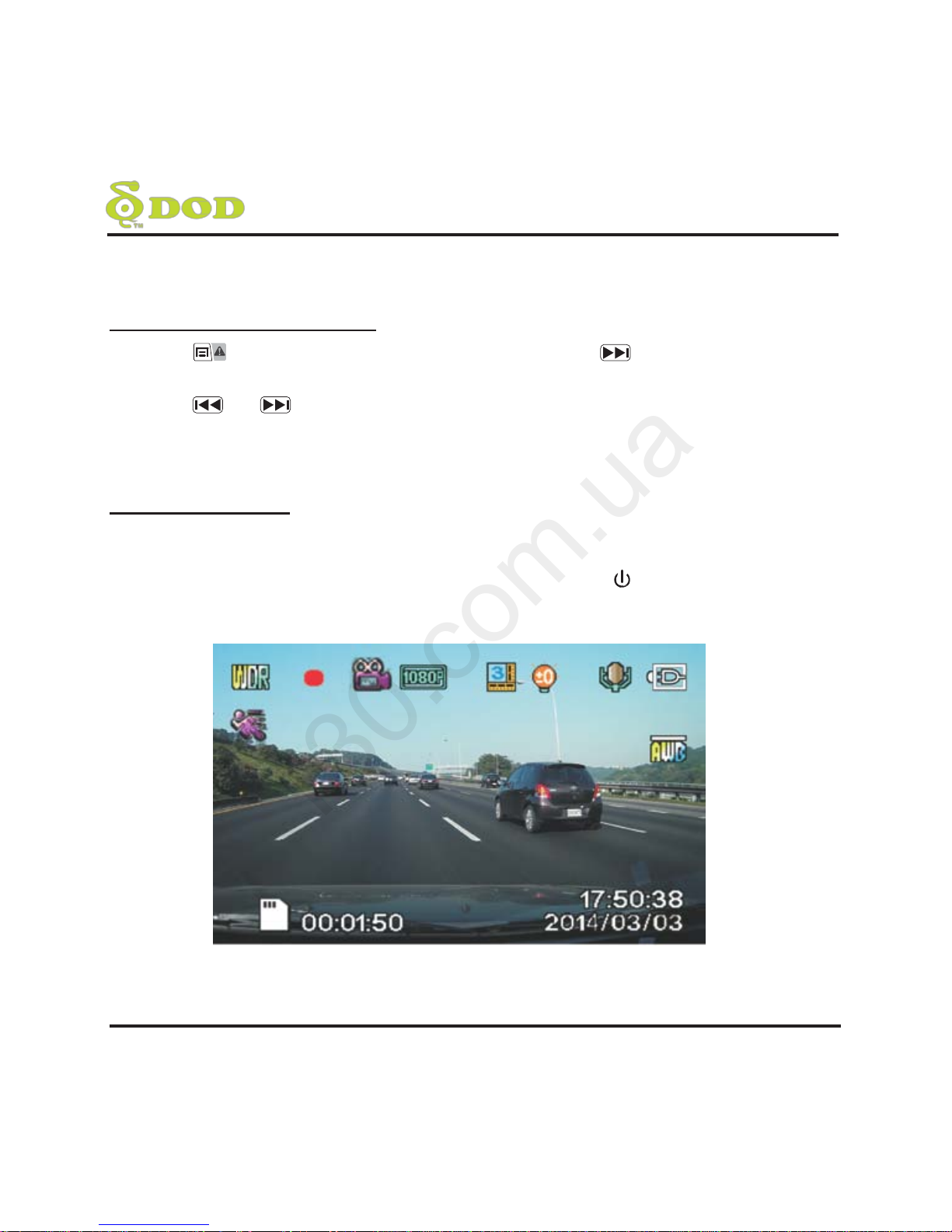

5. Video Recording
• When the car engine is started, the unit will automatically start video
recording (it is mandatory to insert a micro SDHC class 10 memory card).
• When it is not connected to the car charger, press [ ] button to turn on the
unit, and press [REC] button to start video recording.
130.com.ua
Autogood products «130»

10
GETTINGSTART
6. Taking Photos
• Press [ ] once to Camera Mode
• Press [REC] to take a picture.
* [ ] cannot be activated when the unit is on Recording Mode, please press
[REC] to stop recording and return to Standby Mode.
130.com.ua
Autogood products «130»

11
GETTINGSTART
7. Playback Mode
• Select the preview/next photo/movie
-Press [ ] twice to enter Playback Mode
-Press [] / [] to select the photo or movie clip you want to playback.
• Starting movie playing back
-Press [REC] to playback.
-Press [] and [] button to navigate.
-Press [REC] to pause it.
-Press [ ] to return to the Playback Mode.
• Delete, Protect and Slide Show
-Press [ ]
-Press [] / [] to select Delete, Protect, Slide Show
-Press [REC] to confirm
-Press [] to exit menu.
130.com.ua
Autogood products «130»

12
INTRODUCTIONOFOTHERFUNCTIONS
• Loop R ecor ding (
de fault
)
Loop Recording can be set at 2/3/5 minutes, it means that the video clip
intervals will be set at 2/3/5 minutes long and after memory card is full, the
oldest video clips will be deleted and new video clips will take its place.
If Loop Recording is turned off, it will stop recording when the memory card
is full.
• G-Sensor (default at Middle)
When the internal G-Sensor detects situations like an impact, intense bumps
or hard brakes during Recording Mode, the unit will automatically lock the
current recording to avoid being replaced by loop recording.
• Motion Detection
In Motion Detection Mode, the surrounding of where the car is parked
will be recorded taking the least amount of storage space. Recording will
automatically be turned off after 10 seconds if nothing happens during the
monitor mode. Once there is movement, the unit will start recording
immediately.
* The Motion Detection Mode requires the camera to be connected to a
constant power supply.
When Motion Detection Mode is activated, Monitor Mode/Emergency
Recording
Mode and the G-Sensor function will automatically be
turned off.
• Plate Stamp
Enter your license plate number or desired input, and it will be displayed on the
video footage.
130.com.ua
Autogood products «130»

13
INTRODUCTIONOFOTHERFUNCTIONS
• Password settings
It allows password owner to restrain drivers or others from operating
settings, modifying, or deleting the video and picture data files.
• Image Rotation
This feature will flip the screen 180 degrees allowing for other recording options.
130.com.ua
Autogood products «130»

14
ON-SCREENDISPLAY(OSD)MENUS
Main Menu
Sub Menu Options
[MODE][UP]/[DOWN] - [OK][UP]/[DOWN] - [OK]
Standby
Mode
Recording Setting
WDR On
Resolution 1080FHD/720P/720P 60FPS/WVGA/VGA
Exposure +3/+2/+1/0/-1/-2/-3
White Balance Auto/Daylight/Cloudy/Tungsten/
Fluorescent
Record Audio Off/On
Date Stamp Off/On
Loop Recording Off/2 Minutes/3 Minutes/5 Minutes
Gsensor Off/High/Middle/Low
Motion Detection Off/On
Plate Stamp
Password Setting
Image rotation Off/On
System Setting
Format SD Card
Language Support Multiply Language
Date/Time
Frequency 50Hz/60Hz
Beep Sound Off/On
Screen Saver Off/3 Minutes/5 Minutes/10 Minutes
TV Mode PAL/NTSC
Version firmware version
Default Setting Return menu setting to defualt - Cancel/Ok
130.com.ua
Autogood products «130»

15
ON-SCREENDISPLAY(OSD)MENUS
Main Menu Sub Menu Options
[MODE][UP]/[DOWN] - [OK][UP]/[DOWN] - [OK]
Camera
Mode
Camera Setting
WDR On
Image Size 12M/10M/8M/5M/3M/2MHD/VGA/1.3M
Color Normal/Black&White/Sepia
Anti-Shaking Off/On
Capture Mode Single/2S Timer/5S Timer/10S Timer
White Balance Auto/Daylight/Cloudy/Tungsten/
Fluorescent
ISO Auto/100/200/400
Exposure +3/+2/+1/0/-1/-2/-3
Date Stamp Off/Date/ Date/Time
Quality Fine/Normal/Economy
Sharpness Strong/Normal/Soft
Playback
Mode
Delect Delete Current/Delete All
Protect Lock Current/Unlock Current/Lock All/
Unlock All
Slide Show 2 seconds
130.com.ua
Autogood products «130»

16
ADDITIONALINFORMATION
HOW TO PLA YBA CK ON COMPUTER
Please go to http://www.videolan.org/vlc/ to download and install the VLC
PLAYER.
HOW TO PLAYBACK ON OTHER DEVICES
There are AV OUT and HDMI OUT slots on the unit for
Playback Mode
Please plug the AV or HDMI cable to the unit and connect the other end to the
video/
audio equipment.
FIRMWARE UPGRADE
Please visit DOD Tech official website (http://www.dod-tech.com) to
download the latest firmware for your unit. Before download the updated
firmware, please navigate to the System Menu and select “Version” to view the
current firmware version.
-Connect the micro SD card into the computer.
-Access DOD Tech website (http://www.dod-tech.com) to download the
latest software to the SD Card.
-Insert the micro SD card to the unit
-Connect the unit with the external power supply*. The unit will automatically
turn on, and running about 40 seconds for firmware upgrading.
-The unit will automatically reboot once finished the firmware update.
-Be sure to format the SD memory card once finished firmware update.
* Recommend connecting the unit with the external power supply instead of using the built-in
battery, it might cause the firmware update failure due to power interruption.
All features, functionality and other product specifications are subject to change without notice or
obligation.
130.com.ua
Autogood products «130»

130.com.ua
Autogood products «130»
