Dometic PERFECTROOF PR2000 User manual

Awning
Installation Manual. . . . . . . . . . . . . . . 7
Markise
Montageanleitung . . . . . . . . . . . . . . 16
Store extérieuru
Instructions de montage . . . . . . . . . 26
Toldo
Instrucciones de montaje. . . . . . . . . 36
Tenda da sole
Indicazioni di montaggio . . . . . . . . . 46
Zonnescherm
Montagehandleiding . . . . . . . . . . . . 55
Markise
Monteringsvejledning. . . . . . . . . . . . 64
Markis
Monteringsanvisning . . . . . . . . . . . . 73
Markise
Monteringsanvisning . . . . . . . . . . . . 82
Markiisi
Asennusohje . . . . . . . . . . . . . . . . . . 91
Toldo
Instruções de montagem . . . . . . . . 100
Маркиза
Инструкция по монтажу . . . . . . . . 109
Markiza
Instrukcja montażu. . . . . . . . . . . . . 119
EN
DE
FR
ES
IT
NL
DA
SV
NO
FI
PT
RU
PL
Markýza
Návod k montáži . . . . . . . . . . . . . . 128
Markiza
Navodilo za montažo . . . . . . . . . . 137
Τέντα
Οδηγίες τοποθέτησης . . . . . . . . . . 146
CS
SL
EL
PerfectRoof
PR2000, PR2500

PR2000, PR2500
2
2 3 4
5 6 7 8
9
12 13
1110
1
1

PR2000, PR2500
3
2
15 – 25 Nm
3

4

PR2000, PR2500
4
1.
2.
Ø 3 mm
5

PR2000, PR2500
5
AB
A
PR2000:
PR2500:
B
6

PR2000, PR2500
6
4.
1.
2.
3.
7

EN
PR2000, PR2500
7
!
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Important safety and installation instructions . . . . . . . . . . . . . . . . . . . 8
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 Installing the awning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WARNING!
This operating manual must be read and understood before
installation, set up, operation and servicing. This device must
be installed by a specialist. Improper installation can lead to
serious injury. Alterations to the device can be extremely
dangerous and lead to serious injury or damage to the device.
Keep this operating manual with the device. The owner must
read it carefully.

EN
Explanation of symbols PR2000, PR2500
8
1 Explanation of symbols
!
A
I
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Important safety and installation
instructions
Please observe the prescribed safety instructions and stipulations
from the vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
Damage to the product resulting from mechanical influences and excess
voltage
Alterations to the product without express permission from the manu-
facturer
Use for purposes other than those described in the operating manual
!WARNING!
If you do not have sufficient technical knowledge for installing
components in vehicles, you should have a specialist fit the
awning to your vehicle.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
PR2000, PR2500 Scope of delivery
9

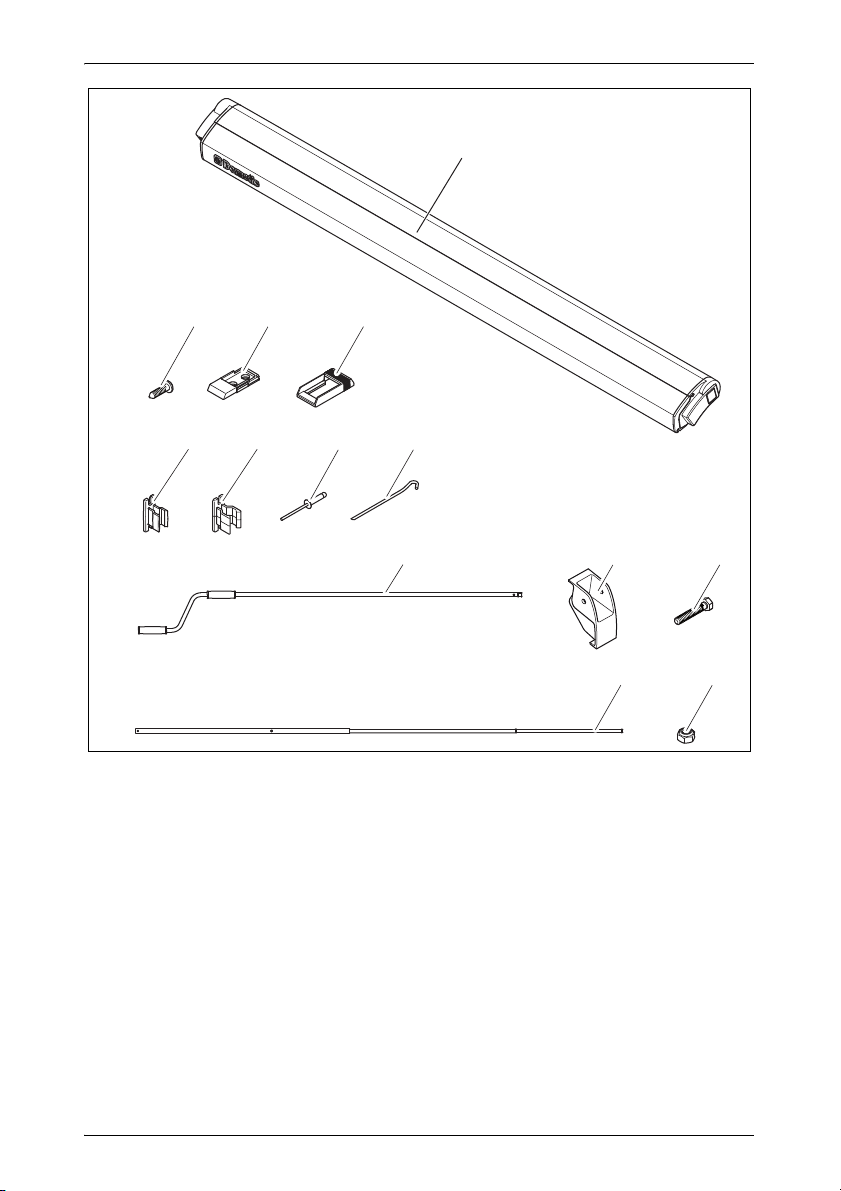

3 Scope of delivery
3.1 PR2000
No. in
fig. 1,
page 2
Awning width
Description
2.6 m, 3 m, 3.25 m,
3.5 m, 3.75 m 4m
1 1x 1x Awning
2 6x 6x Self-tapping screw
3 2x 2x Wall bracket (lower section)
4 2x 2x Wall bracket (upper section)
5 1x 1x Crank bracket (lower section)
6 — — Crank bracket (upper section)
7 4x 4x Rivets
8 4x 4x Pegs
91x1xCrank
10 — 1x Latch for tensioning arm
11 — 1x Hexagon head bolt
12 — 1x Tensioning arm
13 — 1x Hexagon nut with clamping part

EN
Scope of delivery PR2000, PR2500
10
3.2 PR2500
No. in
fig. 1,
page 2
Awning width
Description
2.6m,3m,
3.5 m, 3.75 m
4m,4.5m,
5m,5.5m
11x 1xAwning
2 8x 8x Self-tapping screw
3 2x 2x Wall bracket (lower section)
4 2x 2x Wall bracket (upper section)
5 1x 1x Crank bracket (lower section)
6 1x 1x Crank bracket (upper section)
74x 4xRivets
84x 4xPegs
91x 1xCrank
10 — 1x Latch for tensioning arm
11 — 1x Hexagon head bolt
12 — 1x Tensioning arm
13 — 1x Hexagon nut with clamping part

EN
PR2000, PR2500 Accessories
11
4 Accessories
Available as accessories (not included in the scope of delivery):
Dometic awnings PR2000 and PR2500 are installed using a vehicle-specific,
universal mounting rail that is not included in the scope of delivery.
Mounting rail including fastening material for Fiat Ducato, Citroën
Jumper, Peugeot Boxer (average height, built from 2006)
A list of all available mounting rails can be found on the accessories sheet.
Ask your local service partner for an up-to-date, comprehensive overview of
available adapters or visit www.my-caravanning.de.
If you have questions regarding the accessories, please contact your local
service partner.
5 Intended use
The Dometic awnings PR2000 and PR2500 are suitable for installation on
motorhomes or caravans.
The awnings may be only be used while the vehicle is stationary. Please
observe the operating manual.
Description Item number
Dometic Light LK120
LED lighting with remote control for fitting on the awning
arms
9106504018
Tie-down kit
Straps for anchoring the awning
9103104000
Vehicle length Awning width
5.41 m 3.1 m
5.99 m 3.5 m
6.36 m 4.0 m

EN
Installing the awning PR2000, PR2500
12
6 Installing the awning
6.1 Required installation material
For the installation of the rain gutter, you will need:
Mounting rail (not in the scope of delivery, must be ordered suitable to the
vehicle)
Various tools, e.g. screwdriver
A suitable flexible adhesive/sealant, e.g. Sikaflex®-252
A cleaning agent that is recommended for use with the adhesive
A primer that is recommended for use with the adhesive
6.2 Notes on installation
During installation, observe the following:
!WARNING!
Keep a sufficient distance from objects or other vehicles. Once
it is retracted, it should be at least 40 cm away from other
objects and vehicles.
If the installation position is not predefined by the mounting rail,
ensure the roof of the motorhome can safely take the weight of
the awning before installation. Otherwise, the awning may
become unstable and bend or break.
ANOTICE!
If the vehicle-specific installation manual specifies through
bolting, ensure the inner screw joints are accessible.
If there is insufficient space above the door after the awning is
mounted, the door must remained closed when retracting or
extending to avoid the door making contact with the arms or the
front panel.

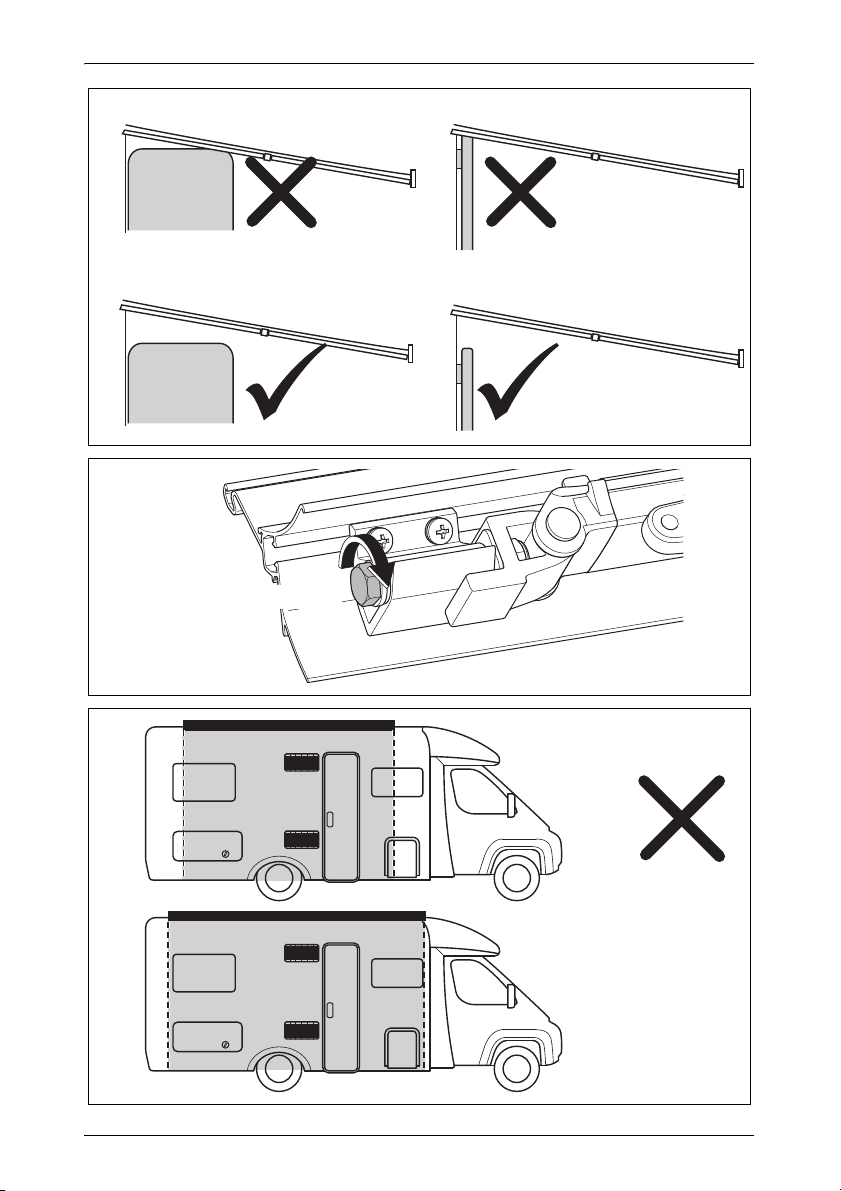

The required space depends on the design of the door (door
width, swing or sliding door) as well as the set awning angle of
inclination (fig. 2, page 3).
The cables and cabinets in the interior of the vehicle may not be
damaged by drilling the holes.

EN
PR2000, PR2500 Installing the awning
13
INOTE
Ensure the user of the vehicle is aware that the screws on the
rear hinge (fig. 3, page 3) must be tightened up (see operating
manual). The arms must not bear any load. This must be done
by the service partner.
6.3 Installing the awning
During installation, observe the following general information:
The mounting rails are bolted to the vehicles in the area of the rear hinge.
In addition, they are glued with installation adhesive (e.g. Sikaflex®-252
or a similar product) to ensure the load is evenly spread and an optimal
level of protection from moisture is maintained.
Observe the sealant manufacturer's instructions.
An illustrated instruction manual that covers each type of installation is
enclosed with every vehicle-specific installation kit. As with the installation
instruction manual, this manual must be observed closely and complied
with.
Before installation, check the access to the screw joints. Make sure no
cables or cabinets are damaged when drilling.
Contact your local service partner if you wish to have an angle of inclina-
tion different to the default setting.
If you wish to use an awning tent with the awning at a later date, ensure
that the vent windows and hatches of the erected tent remain accessible
when choosing the awning size and installation position (fig. 4, page 3).
Clean the adhesive surfaces on the mounting rail and the wall.
Prepare the adhesive surfaces with the primer.
After gluing, wait until the adhesive has set. For further details, please
refer to the information provided by the sealant manufacturer.
Seal the bore holes carefully to ensure no moisture can enter.
Do not open the awning or leave it unattended, before the awning has
been fastened to the mounting rail.
As part of the regular maintenance procedure, the screws on the rear
hinge must be tightened up by a service partner. Ensure the users of the
vehicle are aware of this.
➤Install the awning using the instructions in the operating manual enclosed
with your mounting rail.

EN
Installing the awning PR2000, PR2500
14

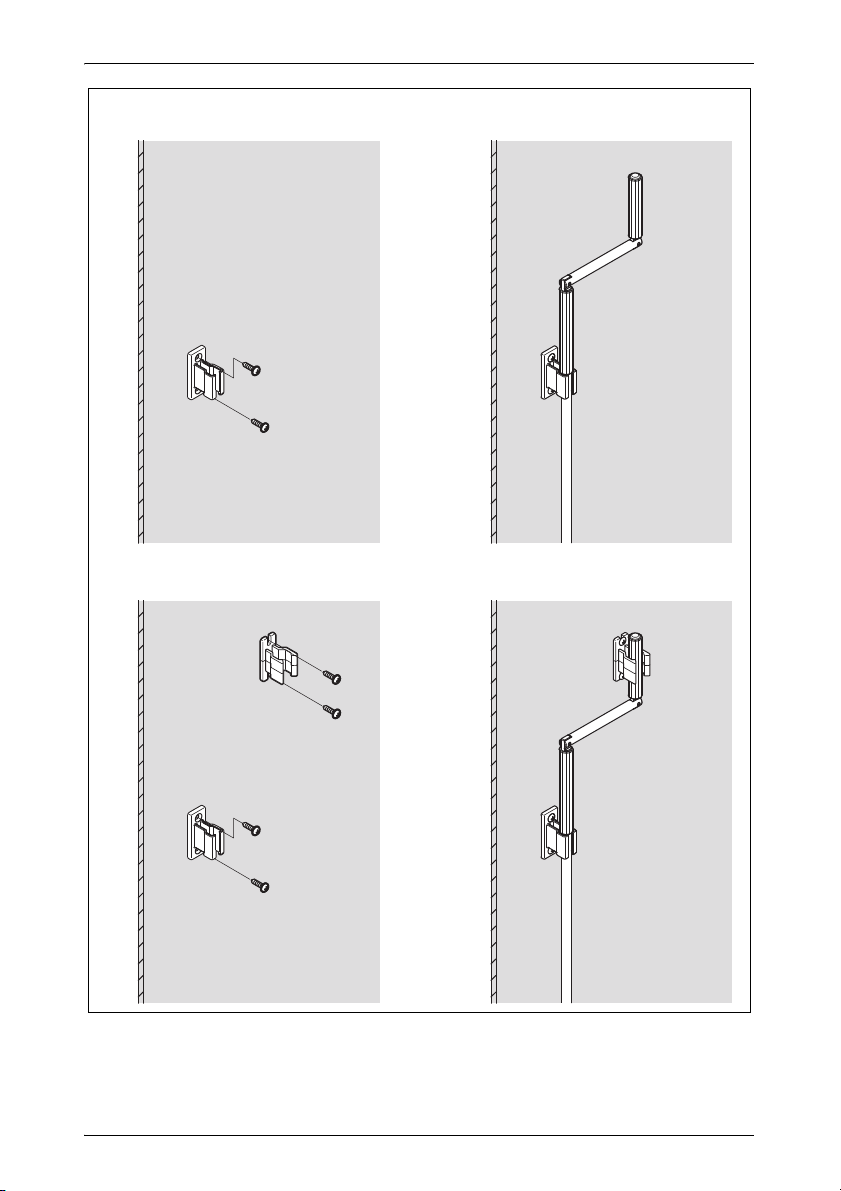

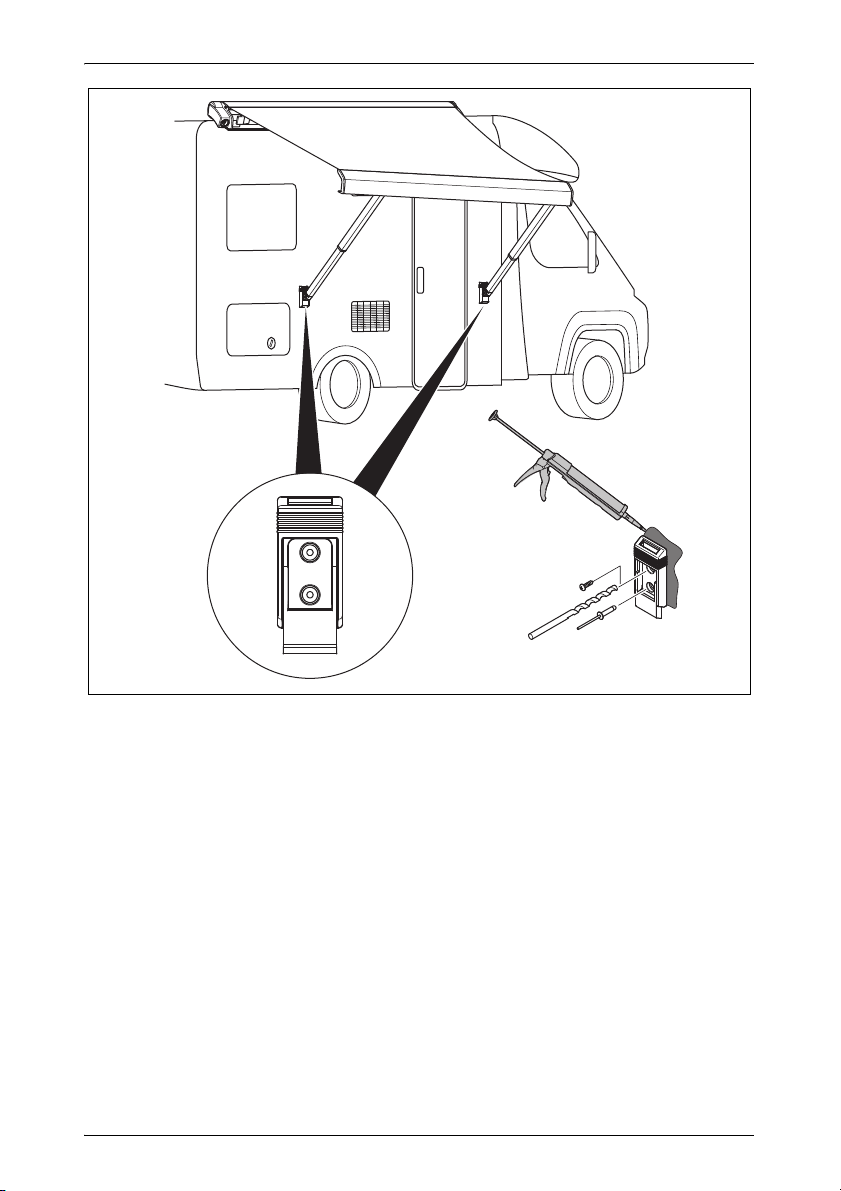

Installing the wall bracket
The wall bracket must be installed if the awning is to be attached to the side
of the vehicle when extended.
➤Select the location of the installation.
➤Mark where the holes are to be drilled.
➤At the marked points, drill holes with a diameter of 3 mm from the outside
into the external wall (fig. 5, page 4).
➤Put the upper and lower sections of the wall bracket together.
➤Clean the outer sides of the lower section and the installation surface in
the vehicle.
I
➤To glue and seal, apply an elastic adhesive, such as Sikaflex®-221 for
example, to the back of the wall bracket.
➤Fasten the wall bracket with drill screws (fig. 5, page 4).
or
➤Rivet the wall bracket in place (fig. 5, page 4).
Installing the crank bracket
➤Install the wall bracket for the crank at a suitable location inside the
vehicle (fig. 6, page 5).

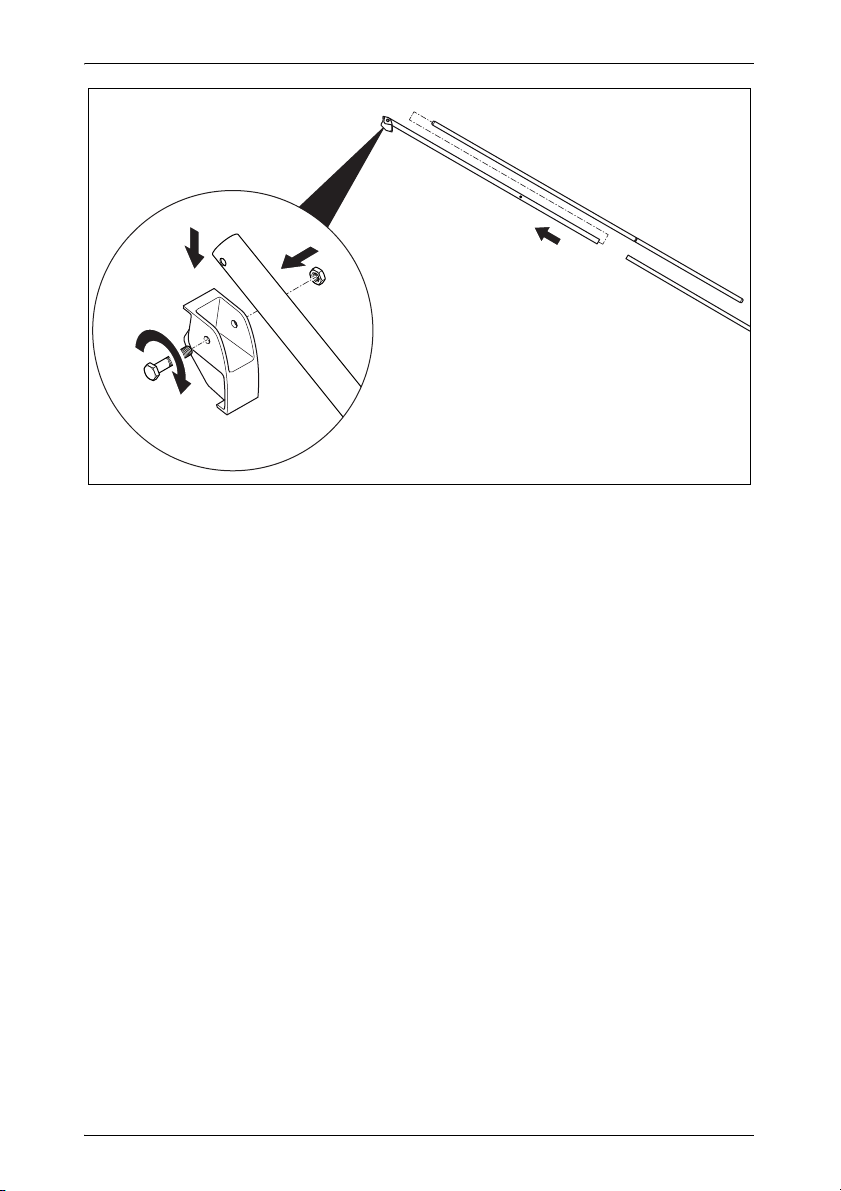

Mounting the tensioning arm
Awnings with a width of 4 m to 5.5 m must be secured using a tensioning
arm.
➤Attach the pre-drilled end of the tensioning arm to the latch for the
tensioning arm using the hexagon head bolt and the hexagon nut with
clamping part (fig. 7, page 6).
➤Insert the lower section of the tensioning arm into the upper section
(fig. 7, page 6).
NOTE
Make sure that no glue gets on to the movable upper section of
the wall bracket.

EN
PR2000, PR2500 Disposal
15
7 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.

DE
PR2000, PR2500
16
!
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2 Wichtige Sicherheits- und Einbauhinweise . . . . . . . . . . . . . . . . . . . 18
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4 Zubehör . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Markise montieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7 Entsorgung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
WARNUNG!
Diese Anleitung muss vor der Installation, dem Einrichten,
dem Betrieb und der Wartung gelesen und verstanden wer-
den. Dieses Gerät muss von einer Fachkraft installiert werden.
Eine fehlerhafte Installation kann zu schweren Verletzungen
führen. Umbauten am Gerät können äußerst gefährlich wer-
den und zu schweren Verletzungen oder zu Geräteschäden
führen.
Diese Anleitung muss beim Gerät verbleiben. Der Besitzer
muss sie aufmerksam lesen.

DE
PR2000, PR2500 Erklärung der Symbole
17
1 Erklärung der Symbole
!
A
I
➤Handlung: Dieses Symbol zeigt Ihnen, dass Sie etwas tun müssen. Die
erforderlichen Handlungen werden Schritt für Schritt beschrieben.
✓Dieses Symbol beschreibt das Ergebnis einer Handlung.
Abb. 15, Seite 3: Diese Angabe weist Sie auf ein Element in einer Abbil-
dung hin, in diesem Beispiel auf „Position 5 in Abbildung 1 auf Seite 3“.
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die
Funktion des Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.

DE
Wichtige Sicherheits- und Einbauhinweise PR2000, PR2500
18
2 Wichtige Sicherheits- und
Einbauhinweise
Beachten Sie die vom Fahrzeughersteller und vom Kfz-Handwerk
vorgeschriebenen Sicherheitshinweise und Auflagen!
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
Beschädigungen am Produkt durch mechanische Einflüsse und Über-
spannungen
Veränderungen am Produkt ohne ausdrückliche Genehmigung vom
Hersteller
Verwendung für andere als die in der Anleitung beschriebenen Zwecke
!WARNUNG!
Wenn Sie nicht über ausreichende technische Kenntnisse zum
Einbauen von Komponenten in Fahrzeugen verfügen, sollten
Sie sich die Markise von einem Fachmann ans Fahrzeug
montieren lassen.

DE
PR2000, PR2500 Lieferumfang
19
3Lieferumfang
3.1 PR2000
Nr. in
Abb. 1,
Seite 2
Markisenbreite
Bezeichnung
2,6 m, 3 m, 3,25 m,
3,5 m, 3,75 m 4m
1 1x 1x Markise
2 6x 6x Bohrschraube
3 2x 2x Wandhalterung (unterer Teil)
4 2x 2x Wandhalterung (oberer Teil)
5 1x 1x Kurbelhalterung (unterer Teil)
6 – – Kurbelhalterung (oberer Teil)
7 4x 4x Niete
84x4xHering
9 1x 1x Kurbel
10 – 1x Arretierung für Spannstange
11 – 1x Sechskantschraube
12 – 1x Spannstange
13 – 1x Sechskantmutter mit Klemmteil

DE
Lieferumfang PR2000, PR2500
20
3.2 PR2500
Nr. in
Abb. 1,
Seite 2
Markisenbreite
Bezeichnung
2,6m,3m,
3,5 m, 3,75 m
4m,4,5m,
5m,5,5m
1 1x 1x Markise
2 8x 8x Bohrschraube
3 2x 2x Wandhalterung (unterer Teil)
4 2x 2x Wandhalterung (oberer Teil)
5 1x 1x Kurbelhalterung (unterer Teil)
6 1x 1x Kurbelhalterung (oberer Teil)
74x 4xNiete
84x 4xHering
91x 1xKurbel
10 – 1x Arretierung für Spannstange
11 – 1x Sechskantschraube
12 – 1x Spannstange
13 – 1x Sechskantmutter mit Klemmteil
