Dometic RTX1000 User manual

1
A B
d
1
1
1
1
1
1
7
7
1
7
8 Nm
10 Nm
2$
qe5 mm
Ø 10 mm
8x
≤ 4 m
≥ 100 ≥ 100
860
330315
175 ≥ 100
t
s
a
o
u
i
y
r
q
w
e
d f gh j k
2) 2$2#2@2!
l 1(
RTX1000, RTX2000
Actros/Antos/Arocs SFTP
1
2
4
5
6
3
7
8

2
Dometic WAECO International GmbH
Hollefeldstrasse 63
D-48282 Emsdetten
www.dometic.com
1
1
1
1
1
7
7
1
7
M6
M6 x 90
o
a
s
u
∅10 x 48
i
∅10 x 28
1
24 V
2.
1.
< 0,3 m
j hl 1(
1&
f
g
2)
2!2#
2@ 2@
1
8 Nm
t
y
r
w
M8 x 40
M8
∅14 x 18
8,5 x 20
0
a
b
c
9
d
4445101434 F 02/2016

Assembly kit for Mercedes Benz
Actros/Antos/Arocs (SFTP)
Installation manual . . . . . . . . . . . . . . .3
Montagesatz für Mercedes Benz
Actros/Antos/Arocs (SFTP)
Einbauanleitung . . . . . . . . . . . . . . . .16
Kit de montage pour Mercedes Benz
Actros/Antos/Arocs (SFTP)
Notice de montage . . . . . . . . . . . . . .29
Juego de montaje para Mercedes Benz
Actros/Antos/Arocs (SFTP)
Instrucciones de instalación . . . . . . .42
Set di montaggio per Mercedes Benz
Actros/Antos/Arocs (SFTP)
Istruzioni di montaggio . . . . . . . . . . .55
Montageset voor Mercedes Benz
Actros/Antos/Arocs (SFTP)
Montagehandleiding. . . . . . . . . . . . .69
Monteringssæt til Mercedes Benz
Actros/Antos/Arocs (SFTP)
Installationsvejledning . . . . . . . . . . .82
Monteringssats för Mercedes Benz
Actros/Antos/Arocs (SFTP)
Monteringsanvisning . . . . . . . . . . . .95
Monteringssett for Mercedes Benz
Actros/Antos/Arocs (SFTP)
Montasjeveiledning . . . . . . . . . . . .108
Asennussarja Mercedes Benz
Actros/Antos/Arocs (SFTP)
Asennusohje . . . . . . . . . . . . . . . . .121
Kit de montagem para Mercedes Benz
Actros/Antos/Arocs (SFTP)
Instruções de montagem . . . . . . . .134
  
Mercedes Benz
Actros/Antos/Arocs (SFTP)
   . . . . . . . .147
Zestaw montaowy do Mercedes Benz
Actros/Antos/Arocs (SFTP)
Instrukcja montaowa . . . . . . . . . .160
EN
DE
FR
ES
IT
NL
DA
SV
NO
FI
PT
RU
PL
Montážní sada pro vozidla
Mercedes Benz
Actros/Antos/Arocs (SFTP)
Návod k instalaci . . . . . . . . . . . . . . 173
Montážna súprava pre Mercedes Benz
Actros/Antos/Arocs (SFTP)
Montážny návod . . . . . . . . . . . . . . 186
Szerelkészlet a következkhöz:
Mercedes Benz
Actros/Antos/Arocs (SFTP)
Szerelési útmutató. . . . . . . . . . . . . 199
CS
SK
HU
CoolAir
RTX1000, RTX2000

3
EN
CoolAir RTX1000, RTX2000
Please read this instruction manual carefully before installation and
first use, and store it in a safe place. If you pass on the product to
another person, hand over this instruction manual along with it.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.1 Using the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Handling electrical cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6.1 Notes on installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.2 Removing the roof hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.3 Preparing the unit fixings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.4 Preparing the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.5 Attaching the seal for the cab roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.6 Fitting the unit in the roof hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.7 Routing the electrical power supply leads . . . . . . . . . . . . . . . . . . . . . . . 11
6.8 Fixing the surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Configuring the system software . . . . . . . . . . . . . . . . . . . . . . .13
7.1 Entering and exiting configuration mode . . . . . . . . . . . . . . . . . . . . . . . . 13
7.2 P.01: Low voltage shut-down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7.3 P.02: Unit for temperature display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

EN
Explanation of symbols CoolAir RTX1000, RTX2000
4
1 Explanation of symbols
!
!
A
I
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal
or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

5
EN
CoolAir RTX1000, RTX2000 Safety instructions
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
zFaulty assembly or connection
zDamage to the product resulting from mechanical influences and
excess voltage
zAlterations to the product without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
2.1 Using the device
zOnly use the parking cooler for the purpose specified by the manufac-
turer and do not make any alterations or structural changes to the
device.
zDo not use the parking cooler if it is visibly damaged.
zThe parking cooler must be installed safely so that it cannot tip over or
fall down.
zInstallation, maintenance and repair work may only be carried out by
qualified personnel from a specialist company who are familiar with
the risks involved and the relevant regulations.
zDo not use the parking cooler near flammable fluids and gases.
zDo not operate the parking cooler if the ambient temperature is below
0°C.
zDo not undo the upper cover of the parking cooler in the event of a
fire. Use approved extinguishing agents instead. Do not use water to
extinguish fires.
zPlease inquire from your vehicle manufacturer whether the height
entered in your vehicle documentation needs to be altered due to the
installation of the parking cooler (height 175 mm).
zDisconnect all power supply lines when working on the parking cooler
(cleaning, maintenance, etc).

EN
Target group CoolAir RTX1000, RTX2000
6
2.2 Handling electrical cables
zUse cable ducts to lay cables through walls with sharp edges.
zDo not lay loose or bent cables next to electrically conductive
materials (metal).
zDo not pull on the cables.
zAttach and lay the cables in such a manner that they cannot be tripped
over or damaged.
zThe electrical power supply may only be connected by a specialist
workshop.
zThe connection to the vehicle's electrical system should be protected
by a 40 A fuse for the power supply and a 2 A fuse for the voltage
monitor.
zNever lay power supply lines (battery leads) in the vicinity of signal or
control cables.
3 Target group
This installation manual contains the essential information and instruc-
tions for installing the parking cooler. It is intended for competent installer
technical staff who are familiar with the guidelines and safety precautions
to be applied when installing lorry accessories.
This installation manual should always be kept with the unit to which it
relates.
4 Intended use
The installation kit (Art. no. 9100300082) enables the installation of a
CoolAir RTX1000 or RTX2000 parking cooler in a factory-made roof
opening (ventilation hatch) of a Mercedes-Benz Actros, Antos or Arocs
SFTP Series cab (excluding Compact Space).
ANOTICE!
zThe parking cooler is not suitable for installation in construction
machines, agricultural machines or similar equipment. They will not
work properly if exposed to strong vibrations.
zOperating parking cooler with voltages other than those specified
can result in damage to the devices.

7
EN
CoolAir RTX1000, RTX2000 Scope of delivery
5 Scope of delivery
CoolAir RTX1000, RTX2000 installation kit for
Mercedes Benz Actros/Antos/Arocs (SFTP),
item no. 9100300082
Item in
fig. 1Part designation Quantity Item no.
.Thread insert with flange M8 8 4445200068
3Spacer sleeve L = 18 mm, ∅14 mm 8 4443900236
$Thread insert with flange M6 4 4445200069
/Washer 8.5 x 20 8 4445200113
1Spring washer M8 8 4445200091
4Hex screw M8 x 40 8 4445200106
2Spacer sleeve L = 48 mm, ∅10 mm 4 4443900241
(Spacer sleeve L = 28 mm, ∅10 mm 4 4443900366
,Cover frame MB SFTP (Actros, Arocs, Antos) 1 4443000430
"Washer M6 4 4445200115
 Allen screw with cylindrical head M6 x 90 4 4445200160
 2.5 m insulating tape (profile: 10 x 20 mm) 1 4443300055
 Connection cable 6 mm² x 11 m 1 4441300251
 Cable binder 1 4445900256
 Maxi Fuse 40 A 1 4441550010
 Maxi Fuse holder (40 A) 1 4441600176
 Ring terminal 6 mm², M8 1 4441500036
 Ring terminal 6 mm², M10 1 4441500037
 Joint connector 6 mm² 1 4441500038
 Blade fuse, 2 A 1 4441550007
 Fuse holder (2 A) 1 4441600175
 Ring terminal 0.5 mm², M8 2 4441500035
 Joint connector 0.5 mm² 1 4441500034
 1/4" hexagon bit 1 4445900172
– Installation manual 8 4445200068

EN
Installation CoolAir RTX1000, RTX2000
8
6Installation
!
A
6.1 Notes on installation
The following tips and guidance should be followed when installing the
parking cooler:
!
zBefore installing the parking cooler, check whether any vehicle
components could be damaged or have their function impaired as
a result of the installation.

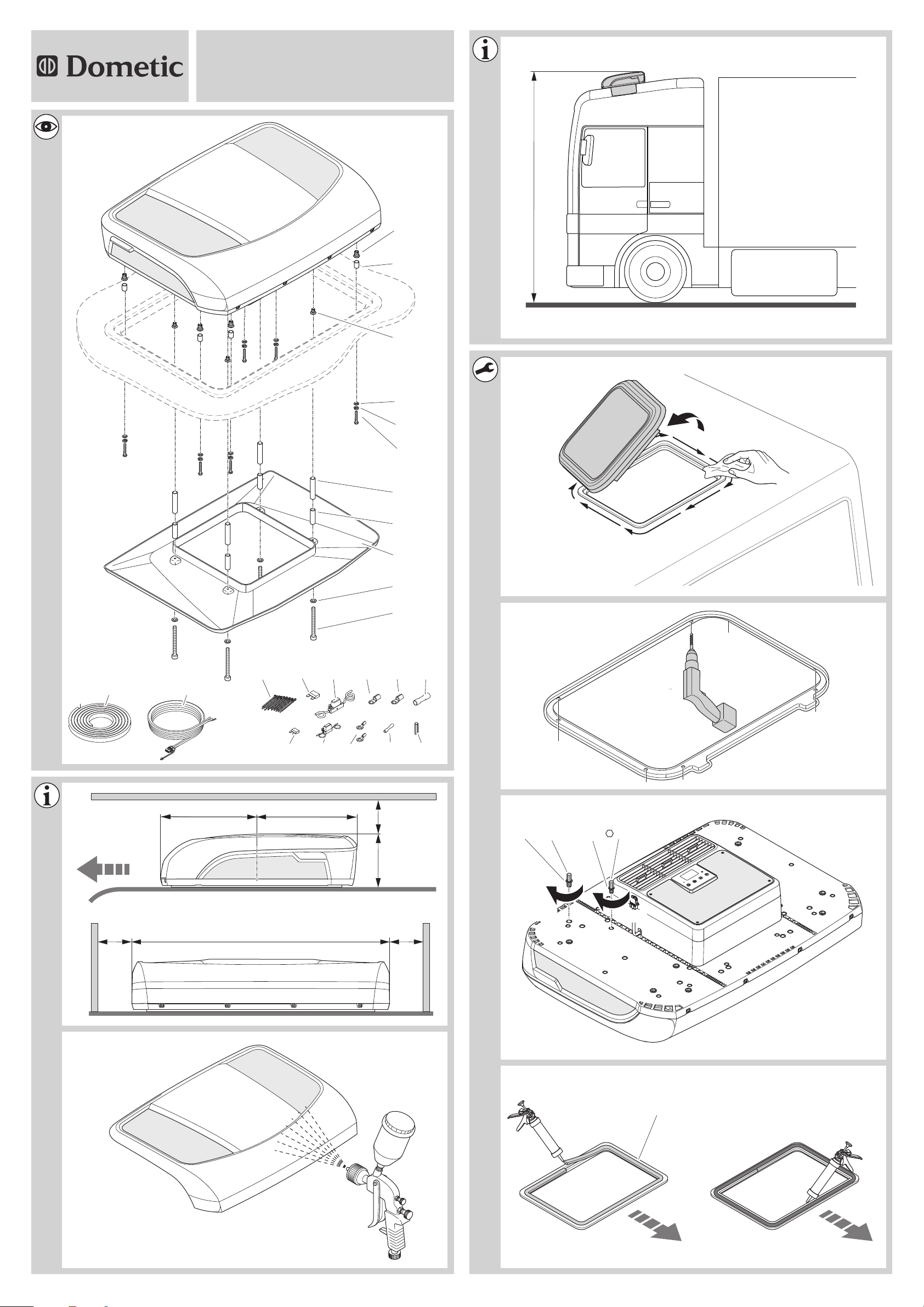

Check the dimensions of the system to be installed (fig. 2).
The dotted line indicates the middle of the roof hatch opening.
zThe top cowl of the parking cooler can be painted (fig. 3). The
manufacturer recommends that the painting is done by a specialist
paint shop.
zBefore installation, check with the vehicle manufacturer whether the
vehicle body is designed for the static weight of the parking cooler and
the dynamic loads created by it when the vehicle is in motion. The
manufacturer of the parking cooler accepts no liability whatsoever in
that regard.
CAUTION!
Incorrect installation of the parking cooler may place the safety of the
user at risk.
The manufacturer accepts no liability whatsoever for personal injury or
property damage if the parking cooler is not installed according to this
installation manual.
NOTICE!
zThe parking cooler may only be installed by qualified personnel from
a specialist company. The following information is intended for tech-
nicians who are familiar with the guidelines and safety precautions
to be applied.
zThe manufacturer only assumes liability for parts included in the
scope of delivery. The validity of the warranty expires if the device is
installed together with third-party parts.
zCheck whether the roof of the vehicle is able to support the weight of
a person before climbing onto it. Ask the vehicle manufacturer about
the permitted roof loads.
WARNING! Electric shock hazard
Before carrying out any work on electrically operated components,
make sure that they are disconnected from the power supply.
Before installing the parking cooler, disconnect all connections to the
vehicle battery.

9
EN
CoolAir RTX1000, RTX2000 Installation
zThe downward slope of the roof in forward direction in the area where
the unit is installed must not be more than:
– RTX1000: 8°
– RTX2000: 20°
zThe assembly parts supplied must not be modified during installation.
zThe ventilation openings must not be covered over (minimum distance
from other external attachments: 100 mm).
zFollow the vehicle manufacturer's guidelines when installing the
system and establishing the electrical connections.
According to the vehicle manufacturer's guidelines, the parking
cooler must be supplied using code E9G (pre-configured electrical
equipment) or by direct connection to the power distribution box
behind the cab or direct connection to the battery.
I
6.2 Removing the roof hatch
Proceed as follows (fig. 5):
➤Remove all screws and fixings for the existing roof hatch.
➤Take out the roof hatch.
➤Remove the sealant around the opening so that the surface is clean
and free of grease.
I
6.3 Preparing the unit fixings
➤Drill out the 8 factory-made holes to a diameter of 10 mm (fig. 6).
NOTE
After installation of the system, the pre-set parameters on the system
software must be checked (chapter “Configuring the system software”
on page 13).
NOTE
Dispose of all waste material, glue, silicon and seals separately. When
doing so, follow the waste disposal requirements applicable in your local
area.

EN
Installation CoolAir RTX1000, RTX2000
10
6.4 Preparing the unit
A
Proceed as follows (fig. 7):
➤Place the parking cooler on a work surface with the casing facing
down.
➤Screw the 8 self-tapping M8 threaded plugs into the blind holes
marked “1”.
To do so, use the 1/4" bit supplied.
➤Screw the 4 self-tapping M6 threaded plugs into the blind holes
marked “7”.
Use a 5 mm hexagon bit to do so.
6.5 Attaching the seal for the cab roof
A
➤Glue the sealing strip to the cab roof (fig. 8A).
Follow the contour of the roof hatch opening. The join between the
ends of the seal should be at the back.
➤Apply a flexible, non-hardening butyl sealant (e.g. SikaLastomer-710)
to the join between the ends of the sealing strip and to the top edge of
the sealing strip (fig. 8B).
NOTICE!
When preparing the unit on the work surface, make sure it is secured
against falling off.
Make sure that the work surface is clean and level to ensure that the unit
is not damaged.
NOTICE!
Ensure that the surface where the seal between the unit and the cab
roof is to be glued is clean (free of dust, oil, etc.).

11
EN
CoolAir RTX1000, RTX2000 Installation
6.6 Fitting the unit in the roof hatch
➤Place the parking cooler centrally and facing forwards in the roof hatch
opening (fig. 9).
I
A
➤Fix the parking cooler in place as illustrated (fig. 0).
6.7 Routing the electrical power supply leads
!
A
If the vehicle is not pre-configured for electrical equipment (code E9G),
connect the unit directly to the battery.
When doing so, you should also follow the vehicle manufacturer's guide-
lines.
When connecting to the battery:
Route the power supply lead as illustrated (fig. a):
➤Run the wiring loom to the battery compartment along a route where
it is protected.
➤Connect the power supply negative lead (black) to the battery
negative terminal as illustrated.
➤Connect the voltage monitor negative lead (black) to the battery
negative terminal as illustrated.
NOTE
Once the unit is in position on the vehicle roof, the seal should make
contact all the way round. Only then can a reliable seal be achieved.
NOTICE!
Do not exceed the specified tightening torque under any circumstances.
That is the only way to ensure that the threaded plugs are not pulled out.
WARNING!
zThe electrical connections may only be made by competent
technical staff with the appropriate specialist knowledge.
zBefore carrying out any work on electrically operated components,
make sure that they are disconnected from the power supply.
NOTICE!
zThe connection to the vehicle's electrical system should be protected
by a 40 A fuse for the power supply and a 2 A fuse for the voltage
monitor.
zThe battery must be capable of supplying the required current and
voltage (chapter “Technical data” on page 15).

EN
Installation CoolAir RTX1000, RTX2000
12
I
➤Connect the power supply positive lead (red) to the battery positive
terminal as illustrated via a 40 A fuse.
➤Connect the voltage monitor positive lead (red) to the battery positive
terminal as illustrated via a 2 A fuse.
➤Connect the wiring loom to the unit and fix with a cable tie in a suitable
position (fig. a2.).
6.8 Fixing the surround
A
➤Fix the surround in place as illustrated (fig. b).
NOTE
Place the fuse holder no more than 0.3 m from the positive terminal of
the battery.
NOTICE!
Tighten the screws carefully in order not to damage the surround.

13
EN
CoolAir RTX1000, RTX2000 Configuring the system software
7 Configuring the system software
Before the system is first put into operation, the control unit settings can
be adjusted to suit the various installation conditions. Those adjustments
must be made by the installer.
I
7.1 Entering and exiting configuration mode
➤Press and hold the button.
➤Press and hold the button for longer than 3 s.
✓The display shows the symbol .
✓The parking cooler switches to configuration mode.
✓The display shows “P.01” and the symbol flashes.
➤Scroll through the menu by pressing the or button to select the
desired menu item.
➤Press the button to open the desired menu item.
➤Press and hold the button for longer than 3 s to exit configuration
mode.
Display
indication Parameter Meaning Factory setting
P.01 Low voltage
shut-down
The battery monitor shuts down
the system at the voltage defined
here.
22.8 V
P.02 Unit for tempera-
ture display
The temperature can be
displayed in °C or °F.
°C
NOTE
Configuration mode can still be activated if the low voltage cut-out has
switched off the system and only residual voltage is available.

EN
Configuring the system software CoolAir RTX1000, RTX2000
14
7.2 P.01: Low voltage shut-down
The battery monitor protects the battery against discharging excessively.
A
If only the power supply voltage specified here is available to the parking
cooler, the system is switched off.
➤Switch to configuration mode (chapter “Entering and exiting configu-
ration mode” on page 13).
✓The display shows “P.01” and the symbol flashes.
➤Press the button to change the setting.
✓The current setting is displayed.
➤Use the or button to select the voltage level for low voltage
shut-down.
The low voltage shut-down setting can be adjusted in 0.1 V
increments from 20.0 V to 23.5 V.
I
➤Press the button to save the setting.
✓The set value is saved and is then applied when the system is
restarted.
✓You are then returned to the menu and can select another menu item
by pressing the or button.
NOTICE!
If the unit is switched off by the battery monitor, it means the battery
charge level is low. Avoid repeated starting or using electrical equip-
ment. Make sure that the battery is recharged. As soon as the required
voltage is available again, the system can be operated again.
NOTE
The level for the low voltage shut-down should not be set any lower than
the minimum battery voltage required to be able to start the engine
under any conditions.
As a rule that should be no less than 22 V.

15
EN
CoolAir RTX1000, RTX2000 Technical data
7.3 P.02: Unit for temperature display
The system can display the room temperature in °C or °F. This parameter
can be configured:
➤Switch to configuration mode (chapter “Entering and exiting configu-
ration mode” on page 13).
✓The display shows “P.01” and the symbol flashes.
➤Press the or button to select the menu item P.02.
✓The display shows “P.02” and the symbol lights up.
➤Press the button to change the setting.
✓The code for the current setting is displayed:
–0:°C
–1:°F
➤Use the or button to select the desired temperature unit.
➤Press the button to save the setting.
✓The set value is saved and is then applied when the system is
restarted.
✓You are then returned to the menu and can select another menu item
by pressing the or button.
8 Technical data
CoolAir
RTX1000 RTX2000
Item number:
24 V
24 V 0°
–
9105306210
9105306212
–
Cooling capacity: 1200 W 2000 W
Rated input voltage: 24 Vg(20 Vg– 30 Vg)
Max. current consumption: 5 – 25 A 5 – 29 A
Operating temperature range: +5 to +52 °C
Low voltage shutdown: Configurable (chapter “P.01: Low voltage
shut-down” on page 14)
Dimensions (L x B x H): 645 x 860 x 308 mm
Weight: approx. 23 kg approx. 32 kg

DE
CoolAir RTX1000, RTX2000
16
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme
sorgfältig durch und bewahren Sie sie auf. Geben Sie sie im Falle
einer Weitergabe des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.1 Umgang mit dem Gerät . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
2.2 Umgang mit elektrischen Leitungen. . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3 Zielgruppe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . .19
5 Lieferumfang. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.1 Hinweise zur Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.2 Dachluke ausbauen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6.3 Anlagenbefestigung vorbereiten. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6.4 Anlage vorbereiten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
6.5 Dichtung zum Fahrerhausdach anbringen . . . . . . . . . . . . . . . . . . . . . . .23
6.6 Anlage in Dachluke einbauen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
6.7 Elektrische Versorgungsleitungen verlegen . . . . . . . . . . . . . . . . . . . . . .24
6.8 Abdeckrahmen befestigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
7 Anlagen-Software konfigurieren . . . . . . . . . . . . . . . . . . . . . . . .26
7.1 Einstellungsmodus starten und beenden . . . . . . . . . . . . . . . . . . . . . . . .26
7.2 P.01: Unterspannungsabschaltung . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
7.3 P.02: Anzeige Temperatureinheit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
8 Technische Daten. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

17
DE
CoolAir RTX1000, RTX2000 Erklärung der Symbole
1 Erklärung der Symbole
!
!
A
I
➤Handlung: Dieses Symbol zeigt Ihnen, dass Sie etwas tun müssen.
Die erforderlichen Handlungen werden Schritt für Schritt beschrieben.
✓Dieses Symbol beschreibt das Ergebnis einer Handlung.
Abb. 15, Seite 3: Diese Angabe weist Sie auf ein Element in einer
Abbildung hin, in diesem Beispiel auf „Position 5 in Abbildung 1 auf
Seite 3“.
2 Sicherheitshinweise
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
zMontage- oder Anschlussfehler
zBeschädigungen am Produkt durch mechanische Einflüsse und Über-
spannungen
zVeränderungen am Produkt ohne ausdrückliche Genehmigung vom
Hersteller
zVerwendung für andere als die in der Anleitung beschriebenen
Zwecke
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.

DE
Sicherheitshinweise CoolAir RTX1000, RTX2000
18
2.1 Umgang mit dem Gerät
zBenutzen Sie die Standklimaanlage nur für den vom Hersteller ange-
gebenen Verwendungszweck und führen Sie keine Änderungen oder
Umbauten am Gerät durch.
zWenn die Standklimaanlage sichtbare Beschädigungen aufweist, darf
Sie nicht in Betrieb genommen werden.
zDie Standklimaanlage muss so sicher installiert werden, dass diese
nicht umstürzen oder herabfallen kann.
zDie Installation, Wartung und etwaige Reparatur dürfen nur durch
einen Fachbetrieb erfolgen, der mit den damit verbundenen Gefahren
bzw. einschlägigen Vorschriften vertraut ist.
zSetzen Sie die Standklimaanlage nicht in der Nähe von entflamm-
baren Flüssigkeiten und Gasen ein.
zBetreiben Sie die Standklimaanlage nicht bei Außentemperaturen
unter 0 °C.
zIm Falle von Feuer lösen Sie nicht den oberen Deckel der Stand-
klimaanlage, sondern verwenden Sie zugelassene Löschmittel.
Verwenden Sie kein Wasser zum Löschen.
zBitte informieren Sie sich bei Ihrem Fahrzeughersteller, ob aufgrund
des Aufbaues der Standklimaanlage (Aufbauhöhe 175 mm) eine
Änderung des Eintrags der Fahrzeughöhe in ihren Fahrzeugpapieren
notwendig ist.
zLösen Sie bei Arbeiten (Reinigung, Wartung usw.) an der Standklima-
anlage alle Verbindungen zur Stromversorgung.
2.2 Umgang mit elektrischen Leitungen
zMüssen Leitungen durch scharfkantige Wände geführt werden, so
verwenden Sie Leerrohre bzw. Leitungsdurchführungen.
zVerlegen Sie keine losen oder scharf abgeknickten Leitungen an
elektrisch leitenden Materialien (Metall).
zZiehen Sie nicht an Leitungen.
zBefestigen und verlegen Sie Leitungen so, dass keine Stolpergefahr
entsteht und eine Beschädigung des Kabels ausgeschlossen ist.
zDer elektrische Anschluss darf nur von einem Fachbetrieb durchge-
führt werden.
zSichern Sie den Anschluss ans Netz im Fahrzeug mit 40 A für die
Stromversorgung und mit 2 A für die Spannungsmessung ab.
zVerlegen Sie niemals die Spannungsversorgungsleitung (Batterie-
kabel) in räumlicher Nähe zu Signal- oder Steuerleitungen.
