Dometic PerfectWall PW1000 User manual

PW1000, PW1500, PW1750
Awning
Operating manual . . . . . . . . . . . . . . . . . . . . 12
Markise
Bedienungsanleitung . . . . . . . . . . . . . . . . . 31
Store extérieuru
Notice d’utilisation . . . . . . . . . . . . . . . . . . .50
Toldo
Instrucciones de uso . . . . . . . . . . . . . . . . . .70
Toldo
Manual de instruções . . . . . . . . . . . . . . . . .90
Ten da d a sole
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . 110
Zonnescherm
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . .129
Markise
Betjeningsvejledning . . . . . . . . . . . . . . . .148
Markis
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . .166
Markise
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . .184
Markiisi
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 202
Синусоидальный инвертор
Инструкция по эксплуатации . . . . . . . . . 221
Markiza
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 240
Markíza
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 259
Markýza
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 278
Előtető
Használati utasítás. . . . . . . . . . . . . . . . . . . 296
Markiza
Navodilo za uporabo . . . . . . . . . . . . . . . . 314

  . . . . . . . . . . . . . . . . 332
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
SL
EL
AWNINGS
PERFECTWALL
PW1000-PW1500-PW1750-O-16S.book Seite 1 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
3
1
2
3
4
1
3
2
1
1. 2. 3.
2
PW1000-PW1500-PW1750-O-16S.book Seite 3 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
4
1,5 m
3
1,5 m
4
PW1000-PW1500-PW1750-O-16S.book Seite 4 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
5
2.
1.
5
6
PW1000-PW1500-PW1750-O-16S.book Seite 5 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
6
7
1.
2.
3.
8 9
0
PW1000-PW1500-PW1750-O-16S.book Seite 6 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
7
1.
2.
3.
a
b
1. 2.
c
PW1000-PW1500-PW1750-O-16S.book Seite 7 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
8
1. 2.
d
e
max. 1,2 m
f
PW1000-PW1500-PW1750-O-16S.book Seite 8 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
9
g h
1.
2.
i
PW1000-PW1500-PW1750-O-16S.book Seite 9 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
10
j
2.
1.
k
AB
C
DA
B
CD
l
PW1000-PW1500-PW1750-O-16S.book Seite 10 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

PW1000, PW1500, PW1750
11
1
1
2
m
15 – 25 Nm
n
PW1000-PW1500-PW1750-O-16S.book Seite 11 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
PW1000, PW1500, PW1750
12
!
Table of contents
1Notesonusingtheinstructionmanual..............................13
2Safetyinstructions..............................................13
3Scopeofdelivery..............................................15
4Accessories...................................................16
5Intendeduse..................................................16
6Technicaldescription...........................................17
7Operatingtheawning...........................................18
8Cleaningandmaintenance......................................25
9Troubleshooting..............................................27
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
WARNING!
•This instruction manual must be read and understood before the
device is operated, cleaned or serviced.
•This product must be mounted by a specialist. Improper assembly
can lead to serious injury. Alterations to the product can be
extremely dangerous and lead to serious injury or damage to the
device.
•Keep this instruction manual with the product. The owner must read
it carefully.
PW1000-PW1500-PW1750-O-16S.book Seite 12 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
PW1000, PW1500, PW1750 Notes on using the instruction manual
13
1 Notes on using the instruction manual
!
A
I
2 Safety instructions
Pleaseobservetheprescribedsafety instructions and stipulations fromthe
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Please note the following warnings:
!WARNING!
•Before starting your journey, check that the awning is fully retracted.
Never move the vehicle when the awning is open.
•Never drive with the crank inserted. Remove the crank before starting
your journey.
•Do not drive the vehicle if the fabric is damaged or torn, even if the
awning has been properly retracted. The awning arms are held in
place by the fabric. If the fabric rips while driving, the awning will
suddenly shoot out. This can lead to serious injury. Secure the awning
so that it cannot extend suddenly and unexpectedly while driving.
•Do not open the awning while driving.
•Do not open the awning in strong winds or snowfall.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
PW1000-PW1500-PW1750-O-16S.book Seite 13 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
Safety instructions PW1000, PW1500, PW1750
14
•Retract the awning if strong winds, heavy rain or snowfall are
imminent.
•Make sure that water or snow does not accumulate on the fabric.
Otherwise this could damage the awning or the awning arms could
collapse and cause severe or fatal injury.
•Do not approach the awning
– if it was left open during heavy winds
–ifpoolsofwaterhaveformedonit
– if snow has accumulated on it
– if any debris is on the awning fabric.
The awning may move unexpectedly, become unstable and bend or
break off.
•Optional for PW1500/PW1750: If the connection cable of the
awning is damaged, it must be replaced by an expert.
•Optional for PW1500/PW1750: Disconnect the power supply by
means of the on/off switch before you clean the vehicle in the vicinity
of the awning or the awning itself.
•Do not leave the extended awning unattended. Retract the awning
before leaving your site.
•Keep a safe distance away from the awning when having barbecues or
open fires. The fabric can be damaged by heat or catch fire.
•This device can be used by children aged 8 years or over, as wellas by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised or
have been taught how to use the device safely and are aware of the
resulting risks.
•Optional for PW1500/PW1750: Electrical devices are not
toys.
Keep the remote control out of the reach of children. Prevent children
from playing with the wall switch (accessory).
•Children must be supervised to ensure that they do not play with the
device.
ANOTICE!
•Park the motor home or caravan at a site where debris (branches,
leaves or similar) cannot fall onto the fabric.
•The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against
the arms and become damaged.
The fabric used for long awnings should not sag in the middle.
PW1000-PW1500-PW1750-O-16S.book Seite 14 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
PW1000, PW1500, PW1750 Scope of delivery
15
•Only retract the awning when the fabric is free of debris (branches,
leaves or similar). Otherwise the awning may be damaged when it is
retracted.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
•Only retract the awning if it is wet for safety reasons. Extend it again as
soon as possible. Otherwise, mildew or stains can form or the colour
may fade.
•Never bend down an awning arm or the cover to drain water off the
awning. This can bend the awning and impair its function.
•Do not hang any objects on the awning, on the front cover or the
awning arms.
•Do not use any sprays (e. g. insect repellent, hairspray) near the
awning. This will soil the fabric or the water-repellent effect of the
fabric will be lost.
•If there is insufficient space above the door after the awning is
mounted, the door must remained closed when retracting or
extending to avoid the door making contact with the arms or the lead
rail.
The required space depends on the design of the door (door width,
swing or sliding door) as well as the set awning angle of inclination.
3Scopeofdelivery
Quantity Description
1Awning
1 Hand crank (only awnings without motor)
1 Tension rafter (for awnings more than 4 m in length only)
1 Remote control (only PW1500/PW1750, optional)
1 Awning switch (only PW1500/PW1750, optional)
4Pegs
1 Operating manual
1 Installation manual
PW1000-PW1500-PW1750-O-16S.book Seite 15 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
Accessories PW1000, PW1500, PW1750
16
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The PerfectWall PW1000, PW1500 and PW1750 are awnings are suitable for instal-
lation on motor homes or caravans.
The awnings may only be used while the vehicle is stationary.
Description
TieDown Kit
Straps for anchoring the awning
CampRoom
Awning tent front panel and sides for various models with support legs in different sizes
RainProtect
Front panel and sides available in different sizes
SunProtect
Front panel and sides available in different sizes
Rollo+ (not for PW1750)
Roller blind
Dometic Light LK120
LED light kit with remote control for installation on the awning arms
LED LightStrip
LED strip available in different lengths for installation on the underside of the awning
LED Profile
LED lighting available in different lengths for installation on the underside of wall-mounted
awnings
Awning cleaner
Special awning cleaner
Repair Kit
Awning repair patch
PW1000-PW1500-PW1750-O-16S.book Seite 16 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
PW1000, PW1500, PW1750 Technical description
17
6 Technical description
PerfectWall PW1000, PW1500 and PW1750 are awnings which can be extended
and retracted using a hand crank.
The PerfectWall PW1500 and PW1750 awnings can optionally also be extended
and retracted with a 12 V motor that is controlled by switch or remote control.
The awning is secured on the side of the vehicle or on the ground using struts.
The PW1750 awning has a roller blind integrated into the lead rail and that can be
pulled out for protection against rain or sun.

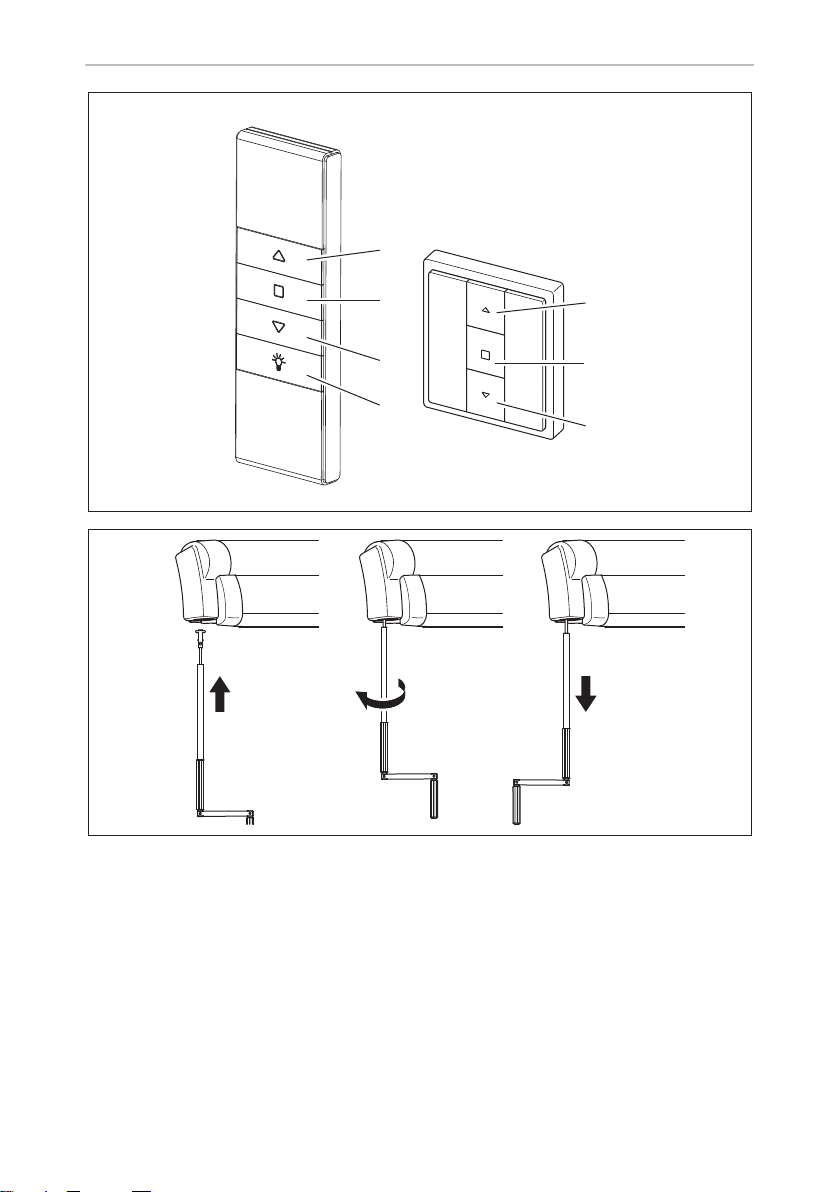

Controls of the remote control (only PW1500/PW1750, optional)
Controls of the switch (only PW1500/PW1750, optional)
No. in fig. 1,
page 3 Description
1 Retract awning
2Stop
3 Extend awning
4 Switch LED lighting on/off (accessory)
No. in fig. 1,
page 3 Description
1 Retract awning
2Stop
3 Extend awning
PW1000-PW1500-PW1750-O-16S.book Seite 17 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
Operating the awning PW1000, PW1500, PW1750
18
7 Operating the awning
Observe the safety instructions in chapter “Safety instructions” on page 13.
7.1 Note on the vehicle location
A
7.2 Extending the awning
Extending the awning using a hand crank
!
➤Click the hand crank into the holder in the awning (fig. 2, page 3).
➤Turn the hand crank until the awning is extended by about 1.5 metres (fig. 3,
page 4).

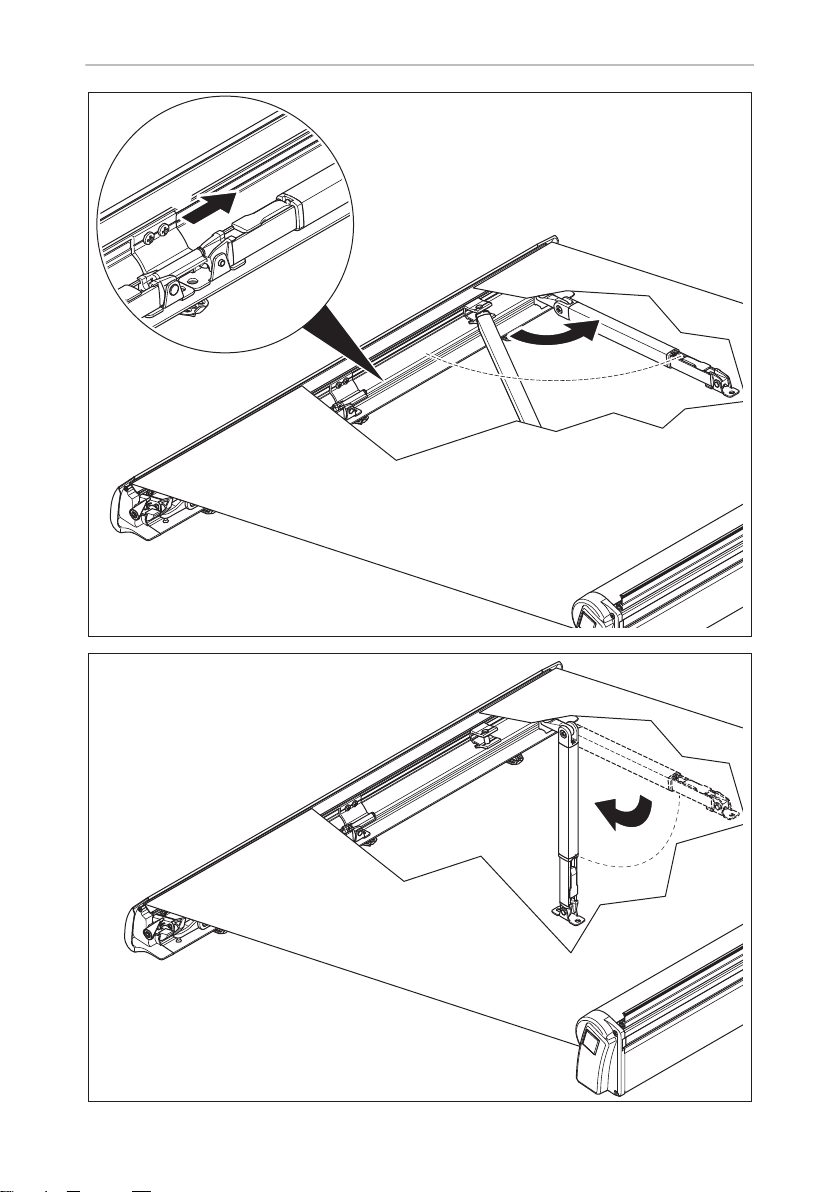

➤Push the right strut in the front cover together so that you can move it freely
(fig. 5, page 5).
➤Turn the right strut to the side (fig. 5, page 5).
➤Fold the right strut down and set it on the ground (fig. 6, page 5).
➤Adjust the strut to the required height (fig. 7, page 6).
➤Fold the lever for the strut up to secure the struts (fig. 8, page 6).
➤Extend the other strut in the same way.
➤Turn the hand crank until the awning is extended to the required position.
Position the struts vertically and back under the lead rail every 30 cm so that the
awning stays secured at all times.
➤Turn the hand crank approx. a quarter of the way back to tighten the fabric.
NOTICE!
•Park the vehicle so that no debris (branches, leaves or similar) gets on
to the fabric.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
WARNING! Beware of injury.
Keep a sufficient distance from objects or other vehicles. Once it is
retracted, it should be at least 40 cm away from other objects and
vehicles on all sides.
PW1000-PW1500-PW1750-O-16S.book Seite 18 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
PW1000, PW1500, PW1750 Operating the awning
19
A
➤Remove the hand crank from the holder on the awning.
Extending the awning using a 12 V motor (only PW1500/PW1750,
optional)
!
I
➤Press the button of the switch or the remote control until the awning is
extended by about 1.5 metres (fig. 4, page 4).
➤Push the right strut in the front cover together so that you can move it freely
(fig. 5, page 5).
➤Turn the right strut to the side (fig. 5, page 5).
➤Fold the right strut down and set it on the ground (fig. 6, page 5).
➤Adjust the strut to the required height (fig. 7, page 6).
➤Fold the lever for the strut up to secure the struts (fig. 8, page 6).
➤Extend the other strut in the same way.
NOTICE! Beware of damage.
The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against the
arms and become damaged.
The fabric used for long awnings should not sag in the middle.
WARNING! Beware of injury.
Keep a sufficient distance from objects or other vehicles. Once it is
retracted, it should be at least 40 cm away from other objects and
vehicles on all sides.
NOTE
Only for operation with the remote control:
•When the vehicle is started, the awning retracts automatically. While
the vehicle is running, the awning is blocked and can not be
extended.
•The receiver beeps once when it is switched on.
•Operation of the remote control can be affected by interference if
another device is being used nearby on the same frequency.
•Keep the remote control in a safe place while you are driving. The
magnet in the holder is not designed for strong vibrations, such as
sudden braking.
PW1000-PW1500-PW1750-O-16S.book Seite 19 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
Operating the awning PW1000, PW1500, PW1750
20
➤Press the button of the switch or the remote control until the awning is
extended to the required position. Position the struts vertically and back under
the lead rail every 30 cm so that the awning stays secured at all times.
➤Press the switch of the switch or the remote control until the awning has
retracted far enough to tauten the fabric.
A
Positioning the struts on the ground
!
➤Position the struts vertically underneath the lead rail.
➤Secure the struts with pegs (fig. 9, page 6).
➤Position one of the struts slightly lower so that the lead rail hangs at an angle.This
allows rain to run off more easily (fig. 0, page 6).
Securing the struts on the vehicle
You can secure the awning on your vehicle directly if you have already mounted the
latches for the struts.

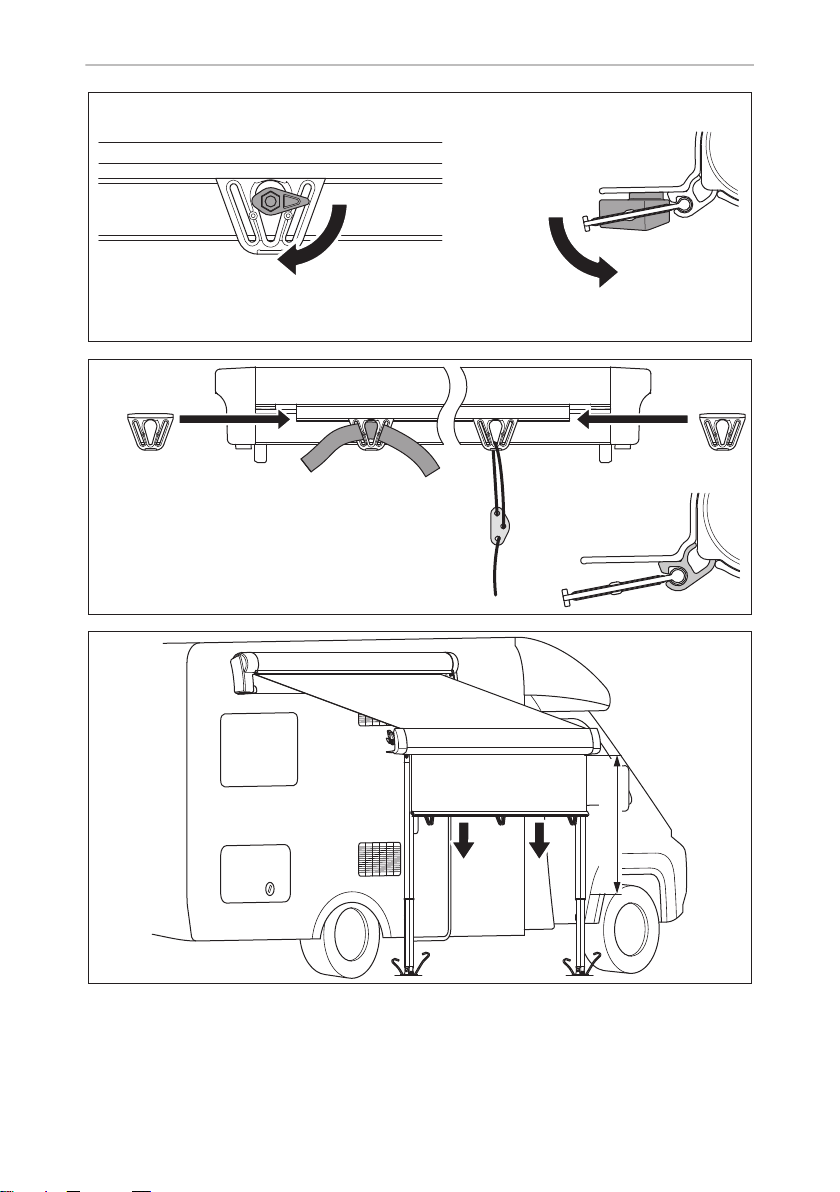

➤Slide the cover of the latch up (fig. a, page 7).
➤Fit the struts into the latch (fig. a, page 7).
➤Slide the cover of the latch down (fig. a, page 7).
➤Position one of the struts slightly lower so that the lead rail hangs at an angle.This
allows rain to run off more easily (fig. b, page 7).
NOTICE! Beware of damage.
The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against the
arms and become damaged.
The fabric used for long awnings should not sag in the middle.
WARNING! Beware of injury
•Only position the struts on solid ground.
•Secure the struts from slipping.
PW1000-PW1500-PW1750-O-16S.book Seite 20 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au

EN
PW1000, PW1500, PW1750 Operating the awning
21
Mounting the tension rafter (fig. c, page 7)
Awnings with a length of 4 metres or more need to have a tension rafter fitted in the
middle of the awning. This prevents the awning from sagging.
➤Slide the tension rafter together.
➤Fit the top end of the tension rafter into the attachment on the housing.
➤Slide the other end of the tension rafter into the attachment in the lead rail.
7.3 Retracting the awning
A
➤Remove any debris (branches, leaves or similar) lying on the fabric.
➤Loosen the struts from the fastenings (pegs or latches on the vehicle).
Retracting the awning using a hand crank
➤Click the top end of the hand crank into the holder in the awning.
➤Turn the hand crank until the awning is extended by only about 1.5 metres.
Position the struts vertically and back under the lead rail every 30 cm so that the
awning stays secured at all times.
➤Fold the lever of the right strut down to loosen the struts.
➤Slide the struts together completely.
➤Fold the right strut up.
➤Turn the right strut into the lead rail.
➤Slide the bottom part of the right strut into the latch of the lead rail.
➤Retract the other strut in the same way.
➤Turn the hand crank until the awning is fully retracted.
NOTICE!
•Only retract the awning when the fabric is free of debris (branches,
leaves or similar). Otherwise the awning may be damaged when it is
retracted.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
•When retracting the awning, make sure that no branches or other
objects are trapped in it.
PW1000-PW1500-PW1750-O-16S.book Seite 21 Donnerstag, 5. Oktober 2017 11:05 11
More information https://www.caravansplus.com.au
