Dometic TROPICOOL TCX07 User manual

TCX07, TCX14, TCX21, TCX35
Thermoelectric cooler
Installation and Operating Manual. . . . . . . . 9
Thermoelektrische Kühlbox
Montage- und Bedienungsanleitung. . . . .24
Glacière thermoélectrique
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . . 41
Nevera termoeléctrica
Instrucciones de montaje y de uso . . . . . . .57
Geleira termoeléctrica
Instruções de montagem e manual de
instruções. . . . . . . . . . . . . . . . . . . . . . . . . . .73
Frigorifero termoelettrico
Istruzioni di montaggio e d’uso . . . . . . . . .90
Thermo-elektrische koelbox
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . 107
Termoelektrisk køleboks
Monterings- og betjeningsvejledning . . .124
Termoelektrisk kylbox
Monterings- och bruksanvisning . . . . . . . 139
Termoelektrisk kjøleboks
Monterings- og bruksanvisning. . . . . . . . 155
Sähkökäyttöinen kylmälaukku
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 170
Термоэлектрический
холодильник
Инструкция по монтажу и эксплуатации 186
Przenośna lodówka
termoelektryczna
Instrukcja montażu i obsługi. . . . . . . . . . . 203
Termoelektrický chladiaci box
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 220
Termoelektrický chladicí box
Návod k montáži a obsluze . . . . . . . . . . . 236
Termoel ekt ro mos h űtő kész ülé k
Szerelési és használati útmutató . . . . . . . 252
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
MOBILE COOLING
TROPICOOL
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 1 Dienstag, 24. August 2021 9:30 21

© 2021 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 2 Dienstag, 24. August 2021 9:30 21

TCX07, TCX14, TCX21, TCX35

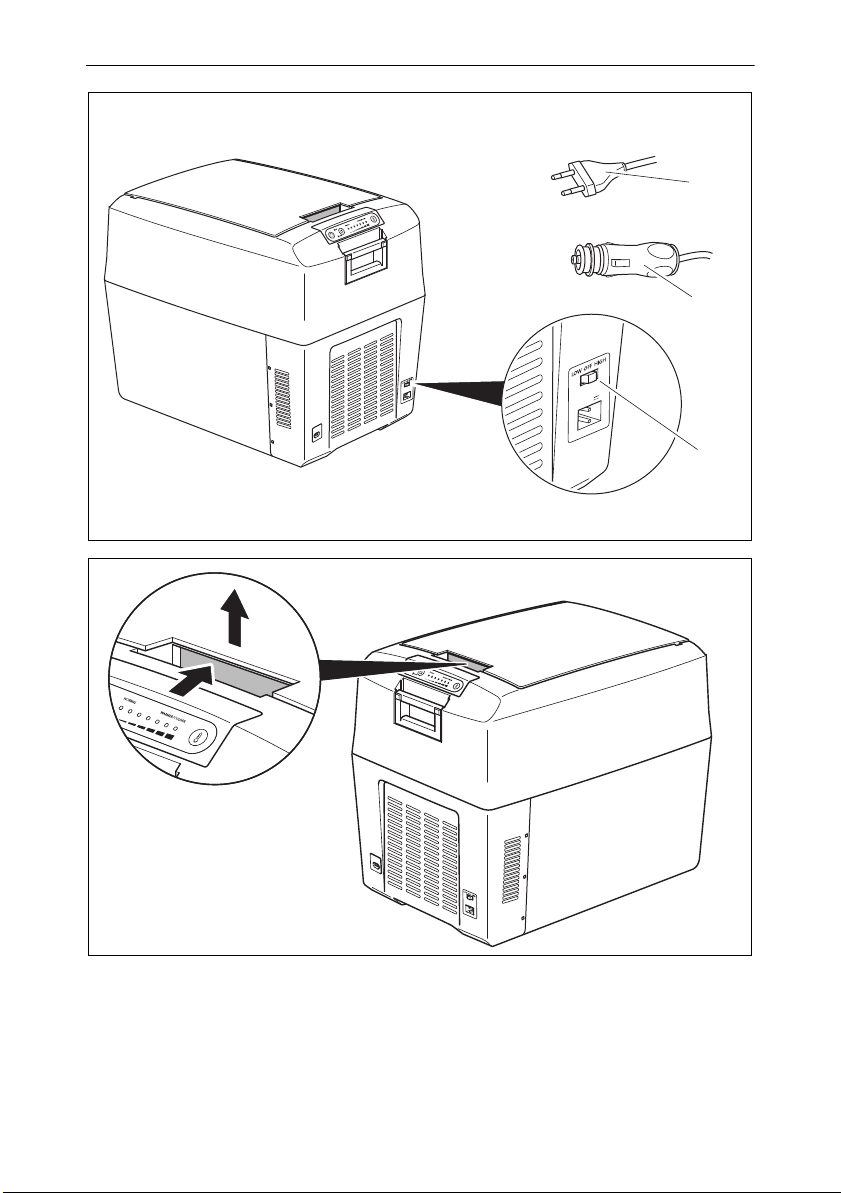

3
12/24V DC
3
1
2
1TCX14,TCX21, TCX35
2TCX35
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 3 Dienstag, 24. August 2021 9:30 21

TCX07,TCX14,TCX21,TCX35

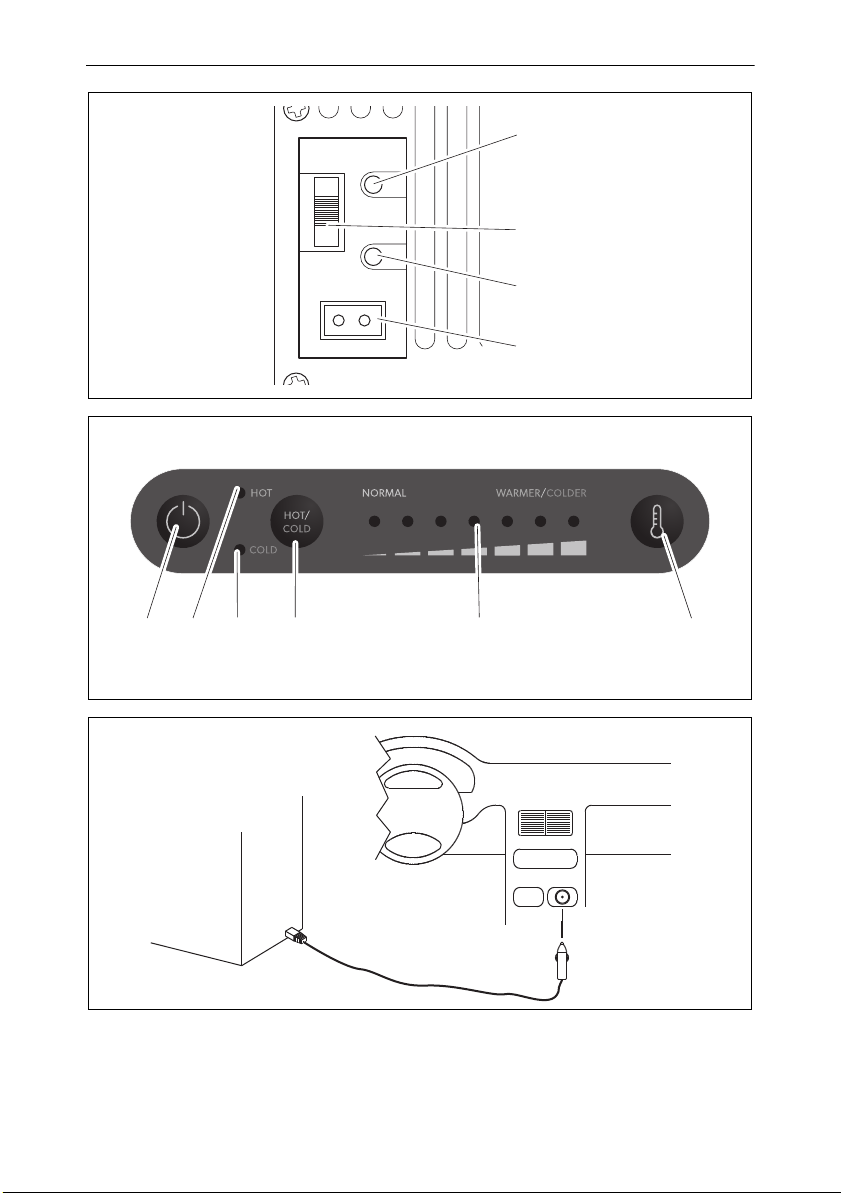

4
COLD
KALT
OFF
AUS
HOT
DC 12V
HEISS
4
3
2
1
3TCX07
1 2 3 4 5 6
4
TCX14,TCX21, TCX35
5
12/24 Vg
(TCX 07: 12 V g)
g
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 4 Dienstag, 24. August 2021 9:30 21

TCX07, TCX14, TCX21, TCX35
5
6

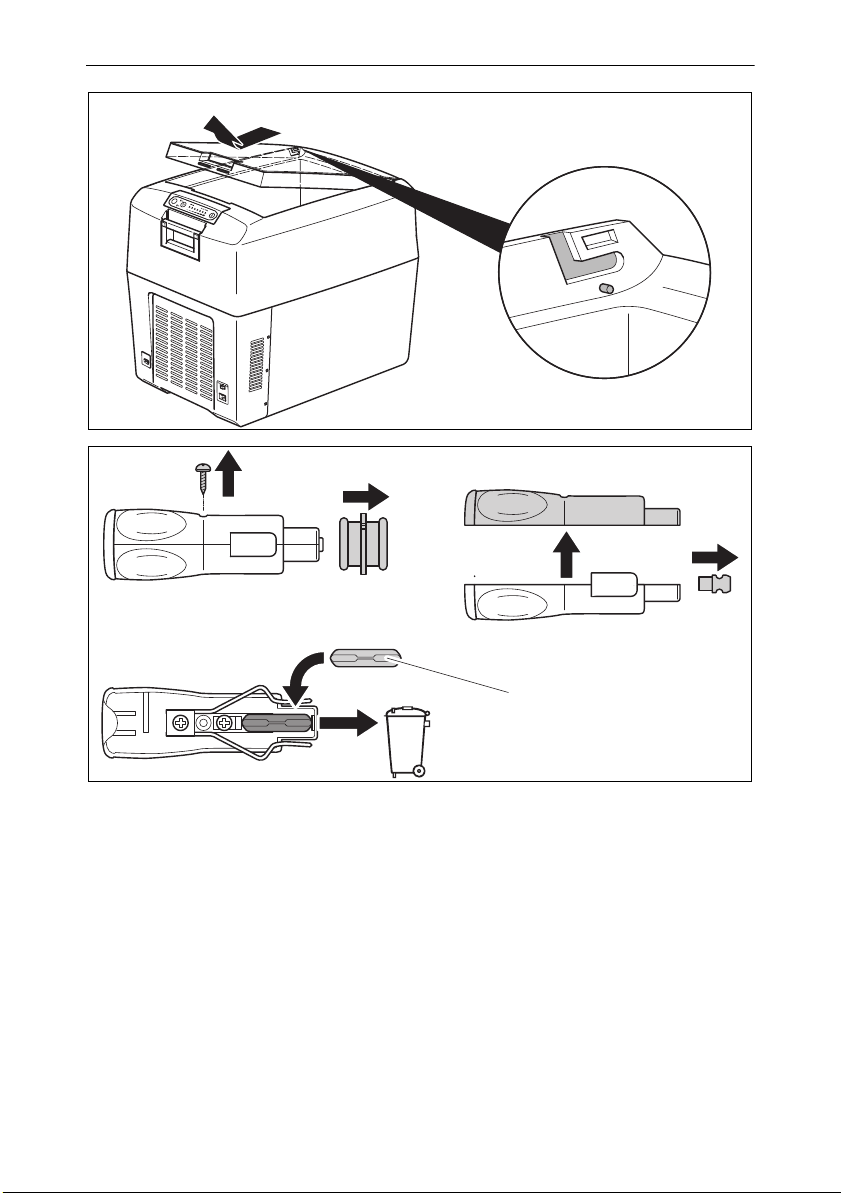

2. 1.
A B
C
1.
1.
2.
2.
1
7
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 5 Dienstag, 24. August 2021 9:30 21

TCX07,TCX14,TCX21,TCX35
6

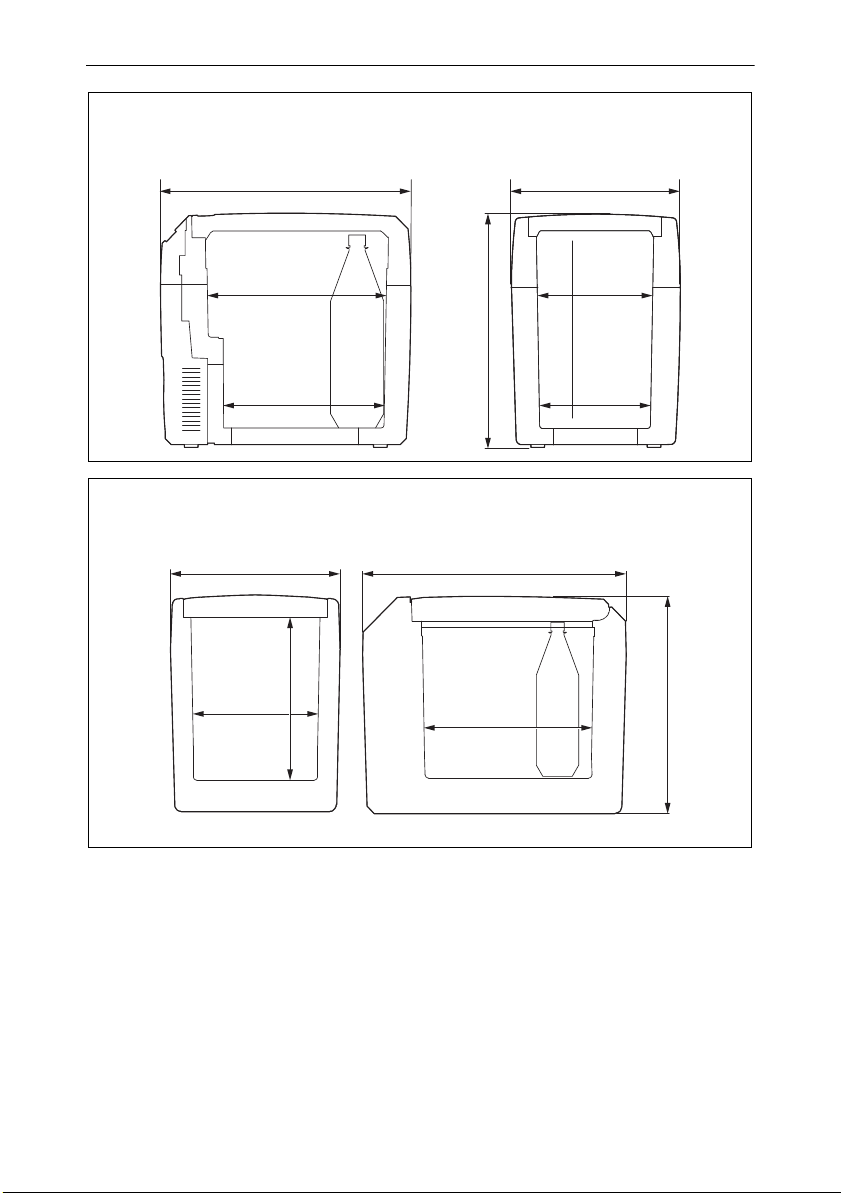

333 190
140210
278
240
8TCX 07
1,5/2 L
450
323
250
303
208
201
260
328
9TCX 14
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 6 Dienstag, 24. August 2021 9:30 21

TCX07, TCX14, TCX21, TCX35
7
1,5/2 L
450
319
250
420
303
198
208
352
0TCX 21
1, 5/2 L
550
340
460
376
265
350
aTCX 35
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 7 Dienstag, 24. August 2021 9:30 21

TCX07,TCX14,TCX21,TCX35
8
SUPPLIER´S NAME MODEL IDENTIFIER
kWh/annumXYZ
XYZ LXYZ L
ABCD
XY dB
A
B
B
C
D
E
F
G
eprel.ec.europa.eu
b
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 8 Dienstag, 24. August 2021 9:30 21

EN
TCX07, TCX14, TCX21, TCX35 Explanation of symbols
9
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit docu-
ments.dometic.com, dometic.com.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 9 Dienstag, 24. August 2021 9:30 21

EN
Safetyinstructions TCX07,TCX14,TCX21,TCX35
10
I
2 Safety instructions
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Fire hazard
• When positioning the device, ensure the supply cord is not trapped or
damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTE
Supplementary information for operating the product.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 10 Dienstag, 24. August 2021 9:30 21

EN
TCX07, TCX14, TCX21, TCX35 Safety instructions
11
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
To avoid contamination of food, please respect the following instructions:
• Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the cooling device for long periods can cause significant
increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the lid open to prevent mold developing within the device.
ANOTICE! Damage hazard
• Check that the voltage specification on the data plate corresponds to
that of the energy supply.
• Only connect the cooling device as follows:
– With the DC connection cable to a DC power supply in the vehicle
– Or with the AC connection cable to an AC power supply
• Never pull the plug out of the socket by the cable.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device and other power consuming devices from the battery
before connecting a quick charging device.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 11 Dienstag, 24. August 2021 9:30 21

EN
Scopeofdelivery TCX07,TCX14,TCX21,TCX35
12
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
• The device shall not to be exposed to rain.
3Scopeofdelivery
Check before starting up the device that all parts are available belonging to the
scope of delivery.
Quantity Description
1 Mobile thermoelectric cooler
1 Connection cable for AC connection
1 Connection cable for DC connection
1 Power adapter for AC connection (TCX07 only)
1 Instruction manual
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 12 Dienstag, 24. August 2021 9:30 21

EN
TCX07, TCX14, TCX21, TCX35 Intended use
13
4 Intended use
The cooling box is suitable for cooling and heating of foodstuff. The cooling box is
designed to be operated from a DC power supply socket of a vehicle or from an AC
power supply. The cooling box is also suitable for camping use.
The cooling box is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments
•farmhouses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications
The cooling box is not suitable for:
• storage of corrosive, caustic or solvent-containing substances
• deep-freezing of foodstuff
This cooling box is not intended to be used as a built-in appliance.
This product is only suitable for the intended purpose and application in accordance
with these instructions.
This manual provides information that is necessary for proper installation and/or
operation of the product. Poor installation and/or improper operating or mainte-
nance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 13 Dienstag, 24. August 2021 9:30 21

EN
Technicaldescription TCX07,TCX14,TCX21,TCX35
14
5 Technical description
The cooling box is a low-wear thermoelectric cooler with fan-assisted heat removal.
The cooling box can cool goods up to max. 27 °C (TCX07: 25 °C) under ambient
temperature (thermostatic switch-off at approx. 2 °C) or keep them warm up to max.
65 °C.
TCX14, TCX21, TCX35
If the cooling box has reached the set temperature range, it will automatically switch
over to the energy saving mode. In this mode only the energy which is required to
reach the temperature inside the box is consumed.
The cooling box is equipped with an automatic priority circuit. Thus it is ensured that
with simultaneous connection to the AC mains supply and to a 12/24 V battery, the
AC mains supply will be used.
5.1 Control panel (TCX07)
5.2 Control panel (TCX14, TCX21, TCX35)
No in fig. 3,
page 4 Explanation
1 DC socket
2 Red operating display (heating mode)
3 Switch
4 Green operating display (cooling mode)
No in fig. 4,
page 4 Explanation
1button
2 Red operating display (heating mode)
3 Blue operating display (cooling mode)
4 HOT/COLD button
5 Temperature status display
6button
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 14 Dienstag, 24. August 2021 9:30 21

EN
TCX07, TCX14, TCX21, TCX35 Operation
15
6Operation
A
To avoid food waste, note the following:
• Keep temperature fluctuation as low as possible. Only open the cooling box as
often and for as long as necessary. Store the foodstuff in such a way that the air
can still circulate well.
• Adjust the temperature to the quantity and type of the foodstuff.
• Foodstuff can easily absorb or release odor or taste. Always store foodstuff
covered or in closed containers/bottles.
6.1 Before first use
➤Clean the cooling box inside and outside for hygienic reasons (see chapter
“Cleaning and maintenance” on page 20).
6.2 Saving energy
• Choose a well ventilated location which is protected from direct sunlight.
• If you want to set an increased energy efficiency and a limited cooling capacity for
the cooling device, use the device’s ECO mode (TCX14, TCX21, TCX35).
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
• On a regular basis, make sure the lid seal still fits properly.
6.3 Connecting to vehicle power
I
NOTICE! Damage hazard
Only store objects or goods in the cooling box which may be cooled or
heated to the selected temperature.
NOTE
If you connect the cooling device to the vehicle power, remember that
you may have to turn on the ignition to supply it with power.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 15 Dienstag, 24. August 2021 9:30 21

EN
Operation TCX07,TCX14,TCX21,TCX35
16
For safety reasons the cooling box is equipped with an electronic system to prevent
polarity reversal. This protects the cooling box against short-circuiting when con-
necting to a battery.
6.4 Opening the cooling box
➤TCX35 only: Unlock the cooling box (fig. 2, page 3).
➤Open the cooling box.
6.5 Connecting the cooling box to 230 Vw
TCX07
1. Connect the AC cable to the power adapter.
2. Plug the other end of the AC cable into the socket (AC main side).
3. Connect one end of the DC cable to the power adapter.
4. Connect the other end of the DC cable to the DC socket at the cooling box.
TCX14, TCX21, TCX35
➤Connect the cooling box using the AC connection cable supplied (fig. 11,
page 4) to an AC mains power socket.
6.6 Connecting the cooling box to 12 Vg
I
TCX07
1. Plug one end of the 12 V connection cable into the socket of the cooling box.
2. Connect the other end of the 12 V connection cable to the DC socket in your
vehicle (fig. 5, page 4).
TCX14, TCX21, TCX35
➤Connect the cooling box using the DC connection cable supplied (fig. 12,
page 3) to the DC socket in the vehicle (fig. 5, page 4).
NOTE
The plug’s polarity cannot be reversed: it can only be inserted into the
socket in one direction.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 16 Dienstag, 24. August 2021 9:30 21

EN
TCX07, TCX14, TCX21, TCX35 Operation
17
6.7 Using the battery monitor (TCX14, TCX21, TCX35)
The cooling device is equipped with a two-level battery monitor that protects your
vehicle battery against excessive discharging when the cooling device is connected
to the DC power supply (fig. 13, page 3).
If the cooling box is operated when the vehicle ignition is switched off, the cooling
box switches off automatically as soon as the supply voltage falls below a set level.
The cooling box will switch back on once the vehicle battery has been recharged to
the restart voltage level.
A
In “HIGH” mode, the battery monitor responds faster than at the level “LOW” (see
the following table).
Proceed as follows to select the battery monitor mode:
1. Switch on the cooling box (see chapter “Switching on the cooling box” on
page 18).
2. To select the battery monitor mode, push the switch into the “HIGH” position or
the “LOW” position.
3. To switch off the battery monitor mode, push the switch into the “OFF” position.
I
NOTICE! Damage hazard
When switched off by the battery monitor, the vehicle battery will no
longer be fully charged. Avoid starting repeatedly or operating current
consumers without longer charging phases. Ensure that the vehicle bat-
tery is recharged.
Battery monitor mode LOW HIGH
Switch-off voltage at 12 V 10.1 V 11.8 V
Restart voltage at 12 V 11.1 V 12.6 V
Switch-off voltage at 24 V 21.5 V 24.6 V
Restart voltage at 24 V 23.0 V 26.2 V
NOTE
When the cooling device is supplied by the vehicle battery, select the
battery monitor mode “HIGH”. If the cooling device is connected to a
supply battery, the battery monitor mode “LOW” will suffice.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 17 Dienstag, 24. August 2021 9:30 21

EN
Operation TCX07,TCX14,TCX21,TCX35
18
6.8 Switching on the cooling box
TCX07
1. Place the cooling box on a firm base.
2. Push the switch on the control panel (fig. 33, page 4) into
the “KALT/COLD” position (cooling mode) or the “HEISS/HOT” position (heat-
ing mode) to switch on the cooling box.
✔The cooling box starts cooling or heating the interior:
TCX14, TCX21, TCX35
1. Place the cooling box on a firm base.
2. Press the button on the control panel (fig. 41, page 4) to switch on the
cooling box.
✔The cooling box starts cooling or heating the interior:
6.9 Switching between cooling and heating
TCX07
➤To switch between the operating modes, push the switch on the control panel
(fig. 33, page 4) into the “KALT/COLD” position for cooling mode or
the “HEISS/HOT” position for heating mode.
✔The green operating display (fig. 34, page 4) or the red operating display
(fig. 32, page 4) lights up and the cooling box starts cooling or heating.
Operating display Operating mode
Red (fig. 32, page 4) Heating
Green (fig. 34, page 4) Cooling
Operating display Operating mode
Red (fig. 42, page 4) Heating
Blue (fig. 43, page 4) Cooling
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 18 Dienstag, 24. August 2021 9:30 21

EN
TCX07, TCX14, TCX21, TCX35 Operation
19
TCX14, TCX21, TCX35
➤To switch between cooling mode and heating mode, press the
HOT/COLD button (fig. 44, page 4).
I
✔The blue operating display (fig. 43, page 4) or the red operating display
(fig. 42, page 4) lights up and the cooling box starts cooling or heating.
6.10 Selecting the temperature (TCX14, TCX21, TCX35)
The temperature status display (fig. 45, page 4) indicates the selected
temperature. With an increasing number of illuminated LEDs, the cooling or heating
intensity also increases.
I
Temperature at interior center at approx. 25 °C ambient temperature:
➤To select the temperature, press the button (fig. 46, page 4) repeatedly until
the desired number of LEDs lights up.
NOTE
The control unit of the cooling box has a memory function. It memorizes
the selected temperature range for each mode (cooling and heating).
Thus the temperature range which was previously selected in the
respective mode is set again with each switching on or switching over.
NOTE
The following temperature indications are subject to tolerances and are
dependent on the measuring position.
Temperature status display
(fig. 45, page 4) Interior temperature
Cooling
7 illuminated LEDs approx 1 °C (TCX14)
approx 3 °C (TCX21, TCX35)
1 illuminated LED approx 17 °C (ECO mode)
Heating 7 illuminated LEDs approx 65 °C
1 illuminated LED approx 48 °C
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 19 Dienstag, 24. August 2021 9:30 21

EN
Cleaning and maintenance TCX07, TCX14, TCX21, TCX35
20
6.11 Switching off the cooling box
I
TCX07
➤Push the switch on the operating panel (fig. 33, page 4) into the “AUS/OFF”
position to switch off the cooling box.
TCX14, TCX21, TCX35
➤Press the button on the control panel to switch off the cooling box.
6.12 Removing the lid (TCX14, TCX21, TCX35)
You can remove the lid of the cooling box (fig. 6, page 5):
1. Open the lid until it is at an approx. 30° angle to the cooling box.
2. Pull the lid forwards and lift it off diagonally.
7 Cleaning and maintenance
A
➤Occasionally clean the cooling device interior and exterior with a damp cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any dust and
dirt, so that heat can be released and the device is not damaged.
8Disposal
➤Place the packaging material in the appropriate recycling waste bins, wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling center
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
NOTE
When you stop using the cooling box, disconnect it from the mains.
NOTICE! Damage hazard
• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 20 Dienstag, 24. August 2021 9:30 21
