Dometic CARAVAN B3200 User manual

Read these instructions carefully. These
instructions MUST stay with this product.
USA
SERVICE OFFICE
Dometic Corporation
1120 North Main Street
Elkhart, IN 46514
SERVICE CENTER &
DEALER LOCATIONS
Please Visit:
www.eDometic.com
Roof Top Unit Used With 3105007.XXX or 3105935.XXX Air Distribution Box
Description Model Type Electronic Control Kit Thermostat Optional Indoor
Temperature
Sensor
Air Conditioner
LCD SZ Controls
W/Electric Heat
B3200 3241 3316156.000 Thermostat Included With
Electronic Control Kit
N/A
Heat Pump
LCD SZ Controls B3200 3242 3316154.000 Thermostat Included With
Electronic Control Kit
N/A
This Unit is designed for OEM installation.
RECORD THIS INFORMATION FOR FUTURE
REFERENCE:
Model Number
Serial Number
ADB Model Number
ADB Serial Number
Date Purchased
REVISION D
Form No. 3316483.000 09/17
©2017 Dometic Corporation
LaGrange, IN 46761
INSTALLATION
INSTRUCTIONS

2
TABLE OF CONTENTS
INTRODUCTION....................................................................................................................................................................2
DOCUMENT SYMBOLS ........................................................................................................................................................2
IMPORTANT SAFETY INSTRUCTIONS................................................................................................................................3
A. Recognize Safety Information ...................................................................................................................................3
B. Understand Signal Words..........................................................................................................................................3
C. Supplemental Directives............................................................................................................................................3
D. General Safety Messages .........................................................................................................................................3
SPECIFICATIONS..................................................................................................................................................................4
A. Table - Unit Data........................................................................................................................................................4
B. Roof Requirements....................................................................................................................................................4
C. Table - Air Distribution Duct Sizing & Design.............................................................................................................4
INSTALLATION INSTRUCTIONS ..........................................................................................................................................5
A. Choosing Proper Location For Unit ...........................................................................................................................5
B. Roof Preparation .......................................................................................................................................................6
C. Air Distribution Duct Sizing & Design ........................................................................................................................6
D. Wiring Requirements .................................................................................................................................................8
E. Choosing Thermostat Location..................................................................................................................................8
F. Thermostat Installation .............................................................................................................................................8
G. Placing Unit On Roof .................................................................................................................................................9
H. Installation Preparation..............................................................................................................................................9
I. LCD SZ System Low Voltage Wire Connections.....................................................................................................12
J. Installing Return Air Cover.......................................................................................................................................12
GENERAL INFORMATION...................................................................................................................................................12
A. Heat Gain ................................................................................................................................................................12
B. Condensation ..........................................................................................................................................................12
WIRING DIAGRAMS............................................................................................................................................................13
A. Unit Wiring Diagrams...............................................................................................................................................13
DOCUMENT SYMBOLS
Indicates additional information that is NOT related
to physical injury. Indicates step-by-step instructions.
INTRODUCTION
This air conditioner/heat pump (hereinafter referred to as “unit” or “product”) is designed and intended for installation on the
roof of a Recreational Vehicle (hereinafter referred to as RV) during the time it is manufactured.
Read these instructions and highlight the appropriate steps for your particular procedure before starting the installation.
This unit can be installed by one person with brief help from additional personnel. Use these instructions to ensure a properly
installed, and properly functioning product.
Dometic Corporation reserves the right to modify appearances and specications without notice.

3
IMPORTANT SAFETY INSTRUCTIONS
This manual has safety information and instructions to help
users eliminate or reduce the risk of accidents and injuries.
A. Recognize Safety Information
This is the safety alert symbol. It is used to
alert you to potential physical injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
B. Understand Signal Words
A signal word will identify safety messages and
property damage messages, and will indicate the
degree or level of hazard seriousness.
 indicates a hazardous situation that,
if NOT avoided, could result in death or serious in-
jury.
 indicates a hazardous situation that,
if NOT avoided, could result in minor or moderate
injury.
 is used to address practices NOT
related to physical injury.
C. Supplemental Directives
Read and follow all safety information and
instructions to avoid possible injury or death.
Read and understand these instructions be-
fore [installing / using / servicing / performing
maintenance on] this product.
Incorrect [installation / operation / servicing /
maintaining] of this product can lead to seri-
ous injury. Follow all instructions.
The installation MUST comply with all ap-
plicable local or national codes, including
the latest edition of the following standards:
●IEC 335-2-40-CI, 7.12.1
D. General Safety Messages
 Failure to obey the following warn-
ings could result in death or serious injury:
●This product MUST be [installed / serviced] by a
qualied service technician.
●Do NOT modify this product in any way. Modica-
tion can be extremely hazardous.
●Do NOT add any devices or accessories to this
product except those specically authorized in
writing by Dometic Corporation.

4
A. Table - Unit Data
Type Nominal
Cooling
Capacity
Electrical
Rating
Compressor
Rated Load
Amps
Compressor
Locked
Rotor
Amps
Fan Motor
Rated Load
Amps
Fan Motor
Locked
Rotor
Amps
Refrigerant
R-410A
(grams / oz)
Minimum
Wire Size*
AC Circuit
Protection
***Installer
Supplied
Minimum
Generator
Size**
1 Unit / 2 Units
3241 3.0 kW 220 - 240 Vac
50 / 60 Hz 1 ph
5.46 27 .92 2.3 525 / 18.5 1.5 mm2
Copper
Up to 8
Meters
10 Amp 3.5 kW / 5.0 kW
3242 3.0 kW 5.46 27 .92 2.3 695 / 24.5 10 Amp 3.5 kW / 5.0 kW
* For wire length over 8 meters, consult regulatory codes for proper sizing.
** Dometic Corporation gives GENERAL guidelines for generator requirements. These guidelines come from experiences
people have had in actual applications. When sizing the generator, the total power usage of your RV must be considered.
Keep in mind generators lose power at high altitudes and from lack of maintenance.
*** CIRCUIT PROTECTION: Time Delay Fuse or Circuit Breaker Required.
B. Roof Requirements
●A 362 mm x 362 mm (± 3 mm) square opening (hereinafter referred to as “roof opening”) is required for installing
this unit. This opening is part of the return air system of the unit and MUST be nished in accordance with NFPA
1192.
●Roof construction with rafters/joists support frames on a minimum of 406 millimeter centers.
●Minimum of 51 millimeters and maximum of 102 millimeters distance between roof to ceiling of RV.
C. Table - Air Distribution Duct Sizing & Design
Air Distribution Duct Sizing & Design Chart
For Ducted Applications
Return Air Cover Model 3105007.XXX
3105935.XXX
Roof Cavity Depth 51 mm Min. - 140 mm Max.
Duct Cross Section Area (inside) 144 cm2Min.
Duct Size
Depth
Width
Total Duct Length
Duct Length (short run)
38 mm Min. - 64 mm Max.
178 mm Min. - 254 mm Max.
4.6 M Min. - 12.2 M Max.
1/3 Min. Of Total Duct Length
Register Requirements
Number Required Per Run
Free Air Area Per Register
Distance From Duct End
Distance From Elbow
2 Min.
90 cm2Min.
127 mm Min. - 203 Max.
381 mm
Total System Static Air Pressure
Blower At High Speed, Filter
& Grill In Place
30 - 160 Pascal
Note: Duct sizes listed are inside dimensions
SPECIFICATIONS

5
A. Choosing Proper Location For Unit
This unit is specically designed for installation on the roof
of an RV. When determining your cooling requirements, the
following should be considered:
●Size of RV;
●Window area (increases heat gain);
●Amount of insulation in walls and roof;
●Geographical location where the RV will be
used;
●Personal comfort level required.
1. For one unit installation: The unit should be
mounted slightly forward of center (front to back)
and centered from side to side.
2. For two unit installations: Install one unit 1/3 and
one unit 2/3’s from front of RV and centered from
side to side.
It is preferred that the unit be installed on a relatively at
and level roof section measured with the RV parked on a
level surface. See table below for maximum acceptable tilt.
Model
Number
Max Tilt
(All Directions)
3241
3242
8°
3. After Location Has Been Selected:
a. Check for obstructions in the area where unit
will be installed. See (FIG. 1) & (FIG. 2).
b.  Maintain structural integrity.
Otherwise damage to product and/or RV
could occur.
The roof must be designed to support 59 ki-
lograms when RV is in motion. Normally a
91 kilogram static load design will meet this
requirement.

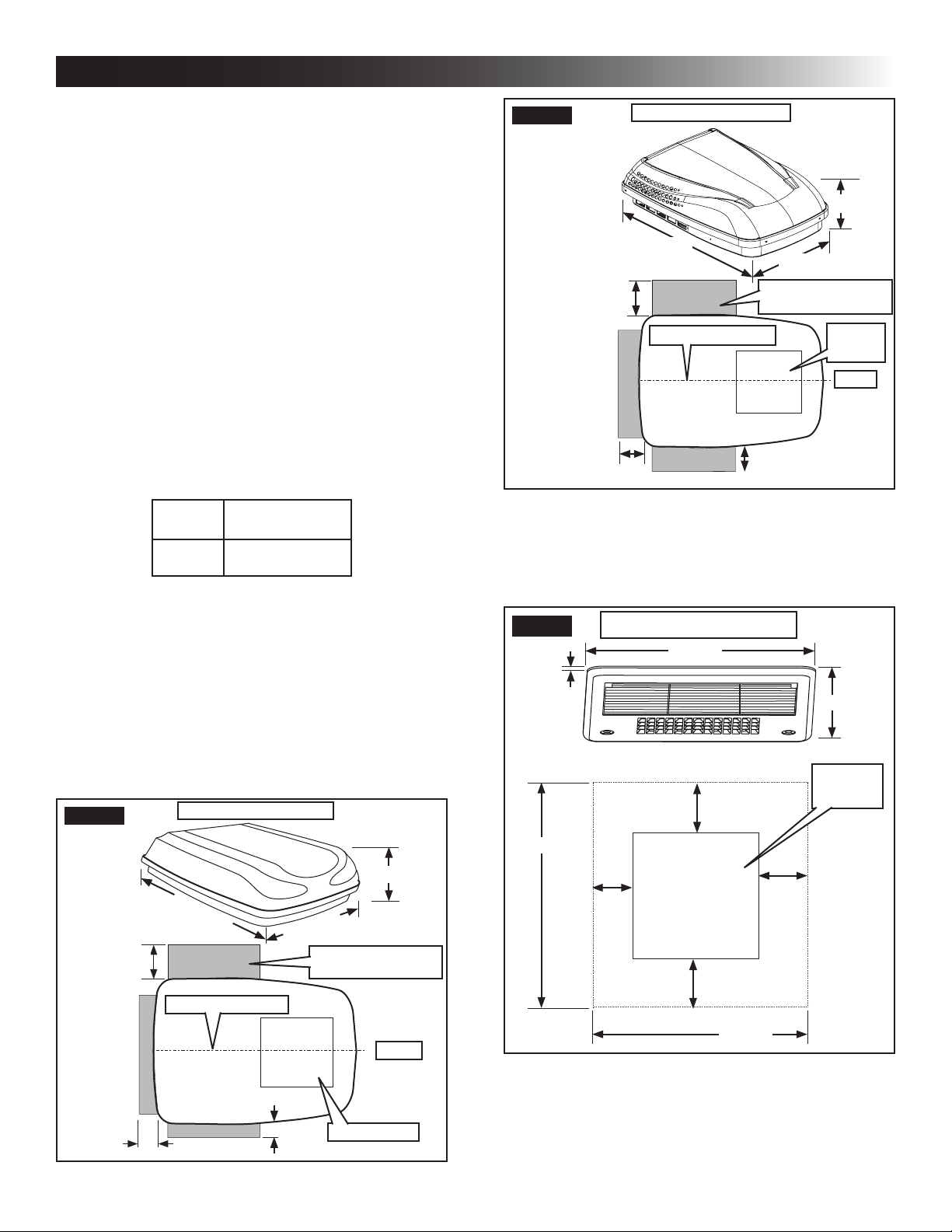

FIG. 1 Dimensions Are Nominal
241 mm
737 mm
1016 mm
Roof Opening
Front
Center Line Of Unit
102 mm
102 mm
305 mm Keep These Areas
Free Of Obstructions
INSTALLATION INSTRUCTIONS
FIG. 2 Dimensions Are Nominal
264 mm
737 mm
1029 mm
Keep These Areas
Free Of Obstructions
Roof
Opening
Front
Center Line Of Unit
102 mm
102 mm
305 mm
c. Check inside the RV for return air grille (here-
inafter referred to as “RAG”) obstructions
(i.e. door openings, room dividers, curtains,
ceiling xtures, etc). See (FIG. 3).
FIG. 3 Dimensions Are Nominal
19 mm
432 mm
432 mm
432 mm
32 mm
38 mm
38 mm
432 mm
44 mm
Roof
Opening

6
B. Roof Preparation
1.  FIRE OR ELECTRICAL SHOCK
HAZARD. Make sure there are no obstacles
(wires, pipes, etc.) inside RV’s [roof / oor /
walls]. Shut OFF gas supply, disconnect 220-
240 Vac power from RV, and disconnect posi-
tive (+) 12 Vdc terminal from supply battery BE-
FORE drilling or cutting into RV. Failure to obey
these warnings could result in death or serious
injury.
Opening Requirements - Before preparing
the ceiling opening, the type of system op-
tions MUST be decided upon. Read all of
the following instructions before beginning
the installation.
2. Carefully mark and cut the required roof opening.
See "B. Roof Requirements" on page (4).
3. Using the roof opening as a guide, cut the match-
ing hole in the ceiling.
4.  Maintain structural integrity. Oth-
erwise damage to product and/or RV could oc-
cur.
 NEVER create a low spot on RV
roof. Otherwise, water will pool and could cause
a leak.
The opening created must be framed to provide
adequate support and prevent air from being
drawn from the roof cavity. Framing stock 407
mm or more in thickness must be used. Remem-
ber to provide an entrance hole for power sup-
plies, indoor temperature sensor (if applicable),
thermostat communication cable, and furnace
wires (if applicable) at the front of the opening.

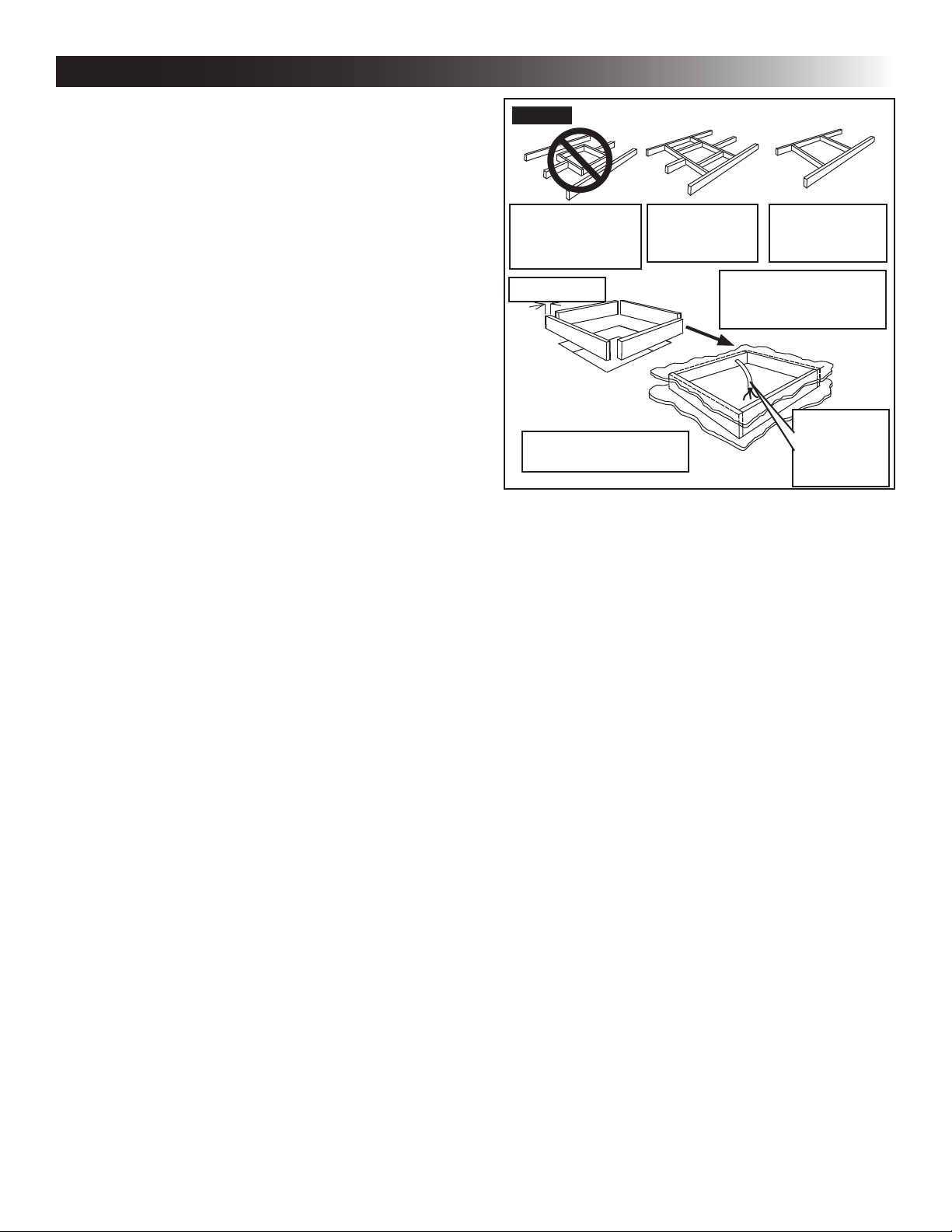

See (FIG. 4).
3/4″ Min.
Leave Access For
Power Supply Wiring
FIG. 4
381 mm
Min. At
Front Of
Opening
Do Not Cut Roof
Structure Or
Rafters
Good-Rafters
Supported By
Cross Beams
Good Location
Between Roof
Rafters
Frame Opening So It
Won't Collapse When
Bolting Down Unit
19 mm Min.
C. Air Distribution Duct Sizing & Design
The installer of this system must design the air distribution
system for their particular application. Several requirements
must be met for the unit to operate properly. These require-
ments are as follows:
1.  Make sure ductwork will NOT
bend or collapse during and after installation,
and that it is correctly insulated and sealed.
Otherwise, damage to roof structure and ceiling
could occur.
2. All discharge air ducts must be properly insu-
lated to prevent condensation from forming on
their surfaces or adjacent surfaces during op-
eration of unit. This insulation must be R-7 mini-
mum. See (FIG. 5).
INSTALLATION INSTRUCTIONS

7
Frame
DuctDuct
Frame
Frame
Roof Opening
Roof Opening
AC Power
Supply Wire
Low Voltage Wires:
12 Vdc
Furnace
Indoor Temperature
Sensor Cable
Communication
Cable
Roof SIDE VIEW
(TOWARD BACK OF RV
Duct Ceiling
Duct
Insulation
TOP VIEW
(BACK OF RV)
FIG. 5
3. Ducts and their joints must be sealed to prevent
condensation from forming on adjacent surfaces
during operation of the unit.
4. Return air openings must have 40 square inches
minimum free area including the lter.
5. Return air to the unit must be ltered to prevent
dirt accumulation on unit cooling surface.
6. Air Distribution System Installation
a. Dometic Corporation recommends the basic
conguration shown in (FIG 6), for installing
this system. We have found by testing, that
this conguration works best in most applica-
tions. It is the responsibility of the installer to
review each RV oor plan to determine the
following:
●Duct size
●Duct layout
●Register size
●Register location
●Thermostat location
●Indoor Temperature Sensor Location
These items must be determined in conjunc-
tion with the Air Distribution Duct System
Sizing & Design requirements. See "C. Table
- Air Distribution Duct Sizing & Design" on
page (4).
Alternate congurations and methods
may be used which will allow the unit
to operate properly; however, these
alternate congurations and methods
MUST be approved by Dometic Cor-
poration in writing. The following in-
structions are based upon the use of
RAG Kits 3105007.XXX & 3105935.
XXX.
INSTALLATION INSTRUCTIONS
FIG. 6 Duct Size And Requirements For 3105007.XXX And 3105935.XXX RAG
Total Outlet Air Area
Minimum 144 cm2
Register Required
Register Required
Register Required
Register Required
Roof
Rafters
Note: Duct Size is Inside Dimensions
Short Duct Run Minimum
1/3 Total Duct Length
Ducts Min. Max.
Depth 38 mm 64 mm
Width 178 mm 254 mm
Total Length 4.6 M 12.2 M
362 mm x 362 mm (±3 mm)
Roof Opening
Registers
8 Min. - 12 Max.
(Per Unit)
90 cm2Free Area
Per Register

8
D. Wiring Requirements
1. Route a copper, with ground, 220-240 Vac sup-
ply wire from the time delay fuse or circuit break-
er box to the roof opening. Use a listed/certied
non metallic - sheathed single strand cable. See
"A. Table - Unit Data" on page (4).
a. This supply wire must be located in the front
portion of the roof opening.
b. The power MUST be on an appropriately
sized separate time delay fuse or circuit
breaker. See "A. Table - Unit Data" on page
(4).
c. Make sure that at least 381 mm of supply
wire extends into the roof opening. This en-
sures an easy connection at the junction box.
d. Protect the wire where it passes into the
opening with approved method.
2. Route a dedicated 12 Vdc supply wire (.50 mm2)
from the RV converter (ltered side) or battery to
the roof opening.
a. This supply wire must be located in the front
portion of the roof opening.
b. Make sure that at least 381 mm of supply
wire extends into the roof opening.
3. Thermostat Communication Cable
a. LCD SZ Thermostat
I. Route a 3 conductor communication ca-
ble, .50 mm2, from the roof opening to the
Liquid Crystal Display Single Zone (here-
inafter referred to a LCD SZ) thermostat
mounting location. Make sure that at least
381 mm of the wire extends into the roof
opening and 152 mm extends from the
wall at the thermostat mounting location.
See "E. Choosing Thermostat Location"
on page (8).
4. If system includes a gas furnace, route two .50
mm2 thermostat wires from the furnace to the
roof opening of the unit that will control it. If more
than one furnace is to be used, route the second
set of thermostat wires to the second unit. Make
sure that at least 381 mm of wire extends into
the opening.
E. Choosing Thermostat Location
1. LCD SZ system
a. The proper location of the thermostat is very
important to ensure that it will provide a com-
fortable RV temperature. Observe the follow-
ing rules when selecting a location.
●Locate the thermostat 1372 mm above
the oor.
●Install the thermostat on a partition, not
on an outside wall.
●NEVER expose the thermostat to direct
heat from lamps, sun, or other heat pro-
ducing items.
●Avoid locations close to doors that lead
outside, windows, or adjoining outside
walls.
●Avoid locations close to supply registers
and the air from them.
F. Thermostat Installation
1. LCD SZ System

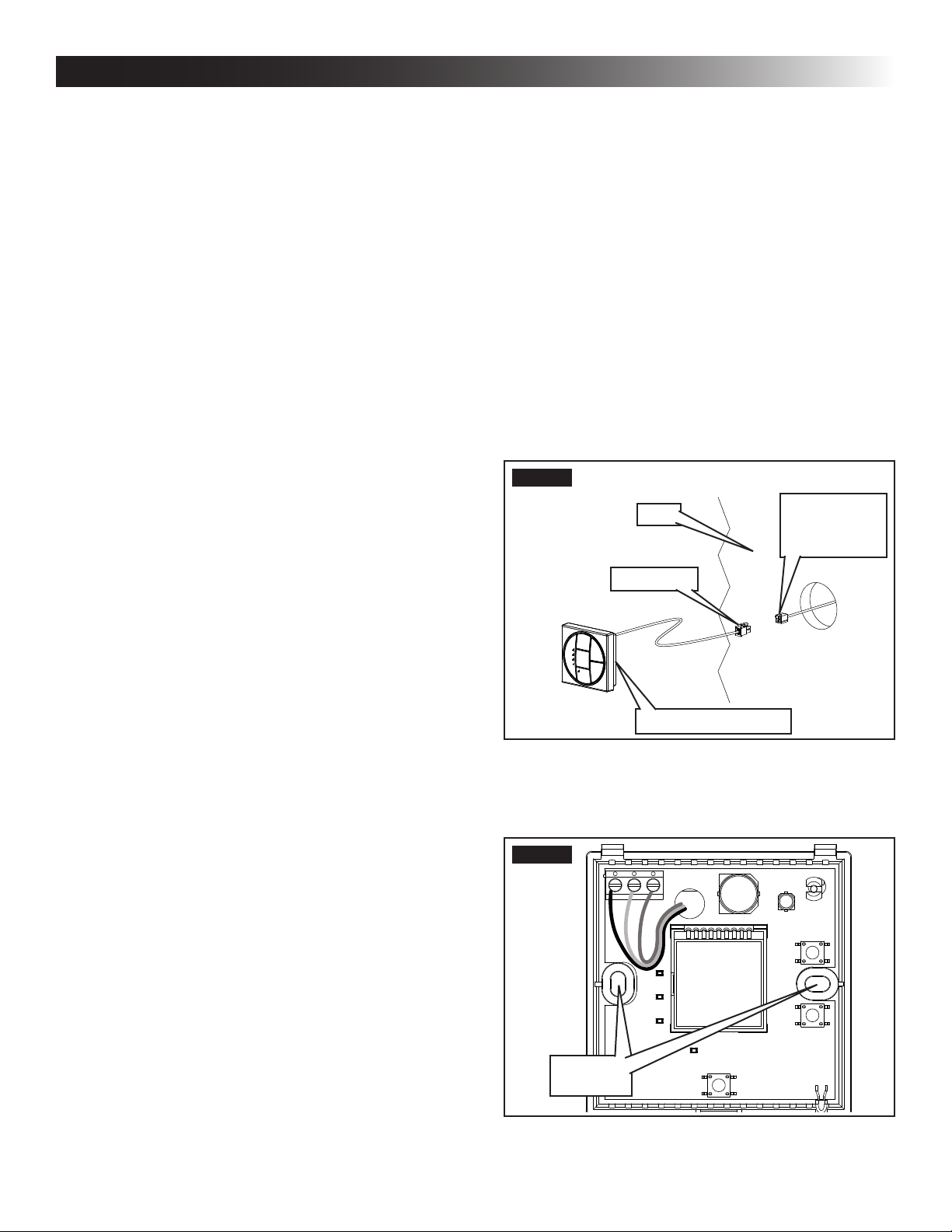

a. Remove the cover from the LCD SZ thermo-
stat. Depress tab on bottom of thermostat
and separate it from the base.
b. Mate the 4 pin plug wired to the LCD SZ ther-
mostat to the 4 pin connector on the commu-
nication cable previously routed through the
RV. See (FIG. 7).
FIG. 7
Wall
SZ LCD Thermostat
4 Pin Plug
Previously
Routed 4 Pin
Connector
c. Mount the thermostat level on the wall using
the screws provided. See (FIG. 8) for screw
locations.
FIG. 8
12-
COMMS
12+
Screw
Locations
INSTALLATION INSTRUCTIONS

9
4. Place the electronic control box kit (if applicable)
and the ADB kit inside the RV. These boxes con-
tain mounting hardware for the unit and will be
used inside the RV.
This completes the outside work. Minor
adjustments can be done from inside the
RV if required.
H. Installation Preparation
1. Check gasket alignment of the unit over the
roof opening and adjust if necessary. Unit may
be moved from below by slightly lifting. See
(FIG. 11).
FIG. 11 Center Unit From Below
Roof Gasket
2. Remove return air cover and ceiling template
from carton. See (FIG. 12).
FIG. 12 Divider Plate
Return Air
Cover
Ceiling
Template
Return Air
Grille
3. All models listed in this manual will use a four (4)
bolt pattern for installing the RAG kit.
4. Reach up into the return air opening and pull the
unit electric cord down for later connection. See
(FIG. 13).
d. Inspect all connections to make sure they
are tight.
e. Place cover on the thermostat and push until
an audible click is heard.

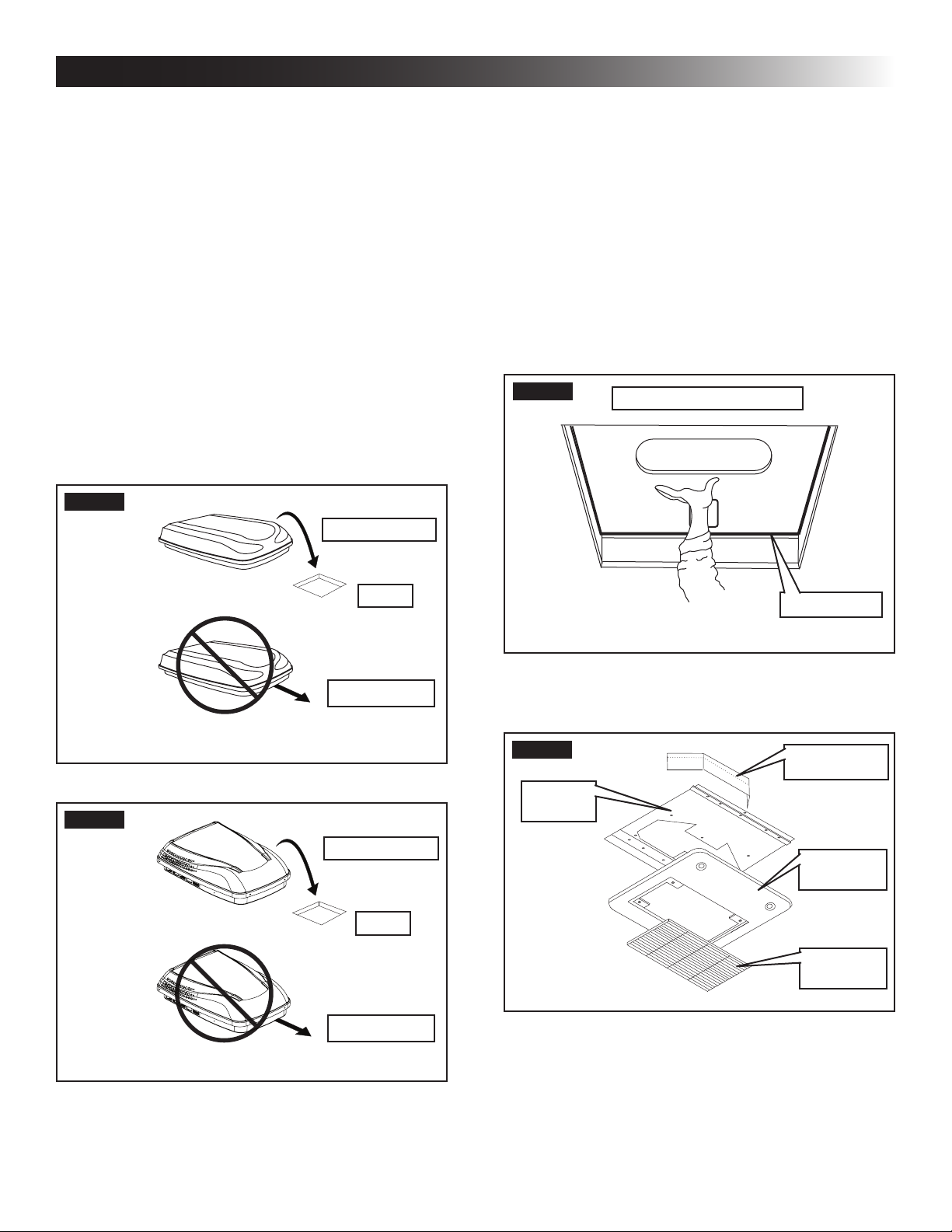

G. Placing Unit On Roof
1. Remove the unit from the carton and discard
carton.
2.  LIFTING HAZARD. Use proper
lifting technique and control when lifting product.
Failure to obey this caution could result in injury.
Place unit on the roof.
3.  Do NOT slide unit. Otherwise,
damage to gasket (on bottom of unit) may occur,
and could cause a leak.
Lift and place the unit over the prepared open-
ing using the gasket on the unit as a guide. See
(FIG. 9) & (FIG. 10).
FIG. 9
Do Not Slide
Lift And Place
Front
FIG. 10
Do Not Slide
Lift And Place
Front
INSTALLATION INSTRUCTIONS

10
INSTALLATION INSTRUCTIONS

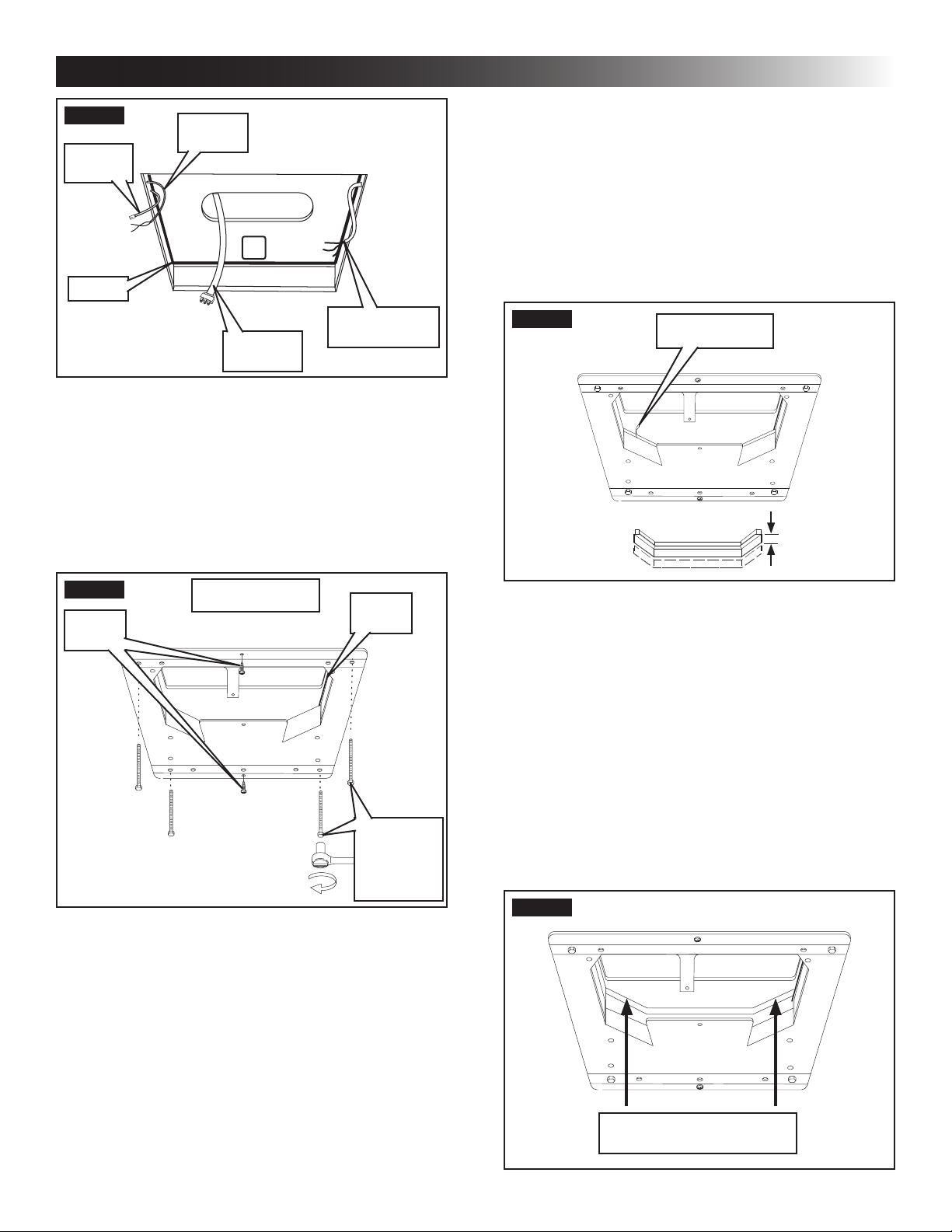

FIG. 13
Gasket
Control
Cable
Electrical
Cord
220-240 Vac
Power Supply
Furnace
Wires
5. Hold the ceiling template up to the roof opening.
Make sure the large plate faces the rear of the
RV. See (FIG. 14).
a. Start each mounting bolt through the ceiling
template and up into the unit base pan by
hand. Install wood screw in each end of the
ceiling template. This ensures a tight t of
the return air cover to ceiling. See (FIG. 14).
FIG. 14 Front Of Vehicle
Tighten To
Compress
Gasket To
13 mm
Roof
Gasket
Screws
b.  Tighten mounting bolts to
correct torque specications. Overtighten-
ing could damage unit’s base pan or ceiling
template. Not enough torque will allow an in-
adequate roof seal, and could cause a leak.
Tighten all four (4) mounting bolts EVENLY
within 4.5 to 5.6 NM. See (FIG. 14).
This will compress the roof gasket to
approximately 13 mm.
6. Installation Of Divider Plate
a. Measure the ceiling to roof thickness:
●If distance is 51 mm - 95 mm, remove
perforated tab from divider plate. See
(FIG. 15).
●If distance is 95 mm - 140 mm, remove
no tabs.
b. Remove the backing paper from double-
sided tape located on ceiling template. See
(FIG. 15).
FIG. 15 Paper Backing
51 mm -
95 mm
c.  Divider plate MUST be in-
stalled correctly. Incorrect installation could
cause compressor to quick-cycle, and could
result in supply circuit overload and reduced
product performance.
The adhesive on the double-sided
tape is extremely sticky. Make sure
the divider plate is properly positioned
before pressing into place.
Place the divider plate up to bottom of the
unit base pan rmly. The foam tape on the di-
vider plate must seal to bottom of base pan.
See (FIG. 16).
FIG. 16
Push Divider Plate Firmly
Onto Base Pan

11
d. With slight pressure push the divider plate
against the double-sided tape on the ceiling
template.
e. Locate the 3 mm x 178 mm x 457 mm self-
adhesive insulation supplied with the RAG
kit. Remove the backing paper from the in-
sulation and carefully stick onto the ceiling
template divider plate. See (FIG. 17).
FIG. 17
Foam Tape
Place Insulation In Position
(Do Not Cover Unit Rating Plate)
Divider Plate
●Excess width is intended to seal the di-
vider plate to the sides of the roof open-
ing. This is to help prevent cold air dis-
charge from circulating into the unit return
air opening.
●If the insulation is too high, stick excess
height of the insulation to the unit base
pan. Do not cover up unit rating plate.
f. Place the electronic control box on the ceil-
ing template with the white 6 pin plug on the
curb side of the RV. Do NOT attach at this
time.
g. Plug the 9 pin electrical cord from the unit
into the 9 pin to 6 pin adapter. Plug the 6 pin
end of the 9 pin to 6 pin adapter into match-
ing 6 pin connector in the electronic control
box. The plug is polarized and will only t in
one direction. See (FIG. 19).
h. Plug the supplied freeze control sensor and
the 4 wire harness into their matching con-
nectors in the electronic control box.
i. Insert the freeze control sensor into the
evaporator coil ns approximately 25 mm
above the bottom of the coil ns and on the
left side. See (FIG. 18). Bend ns over sen-
sor to secure in place.
FIG. 18
Route Up Through
Return Air Opening
Remove
Hang Tag
Freeze Control
Sensor
j. Attach electronic control box to the ceiling
template using the two (2) blunt self-tapping
screws provided in the electronic control box
kit. See (FIG. 19).
FIG. 19
9 Pin Plug
From Unit
Power
Supply
From RV
Freeze Sensor
Wire Harness
Low Voltage Plug From RV (Connected To T-Stat)
Front Blunt Self-
Tapping Screw
Electronic
Control Box
9 Pin to 6
Pin Adapter
Low Voltage
Connector From
Control Box
Furnace
Wires
INSTALLATION INSTRUCTIONS

12
I. LCD SZ System Low Voltage Wire
Connections
1. All Heat Pump Electronic Control Kit Systems
a. Plug the outdoor temperature sensor from
the unit into the white 2 pin matching con-
nector in the electronic control box.
2. All LCD SZ Systems
a. Connect the previously run furnace thermo-
stat wires (if applicable) to the blue wires
protruding from the roof opening or to the
1/4″ connectors at the electronic control box
using the supplied 1/4″ insulated connectors.
The polarity of this connection does not ma-
ter.
b.

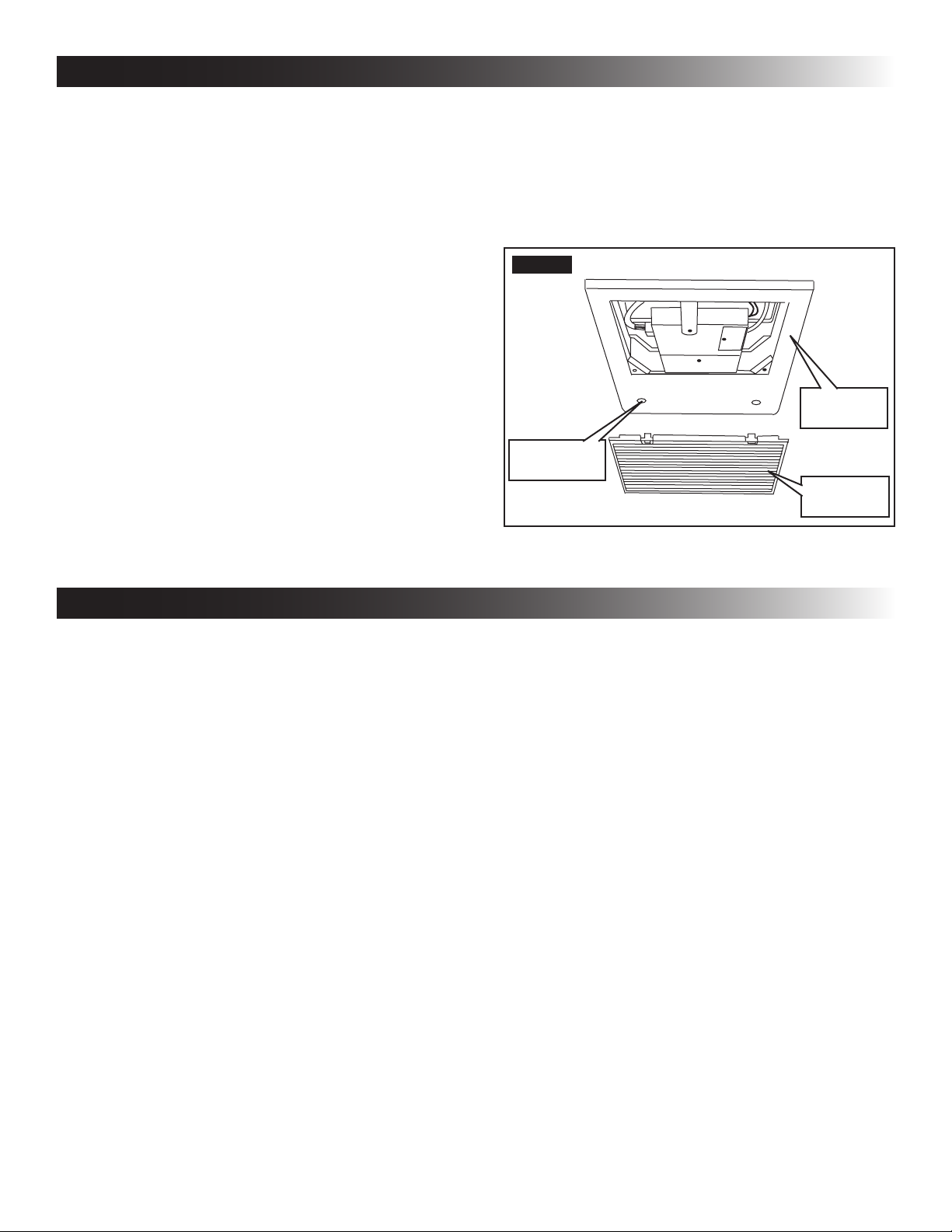

J. Installing Return Air Cover
1. Remove the return air grille from the return air
cover.
2. Place the return air cover up to the ceiling tem-
plate.
3. Install cover to template using six (6) supplied
#8 x 10 mm blunt point Phillips head screws.
4. Re-install lter return air grille into return air cov-
er. Align tabs with mating notches and snap into
place.
5. Install two (2) hole plugs into screw holes in
back of return air cover. See (FIG. 20).
FIG. 20
Hole Plug
Return Air
Grille
Return Air
Cover
INSTALLATION INSTRUCTIONS
GENERAL INFORMATION
A. Heat Gain
The ability of this air conditioner to maintain the desired
inside temperature depends on the heat gain of the RV.
Some preventative measures taken by the occupants of
the RV can reduce the heat gain and improve the perfor-
mance of the air conditioner. During extremely high outdoor
temperatures, the heat gain of the RV may be reduced by:
1. Parking the RV in a shaded area
2. Using window shades (blinds and/or curtains)
3. Keeping windows and doors shut or minimizing
usage
4. Avoiding the use of heat producing appliances
Operation on High Fan/Cooling mode will give optimum
or maximum efciency in high humidity or high outside
temperatures.
Starting the air conditioner early in the morning and giving
it a “head start” on the expected high outdoor ambient will
greatly improve its ability to maintain the desired indoor
temperature.
For a more permanent solution to high heat gain, acces-
sories like Dometic outdoor patio and window awnings will
reduce heat gain by removing the direct sun. They also add
a nice area to enjoy company during the cool of the evening.
B. Condensation
The manufacturer of this unit will not be responsible for
damage caused by condensation forming on ceilings,
windows, or other surfaces. Air contains water vapor which
condenses when temperature of a surface is below Dew
point. During normal operation this unit is designed to
remove a certain amount of moisture from the air, depend-
ing on the size of the space being conditioned. Keeping
doors and windows closed when this air conditioner is in
operation will greatly reduce the chance of condensation
forming on interior surfaces.

13
A. Unit Wiring Diagrams
1. 3241 Wiring Diagram

%51:+7
02725
&20
:+7%/.
%/8




<(/
%/.

67$57
*51<(/
*5<%/.
*51<(/
%51
&
6 5
2/
:+7%/8
:+7
&2035(6625
31.%/8
:+7
31.
37&5
&203
&20
+(50
&$3
)$1&$3
)$1
5('
&$3
:+731.
:+7
:+7*5<
%/.




:+7
&211(&72572&21752/6
*51<(/
5('
(/(&75,&+($7
12721620(
02'(/6


&211(&725
72&21752/6

02725
&20
:+7%/.
%/8




<(/
%/.

67$57
*51<(/
',(/(&75,&
*51<(/
%51
&
6 5
2/
:+7%/8
:+7
3$66('
&2035(6625
:+7
31.
37&5
&203
&20
+(50
&$3
)$1&$3
)$1
5('
&$3
:+731.
:+7
:+7*5<




:+7
*51<(/
5('
67$57$66,67
12721620(
02'(/6
2. LCD SZ Controls
3316455.000_A
FOR A/C WITH OPTIONAL HEATSTRIP
3241.301C0, 3241C351C0, 3241C351J0
3341.701E0, 3341.701J0
J4
J3
4
3
2
1
J5
FURNACE
FURNACE
21
12V + TSTAT
12V - TSTAT
PART No. 3316310.000
FOR USE WITH AIR CONDITIONER:
PASSED
DIELECTRIC
FACTORY WIRING
FIELD WIRING
FAN LO
J2
BLK 2
1
BLU
3
4
N/C
RED
COM
NO
3
1
4
2
P1
P2
GRN/YEL
5
6
WHT
RED
BLK
GRN
BL/WT
BL/WT
A/C
CONNECTION
FURNACE
FURNACE
COMM TSTAT
SENSOR
FREEZE
220/240 VAC,
USE COPPER
50/60 HZ, 1Φ
CONDUCTORS
ONLY
NO
COM
2
1
3
GRN/YEL
GRY
WHT
HEAT STRIP
CONNECTION
SERIAL No.
FAN HI
J1
US C
154624
R
54-132706-A
3. 6 To 9 Pin Adapter Cable 3312234.010
WIRING DIAGRAMS

14
4. 3242 Wiring Diagram
67$57$66,67
12721620(
02'(/6
&211(&72572&21752/6
67$57&$3




353
3$66('
',(/(&75,&
:+7
5('
%/.25353
&20
+(50
&203&$3
31.
37&5
%/.25:+7353
,1/,1(
&211(&725
)$1
:+731.
%51
:+7%/.
:+7%/.
)$1&$3
&
6
5
2/
&2035(6625
5(9(56,1*9$/9(
:+7%/8
31.%/8
$0%,(17



:+7
767$7
*51<(/
*51<(/
%/8




<(/
5('
%/.
&20 %51:+7
02725


5. LCD SZ Controls
3316457.000_A
3242.301C0, 3242C351C0
FOR A/C WITH HEAT PUMP
J4
J3
4
3
2
1
J5
FURNACE
FURNACE
21
12V + TSTAT
12V - TSTAT
PART No. 3316305.000
FOR USE WITH AIR CONDITIONER:
PASSED
DIELECTRIC
FACTORY WIRING
FIELD WIRING
FAN LO
J2
BLK 2
1
BLU
3
4
PRP
RED
3
1
4
2
P1
P2
GRN/YEL
5
6
WHT
RED
BLK
GRN
BL/WT
BL/WT
A/C
CONNECTION
FURNACE
FURNACE
COMM TSTAT
SENSOR
FREEZE
220/240 VAC,
USE COPPER
50/60 HZ, 1Φ
CONDUCTORS
ONLY
NO
COM
SERIAL No.
FAN HI
J1
US C
154624
R
54-132705-A
J10
REV
VALVE
6. 6 To 9 Pin Adapter Cable 3108179.023
WIRING DIAGRAMS
