INSTALLATION INSTRUCTIONS DUCTED CCC
INSTALLATION
INSTRUCTIONS
THIS UNIT IS DESIGNED FOR OEM INSTALLATION
ALL INITIAL INSTALLATIONS MUST BE APPROVED BY THE DOMETIC CORP.
57908.321
57908.521
57912.621
57912.622
57912.631
57915.322
57915.331
57915.421
57915.422
57915.521
57915.522
Lire et comprendre ce manuel avant de
procéderàl'installation,àdesréglages,
de l'entretien ou des réparations.
L'installation de cet appareil doit être
effectuée par un réparateur qualifié.
Toute modification de cet appareil peut
être extrêmement dangereuse et
entraîner des blessures ou dommages
matériels.
57915.531
57915.536
57915.541
57915.546
57915.621
57915.622
57915.631
59016.621
59136.321
59136.331
59136.521
C
U
S
579 Series BRISK AIR
590 Series BRISK AIR
591 Series HEAT PUMP
595 Series QUICK COOL
600 Series PENGUIN
630 Series PENGUIN
Roof Top Air Conditioners & Heat Pumps
Used With Part No. 3109226.005 & 3109407.001
Comfort Control Center Electronic Control Kit
Ducted
59136.531
59136.536
59136.621
59136.631
59516.303
59516.331
59516.336
59516.501
59516.531
59516.536
59516.601
59530.632
600312.321
600315.326
600312.421
600315.321
600315.421
630035.321
630035.421
REVISION
FormNo.3109270.060 11/03
(Replaces3109270.052)
(French3109537.055)
©2003DometicCorporation
LaGrange,IN 46761
This manual must be read and un-
derstoodbefore installation, adjust-
ment, service, or maintenance is
performed. This unit must be in-
stalled by a qualified service tech-
nician. Modification of this product
can be extremely hazardous and
could result in personal injury or
property damage.
WARNING
!
AVERTISSEMENT
!
59516.603
59516.631
59528.601
59529.531
59529.601
59529.631
59530.531
59530.532
59530.536
59530.601
59530.631
MODELS
USA
SERVICEOFFICE
DometicCorporation
509 South Poplar St.
LaGrange,IN46761
260-463-4858
CANADA
DometicDistribution
866LangsDrive
Cambridge,Ontario
CANADAN3H2N7
519-653-4390
For Service Center
AssistanceCall:
800-544-4881
RECORDTHISUNITINFORMATIONFOR
FUTUREREFERENCE:
Model Number
Serial Number
Date Purchased
Important:Theseinstructionsmuststaywith
unit. Owner read carefully.

2
INSTALLATION INSTRUCTIONS DUCTED CCC
1. GENERAL INFORMATION
A. Productfeaturesorspecificationsasdescribedorillus-
trated are subject to change without notice.
B. This air conditioner is designed for:
1. Installationonarecreationalvehicleatthetimethe
vehicleismanufactured.
2. Mountingontheroofofarecreationalvehicle.
3. Connection to an air distribution system located in
theceiling/roofcavityoftherecreationalvehicle.
4. Roofconstructionwithrafters/joistsonminimumof
16 inch centers.
5. Minimum of 2.00" and maximum of 5.50" distance
betweenrooftoceilingofrecreationalvehicle.Alter-
nate installation methods will allow for roofs more
than 5.50" thick.
C. Theabilityoftheairconditionertomaintainthedesired
insidetemperaturedependsontheheatgainoftheRV.
Somepreventativemeasurestakenbytheoccupantsof
the RV can reduce the heat gain and improve the
performanceoftheairconditioner.Duringextremelyhigh
outdoortemperatures,theheatgainofthevehiclemay
bereduced by:
1. Parking the RV in a shaded area
2. Usingwindowshades(blindsand/orcurtains)
3. Keeping windows and doors shut or minimizing
usage
4. Avoidingtheuseofheatproducingappliances.
Operation on High Fan/Cooling mode will give optimum or
maximum efficiency in high humidity or high outside tem-
peratures.
Startingtheairconditionerearlyinthemorningandgivingit
a "head start" on the expected high outdoor ambient will
greatly improve its ability to maintain the desired indoor
temperature.
Foramorepermanentsolutiontohighheatgain,accesso-
rieslikeA&Eoutdoorpatioandwindowawningswillreduce
heat gain by removing the direct sun. They also add a nice
areatoenjoycompanyduringthecooloftheevening.
D. Condensation
Note:The manufacturer of thisairconditionerwillnotbe
responsiblefordamagecausedbycondensedmoistureon
ceilings or other surfaces. Air contains moisture and this
moisture tends to condense on cold surfaces. When air
enters the RV, condensed moisture may appear on the
ceiling, windows, metal parts, etc. The air conditioner re-
movesthismoisturefromtheairduringnormaloperation.
Keepingdoorsandwindowsclosedwhenthisairconditioner
is in operation will minimize condensed moisture on cold
surfaces.
SAFETY INSTRUCTIONS
This manual has safety information and instruc-
tionstohelp users eliminateor reduce therisk of
accidentsand injuries.
RECOGNIZE SAFETY INFORMATION
Thisisthe safety-alertsymbol.Whenyou seethis
symbolin thismanual, bealert tothepotentialfor
personalinjury.
Follow recommended precautions and safe op-
eratinginstructions.
UNDERSTAND SIGNAL WORDS
Asignal word ,WARNING ORCAUTION is used
withthesafety-alertsymbol. Theygivethelevelof
riskforpotentialinjury.
indicates apotentially hazard-
oussituation which,if notavoided, couldresult in
deathorseriousinjury.
indicates a potentially hazard-
ous situation which, if not avoided may result in
minorormoderateinjury.
used without the safety alert
symbol indicates, a potentially hazardous situa-
tion which, if not avoided may result in property
damage.
Readandfollowallsafety informationandinstruc-
tions.
!
WARNING
!
CAUTION
CAUTION
!

3
INSTALLATION INSTRUCTIONS DUCTED CCC
MODEL NOMINAL ELECTRICAL COMPRESSOR COMPRESSOR FAN MOTOR FAN MOTOR SCFM-HIGH TOTAL REFRIGERANT MINIMUM AC CIRCUIT INSTALLED MINIMUM NO. CAPACITY RATING RATED LOAD LOCKED RATEDLOAD LOCKED SPEED STATIC R-22 (OZ) WIRESIZE* PROTECTION WEIGHT GENERATOR
(BTU/HR) AMPS ROTOR AMPS ROTOR MAX/MIN MAX/MIN ***USER (POUNDS) SIZE**
COOLING AMPS AMPS “ W. C. SUPPLIED 1 UNIT/ 2 UNITS
57908.321 7,180 6.9 36.0 2.5 5.8 325/250 0.55/0.90 16.0 20Amp 75 2.5KW /4.0KW 57908.521 7,100 6.6 34.0 2.5 5.8 325/250 0.55/0.90 17.0 20Amp 75 2.5KW /4.0KW 57912.321 11,000 9.5 53.0 2.5 5.8 325/250 0.55/0.90 15.5 20 Amp 94 2.5KW/4.0KW 57912.531 11,000 8.0 53.0 2.5 5.8 325/250 0.55/0.90 18.5 20 Amp 94 2.5KW/4.0KW 57912.621 11,000 8.5 48.3 2.5 5.8 325/250 0.55/0.90 16.0 20 Amp 94 2.5KW/ 4.0 KW 57912.622 11,000 8.5 48.3 2.5 5.8 325/250 0.55/0.90 18.0 20 Amp 94 2.5KW/4.0KW 57912.631 11,000 8.5 48.3 2.5 5.8 325/250 0.55/0.90 18.0 20 Amp 94 2.5KW/4.0KW 57915.321 13,500 12.1 60.0 2.5 5.8 325/250 0.55/0.90 15.0 20Amp 104 3.5KW /5.0 KW 57915.322 13,500 11.4 58.0 2.5 5.8 325/250 0.55/0.90 15.5 20Amp 104 3.5 KW/ 5.0KW 57915.331 13,500 11.4 58.0 2.5 5.8 325/250 0.55/0.90 15.5 20Amp 100 3.5 KW/ 5.0KW 57915.421 13,500 11.5 50.0 2.5 5.8 325/250 0.55/0.90 13.5 20Amp 100 3.5 KW/ 5.0KW 57915.422 13,500 11.5 50.0 2.5 5.8 325/250 0.55/0.90 14.5 20Amp 100 3.5 KW/ 5.0KW 57915.521 13,500 12.1 59.0 2.5 5.8 325/250 0.55/0.90 16.0 20Amp 94 3.5KW/5.0KW 57915.522 13,500 12.1 59.0 2.5 5.8 325/250 0.55/0.90 16.5 20Amp 94 3.5KW/5.0KW 57915.531 13,500 12.1 59.0 2.5 5.8 325/250 0.55/0.90 16.5 20Amp 94 3.5KW/5.0KW 57915.536 13,500 12.1 59.0 2.5 5.8 325/250 0.55/0.90 16.5 20Amp 94 3.5KW/5.0KW 57915.541 13,500 11.3 62.0 2.5 5.8 325/250 0.55/0.90 16.0 20Amp 94 3.5KW /5.0 KW 57915.546 13,500 11.3 62.0 2.5 5.8 325/250 0.55/0.90 16.0 20Amp 94 3.5KW /5.0 KW 57915.621 13,500 11.0 54.4 2.5 5.8 325/250 0.55/0.90 16.0 20Amp 94 3.5KW /5.0 KW 57915.622 13,500 11.0 54.4 2.5 5.8 325/250 0.55/0.90 16.5 20Amp 94 3.5KW /5.0 KW 57915.626 13,500 11.0 54.4 2.5 5.8 325/250 0.55/0.90 16.0 20Amp 94 3.5KW /5.0 KW 57915.631 13,500 11.0 54.4 2.5 5.8 325/250 0.55/0.90 16.5 20Amp 94 3.5KW /5.0 KW 57915.731 13,500 11.3 56.0 2.5 5.8 325/250 0.55/0.90 15.0 20Amp 94 3.5KW /5.0 KW 59016.521 15,000 12.9 71.0 2.5 6.0 350/250 0.40/1.10 26.5 20Amp 101 3.5KW /5.0 KW 59016.526 15,000 12.9 71.0 2.5 6.0 350/250 0.40/1.10 26.5 20Amp 104 3.5KW /5.0 KW 59016.531 15,000 12.9 71.0 2.5 6.0 350/250 0.40/1.10 26.5 20Amp 104 3.5KW /5.0 KW 59016.621 15,000 12.9 77.0 2.5 6.0 350/250 0.40/1.10 26.5 20Amp 101 3.5KW /5.0 KW 59136.321 15,000 12.7 60.0 2.5 6.0 325/250 0.40/1.10 34.0 20Amp 104 3.5KW /5.0 KW 59136.521 15,000 12.9 71.0 25. 6.0 325/250 0.40/1.10 34.5 20Amp 104 3.5KW /5.0 KW 59136.531 15,000 12.8 79.0 2.5 6.0 325/250 0.40/1.10 31.5 20Amp 105 3.5KW /5.0 KW 59136.536 15,000 12.8 79.0 2.5 6.0 325/250 0.40/1.10 31.5 20Amp 105 3.5KW /5.0 KW 59136.621 15,000 12.0 77.0 2.5 6.0 325/250 0.40/1.10 34.5 20Amp 105 3.5KW /5.0 KW 59136.631 15,000 12.0 77.0 2.5 6.0 325/250 0.40/1.10 34.5 20Amp 105 3.5KW /5.0 KW 59516.303 15,000 12.7 60.0 2.0 5.6 325/250 0.40/1.10 29.0 20Amp 104 3.5KW /5.0 KW 59516.331 15,000 11.5 50.0 2.5 5.8 325/250 0.40/1.10 29.0 20Amp 94 3.5KW /5.0 KW
SPECIFICATIONS
115VAC, 60HZ.,1PH. 12AWG
Copper upto24’
* Forwire lengths over 24 ft. consult the National Electric Code for proper sizing. ** Dometic Corporation gives GENERAL guidelines for generator requirements. These guidelines come from experiences people havehadinactualapplications
Whensizing the generator, the totalpower usage of your recreationalvehicle must beconsidered. Keep inmind generators losepower at high altitudes and fromlackof maintenance.
*** CIRCUITPROTECTION: Time Delay Fuse or HACR Circuit Breakers Required.

4
INSTALLATION INSTRUCTIONS DUCTED CCC
MODEL NOMINAL ELECTRICAL COMPRESSOR COMPRESSOR FAN MOTOR FAN MOTOR SCFM-HIGH TOTAL REFRIGERANT MINIMUM AC CIRCUIT INSTALLED MINIMUM NO. CAPACITY RATING RATEDLOAD LOCKED RATEDLOAD LOCKED SPEED STATIC R-22 (OZ) WIRESIZE* PROTECTION WEIGHT GENERATOR
(BTU/HR) AMPS ROTOR AMPS ROTOR MAX/MIN MAX/MIN *** USER (POUNDS) SIZE** COOLING AMPS AMPS “ W. C. SUPPLIED 1 UNIT/ 2 UNITS
59516.336 15,000 12.7 60.0 2.0 5.6 325/250 0.40/1.10 29.0 20Amp 94 3.5KW/5.0KW 59516.501 15,000 12.9 71.0 2.5 6.0 325/250 0.40/1.10 31.0 20Amp 94 3.5KW/5.0KW 59516.506 15,000 12.9 71.0 2.5 6.0 325/250 0.40/1.10 31.0 20Amp 94 3.5KW/5.0KW 59516.531 15,000 11.5 50.0 2.5 5.8 325/250 0.40/1.10 26.5 20Amp 94 3.5KW /5.0 KW 59516.536 15,000 11.5 50.0 2.5 5.8 325/250 0.40/1.10 29 20Amp 94 3.5KW/5.0KW 59516.601 15,000 12.9 77.0 2.5 6.0 350/250 0.40/1.10 31.0 20Amp 102 3.5KW /5.0 KW 59516.603 15,000 12.3 77.0 2.0 5.6 325/250 0.40/1.10 29.5 20Amp 102 3.5KW /5.0 KW 59516.606 15,000 12.9 71.0 2.5 6.0 325/250 0.40/1.10 31.0 20Amp 94 3.5KW/5.0KW 59516.631 15,000 12.3 77.0 2.0 5.6 325/250 0.40/1.10 29.5 20Amp 104 3.5KW /5.0 KW 59528.601 N/A 6.0 45.6 2.0 5.6 325/250 0.40/1.10 16.5 15Amp 92 3.5KW/5.0KW 59529.531 N/A 6.9 49.0 2.0 5.6 325/250 0.40/1.10 18.5 15Amp 94 3.5KW/5.0KW 59529.601 N/A 8.0 48.3 2.0 5.6 325/250 0.40/1.10 19.0 15Amp 94 3.5KW/5.0KW 59529.631 N/A 8.0 48.3 2.0 5.6 325/250 0.40/1.10 19.0 15Amp 94 3.5KW/5.0KW 59530.531 N/A 7.8 53.0 2.0 5.6 325/250 0.40/1.10 19.0 15Amp 94 3.5KW/5.0KW 59530.532 N/A 8.0 53.0 2.5 5.8 325/250 0.40/1.10 18.5 15Amp 94 3.5KW/5.0KW 59530.536 N/A 7.8 53.0 2.0 5.6 325/250 0.40/1.10 19.0 15Amp 94 3.5KW/5.0KW 59530.601 N/A 8.0 48.3 2.0 5.6 325/250 0.40/1.10 19.0 15Amp 93 3.5KW/5.0KW 59530.631 N/A 8.0 48.3 2.0 5.6 325/250 0.40/1.10 19.0 15Amp 94 3.5KW/5.0KW 59530.632 N/A 8.5 48.3 2.5 5.8 325/250 0.40/1.10 18.0 15Amp 94 3.5KW/5.0KW 600312.321 11,000 9.5 53.0 3.1 8.8 335/250 0.12/0.65 16.5 20Amp 95 2.5KW/4.0KW 600312.421 11,000 10.7 50.0 3.1 8.8 335/250 0.12/0.65 16.0 20 Amp 101 2.5KW/4.0KW 600315.321 13,500 12.4 60.0 3.1 8.8 335/250 0.12/0.65 15.5 20Amp 96 3.5KW /5.0 KW 600315.421 13,500 11.5 50.0 3.1 8.8 335/250 0.12/0.65 17.0 20Amp 102 3.5KW/5.0KW 630035.321 13,500 12.4 60.0 3.1 8.8 335/250 0.12/0.65 24.5 20Amp 101 3.5 KW/ 5.0KW 630035.421 13.500 11.0 50.0 3.1 8.8 335/250 0.12/0.65 19.5 20Amp 102 3.5KW/5.0KW
SPECIFICATIONS
115VAC, 60HZ.,1PH. 12AWG
Copper upto24’
* Forwire lengths over 24 ft. consult the National Electric Code for proper sizing. ** Dometic Corporation gives GENERAL guidelines for generator requirements. These guidelines come from experiences people havehadinactualapplications
Whensizing the generator, the totalpower usage of your recreationalvehicle must beconsidered. Keep inmind generators losepower at high altitudes and fromlackof maintenance.
*** CIRCUITPROTECTION: Time Delay Fuse or HACR Circuit Breakers Required.

5
INSTALLATION INSTRUCTIONS DUCTED CCC
2. PRECAUTIONS
A. ReadInstallationandOperatinginstructionscarefully
beforeattemptingtostartyourair conditioner/heat
pumpinstallation.
B. DometicCorporation will notbe liable for any dam-
agesor injury incurred due to failure infollowingthese
instructions.
C. Installation must comply with the National Electrical
Codeand any Stateor Local Codes or regulations.
D. DO NOT add any devices or accessories to this air
conditioner/heatpump except those specifically
authorizedbyDometic.
E. Thisequipmentmustbeservicedbyqualifiedperson-
nel and some states require these people to be
licensed.
3. CHOOSING LOCATION FOR THE
AIR CONDITIONER/HEAT PUMP
Thisairconditionerisspecificallydesignedforinstallationon
the roof of a recreational vehicle (RV). When determining
yourcoolingrequirements,thefollowingshouldbeconsid-
ered: 1. Size of RV;
2. Windowarea(increasesheatgain);
3. Amountof insulation in walls and roof;
4. GeographicallocationwheretheRVwillbeused;
5. Personalcomfortlevelrequired.
Improper installation may damage equip-
ment, could endanger life, cause serious
injury and/or property damage.
A. For One Unit Installation:
Theairconditioner/heatpumpshouldbemountedslightly
forwardofcenter(fronttoback)andcenteredfromside
to side.
B. For Two Unit Installations:
Install oneairconditioner/heatpumpone-thirdandone
airconditioner/heatpumptwo-thirdsfromfrontofRVand
centered from side to side.
Itispreferredthattheairconditioner/heatpumpbeinstalled
onarelativelyflatandlevelroofsectionmeasuredwiththe
RVparkedonalevelsurface;however,
1. Up to an 8° slant to either side or front-to-back is
acceptable on 600 and 630 Series Air Condition-
ers/heatpump.
2. Up to a 15° slant to either side or front-to-back is
acceptable on 579, 590, 591 or 595 Series Air
conditioners/heatpump.
AFTERLOCATIONHASBEENSELECTED:
a.Check for obstructions in the area where air
conditioner/heat pump will be installed. See
FIG. 1.
b.The roof must be designed to support 130
pounds whentheRVisinmotion.Normally200
poundstatic loaddesignwillmeet thisrequire-
ment.
5-1/4”
18"
7-5/8”
14-7/8”
7-5/8”
KEEP THIS AREA FREE OF OBSTRUCTIONS
REAR
OF
UNIT
REAR
OF
UNIT
14-1/4" x 14-1/4”
(±1/8) OPENING
14-1/4" x 14-1/4”
(±1/8) OPENING
FIG. 1 AIR CONDITIONER/HEAT PUMP DIMENSIONS (On Top of
Vehicle) 579, 590, 591 & 595 SERIES 600 & 630 SERIES
WARNING
!
It is the responsibility of the installer of this
air conditioner/heat pump system to ensure
structural integrity of the RV roof. Never cre-
ate a low spot on the roof where water will
collect. Water standing around the air con-
ditioner/heat pump may leak into the interior
causing damage to the product and the RV.
CAUTION

6
INSTALLATION INSTRUCTIONS DUCTED CCC
4. AIR DISTRIBUTION SYSTEM
SIZING & DESIGN
TheInstallerofthisairconditioner/heatpumpsystemmustdesigntheairdistributionsystemfortheirparticularapplication.Several
requirements for this system MUST be met for the air conditioner/heat pump to operate properly. These requirements are as
follows:
A. TheductmaterialmustmeetorexceedanyagencyorRVIAStandardthatmaybeinexistenceatthetimetheRVisproduced.
B. Alldischargeairductsmustbeproperlyinsulatedtopreventcondensationfromformingontheirsurfacesoradjacentsurfaces
duringoperation ofthe air conditioner/heat pump. Thisinsulation must be R-7 minimum.
C. Ductsandtheirjointsmustbesealedtopreventcondensationfromformingonadjacentsurfacesduringoperationoftheair
conditioner/heatpump.
D. Return air openings must have 40 square inches minimum free area including the filter.
E. Returnairtotheairconditioner/heatpumpmustbefilteredtopreventdirtaccumulationonairconditioner/heatpumpcooling
surface.
It is the responsibility of the installer to in-
sure the ductwork will not collapse or bend
during and after the installation. Dometic
Corporation will not be liable for roof struc-
tural or ceiling damage due to improperly in-
sulated, sealed or collapsed ductwork.
Return Air Cover Model 3105007.XXX 3308120.XXX
3105935.XXX GenesisAir Filtration System
Roof Cavity Depth 2.0 In. Min. - 5-1/2 In. Max. 2.0 In. Min. - 5-1/2 In. Max.
Duct Cross Sectional Area 21.0 Sq. In. Min. 32.0 Sq. In. Min.
Duct Size
Depth 1-1/2 In. Min. - 2-1/2 In. Max. 2.0 In. Min. - 2-1/2 In. Max.
Width 7.0 In. Min. - 10.0 In. Max. 8.0 In. Min. - 10.0 In. Max.
Total Duct Length 15.0 Ft. Min. - 40.0 Ft. Max. 15.0 Ft. Min. - 40.0 Ft. Max.
Duct Length (short run) 1/3 Total Duct Length 1/3 Total Duct Length
Register Requirements
Number Required Per Run 4 Min. 4 Min.
Register Free Air Area 14.0 Sq. In. 14.0 Sq. In.
Distance From Duct End 5.0 In. Min. - 8.0 In. Max. 5.0 In. Min. - 8.0 In. Max.
Distance From Elbow 15.0In. 15.0In.
Total System Static Air Pressure 0.55 - 0.90 In. W.C. 579 Series 0.55 - 0.90 In. W.C. 579 Series
Blower at High Speed, 0.40 - 1.10 In. W.C. 590, 591, 595 Series 0.40 - 1.10 In. W.C. 590, 591, 595 Series
Filter & Grill In Place 0.12 - 0.65 In. W.C. 600, 630 Series 0.12 - 0.65 In. W.C. 600, 630 Series
Note: Duct sizes listed are inside dimensions.
AIR DISTRIBUTION
DUCT SIZING & DESIGN CHART
CAUTION
!

7
INSTALLATION INSTRUCTIONS DUCTED CCC
5. AIR DISTRIBUTION SYSTEM INSTALLATION
A. Dometic Corporation recommends the basic configuration shown on page 8 for installing this air conditioner/heat pump
system.Wehavefoundthroughtestingthatthisconfigurationworksbestinmostapplicationsofthisairconditioner/heatpump
system. It is the responsibility of the Installer of this system to review each RV floor plan and determine the following:
1. Duct size
2. Duct layout
3 Registersize
4. Registerlocation
5. Thermostatlocation
TheseitemsmustbedeterminedinconjunctionwiththeAirDistributionSystemandSizingandDesignRequirementslisted
in the chart on page 5.
Important: Alternate configurations and methods may be used which still allow the air conditioner/heat pump
to operate properly; however, these alternate configurations and methods must be approved by the Dometic
Corporationinwriting.ThefollowinginstructionsarebasedupontheuseofDometic 3105007.XXXReturnAirKits,
3105935.XXXQuickCoolKits, or3308120.XXXGenesisAirFiltrationSystem.The3109226.XXXand3109407.XXX
Comfort Control Center Kits have the mounting bolts supplied for use with these kits.
B. ROOFANDCEILINGOPENINGPREPARATION
1. A 14-1/4" x 14-1/4" (±1/8") opening must be cut through the roof and ceiling of the RV. This opening must be located
betweentheroofreinforcingmembers.
There may be electrical wiring between the
roof and the ceiling. Disconnect 115 volt AC
power cord and the positive (+) 12 volt DC
terminal at the supply battery. Failure to fol-
low this instruction may create a shock haz-
ard causing death or severe personal injury.
2. Mark a 14-1/4" x 14-1/4" (±1/8") square on the roof and carefully cut the opening.
3. Using the roof opening as a guide, cut the matching hole in the ceiling.
4. Theopeningcreatedmustbeframedtoprovideadequatesupportandpreventairfrombeingdrawnfromtheroofcavity.
Lumber 3/4" or more in thickness must be used. Remember to provide an entrance hole for power supply wiring and
thermostatcable.
5. The14-1/4"x14-1/4"(±1/8")openingispartofthereturnairsystemoftheairconditioner/heatpumpandmustbefinished
in accordance with NFPA Standard 501C Section 2.7.
6. Routeacopper12AWG(max.length24'),withground,supplylinefromthefuseorcircuitbreakerboxtotheroofopening.
a. This supply line must be located in the front portion of the 14-1/4" x 14-1/4" (±1/8") opening.
b. ThepowersupplyMUSTbeonaseparate20ampformodels579,590,591,59516,600and630series,and15amp
formodels 59528,59529and59530 SeriesTimeDelayFuse orHACRCircuitBreaker.
c. Make sure at least 15" of supply wire extends intotheroofopening.Thisensureseasyconnectionat the junction
box.
d. Wiring must comply with all National, State and Local Wiring Codes.
e. Use a steel sleeve and a grommet or equivalent methods to protect the wire where it passes into the opening.
7. SeeSection6. ComfortControlCenter,RemoteSensorandCableInstallation.
WARNING
!

8
INSTALLATION INSTRUCTIONS DUCTED CCC
Register Required
C. AIRDISTRIBUTIONDUCTINSTALLATION
1. Install the Air Distribution Ducts in the RV Roof Cavity. The Distribution System must meet:
a. RV’srequirements
b. SystemrequirementslistedinSection4onpage6ofthisManual.TerminatethestartoftheDuctatthebackedge
of the 14-1/4" x 14-1/4" (±1/8") opening previously cut. See FIG. 2, 3, & 4.
FRAME
14-1/4" (±1/8”)
OPENING
AC POWER
SUPPLY WIRE
DUCT
FRAME DUCT
ROOF
INSULATION
DUCT CEILING
DUCT
14-1/4" (±1/8”)
OPENING
INSULATION
SIDE VIEW
(TOWARD BACK OF RV)
TOP VIEW
(BACK OF RV)
LOW VOLTAGE WIRES:
12VDC
Furnace
Load Shed
Sensors
FRAME
CCC, CONTROL CABLE(S)
or 7-Wire Analog Cable
FIG. 2
FIG. 3
FIG. 4
Duct Size And Requirements For 3105007.XXX And 3105935.XXX Return Air Cover
Duct Size And Requirements For 3308120.XXX Genesis Air Filtration System
Total Outlet Air Area
Minimum 21.0 Sq. In.
Total Outlet Air Area
Minimum 32.0 Sq. In.
Register Required
Register Required
Register Required
Register Required
Register Required Register Required
Register Required
Roof
Rafters
Roof
Rafters
Note: Duct Size is Inside Dimensions
Note: Duct Size is Inside Dimensions
Short Duct Run Minimum
1/3 Total Duct Length
Short Duct Run Minimum
1/3 Total Duct Length
Ducts Min. Max.
Depth 1-1/2” 2-1/2”
Width 7.0” 10.0”
Total Length 15.0’ 40.0’
Ducts Min. Max.
Depth 2.0” 2-1/2”
Width 8.0” 10.0”
Total Length 15.0’ 40.0’
Registers
8 Min.-- 12 Max.
(PerUnit)
14Sq. In FreeArea
PerRegister
Registers
8 Min.-- 12 Max.
(PerUnit)
14Sq. In FreeArea
PerRegister
14-1/4" x 14-1/4" (±1/8")
RoofOpening
14-1/4"x14-1/4" (±1/8")
RoofOpening

9
INSTALLATION INSTRUCTIONS DUCTED CCC
6. COMFORT CONTROL CENTERTM, REMOTE SENSOR & CABLE
INSTALLATION
A. LOCATIONFORCOMFORTCONTROLCENTERTM ANDREMOTETEMPERATURESENSOR
1. The properlocationoftheComfortControlCenterTM (CCC)isveryimportanttoensurethatitwillprovideacomfortable
RVtemperature.ObservethefollowinggeneralruleswhenselectingalocationfortheCCCorremotesensor.
a. LocatetheCCC/remotesensor54"abovethefloor.
b. InstallCCC/remote sensor on a partition, NEVER on an outside wall.
c. NEVER exposeCCC/remote sensor to directheat from lamps, sunor other heat producingitems.
d. Avoid locations close to doors that lead outside, windows or adjoining outside walls or directly under cabinets or
overhangswhichlimitairmovement.
e. Avoid locations close to supply registers and the air from them.
f. NEVERlocateCCC/remotesensorinaroomthatiswarmerorcoolerthantherestofthecoach-suchasthekitchen.
g. Themajor livingareaisnormallyagood location.
2. Ifthesystemistobeusedwitharemotetemperaturesensorinallzones,theComfortControlCenterTMmaybemounted
anywhere that is convenient in the coach. Try to avoid hard to reach and hard to see areas. Follow a. - g. in step 1.
B. CONTROLCABLE
1. The cable that should be used is a flat, 4-conductor telephone type cable.
2. Thecablemustbeterminatedwithtwo (2) RJ-11telephoneconnectors.Referto the crimp toolmanufacturefor
crimpinginstructions.
3. The RJ-11 terminals must be connected to the control cable with the same polarity on both ends. Pre-made stan-
dard telephone cable will not work. See FIG. 5 & 5A.
FIG. 5
C. CABLEINSTALLATION
1. Routea dedicated 12VDCsupply line (18 to 22 AWG) fromthe RV's converter or battery to theroof opening.
a. This supply line must be located in the front portion of the 14-1/4" x 14-1/4" (±1/8") opening.
b. Make sure that at least 15" of supply wire extends into the roof opening.
c. For multiple zone installation, this wiring is required in only one of the 14-1/4" x 14-1/4" (±1/8") openings.
2. Choosetheshortest,directroutefromthe14-1/4"x14-1/4"(±1/8")openingtotheComfortControlCenterTM (CCC)location
selected,androutea4-conductorflatcontrolcable.Makesureatleast15"ofwireextendsintotheopeningand6"extends
fromthe wallattheComfort ControlCenterTM (CCC)location.
3. Ifaremotetemperaturesensoristobeused,theconnectorendmustberoutedtotheroofopeningofthesystemwhich
it will control. Make sure 15" of the sensor cable extends into the roof opening.
4. IfanEnergyManagementSystem-EMS(load shed)istobeused withthecontrolsystem,twowiresmustbe routedto
theroofopeningofthezonetobemanaged.Thesignalrequiredforthisfunctionisanormallyopenrelaycontact.When
the EMS calls for the compressor to shut off, the relay contacts should close. Make sure that at least 15" of the EMS
wiresextendintotheroofopening.
5. Ifsystemistocontrolagasfurnace,routetwo18gaugewiresfromthefurnacetoroof openingoftheairconditionerthat
willcontrol it. Ifmorethanone furnace istobeused, routethe second setofwirestothe second airconditioner.Make
sure that 15" of wire extends into the opening.
6. Intheeventthatotherairconditionersaretobeinstalled(additionalzones)routeanadditional4-conductorcontrolcable
betweentheotherairconditioner (additional zones). Make sure 15"ofwireextendsinto the roof opening. See FIG. 6.
Black
Red
Green
Yellow
Black
Red
Green
Yellow
Flat Four Conductor Cable
RJ-11 Connector
Pin1
FIG.5A

10
INSTALLATION INSTRUCTIONS DUCTED CCC
PLEASE R ECYCLE
ALL C ARDBOARD
FIG. 7
Please Recycle All
Cardboard
7. PLACING THE AIR CONDITIONER ON THE ROOF
A. Removetheairconditionerfromthecartonanddiscardcarton.Theunitmountingboltsandliteratureareinseparateplastic
bag. Be sure to place this information in the RV.
B. Place the air conditioner on the roof.
FIG. 8
REAR REMOTE SENSOR
(Required with Second
Air Conditioner)
REAR REMOTE SENSOR
(Required with Second
Air Conditioner)
14-1/4" x 14-1/4"
(±1/8”) OPENING
14-1/4" x 14-1/4"
(±1/8”) OPENING
14-1/4" x 14-1/4"
(±1/8”) OPENING
14-1/4" x 14-1/4"
(±1/8”) OPENING
OPTIONAL
FURNACE
OPTIONAL
FURNACE
FURNACE
2 WIRES
FURNACE
2WIRES
OPTIONAL FRONT
REMOTE SENSOR
OPTIONAL FRONT
REMOTE SENSOR
12V DC INPUT
2 WIRES
12V DC INPUT
2WIRES
FURNACE
4-CONDUCTOR
CONTROL CABLE
4-CONDUCTOR
CONTROL CABLE
BREAKER BOX
BREAKER BOX
115V AC
REAR A/C
115V AC
REAR A/C
4-CONDUCTOR
CONTROL CABLE
4-CONDUCTOR
CONTROL CABLE
115V AC
FRONTA/C
115V AC
FRONTA/C
FURNACE
2 WIRES
FURNACE
2WIRES
DOMETIC COMFORT
CONTROL CENTER
DOMETIC COMFORT
CONTROL CENTER
FIG. 6
C. Liftandplacetheunitover thepreparedopeningusingthe gasket on unit as a guide. The roof gasket on the bottom of the
base pan goes toward the front of the RV. Sliding the unit on the roof will damage the roof gasket. See FIG. 8.
Do not slide the unit. This may damage the
neoprenegasketattachedtothebottomand
create a leaky installations.
CAUTION
D. AIRDISTRIBUTIONDUCTINSTALLATION
1. Install the Air Distribution Ducts in the RV Roof Cavity. The Distribution System must meet:
a. RV’srequirements
b. SystemrequirementslistedinSection4onpage6ofthisManual.TerminatethestartoftheDuctatthebackedge
of the 14-1/4" x 14-1/4" (±1/8") opening previously cut. See FIG. 2, 3 & 4.
This unit weighs approximately 100 pounds.
To prevent back injury, use a mechanical
hoist to place air Conditioner on roof.
CAUTION
!

11
INSTALLATION INSTRUCTIONS DUCTED CCC
A. 579, 590, 591 AND 595 SERIES
1. Insert the Freeze Control Sensor approximately 1" into the fins of the evaporator coil as shown in FIG. 9. Bend fins
oversensor to securein place.
2. Plug the freeze control sensor cord into the mating connector on the Electronic Control Kit. These connectors are
polarizedand will easily snap together. DO NOT FORCE.
8. INSTALLATION OF COLD CONTROL
B. 600 & 630 SERIES
1. InserttheFreezeControlSensorapproximately1"intotheevaporatorcoilfinslocatedattherightsideoftheevaporator,
as shown in FIG. 10. Bend fins over sensor to secure in place.
2. Plug the freeze control sensor cord into the mating connector on the Electronic Control Kit. These connectors are
polarizedand will easily snap together. DO NOT FORCE.
8. WIRING OF CONTROL SYSTEM
A. CONNECTION OF 115 VOLTAC SUPPLY
1. Reachupintothereturnairopeningoftheairconditionerandpulltheunitelectrical cord down for later installation. See
FIG. 11.
AC Power
Supply
Pull Electrical
Cord Down
Roof
Gasket
FIG. 11
Disconnect 115 volt AC. Failure to follow
theseinstructionscouldcreateashockhaz-
ard causing death or severe personal injury.
This product is equipped with a 3-wire
(grounded) system for protection against
shock hazard. Make sure that the appliance
is wired into a properly grounded 115 voltAC
circuit and the polarity is correct. Failure to
do so could result in death, personal injury
or damage to the equipment.
DC Power
Supply
WARNING
!
WARNING
!
FIG. 10
600 & 630 FREEZE CONTROL
Freeze Control with wires.
Do
kdkd
mfmf
Remove
Hang
Tag
Insert Freeze Control
Sensor at a slight angle
between bottom coil
approximately 1”
Bend fins over
sensor to hold
in place
Freeze control
sensor
FIG. 9
579, 590 & 595 FREEZE CONTROL
Freeze Control with
wires to the right side
Remove
Hang
Tag
Insert Freeze
Control Sensor
at a slight angle
between bottom
coil approximately 1”
Freeze control
sensor
Bend fins over
sensor to hold
in place

12
INSTALLATION INSTRUCTIONS DUCTED CCC
2. Routethe previously runACpower supply line throughthe Romex Connectorand into relaycontrol junction box.
3. Connect the white to white; black to black; and green to green or bare copper wire using appropriate sized twist wire
connectors. Tape the twist wire connectors to the supply wiring to assure they do not vibrate off.
4. Tighten screws on Romex connector being careful not to pinch and cut into the insulation on power supply leads.
5. Push excess wires into junction box. Install junction box cover. See FIG. 11 and 15B.
B. CONNECTION OF LOW VOLTAGE WIRES
1. Connect the previously run +12VDC to the red wire labeled +12V protruding from the air conditioner (Do not connect
wiresifusingthe 3308120.XXX GenesisAir FiltrationSystem).
2. Connectthepreviously run -12VDCto the black wirelabeled -12V protrudingfrom the air conditioner (Do not connect
wiresifusingthe 3308120.XXX GenesisAir FiltrationSystem).
3. Connectthetwo (2) blue wires fromtheair conditioner to thefurnaceleads (if applicable). Polarity doesnotneed to be
observedonthefurnace leads.
4. Connect the air conditioner yellow wire to the EMS wires (if applicable). Do not allow the yellow wires to short out or
touch, because the compressor will fail to run.
5. ConnecttheComfort Control CenterTM (CCC) cable previouslyterminated(see Section 6 B. ControlCable) into one of
the control cable leads out of the air conditioner. Either one of the two (2) control cables can be used.
6. Connect the remote temperature sensor leadinto the remote sensor extensionfrom the air conditioner (ifapplicable).
7. Connect the previously terminated (see Section 6. B Control Cable) 4 conductor control cable into one of the control
cable leads out of the air conditioner for the next zone (if applicable).
8. If the unit is a heat pump model, route the ambient air sensor cable, already installed in the base model, through the
grommet in the control kit and attach it to the connector that matches its color (RED P3).
C. COMFORTCONTROLCENTERTM INSTALLATION
1. Carefullyremovethe base platefromtheCCC. Thismaybeaccomplishedby insertingasmallscrewdriverunder thetab
on the bottom edge of the front cover. Gently pry off the cover. See FIG. 12.
2. Insertthecontrolcable through the hole inthebase plate and mount the platetothe wall with the twoscrewsprovided.
Checkthe alignment to ensurelevel installation.
3. Installthe previouslyterminated4-conductorcontrol cable RJ-11connector into the backoftheCCC. Gently press the
CCConto the baseplate.
Disconnect the positive (+) 12 volt DC termi-
nal at the supply battery. Damage to equip-
ment could occur if the 12 volt DC is not shut
off.
CAUTION
FIG. 12
Insert Screwdriver
under Tab
Insert Screwdriver
under Tab
MODE
FAN
UP
DOWN
OFF ON
OFF ON
ZONE
TEMP
TEMP

13
INSTALLATION INSTRUCTIONS DUCTED CCC
9. INSTALLATION OF AIR CONDITIONER
Installing unit with 3105007.XXX or 3105935.XXX
Return Air Cover
A. INSTALLATIONOF CEILING TEMPLATE
2. Removereturnaircoverandceiling templatefrom
the3105007.XXXor3105935.XXXkitcarton.
3. Locate 1/4" mounting bolts.
4. Holdtheceilingtemplateuptothe14-1/4"x14-1/
4" (±1/8") opening. Be sure the large plate faces
the rear of the RV. See FIG.13A.
5. Starteach mounting boltthrough the ceiling tem-
plate and up into the unit base pan by hand. In-
stall wood screw in each end of the ceiling tem-
plate.Thisinsuresatight fit of the return air cover
to ceiling.
Installing unit with 3105007.XXX or 3105935.XXX Re-
turn Air Cover, continued on page 14, column A.
FIG. 13A Divider Plate
Ceiling Template Return Air
Cover
Return Air
Grill
Installing unit with 3308120.XXX Genesis Air Filtra-
tion System.
A. INSTALLATION OF FOAM DIVIDER
1. Locatethe foam divider and insert it corner tocor-
ner in the 14-1/4" x 14-1/4" (±1/8") opening with
the adhesive tape up (Do not remove paper to ex-
pose adhesive). The foam divider should be level
with the ceiling (±1/4"). Tear off the excess at the
pre-cutperforationsindivider.SeeFIG. 13B.
2. Peel the paper off of the foam divider and stick it in
place on the center of the rear edge of the return air
opening on the ceiling template See. FIG. 14B.
1. Checkgasketalignment oftheairconditioner over
theroof opening and adjustifnecessary.Unitmay
bemoved from below byslightlyliftingandsliding.
See FIG. 14A.
FIG. 14A Center Unit From Below
Roof
Gasket
B. INSTALLCEILINGTEMPLATE
1. IftheControlsarenotpartoftheunit.Setdipswitches
(seesection10 on page 17) and positiontheelectri-
cal box towards the front of the opening with all of
the system control wires connected to the control
box except for the DC power. See FIG. 15B.
FIG. 14B Foam Divider
Adhesive
Peel Off Paper - Center Divider - Stick To
Rear Flange On Ceiling Template
Installing unit with 3308120.XXX Genesis Air Filtration
System, continued on page 14, column B.
FIG. 15B
Vehicle
Front
Control
Box
Base
Pan
Wires Connected To
Control Box
FIG. 13B
Upside
Down
Foam
Divider
Base Pan
Ceiling
Place Foam Divider in
(14-1/4" x 14-1/4" (±1/8")
CeilingOpening against
Base Pan Bottom
Do Not Peel Tape Off
Adhesive
FoamDividerCeiling
Level (±1/4")Tear Off
Excess

14
INSTALLATION INSTRUCTIONS DUCTED CCC
Installing unit with 3105007.XXX or 3105935.XXX Re-
turn Air Cover, continued from page 13, column A.
6. Evenlytighten mounting bolts tocompress gasket
to 1/2" this will be a torque of 40 - 50 inch pounds.
See FIG. 15A.
B. INSTALLATION OF DIVIDER PLATE
1. Measure the ceiling to roof thickness:
a. If distance is 2” - 3-3/4”, remove perforated tab
fromdivider plate.
b. Ifdistanceis 3-3/4” -5-1/2”, remove notabs.
2. Removethebackingpaperfromdoublesidedtape
located on ceiling template. See FIG. 16A.
Installing unit with 3105007.XXX or 3105935.XXX Re-
turn Air Cover, continued on page 15, column A.
Installing unit with 3308120.XXX Genesis Air Filtration
System, continued from page 13, column B.
2. Install relay control box on ceiling template with
blunt self tapping screws depending on the model
used. See FIG. 16B for BriskAir unit, and Fig. 17B
forPenguinunits.
FIG. 15A
Installing unit with 3308120.XXX Genesis Air Filtration
System, continued on page 15, column B.
FIG. 16A
If bolts are left loose there may not be ad-
equateroof seal or if over tightened,damage
may occur to the air conditioner base or ceil-
ingtemplate.Tighten to specifications listed
in this manual.
CAUTION
3. Start each mounting bolt through the ceiling tem-
plateand upintotheunitbase pan byhand.Evenly
tighten mounting bolts to compress gasket to
1/2" this will be a torque of 40 - 50 inch pounds.
If bolts are left loose there may not be ad-
equateroofsealorifovertightened,damage
may occur to the air conditioner/heat pump
base or ceiling template. Tighten to specifi-
cations listed in this manual.
CAUTION
FIG.16B
BriskAirModelsMount
Control Box On Edge To
The Flange On Top Of
Ceiling Template
ControlBox
Three
Screws
Vehicle
Front
FIG.17B
Penguin Models Lay
Control Box Flat On Top
Of Ceiling Template
ControlBox
Two
Screws
Vehicle
Front

15
INSTALLATION INSTRUCTIONS DUCTED CCC

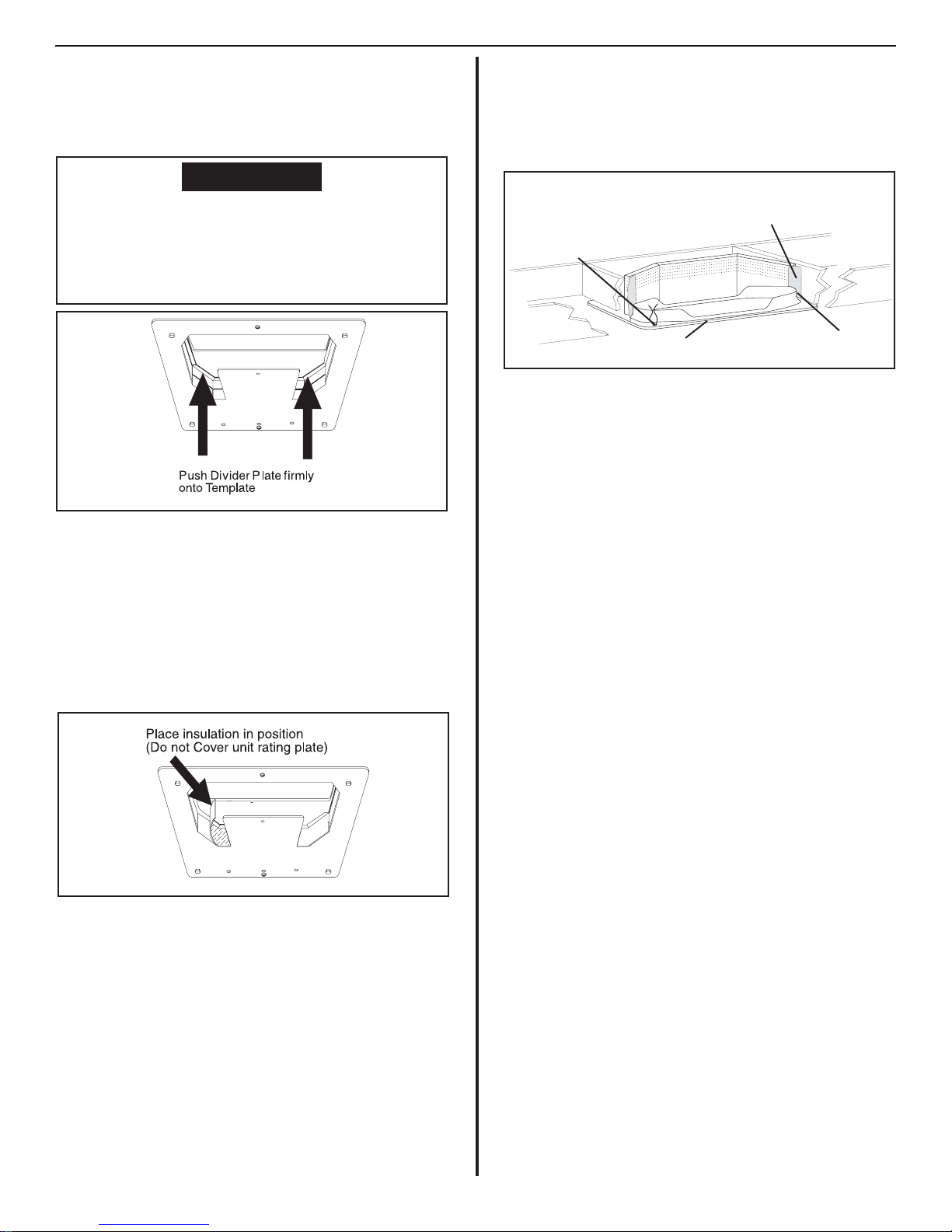

Installing unit with 3105007.XXX or 3105935.XXX
Return Air Cover, continued from page 14, column A.
3. Place divider plate up to bottom of air conditioner
basepanfirmly.Thefoamtapeon the divider plate
must seal to bottom of base pan. See FIG. 17A.
Improper installation and sealing of divider
plate will cause the compressor to quick
cycle on the cold control. This may result in
fuseorcircuitbreakeropeningand/orlackof
cooling.
FIG. 17A
FIG. 18A
Note: The adhesive on the insulation is extremely
sticky. Be sure the part is located where desired
beforepressingintoplace.
4. With slight pressure then push the divider plate
against the double sided tape on the ceiling tem-
plate.
5. Locate the 1/8” x 7” x 18” self -adhesive insulation
suppliedwith the return air kit. Remove thebacking
paper from the insulation and carefully stick onto
theceiling template divider panel. See FIG. 18A.
CAUTION
a. Excesswidthisintendedtosealthedividerplate
to the sides of the 14-1/4" x 14-1/4" (±1/8")
opening.Thisistohelppreventcoldairdischarge
from circulating into the air conditioner return
airopening.
b. If the insulation is too high, stick excess height
ofinsulationtotheairconditionerbase pan. Do
notcover up unit rating plate.
Installing unit with 3105007.XXX or 3105935.XXX
Return Air Cover, continued on page 16, column A.
Installing unit with 3308120.XXX Genesis Air Filtration
System, continued from page 14, column B.
4. Use Aluminum foil tape (not supplied) to seal the
endsof the foamdividertothesides of theopening.
Makesure the area behind the flange ontheceiling
template is sealed. See FIG. 18B.
FIG.18B Use Aluminum Foil Tape ToSealthe
Foam Divider To The Sides of 14-1/4"
x 14-1/4" (±1/8") Ceiling Opening
Make Sure To Seal
BehindFlange
Route wires
through Slot
CatchFlange In Groove Of
Return Air Cover
C. INSTALLATIONOF INSIDE DECORATIVECOVER.
1. Install the slider in the return air cover and raise it
to the ceiling template. Route the wires from the
return air cover through the template slot leaving
about 3” between. Position wires where they can
be reached after plastic cover is installed. See FIG.
18B. Place the front of the return air cover against
the ceiling and slide towards the rear. The flange
on the ceiling template will catch in the groove on
the return cover. Adjust the position (right to left)
and install the front two screws. Start and tighten
the remaining screws to hold it in place.
Note: Number 10 cabinet screw can be used to
replace the two front screws to hold the plastic
coverflush to the ceiling. Connect together the wires
from the thermostat, control box and filter indica-
tor.
a. Connect the red wire from the air conditioner
the red wire from the filter indicator light with
the red positive 12VDC supply wire. See FIG.
18B.
b. Connect the black wire from the air conditioner,
the black wire from the filter indicator light with
the black negative 12VDC supply wire. See
FIG. 18B.
Note: If solar panel is installed see instruc-
tionspackaged with solar panel option.
Installing unit with 3308120.XXX Genesis Air Filtration
System, continued on page 16, column B.

16
INSTALLATION INSTRUCTIONS DUCTED CCC
FIG.19A Return Air
Cover
Hole
Plugs Return
Air Grill
Installing unit with 3105007.XXX or 3105935.XXX
Return Air Cover, continued from page 15, column A.
7. Position the relay control box on the tabs of the
ceilingtemplate.Securethecontrolboxtothetem-
plate with 2 blunt self tapping screws. See FIG.
19A.
C. INSTALLATION OFINSIDE DECORATIVECOVER.
1. Removethe return air grill from the return air cover.
2. Place the return air cover up to the ceiling tem-
plate.
3. Installcovertotemplatewith #8 x 3/8” pointed Phil-
lipsheadscrewsprovided(6required).
4. Reinstall filter return air grill into return air cover.
Aligntabswithmatingnotchesand snap into place
5. Install two hole plugs into screw holes in back of
returnair cover. See FIG. 19A.
6. Thiscompletestheinstallationoftheairconditioner.
We recommend that power be supplied to the air
conditionerandcheckforproper operation.Referto
OperatingManual or User's Guide for a description
oftheairconditioner operation.
Installing unit with 3308120.XXX Genesis Air Filtration
System, continued from page 15, column B.
2. Slide the filter from the right side (looking toward
the RV front) over the wires. Make sure the wires
are secured above the filter and are out of its way.
See FIG. 19B.
3. Place grill on return air cover and snap in place.
Decal is on end over circuit board.
4. Place slide handle through slots in grill into the
slide posts. Handle will fit in either direction. See
FIG. 19B.
5. Thiscompletesthe installationoftheair conditioner.
We recommend that power be supplied to the air
conditionerandcheckforproper operation.Referto
OperatingManual or User's Guide for a description
oftheairconditioner operation.
Micro-ThermFilterSystem
Micro-Therm Filter System
FILTER
RESET
FILTER
RESET
CLEAN
FILTER
CLEAN
FILTER
Return Air
Cover
FIG.19B
Grill
Foam
Divider Ceiling
Template
Slider Filter
Handle

17
INSTALLATION INSTRUCTIONS DUCTED CCC
10. SYSTEM CONFIGURATION, RESET & CHECKOUT
A. ELECTRONICCONTROLCONFIGURATION
Dependingontheequipmentoptionsinstalledbytherecreationalvehiclemanufacturer,theappropriatedipswitcheswillneed
to be switched to the "ON" position. See Fig. 20. Placing the switch in the "ON" position selects that option.
Note: Dip switches are in the "OFF" position when shipped from the factory.
1. Zoneselection-whentwoormoreunitsareinstalledandcontrolledbyoneComfort ControlCenterTM,thesecondunit
becomesZone2,thethirdunitZone3,andthefourthunitZone4.Theappropriatezonedipswitchmustbesetineach
electronic control box for the Zone 2, 3 and 4. See FIG. 20.
2. Heat Strip selection - For units with a heat strip push the #1 dip switch to the "ON" position. See FIG. 20.
3. Heat pump models must have the redplug of the outdoor ambient sensor pluggedinto the RED (P3)plug.
4. Furnace selection - when a furnace has been connected to a zone, place the furnace dip switch "ON" for that zone.
5. Differential - differential is the temperature difference between the "ON/OFF" cycle of the thermostat. The normal
differential is preset in the circuit board with the dip switch set to the "OFF" position. In some situations, it may be
necessarytodecreasetheDifferential.ThelocationofthethermostatmaycreateaconditionwherethenormalDifferential
willnotmaintainyourcomfortzone.Ifthisoccurs,theDifferentialcanbeshortenedbyplacingtheDifferentialdipswitch
in the "ON" position.
Note:SettingtheDifferentialdipswitchshouldonlyberequiredwhentheinstallationconditionsarelessthandesirableand
isnotcoveredunderthe limitedwarranty.
6. STAGE is not used on these units. Leave in the "OFF" position.
7. Gen start selection - leave in the "OFF" position.
8. Replacetheunit electrical box cover.
9. Replacethereturnaircover.
10. Repeatthisprocedureforeachadditionalzone.
B. SYSTEMRESET
After setting the dip switches in the electric box, do a system reset. See FIG. 21.
1. Turn the ON/OFF switch to the "OFF" position.
2. Simultaneously Depress and hold the MODE and ZONE push-buttons while turning the ON/OFF switch to "ON". FF
shouldappearintheLCDdisplayuntiltheMODEandZONE push-buttons are released.
3. Whenadipswitchis turnedonoroff afterinitialconfiguration,a systemresetwillneed tobedonebeforetheComfort
Control CenterTM will recognize the updated selection.
C. SYSTEMCHECKOUT
Verify that all features of the installed system work. Check fan speeds, cooling mode, heat pump mode, furnace (if con-
nected) and heat strip. If the features do not work, check all wiring and confirm that the correct options have been selected
ontheElectronicControlBoard.SeeComfort Control Center™OperatingInstructions.
FIG. 20
12 345
HEAT STRIP
ZONE 2
ZONE 3
ZONE 4
FURNACE
DIP
SWITCHES
DIP
SWITCHES
ON
678
DIFFERENTIAL
STAGE
GEN START
ModePush-Button
FanPush-Button
UpPush-Button
DownPush-Button
ZonePush-Button
MODE
MODE
FAN
FAN
UP
UP
DOWN
DOWN
OFF ON
OFF ON
ZONE
ZONE
TEMP
TEMP
ON/OFFSwitch
FIG. 21

18
INSTALLATION INSTRUCTIONS DUCTED CCC
6 PIN CONN
6PIN CONN
6
5
4
3
2
1
START CAP
RUN CAP
RUN CAP
HERM
C
FAN
MOTOR
COMPRESSOR
O.L.
RS
C
PTCR
RED
WHT
WHT
WHT
WHT
BRN
GRN/YEL
GRN/YEL
BLK
RED
3106610.011
BLU
RED
REVERSING VALVE
REVERSING VALVE
YEL
BLK
BLK
BLK
BLU
YEL
WHT
WHT
YEL
RED
IN-LINE
CONNECTOR
SPLICE CAP
SPLICE CAP
*
PASSED
DIELECTRIC
GRN/YEL
RUN CAP
RUN CAP
*
CAP
START PTCR
3105052.033
*
SOME MODELS
SOME MODELS
NOT USED ON
NOT USED ON
COMPRESSOR
C
MOTOR
HERM
C
FAN
GRN/YEL
COMP STARTER
O.L.
R
*
S
4
6
5
3
2
6 PIN CONN
6 PIN CONN
1
RED
WHT
RED
YEL
BLK
WHT
RED
WHT
BRN
WHT BLU
PASSED
DIELECTRIC
HEAT PUMP FIELD WIRING
UNIT FIELD WIRING DIAGRAM (A/C)
ELECTRONIC FIELD WIRING DIAGRAM
FOR USE WITH AIR CONDITIONER:
FOR USE WITH AIR CONDITIONER:
579, 590, 591, 595, 600, 630
579, 590, 591, 595, 600, 630
509 S. POPLAR ST.
509 S. POPLAR ST.
LAGRANGE, IN 46761
LAGRANGE, IN 46761
115VAC, 60Hz, 1 O
115VAC, 60Hz, 1 O
60 HZ, 1 O
60 HZ, 1 O
3106515.020
USE COPPER
USE COPPER
PASSED
DIELECTRIC
115 VAC,
115 VAC,
GRN/YEL
FURNACE BLU COM NO
2
ELEC HEAT
ELEC HEAT
TO OPT
TO OPT
3
12V -
12V -
12V +
12V +
1
WHT
RED
BLK
GRY
BLK T1
RED
RELAY
YEL
K6
T3
T2
-HEATPUMP MODELS ONLY
-HEATPUMP MODELS ONLY
-NOT USED ON SOME MODELS
-NOT USED ON SOME MODELS
LOAD SHED
LOAD SHED
FURNACE
LOAD SHED
LOAD SHED
FROM A/C
ELEC CONN
ELEC CONN
5
6
4
3
2
1
**
*
WHT
YEL
BLU
YEL
BLK
BLU
CONTROL CENTER
CONTROL CENTER
BLK
FUSE
3 AMP
NO
RELAYK1
COM
P6
T5 P1
P3
P2
P5
TO COMFORT
TO COMFORT
CABLE
RJ-11
AMBIENT
SENSOR
CONTROL
FREEZE
**
FACTORY WIRING
OPTIONAL WIRING
OPTIONAL WIRING
GRN/YEL
F1 P4
WHT
BLK
LINE SPLICE
LINE SPLICE
FIELD WIRING
FIELD WIRING
SENSOR
REMOTE
OPTIONAL
CONDUCTORS
ONLY
SOLAR/FILTER
INDICATOR
IF USED
IF USED
*
*
PART No.
SERIAL No.
SERIAL No.
R
