Dometic L 300 Original operating manual

© Dometic GmbH · 2005 · Subject to change without notice
Publikations-Nr.:
599 5218-07 EN
T.B. KV 01/2008
Service-Instruction
English
VENTILATION SYSTEMS for CARAVAN and MOTORHOME
OTHERS
4690
L 100
L 200
L 300
LS 300
L 500
R 500
for Single Door Refrigerators
for Double Door Refrigerators
for Roof mounting

2
The instruction on hand is completed and revised regularly
The instruction on hand is completed and revised regularly. .
Table of Contents
Page
1.0 L 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Air vent grid complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Air vent grid above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Winter cover above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Frame above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Boss for air vent grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Locking screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.0 L 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Air vent grid bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Winter cover bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Frame bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Locking screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.0 L 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Air vent grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Winter cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Locking screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.0 LS 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 Air vent grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4,2 Winter cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4,3 Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.4 Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.0 Insert for winter operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.0 L 500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.1 Air vent grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.2 Winter cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.3 Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.4 Locking screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.0 R 500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1 Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.2 Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.3 Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.4 Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.0 INSTALLATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8.1 L 100 / L 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8.2 L 300 / L 500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8.3 LS 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8.4 R 500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9.0 VENTILATION KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10.0 BULLETIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

L100 (manufactured since October 2002)
Air vent grid, cpl., above, 479mm x 185, 2mm
(consists of air vent grid, boss and locking screw)
3
1.0
1.1
with Dometic Logo, with mosquito-net:
241 2864-31/2, colour beige RU 1020
241 2864-32/0, colour white 20/3306
241 2864-33/8, colour grey RAL 7001
241 2864-34/6, colour Fiat Bianco 210
241 2864-36/1, colour light grey NCS 3000
241 2864-40/3, colour grey RAL 7015
241 2864-43/7, colour grey RAL 7015
241 2864-44/5, colour grey NCS 7000
241 2864-45/2, colour grey RAL 7012
241 2864-47/8, colour black-grey RAL 7021
241 2864-48/6, colour silver RAL 9006
without Dometic Logo, with mosquito-net:
241 2864-52/8, colour white 20/3306
with Dometic Logo, without mosquito-net:
241 2864-35/3, colour nature
241 2864-38/7, colour grey RAL 7040
241 2864-39/5, colour grey 4 RAL 7047
241 2864-60/1, colour grey RAL 7015
241 2864-61/9, colour white RAL 9003
241 2864-63/5, colour grey RAL 7015
without Dometic Logo, without mosquito-net:
241 2864-42/9, colour white 20/3306

4
Air vent grid, above, 479mm x 185, 2mm
(consists of air vent grid and locking screw)
Winter cover, above, 371mm x 130,5mm
(consists of cover and two locking screws)
1.3
295 2105-00/1, colour beige 10/028
295 2105-01/9, colour white 20/3304
295 2105-02/7, colour grey RAL 7001
295 2105-03/5, colour Fiat Bianco 210
295 2105-06/8, colour light grey NCS 3000
295 2105-08/4, colour grey RAL 7040
295 2105-09/2, colour grey 4 RAL 7047
295 2105-20/9, colour white RAL 9003
295 2105-21/7, colour grey RAL 7015
295 2105-22/5, colour grey NCS 7000
295 2105-23/3, colour grey RAL 7015
295 2105-25/8, colour grey RAL 7012
295 2105-27/4, colour black-grey RAL7021
295 2105-28/2, colour silver RAL 9006
1.2
with Dometic Logo, with mosquito-net:
241 2857-30/8, colour beige RU 1020
241 2857-31/6, colour white 20/3306
241 2857-32/4, colour grey RAL 7001
241 2857-33/2, colour Fiat Bianco 210
241 2857-36/5, colour light grey NCS 3000
241 2929-30/5, colour grey RAL 7015
241 2929-32/1, colour grey NCS 7000
241 2929-33/9, colour grey RAL 7015
241 2929-35/4, colour grey RAL 7012
241 2929-37/0, colour black-grey RAL 7021
241 2929-38/8, colour silver RAL 9006
without Dometic Logo, with mosquito-net:
241 2857-51/4, colour white 20/3306
with Dometic Logo, without mosquito-net:
241 2857-25/8, colour nature
241 2857-28/2, colour grey RAL 7040
241 2857-29/0, colour grey 4 RAL 7047
241 2857-60/5, colour grey RAL 7015
241 2857-61/3, colour white RAL 9003
241 2857-63/9, colour grey RAL 7015
without Dometic Logo, without mosquito-net:
241 2857-41/5, colour white 20/3306

Frame, above, 475mm x 180mm
Boss for air vent grid, 70mm x 147,2mm
Locking screw
5
1.6
295 1766-00/1, colour beige RU 1020
295 1766-01/9, colour white 20/3304
295 1766-02/7, colour grey RAL 7001
295 1766-03/5, colour Fiat Bianco 210
295 1766-05/0, colour nature
295 1766-06/8, colour light grey NCS 3000
295 1766-07/6, colour silver metallic
295 1766-08/4, colour grey RAL 7040
295 1766-09/2, colour grey 4 RAL 7047
295 1766-10/0, colour grey RAL 7015
295 1766-11/8, colour white RAL 9003
295 1766-12/6, colour grey NCS 7000
295 1766-14/2, colour grey RAL 7004
295 1766-15/9, colour grey RAL 7012
295 1766-17/5, colour black-grey RAL 7021
295 1766-18/3, colour silver RAL 9006
295 1766-94/4, colour grey NCS 7000, 50 pieces
295 1766-95/1, colour light grey NCS 3000, 50 pieces
295 1766-96/9, colour Fiat Bianco 210, 50 pieces
295 1766-97/7, colour grey RAL 7001, 50 pieces
295 1766-98/5, colour beige RU 1020, 50 pieces
295 1766-99/3, colour white 20/3304, 50 pieces
1.4
without seal
295 1771-20/9, colour nature
295 1771-27/4, colour black-grey RAL 7021
295 1771-50/6, colour grey RAL 7015
with seal
241 2755-10/6, colour nature
1.5
295 1767-00/9, colour beige RU 1020
295 1767-01/7, colour white 20/3304
295 1767-02/5, colour grey RAL 7001
295 1767-03/3, colour Fiat Bianco 210
295 1767-05/8, colour nature
295 1767-06/6, colour light grey NCS 3000
295 1767-08/2, colour grey RAL 7040
295 1767-09/0, colour grey 4 RAL 7047
295 1767-10/8, colour grey RAL 7015
295 1767-11/6, colour white RAL 9003
295 1767-12/4, colour grey NCS 7000
295 1767-15/7, colour grey RAL 7012
295 1767-17/3, colour black-grey RAL 7021
295 1767-18/1, colour silver RAL 9006

L200 (manufactured since October 2002)
Air vent grid, bottom, 479mm x 185, 2mm
(consists of air vent grid and locking screw)
Winter cover, bottom , 442,5mm x 130,5mm
(consists of cover and two locking screws)
6
2.0
2.1
with Dometic Logo, with mosquito-net:
241 2858-30/6, colour beige RU 1020
241 2858-31/4, colour white 20/3306
241 2858-32/2, colour grey RAL 7001
241 2858-33/0, colour Fiat Bianco 210
241 2858-36/3, colour light grey NCS 3000
241 2858-37/1, colour silver metallic
241 2930-30/3, colour grey RAL 7015
241 2930-32/9, colour grey NCS 7000
241 2930-33/7, colour grey RAL 7015
241 2930-34/5, colour grey RAL 7004
241 2930-35/2, colour grey RAL 7012
241 2930-37/8, colour black-grey RAL 7021
241 2930-38/6, colour silver RAL 9006
without Dometic Logo, with mosquito-net:
241 2858-51/2, colour white 20/3306
with Dometic Logo, without mosquito-net:
241 2858-25/6, colour nature
241 2858-28/0, colour grey RAL 7040
241 2858-29/8, colour grey 4 RAL 7047
241 2858-60/3, colour grey RAL 7015
241 2858-61/1, colour white RAL 9003
241 2858-63/7, colour grey RAL 7015
without Dometic Logo, without mosquito-net:
241 2858-41/3, colour white 20/3306
2.2
295 2105-10/0, colour beige 10/028
295 2105-11/8, colour white 20/3304
295 2105-12/6, colour grey RAL 7001
295 2105-13/4, colour Fiat Bianco 210
295 2105-15/9, colour nature
295 2105-16/7, colour light grey NCS 3000
295 2105-18/3, colour grey RAL 7040
295 2105-19/1, colour grey 4 RAL 7047
295 2105-30/8, colour white RAL 9003
295 2105-31/6, colour grey RAL 7015
295 2105-32/4, colour grey NCS 7000
295 2105-33/2, colour grey RAL 7015
295 2105-35/7, colour grey RAL 7012
295 2105-37/3, colour black-grey RAL7021
295 2105-38/1, colour silver RAL 9006

Frame, bottom, 475mm x 180mm
Locking screw
see item 1.6
7
2.3
without seal
295 1771-30/8, colour nature
295 1771-37/3, colour black-grey RAL 7021
295 1771-40/7, colour grey RAL 7015
with seal
241 2755-00/7, colour nature
2.4

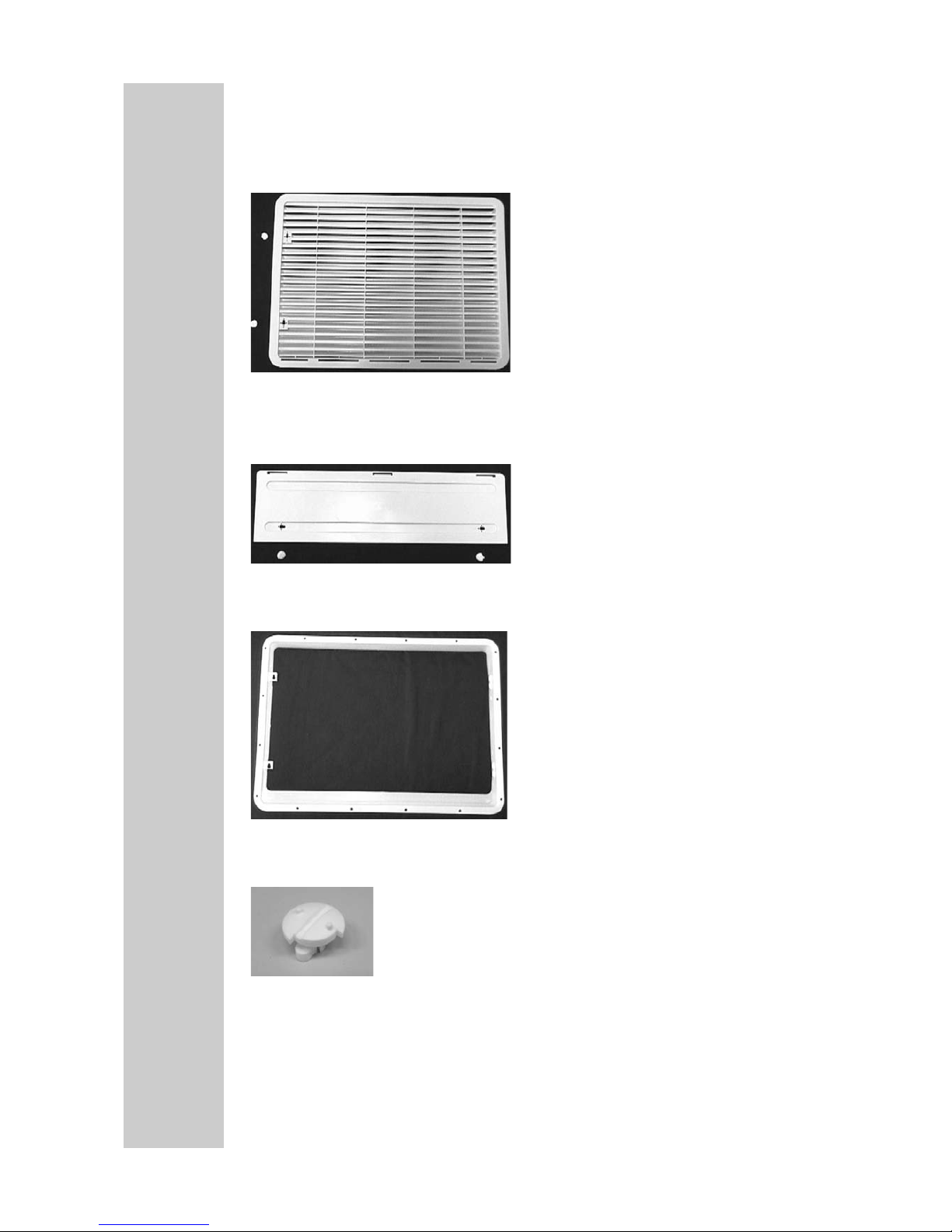

L300 (manufactured since June 2005)
Air vent grid, 518mm x 277mm
(consists of air vent grid and two locking screws)
Winter cover, 482mm x 223mm
(consists of cover and two locking screws)
Frame, 514mm x 273mm
Locking screw
see item 1.6
8
3.0
3.1
3.2
3.3
3.4
with Dometic Logo, with mosquito-net:
241 3207-57/8, colour beige NCS S0505-Y20R
241 3207-58/6, colour white NCS S0500-N
241 3207-59/4, colour Fiat Bianco 210
241 3207-60/2, colour light grey NCS 2500-N
241 3207-62/8, colour grey NCS 7000
241 3207-63/6, colour grey 4 RAL 7047
241 3207-65/1, colour grey RAL 7012
241 3207-66/9, colour grey RAL 7040
without Dometic Logo, with mosquito-net:
241 3207-08/1, colour white NCS S0500-N
241 3205-00/2, colour beige NCS S0505-Y20R
241 3205-01/0, colour white NCS S0500-N
241 3205-02/8, colour Fiat Bianco 210
241 3205-03/6, colour light grey NCS 2500-N
241 3205-04/4, colour grey NCS 7000
241 3205-05/1, colour grey 4 RAL 7047
241 3205-15/0, colour grey RAL 7012
241 3205-16/8, colour grey RAL 7040
293 3078-55/8, colour nature

LS300 (manufactured since October 2007)
Air vent grid, 518mm x 277mm
(consists of air vent grid and two locking sliders)
Winter cover, 482mm x 223mm
(consists of cover and two locking screws)
Frame, 514mm x 273mm
Locking screw
see item 1.6
Locking slider
9
4.0
4.1
4.2
4.3
4.4
with Dometic Logo, with mosquito-net:
241 3207-87/5, colour beige NCS S0505-Y20R
241 3207-88/3, colour white NCS S0500-N
241 3207-89/1, colour Fiat Bianco 210
241 3207-80/0, colour light grey NCS 2500-N
241 3207-82/6, colour grey NCS 7000
241 3207-83/4, colour grey 4 RAL 7047
241 3207-85/9, colour grey RAL 7012
241 3207-86/7, colour grey RAL 7040
without Dometic Logo, with mosquito-net:
241 3207-78/4, colour white NCS S0500-N
241 3205-00/2, colour beige NCS S0505-Y20R
241 3205-01/0, colour white NCS S0500-N
241 3205-02/8, colour Fiat Bianco 210
241 3205-03/6, colour light grey NCS 2500-N
241 3205-04/4, colour grey NCS 7000
241 3205-05/1, colour grey 4 RAL 7047
241 3205-15/0, colour grey RAL 7012
241 3205-16/8, colour grey RAL 7040
293 3078-60/8, colour nature
295 1766-30/8, Farbe beige RU 1020
295 1766-31/6, Farbe weiß 20/3304
295 1766-33/2, Farbe Fiat Bianco 210
295 1766-36/5, Farbe hellgrau NCS 3000
295 1766-38/1, Farbe Fenstergrau RAL 7040
295 1766-39/9, Farbe Telegrau 4 RAL 7047
295 1766-42/3, Farbe grau NCS 7000
295 1766-45/6, Farbe grau RAL 7012

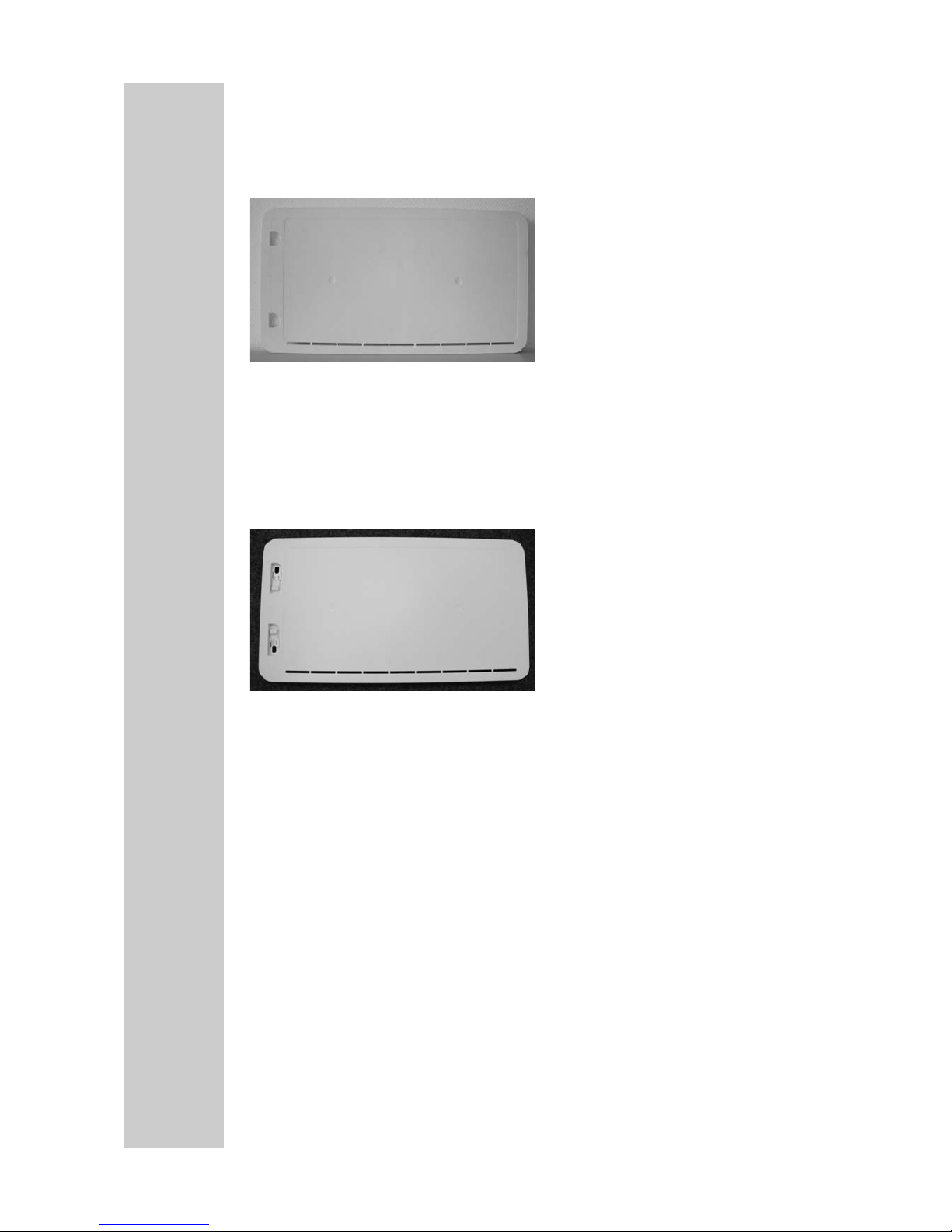

Insert for winter operation
EW300, 518 mm x 277 mm
(consists of insert and two locking screws, accessories)
EWS300, 518 mm x 277 mm
(consists of insert and two locking sliders, accessories)
10
This inset can be used instead of the lower ventilation grid, if
the outdoor temperature is lower than 0°C.
This inset can be used instead of the lower ventilation grid, if
the outdoor temperature is lower than 0°C.
5.0

L500

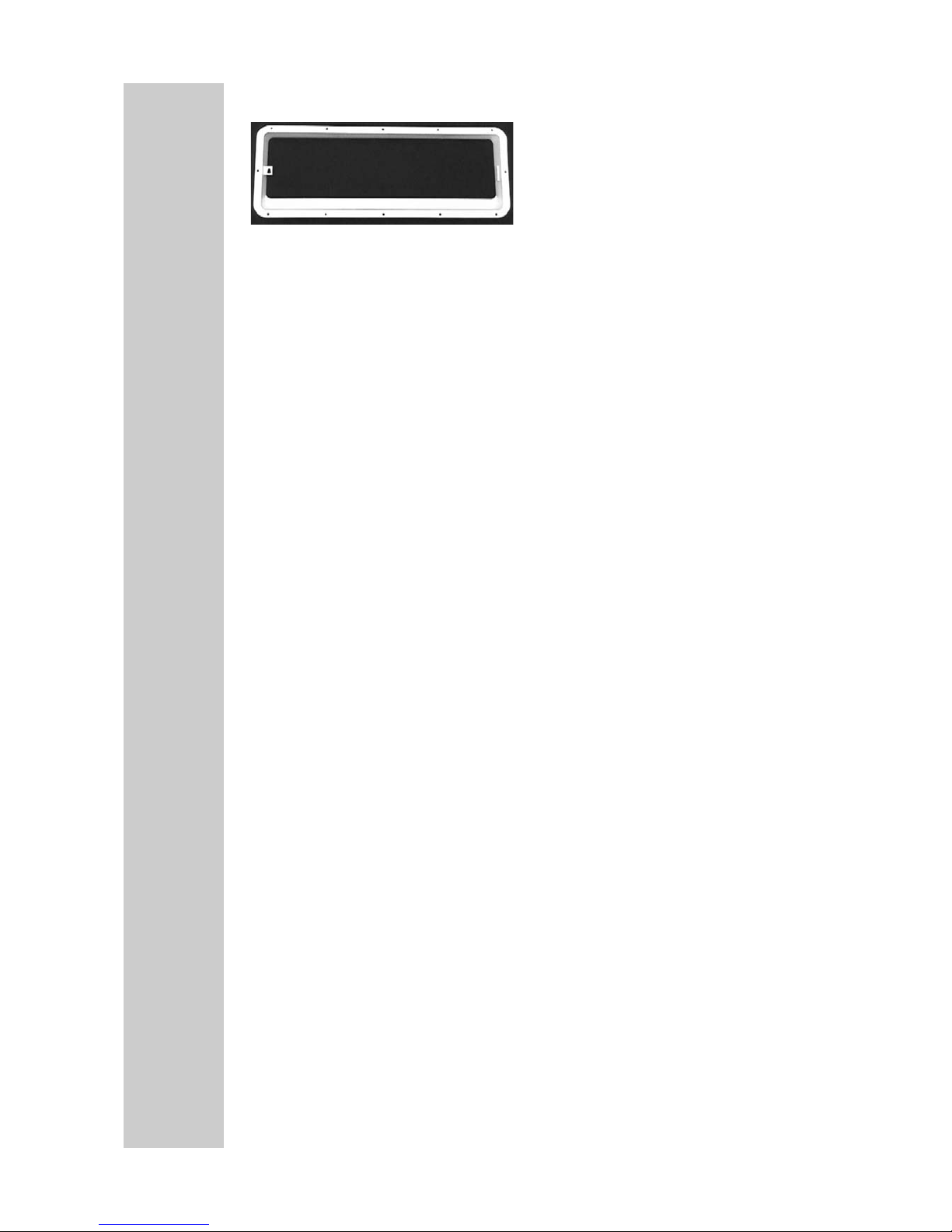

Air vent grid, 479mm x 371, 2mm
(consists of air vent grid and two locking screws)
Winter cover, bottom, 442,5mm x 130,5mm
(consists of cover and two locking screws)
Frame, 475mm x 365,6mm
Locking screw
11
6.1

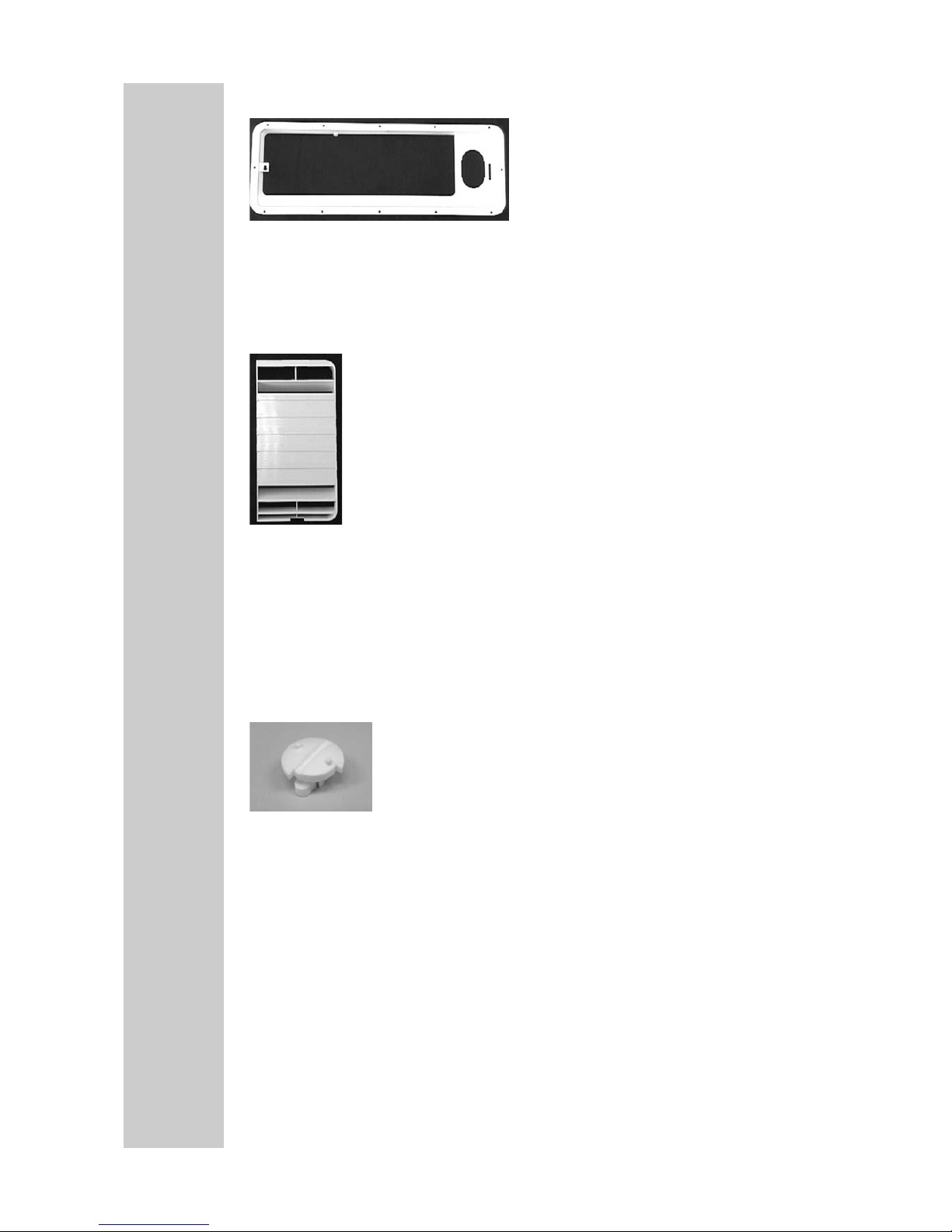

with Dometic Logo, with mosquito-net:
293 3076-57/8, colour beige RU 1020
293 3076-58/6, colour white 20/3304
293 3076-59/4, colour Fiat Bianco 210
293 3076-60/2, colour light grey NCS 3000
293 3076-62/8, colour grey NCS 7000
293 3076-64/4, colour grey RAL 7004
without Dometic Logo, with mosquito-net:
293 3076-08/1, colour white
6.2
295 2105-10/0, colour beige RU 1020
295 2105-11/8, colour white 20/3304
295 2105-13/4, colour Fiat Bianco 210
295 2105-16/7, colour light grey NCS 3000
6.3
without seal
293 3078-05/3, colour nature
6.4
295 1766-00/1, colour beige RU 1020
295 1766-01/9, colour white 20/3304
295 1766-03/5, colour Fiat Bianco 210
295 1766-06/8, colour light grey NCS 3000
295 1766-12/6, colour grey NCS 7000
295 1766-14/2, colour grey RAL 7004
295 1766-94/4, colour grey NCS 7000, 50 pieces
295 1766-95/1, colour light grey NCS 3000, 50 pieces
295 1766-96/9, colour Fiat Bianco 210, 50 pieces
295 1766-98/5, colour beige RU 1020, 50 pieces
295 1766-99/3, colour white 20/3304, 50 pieces
6.0

R500

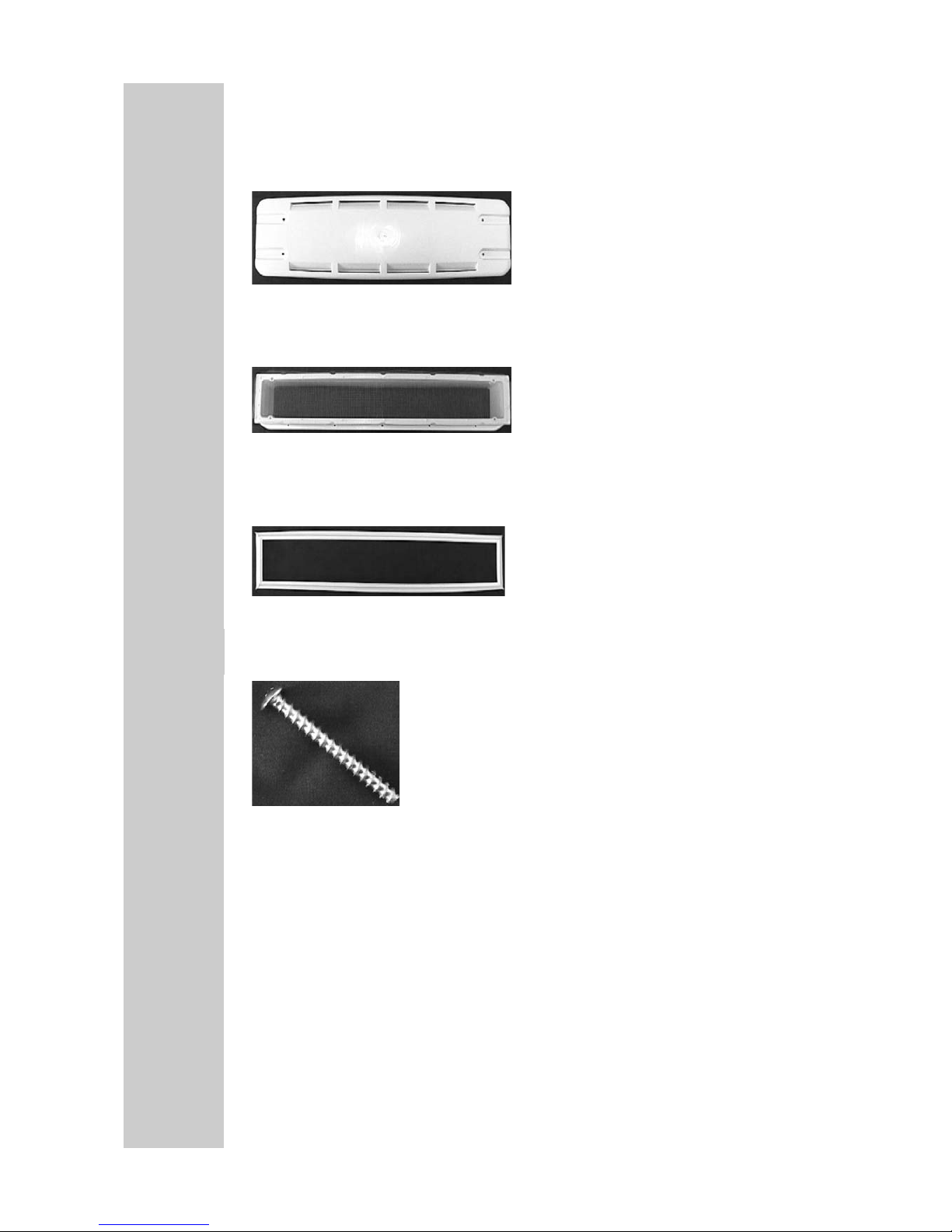

Cover, 598mm x 190mm
Frame, 550mm x 125mm
Seal, 535mm x 125mm
Screws
12
7.0
7.1
293 3174-01/9, colour white
7.2
293 3175-01/6, colour white
7.3
293 3177-01/2, colour white
385 8049-01/2, stainless, 5x 45
7.4

INSTALLATION GUIDE
L100/L200
13
8.0
8.1
6
Fig. 1
Fig. 2 Fig. 3

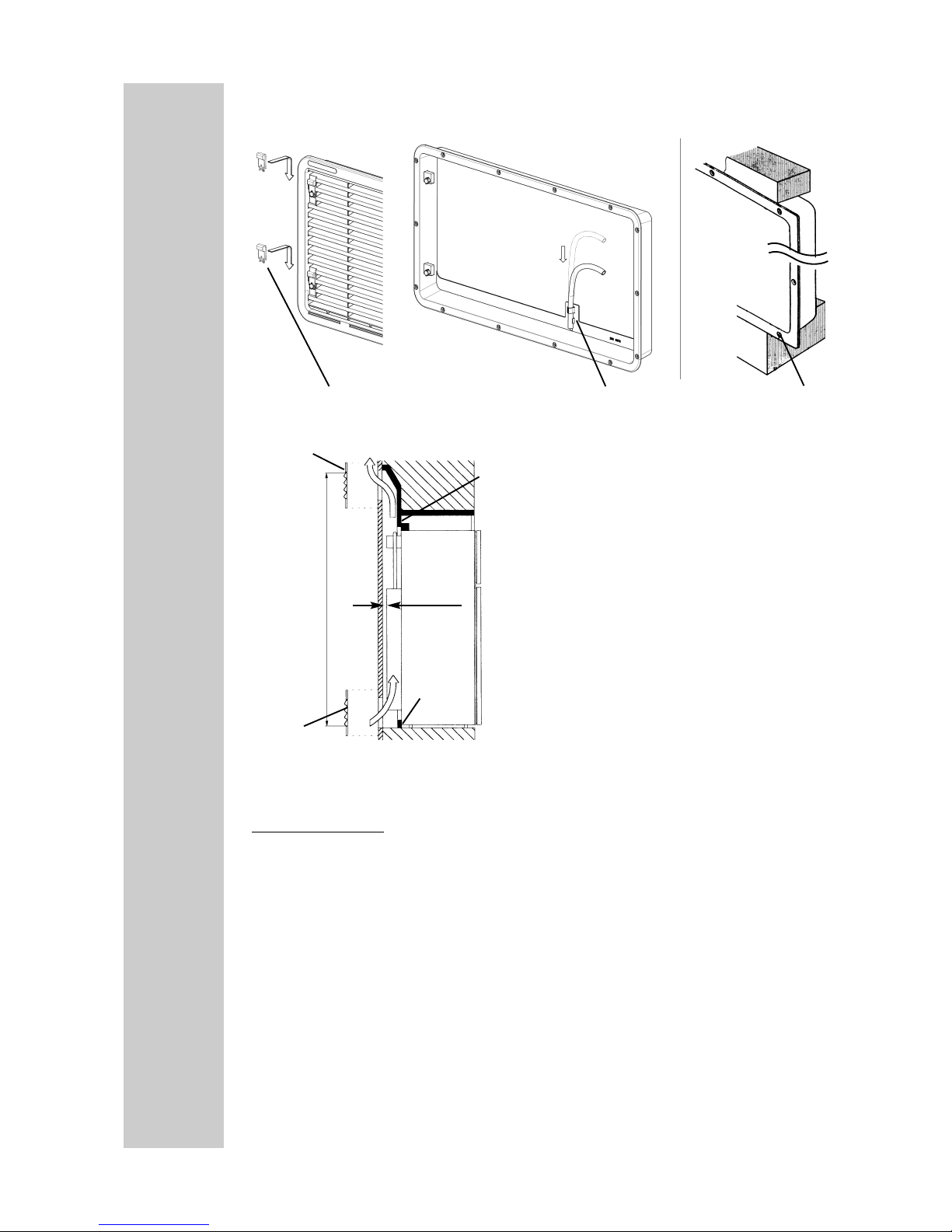

Installation steps
1. Cut out a rectangle (width 451mm, height 156mm) in the external wall and
install the frame (1) with screws.
2. Push the exhaust pipe with cover (2) through the opening in the frame and
connect it to the exhaust system of the refrigerator.
3. Position the ventilation grid (4) into the frame (1) and fasten it with the
locking screw (6).
4. Place the cover cap (3) on the exhaust pipe (2).
5. Click in the inset for the exhaust conduction (5).
Please note, that the lower ventilation grid does not have the parts for the
exhaust conduction.
The upper ventilation grid should be positioned as high as possible above
condenser (A).
The lower ventilation grid should be flush with the floor of the vehicle.
12345

L300/L500
14
8.2
Fig. 1 1
23
L500
L500
10-20mm
B
B
H
A
A= Condenser
B= Stopper strip with profiled joint
H= Ventilation height
Fig. 2
Installation steps
1. Cut out a rectangle (L300:width 490mm, height 249mm, L500:width 451mm,
height 341mm) in the external wall and install the frame (1) with screws.
2. Position the ventilation grid (2) into the frame (1) and fasten it with the
locking screws (3).
Please note, that this ventilation grid does not have the parts for the
exhaust conduction.
The upper ventilation grid should be positioned as high as possible above
condenser (A).
The lower ventilation grid should be flush with the floor of the vehicle.
Minimum ventilation height (H) = ca. 1400mm − 1500mm

LS300
15
8.3
Fig. 1 1
23
LS 300
LS 300
10-20mm
B
B
H
A
A= Condenser
B= Stopper strip with profiled joint
H= Ventilation height
Fig. 2
Installation steps
1. Cut out a rectangle (L300:width 490mm, height 249mm, L500:width 451mm,
height 341mm) in the external wall and install the frame (1) with screws.
2. Position the ventilation grid (2) into the frame (1) and fasten it with the
locking sliders (3).
Please note, that this ventilation grid does not have the parts for the
exhaust conduction.
The upper ventilation grid should be positioned as high as possible above
condenser (A).
The lower ventilation grid should be flush with the floor of the vehicle.
Minimum ventilation height (H) = ca. 1400mm − 1500mm

R500
16
8.4
Fig. 1
Fig. 2
Installation steps
1. Cut out a rectangle (width 87mm, length 507mm) in the vehicle roof, seal the
frame and install it with screws.
2. Position the cover into the frame and fasten it with the screws.

VENTILATION KIT
(Part Nummer: 241 2985-00)
17
9.0
Connect the cable to a
permanent attached
12V DC power supply
with the right polarity
(mount an additional
switch if wanted).
The cable must be laid in such a way that it does not come in
contact with hot components of the unit/burner or with sharp
edges.

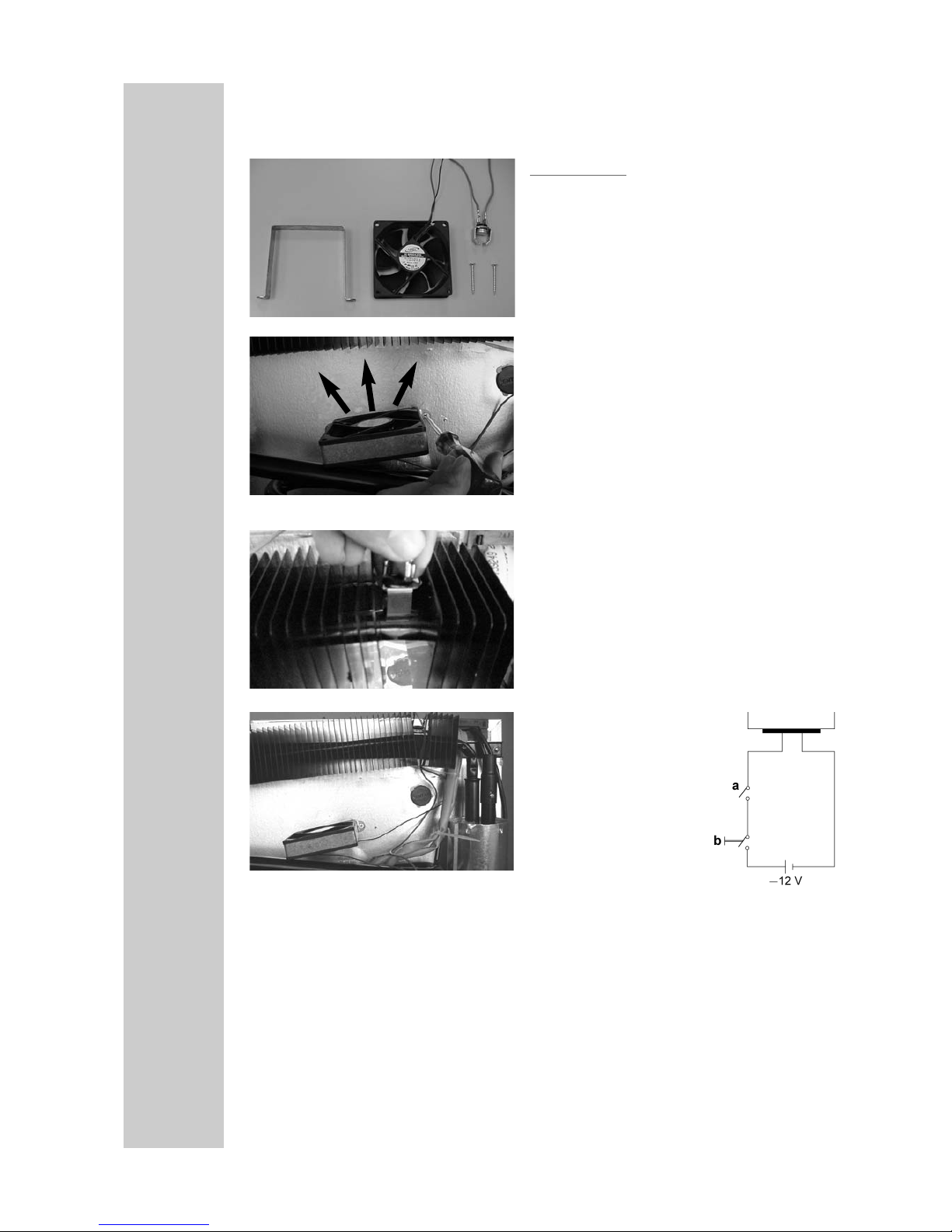

CONTENTS
Reinforcing plate with doublesided
adhesive tape
Metal holder for ventilator
12V-DC-ventilator
Bimetal-switch with connection cable
The Bimetal-switch is clicked onto the
condenser pipe, as shown.
Mount ventilator with holder and two
screws between condenser and absorb-
tion unit. (Use reinforcing plate at appli-
ances with no metal rear!)
.
IMPORTANT! The ventilator has to be
installed with the same slope like the
condenser fins. By this the generated air
stream is always lead in an upper direc-
tion.
Installing an additional fan is useful, if due to unfavourable built−in conditions
and / or constantly high ambient temperature the ventilation of the cooling unit
is affected, and there is worsening of cooling performance.
Fan

18
SERVICE BULLETIN
Dometic GmbH, In der Steinwiese 16, D-57074 Siegen
COOLING
Caravan Refrigerators
3110

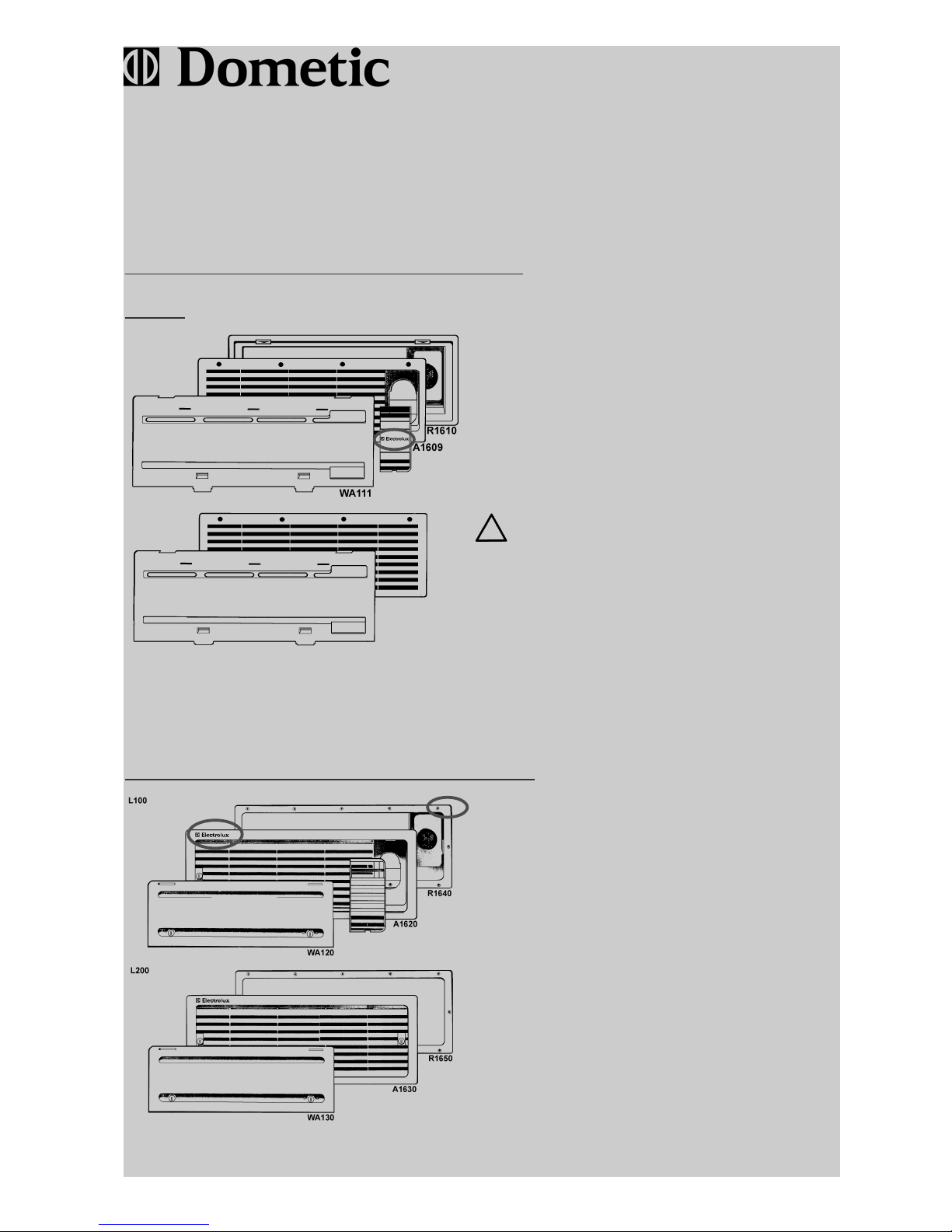

Differentiation of the ventilation systems
A1609
Publication-No.: 599 5091-94 en / Service reviced at 2002.12.10 BO/ KV
Characteristics:
- The logo “Electrolux” is on the boss for exhaust
device.
- The air vent grill is visible fixed (8 screws).
- The ventilation system was built up to 1993.
Cutout Dimensions for R1610:
485mm x 185mm
Attention
- The ventilation system is available in the
colour beige only.
- The ventilation system can only be changed
into a newer one, if the frame (R1610) was not
used (Because if the frame was used, the
cutout dimensions are to large.)
For the spare parts, please have a look to the model A1609
L100/L200 (manufacture up to septembre 2002)
For the spare parts, please have a look to the model L100/L200
Characteristics:
- The corners of the ventilation system have a
small (R=5mm) radius.
- The logo “Electrolux” is on the frame.
- The frame R1640/1650 is secret fixed (12
screws).
Cutout Dimensions: 451mm x 156mm

19
L100/L200 (manufacture since Octobre 2002)
For the spare parts, please have a look to the model L100/L200
Characteristics:
- The corners of the ventilation system have a
big (R=28mm) radius.
- The logo “Dometic” is on the frame.
- The frame R1640/1650 is secret fixed (12
screws).
Cutout Dimensions: 451mm x 156mm
L500 (Ventilation system for refrigerators >103L)
For the spare parts, please have a look to the model L500
Characteristics:
- The logo “Dometic” is on the frame.
- The frame is secret fixed (16 screws).
- The corners of the ventilation system have a
small (R=5mm) radius.
Cutout Dimensions: 451mm x 341mm
Attention
Winter cover have a look at L200 (2 pieces)
R500 (Roof ventilation system)
For the spare parts, please have a look to the model R500
Characteristics:
Cutout Dimensions: 87mm x 507mm

Dometic GmbH
Technisches Büro Service Dokumentation
In der Steinwiese 16
D-57074 Siegen
Tel.: +49 (0) 271 / 692-0
Fax.: +49 (0) 271 / 692-322
www.dometic.de/caravan
www.dometic.com
